SB Acoustics 6" SB16PFCR25-4-COAX

Vented reinforced plastic chassis


  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for improved transient response
  • Optimized motor system
  • Non-resonant long life lead wires
  • Compact large surround dome tweeter
  • Kompakter Kalottenhochtöner mit großer Sicke
Properties

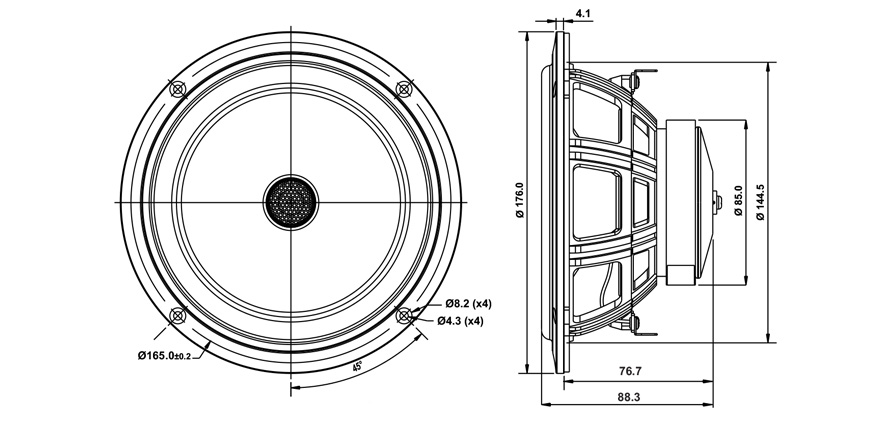

Außenmaß: 176mm
Eff. Membranfläche (Sd): 119cm²
Effektive Bewegte Masse (Mms): 12,5g
Einbautiefe: 88,3 mm
Einbauöffnung: 144,5mm
Gesamtgüte (Qts): 0,31
Gleichstromwiderstand (Re): 3,2Ω
Impedanz (Z): 4 Ohm
Kraftfaktor (BL): 5,1 N/A
Lineare Auslenkung (Xmax): +/- 4,65mm
Nennbelastbarkeit: 40 W
Resonanzfrequenz (fs): 36 Hz
Schwingspulendurchmesser: 25,4mm
Schwingspulenind. (Le): 0,31 mH
Äquivalentvolumen (Vas): 31,3l
Data according to manufacturer. Errors and changes reserved.
Skip product gallery

Accessory Items

Koax6BR Lautsprecherbausatz
Koax6BR Lautsprecherbausatz

Koax6BR Speaker Kit Conclusion from hifitest.de Dynamically speaker with excellent spatiality and extremely fair price. hifitest.de Koax6BR 2-Way Main and Center Speaker Assembly: 6" coaxial, crossover components Mundorf Hi-Quality: Properties: Kompakte Bassreflex-Box mit 6 Zoll Koaxialen zwei Wege System. Everything from one, so their motto that theybestens erfüllt. 40Hz to over 20000Hz (thus far beyond human hearing) is covered by the Koax6BR.Stage image, spatial representation so real as if you were there and with enough headroom that youenjoy his favorite music louder than room volume. Technical Specifications: Frequency range:       f-3dB: 40-20000Hz SPL:                            86dB Gesamtimpedanz:      4 Ohm ((Nom.) Principle of operation:       Bass reflex B/H/T:                      238x458x280mm   Scope of delivery: 6" Coaxial 2-Way Speaker Chassis Connection terminal Frequency Crossover Components (Loose) Insulation material Internal wiring Screws Bass reflex tube   As variant selection, baffle and cabinet cut, up to fully glued andPainted housing, can be ordered additionally. The selected quantity refers to pieces,nota couple. The shown cases are examples. Bevels of this type can only be applied to fully gluedGehäuse (MDF raw or black MDF raw) or offered as finished painted enclosures, not fromEnclosure Cut!

Regular price: €120.95
Only 2 available
Koax6Effekt Lautsprecherbausatz
Koax6Effekt Lautsprecherbausatz

Koax6Effect Speaker Kit Koax6Effect 2-Way Main, Center, and Effect Speakers Assembly: 6“ Coaxial, Crossover components Mundorf Hi-Quality: Properties: Die sehr kompakte geschlossene Box Koax6Effekt erstaunt durch ihre Grundtonstärke aus nur 6 Liter. Best suited for various applications even without low-frequency support or as a high-qualitySatellit as stereo base, main and center as well as rear speakers. We see its special talentjedoch als ultimativen Effekt Lautsprecher in Dolby multichannel applications such as Atmos and Aurum. DerKoax6Effect is dynamic, plays plastically, and is uniform as a point sound source. Technical Specifications: Frequency range:       f-3dB: 80-20000Hz SPL:                            86dB Gesamtimpedanz:      4 Ohm ((Nom.) Funktionsprinzip:       Closed B/H/T:                      300x300x110mm   Scope of delivery: 6" Coaxial 2-Way Speaker Chassis Connection terminal Crossover Components (Loose) Insulation material Internal wiring Screws   As variant selection, baffle and housing cut, up to fully glued andPainted housing, can be ordered additionally. Bei der ausgewählten Anzahl handelt es sich um pieces,nota couple. <p>The cases shown are examples. Bevels of this type can only be applied to fully glued</p>Cases (raw MDF or black raw MDF) or offered as fully painted cases, not fromEnclosure Cut!

Regular price: €116.00
