SB Acoustic 4" SB12PFCR25-4-COAX
Skip image gallery

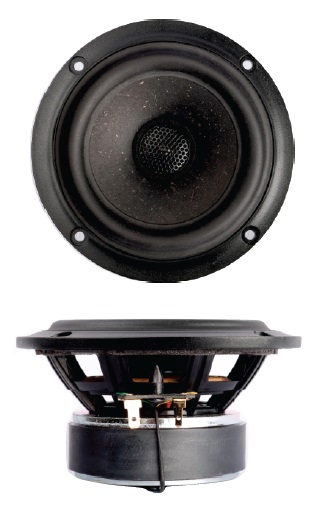

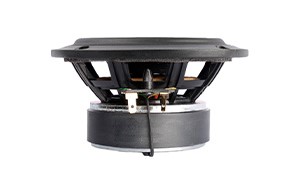

Picture similar to product
Product number:
V11107
Manufacturer:
SB Acoustics
Weight:
1 kg
Available stock:
12
Min. order quantity:
1
Vented reinforced plastic chassis
- Proprietary cone material with natural fibers made in-house
- Soft low damping rubber surround for improved transient response
- Optimized motor system
- Non-resonant long life lead wires
- Compact large surround dome tweeter
- Kompakter Kalottenhochtöner mit großer Sicke
Properties

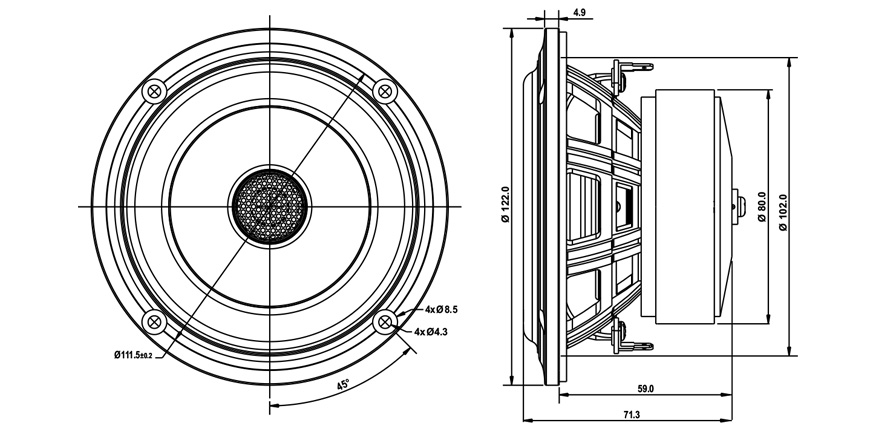

| Außenmaß: | 122mm |
|---|---|
| Eff. Membranfläche (Sd): | 45cm² |
| Effektive Bewegte Masse (Mms): | 4,5g |
| Einbautiefe: | 59 mm |
| Einbauöffnung: | 102 mm |
| Gesamtgüte (Qts): | 0,33 |
| Gleichstromwiderstand (Re): | 3,1Ω |
| Impedanz (Z): | 4 Ohm |
| Kraftfaktor (BL): | 3,8 N/A |
| Lineare Auslenkung (Xmax): | +/- 5mm |
| Nennbelastbarkeit: | 30 W |
| Resonanzfrequenz (fs): | 58 Hz |
| Schwingspulendurchmesser: | 25,4mm |
| Schwingspulenind. (Le): | 0,26 mH |
| Äquivalentvolumen (Vas): | 4,8l |
Data according to manufacturer. Errors and changes reserved.
Skip product gallery
Accessory Items
Only 4 available
Koax4Effekt Lautsprecherbausatz
€99.95*
Koax4Effect Speaker Kit2-Way Effect Speaker
Assembly:
4“ Coaxial, Crossover Components Mundorf Hi-Quality:
Properties:
Coax 4 Effect
Very small closed box, ideal with subwoofer support, if it discreetly blends into the homeWänden integriert werden soll. It is also excellent as a home theater rear, as Dolby Atmos andAuro 3D the so-called "Surround Height" or also "Center of God".
Freestanding on the sideboard, close to the wall or on the desk, with the support of a subwooferconvinces the Koax 4 with sonic fidelity, overwhelming stage imaging, and room-fillingexcellent sound reproduction.
Technical Specifications:
Frequenzumfang: f-3dB: 100-20000Hz
SPL: 84dB
Gesamtimpedanz: 4 Ohm ((Nom.)
Funktionsprinzip: Closed
B/H/T: 190x190x85mm
Scope of delivery:
4" Coaxial 2-Way Speaker Chassis
Connection terminal
Crossover Components (Loose)
Insulation material
Internal wiring
Screws
As variant selection, you can choose baffle and cabinet cut, up to fully glued andPainted housing, can be ordered additionally.
Bei der ausgewählten Anzahl handelt es sich um Stück,noa pair.
<p>The shown cases are examples. Chamfers of this type can only be applied to fully glued</p>enclosures (MDF raw or black MDF raw) or offered as fully painted enclosures, not fromHousing cut!
Only 6 available
Koax4BR Lautsprecherbausatz
€99.95*
Koax4BR Speaker KitKoax4BR
2-Way Main and Effect Speakers
Assembly:
4" Coaxial, Crossover Components Mundorf Hi-Quality:
Properties:
The outstanding spatial stage imaging of coaxial speakers is held in high regard by connoisseurs.Was such a small 10cm coax can produce from a 3-liter enclosure in terms of fabulous detailed homogeneousand staggered musical experience conjures up, admittedly surprised us a little too. The dwarfgelingt a considerable volume potential, for such a tiny device. A small box that also aAmplifier in the high-end price range, a worthy partner.
Scope of delivery:
4" Coaxial 2-Way Speaker Chassis
Connection terminal
Frequency Crossover Components (Loose)
Insulation material
Internal wiring
Screws
As variant selection, baffle and cabinet cut, up to fully glued andPainted housing, can be ordered additionally.
The selected quantity refers to pieces, not pairs.
<p>The shown cases are examples. Chamfers of this kind can only be applied to fully glued</p>Gehäuse (MDF raw or black MDF raw) or offered as finished painted enclosures, not made ofEnclosure Cut!
