Roger Lautsprecherbausatz

Skip image gallery
Picture similar to product

€186.90*

Prices incl. VAT plus shipping costs

Product number: B3150
Manufacturer: variant
Weight: 0.001 kg
Min. order quantity: 1

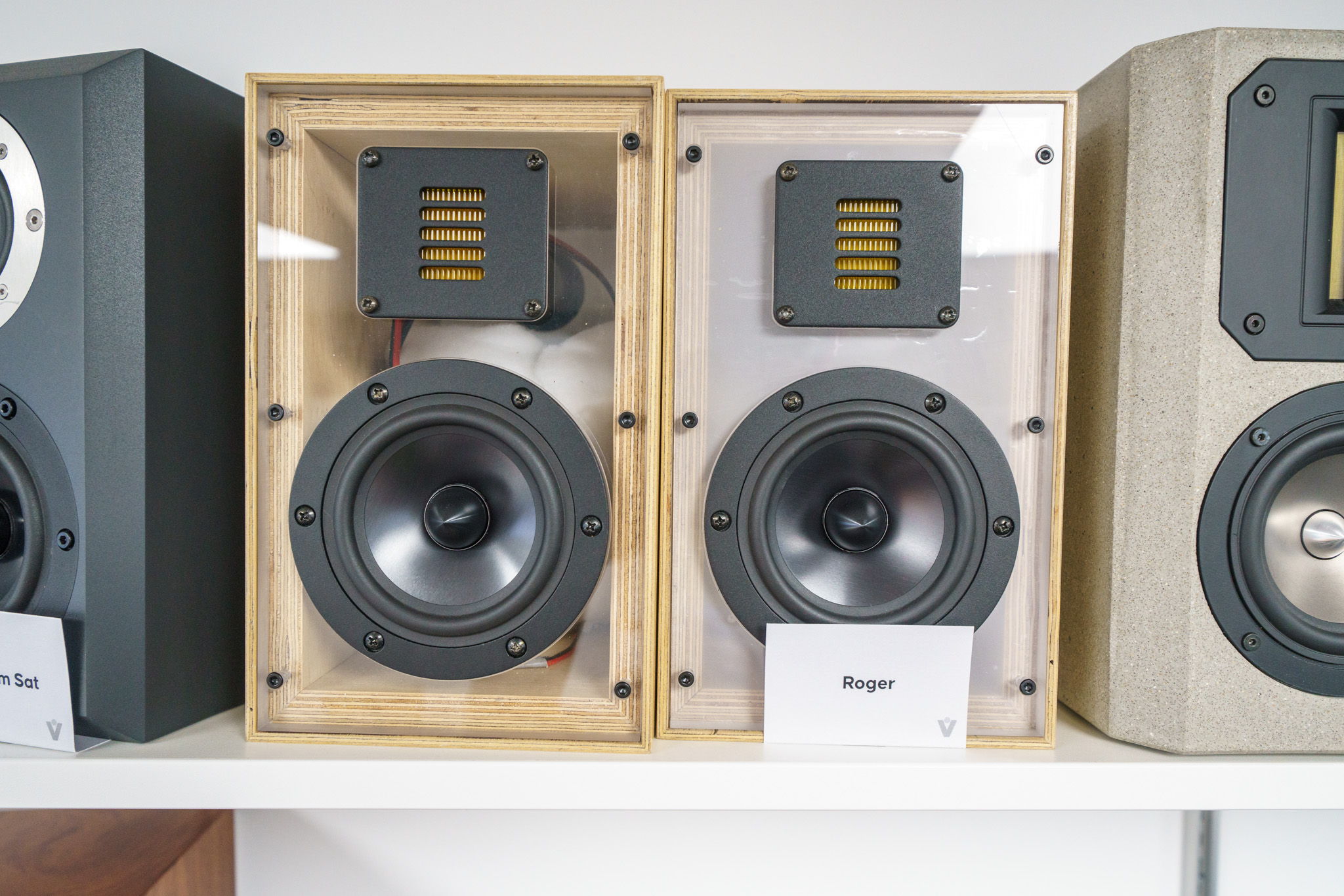

Roger Speaker Kit

Roger

Modern Two-Way Concept

Assembly:

Dayton Audio RS 125-4, Dynavox AMT-2; Frequency crossover components Mundorf Hi-Quality:

Properties:

Enjoy precise playback, fantastic spatiality, and strong sound colors. Rated thousands of times
4-inch mid-woofer with black anodized aluminum cone, high-load 6-hole cast basket,
lossless rubber surround, massive aluminum phase plug, gold-plated connectors, and an AMT tweeter (Air
Motion Transformer according to Oscar Heil principle) large-area ultra-light membrane, celebrating music enjoyment
with the finest resolution, strong bass contours, and dynamic response.

Technical Specifications:

Frequenzumfang:       f-3dB: 65-30000Hz

SPL:                            85dB

Gesamtimpedanz:      4 Ohm (Nom.)

Principle of operation:       Bass reflex

B/H/T:                      160x260x220mm

Scope of delivery:

  • Chassis
  • Terminal
  • Screws
  • Bass reflex tube
  • Cable (Interior)
  • Insulation fleece
  • Crossover Components (Loose)
  • Construction/Switch Plan

Die Lieferzeit bezieht sich auf den Bausatz ohne Gehäuse.

For the selected quantity, it is pieces,nota pair.


Images are exemplary.

Properties
Breite: 160mm
Frequenzumfang: 65-20000Hz
Funktion: 2 Wege
Funktionsprinzip: Bassreflex
Gesamtimpedanz: 4 Ohm
Höhe: 260 mm
SPL: 85dB
Tiefe: 220mm
Data according to manufacturer. Errors and changes reserved.
