Monacor RBT-35SR
The new high-end tweeters RBT-10, RBT-20 and RBT-35SR
belong to the group of "real" ribbon tweeters. These are characterised by an extremely light diaphragm consisting of an aluminium foil through which the sound signal flows completely. The low impedance of this diaphragm is transformed to an amplifier-uncritical 5-8 ohms by a built-in, high-quality transformer. Ribbon tweeters convince with an extremely fine resolution and brilliant sound in the high frequency range. Due to continuous development, these ribbon tweeters can nowadays be used from crossover frequencies of 2500 Hz, depending on the type, and are the choice when it comes to high-quality hi-fi loudspeakers or studio monitors. Ribbon tweeters must not be operated without a crossover!
- High-end ribbon tweeter horn pair, selected, 12 W, 7 Ω
- Real ribbon with neodymium magnet system and transformer
- Very high sound pressure level and constant directivity due to horn front attachment
- Brilliant, fine-drawing high-frequency reproduction
- Smooth, non-embossed aluminium sandwich cone 9 x 60 x 0.015 mm
- Can be used from 2500 Hz via 18 dB filter
- Horn with mounting flange and protective grille
"The waterfall diagram shows above the fundamental resonance a completely flawless, wonderfully fast and interference-free decay. ... A first-class tweeter solution with a pleasingly broadband application."
Hobby HiFi 06/2014

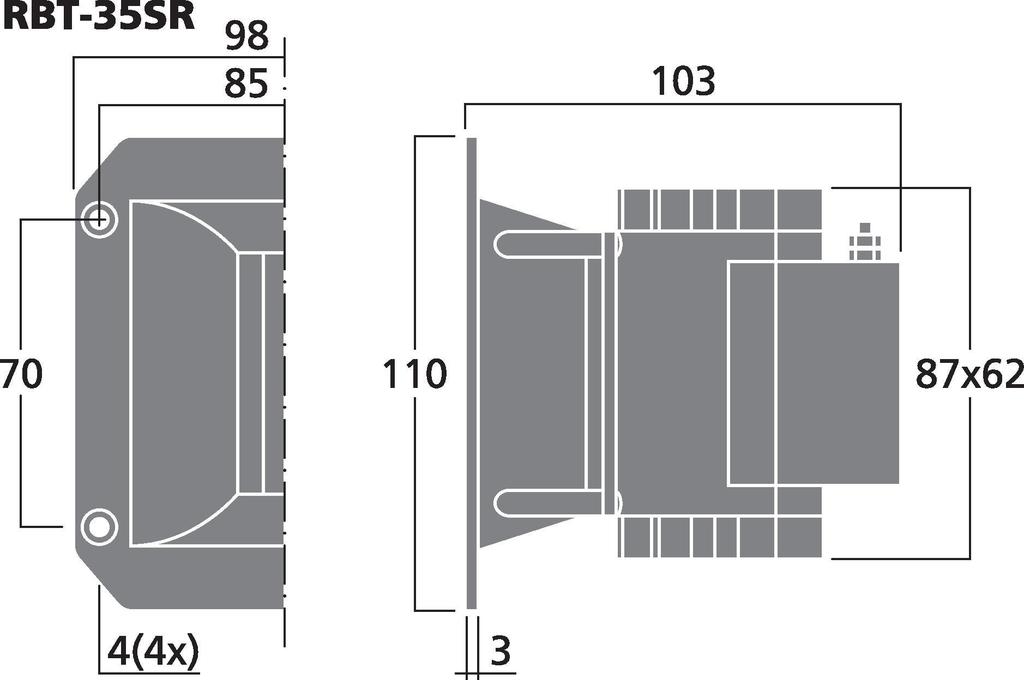

| Einbautiefe: | 103 mm |
|---|---|
| Einbauöffnung: | 87 x 62 mm |
| Frequenzbereich: | 1100-30000Hz |
| Impedanz (Z): | 7 Ohm |
| Nennbelastbarkeit: | 12 Watt |
