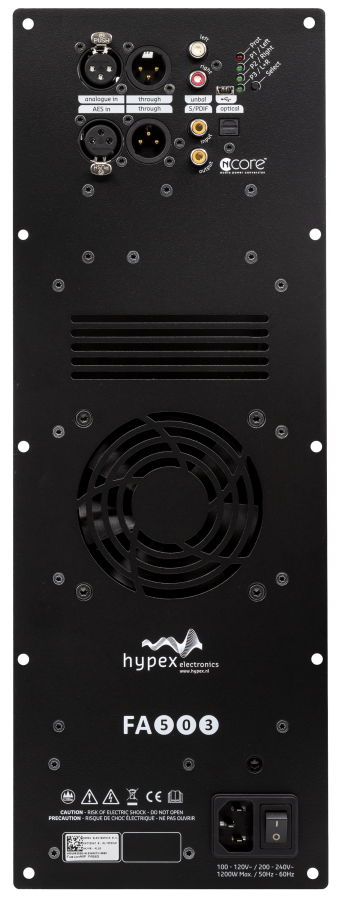

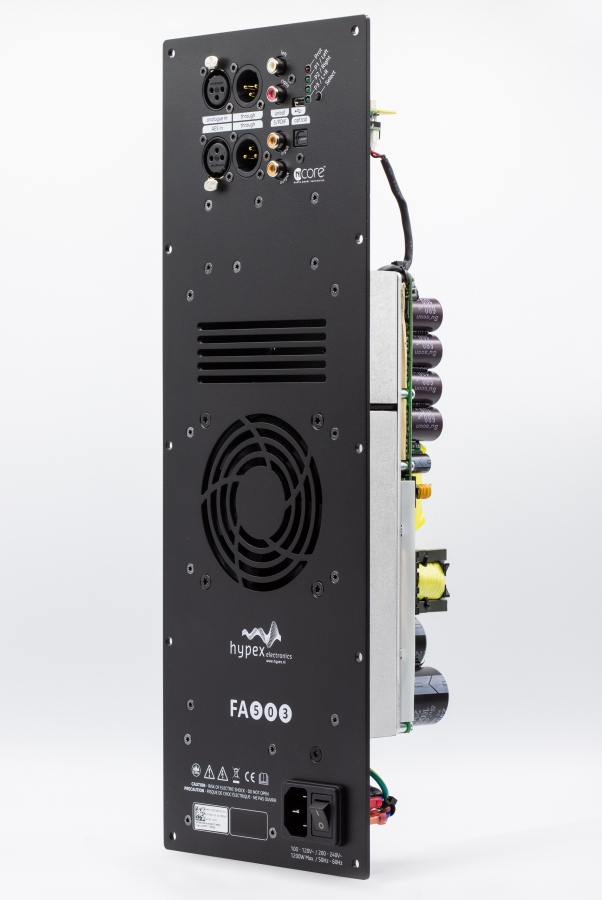

Hypex FUSIONAMP FA503
Skip image gallery
Picture similar to product
Product number:
V11141
Manufacturer:
Hypex
Length:
90 mm
Width:
420 mm
Height:
150 mm
Weight:
2.9 kg
Min. order quantity:
1
This FusionAmp can be the basis of e.g. a powerful two- or three-way monitor.
The FA503 has two 500 Wrms Ncore® amplifiers which can also be bridged to form one powerful 1000 Wrms amplifier. Additionaly, a 100 Wrms Ncore® tweeter channel is added.
Dimensions: 420 * 150 x 90 mm
Weight: 2275 gram (2880 gram incl. packing)
Connections
- Analogue balanced XLR in and through
- Analogue unbalanced RCA input
- Digital AES in and through
- Digital S/PDIF in and through
- Digital Optical TosLink input
- USB 2.0 configuration interface
Features
- 15 biquads per amplifier
- Three selectable presets for filters
- Source selection
- Signal detect
- Auto shutdown
- BTL capable
- Clip protect
- Thermal protect
- Filter protection
What is included in the box:
- The FA503
- A printed copy of the user guide
- Speaker connection cables
