EX-1W
Skip image gallery
Picture similar to product
Product number:
16330
Manufacturer:
Monacor
Weight:
0.4 kg
Min. order quantity:
1
EX-1W
Audio Exciter/Resonator, 5 W, 8 Ω
Exciters are suitable for music and speech playback over vibrating surfaces. They are simply glued onto doors, cabinet doors, shelves, tabletops, lightweight walls, ceiling panels, or a variety of other surfaces to be set into vibration and create an impressive sound with these surfaces throughout the entire environment.
- In dependence on the mounting surface, very broadband reproduction with astonishing sound richness
- Good sound quality
- Dustproof and protected against powerful water jets according to IP66
- Suitable for discreet sound, e.g. on doors, cabinets, shelves, glass panes, tabletops, shower enclosures
- Delivery with 3M adhesive pad
Technical Data
EX-1W
| Low ohm | 1 |
| Impedance (Z) | 8 Ω |
| Frequency range | installation-dependent, up to over 20 kHz |
| Resonance frequency (fs) | 1200 Hz |
| Rated Power (RMS) | 5 W |
| Music Load Capacity (MAX) | 10 W |
| Sound pressure level | no information |
| Voice coil diameter. | Ø 25 mm |
| Voice coil former | KSV |

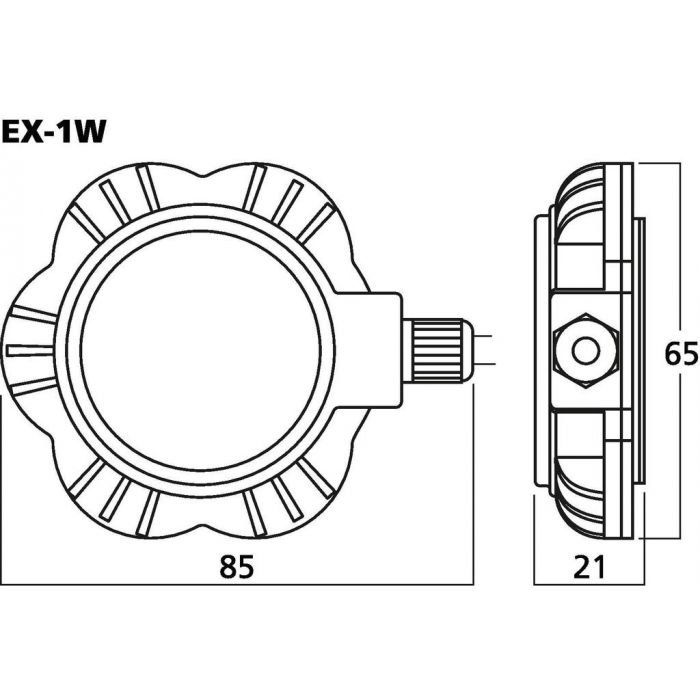

| Dimensions | 85 x 65 x 21 mm |
| Width | 85 mm |
| Height | 65 mm |
| Depth | 21 mm |
| Color | Black |
| Protection rating | IP66 |
| Permissible Operating Temperature | -10 °C to +40 °C |
| Weight | 0.107 kg |
| Packaging unit | 1 |
| Packaging dimensions (W x H x L) | 0.126 x 0.032 x 0.137 m |
| Gross weight | 0.138 kg |
| Net weight | 0.107 kg |
