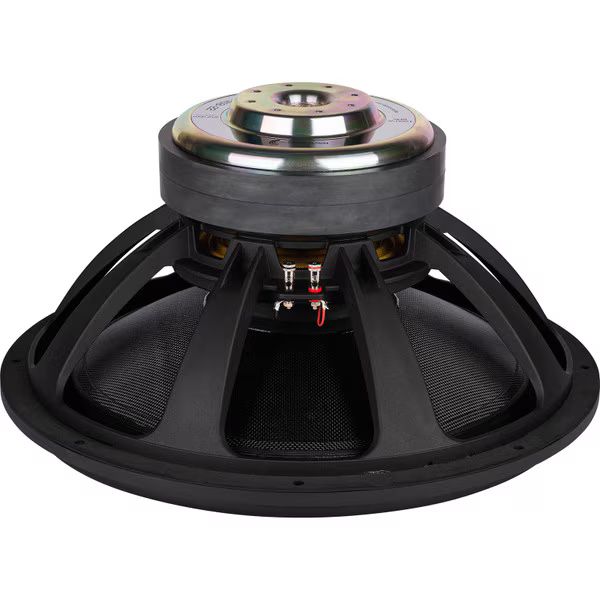

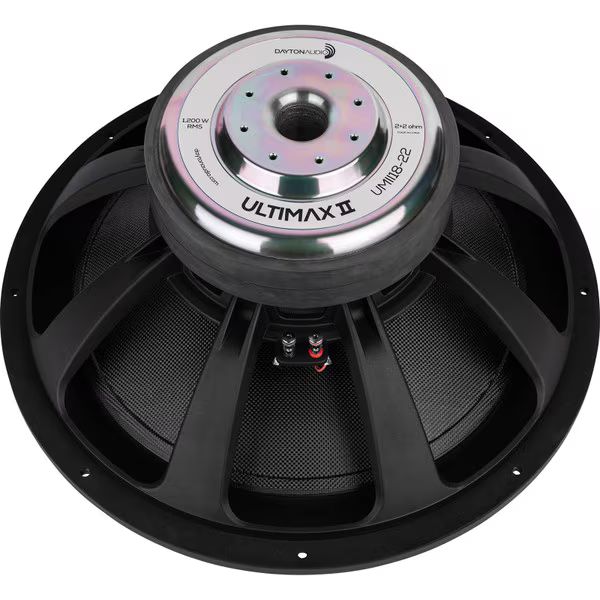

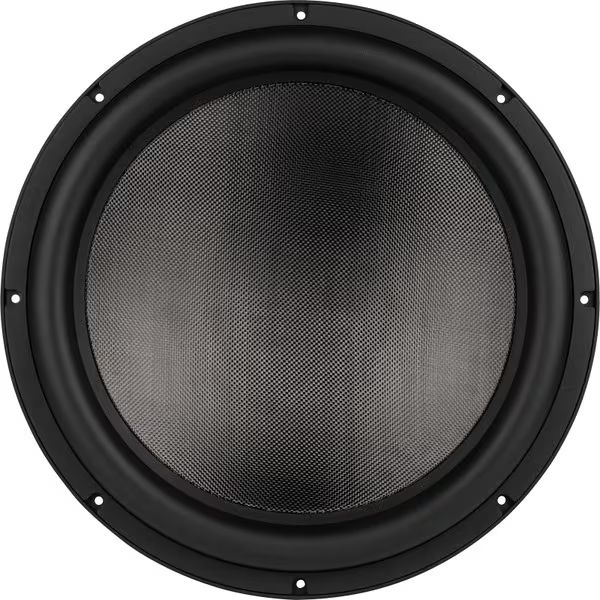

Dayton Audio UMII18-22 Ultimax II
€449.95
Available, delivery time: 1-3 days

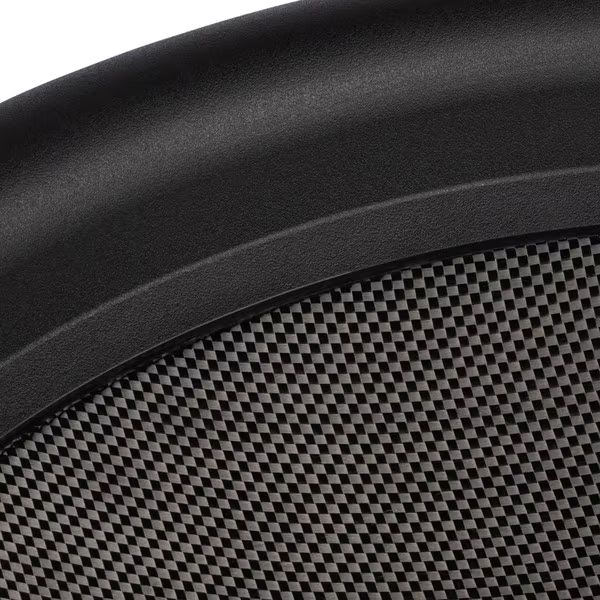

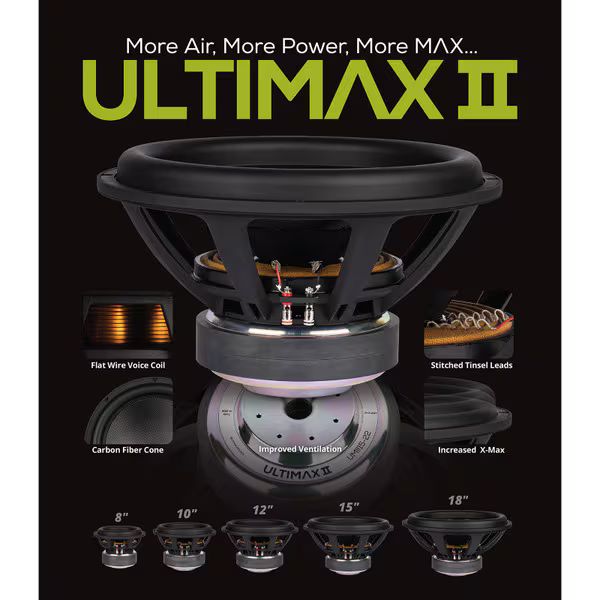

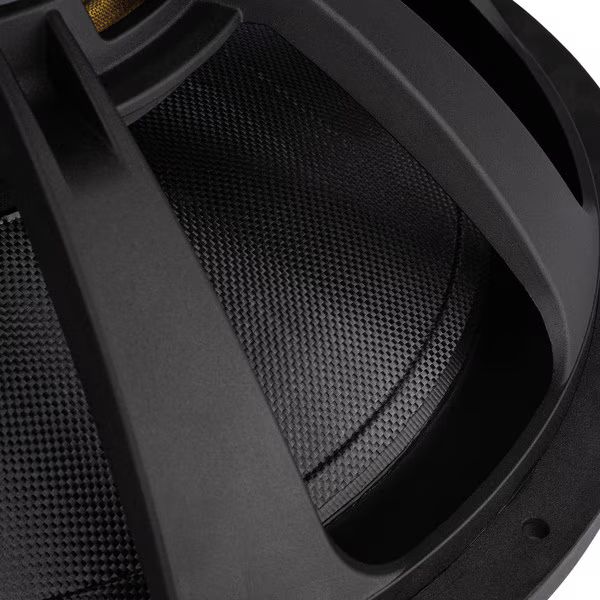

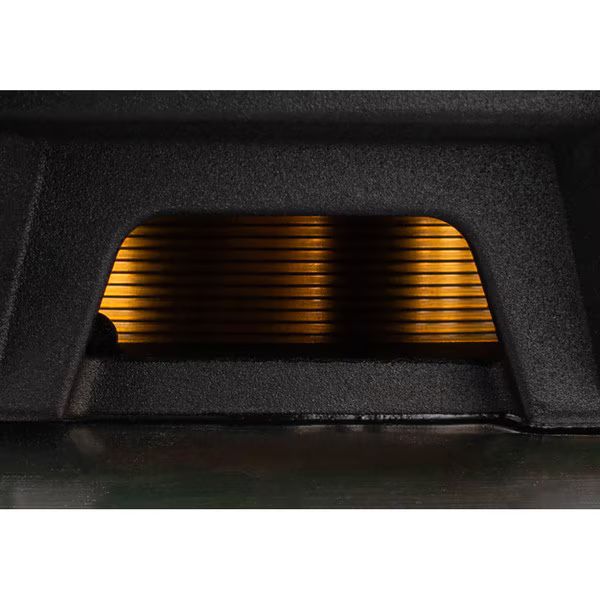

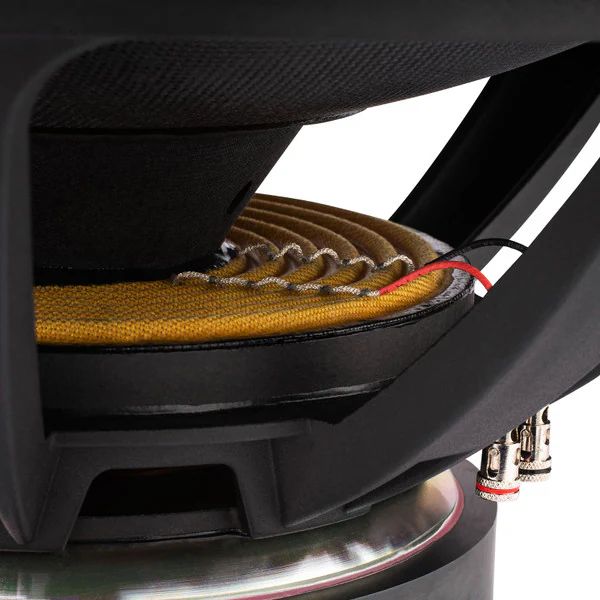

Wir präsentieren den UMII18-22 Ultimax II 18" Kohlefaser-Membran Subwoofer von Dayton Audio. Aufbauend auf dem Erfolg ihres Vorgängers wurden diese Subwoofer sorgfältig entwickelt, um alle Erwartungen zu übertreffen. Mit verbesserter Auslenkungsfähigkeit, geringerer Verzerrung, höherer Belastbarkeit, besserer Effizienz und erhöhter Leistung heben die neue Ultimax II Generation Subwoofer und Ihr Audioerlebnis auf neue Tiefenton Erfahrungen. Tauchen Sie ein in satte, drückende Bässe, die Sie bis ins Mark erschüttern werden. Dayton Audio definiert mit dem UMII8-22 Subwoofer weiterhin die Grenzen der Exzellenz neu. Hauptmerkmale Eine große Aluminium-Kurzschlusskappe helfen, die Induktivität linear zu halten, um minimale Verzerrungen zu garantieren. Die starre und dennoch leichte gewebte Carbonfaser Membran liefert eine schnelle, detaillierte und genaue Reaktion. Mit ±28 mm xmax können Sie eine kraftvolle und tiefe Bassreaktion erwarten, die Ihr Audioerlebnis auf die nächste Stufe hebt. Ausgestattet mit einer 4-lagigen 3" flach gewickelten Schwingspule, die bis zu 1200 Watt RMS verarbeiten kann. Korb und Antrieb sind umfassend belüftet, was eine effiziente Wärmeableitung für einen gleichmäßigen und zuverlässigen Betrieb gewährleistet und gleichzeitig die Leistungskompression minimiert. Doppelte Spinnen halten die Membranlinearität auch bei extrem hohen Auslenkungspegeln aufrecht und bieten jederzeit eine optimale Audioleistung. Optimiert für kompakte, geschlossene Gehäuse, aber in der Lage, in Bassreflex Designs eine außergewöhnliche Niederfrequenzerweiterung zu erzielen – bietet Ihnen die Freiheit, das perfekte Audio-Setup zu erstellen.
| Eff. Membranfläche (Sd): | 1184 cm² |
|---|---|
| Effektive Bewegte Masse (Mms): | 420g |
| Elektrische Güte (Qes): | 0,67 |
| Frequenzbereich: | 20-500Hz |
| Gesamtgüte (Qts): | 0,53 |
| Gleichstromwiderstand (Re): | 4,2Ω |
| Impedanz (Z): | 2x2 Ohm |
| Kennschalldruck: | 90,7dB 2,83V/1m |
| Korbmaterial: | Leichtmetall Druckguss |
| Kraftfaktor (BL): | 19,2 Tm |
| Lineare Auslenkung (Xmax): | 28mm |
| Mechanische Güte (Qms): | 2,53 |
| Membranmaterial: | Gewebte Kohlefaser |
| Nachgiebigkeit (Cms): | 0,124 mm/N |
| Nennbelastbarkeit: | 1200 W |
| Power Handling (MAX): | 2400 Watt |
| Resonanzfrequenz (fs): | 22Hz |
| Schwingspulendraht Material: | 4 lagen Kupferdraht |
| Schwingspulendurchmesser: | 3" |
| Schwingspulenind. (Le): | 1,15mH |
| Äquivalentvolumen (Vas): | 248,2 l. |
Accessory Items

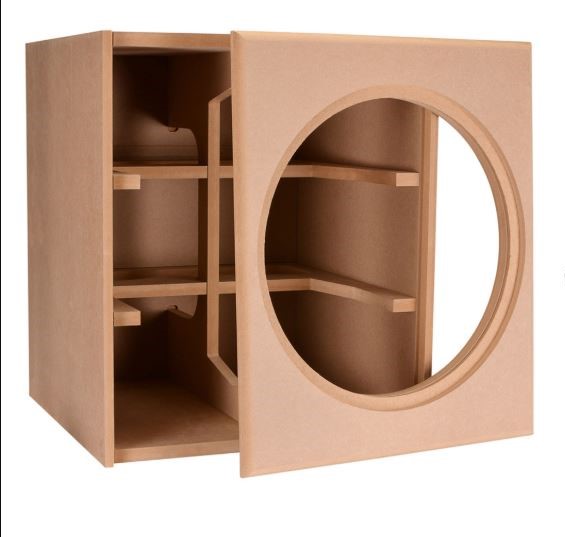

UMII18-22 CB housing kit new generationDear Customer, unfortunately, there is currently a bug in our shop. With some of our cases-Kits therefore the configurator does not work. We are working diligently on a solution. Until then, do not hesitate to request your desired case by email. [email protected] Available options: Only formwork: MDF raw – MDF black raw Gehäusebausatz individual parts: MDF raw – MDF black raw Housing glued ready: MDF raw – MDF primed Black or White – MDF RAL Lacquered – MDF black raw Other versions available upon request. Ultimax UMII18 CB Cabinet KitSuitable for assembly:Dayton Audio UMII18-22 150L Flat Pack Enclosure Kit About the CaseThis clever enclosure was specifically designed for the Dayton Audio 18" Ultimax subwoofer. During the CNC manufacturing process, grooves and joints are cut into the back panel to fit the boardsprecisely align. A unique two-part strut provides superior stiffness withoutPerformance of the subwoofer. Both side walls have 19mm folded extensionswith cutouts to perfectly mount the first piece of the two-part, double-thick baffle. Das Endergebnis ist ein resonance-free, closed subwoofer enclosure, specifically designed tothe best performance from the 18" Ultimax subwoofer by Dayton Audio. All that remains to be doneremains to refine it to match your decor or paint it to stand out. Spezifikationen:- Panel thickness: 19mm, Baffle 38mm - Panel material: Medium Density Fiberboard (MDF) -Fertiges Netto-Gehäusevolumen (minus the double thick baffle, the bracing, and theBass volume): 150L - External dimensions approx.: W/H/D 560x600x560mm - Weight: 35 Kg. Attention please note and for change requests please in the comment field or by e-mail change requestscontact: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the case, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Chamfers or rounds are only made on fully assembled housings.
UMII18 CB Subwoofer Kit. Recommended for closed enclosuresUMII18 CB Subwoofer Kit. Recommended for closed enclosures Ultimax UMII18 CB Kit passive Dayton Audio 18" Ultimax II Subwoofer without Enclosure Assembly: Dayton Audio UMII18-22 Properties: Dayton Audio UMII18-22 8" Subwoofer for e.g. 120-180L sealed enclosures About the CaseThis enclosure was specifically designed for the Dayton Audio 18" Ultimax II subwoofer. During the CNC manufacturing process, grooves and joints are cut into the back panel to allow the platesprecisely align. A unique two-part strut provides superior stiffness withoutperformance of the subwoofer. Both side walls feature folded extensions withCutouts to perfectly mount the first piece of the two-part, double-thick baffle. Das Endergebnis ist ein resonance-free, closed subwoofer enclosure, specifically designed,to get the best performance out of the 18" Ultimax subwoofer from Dayton Audio. All that remains totun bleibt, ist, es passend zu Ihrem Dekor zu refine oder es zu paint, um sich abzuheben. Specifications: Plate thickness: 19mm, baffle 38mm - Plate material: Medium Density Fiberboard (MDF) -Finished net volume (minus the double thick baffle and bracing: 150L - External dimensions:B/H/T 580x660x510mm - Weight: approx. kg About the Subwoofer Wir präsentieren den UMII18-22 Ultimax II 18" Carbon Fiber Cone Subwoofer von Dayton Audio. Building onon the success of their predecessor, these subwoofers have been carefully developed to meet all expectationsexceed. With improved deflection capability, lower distortion, higher load capacity,better efficiency and increased performance elevate the new Ultimax II generation subwoofers and yourAudio experience with new low-frequency experiences. Immerse yourself in rich, powerful bass that takes you to theMark will be shaken. Dayton Audio continues to define the boundaries of the UMII8-22 subwoofer.Excellence new. Main features A large aluminum short-circuit cap helps to linearize the inductancehold to ensure minimal distortion. The rigid yet lightweight woven carbon fiberMembrane provides a fast, detailed, and accurate response. With ±28 mm xmax, you can apowerful and deep bass response that elevates your audio experience to the next level.Equipped with a 4-layer 3" flat-wound voice coil that can handle up to 1200 watts RMScan. The basket and drive are comprehensively ventilated, allowing for efficient heat dissipation for aensures consistent and reliable operation while simultaneously performance compressionminimized. Double spiders maintain membrane linearity even at extremely high excursion levelsand always provide optimal audio performance. Optimized for compact, closed enclosures, but inthe ability to achieve exceptional low-frequency extension in bass reflex designs – offersYou the freedom to create the perfect audio setup. Technical Data: Frequency range: f-3dB: 15-100Hz active operation recommended SPL: W/D/H Total impedance: 4 Ohms ((Nom.) 4 Ohms >2200Hz) Or 2x2 Ohm Funktionsprinzip: closed Scope of delivery: Screws Chassis Terminal LS Cable Blueprint Die Lieferzeit bezieht sich auf den Bausatz ohne Gehäuse. In the selected quantity, it is pieces,notpair.
