Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier
€282.45
Available in 14 days, delivery time 1-3 days
Engineered to provide flexibility, ample power, and reliability, the Dayton Audio SPA250 delivers high fidelity subwoofer amplification which is tailored for home audio and home theater audio systems. Ideal for speaker building enthusiasts, the SPA250 can also breathe new life into many powered subs where the amp has failed.
Key Features
- Switchable 6 dB @ 35 Hz bass boost
- Mono Class AB output stage for solid, well defined output
- Low-level and high-level inputs connect to any system
- Manual and Auto on/off modes for compatibility with any automated system
- Variable gain, crossover point and switchable phase controls optimize room integration

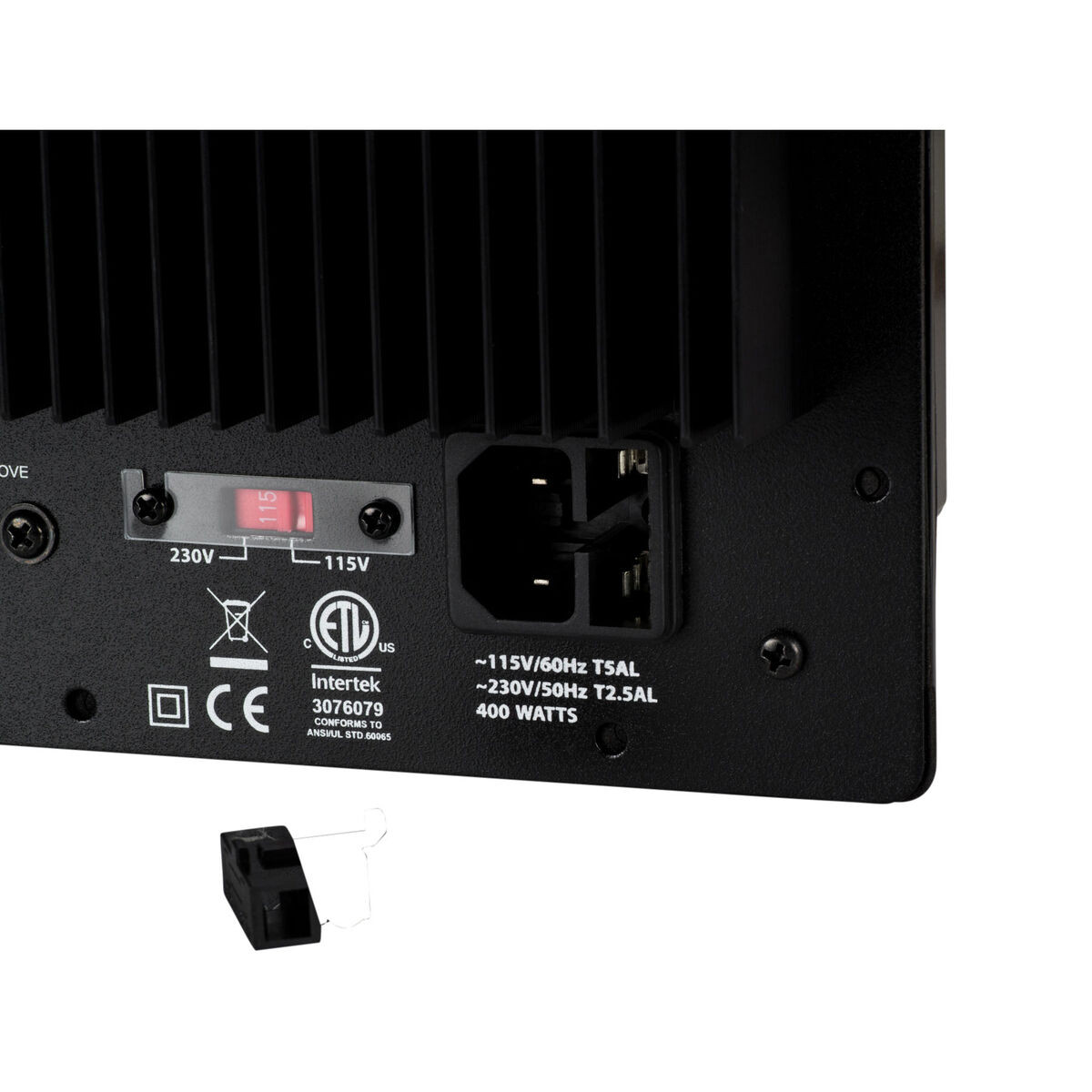

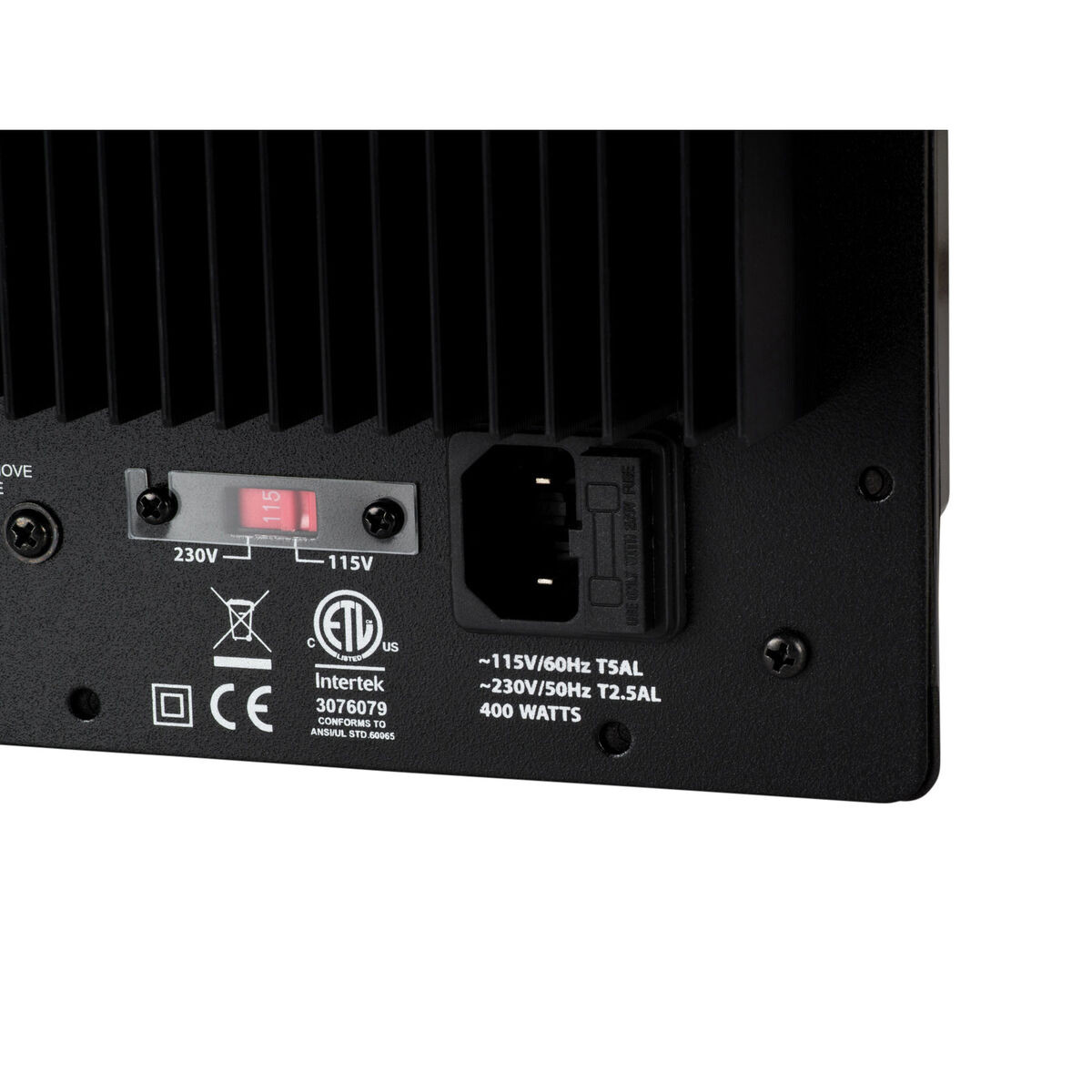

- Switchable 120/240V input voltage
- Energy efficient—draws less than 1 watt in stand-by mode
Bass boost or flat…you choose and the SPA250 delivers!

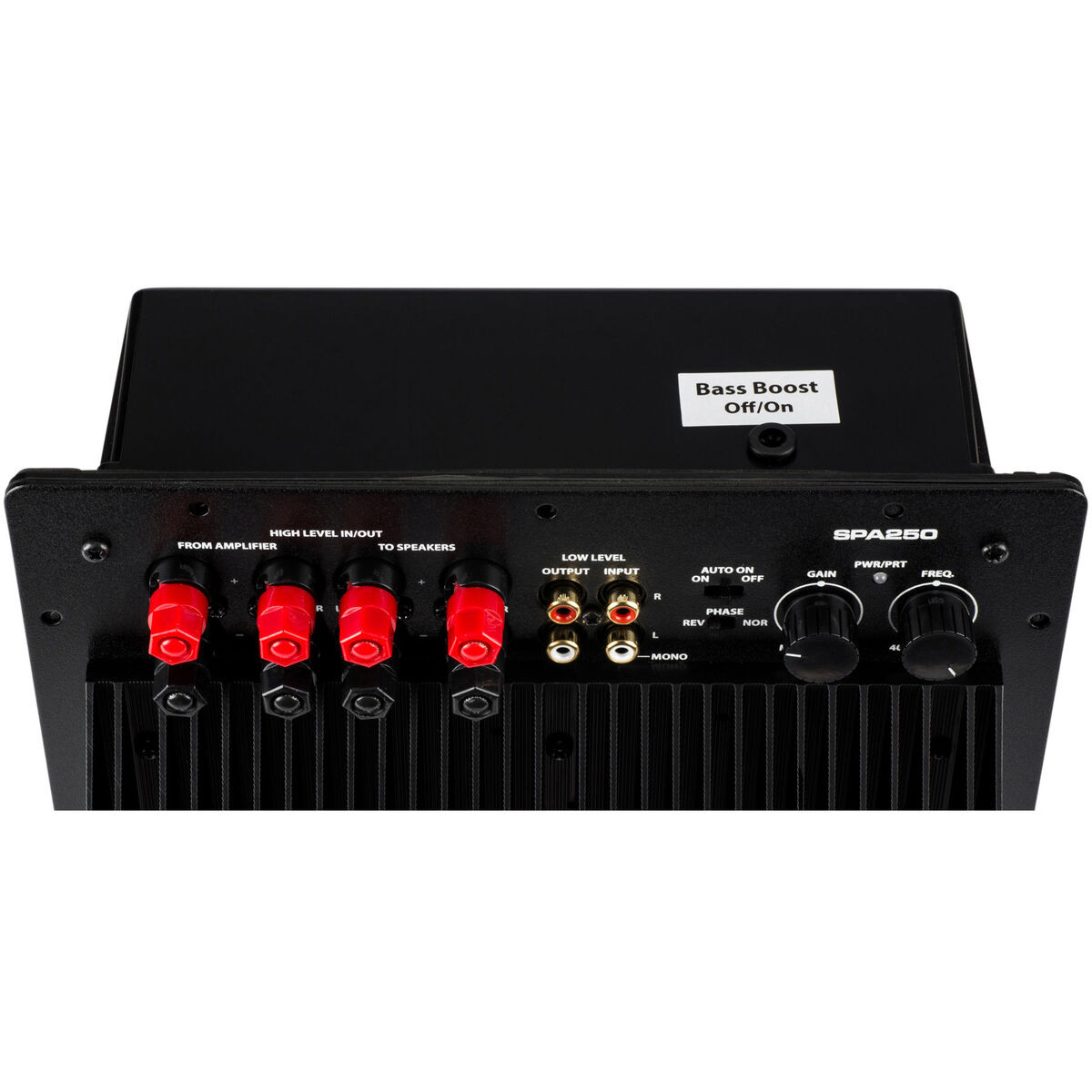

The Dayton Audio SPA250 subwoofer amplifier produces 250 watts of clean power output, and combines with a host of flexible user options to make it an unbeatable choice. A user-configurable bass boost circuit creates a 6 dB peak at 35 Hz, which allows sealed subwoofer designs and certain ported enclosures to achieve their optimum bass extension and maximum "flat" output.
Connects to almost any home audio system, and does it with ease

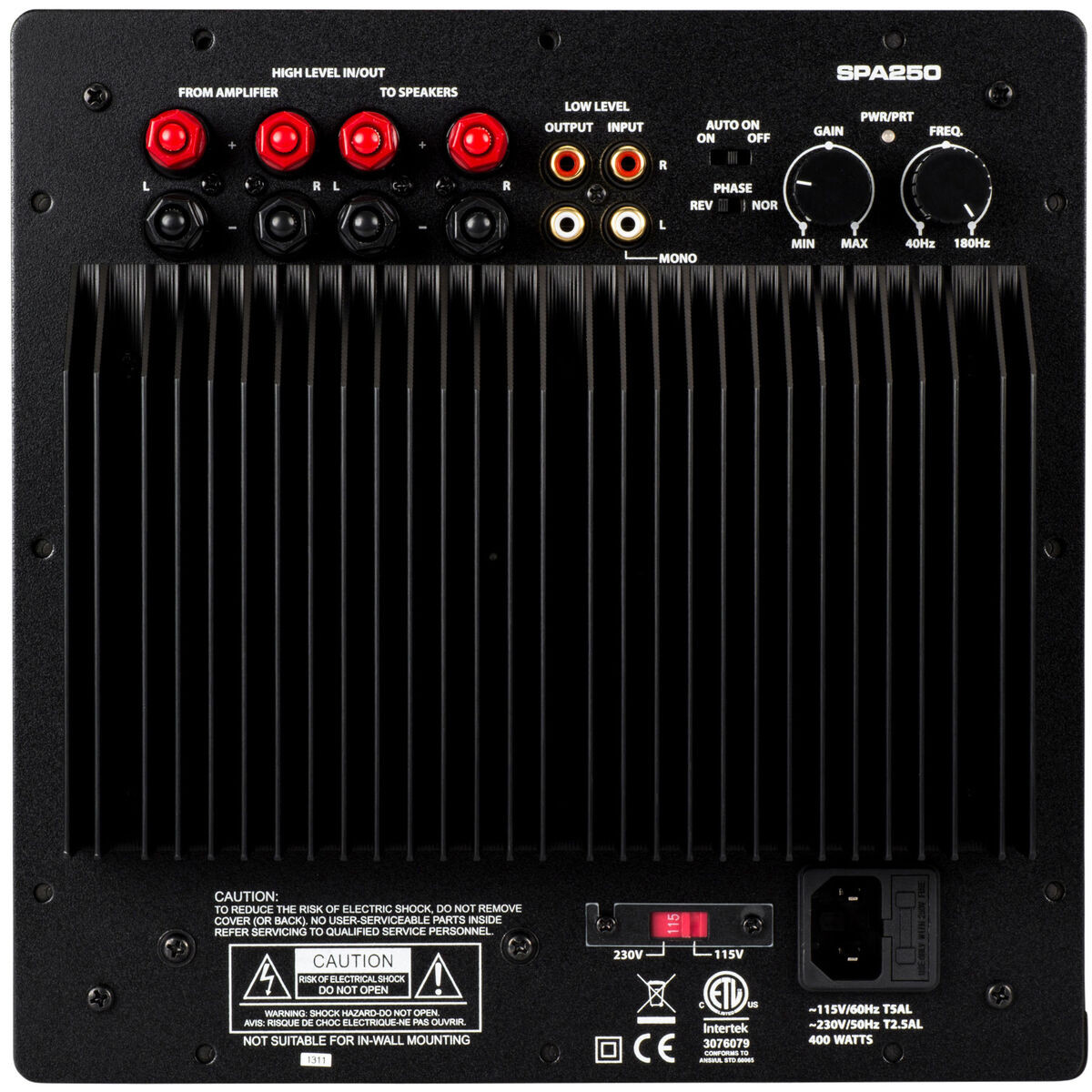

The SPA250 features RCA line level and banana jack speaker level inputs and outputs, automatic power-on that is triggered by any audio input signal, and a phase reverse switch to match the subwoofer to your room and your other speakers. A single amp can accept a stereo input signal and combine it into mono, which is preferred for sub bass reproduction. A preamp or receiver's LFE output may be connected to the SPA250's Left (mono) input. The internal low pass crossover is fully adjustable between 40 and 180 Hz, and of course the amp has built-in protection against internal and external faults.
We haven't run out of great features to talk about
- Variable low-pass filter at 24 dB/octave attenuation from 40 Hz ~ 180 Hz
- Switchable phase 0° (NOR) or 180° (REV)
- Variable gain MIN/MAX input voltage dependent
- Speaker level high-pass outputs 6 dB/octave at approximately 180 Hz @ 4 ohms, 90 Hz @ 8 ohms (i.e. 220 uF electrolytic capacitor)
- Line-level full bandwidth (10 Hz- 20 kHz) outputs/throughputs for adding or "daisy chaining" additional amplifiers
- Subsonic filter 12 dB/octave high-pass filter centered at 20 Hz
- Damping factor at rated power: 114 @ 100 Hz
Specifications: • Measured power output: 156 watts RMS into 8 ohms @ 0.1% THD, 252 watts RMS into 4 ohms @ < 1.0% THD • Signal to noise ratio: 90 dB A-weighted • Input impedance: 10.4K ohms • Bass boost: Switchable, 6 dB @ 35 Hz • Low pass adjustment: 40 Hz to 180 Hz • Phase adjustment: 0º (normal) 180º (reverse) • Power requirements: Switchable, 115/230 VAC, 50/60 Hz • Dimensions: 9-13/16" W x 9-13/16" H x 5" D • Cutout dimensions: 8-1/2" W x 8-1/2" H.
Accessory Items

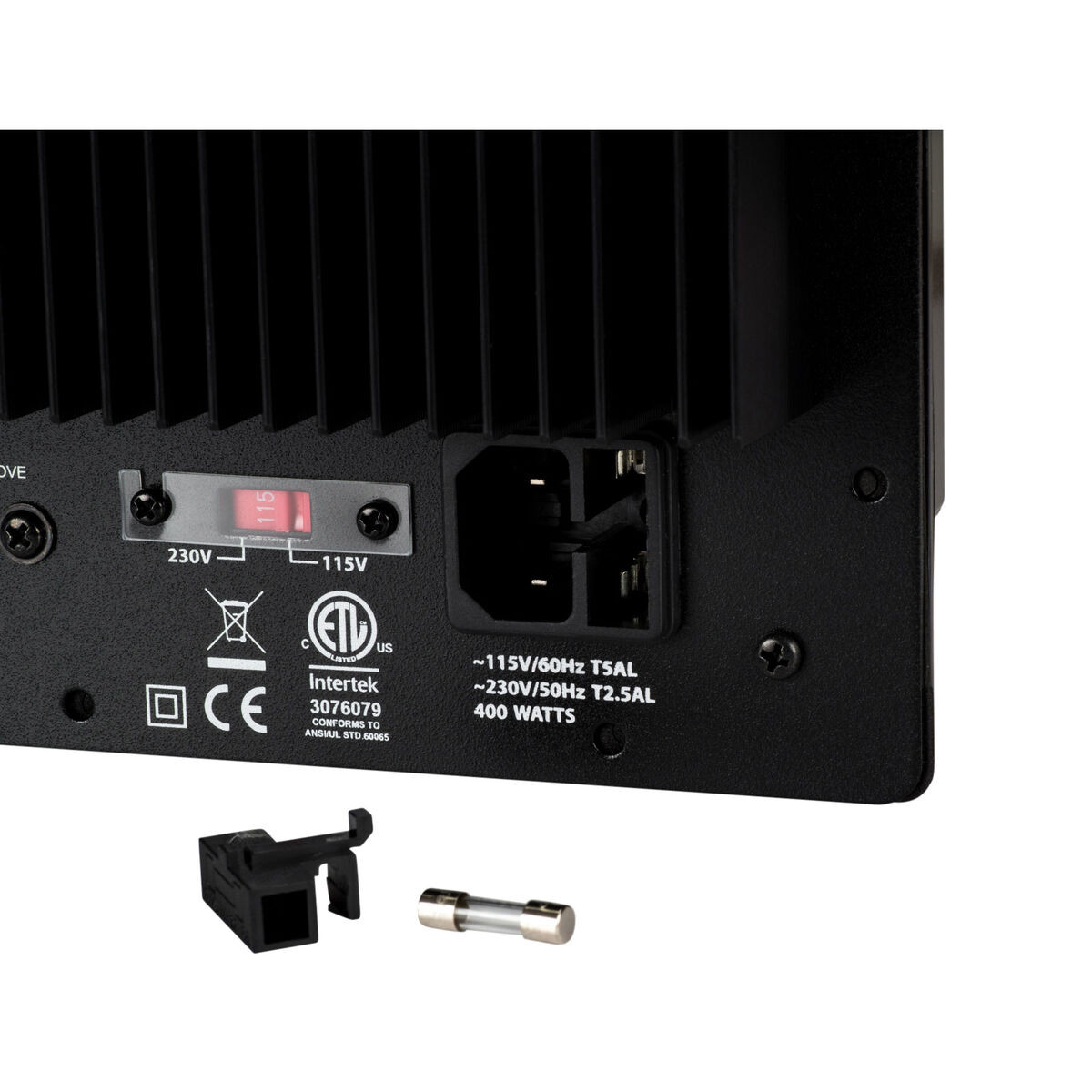

Feinsicherung 5x20 slow-blow (4A - MA1240a & SPA250)Feinsicherung 5x20 slow-blow, 4A for Dayton Audio MA1240a & SPA250
