Dayton Audio RSS210HO-8

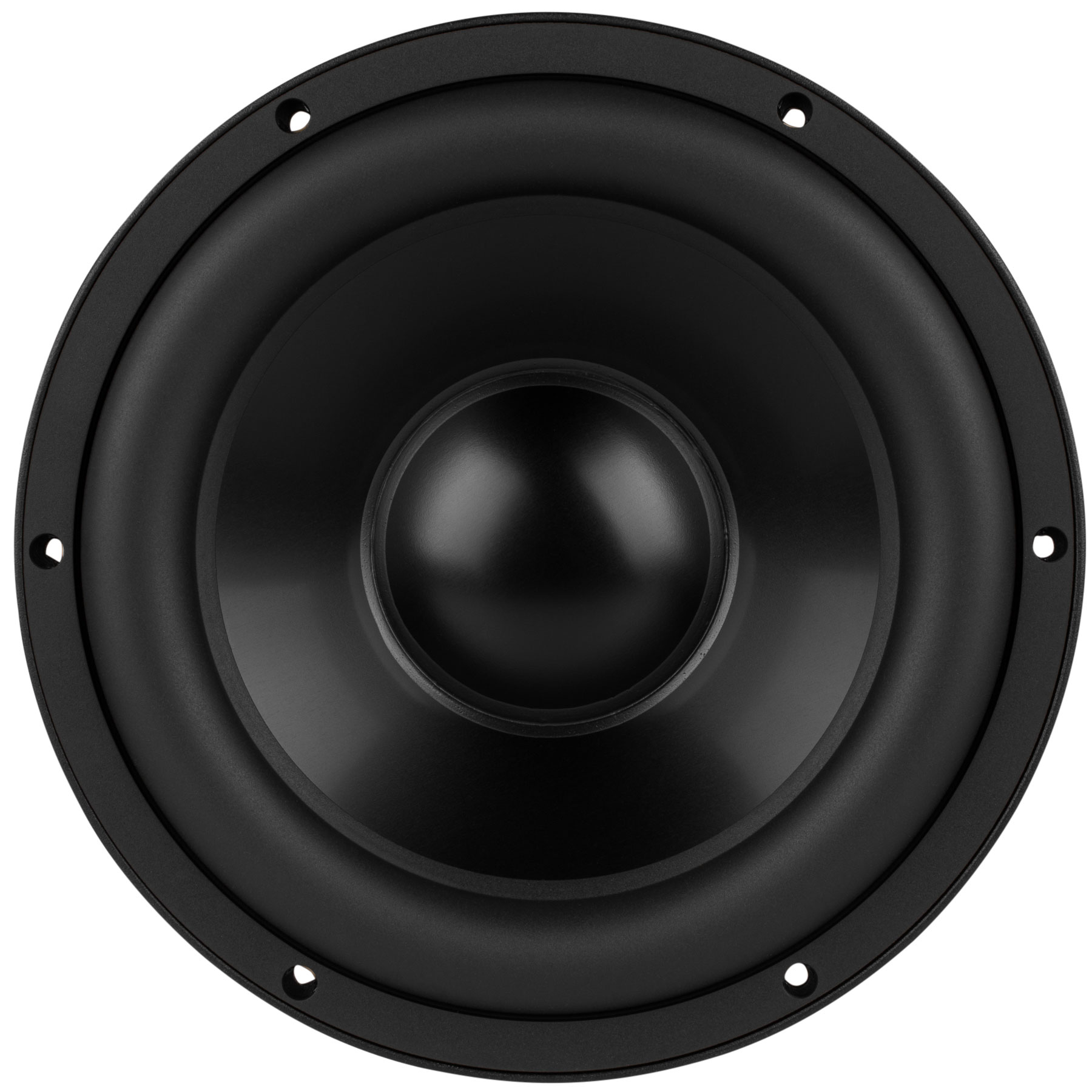

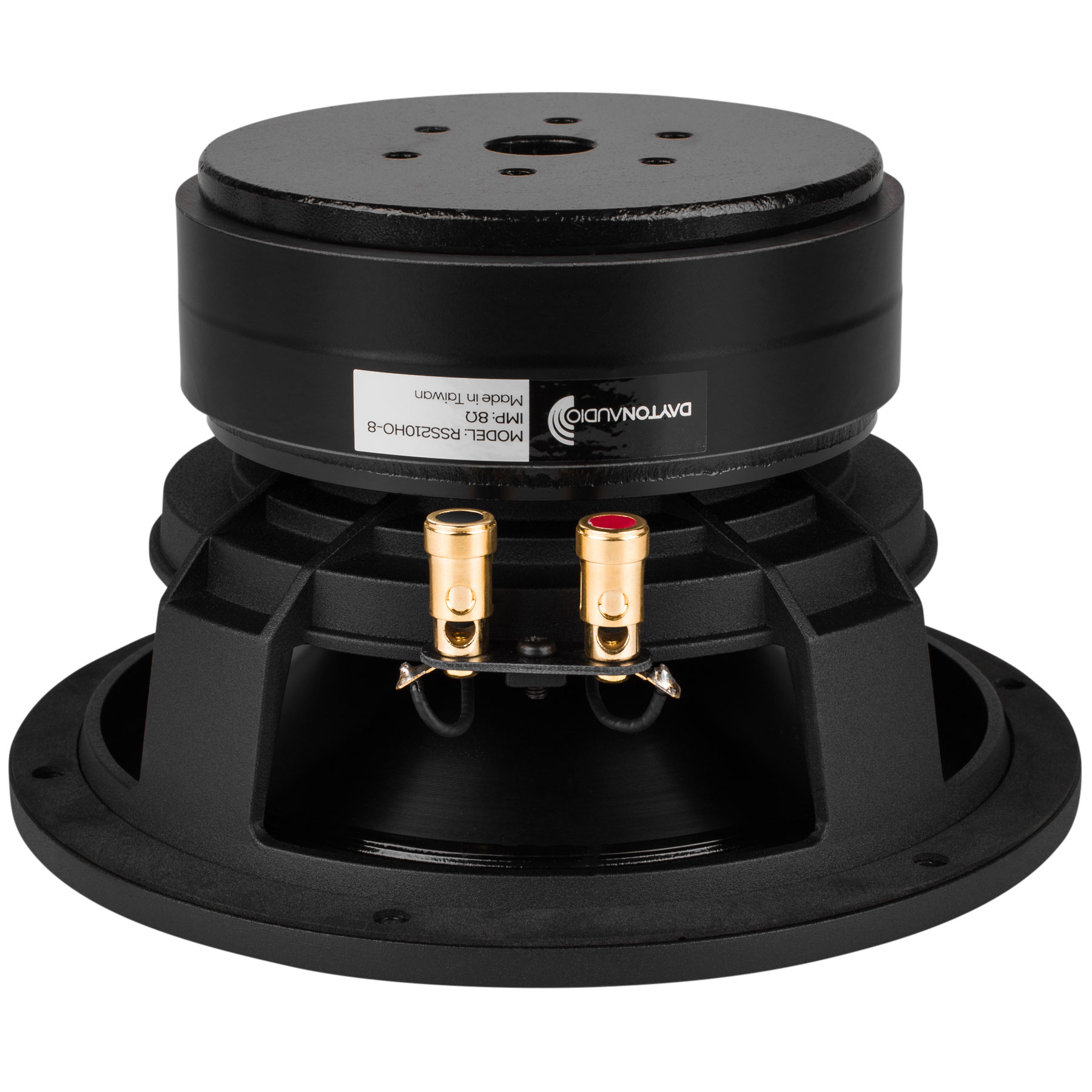

Dayton Audio RSS210HO-8 8” Reference HO Subwoofer 8 Ohm
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.
Key Features
- Extensively vented motor eliminates power compression and allows quiet excursion
- Triple shorting-ring motor for ultra-low distortion
- Heavy-gauge aluminum cones withstand pressures of small enclosures
- 4-layer high-temperature coils for maximum power handling
- Durable aramid fiber spider for greater mechanical control
- Unique, high-end look
- Optimized for small enclosures
Dayton Audio RSS210HO-8 8" Reference HO Subwoofer 8 Ohm
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.
| Artikel-Nr.: | 295-459 |
|---|---|
| Außenmaß: | 213,1mm |
| DC Resistance (Re): | 5,9 Ohm |
| EAN: | 848791000348 |
| Eff. Membranfläche (Sd): | 213,8cm² |
| Effektive Bewegte Masse (Mms): | 99,3g |
| Einbautiefe: | 126 mm |
| Einbauöffnung: | 184,9 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,45 |
| Frequenzbereich: | 30 bis 1,500Hz |
| Gesamtgüte (Qts): | 0,39 |
| Größe: | 8 " |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Aluminium Guss |
| Kraftfaktor (BL): | 15,6T·m |
| Lineare Auslenkung (Xmax): | 12mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 2,78 |
| Membranmaterial: | Aluminium |
| Modell: | RSS210HO-8 |
| Nachgiebigkeit (Cms): | 0,29mm/N |
| Nennbelastbarkeit: | 300 Watt |
| Resonanzfrequenz (fs): | 29,6Hz |
| Schwingspulendurchmesser: | 50,8 mm |
| Schwingspulenind. (Le): | 1,46mH |
| Sensitivität: | 83,5dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 18,689 l |
