Dayton Audio PTMini-6

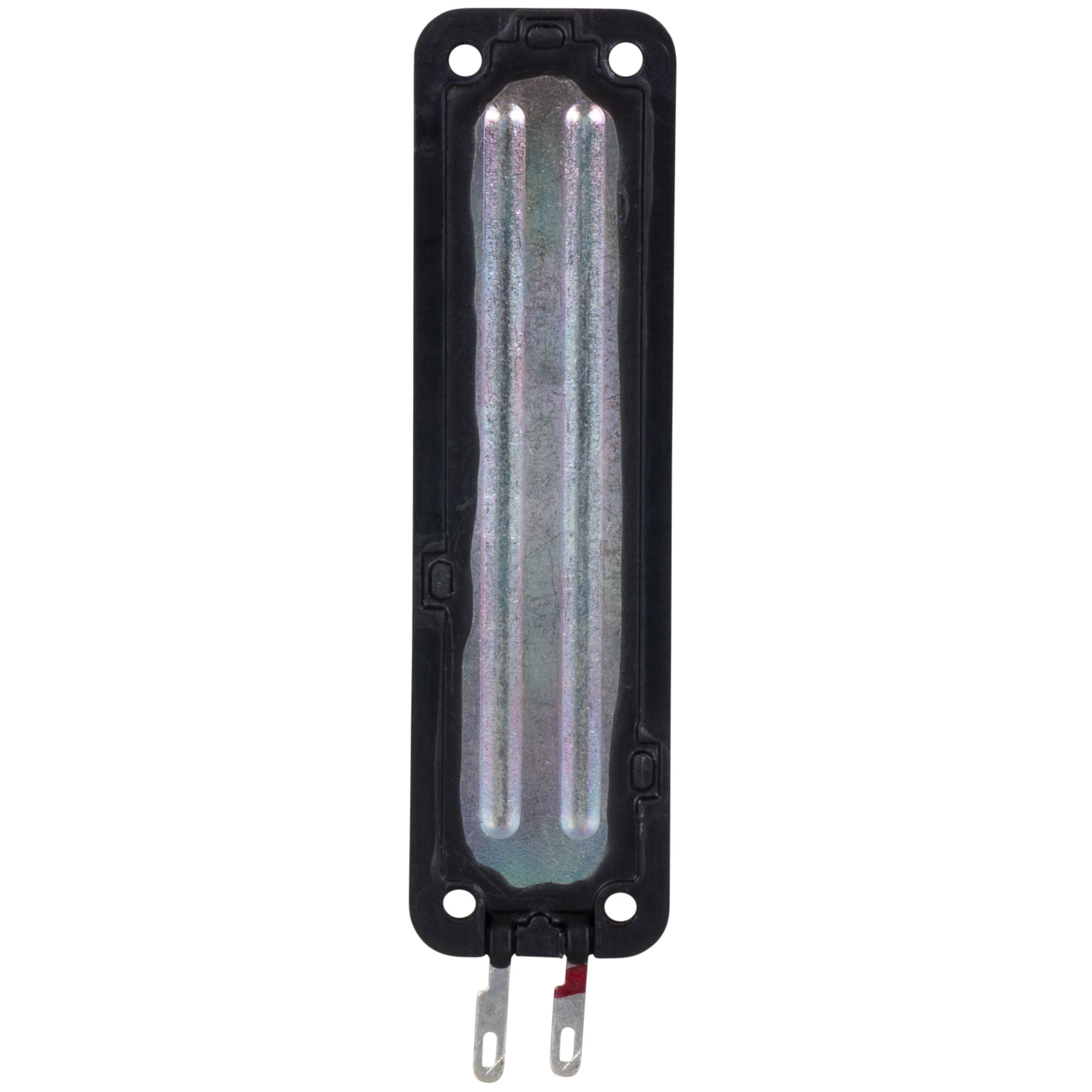

Dayton Audio PTMini-6 Planar Tweeter 6 Ohm
The Dayton Audio PTMini-6 is a miniature planar tweeter that is big on performance and sound quality! With 6 ohm impedance and incredibly small size this is an excellent choice for car audio or home use.
Key Features
- Compact planar ribbon tweeter driver
- High output and exceptional treble definition
- Surface or flush mount installation
- Potent neodymium magnetic design
- Supports 4,000 Hz crossover, 12 dB/octave
Dayton Audio PTMini-6 Planar Tweeter 6 Ohm
The clarity, definition, and transparency of a planar tweeter is unmatched by almost any other type of tweeter. Now Dayton Audio lets you build planar technology into more compact projects with the PTMini-6 planar tweeter! The surface-mount housing design can also be flush-mounted for a world of possible uses, such as a car A-pillar tweeter, a supertweeter for a full-range driver, a rear-mounted ambience tweeter, a conventional forward-facing tweeter configuration, or even a line array!
The membrane of a planar tweeter is an almost weightless ribbon of heat-resistant Kapton material and an etched aluminum conductor, enabling the performance of aluminum ribbon tweeters without the losses inherent in the transformer of a conventional ribbon tweeter. The result is a tweeter that is incredibly fast, dynamic, and smooth sounding with imperceptible distortion and excellent power handling. A crossover cut-off frequency of 4,000 Hz or higher is recommended with a 12 dB/octave filter slope.
| Artikel-Nr.: | 275-083 |
|---|---|
| Außenmaß: | 83,0mm x 23,1mm |
| DC Resistance (Re): | 5,9 Ohm |
| EAN: | 848791001680 |
| Einbautiefe: | 8,1 mm |
| Einheit: | Stück |
| Frequenzbereich: | 2,900 bis 25,000Hz |
| Gesamtgüte (Qts): | 174 |
| Hochtöner Typ: | Planar |
| Impedanz (Z): | 6 Ohm |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 178 |
| Modell: | PTMini-6 |
| Nennbelastbarkeit: | 15 Watt |
| Resonanzfrequenz (fs): | 4461Hz |
| Sensitivität: | 90dB 2,83V/1m |
