Dayton Audio PS180-8
Dayton Audio PS180-8 6-1/2” Point Source Full-Range Neo Driver
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.
Key Features
- High sensitivity/minimal distortion—an ideal match for lower powered amplifiers

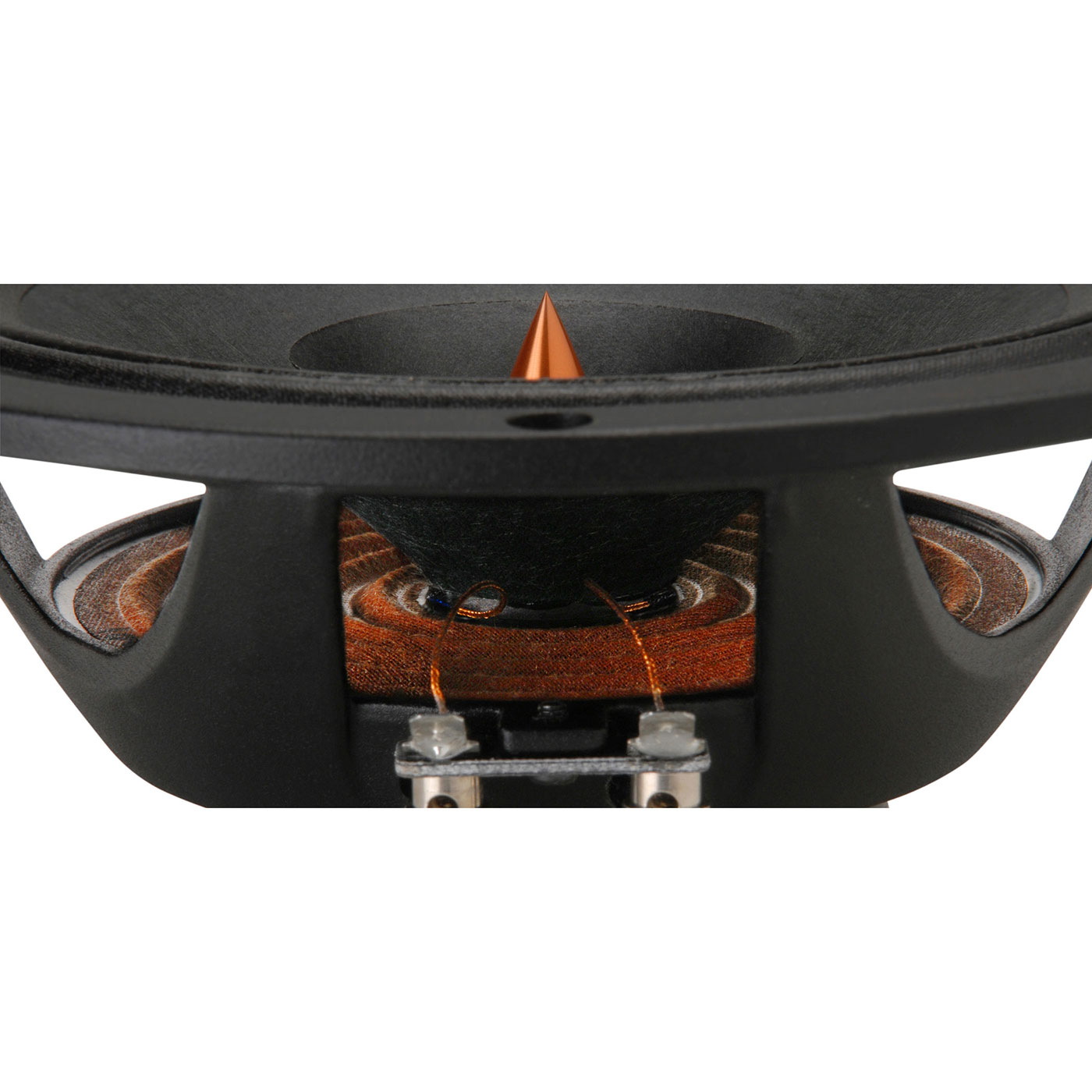

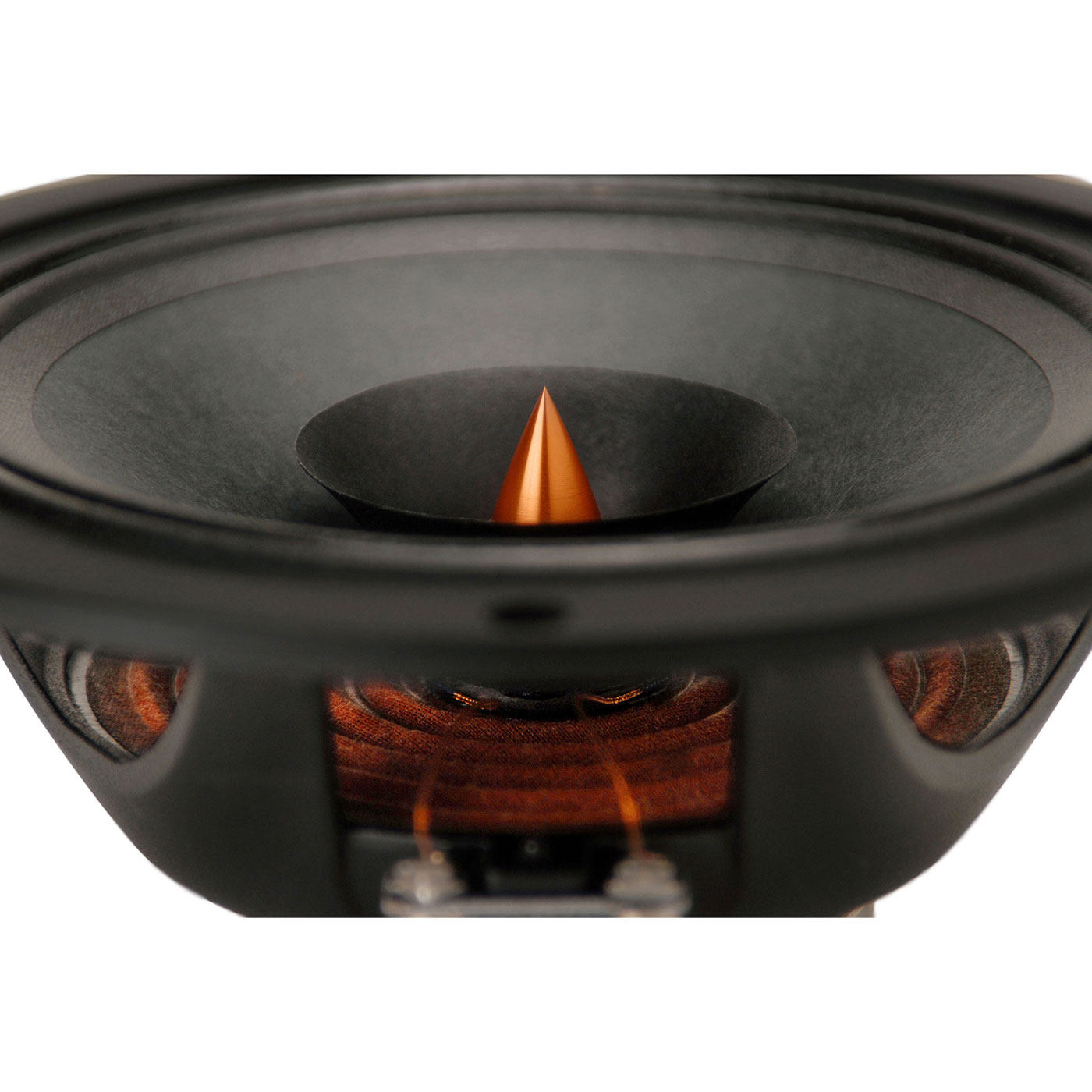

- Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
- Solid bass performance, thanks to usefully high excursion capability (4.6 mm Xmax)

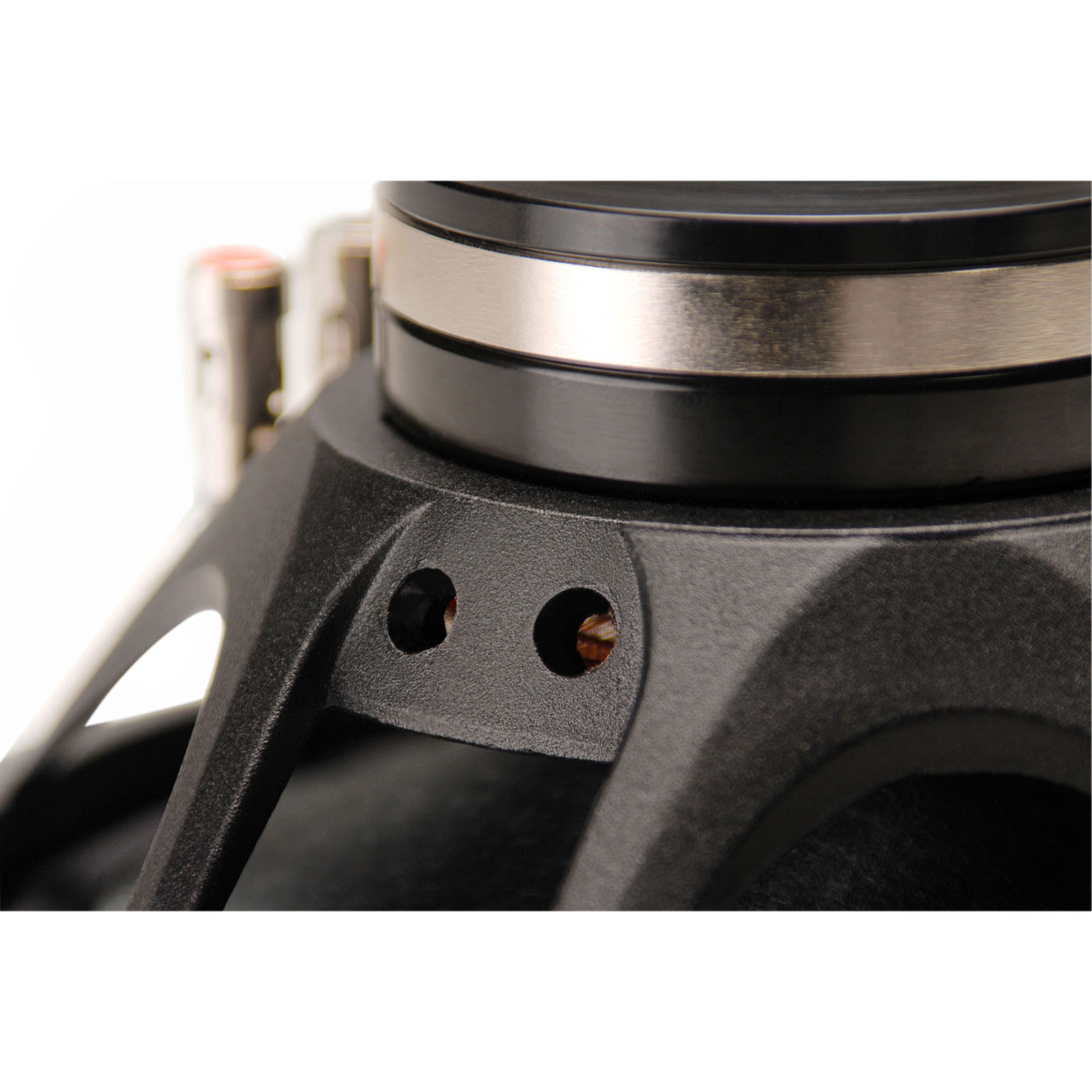

- Optimized neodymium magnet provides high motor strength
- Low-mass copper clad aluminum voice coil
- Copper cap and copper ring on pole piece reduce inductance and distortion
- Kevlar reinforced paper cone is lightweight yet rigid and well controlled
Dayton Audio PS180-8 6-1/2" Point Source Full-Range Neo Driver
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS180-8 6-1/2" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!
| Artikel-Nr.: | 295-344 |
|---|---|

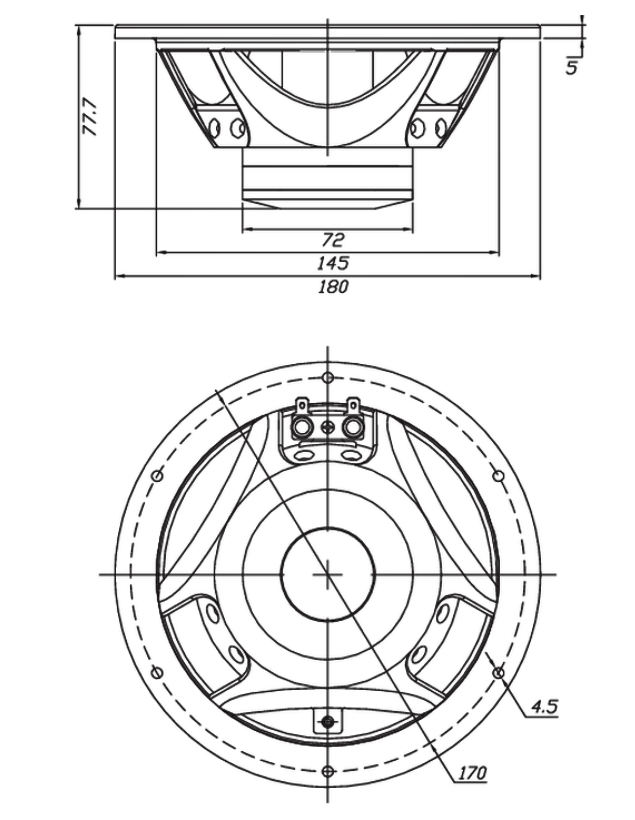

| Außenmaß: | 180,1mm |
| Bohrlochanzahl: | 6 |
| DC Resistance (Re): | 6,4 Ohm |
| EAN: | 844632088797 |
| Eff. Membranfläche (Sd): | 132,7cm² |
| Effektive Bewegte Masse (Mms): | 7 |
| Einbautiefe: | 77,7 mm |
| Einbauöffnung: | 145 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 36 |
| Frequenzbereich: | 48 bis 25,000Hz |
| Gesamtgüte (Qts): | 33 |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Aluminium Guss |
| Kraftfaktor (BL): | 6,82T·m |
| Lineare Auslenkung (Xmax): | 4,6mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 364 |
| Membranmaterial: | Papier / Kevlar |
| Modell: | PS180-8 |
| Nachgiebigkeit (Cms): | 1,05mm/N |
| Nennbelastbarkeit: | 30 Watt |
| Resonanzfrequenz (fs): | 58,5Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 0,63mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 94,8dB 2,83V/1m |
| Sickenmaterial: | Gewebe |
| Äquivalentvolumen (Vas): | 28,317 l |
