Dayton Audio DSA270-8

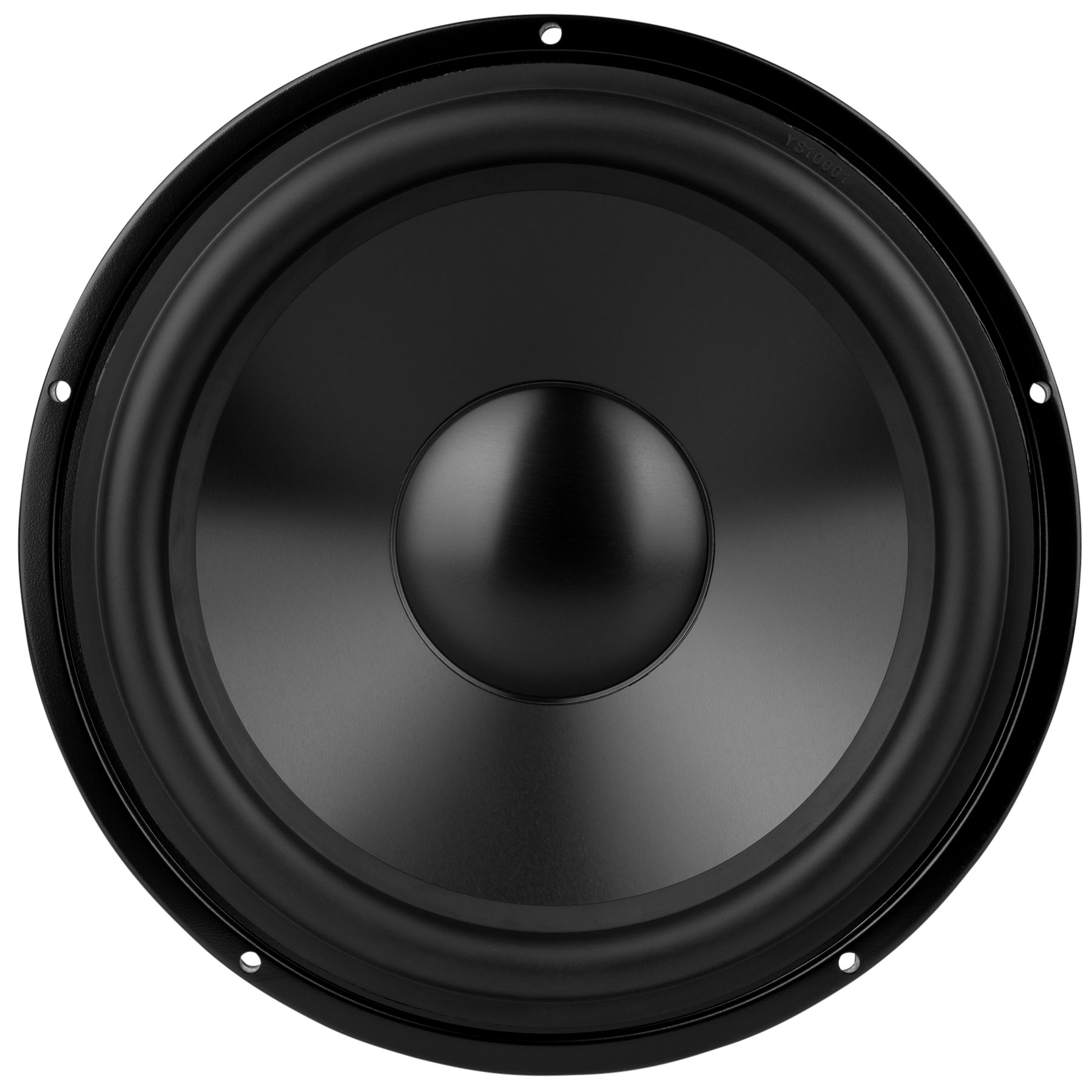

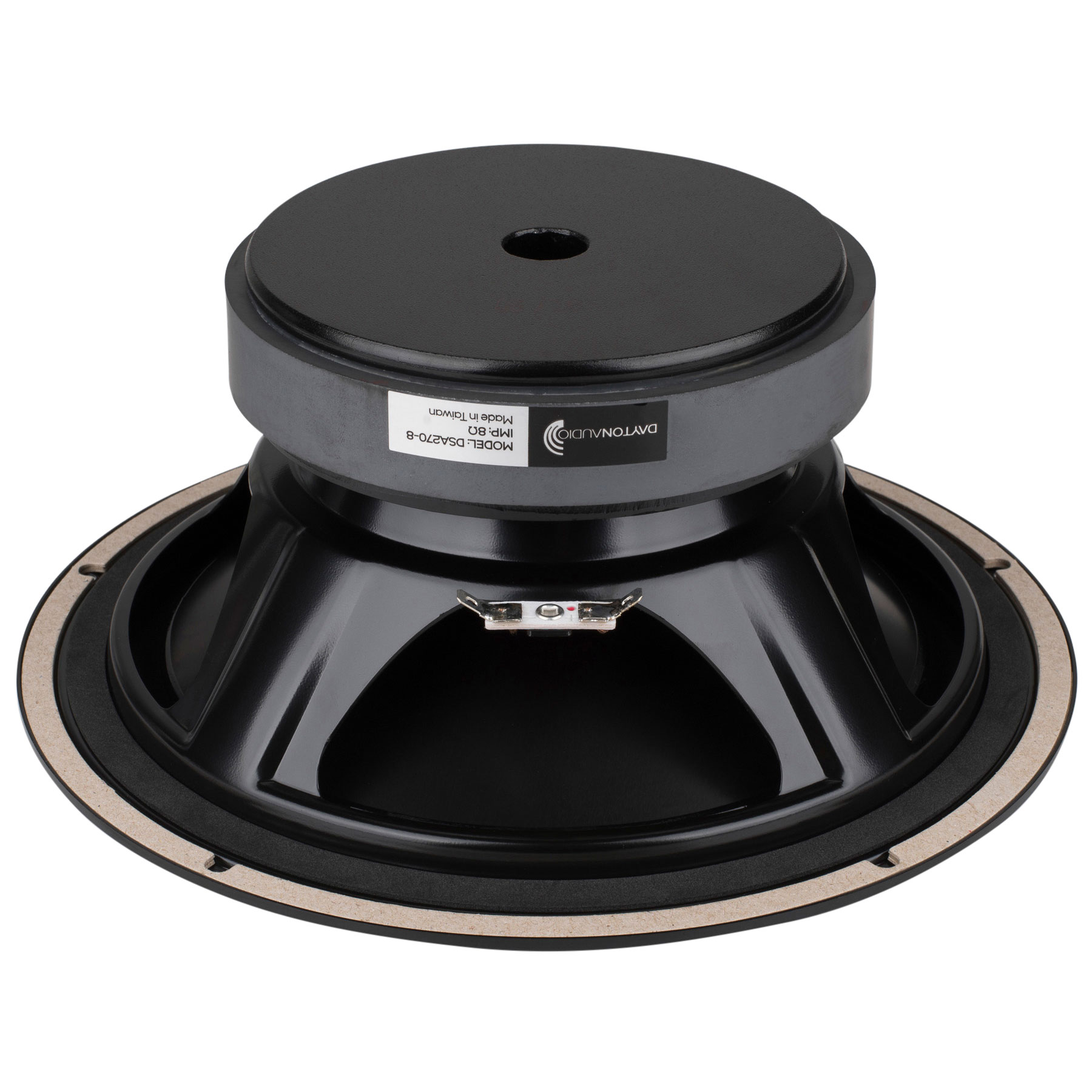

Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer
The Dayton Audio Designer Series DSA270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!
Key Features
- Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
- Low distortion motor system with copper shorting ring
- Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
- Smooth frequency response and linear roll-off simplify filter design
- Vented pole piece for minimized power compression and maximized reliability
- Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
- Generous Xmax capability encourages use of moderate bass boost to tailor the response
Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer
The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.
These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
| Artikel-Nr.: | 295-532 |
|---|---|
| Außenmaß: | 270mm |
| Bohrlochanzahl: | 5 |
| DC Resistance (Re): | 5,4 Ohm |
| EAN: | 848791002434 |
| Eff. Membranfläche (Sd): | 353cm² |
| Effektive Bewegte Masse (Mms): | 596 |
| Einbautiefe: | 112 mm |
| Einbauöffnung: | 227,1mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 47 |
| Frequenzbereich: | 29 bis 6,000Hz |
| Gesamtgüte (Qts): | 39 |
| Größe: | 10 " |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 11,2T·m |
| Lineare Auslenkung (Xmax): | 5,5mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 209 |
| Membranmaterial: | Aluminium |
| Modell: | DSA270-8 |
| Nachgiebigkeit (Cms): | 0,49mm/N |
| Nennbelastbarkeit: | 100 Watt |
| Resonanzfrequenz (fs): | 29,6Hz |
| Schwingspulendurchmesser: | 38,6 mm |
| Schwingspulenind. (Le): | 1,07mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 90,4dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 88,065 l |
