Dayton Audio DS215-PR

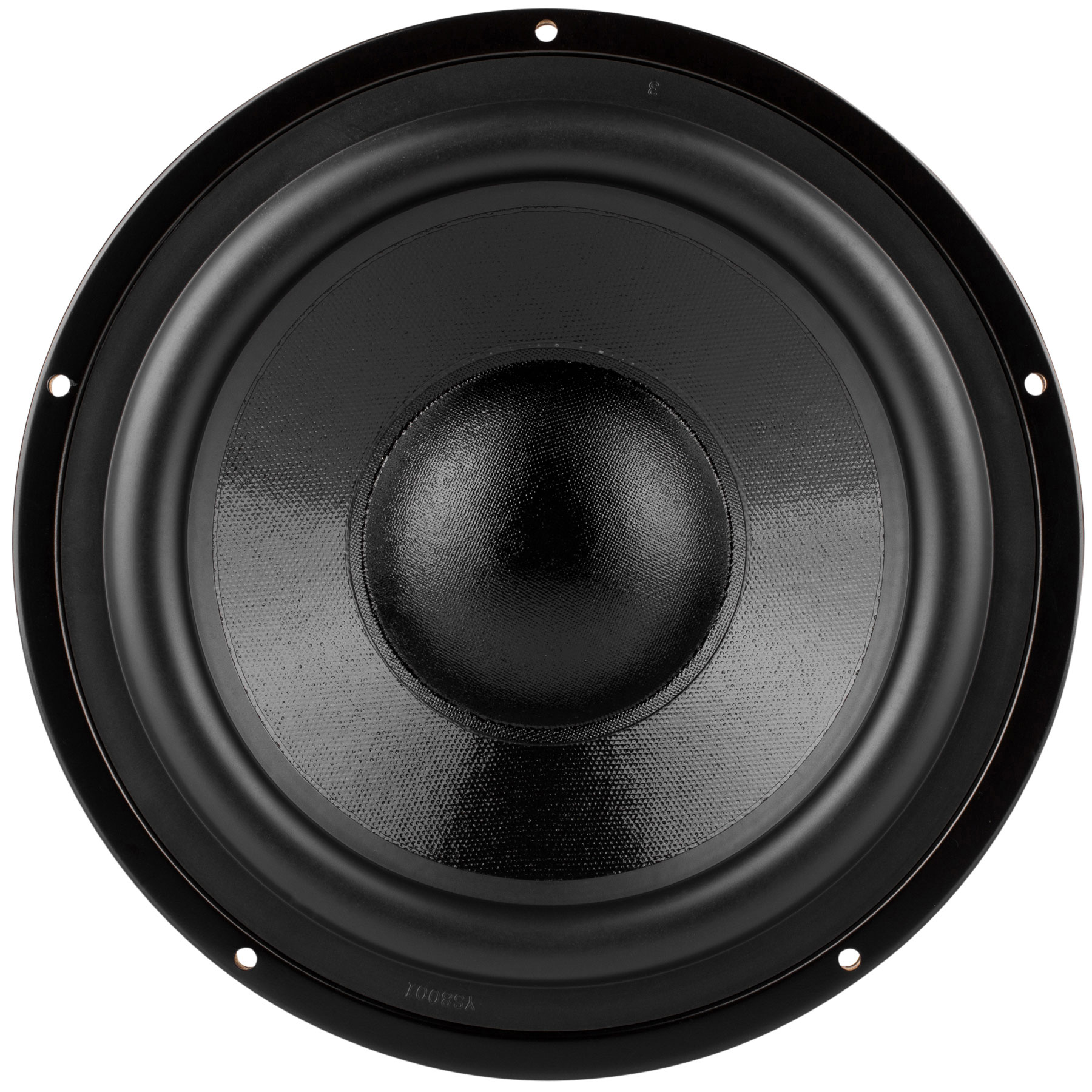

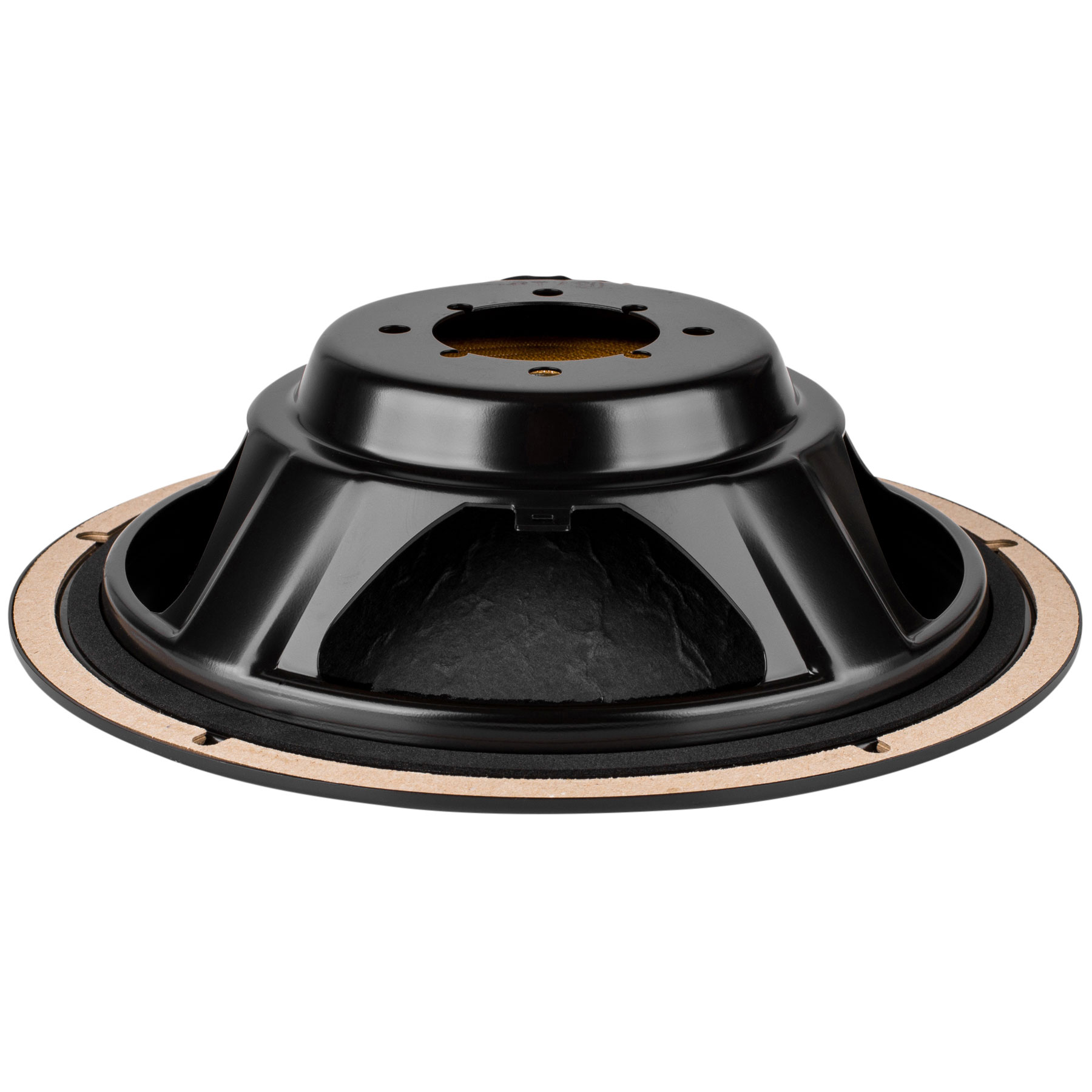

Dayton Audio DS215-PR 8" Designer Series Passive Radiator

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.

Key Features

• Long-throw suspension system for clean excursion
• Durable coated paper cone and rubber surround
• M5 threaded hole simplifies adding mass for lower tuning frequency
• Cosmetically and mechanically matches the Designer Series line of drivers

Dayton Audio DS215-PR 8" Designer Series Passive Radiator

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.

Specifications: • Fs: 23.3 Hz • Vas: 1.52 cu. ft. • Qms: 7.34 • Cms: 0.68 mm/N • Rms: 1.4 kg/s • Mms: 68.8 g • Sd: 211.2 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 8.50", Cutout diameter: 7.125", Depth: 2.28".

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 8" woofer/subwoofer that has 9mm of X-max would require 2-8" passive radiators with 9mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).
