Dayton Audio DS135-PR 5" Designer Series Passive Radiator

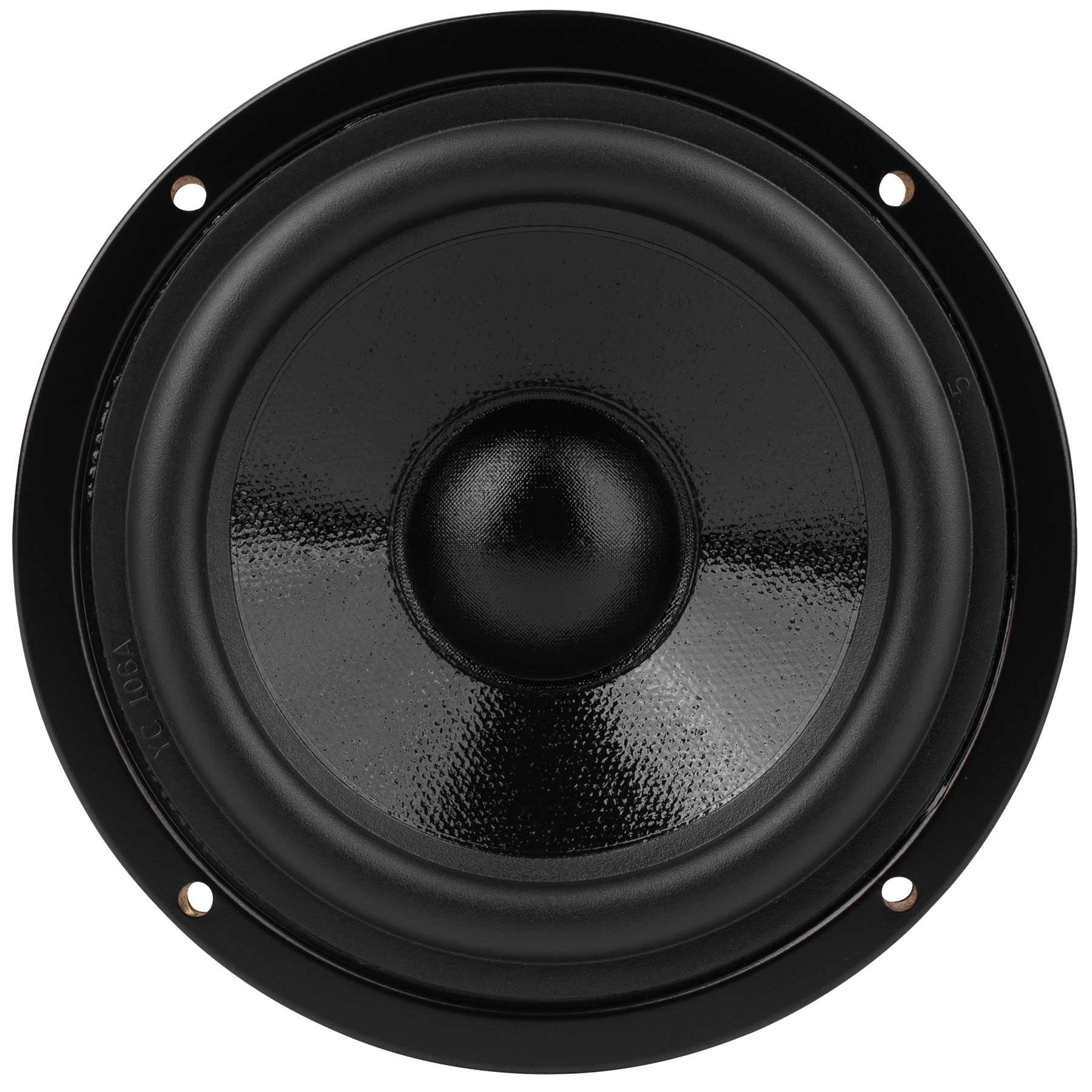

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and treated paper cone making them visually identical.

Key Features

• Allows tuning small enclosures lower than using conventional ports

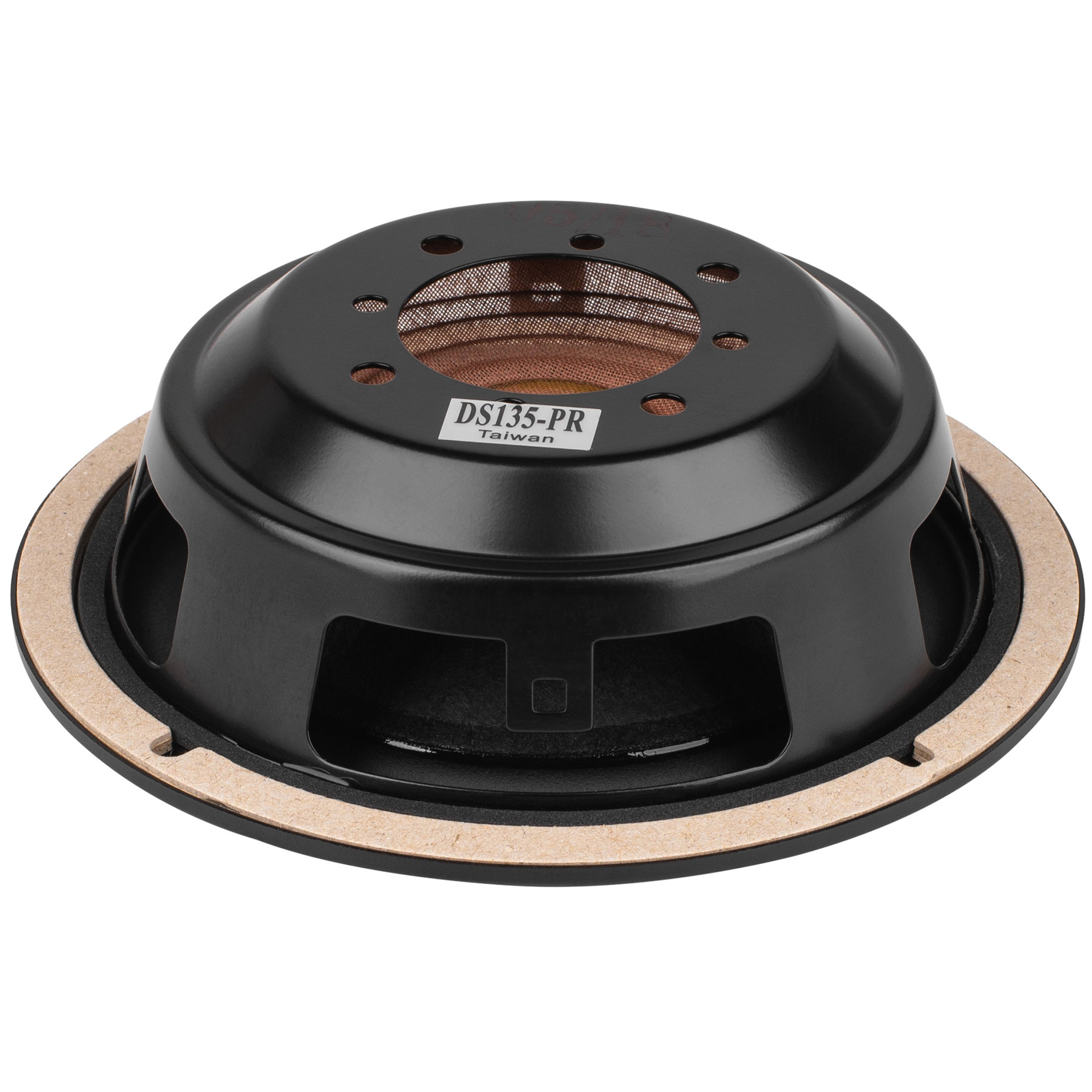

• Rear mounted screw allows easy mass adjustment for custom tuning
• Perfect match for Dayton Audio's paper cone Designer Series drivers
• Cosmetic frame edge looks great even when surface mounted

Dayton Audio DS135-PR 5" Designer Series Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from bookshelf two-ways to portable battery powered speaker systems.

Specifications: • Fs: 27.7 Hz • Vas: 0.43 cu. ft. • Qms: 3.93 • Cms: 1.52 mm/N • Rms: 1.0 kg/s • Mms: 21.8 g • Sd: 75.4 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 5.31", Cutout diameter: 4.39", Depth: 1.5".

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd
