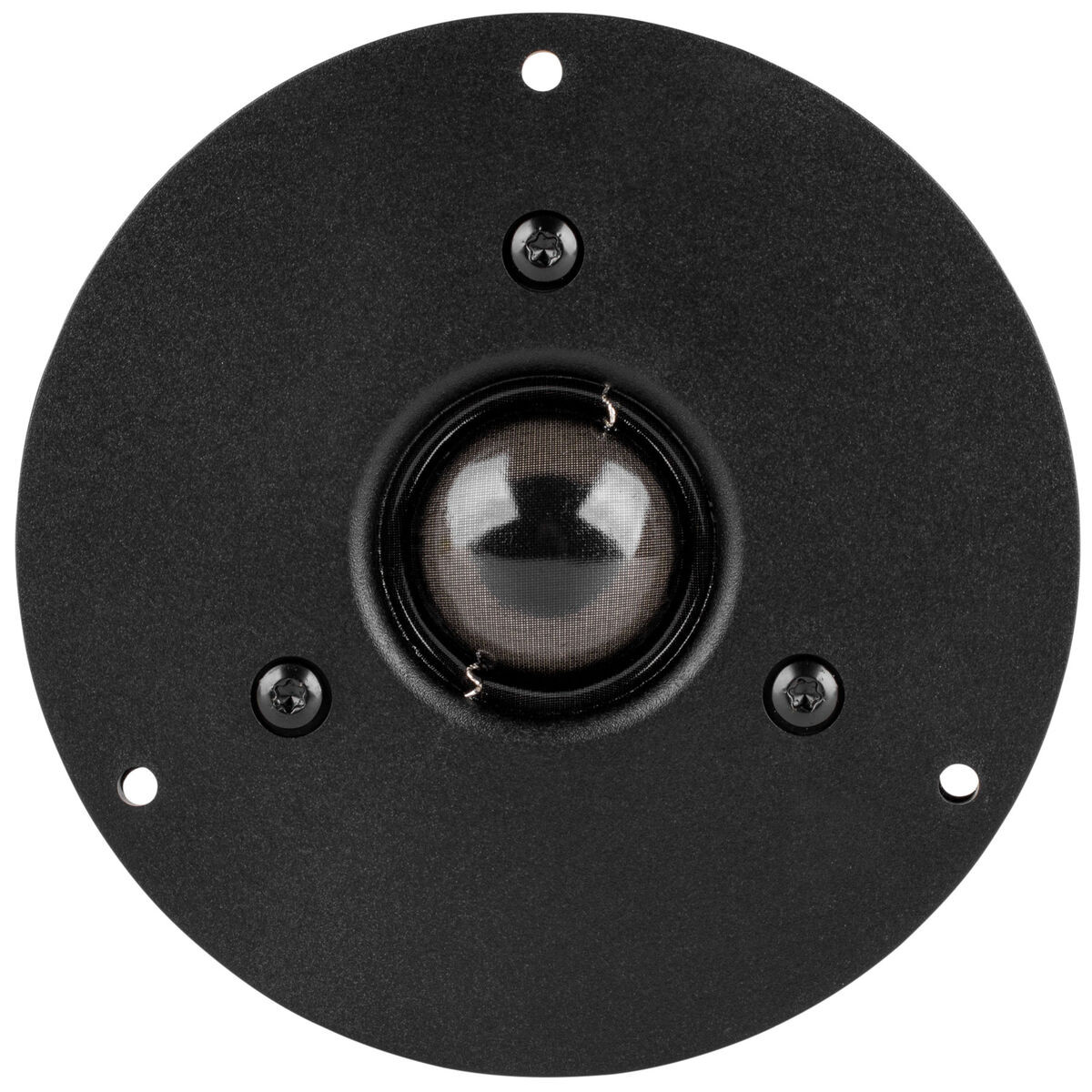

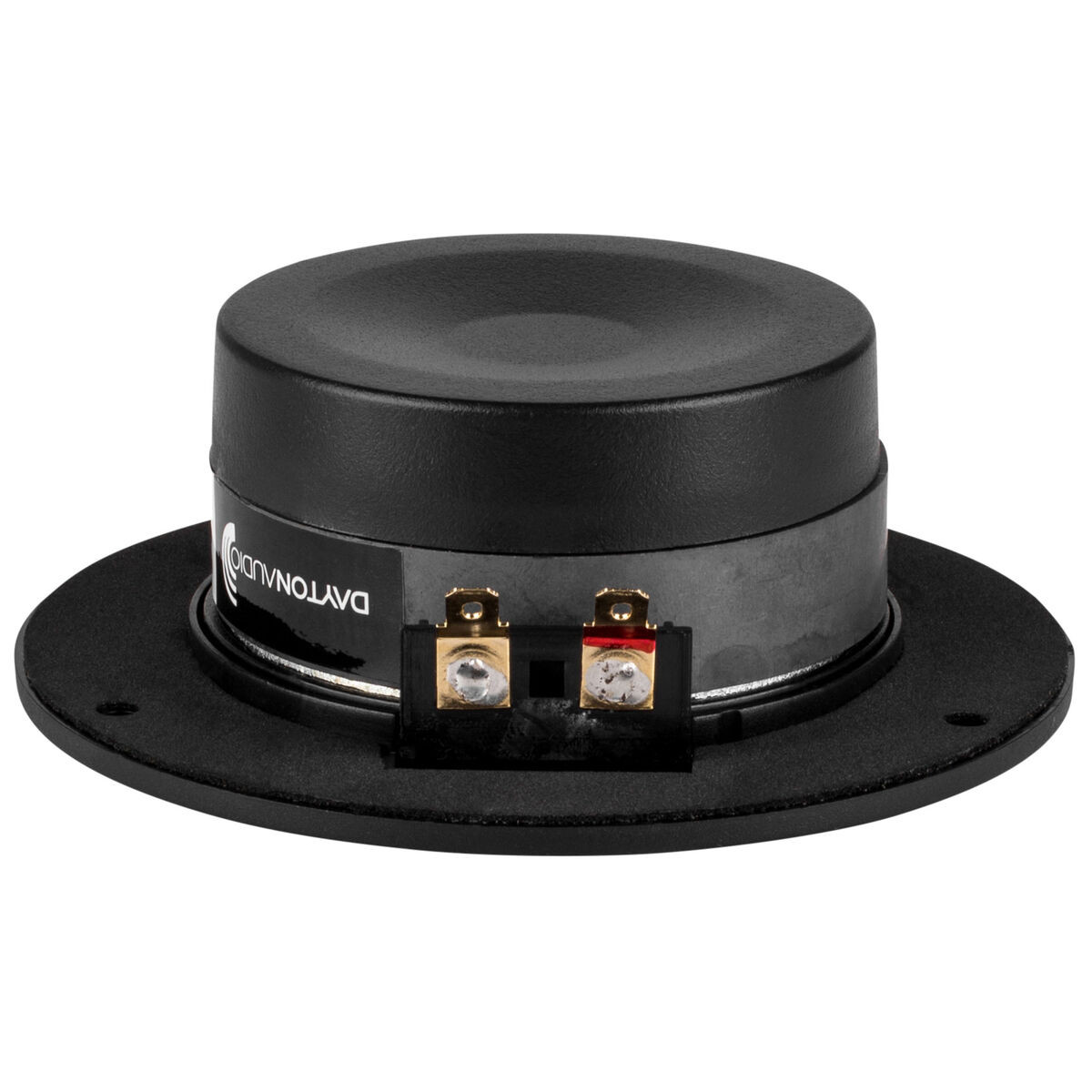

Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter
Skip image gallery
Picture similar to product
Product number:
275-070
Manufacturer:
Dayton Audio
Length:
4.03 mm
Width:
1.59 mm
Height:
7.62 mm
Weight:
0.63 kg
Min. order quantity:
1
Smooth-as-silk sound at an affordable price makes the Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter an ideal choice for most home DIY projects.
Key Features
- Treated silk dome for smooth frequency response
- Damped rear chambers for reduced resonance
- Ferrofluid cooled voice coil for outstanding power handling and better damping
- Ideal replacement for Dayton Audio DC28FS-8 1-1/8" Silk Dome Shielded Tweeter
The Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter is a great option for DIY speaker enthusiasts, as it offers amazing performance at an unbelievable price point. Featuring treated silk dome, this tweeter delivers smooth sound, while the damped rear chamber diminishes the resonance for better clarity. Thanks to the Ferrofluid cooled voice coil, this tweeter has excellent capabilities to handle high power. Replacement diaphragm 275-072
Properties
| Artikel-Nr.: | 275-070 |
|---|---|
| Außenmaß: | 110mm |
| DC Resistance (Re): | 5,4 Ohm |
| EAN: | 844632014130 |
| Einbautiefe: | 38,9 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 133 |
| Frequenzbereich: | 1,300 bis 20,000Hz |
| Gesamtgüte (Qts): | 5 |
| Hochtöner Typ: | Kalotte |
| Impedanz (Z): | 8 Ohm |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 81 |
| Modell: | DC28F-8 |
| Nennbelastbarkeit: | 50 Watt |
| Resonanzfrequenz (fs): | 834Hz |
| Schwingspulenind. (Le): | 0,09mH |
| Sensitivität: | 89dB 2,83V/1m |
Data according to manufacturer. Errors and changes reserved.
