Dayton Audio DC160S-4

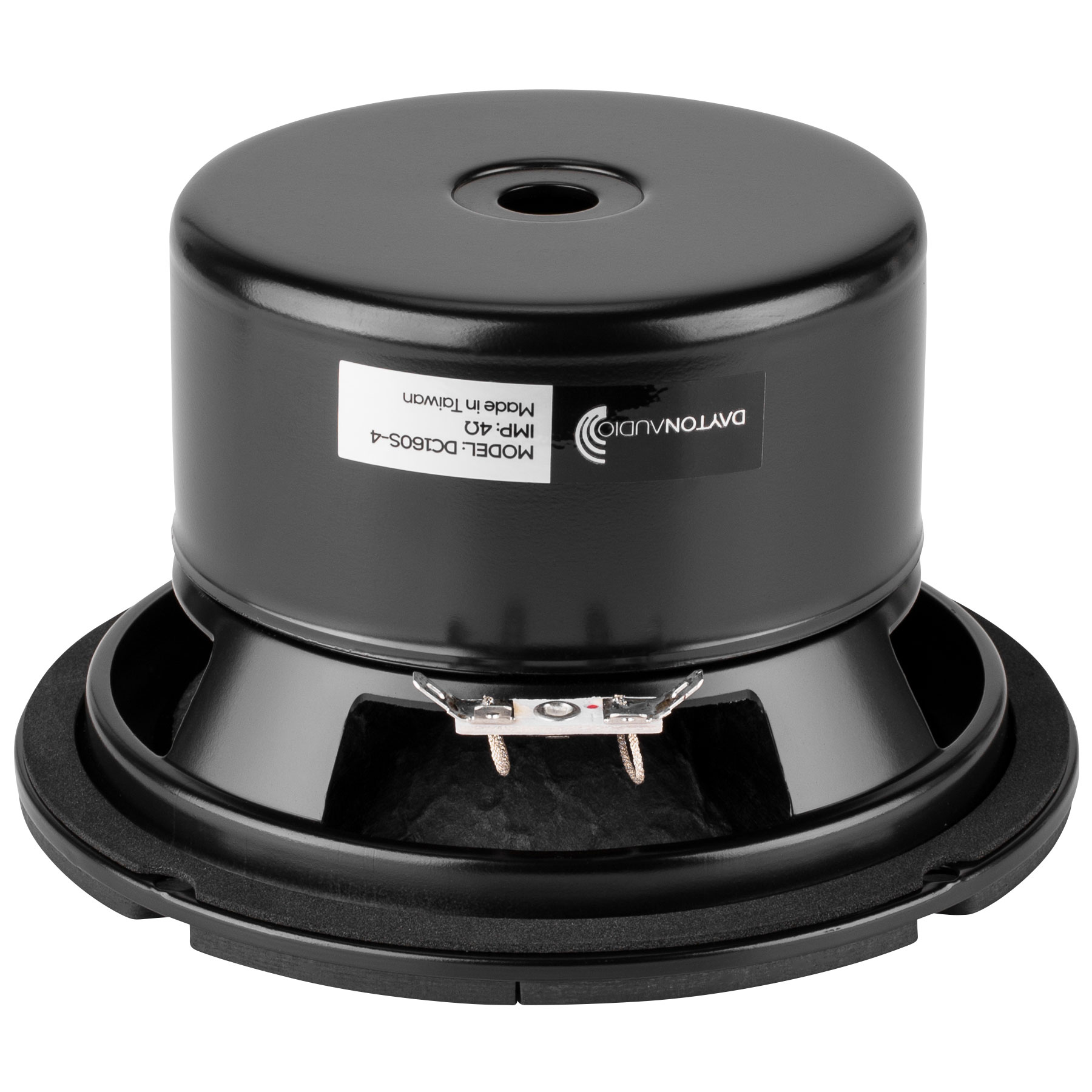

Dayton Audio DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm
Choose the Dayton Audio DC160S-4 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.
Key Features
- Treated paper cone provides smooth response and low energy storage
- Aluminum former, vented pole piece, and porous dustcap for high power handling
- Large diameter flat spider and good Xmax for clean bass
Dayton Audio DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm
Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160S-4 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160S-4 as a small subwoofer! The excellent low frequency performance will amaze you.

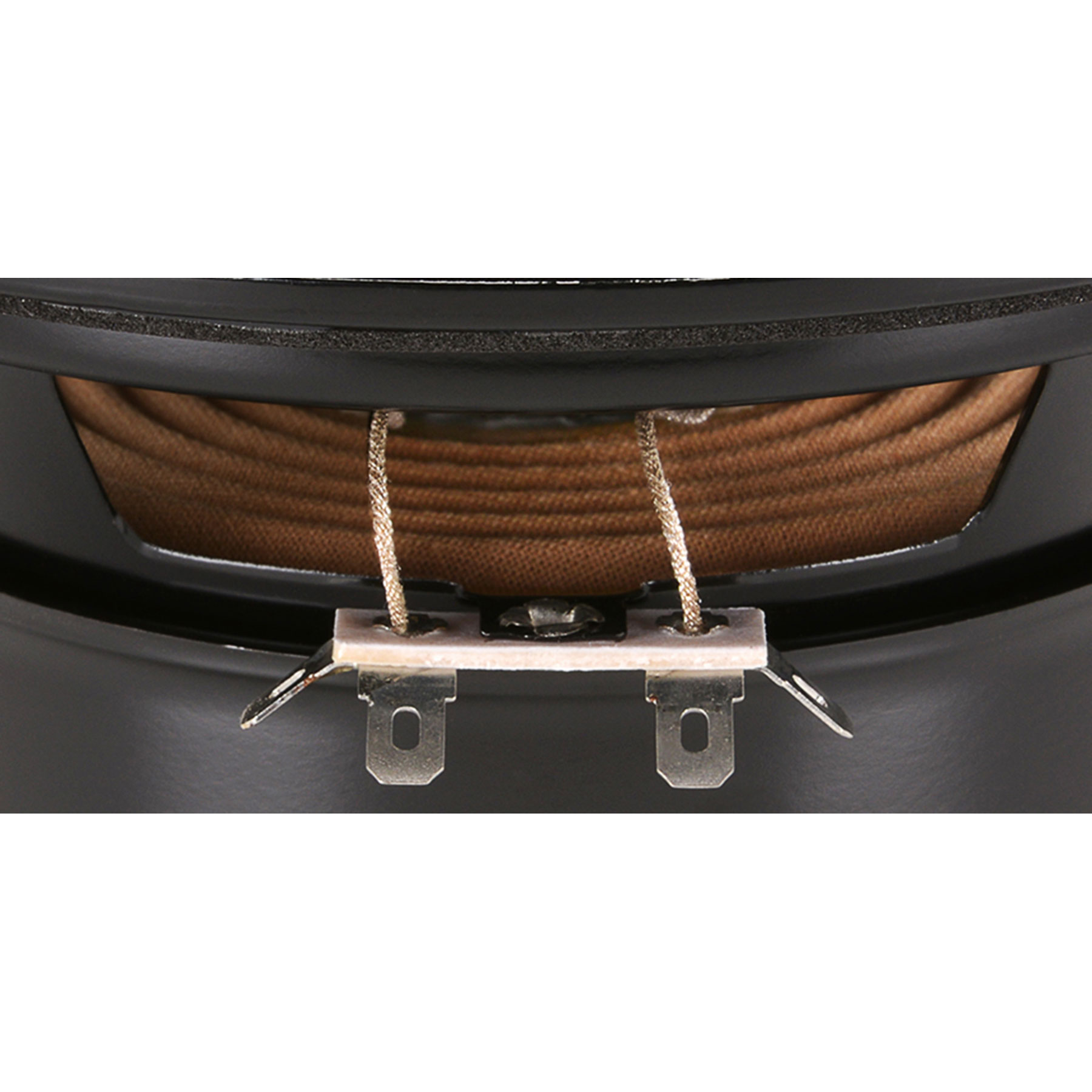

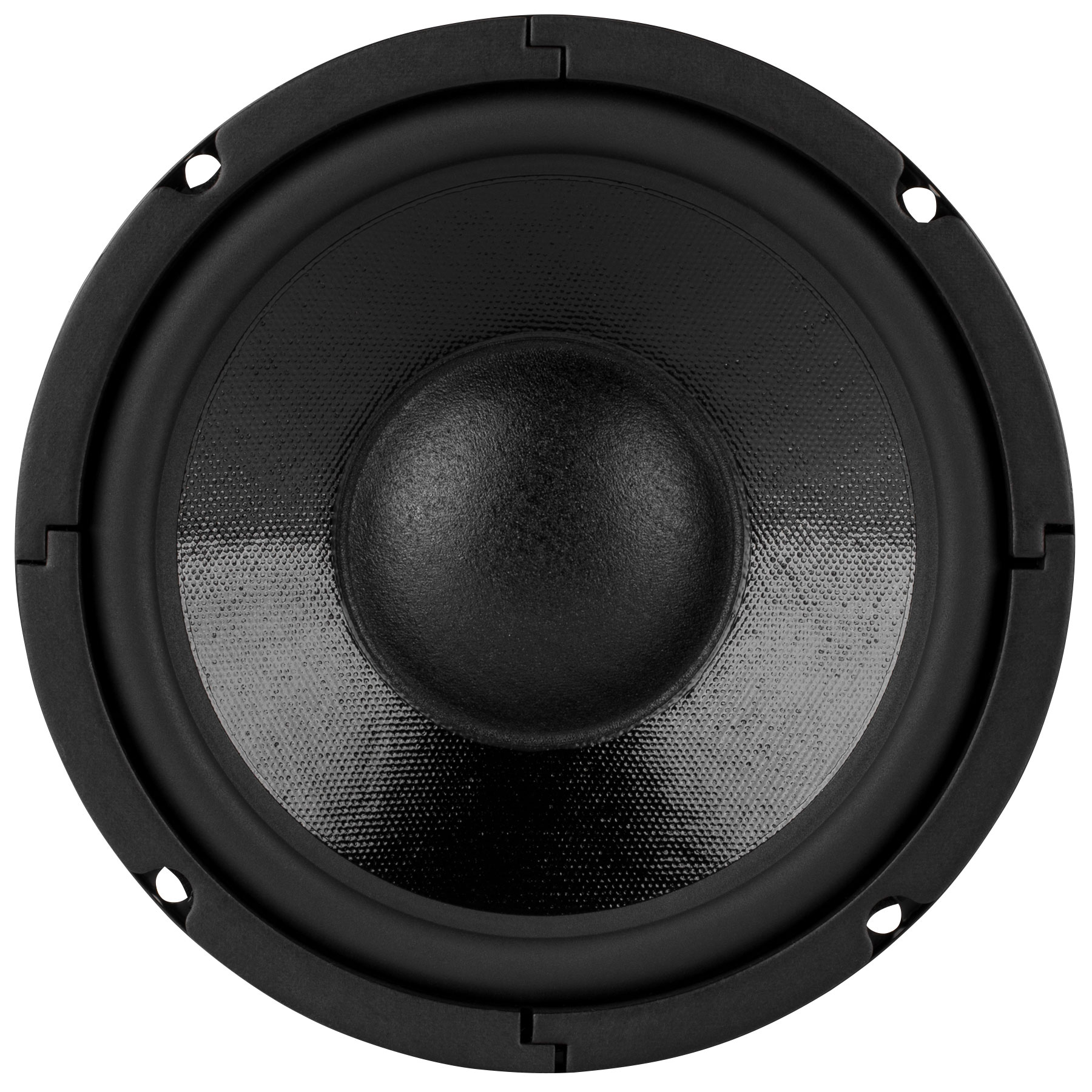

A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate. The 4 ohm impedance of the DC160S-4 makes it perfect for use in MTMs and center channel speakers.
| Artikel-Nr.: | 295-308 |
|---|---|
| Außenmaß: | 165,1mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 3,5 Ohm |
| EAN: | 844632000973 |
| Eff. Membranfläche (Sd): | 136,8cm² |
| Effektive Bewegte Masse (Mms): | 29,2g |
| Einbautiefe: | 95 mm |
| Einbauöffnung: | 144,5 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,49 |
| Frequenzbereich: | 33 bis 4,000Hz |
| Gesamtgüte (Qts): | 0,43 |
| Impedanz (Z): | 4 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 7,68T·m |
| Lineare Auslenkung (Xmax): | 3,4mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 3,31 |
| Membranmaterial: | beschichtetes Papier |
| Modell: | DC160S-4 |
| Nachgiebigkeit (Cms): | 0,88mm/N |
| Nennbelastbarkeit: | 50 Watt |
| Resonanzfrequenz (fs): | 30,9Hz |
| Schwingspulendurchmesser: | 35,1 mm |
| Schwingspulenind. (Le): | 0,89mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 88,5dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 23,22 l |
