Dayton Audio DC160-4
Skip image gallery
Picture similar to product
Product number:
295-309
Manufacturer:
Dayton Audio
Length:
10.65 mm
Width:
4.19 mm
Height:
9.53 mm
Weight:
1.65 kg
Available stock:
20
Min. order quantity:
1

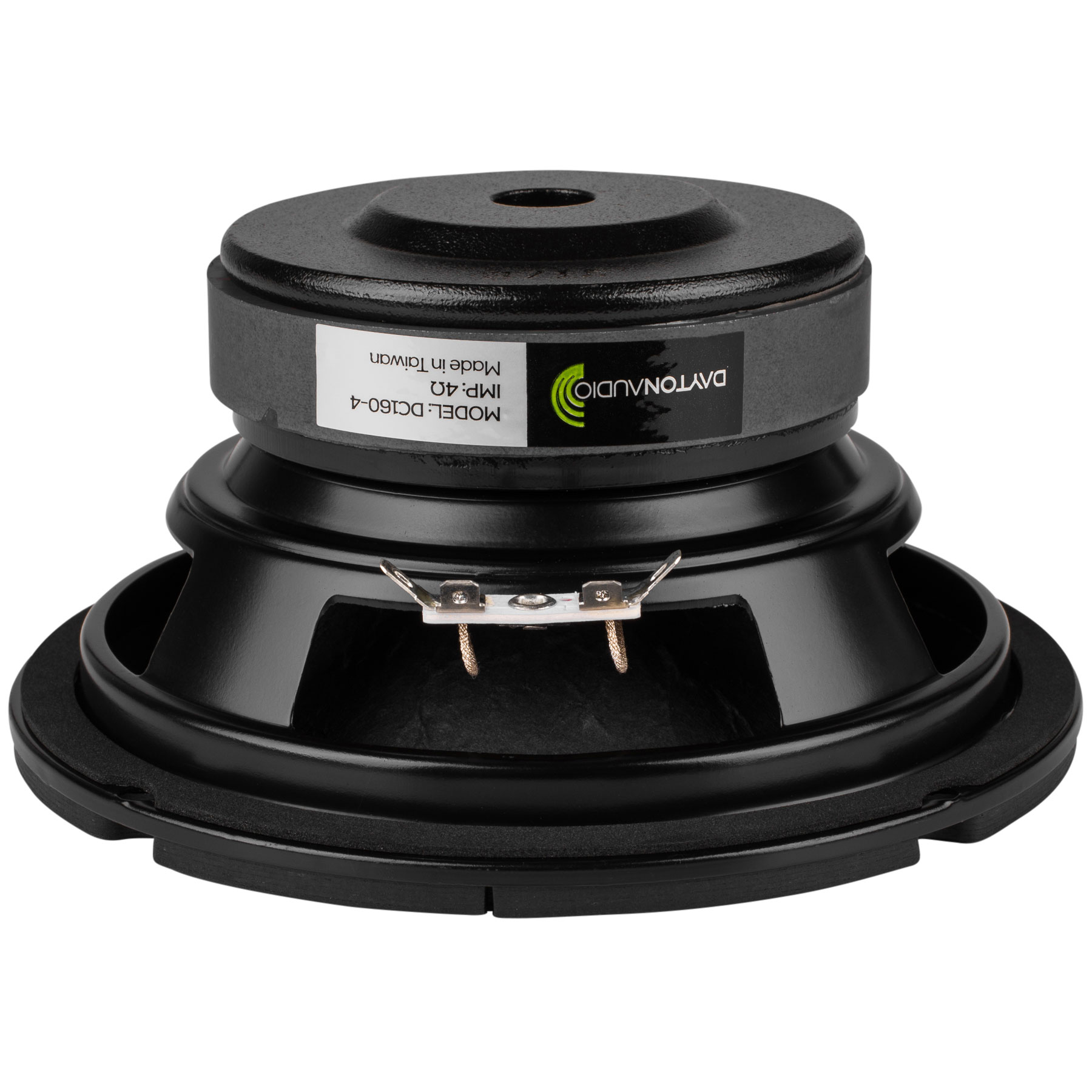

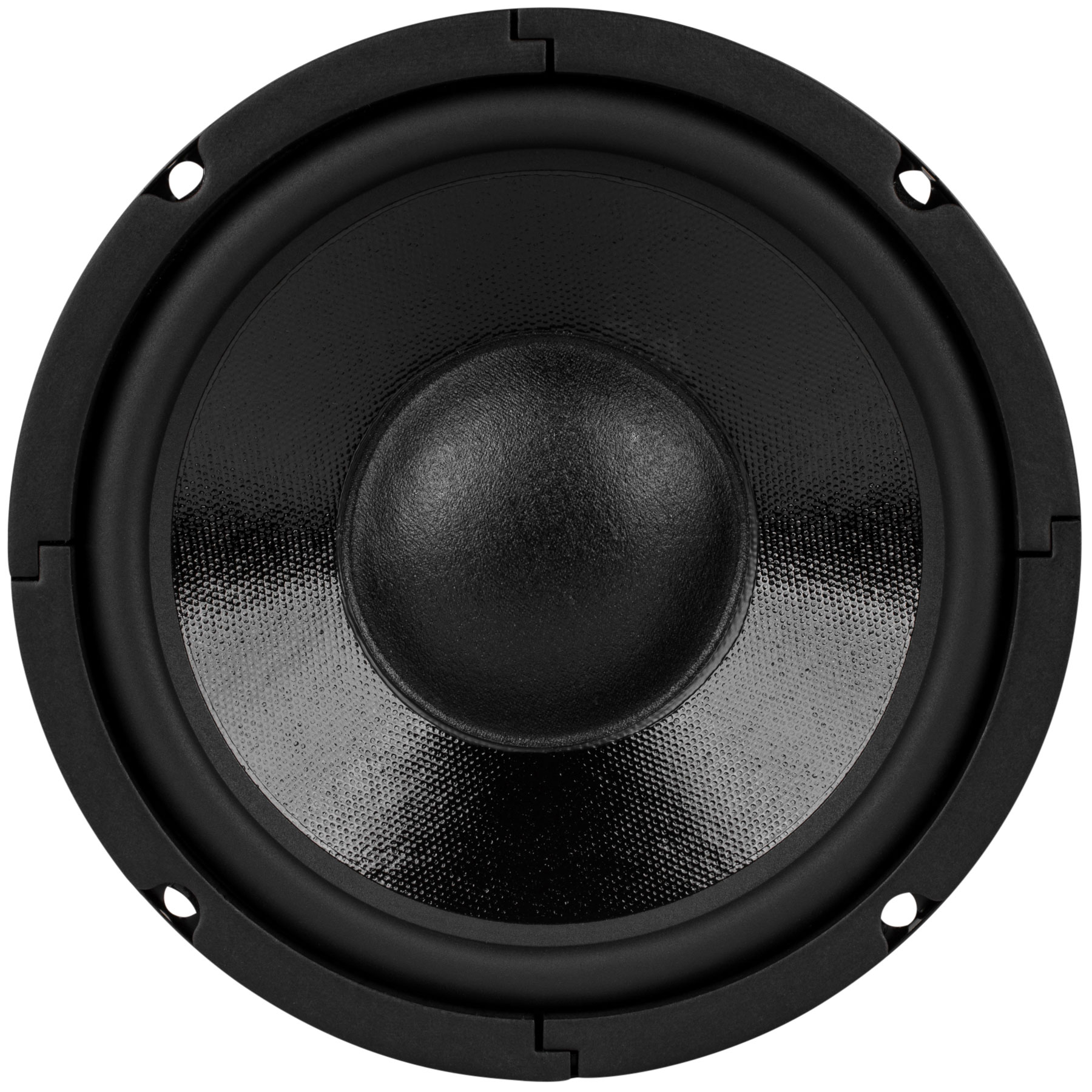

Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker
Designed to offer premium results on a moderate budget, the Dayton Audio DC160-4 6-1/2" 4 ohm woofer provides solid bass and clean midrange response when used in sealed, vented, or transmission line speaker systems.
Key Features
- Sturdy, easy-to-countersink round steel frame
- 4 ohm impedance offers alternative load possibilities
- Coated paper cone provides smooth response and reduced cone breakup
- Aluminum VC former and vented pole piece for high power handling
- Large diameter flat spider and good Xmax for clean bass
- Suitable for sealed or vented enclosures
Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker
One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC160-4 6-1/2" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, vented pole piece, coated cloth dust cap, and excellent low frequency response.
Properties
| Artikel-Nr.: | 295-309 |
|---|---|
| Außenmaß: | 165,1mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 3,4 Ohm |
| EAN: | 844632093999 |
| Eff. Membranfläche (Sd): | 136,8cm² |
| Effektive Bewegte Masse (Mms): | 29,2g |
| Einbautiefe: | 77,2 mm |
| Einbauöffnung: | 144,5 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,49 |
| Frequenzbereich: | 30 bis 4,000Hz |
| Gesamtgüte (Qts): | 0,43 |
| Impedanz (Z): | 4 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 7,02T·m |
| Lineare Auslenkung (Xmax): | 3,4mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 3,31 |
| Membranmaterial: | beschichtetes Papier |
| Modell: | DC160-4 |
| Nachgiebigkeit (Cms): | 0,57mm/N |
| Nennbelastbarkeit: | 60 Watt |
| Resonanzfrequenz (fs): | 39Hz |
| Schwingspulendurchmesser: | 35,6 mm |
| Schwingspulenind. (Le): | 0,99mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 88,3dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 15,008 l |
Data according to manufacturer. Errors and changes reserved.
