Dayton Audio DC130AS-8

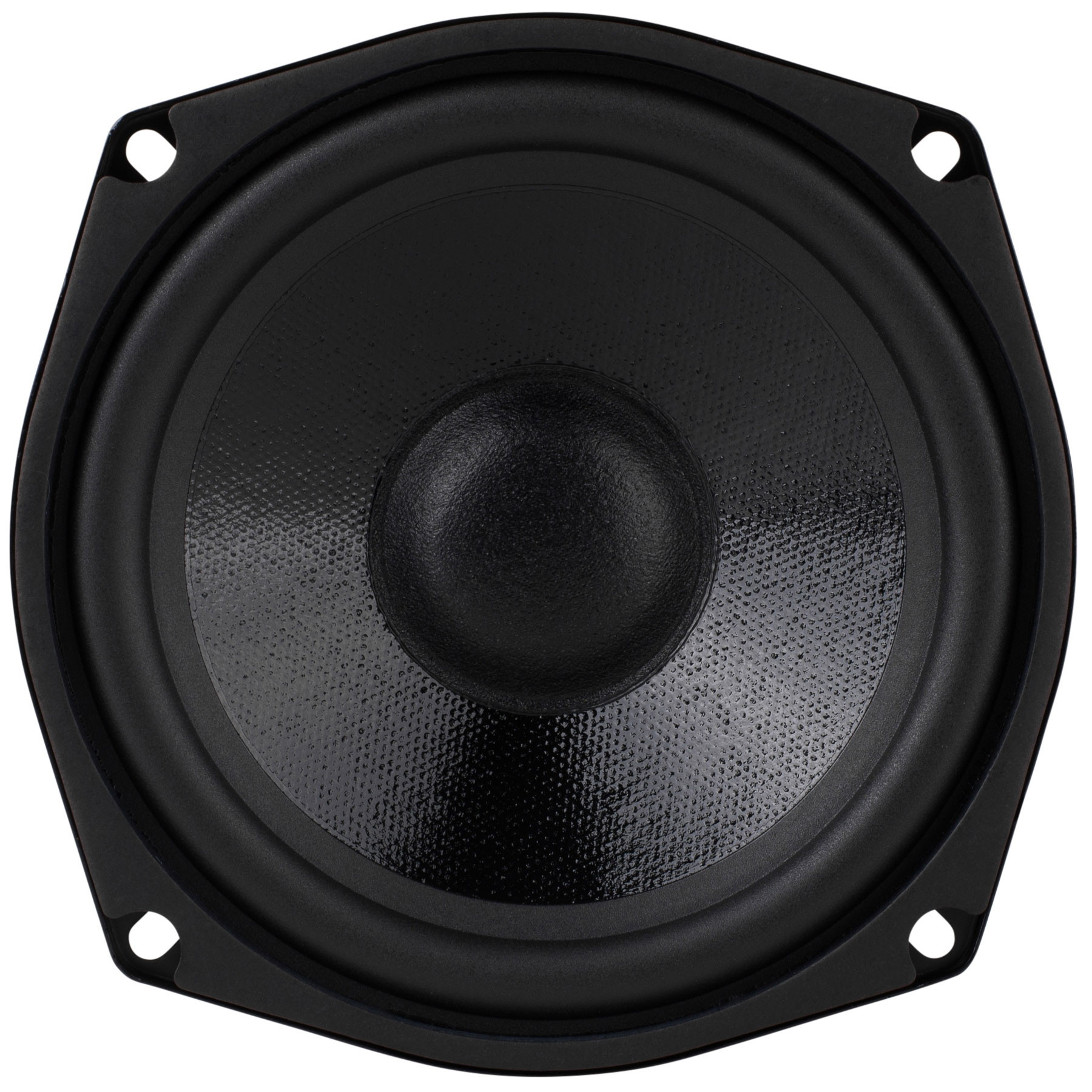

Dayton Audio DC130AS-8 5-1/4" Classic Shielded Woofer
Choose the Dayton Audio DC130AS-8 Classic Series 5-1/4" woofer for use as a great replacement bookshelf speaker, midrange in 3-way designs, or even as a small subwoofer. The shielded design allows for use near tube TVs and focuses the magnetic flux in the gap for high sensitivity.
Key Features
- Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
- Smooth frequency response up to 2 kHz and great bass response
- Rubber surround, aluminum voice coil, and extended bump plate
- Shielded design increases performance and allows it to be used near tube TVs
- 4 ohm impedance for series pair use in MTMs and center channel speakers
Dayton Audio DC130AS-8 5-1/4" Classic Shielded Woofer
Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC130AS-8 shielded 5-1/4" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC130AS-8 as a small subwoofer! The excellent low frequency performance will amaze you.
A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil increases power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.
| Artikel-Nr.: | 295-300 |
|---|---|
| Außenmaß: | 134,1mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 5,6 Ohm |
| EAN: | 844632000218 |
| Eff. Membranfläche (Sd): | 91,6cm² |
| Effektive Bewegte Masse (Mms): | 9,7g |
| Einbautiefe: | 78,5 mm |
| Einbauöffnung: | 119,9 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,58 |
| Frequenzbereich: | 55 bis 4,000Hz |
| Gesamtgüte (Qts): | 0,45 |
| Gleichstromwiderstand (Re): | 5,6Ω |
| Größe: | 5", 134mm |
| Impedanz (Z): | 8 Ohm |
| Kennschalldruck: | 88,5dB 2,83V/m |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 5,83T·m |
| Lineare Auslenkung (Xmax): | 2,5mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 2,01 |
| Membranmaterial: | beschichtetes Papier |
| Modell: | DC130AS-8 |
| Nachgiebigkeit (Cms): | 0,8mm/N |
| Nennbelastbarkeit: | 30 Watt |
| Resonanzfrequenz (fs): | 57,2Hz |
| Schwingspulenind. (Le): | 0,84mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 88,5dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 9,628 l |
