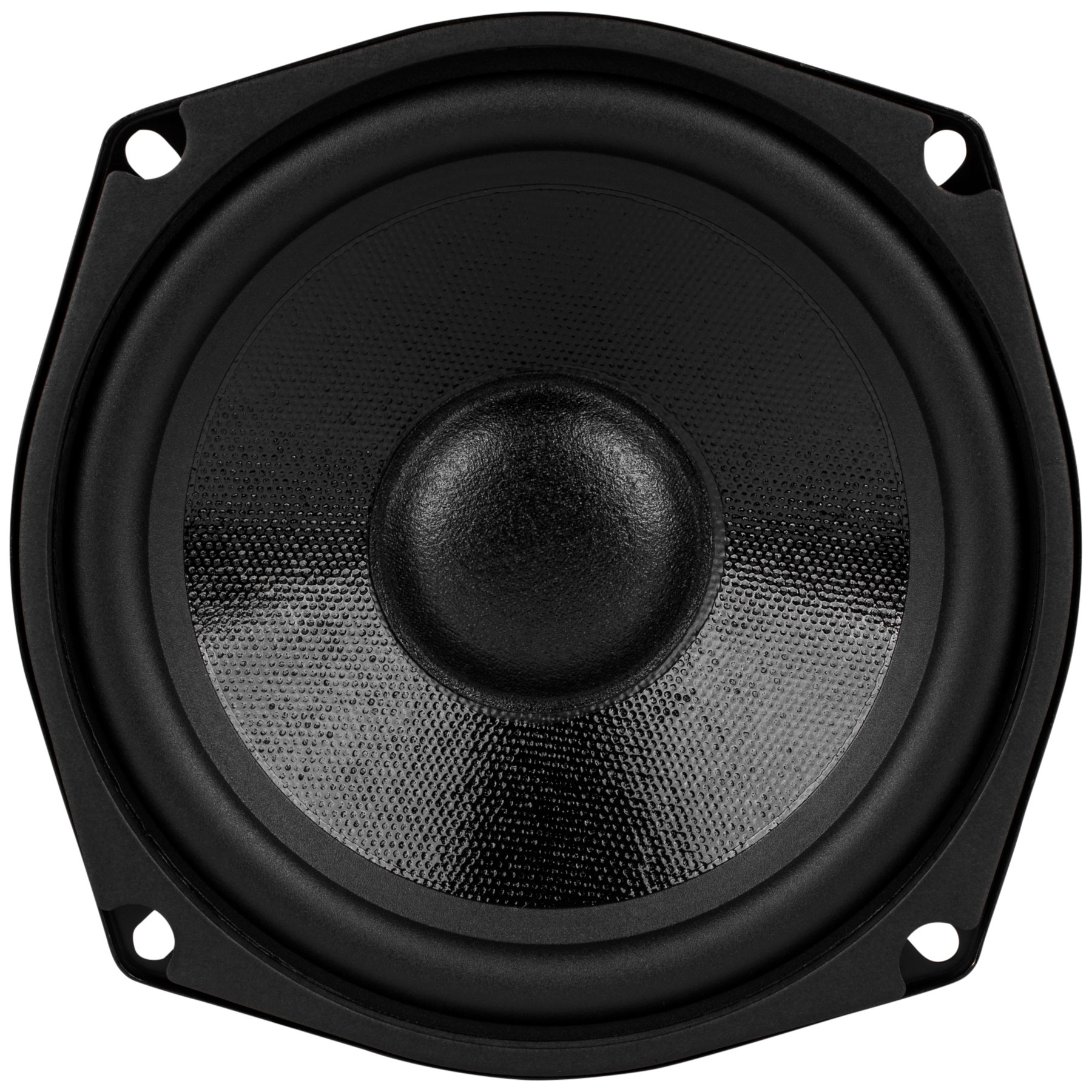

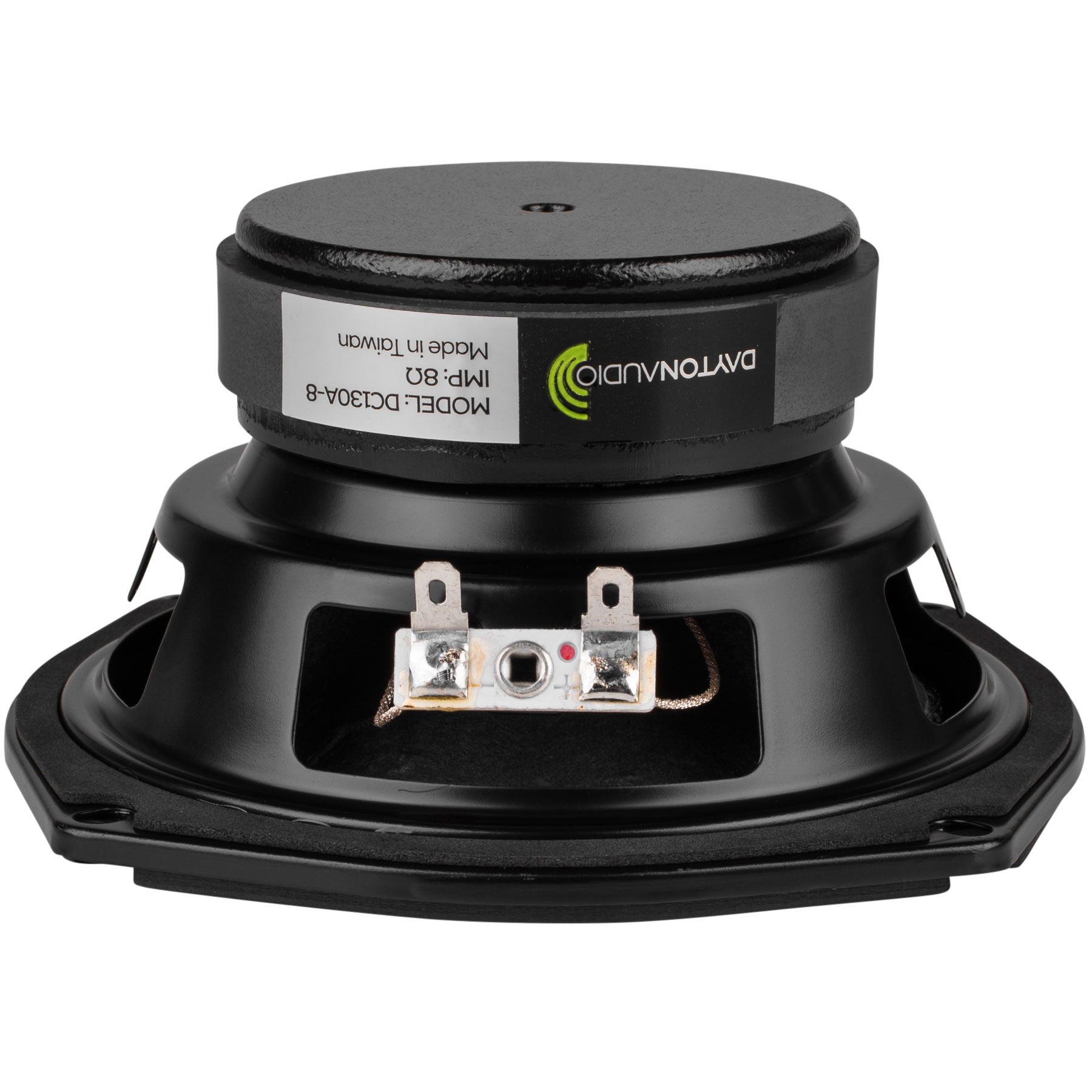

Dayton Audio DC130A-8
Skip image gallery
Picture similar to product
Product number:
295-303
Manufacturer:
Dayton Audio
Length:
6.45 mm
Width:
2.54 mm
Height:
8.26 mm
Weight:
1 kg
Min. order quantity:
1
Dayton Audio DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm
The Dayton Audio Classic woofers are excellent as replacements or for new system design and construction. With impressive bass performance and smooth overall response, they are popular in many DIY loudspeaker projects.
Key Features
- Treated paper cone provides smooth response and low energy storage
- Aluminum former and porous dustcap for high power handling
- Large diameter flat spider and good Xmax for clean bass
Dayton Audio DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm
The Dayton Audio Classic woofers are excellent as replacements or for new system design and construction. Their versatile set of parameters make them suitable for sealed or vented enclosure designs. With impressive bass performance and smooth overall response, they are popular in many DIY loudspeaker projects.
Properties
| Artikel-Nr.: | 295-303 |
|---|---|
| Außenmaß: | 134,1mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 5,7 Ohm |
| EAN: | 844632093968 |
| Eff. Membranfläche (Sd): | 91,6cm² |
| Effektive Bewegte Masse (Mms): | 9,3 |
| Einbautiefe: | 69,6 mm |
| Einbauöffnung: | 119,9 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,51 |
| Frequenzbereich: | 50 bis 5,000Hz |
| Gesamtgüte (Qts): | 0,41 |
| Gleichstromwiderstand (Re): | 5,7 Ohm |
| Größe: | 5", 134mm |
| Impedanz (Z): | 8 Ohm |
| Kennschalldruck: | 88,7dB 2,83V/m |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 5,88T·m |
| Lineare Auslenkung (Xmax): | 2,5mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 1,9 |
| Membranmaterial: | beschichtetes Papier |
| Modell: | DC130A-8 |
| Nachgiebigkeit (Cms): | 0,96mm/N |
| Nennbelastbarkeit: | 40 Watt |
| Resonanzfrequenz (fs): | 53,2Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 0,75mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 88,7dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 13,875 l |
Data according to manufacturer. Errors and changes reserved.
