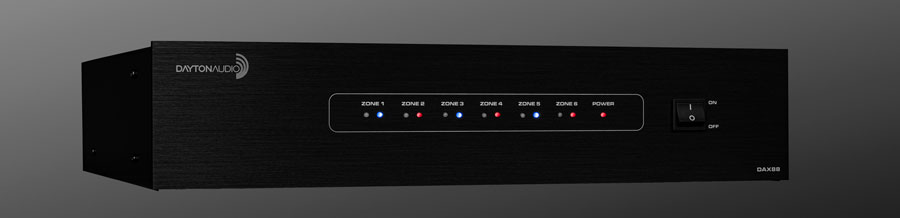

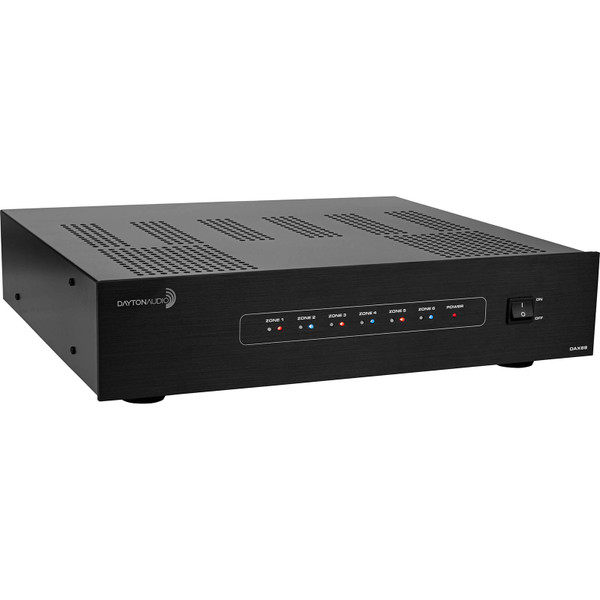

Dayton Audio DAX88 8-Quellen 8-Zonen Multi-Room APP gesteuerter verteilter Audio-Matrix-Verstärker
€1,499.95
Deliverable from ca.: 10/10/2025
Dayton Audio DAX88 8-Source 8-Zone Multi-Room APP controlled distributed audio matrix amplifier
Dayton Audio's DAX88 8-Source, 8-Zone Distributed Audio Matrix Amplifier delivers the new standard for the multi-zone Wi-Fi audio experience. Powered by the comprehensive and easy-to-use mobile control app Matrio™, the DAX88 gives you the freedom to listen to your music the way you want, no matter where you are in your home or business. Enjoy full control over your audio system. Plain and simple.
Main Features

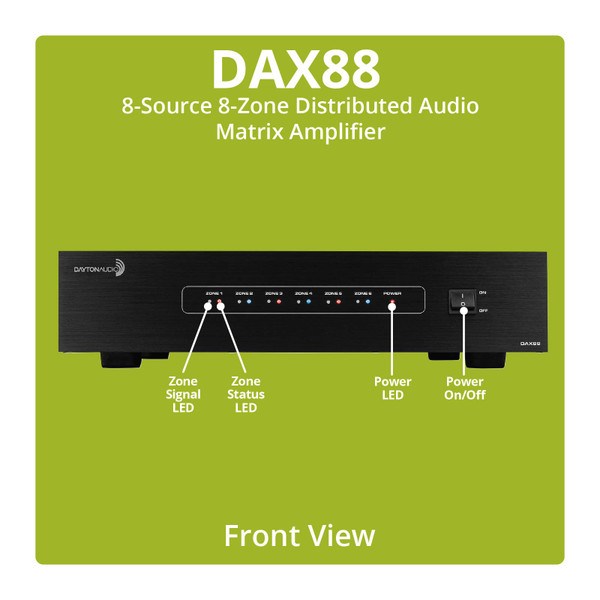

- The 8-source multi-zone amplifier with 8 zones offers the ultimate, customizable audio experience for the whole house
- With the practical Matrio™ mobile app, you have all DAX88 features in your hand.
- Large selection of analog and digital inputs, including built-in Wi-Fi and AirPlay streaming options
- Six stereo amplifier zones and two stereo preamplifier zones ensure a simplified installation process
- Connect multiple DAX88 units to your network to expand your system indefinitely, so you never run out of audio options.

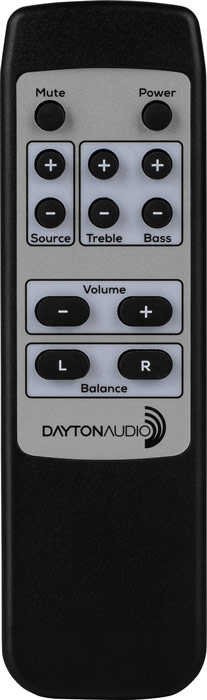

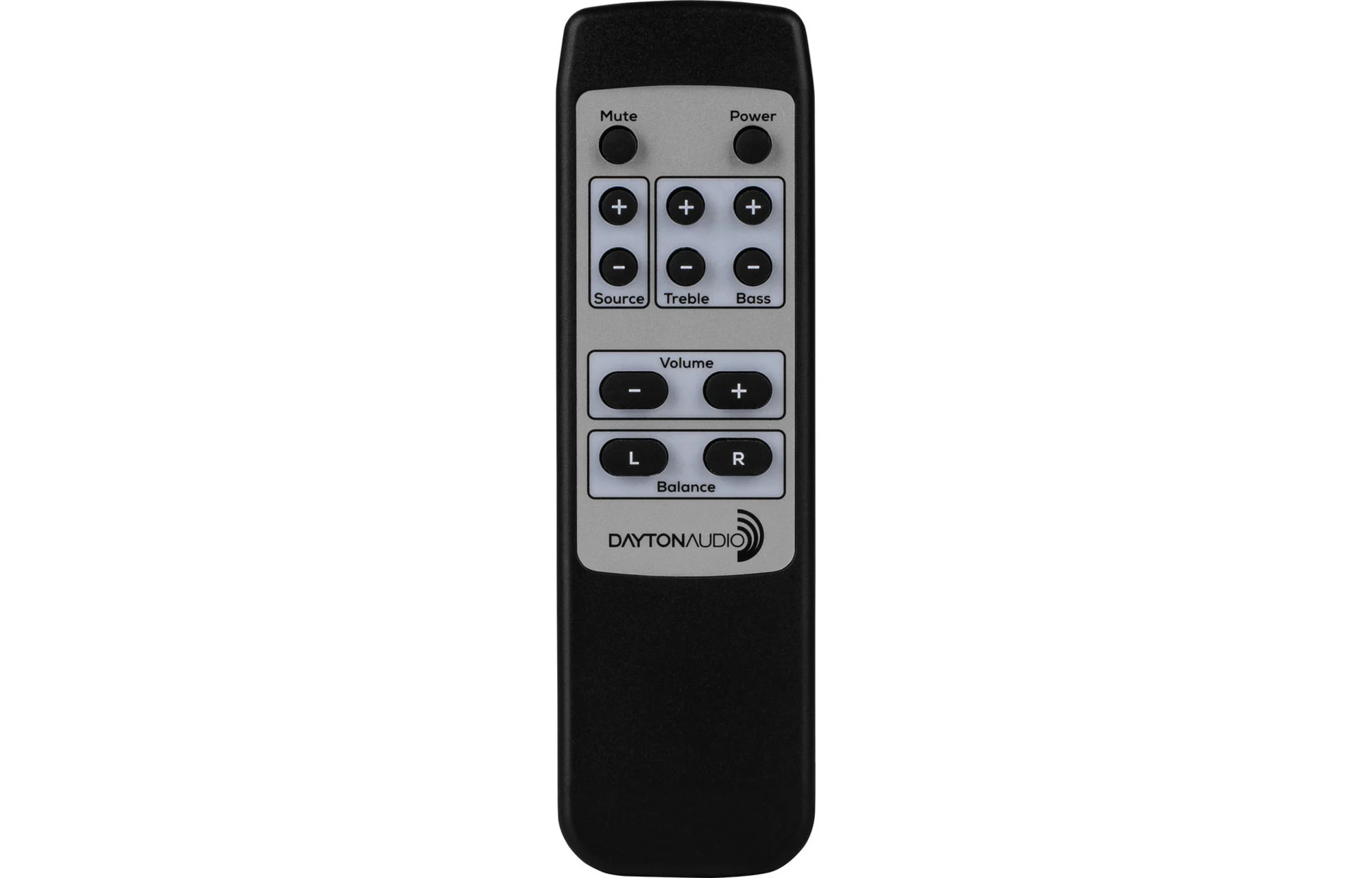

- Optional keypads, keypad hub, and IR remote control increase control accessibility and provide additional integration into the entire house.
Dayton Audio's DAX88 8-Source, 8-Zone Distributed Audio Matrix Amplifier offers you the ultimate
Multi-zone Wi-Fi audio experience. With the comprehensive and easy-to-use mobile control app
Matrio™ gives you the freedom with the DAX88 to listen to your music the way you want, no matter where you are in
your house. The flexibility of six stereo amplifier zones and two stereo preamplifier zones
with line level allows you to use the DAX88 with speakers of your choice. Whether you
DAX88 for use in private or commercial areas, it offers you complete sonic freedom.
Simple and straightforward.
Uncompromising Performance
With 8 sources and 8 zones, the DAX88 offers the ultimate customizable multi-zone audio experience. The DAX88
was developed with a focus on simplicity, flexibility, and wireless control and offers
you an unparalleled multi-room audio experience for your home or business. With 75 watts per
Kanal verfügt der DAX88 über genügend Leistung, um Ihnen ein beeindruckendes Hörerlebnis in Ihrem ganzen
House or business to offer. With the ability to bridge channels, the DAX88 delivers even more
more power with 180 watts.
Freedom in simplicity
The DAX88 offers a wide range of analog and digital inputs, including integrated Wi-Fi streaming options (AirPlay, Spotify Connect, DLNA). The DAX88 features its own Wi-Fi channel, allowing you to stream your favorite music directly from your preferred streaming service via AirPlay, Spotify Connect, and DLNA. With access to streaming services like Spotify, Apple Music, Amazon Music, TIDAL, iHeartRadio, and TuneIn, you have the music world at your fingertips. For Amazon Music and other streaming services, additional hardware or a paid subscription may be required when using Android devices. Analog input options, including four RCA, seven 3.5mm, and two optical connections, ensure that you can use virtually any input source, from TVs to media players to additional Bluetooth adapters.
Thanks to the output flexibility of the DAX88, you can freely choose your speaker system or integrate the DAX88 into an existing design. With six stereo amplifier zones and two stereo pre-amplifier zones, the DAX88 offers you the possibility to use any speaker combinations as well as additional amplifiers. When you use the pre-amplifier zones with different amplifiers, such as 70V amplifiers, the DAX88 immediately provides app-controlled and Wi-Fi streaming options for your 70/100V audio system.
Connect multiple DAX88 units to your network to expand your system indefinitely. Suppose you have more than eight zones that require audio. In this case, this expansion option ensures that you never run out of audio options.
Multi-Zone Immersion
Die mobile App Matrio™ von Dayton Audio simplifies your audio system by allowing you and other users
access to the multi-zone control via your mobile devices. With the ability to,
zwischen acht Quellen und acht Zonen zu wählen, rationalized Matrio™ personalized audio experiences in
mehreren Räumen. Mit Matrio™ können Sie die Quellen wechseln, die Lautstärke, den Klang und die Balance
for individual zones and group zones. Enjoy audio throughout the house without leaving your
Remove location if necessary.
Your music your way
You are already familiar with your preferred streaming service. Dayton Audio did not want you to
eine neue Musikschnittstelle lernen müssen, um Ihre Musik zu genießen. Durch die Integration eines
special Wi-Fi audio streaming channel, the DAX88 simplifies listening to your favorite music directly from
your preferred streaming service. Once DAX88 and Matrio™ are on the same network, you can
over Apple AirPlay, Spotify Connect, or DLNA to stream to the DAX88. The flexibility of streaming
Options makes it easy to use services like Spotify, Apple Music, Amazon Music, TIDAL, iHeartRadio, and TuneIn
throughout the entire house or business. For Amazon Music and other streaming services are
possibly additional hardware or a paid subscription required if you use Android-
Use devices.
Important Note:
Dear Customers,
Dayton Audio electrical devices are pre-configured for the US market with a 110-volt supply voltage. They
are basically, at least those that we also distribute for the European standard 220-240V
designed. It is important that the operating manual is read thoroughly before commissioning and
checked whether the adjustments for operation with 220-240V have been made.
Specifications:<html>
- <head>
- <title>Willkommen auf meiner Webseite</title>
- </head>
- <body>
- <h1>Hallo Welt!</h1>
- <p>Dies ist ein Beispieltext auf meiner Webseite.</p>
- <p>Ich freue mich, dass Sie hier sind.</p>
- <ul>
- <li>Erster Punkt</li>
- <li>Zweiter Punkt</li>
- <li>Dritter Punkt</li>
- </ul>
- </body>
- </html>

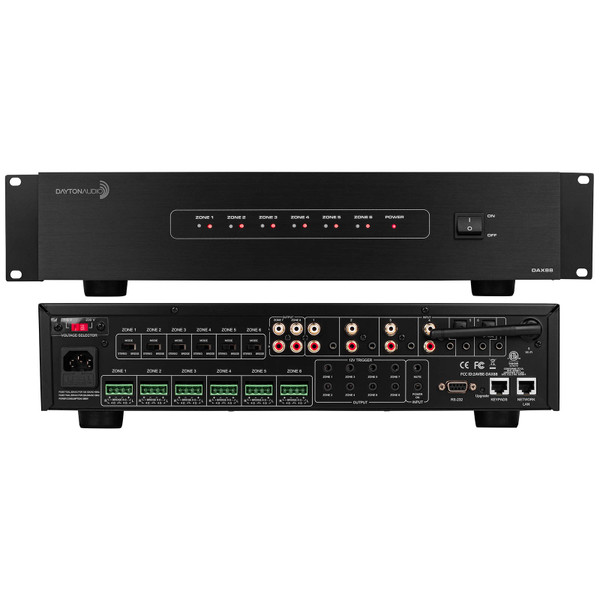

- Channels: 6 x Stereo Amplifier, 2 x Stereo Preamplifier
- RMS Power (all channels driven): 75 WPC @ 8 Ohm, 80 WPC @ 4 Ohm, 180 WPC @ 8 Ohm bridged
- Amplifier Topology: Class D

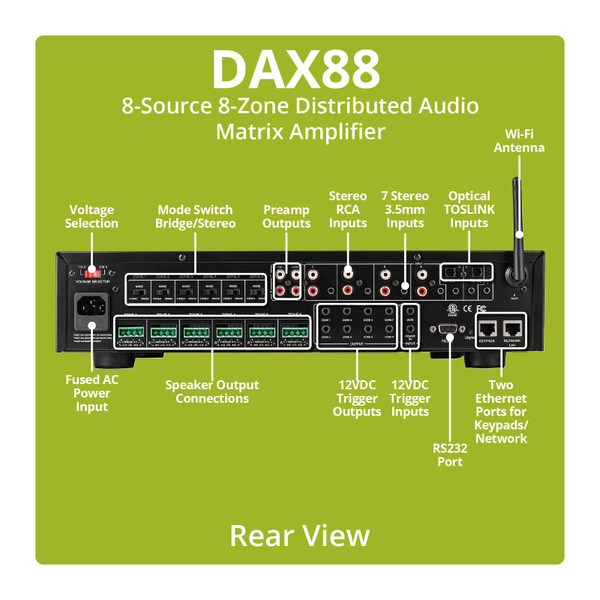

- Inputs: 4 x RCA, 7 x optical, 1 x Wi-Fi Audio Streaming (AirPlay 1, Spotify Connect, DLNA)

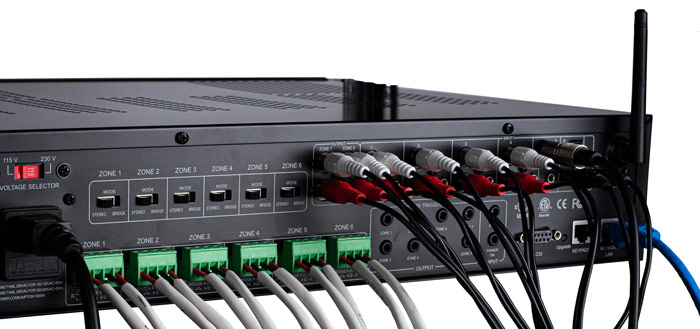

- Output connections: 6 x 4-pin Phoenix-type connectors, 2 x RCA
Accessory Items
Dayton Audio CS620W 6-1/2" 2-Way In-Wall Speaker Pair You won't believe how good the Dayton Audio CS620W 6-1/2" 2-way in-wall speakers really sound! They're big enough to produce great home theater audio reproduction, and yet still fit everyone's budget. Key Features Affordable high fidelity sound from an easy to install speaker Great for front or rear speakers in your surround system Best value in the industry Clear and detailed 1" Mylar dome tweeter 6-1/2" polypropylene woofer is accurate and reliable Dayton Audio CS620W 6-1/2" 2-Way In-Wall Speaker Pair The Dayton Audio CS620W 2-way speaker pair is not only our most popular in-wall speaker, it's affordable enough to install in every room of your house. The 6-1/2" polypropylene woofer and 1" Mylar dome tweeter were specially designed to produce a warm, rich home theater sound. The crossover network utilizes Mylar capacitors to achieve the best possible high frequency fidelity. A three-piece bracket design make installation in new or existing walls a snap. Specifications: • Power handling: 60 watts RMS/85 watts max • 8 ohm impedance • 3 component L/C crossover network • Frequency response: 50-20,000 Hz • Sensitivity: 89 dB 1W/1m • Overall dimensions: 8-1/2" W x 12" L x 3-1/2" D • Hole size: 7-1/4" x 10-3/4" • Fits into standard 2" x 4" wall • Sold in pairs.
Dayton Audio CS620CT 6-1/2" 2-Way 70V Ceiling Speaker Pair Don't let the low cost fool you! These great sounding ceiling speakers are ideal for adding music to restaurants, offices, or industrial areas! Key Features 6-1/2" carbon fiber woofer 1" mylar tweeter Easy installation Add music to the kitchen, den, bath, or patio! 5 Year Warranty Dayton Audio CS620CT 6-1/2" 2-Way 70V Ceiling Speaker Pair Don't let the low cost fool you! These great sounding ceiling speakers are ideal for adding music to restaurants, offices, or industrial areas! They feature a weather resistant 6-1/2" carbon fiber cone with a butyl rubber surround and a coaxial mounted 1" mylar dome tweeter and a 70V transformer tapped at 0.62W, 1.25W, 2.5W, 5W, and 10W. Perfect for high moisture, these speakers can hold their own against most environments. Retrofit design allows installation in both new and existing construction in just minutes. System includes removable steel mesh grills, built-in mounting brackets, hardware, and installation instructions. *Note: Remove and discard the 1/8" perforated ring that connects the center "painting grill mask" and the outer "mounting template" before attempting to use the templates. Specifications: • 70V tap settings: 0.62W, 1.25W, 2.5W, 5W, 10W, 8 ohm • Frequency response: 60-20,000 Hz • SPL: 88 dB 1W/1m • Dimensions: 8-1/2" dia. x 2-3/4" D • Cutout size: 7-3/8" dia. • Sold in pairs.
Dayton Audio CS820C 8" 2-Way Ceiling Speaker Pair Don't let the low cost fool you! These great sounding ceiling speakers are ideal for adding music to the kitchen, den, bathroom, or patio. A weather resistant 8" carbon fiber cone with a butyl rubber surround is mated to a coaxial mounted mylar tweeter for a lush, full sound. Key Features 1" mylar tweeter 8" carbon fiber woofer Popular "dog-ear" mounting system Stands up to harsh environments Dayton Audio CS820C 8" 2-Way Ceiling Speaker Pair Don't let the low cost fool you! These great sounding ceiling speakers are ideal for adding music to the kitchen, den, bathroom, or patio. A weather resistant 8" carbon fiber cone with a butyl rubber surround is mated to a coaxial mounted mylar tweeter for a lush, full sound. Retrofit design allows installation in both new and existing construction in just minutes. System includes removable steel mesh grills, built-in mounting brackets, hardware, and installation instructions. *Note: Remove and discard the 1/8" perforated ring that connects the center "painting grill mask" and the outer "mounting template" before attempting to use the templates. Specifications: • Power handling: 30 watts RMS/60 watts max • Impedance: 8 ohms • Frequency response: 50-20,000 Hz • SPL: 89 dB 1W/1m • Dimensions: 10-3/4" dia. x 3-5/8" D • Cutout size: 9-1/8" dia. • Sold in pairs.
Dayton Audio ME620C 6-1/2" 2-Way Micro-Edge Ceiling Speaker Pair What the world really needs are ceiling speakers that sound spectacular, but have a look that's understated – almost invisible. Dayton Audio Micro-Edge coaxial ceiling speakers like the ME620C fill that need like no others on the market. Key Features The perfect "all speaker solution" for ceiling mounted home theater systems Contemporary Micro-Edge™ design Long-throw 6-1/2" Kevlar® woofer with rubber surround 12 dB/octave optimized crossover Dayton Audio ME620C 6-1/2" 2-Way Micro-Edge Ceiling Speaker Pair Fill your home with rich, audiophile-quality sound from Dayton Audio's Micro-Edge Series coaxial ceiling speakers, while offering a modern, stealth look for today's contemporary décor. Tough woven Kevlar cone woofers were selected for their inherent transient response quickness and ability to convey a warm response in the critical midrange, while delivering a bass punch that is missing from most ceiling speakers. 1" silk dome tweeters provide pristine clarity for the top end of the frequency response spectrum. Additionally, ME620C ceiling speakers may be used as rear and/or side channel speakers in surround sound applications. Removable round steel grills are included. All Dayton Audio Micro-Edge Series speakers are timbre matched to provide the best possible home theater experience. Specifications: • Woofer: 6-1/2" Kevlar cone • Tweeter: 1" silk dome • Power handling: 35 watts RMS/70 watts max • Impedance: 8 ohms • Frequency response: 50-20,000 Hz • Sensitivity: 88 dB, 1W/1m (±3 dB) • Dimensions: 9-3/4" dia. x 3-5/8" D • Cutout size: 8-1/4" dia. • Sold in pairs.
IR Fernbedienung für Dayton Audio DAX88. Die DAX88IR Fernbedienung gibt Ihnen Zugriff auf die Funktion einer Zone, einschließlich Volumen, Leistung, Quellenauswahl, Mute, Treble und Bass.

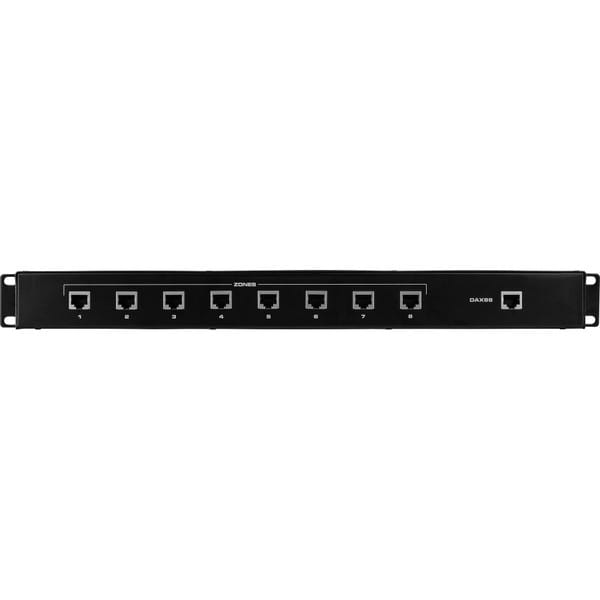

Zubehör für Dayton Audio DAX88 Mit dem DAX88HUB Keypad Hub können Sie acht DAX88KP-Tastaturen über Ethernet-Kabel an den DAX88 anschließen.
