Dayton Audio DA175-8
Skip image gallery
Picture similar to product
Product number:
295-335
Manufacturer:
Dayton Audio
Length:
10.97 mm
Width:
4.32 mm
Height:
10.16 mm
Weight:
1.7 kg
Min. order quantity:
1

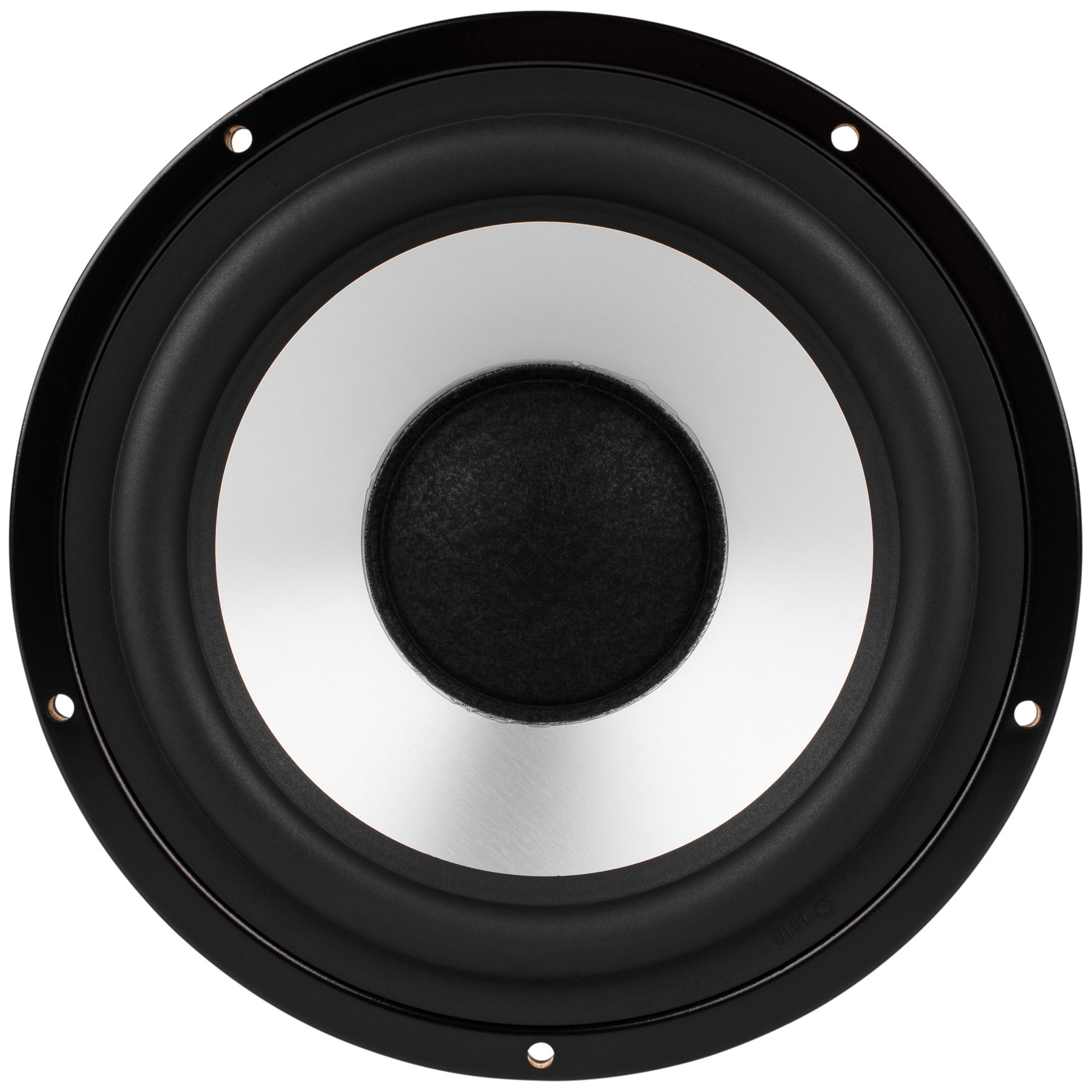

Dayton Audio DA175-8 7” Aluminum Cone Woofer
7" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap.
Key Features
- Special composite dustcap
- Stamped steel frame provides a very high-class and professional look
- Aluminum cone offers a flat frequency response in the passband region with very low distortion
Dayton Audio DA175-8 7" Aluminum Cone Woofer
7" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap. The cosmetic stamped steel frame provides a very high-class and professional look to your next speaker design. The aluminum cone offers a flat frequency response in the passband region with very low distortion.
Properties
| Artikel-Nr.: | 295-335 |
|---|---|

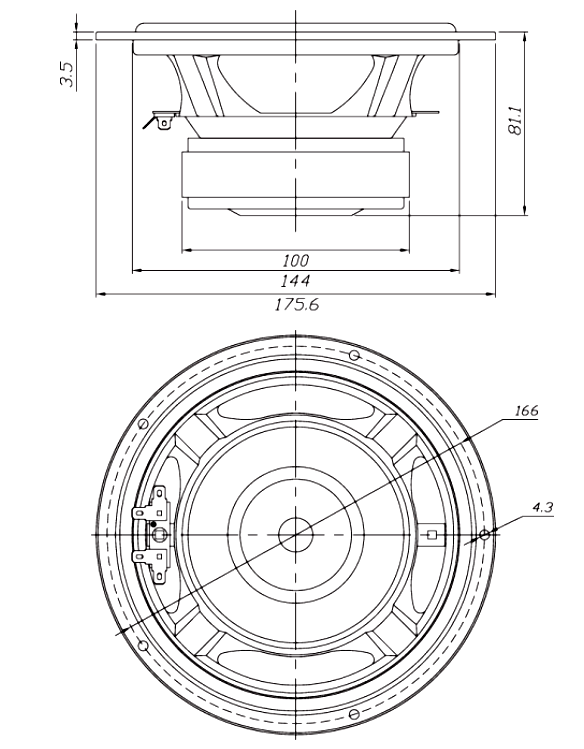

| Außenmaß: | 175,5mm |
| Bohrlochanzahl: | 5 |
| DC Resistance (Re): | 5,9 Ohm |
| EAN: | 844632000300 |
| Eff. Membranfläche (Sd): | 132,7cm² |
| Effektive Bewegte Masse (Mms): | 2517 |
| Einbautiefe: | 81 mm |
| Einbauöffnung: | 144,018 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 7 |
| Frequenzbereich: | 35 bis 10,000Hz |
| Gesamtgüte (Qts): | 58 |
| Größe: | 7 " |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 7,17T·m |
| Lineare Auslenkung (Xmax): | 4,25mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 331 |
| Membranmaterial: | Aluminium |
| Modell: | DA175-8 |
| Nachgiebigkeit (Cms): | 0,66mm/N |
| Nennbelastbarkeit: | 50 Watt |
| Resonanzfrequenz (fs): | 39Hz |
| Schwingspulendurchmesser: | 35,1 mm |
| Schwingspulenind. (Le): | 1,14mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 85dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 16,424 l |
Data according to manufacturer. Errors and changes reserved.
