Dayton Audio DA135-8
Skip image gallery
Picture similar to product
Product number:
295-330
Manufacturer:
Dayton Audio
Length:
6.35 mm
Width:
2.5 mm
Height:
8.89 mm
Weight:
0.99 kg
Available stock:
18
Min. order quantity:
1

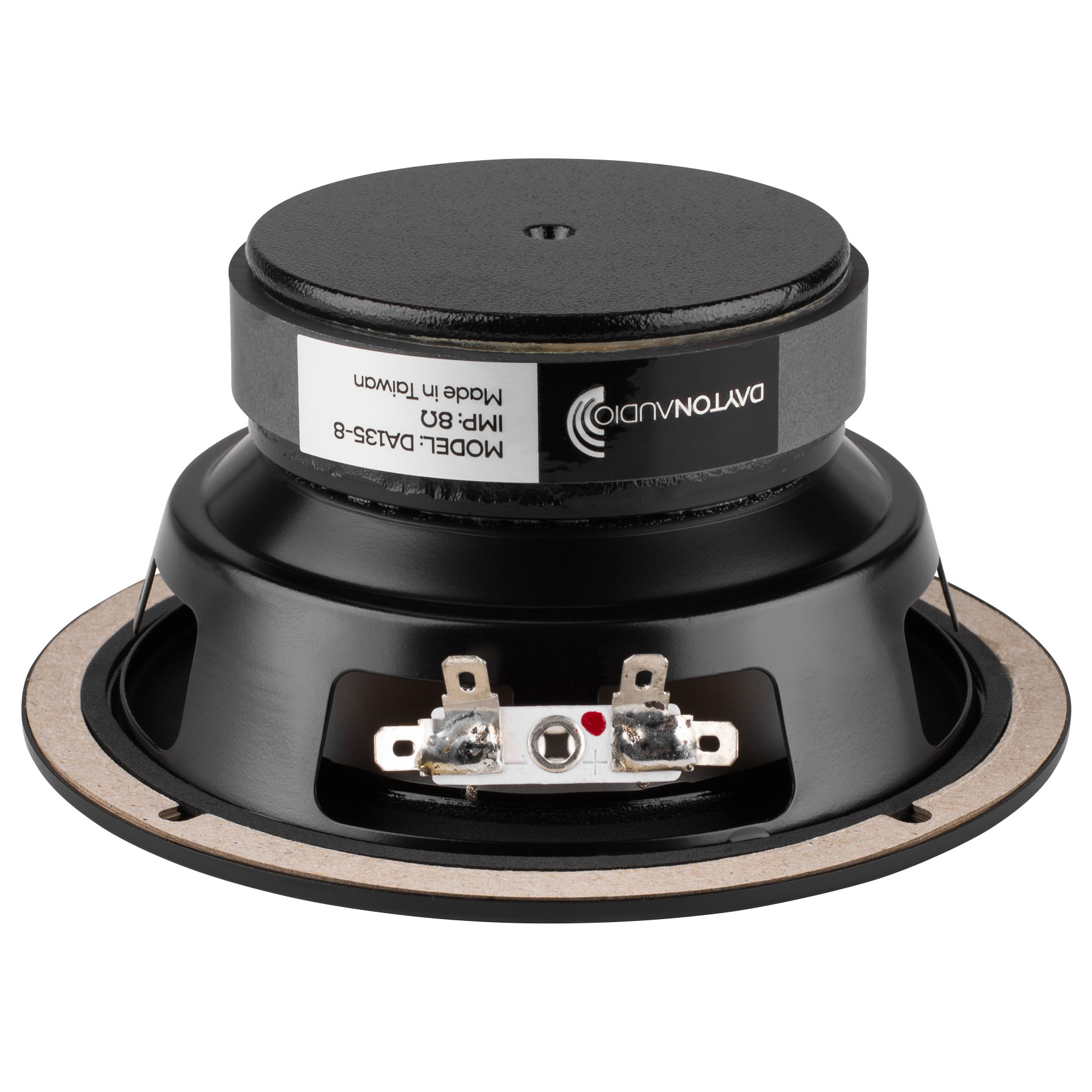

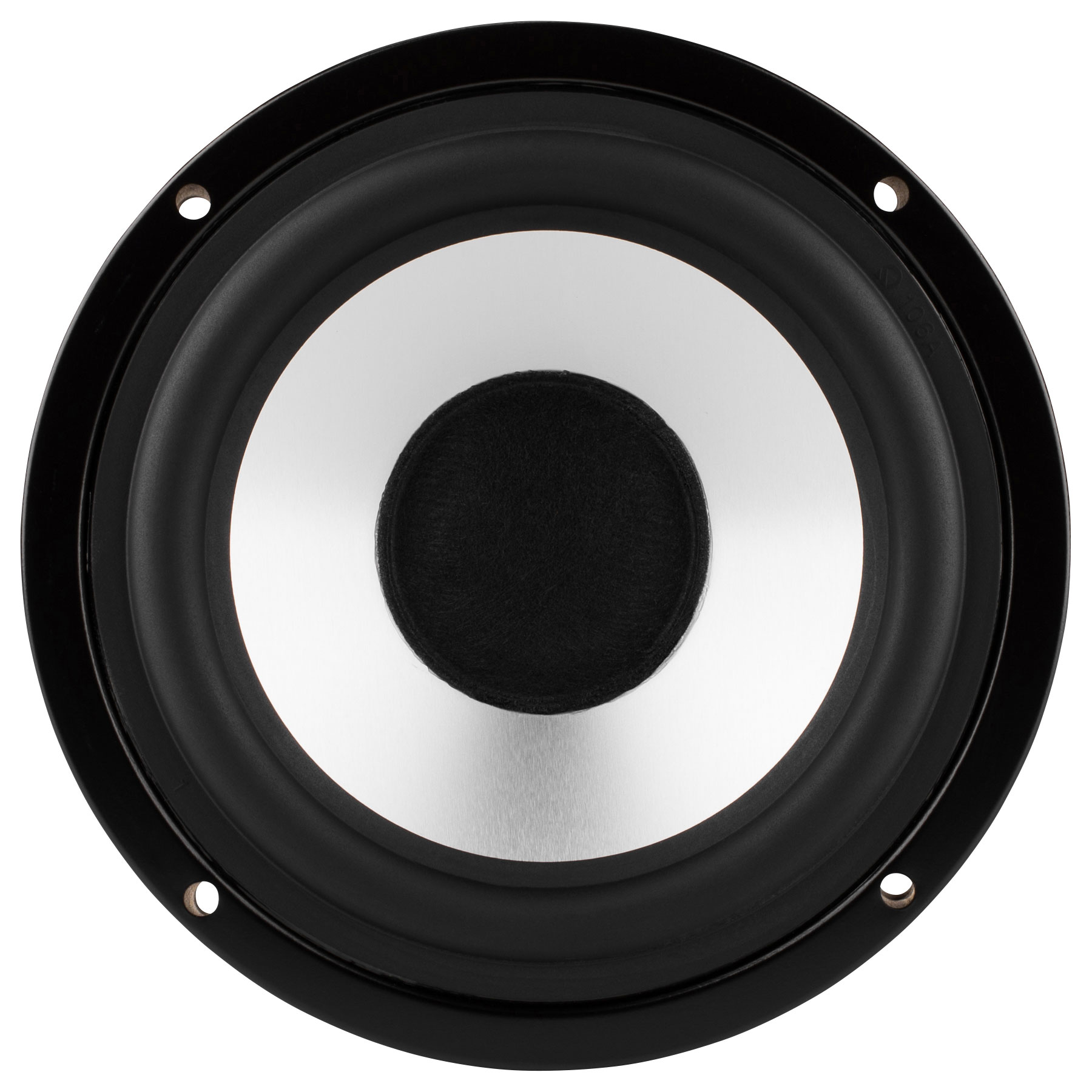

Dayton Audio DA135-8 5-1/4” Aluminum Cone Woofer
5-1/4" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap.
Key Features
- Makes a great studio monitor speaker
- Aluminum cone offers a flat frequency response
- Cosmetically appealing integrated trim ring
- Very low distortion driver
Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer
5-1/4" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap. The cosmetic stamped steel frame provides a very high-class and professional look to your next speaker design. The aluminum cone offers a flat frequency response in the passband region with very low distortion.
Properties
| Artikel-Nr.: | 295-330 |
|---|---|

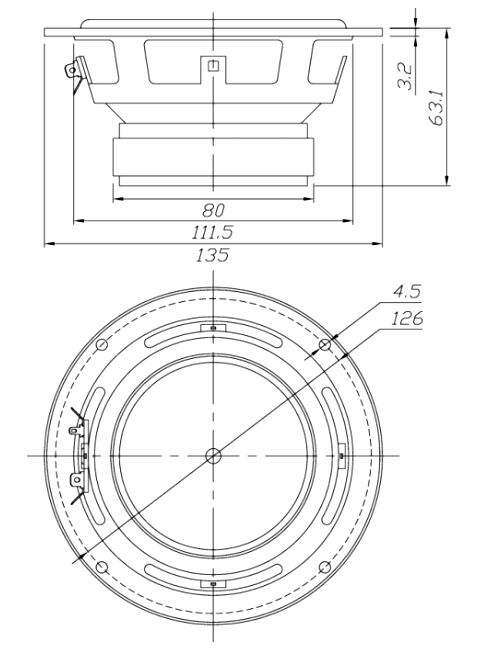

| Außenmaß: | 134,8mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 6,4 Ohm |
| EAN: | 844632000294 |
| Eff. Membranfläche (Sd): | 75,4cm² |
| Effektive Bewegte Masse (Mms): | 854 |
| Einbautiefe: | 63 mm |
| Einbauöffnung: | 111,506 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 68 |
| Frequenzbereich: | 50 bis 15,000Hz |
| Gesamtgüte (Qts): | 54 |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 5,32T·m |
| Lineare Auslenkung (Xmax): | 3mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 261 |
| Membranmaterial: | Aluminium |
| Modell: | DA135-8 |
| Nachgiebigkeit (Cms): | 0,93mm/N |
| Nennbelastbarkeit: | 30 Watt |
| Resonanzfrequenz (fs): | 56,5Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 0,97mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 85dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 7,362 l |
Data according to manufacturer. Errors and changes reserved.
