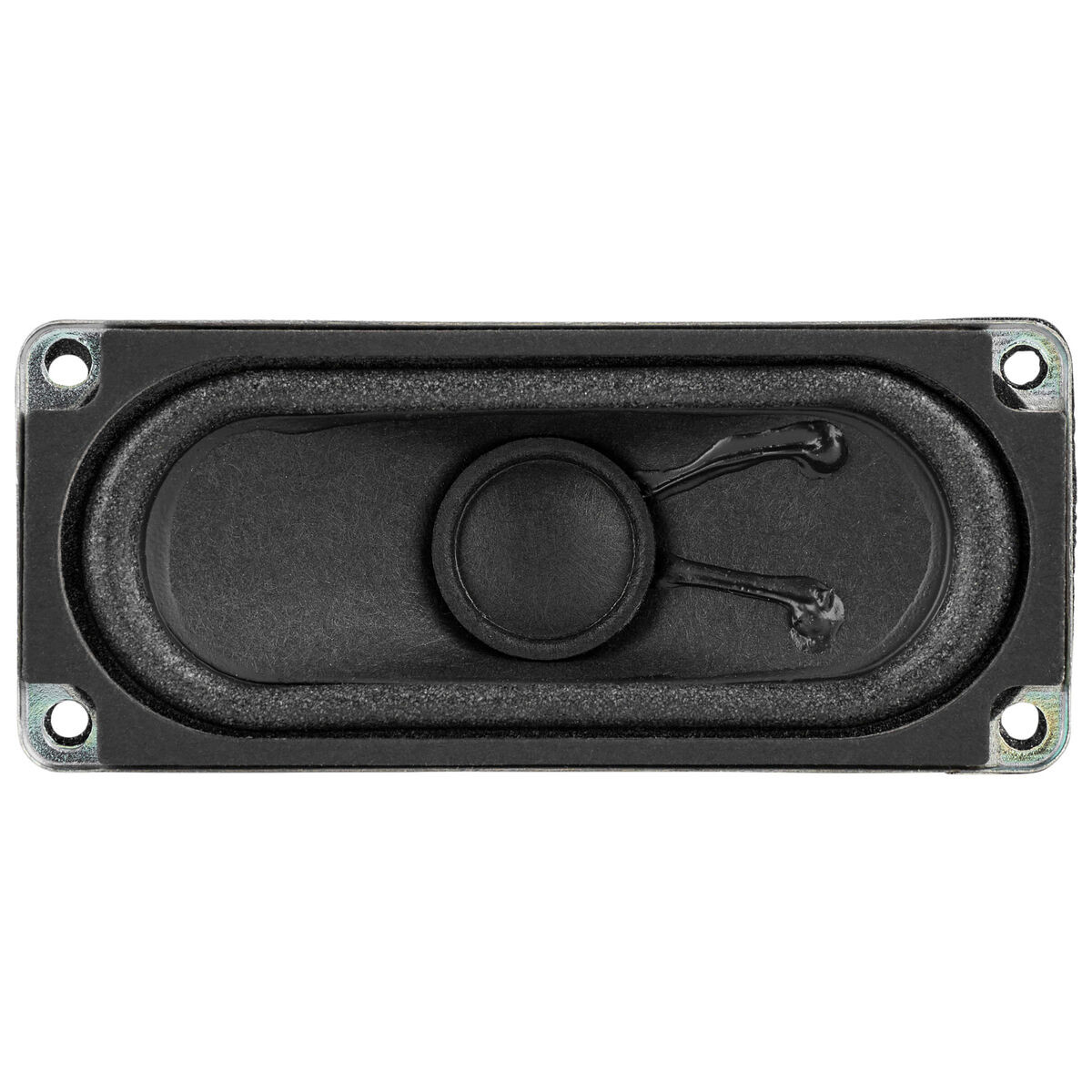

Dayton Audio CE Series CE70-30P-8 1-1/4" x 2-3/4" Full Range Driver
Dayton Audio’s CE70-30P-8 is an economical small full-range driver that features an ultra-narrow racetrack shape, a high-output neodymium motor, a paper cone, a front gasket, and a steel frame. 8 ohm impedance.
Key Features
- Paper cone with foam surround for high output
- Rugged stamped steel frame
- High-energy neodymium magnet motor
Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.
Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.
The CE70-30P-8 features a ‘racetrack’ design that maximizes cone area for high output while fitting into narrow spaces. Its high-quality design features a paper cone, foam surround, te
| Artikel-Nr.: | 285-119 |
|---|---|
| DC Resistance (Re): | 7,2 Ohm |
| EAN: | 848791000386 |
| Eff. Membranfläche (Sd): | 11,04cm² |
| Effektive Bewegte Masse (Mms): | 82 |
| Einbautiefe: | 19,3 mm |
| Einbauöffnung: | 25,4 x 64 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 567 |
| Frequenzbereich: | 310 bis 20,000Hz |
| Gesamtgüte (Qts): | 283 |
| Impedanz (Z): | 8 Ohm |
| Kraftfaktor (BL): | 1,56T·m |
| Lineare Auslenkung (Xmax): | 0,8mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 565 |
| Membranmaterial: | Papier |
| Modell: | CE70-30P-8 |
| Nachgiebigkeit (Cms): | 0,23mm/N |
| Nennbelastbarkeit: | 2 Watt |
| Resonanzfrequenz (fs): | 371Hz |
| Schwingspulendurchmesser: | 13,2 mm |
| Schwingspulenind. (Le): | 0,21mH |
| Sensitivität: | 85dB 2,83V/1m |
| Sickenmaterial: | Schaum |
