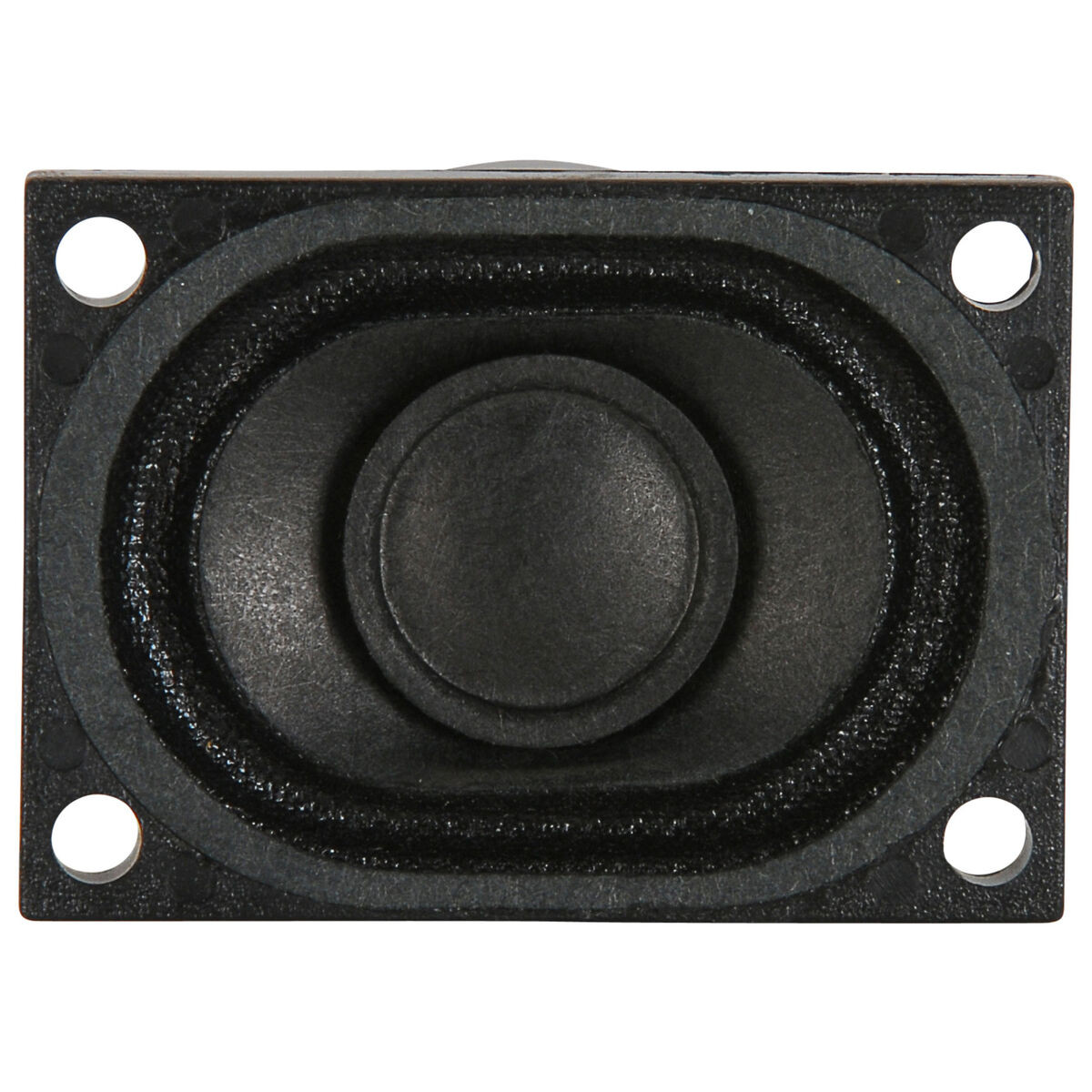

Dayton Audio CE Series CE40-28P-8 1-1/8" x 1-1/2" Mini Speaker
Dayton Audio’s CE40-28P-8 is an economical mini speaker that features a high-output neodymium motor, a lightweight paper cone, a front gasket, and a molded plastic frame drilled for conventional mounting. 8 ohm impedance.
Key Features
- Racetrack-shaped paper cone with fabric surround
- Slim design for narrow and shallow profile installation
- High-energy neodymium motor
Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.
Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.
The CE40-20P-8 is a slim driver that’s perfect for applications that require its shallow profile and rectangular shape. Its high-quality design features a paper cone, fabric surround, textile spider, high-performance neodymium motor, and an injection-molded frame that’s drilled for conventional mounting.
| Artikel-Nr.: | 285-115 |
|---|---|
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 7 Ohm |
| EAN: | 848791000362 |
| Eff. Membranfläche (Sd): | 5,28cm² |
| Effektive Bewegte Masse (Mms): | 37 |
| Einbautiefe: | 11,4 mm |
| Einbauöffnung: | 24,6 x 33,5 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 987 |
| Frequenzbereich: | 550 bis 15,000Hz |
| Gesamtgüte (Qts): | 283 |
| Impedanz (Z): | 8 Ohm |
| Kraftfaktor (BL): | 1,03T·m |
| Lineare Auslenkung (Xmax): | 0,1mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 396 |
| Modell: | CE40-28P-8 |
| Nachgiebigkeit (Cms): | 0,18mm/N |
| Nennbelastbarkeit: | 2 Watt |
| Resonanzfrequenz (fs): | 608Hz |
| Schwingspulendurchmesser: | 12,7 mm |
| Schwingspulenind. (Le): | 0,26mH |
| Sensitivität: | 75dB 2,83V/1m |
| Sickenmaterial: | Gewebe |
