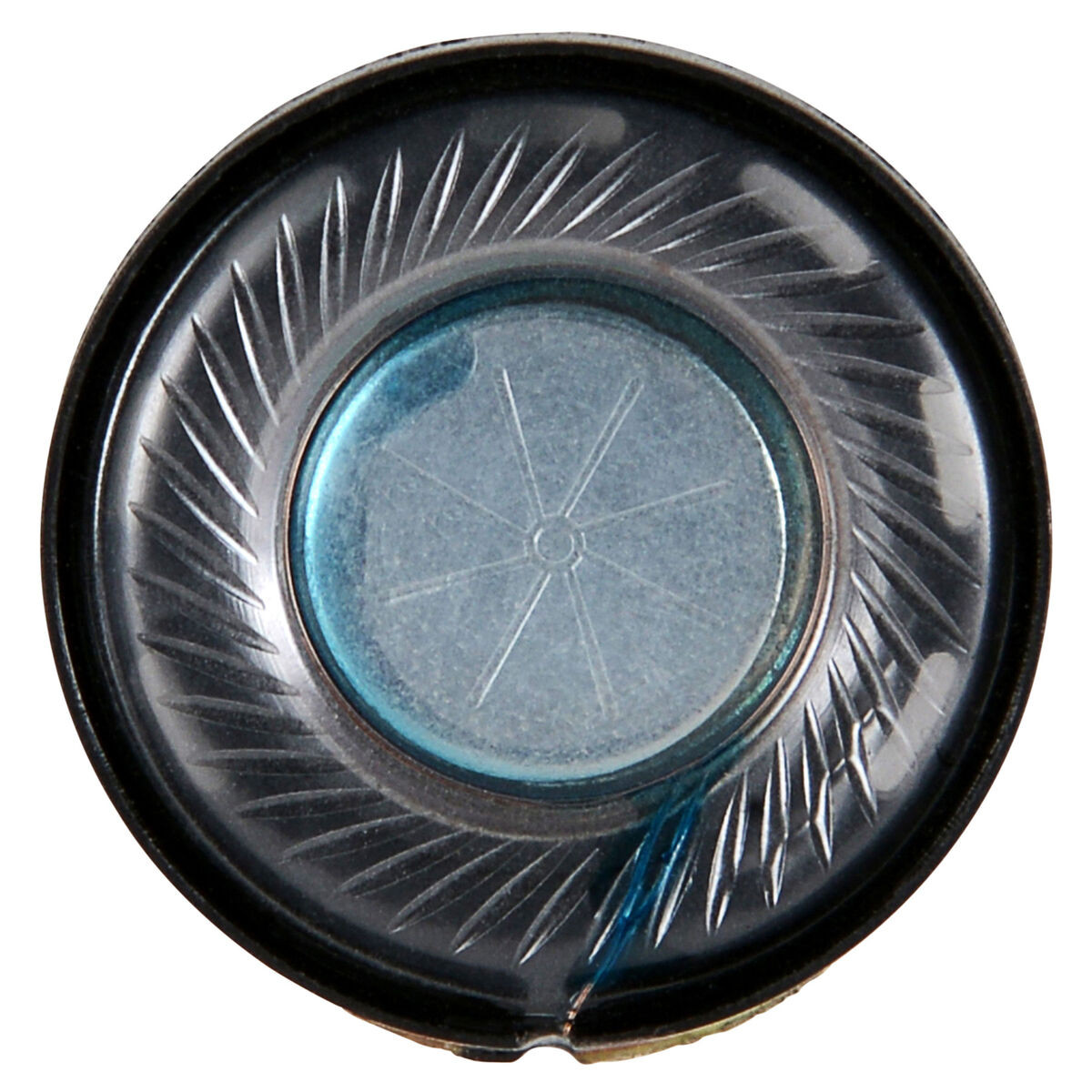

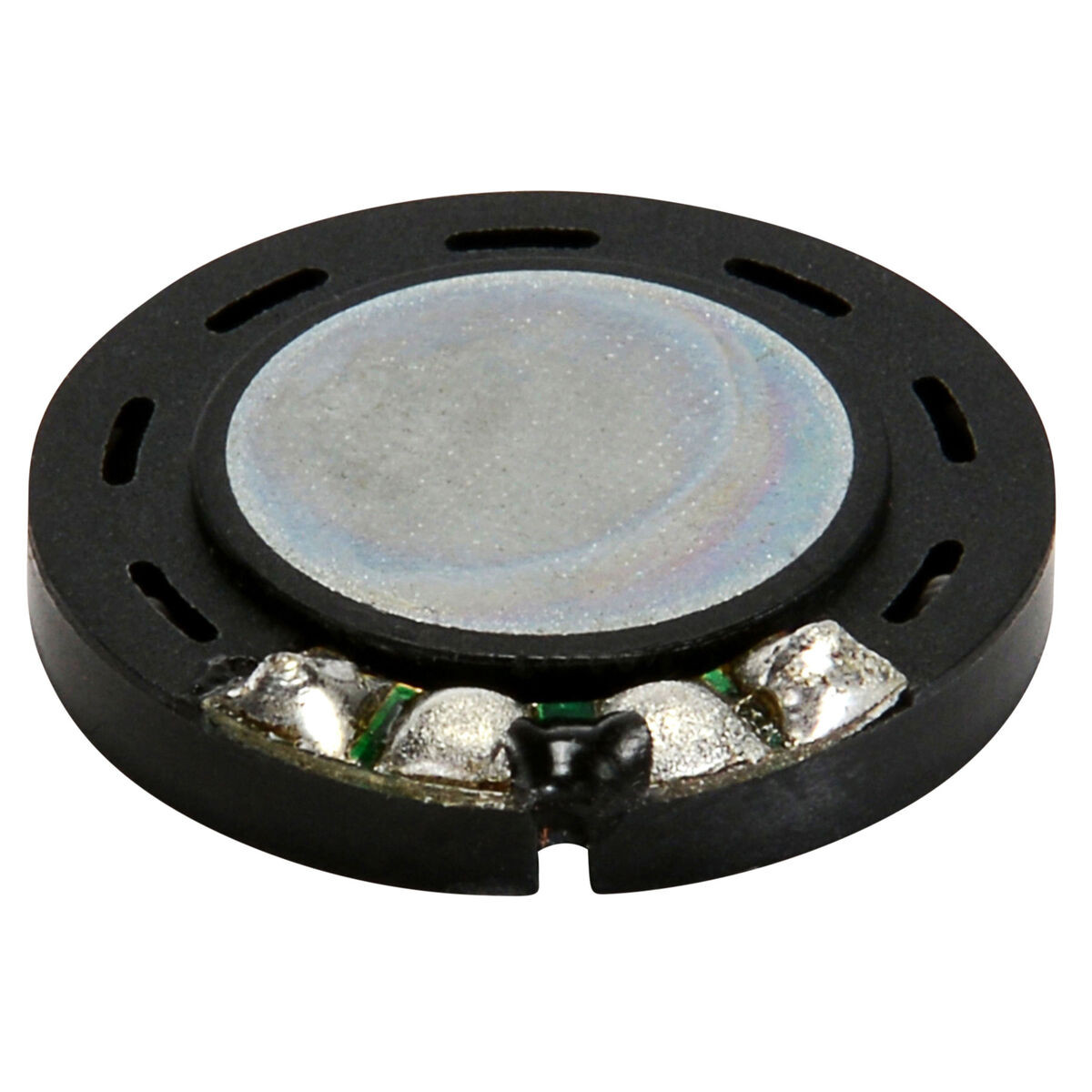

Dayton Audio CE Series CE20M-16 3/4" Micro Speaker 16 Ohm
The Dayton Audio CE20M-16 is a versatile micro speaker with a round plastic frame, strong neodymium magnet, and lightweight Mylar diaphragm, for the smallest audio applications.
Key Features
- Lightweight headphone-style mylar diaphragm
- Rugged plastic frame with round shape for adhesive mounting
- Powerful neodymium magnet
- Extended bandwidth from a miniature speaker
The drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.
The Dayton Audio CE20M-16 is a compact, high-efficiency "headphone-style" micro speaker with a lightweight Mylar diaphragm and extended frequency range. It’s a rugged choice for adding audio to inexpensive headphones, electronic toys, and portable electronics.
Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.
| Artikel-Nr.: | 285-141 |
|---|---|
| Außenmaß: | 19,8mm |
| DC Resistance (Re): | 15,8 Ohm |
| EAN: | 848791001154 |
| Eff. Membranfläche (Sd): | 1,7cm² |
| Effektive Bewegte Masse (Mms): | 1 |
| Einbautiefe: | 4,3 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 115 |
| Frequenzbereich: | 690 bis 20,000Hz |
| Gesamtgüte (Qts): | 511 |
| Größe: | 1 " |
| Impedanz (Z): | 16 Ohm |
| Kraftfaktor (BL): | 0,26T·m |
| Lineare Auslenkung (Xmax): | 0,1mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 917 |
| Membranmaterial: | Poly / Mylar Diaphragm |
| Modell: | CE20M-16 |
| Nachgiebigkeit (Cms): | 4,61mm/N |
| Nennbelastbarkeit: | 0,25 Watt |
| Resonanzfrequenz (fs): | 697Hz |
| Schwingspulendurchmesser: | 9,7 mm |
| Schwingspulenind. (Le): | 0,61mH |
| Sensitivität: | 76dB 2,83V/1m |
