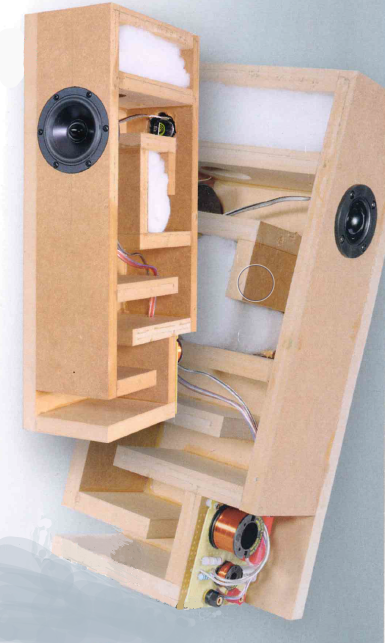

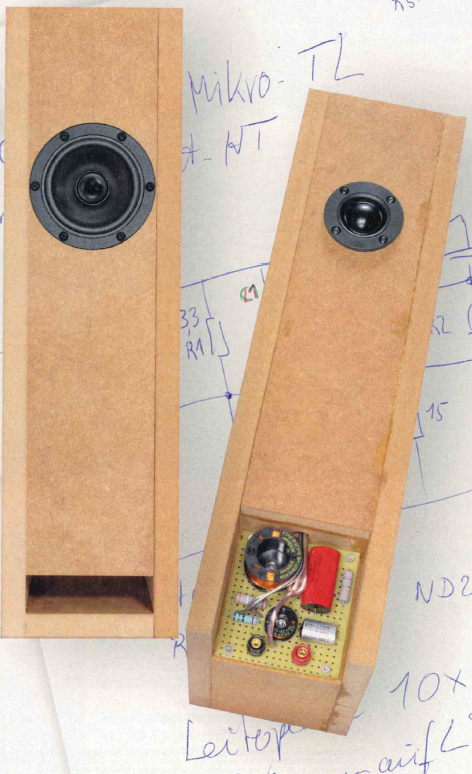

DayDream Micro TL
From Hobby HiFi 1/2024
Loudspeaker Kit DayDream Micro TL,
the execution includes:
RS100-4
ND25FA-4
Frequencies crossover components loose (Standard or High-End. Please select)
Kabel for indoors, screws, insulation material, perforated board, terminal.

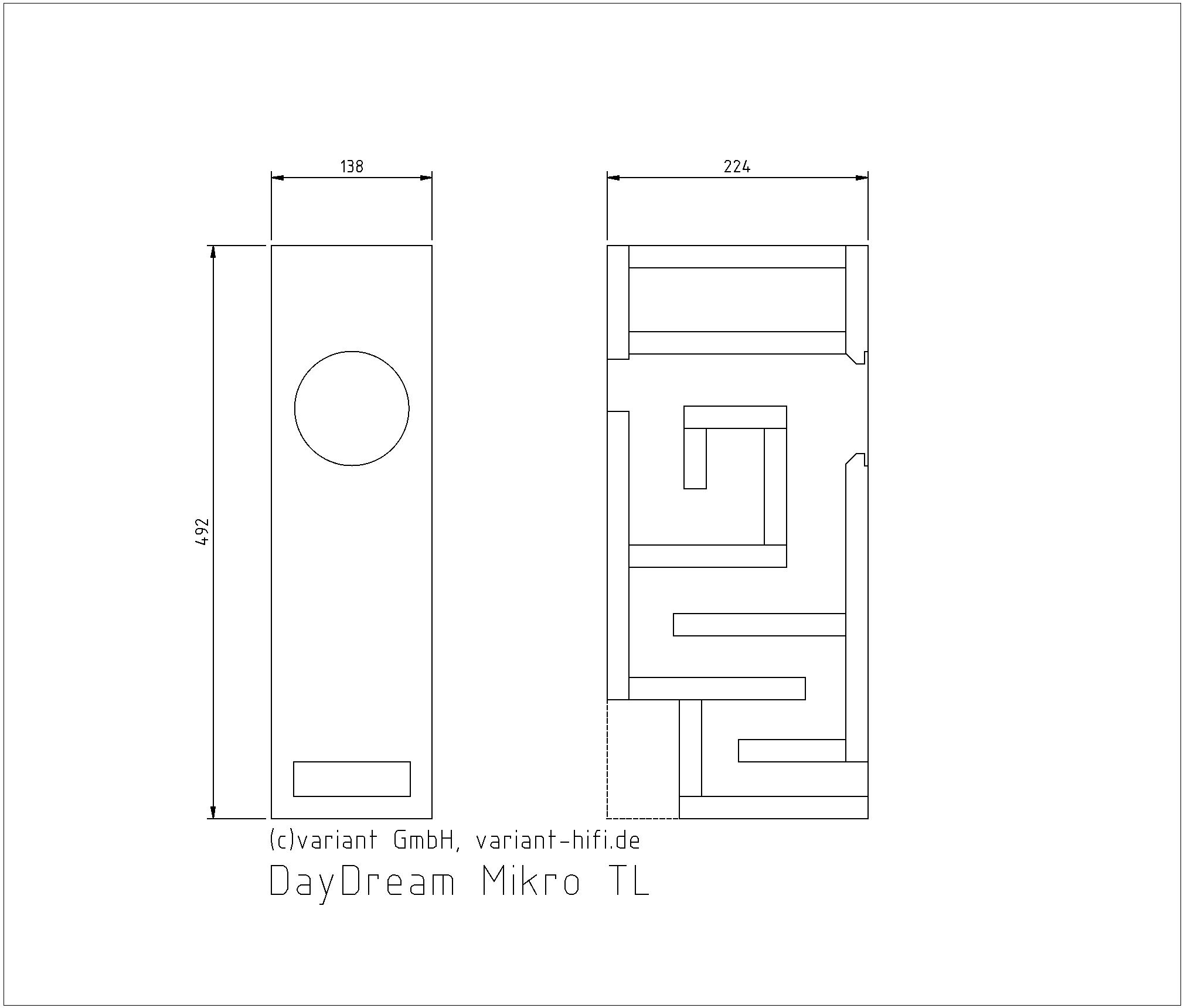

Construction/Insulation and Switch Plan.
Properties
| Breite: | 138mm |
|---|---|
| Frequenzumfang: | 53-22000 hz |
| Funktionsprinzip: | Transmissionline |
| Gesamtimpedanz: | 4 Ohm |
| Höhe: | 492mm |
| SPL: | 82dB |
| Serie: | Daydream |
| Tiefe: | 224mm |
Data according to manufacturer. Errors and changes reserved.
Skip product gallery
Accessory Items
Dayton Audio ND25FA-4
€15.65*
Dayton Audio ND25FA-4 1” Soft Dome Neodynium Tweeter
Dayton Audio's compact, ultra-smooth ND25FA-4 soft dome tweeter features excellent detail and high power handling. The small faceplate and neodymium motor make it easy to keep center-to-center distance to a minimum for improved off-axis response, and the exceptionally flat response above 3 kHz.
Key Features
Exceptionally flat treble response with low distortion
Compact round faceplate design is simple to install
High-strength neodymium motor with heatsink and ferrofluid cooling
Perfect for placement in car A-pillars
1" diameter voice coil for good off-axis dispersion and excellent power handling
Clean, modern styling and appearance
Dayton Audio ND25FA-4 1" Soft Dome Neodymium Tweeter
This tweeter is smooth! The Dayton Audio ND25FA-4 1" soft-dome tweeter combines an exceptionally flat response above 3 kHz with a compact round faceplate for a clean, modern appearance that integrates easily into any design. The tiny yet powerful neodymium motor structure features an aluminum heatsink and ferrofluid cooling for low power compression and improved long-term power handling. A copper pole cap within the motor further reduces distortion and inductance effects.
Choose the ND25FA-4 when you need detail that won't become fatiguing or shrill at high volumes, for a highly refined presentation. The compact faceplate allows close center-to-center spacing of drivers, making these tweeters perfect for line array use or D'Appolito (MTM) configurations with wide dispersion.
DayDream Mikro TL Gehäusebausatz
From
€15.00*
DayDream Micro TL Enclosure KitGehäuse kit or just baffle for building DayDream Micro TL
Only 4 available
Dayton Audio RS100-4
€52.45*
Dayton Audio RS100-4 4” Reference Full-Range Driver 4 Ohm
The Dayton Audio RS100-4 4" driver is a sleek and durable unit that never compromises on sound quality. The compact size and exceptional performance make it an ideal choice for building portable DIY speakers. It is perfect for replacing the speaker of your audio systems at home or in your car.
Key Features
Full-range capability allows reproduction of low to high frequency range as much as possible
Low-distortion motor system for clear and crisp sound
Long-excursion motor and low-loss rubber surround ensures incredible bass performance
Heavy-duty 6-hole cast aluminum frame for exceptional durability
Great for building compact DIY speakers
Sophisticated design for a rich visual appeal
Ideal replacement for RS100S-8 4" reference shielded full-range driver
Dayton Audio RS100-4 4" Reference Full-Range Driver 4 Ohm Versatile and powerful, the Dayton Audio RS100-4 4" Reference Full-Range Driver 4 is ideal for your DIY speaker or as a replacement for your existing speaker. Its low-distortion motor system delivers amazing sound with exceptional clarity. Long-excursion characteristics and low-loss rubber surround offer powerful and deep bass performance. The woofer features anodized aluminium cone and heavy-duty cast aluminum frame for rigidity, solid aluminum phase plug for high-frequency response and gold terminals for better connectivity offering you quality sound performance.
