DayDream Center Bausatz

DayDream Center Kit

DayDream Center

Loudspeaker system from Hobby Hifi 01/2021

Assembly:

Dayton Audio Chassis RS150-4 Woofer / Tectonic TEBM46C20N-4B Full-Range, Bending Wave Transducer
(Biegewellenstrahler), Balance Mode Radiator.

Properties:

Bei diesem Center ist der Name buchstäblich Programm, „DayDream“… diese Box lässt sie wirklich nur so
dream away. It captivates its listeners even at minimal volume and is thus absolutely present. The
DayDream Speaker - Kit with Chassis from Dayton Audio is really something for the all-rounder, because
DayDream allows you to experience almost all genres of music in a fantastic world of sound,
not too intrusive but absolutely precise in spatiality.

Hobby Hifi 1/2021 Conclusion: "The DayDream surround setup offers genuine audiophile sound quality – on
a level that really has nothing to do with the low material price. With finished speakers
would a home cinema or surround system of this quality only be in the high four-digit range
feasible."

Modification Recommendation

Keynote Adjustment

In the lower frequency range (100-300Hz, the DayDream-Center plays depending on the speaker-
Aufstellung unterschiedlich kräftig: With one-sided extended baffle, i.e., on a piece of furniture with
closed front placed, this area is about 1 to 2 dB stronger than with freestanding
Setup (on a stand or on an open shelf). By varying the internal resistance of the
in the low-frequency signal path coil, this is compensable "Variation Fundamental Tone Adjustment"; a
existing coil can also be made high-impedance by inserting a resistor in front or behind
be.

Scope of delivery:

• Screws
• Chassis
• Mounting ring stainless steel incl. screws
• Terminal
• Grid Plate
• Cable (Internal)
• Insulation fleece
• Crossover Components (Loose)

The delivery time refers to the kit without housing.

The selected quantity refers to pieces, not pairs.

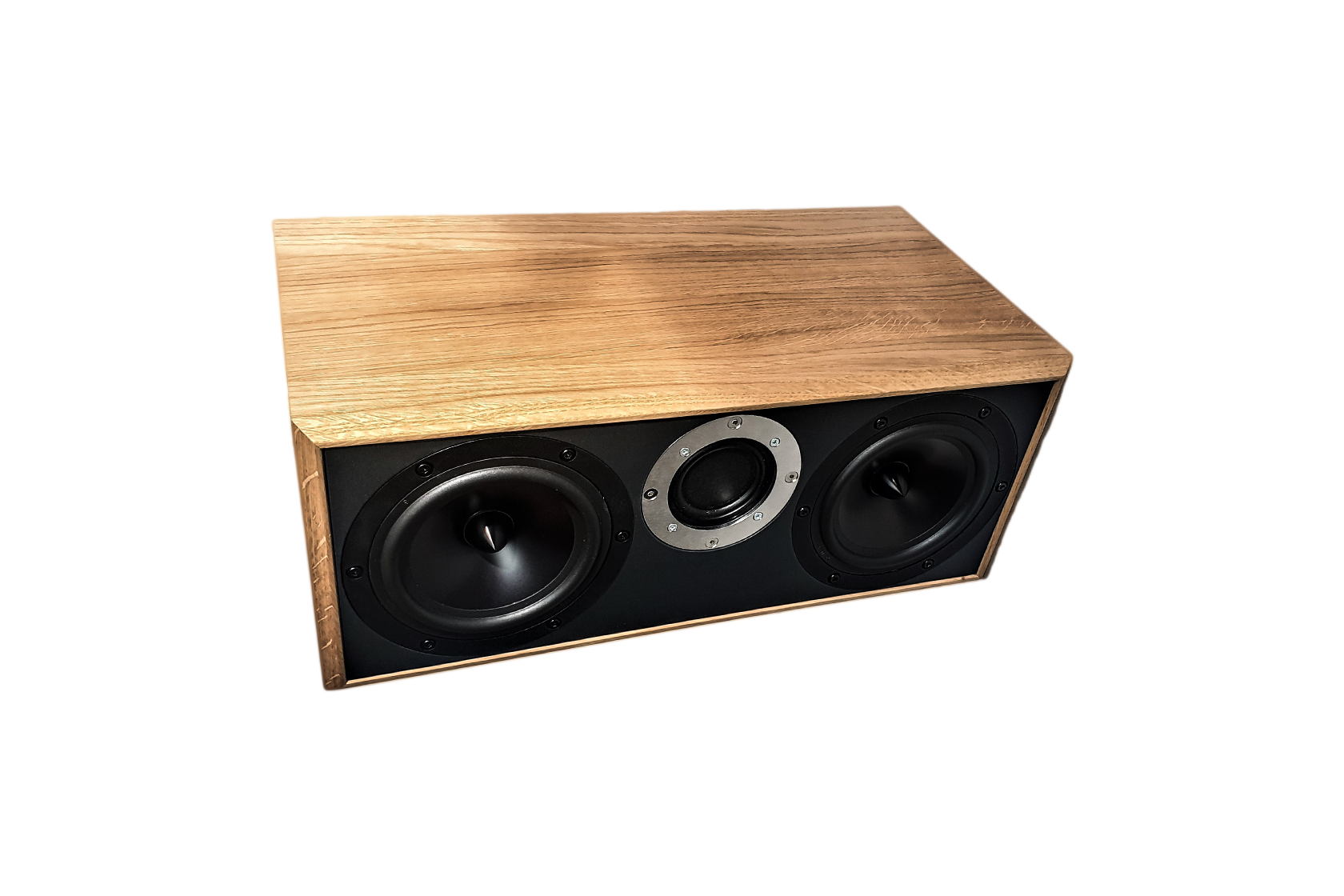

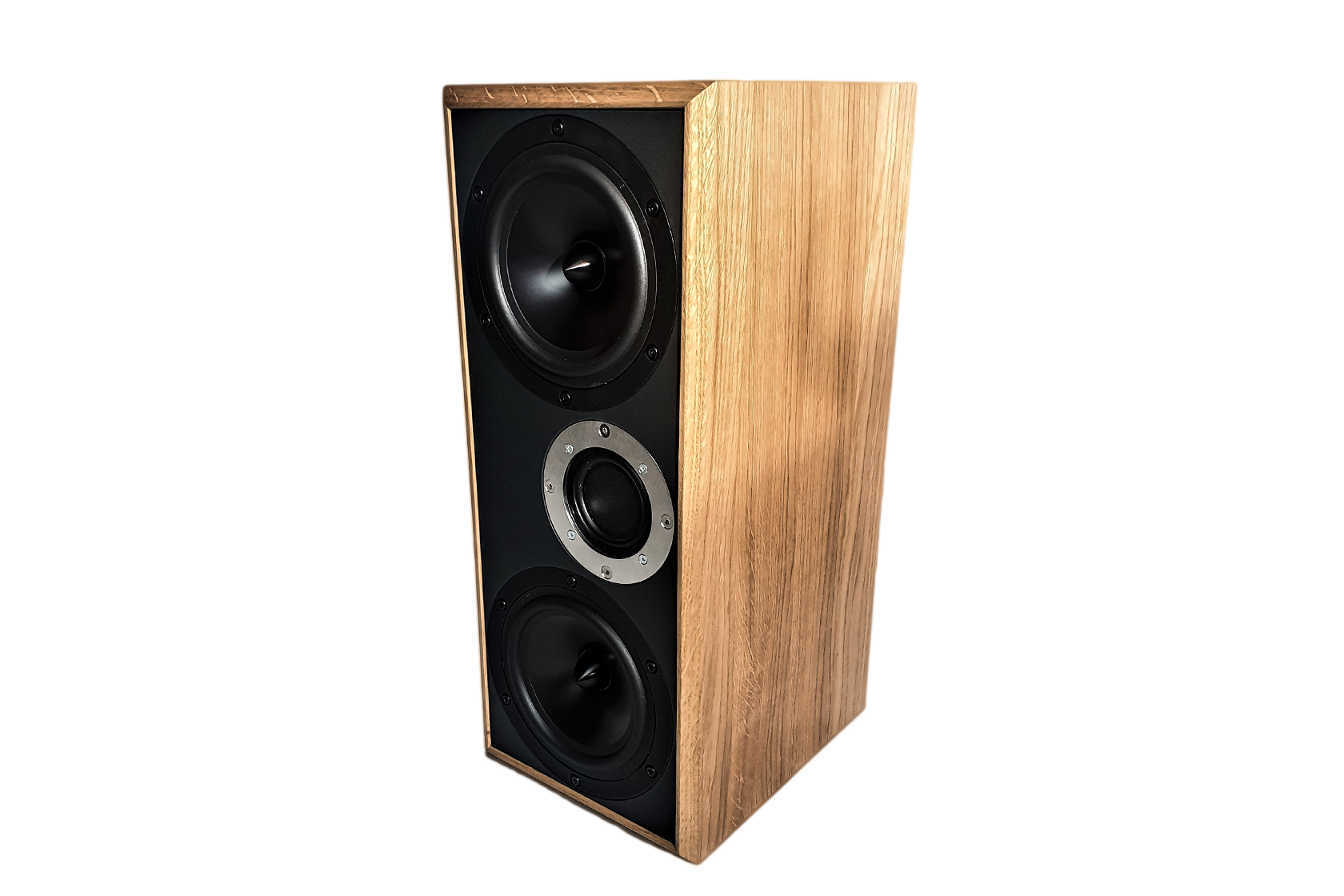

The depicted box is a construction variation/suggestion from us on how it could be done.
