Cinema Signature 8 Lautsprecherbausatz
€396.95
Available in 14 days, delivery time 1-3 days
Cinema Signature 8 Speaker Kit
Cinema Signature 8
Test in HiFiTest and Klang+Ton 6/2022Link
2-Way Shelf/OnWall/InWall
Assembly:
20cm (8inch) Coaxial; Frequency crossover components Mundorf Hi-Quality:
Properties:
Ziel war es, ausgezeichnete Dynamik für herkömmliche AVRs (Audio Video Receiver)
for achieving high-quality home theater applications. Thus, the requirements for this kit were clear:
Level stability, good efficiency, 8Ohm. These specifications had to be met without compromising on a Hi-Fi
conformal tuning and an acceptable stand-alone capability (with 60Hz -f3 near wall or wall installation) to forego.
In doing so, we have also achieved a constant radiation pattern up to 60 degrees and a very low installation depth.
The good efficiency and 8-ohm impedance allow for sound pressure levels as they should be in the cinema range, even with smaller AV receivers.
Excellent as Main (L/R) (Satellite) or as a Center. With an addition in the low frequency range, e.g., the CSS SDX12
is a powerful home theater realized in no time.
Scope of delivery:
- Screws
- Chassis
- Terminal
- Bass reflex tube
- Cable (Interior)
- Insulation fleece
- Crossover components (Loose)
In the selected quantity, it refers to pieces, not pairs.
| Breite: | 260mm |
|---|---|

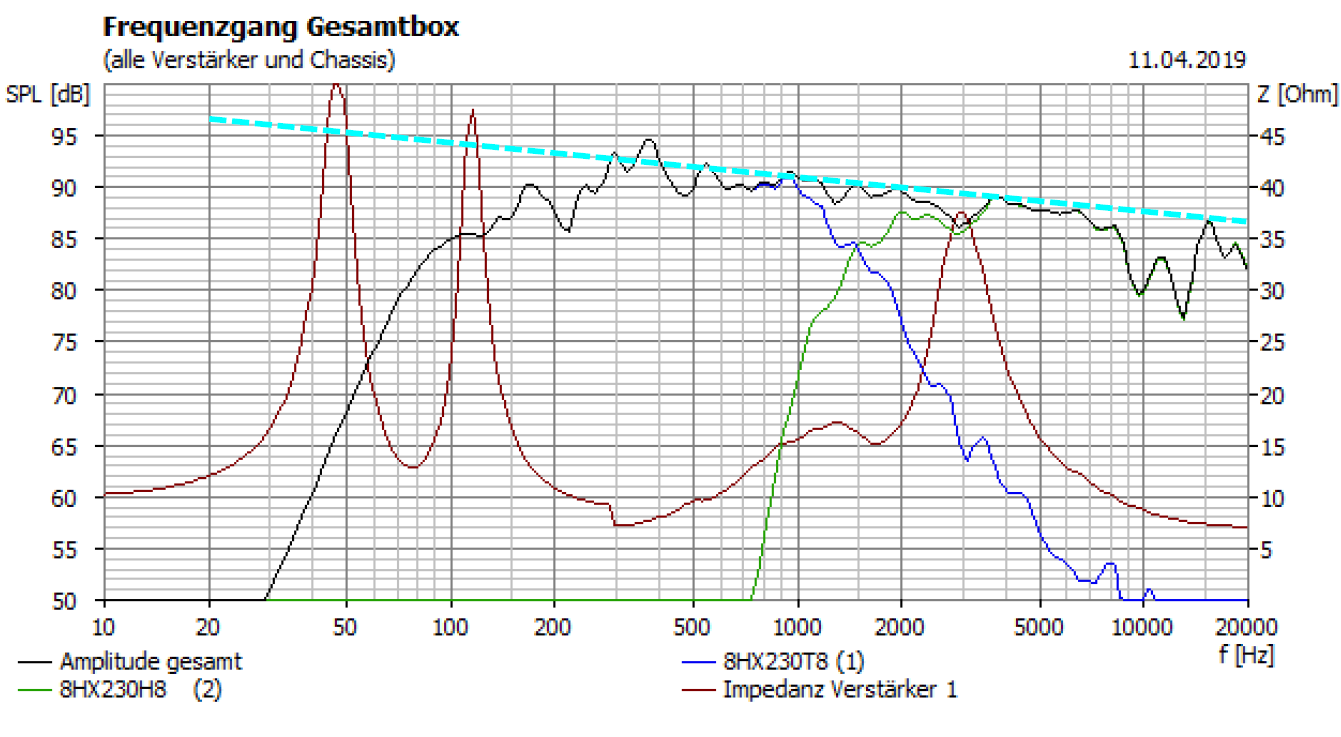

| Frequenzumfang: | 60-18300Hz |
| Funktion: | 2 Wege |
| Funktionsprinzip: | Bassreflex |
| Gesamtimpedanz: | 8 Ohm (nom.) |
| Höhe: | 330 mm |
| SPL: | 91dB |
| Tiefe: | 158mm |
Accessory Items
Hinweis; diese Daten gelten nur für Chassis die vor 3/25 gebaut wurden. Das neue Chassis ab 3/25 wird aktuell getestet und ggf. die Entwicklung des Bausatzes nagepasst. Eigenschaften Tieftöner Schwingspule 2,5 " - 65 mm Alu Schwingspule Ferrit Magnet Thiele & Small Parameter Fs 70 Hz Re 6,5 / 5,5 Ohm Qms 7,4 Le 0,57 mH Qes 0,38 Qts 0,36 Vas 8 l Mms 23,6 g BL 15,1 Tesla/meter Xmax 6,17 mm Cms 0,14 mm/N Sd 205 cm² Rms 1,79 kg/s Eigenschaften HF-Treiber Schwingspule HF Treiber 1,46 "- 37 mm nominale Impedanz HF-Treiber 8 Ohm nominale Belastbarkeit HF-Treiber 30 W maximale Belastbarkeit HF-Treiber 60 W Empfindlichkeit HF-Treiber (1 W / 1 m) 105 dB Frequenzgang HF-Treiber 1200 - 20000 Hz Schwingspulenträger HF-Treiber Kapton Diaphragmamaterial HF-Treiber Ketone Polymer Abstrahlwinkel (H x V) 100 ° <
Gehäuse Cinema Signature 8Attention please Note and for change requests please in the comment field or by email change requestscontact: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Fasets or roundings are only made on fully assembled housings.
