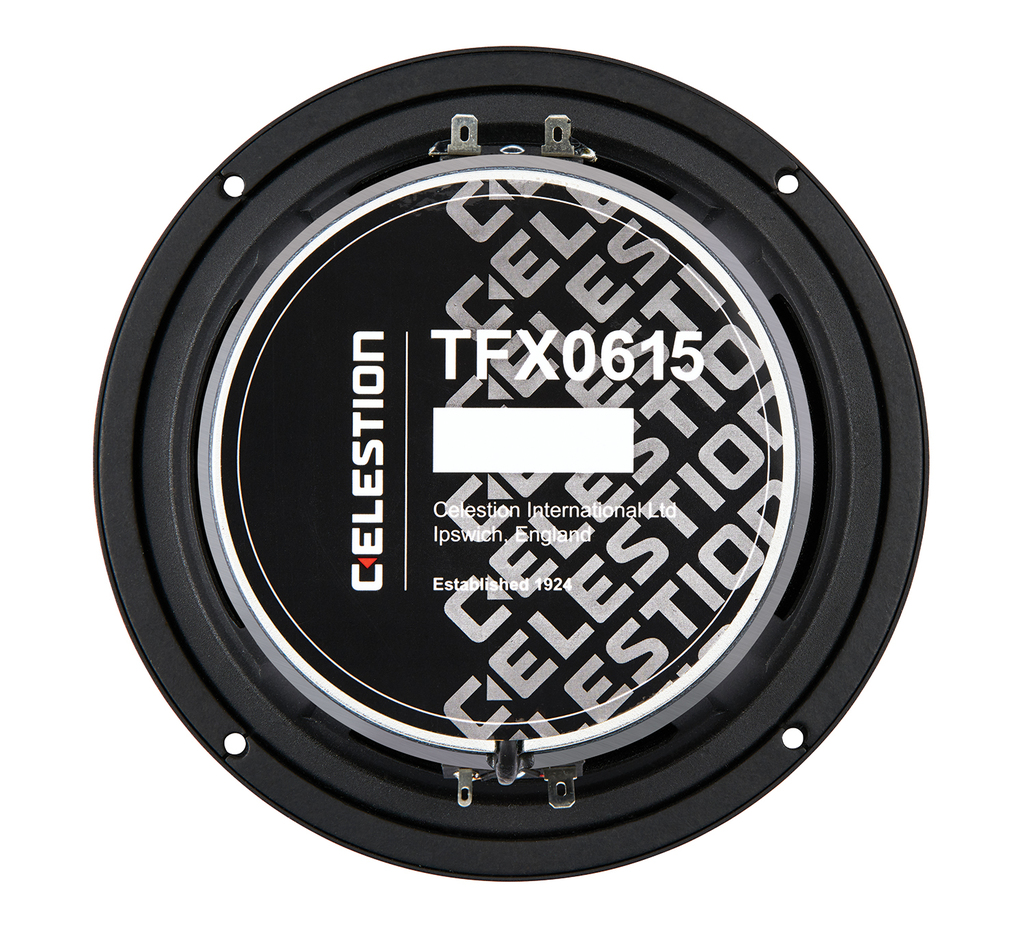

Celestion TFX0615/8
Skip image gallery
Picture similar to product
Product number:
V11449
Manufacturer:
Celestion
Min. order quantity:
1
Celestion TFX0615/8
Celestion, one of the "most resonant" names in the world of speakers.
The chassis of the TF series are characterized by an excellent price-performance ratio while maintaining very good sound properties, making them predestined for use in powerful and high-sound-quality PA speaker systems.
PA coaxial speaker, 150 W, 8 Ω
- 16.5 cm coaxial speaker (6½") with sturdy metal basket
- 25 mm tweeter (1") with silk dome and neodymium magnet
- Integrated High-Frequency Waveguide
- Nominal high-frequency dispersion angle 110°
Properties
| Eff. Membranfläche (Sd): | 153,944cm² |
|---|---|
| Effektive Bewegte Masse (Mms): | 12,62g |
| Elektrische Güte (Qes): | 0,429 |
| Gesamtgüte (Qts): | 0,376 |
| Gleichstromwiderstand (Re): | 5,39 Ohm |
| Impedanz (Z): | 8 & 8 |
| Kennschalldruck: | 94dB W/98dB T |
| Kraftfaktor (BL): | 9,82 Tm |
| Lineare Auslenkung (Xmax): | 5,25mm |
| Mechanische Güte (Qms): | 3,038 |
| Nachgiebigkeit (Cms): | 0,21mm/N |
| Nennbelastbarkeit: | 150 Watt |
| Power Handling (MAX): | 300 Watt |
| Resonanzfrequenz (fs): | 97/2200Hz |
| Schwingspulendurchmesser: | 38/25mm |
| Schwingspulenind. (Le): | 0,46mH Woofer |
| Äquivalentvolumen (Vas): | 7,2 l. |
Data according to manufacturer. Errors and changes reserved.
