Bold North Audio BWF-6503
Skip image gallery
Picture similar to product
Product number:
V11063
Manufacturer:
Bold North Audio
Weight:
0.5 kg
Available stock:
12
Min. order quantity:
1
Max. order quantity:
2
Key Features
- Light weight, rigid carbon fiber cone with rubber surround
- 2.6 mm, Klippel verified minimum Xmax
- Vented, square cast aluminum basket
- 1” voice coil, edge-wound copper on Kapton form
- Wide frequency range, 60 to 12kHz
- 0.9 kg, (2.1 lb) net weight

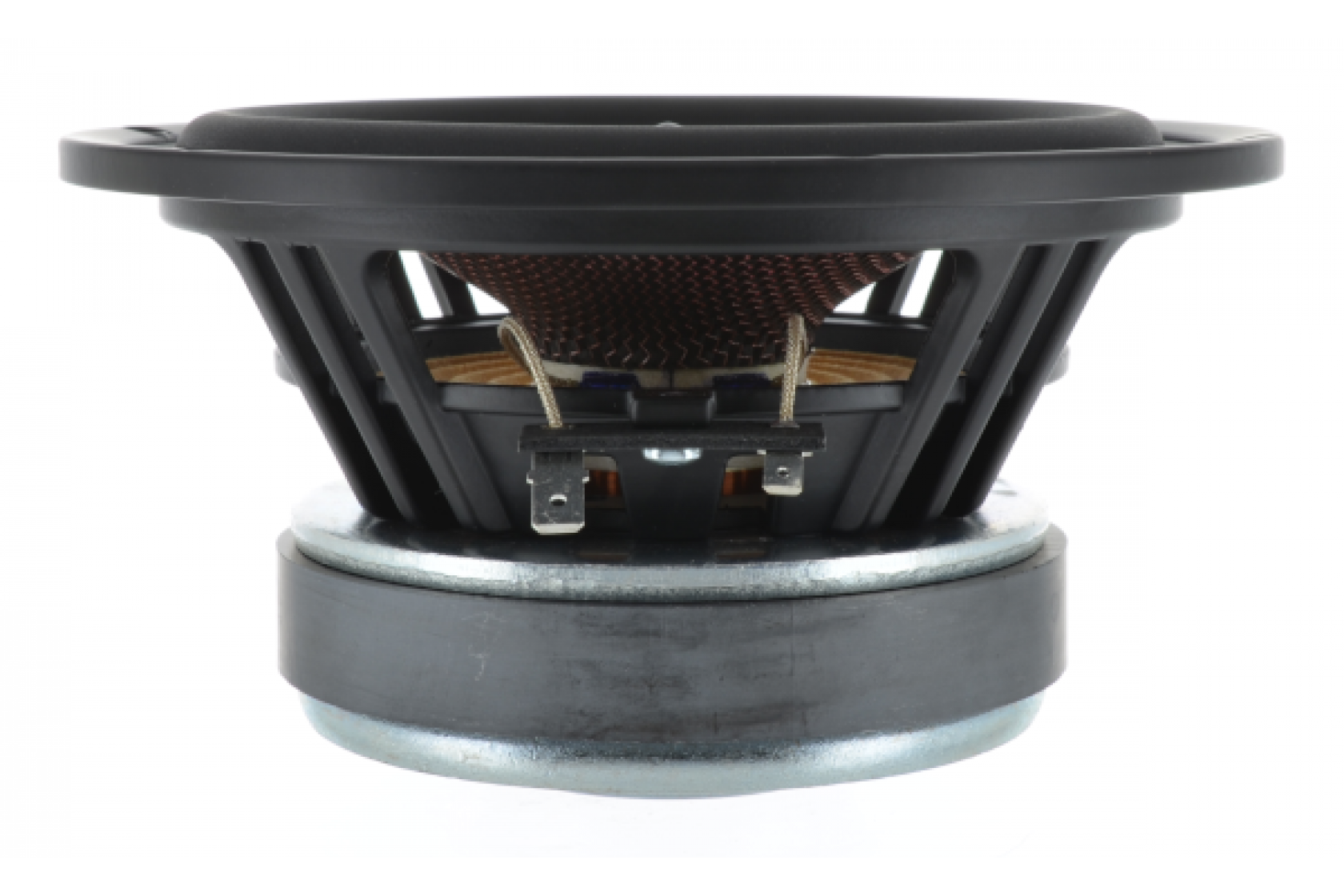

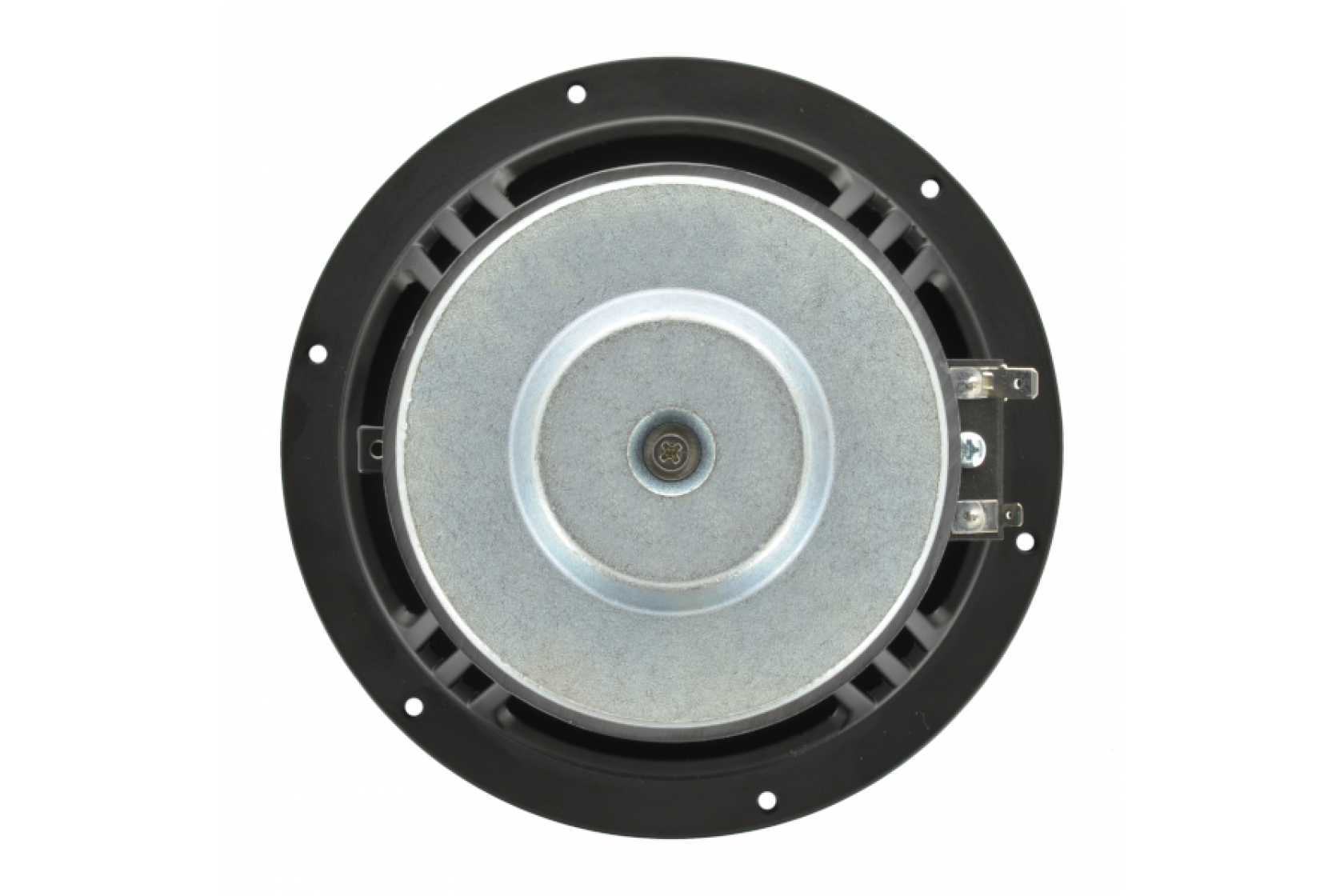

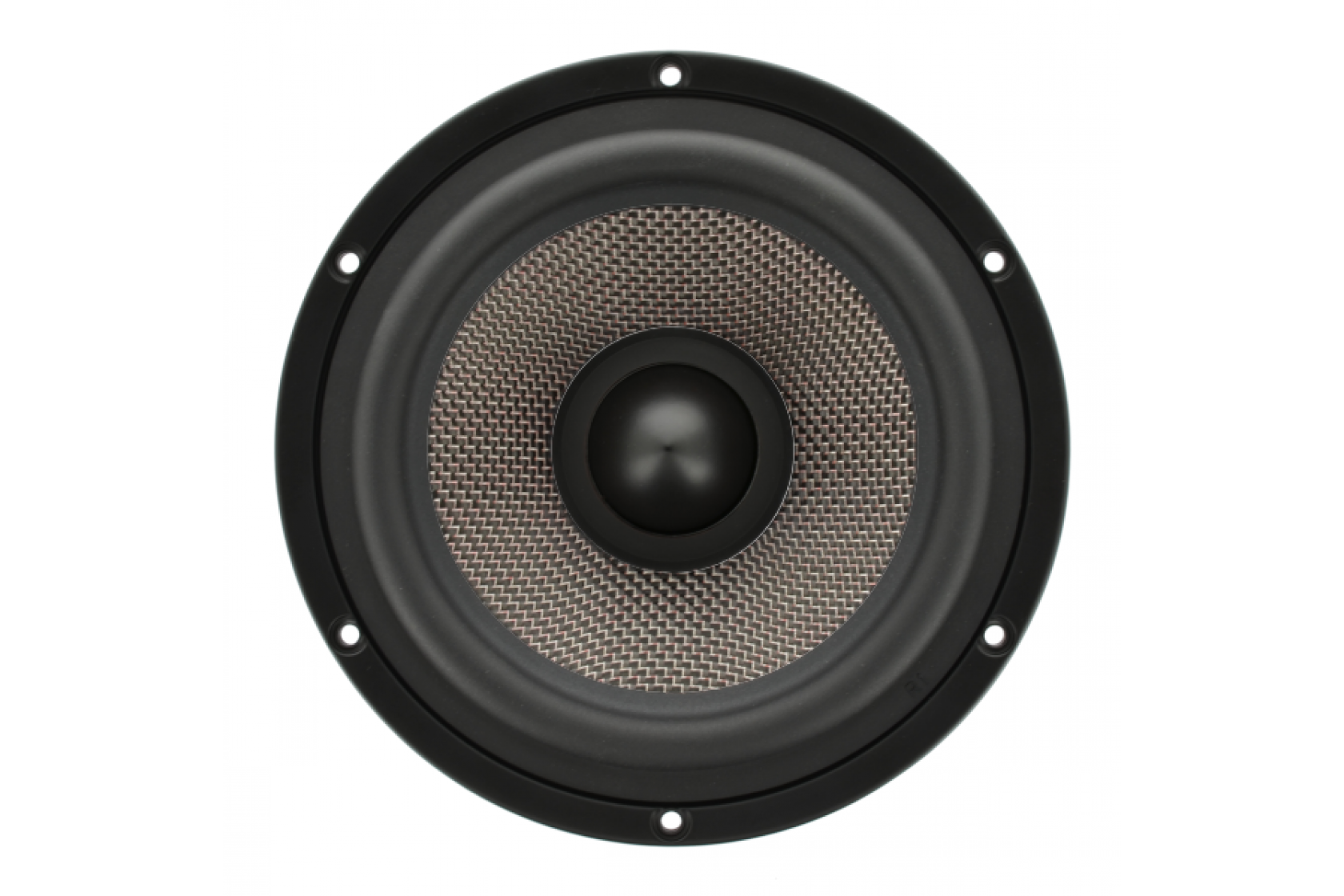

This 6.5” premium woofer provides both value and performance. A custom fabricated woven carbon fiber cone allows for a rigid piston and fast transient response. A stylish yet sturdy round cast aluminum basket provides easy front mounting in an enclosure. The carefully designed aluminum phase plug eliminates the need for the additional mass of a dust cap and reduces lateral wave energy interference which causes unwanted peaks and dips in the frequency response.
Properties
| Artikel-Nr.: | 82130 |
|---|---|
| Außenmaß: | 173mm |
| Bohrlochanzahl: | 6 |
| DC Resistance (Re): | 6,25 Ohm |
| Eff. Membranfläche (Sd): | 126,7cm² |
| Einbautiefe: | 84,5mm |
| Einbauöffnung: | 146,1 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,43 |
| Frequenzbereich: | 35-2000Hz |
| Gesamtgüte (Qts): | 0,37 |
| Gleichstromwiderstand (Re): | 6,25 Ohms |
| Kennschalldruck: | 88 dB 2.83V/1m |
| Korbmaterial: | Cast Aluminum |
| Kraftfaktor (BL): | 8,37 |
| Lineare Auslenkung (Xmax): | +/- 5mm |
| Lochkreisdurchmesser: | 162mm |
| Magnet: | Ferrit |
| Marke: | Bold North Audio |
| Mechanische Güte (Qms): | 2,69 |
| Membranmaterial: | Kohlefaser Composite |
| Model: | BWF-6503 |
| Nachgiebigkeit (Cms): | 0,78mm/N |
| Schwingspulenind. (Le): | 0,15mH |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 17,69 l |
Data according to manufacturer. Errors and changes reserved.
