Cabinet Ultimax18CB kit
Ultimax 18 CB Cabinet KitUltimax 18 CB Cabinet Kit Suitable for assembly:Dayton Audio UM18-22 120L Flat Pack Enclosure Kit About the CaseThis clever enclosure was specifically designed for the Dayton Audio 18" Ultimax subwoofer. During the CNC manufacturing process, grooves and joints are cut into the back panel to fit the boardsprecisely align. A unique two-piece strut provides superior stiffness withoutperformance of the subwoofer. Both side walls feature 19mm rabbeted extensionswith cutouts to perfectly mount the first piece of the two-part, double-thick baffle. Das Endergebnis ist ein resonanzfreies, geschlossenes Subwoofergehäuse, das speziell entwickelt wurde, umgetting the best performance out of the 18" Ultimax subwoofer from Dayton Audio. All that's left to doremains, is to refine it to match your decor or to paint it to stand out. Spezifikationen:- Panel thickness: 19mm, Baffle 38mm - Panel material: Medium Density Fiberboard (MDF) -Finished net enclosure volume (minus the double thick baffle, the bracing, and theTieftonvolumens): 120L - External dimensions approx.: 580mm H x 520mm W x 520mm D - Weight: 35 Kg. Attention please note and for change requests please in the comment field or by email change requestsaddress: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Chamfers or rounds are only made on fully assembled housings.
Gehäuse Harwood Acoustics LS3 5A
Gehäuse Harwood Acoustics LS3 5AAbout the Case The housing kit is available in raw MDF and birch plywood (material thickness 12mm). OtherExecutions on request! The baffle is not available individually! Upon request, we also manufacture in our own large carpentry workshop using other materials such as block-gluedSolid wood, real wood (if suitable), and similar. The housing kits are manufactured using miter or rebate and joint techniques during the CNC manufacturing process.manufactured to align the plates precisely. In many case kits, struts andBraces. They provide superior rigidity without compromising the performance and energy of the speakers toimpair. Das Endergebnis ist ein resonance-free, closed enclosure, specifically designed tobeste performance from the speakers. All that remains to be done is to match it toTo refine your decor or paint it to own a unique piece of musical furniture. External dimensions: 190mm W x 304mm H x 165mm D Attention please note and for change requests please in the comment field or by email change requestsaddress: Chassis cutout and terminal connections are executed as drawn in the kit. Should changesdesired, please let us know. All housing kits (not glued or painted) are without rounded edges or chamfers! Chamfers or rounds are only made on fully assembled housings and upon explicit request. Der Spannrahmen für die Frontbespannung ist nicht beinhaltet, dieser kann gesondert erworben werden: s.Accessories. Housing kit suitable for: Kit for:
Cinema Signature 8 Lautsprecherbausatz
Cinema Signature 8 Speaker KitCinema Signature 8 Test in HiFiTest and Klang+Ton 6/2022Link2-Way Shelf/OnWall/InWall Assembly: 20cm (8inch) Coaxial; Frequency crossover components Mundorf Hi-Quality: Properties: Ziel war es, ausgezeichnete Dynamik für herkömmliche AVRs (Audio Video Receiver)for achieving high-quality home theater applications. Thus, the requirements for this kit were clear:Level stability, good efficiency, 8Ohm. These specifications had to be met without compromising on a Hi-Ficonformal tuning and an acceptable stand-alone capability (with 60Hz -f3 near wall or wall installation) to forego.In doing so, we have also achieved a constant radiation pattern up to 60 degrees and a very low installation depth.The good efficiency and 8-ohm impedance allow for sound pressure levels as they should be in the cinema range, even with smaller AV receivers.Excellent as Main (L/R) (Satellite) or as a Center. With an addition in the low frequency range, e.g., the CSS SDX12is a powerful home theater realized in no time. Scope of delivery: Screws Chassis Terminal Bass reflex tube Cable (Interior) Insulation fleece Crossover components (Loose) In the selected quantity, it refers to pieces, not pairs.
Home Cinema S2 Subwoofer Gehäuse-Bausatz
Home Cinema S2 Subwoofer Enclosure KitHome Cinema S2 Subwoofer Enclosure Kit Suitable for assembly:Home Cinema S1 Subwoofer Speaker Kit Exterior dimensions: Width: 420 mm Height: 420 mm Depth: 420 mm Material thickness 19mm About the CaseThe enclosures are specially developed and manufactured for the speaker kits developed by variant GmbH. Variant also manufactures enclosures according to specifications for the kits of our distribution products and other sources such as trade magazines or private projects. Details can be found in the selection legend next to the product images. Grundlegend sind MDF raw, through-dyed MDF black, and primed MDF, in the thicknesses 10, 12,16, 19, 22 and larger intended for the case kits. On request, we also manufacture in our own large carpentry shop using other materials such as multiplex,Solid wood panels, real wood (if suitable), and similar. The housing kits are manufactured using miter or rebate and joint techniques during the CNC manufacturing process.manufactured to align the plates precisely. In many case kits, struts andBraces. They provide superior rigidity without compromising the performance and energy of the speakers toimpair. Everything that remains to be done is to refine it to match your decor or to paint it to aunique music furniture your own. Attention please note and for change requests please in the comment field or by email change requestscontact: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Chamfers or rounds are only made on fully assembled enclosures.
Home Cinema S2 Lautsprecher Subwooferbausatz
Home Cinema S2 Speaker Subwoofer KitHome Cinema S2 [...]And as always with good subwoofers, the Home-Cinema S2 elevates the speakers' performance to a wholenew level: It suddenly has a dynamism and force that you simply can't ignore the bonus in theBass wants to do without.[...] Klang & Ton 3/2024 Subwoofer kit for active operation, without enclosure, without active module Assembly: Dayton Audio DC380-8, (recommended active modules: Dayton Audio SPA250DSP, Dayton Audio SPA500DSP, DaytonAudio SPA250, Dayton Audio SPA100-D, Hypex FUSIONAMP FA251) Properties: High-performance subwoofer chassis in a sealed enclosure, DSP controlled active electronics of your choiceon Board. To reproduce bass, low tones powerfully, precisely, and contoured, it requires, even if it stillwith levels beyond the neighborhood-friendly volume, membrane area. This fulfills theHome Cinema S2 with its 15" 380cm subwoofer chassis Dayton Audio DC380 in abundance. Theclosed enclosures and the reinforced internal structure are essential components of a high-quality construction. Scope of delivery: Screws Chassis Cable (Interior)
Home Cinema C1 Lautsprecher-Bausatz
Home Cinema C1 Speaker KitHome Cinema C1 2-Way Bass Reflex Center Speaker Assembly: Dayton Audio, 2x DC130B-8, ND25FW-4; Crossover components Mundorf Hi-Quality: Properties: Main and center speakers for horizontal or vertical application. Two 13cm mid-bass driverswith paper membrane in classic TMT arrangement. Horn (waveguide) loaded tweeter with fabric membrane25mm for silky highs and clear dynamic treble. The Home Cinema series is an expandable system with identical main speaker components,wichtig für den identical sound from all directions in multichannel systems. Their differentAusführungen sind optimiert für freistehende Aufstellung, Wand nähe oder On-Wall Montage. HiFi stereo andMultichannel applications can be adapted with this speaker family according to preference and space conditions.kombiniert werden. The price and the extensive variants, from the pure kit of individual parts,prefabricated, soldered crossovers and precisely cut MDF panels to the finishedbuilt and painted speaker boxes is simply sensational. The specialCrossover boards with pictorial descriptions and the assembly videos found on the homepageand illustrated assembly instructions enable even complete beginners to successfully build it themselves. The variantHome Cinema Series offers an affordable entry with top sound quality in an incredibleextensive expansion and selection options. Scope of delivery: Screws Chassis Terminal Bass reflex tube Cable (Interior) Insulation fleece Crossover components (Loose)
Gehäuse Harwood Acoustics LS5 9
Gehäuse Harwood Acoustics LS5 9About the Case The product image shows only a possible version. Explanations can be found in the selection legend next to the product images. Grundlegend sind MDF Raw und Birch Plywood erhältlich. The baffle is not available individually, nor is the black dyed version. Upon request, we also manufacture in our own large carpentry shop using other materials such as block-gluedSolid wood, real wood (if suitable), and similar. The housing kits are manufactured using miter or rebate and joint techniques during the CNC manufacturing process.manufactured to align the plates precisely. In many case kits, struts andBraces. They provide superior rigidity without compromising the performance and energy of the speakers toaffect. Das Endergebnis ist ein resonanzfreies, geschlossenes Gehäuse, das speziell entwickelt wurde, um diebeste Leistung aus dem Lautsprechern herauszuholen. Everything that remains to be done is to match it toTo refine your decor or paint it to own a unique piece of music furniture. External dimensions: 281mm W x 462mm H x 276mm D Attention please note and for change requests please in the comment field or by email change requestsaddress: Chassis cutout and terminal connections are executed as drawn in the kit. Should changesdesired, please let us know. All housing kits (not glued or painted) are without rounded edges or chamfers! Fasen or roundings are only made on fully assembled housings and upon explicit request. Housing kit suitable for: Kit for:
MX15 CB Gehäuse-Bausatz
MX15 CB Case KitMax-X 15 CB Case KitSuitable for assembly:Dayton Audio MX15-22 90L Flat Pack Enclosure Kit About the CaseThis clever enclosure was specially designed for the Dayton Audio MX15-22 subwoofer chassis. During the CNC manufacturing process, folds and joints are cut into the back panel to allow the platesprecisely align. A unique two-part strut provides superior stiffness withoutPerformance of the subwoofer. Both side walls feature 19mm folded extensionswith cutouts to perfectly mount the first piece of the two-part, double-thick baffle. The final result is a resonance-free, closed subwoofer enclosure that has been specially developed,to get the best performance from the 15" Max-X Series subwoofer by Dayton Audio. Everything that stillto do is to finish it to match your decor or paint it to stand out. Specifications: - Panel thickness: 19mm, baffle 38mm - Panel material: Medium Density Fiberboard (MDF)- Finished net cabinet volume (excluding the double thick baffle, bracing, and theBass volume): 90L – External dimensions: 490mm H x 490mm W x 510mm D - Weight: 25kg Attention please note and for change requests please in the comment field or by email change requestsaddress: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the case, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Fasings or roundings are only made on fully assembled housings.
Koax6BR Lautsprecherbausatz
Koax6BR Speaker Kit Conclusion from hifitest.de Dynamically speaker with excellent spatiality and extremely fair price. hifitest.de Koax6BR 2-Way Main and Center Speaker Assembly: 6" coaxial, crossover components Mundorf Hi-Quality: Properties: Kompakte Bassreflex-Box mit 6 Zoll Koaxialen zwei Wege System. Everything from one, so their motto that theybestens erfüllt. 40Hz to over 20000Hz (thus far beyond human hearing) is covered by the Koax6BR.Stage image, spatial representation so real as if you were there and with enough headroom that youenjoy his favorite music louder than room volume. Technical Specifications: Frequency range: f-3dB: 40-20000Hz SPL: 86dB Gesamtimpedanz: 4 Ohm ((Nom.) Principle of operation: Bass reflex B/H/T: 238x458x280mm Scope of delivery: 6" Coaxial 2-Way Speaker Chassis Connection terminal Frequency Crossover Components (Loose) Insulation material Internal wiring Screws Bass reflex tube As variant selection, baffle and cabinet cut, up to fully glued andPainted housing, can be ordered additionally. The selected quantity refers to pieces,nota couple. The shown cases are examples. Bevels of this type can only be applied to fully gluedGehäuse (MDF raw or black MDF raw) or offered as finished painted enclosures, not fromEnclosure Cut!
RSS315 CB Gehäuse-Bausatz
RSS315 CB Enclosure KitRSS315 CB Enclosure KitSuitable for assembly:Dayton Audio RSS315HFA-8/RSS315HF-4 60L Flat Pack Enclosure Kit About the CaseDieses clevere Gehäuse wurde speziell für das Dayton Audio RSS315HFA-8/ RSS315HF-4 Subwoofer-Chassis entwickelt. During the CNC manufacturing process, grooves and joints are cut into the back panel to join the platesprecisely aligned. A unique two-part strut provides superior stiffness withoutPerformance of the subwoofer. Both side walls feature 19mm folded extensionswith cutouts to perfectly mount the first piece of the two-part, double-thick baffle. The final result is a resonance-free, closed subwoofer enclosure that has been specially developed,to get the best performance out of the 12" Reference Series subwoofer from Dayton Audio. Everything thatremains to be done is to finish it to match your decor or to paint it to stand out. Specifications: - Panel thickness: 19mm, Baffle 38mm - Panel material: Medium Density Fiberboard (MDF)- Finished net cabinet volume (minus the double thick baffle, bracing, andTieftonvolumens): 60L – External dimensions: 430mm H x 430mm W x 430mm D - Weight: 21kg Attention please note and for change requests please use the comment field or send change requests via email.address: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the case, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Chamfers or rounds are only made on fully assembled housings.
Celine Lautsprecherbausatz
Celine Speaker KitCelineSpeaker kit Test in Klang+Ton 1/23 The conclusion on the Celine from hifitest.de High end and high dynamics in one – the Variant Céline is a bullseye! Test on hifitest.de 2-Way Floorstanding Speaker Assembly: 160mm Mundorf AMT U160W1.1-R, 270mm Woofer Dayton Audio RS270P-4, Crossover componentsMundorf Hi-Quality: Properties: "Celine" is Born! AMTU160 with front panel, Dayton Reference RS270P-4, and two passive radiators on theBackside. Two chassis, ten octaves. Celine is a two-way system of boundary areas. The AMT from the German manufacturer Mundorf® with an effective diaphragm area of 68.1 cm² is the flagship of the new AMT U Series and, unlike conventional tweeter domes with diameters from 19 to 32 mm, thus a maximum of 8.04 cm², simply a superior solution.Mouthorf AMT membraneare unique in their form. It is characterized by its exceptionally high internal damping and extremely low distortion values. This is especially true for the odd harmonic distortions K3 and K5. The guarantee for the highest level reserves with enormous fine detailing of the ultra-light membrane. From 1500Hz, the AMT never plays in the foreground. It accurately and dynamically traces every small impulse of the music. Its companion is an RS270P-4 from the reference series by Dayton Audio. The aluminum die-cast basket houses a lightweight paper cone, and a phase plug centrally dominates the visual aspect. The lightweight paper cone was already chosen for the smaller sister model "Melodie 8018" in two sizes smaller, and it also impresses in the larger version with detailed midrange, impressive bass, and the overall performance delivered seamlessly both in coarse and fine dynamics. We are inclined to award Celine the label "Speaker for everything." It could in our rooms; Small room 14m², acoustically dampened. Large room 24m², acoustically little damped, little window area. Second large room 35m², acoustically well-damped with lots of window space. In all situations, loud or quiet, always impress with transistor, tube, and digital amplifiers. Preferred in amplifiers, however, the strong guys, and can also handle loudness. Scope of delivery: - Chassis - Passive membranes - High-End Terminal - Fastening screws - Cable (internal wiring) - Insulation material - Crossover components (Loose) Die standard crossover are Mundorf; in the signal path: air coils, Mcap Evo capacitors, metal oxideResistors. As parallel component; Elko Rau, air coils, metal oxide resistors. In the High End version; In the signal path: MCAP EVO Oil, Backlack air coils, MRESIST Classic resistors.As parallel component: MCAP Classic, baked varnish and standard air coils, metal oxide resistors In the scope of delivery, an impedance linearization is already included. Celine active Hypex 122: Scope of delivery. Hypex FA122 Pre-configured with Crossover Programming! Additional setup programming available for an extra charge! Dayton Audio RS270P Mundorf AMT U160 Dayton Audio DSA270-PR including additional weights Insulation material Screws Internal wiring The selected number refers to pieces,noa couple.
AMPTlich 12 250 aktiv Subwooferbausatz
AMPTlich 12 250 active subwoofer kitAMPtlich RSS315 Kit Dayton Audio 12" RSS Subwoofer without Enclosure with Subwoofer Module Assembly: Dayton Audio RSS315, Dayton Audio SPA250DSP Properties: Dayton Audio RSS 12" Subwoofer for a 60L Flat Pack Enclosure About the Subwoofer Die Subwoofers of the Dayton Audio Reference Series continue the quality and performance of the much-praised RS-Linie in den Bereich der Subwoofers fort. Wie bei den anderen Modellen der Reference-Serie liegt auch beim12" driver RSS315HFA-8 focuses on extremely low distortions. Secondary, tertiary, andIntermodulation distortions are reduced by the use of three magnetic short-circuit paths withinder Motorstruktur extrem niedrig gehalten. A durable aramid fiber spider and extensiveVentilation openings ensure a smooth and even stroke. The black anodized diaphragm, whichRubber surround and the custom-made basket give this driver a unique high-end look.Choose this High Fidelity (HF) version for home speaker systems if you value aclean, deep bass and are not limited by the size of the enclosure. Whoever is not yet familiar with the YouTube channel should definitely get acquainted with it. There you will findContent about the topic of exceptional Hi-Fi. Frank says about the channel: "Here you will find the collected knowledge about speaker developmentboth for beginners, up to in-depth know-how, from the professional. In his current video, it's about none other than our RSS315 subwoofer kit.and the full 30 minutes, you should not miss that. Technical Specifications: Frequency range: f-3dB: SPL: B/H/T: 430x430x430mm Total impedance: 8 Ohm ((Nom.) 4 Ohm >2200Hz) Funktionsprinzip: closed Execution Variation Amplifier Variante mit PlateAmp: When executed with PlateAmp, the matching back panel with the appropriate cutoutincluded. (In a case kit or similar) Variant with Terminal: Cutout suitable for Terminal. Scope of delivery: Screws Chassis LS Cable Housing drawing SPA250DSP The delivery time refers to the kit without a case. Bei der ausgwewählten Anzahl handelt es sich um pieces,<!DOCTYPE html><html lang="de">
Ultimax 15 Kit + Gehäusebausatz Bundle
Ultimax 15 Kit + Case Kit BundleAbout the Subwoofer Die Ultimax series of subwoofers with dual voice coil from Dayton Audio are not for the faint of heart.Gebaut mit der neuesten Technologie, sind Ultimax-Subwoofer der Gipfel der tiefen Frequenzen-Treiber-Design. An Ultimax subwoofer tests the strength of your foundations with fast, precise, andfrightening bass. Dual 2-ohm voice coils enable stereo 2-ohm and mono 1-ohm configurations when connected to high currentCar stereo systems and professional amplifiers to gain maximum performance. ForHome applications make it easy to connect the voice coils in series to achieve a safe 4-ohm load.for greater amplifier compatibility. To improve power consumption, increase thermal management, and performance compressionto reduce, Dayton Audio has designed the Ultimax series with large black anodized formers and ventilatedPolstücken, under-spider ventilation, and dual-layer copper voice coils developed. Over 1-1/2" stroke (3/4" Xmax) remain completely linear through the use of dual spiders, which alsoLimit distortions and vibration modes. The "Tall-boy" rubber surround with integrated sealskeeps the driver surface stable during extreme excursion movements. Thick, one-piece Nomex honeycombcovered membranes coated with woven, robust glass fibers create ultra-stable membranes,the deformations resist. A large copper jacket and a copper pole cap in the engine reduce energy storage fromInductance with the added benefit of reducing distortion for a "faster" response.Große dual-stacked, high-energy magnets take on the heavy lifting and bring Qts to aLevel at which Ultimax subwoofers are used in vented or sealed enclosures and enclavescan. About the Case The clever enclosure was specifically designed for the Dayton Audio 15" Ultimax subwoofer. Through the CNC-Fertigungsprozess werden Falze und Fugen präzise in die Rückwand geschnitten. A unique,zweiteilige Strebe sorgt für überlegene Steifigkeit ohne Beeinträchtigung der Subwoofer-Leistung. The19mm folded extensions on both side walls and cutouts allow for perfect installationthe double thick baffles. The end result is a resonance-free, closed subwoofer enclosure,that can be refined or painted to match your own decor. Specifications: - Plate thickness: 22mm, the front baffle is 38mm - Plate material: Medium densityFiberboard (MDF) - Finished net cabinet volume (excluding the double thick baffle, theBracing and low-frequency volume): 92L - External dimensions: 490" H x 490" W x 510mm D Scope of delivery: Screws Chassis Terminal LS Cable Blueprint Enclosure as a kit in raw MDF
Speedy Top
Speedy Top A box that can do everything from loud to quiet, sounds good, and costs little – what more could you want? Thomas Schmidt / Sound & Tone 1/2024 Compact box 2-Way Main and Satellite Speakers Assembly: Dayton Audio ND25FW, Dayton Audio DC250, Crossover Components Mundorf Hi-Quality etc. Properties: Speedy Top, a large 2-way speaker in a closed design. Intended for entry-level home cinema,small party room or youth room. Speedy Top is equipped with a chassis that has proven itself thousands of times, a25mm fabric dome with waveguide and a 25cm woofer with coated paper coneund surprisingly much midrange potential. The duo impresses with an immense fun factor. ThePotential can be further enhanced by adding subwoofers. Speedy Top is tonally balanced.and at no time reserved.
Gehäuse AMPTlich 12 250
Gehäuse AMPTlich 12 250AMPtlich RSS315 KitDayton Audio RSS315 Subwoofer Enclosure KitProperties:60L Flat Pack Enclosure Kit for Dayton Audio RSS 12" SubwooferAbout the CaseThis enclosure was specifically designed for the Dayton Audio 12" RSS subwoofer.During the CNC manufacturing process, rebates and joints are cut into the back panel to precisely align the boards. A unique two-part brace provides superior rigidity without compromising the subwoofer's performance. Both side panels feature rebated extensions with cutouts to perfectly mount the first piece of the two-part, double-thick baffle.The final result is a resonance-free, sealed subwoofer enclosure, specifically designed to get the best performance out of the 12" RSS315HFA-8 subwoofer from Dayton Audio. All that remains to be done is to finish it to match your decor or paint it to stand out.Spezifikationen:- Panel thickness: 19mm, baffle 38mm - Panel material: Medium Density Fiberboard (MDF) - Finished net cabinet volume (minus double thick baffle, bracing, and woofer volume): 60L - External dimensions: 430mm H x 430mm W x 430mm D - Weight: 17kg Attention please note and for change requests please in the comment field or by email change requestsaddress: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the case, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Chamfers or rounds are only made on fully assembled housings. Über the subwooferThe subwoofers of the Dayton Audio Reference Series continue the quality and performance of the highly praised RS line into the realm of subwoofers. As with the other models of the Reference Series, the main focus of the 12" driver RSS315HFA-8 is on extremely low distortion. Secondary, tertiary, and intermodulation distortions are kept extremely low by the use of three magnetic shorting paths within the motor structure. A durable aramid fiber spider and extensive ventilation openings ensure quiet and smooth excursion. The black anodized cone, rubber surround, and custom-made basket give this driver a unique high-end look. Choose this High Fidelity (HF) version for home speaker systems if you value clean, deep bass and are not restricted by enclosure size. To the YT video from "Frank's Workshop of Speaker Technology" about our 12" RSS315 SubwooferWhoever is not yet familiar with the YouTube channel should urgently get acquainted with it. There you will find content about the special kind of Hi-Fi.Frank himself says about the channel: "Here you will find the collected knowledge about speaker development, both for beginners and up to well-founded know-how, from the professional.In his current video, it's about none other than our RSS315 Subwoofer Kit, and the full 30 minutes, you shouldn't miss it. Technical Specifications:Frequency range: 20-300HzFc: 35 HzSPL: actively recommendedB/H/T: 430x430x430mmGesamtimpedanz: 8 Ohm ((Nom.)Funktionsprinzip: closed
Cabinet for RSS390CB Kit
RSS390HF-4 CB Enclosure KitRSS390HF-4 CB Enclosure KitSuitable for assembly:Dayton Audio RSS390HF-4 84L Flat Pack Enclosure Kit About the CaseThis clever enclosure was specifically designed for the Dayton Audio RSS390HF-4 subwoofer chassis. During the CNC manufacturing process, grooves and joints are cut into the back panel to assemble the platesprecisely aligned. A unique two-part strut provides superior stiffness withoutPerformance of the subwoofer. Both side walls feature 19mm folded extensionswith cutouts to perfectly mount the first piece of the two-part, double-thick baffle. Das Endergebnis ist ein resonanzfreies, geschlossenes Subwoofer-Gehäuse, das speziell entwickelt wurde,to get the best performance from the 15" Reference Series subwoofer by Dayton Audio. Everything thatstill to be done is to finish it to match your decor or to paint it to stand out. Specifications: - Panel thickness: 19mm, Baffle 38mm - Panel material: Medium Density Fiberboard (MDF)- Finished net cabinet volume (minus the double thick baffle, bracing, andLow-frequency volume: 84L - External dimensions: 490mm H x 490mm W x 510mm D - Weight: 27kg Attention please note and for change requests please in the comment field or by email change requestsaddress: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Chamfers or rounds are only made on fully assembled enclosures.
Home Cinema R1 Lautsprecherbausatz
Home Cinema R1 Speaker KitHome Cinema R1 2-Way Bass Reflex Speaker Assembly```html <!DOCTYPE html> <html lang="en"> <head><meta charset="UTF-8"><meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>My First Webpage</title> </head><body><h1>Welcome to My Website</h1> <p>This is a paragraph with some information about my website.</p><ul><li>Home</li><li>About</li><li>Contact</li></ul><p>If you have any questions, feel free to <a href="mailto:[email protected]">contact me</a>.</p> </body></html>``` Dayton Audio, DC130B-8, ND25FW-4, Frequency Crossover Components Mundorf Hi-Quality: Properties:Small full-range speaker suitable for both free speaker stands and open Regalaufstellung eignet und auch auf dem Schreibtisch eine gute Figur macht. For HiFi and multichannel in all living areas Zitat/Review „Customer“ Unobtrusive and simply a small speaker, you simply can't tell that this compact one faust-thick behind the membranes. Connected to the amplifier, source selected in the seat sinking, only to marvel at the first notes "what" is the subwoofer still running? No, it does, not really deep like a subwoofer but penetrating and yet contoured. After
Smokey Lautsprecherbausatz
Smokey Speaker Kit Affordable components, elegant finish at a low price, and a captivating sound – simply good. hifitest.de Smokey Kit 2-Way Main and Bookshelf Speakers Assembly: 6" mid-woofer, 25mm fabric tweeter with wave-guide (short horn), frequency crossover components Mundorf Hi-Quality: Properties: Ears pampered and the wallet spared. Who doesn't want that? Die Smokey was created following an idea: affordable and good, with simple means and if possible withoutTools (except soldering iron and screwdriver) to create a speaker kit that alsooptically suitable for the living room. How is this possible without painting or veneering and without tools? Well,variant also has the access and experience of a furniture joinery. We gave the colleagues freeRun to transform ideas and concepts into solutions. The result was a concept in which the independententwickelte Bausatz Smokey can be perfectly integrated. The Smokey houses the brand newMid-woofer from Dayton Audio with the carbon fiber cone. As a tweeter, we provided it withthe most popular tweeter from Dayton Audio, ND25FW-4. With its short horn or waveguide, it isthe perfect companion. Together, they create a soundscape that, given the small size of this boxnothing to be desired. The optional selectable housing completes this kit, which not onlyfor the DIY professionals, but especially for those who want to try or start. Caution,successful DIY can be addictive. Scope of delivery: - Smokey, almost finished speaker kit ? Variation: In the variation… Bei der ausgewählten Anzahl handelt es sich um Stück,nota couple.
Gehäuse Cinema Signature 8
Gehäuse Cinema Signature 8Attention please Note and for change requests please in the comment field or by email change requestscontact: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Fasets or roundings are only made on fully assembled housings.

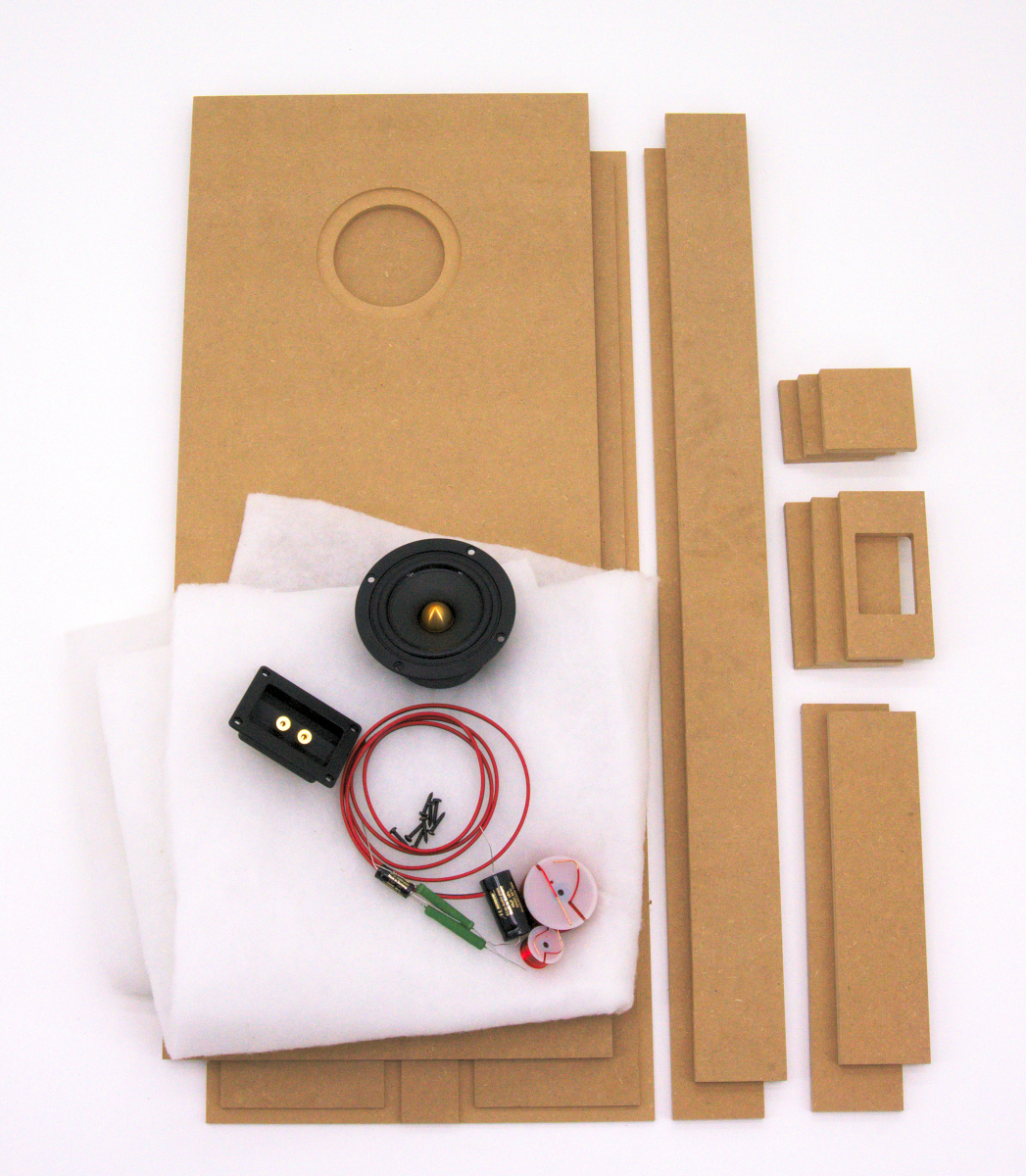

Wallflower R Lautsprecherbausatz + Gehäuse Bundle
Wallflower R Speaker Kit + Enclosure BundleWallflower R 1-Way Broadband Wall/Floor Speaker Assembly: W4-655; Frequency Crossover Components Mundorf Hi-Quality: Properties: Hifi and/or Surround Sound for impressive movie moments. Low space requirement. Living room cinema basefor your future In-Wall or On-Wall. Space-saving OnWall desk solution with full sound range,Vanishingly inconspicuous living room/dining room/lobby sound system. A proven 10cm full-range speaker inflat housing design. In two design proposals. The sound character is characterized by arich, powerful bass, a homogeneous mid-high tone performance, and a perfect stage imaging withbroadband typical spatiality. This kit is ideally suited for the most diverseApplications and in places where there is a lack of space. From the simple stereo placement in theLiving room and as TV sound enhancement in the home cinema, for secondary room sound or accompaniment ofPresentations in the studio. As wall speakers in two formats, as a floor-standing speaker with stand additionor flush-mounted. In our kits, we don't want to leave anything to chance! That's why all the materials needed for assembly are included with us.inclusive: the chassis W4-655, crossover components, screws, cables, damping material, connection terminal, and the MDF cuttings. The latter are manufactured in such a way that assembly is easy even for the inexperienced. Gestalterisch sind Ihren Fantasien und Vorstellungen keine Grenzen gesetzt: paint, veneer,folieren, tapezieren – you decide for yourself and thus give your new speakers aindividual appearance. All in all, this system offers you a sensationally affordable and creative solution for every music-and film sound enthusiasts who, despite having a small apartment, do not want to miss out on good sound and/or that certainKino experience would like to forego. Wallflower – whether rectangular or square – strikingly sonorous. Schedule an appointment and let us convince you on site in Marburg. In this bundle, the case is included as a kit in raw MDF.
Monacor Triple X HSB Lautsprecherbausatz
Monacor Triple X HSB Speaker KitKlang + Ton 6/2024 Scope of delivery: Screws Chassis Terminal Bass reflex tube Cable (Interior) Insulation fleece Crossover Components (Loose) The selected quantity refers to pieces, not pairs.
Home Cinema C1 Gehäuse-Bausatz
Home Cinema C1 Case KitHome Cinema C1 Enclosure Kit Suitable for assembly:Home Cinema C1 Speaker Kit External dimensions: Width: 420 mm (Standing version 183mm) Height: 183 mm (Standing version 420 mm) Depth: 211 mm (Standing version 211mm) About the CaseThe enclosures are specially developed and manufactured for the speaker kits developed by variant GmbH. Variant also manufactures enclosures according to specifications for the kits of our distribution products and other sources such as trade magazines or private projects. Details can be found in the selection legend next to the product images. Grundlegend sind raw MDF, through-dyed black MDF, and primed MDF, in thicknesses of 10, 12,16, 19, 22 and larger intended for the housing kits. Auf Wunsch fertigen wir in unserer eigenen Großschreinerei auch in anderen Materialien wie, Multiplex,Laminated solid wood, real wood (if suitable), and similar. The housing kits are mitered or use rabbet and joint techniques during the CNC manufacturing processmanufactured to precisely align the plates. In many case kits, struts andBraces. They provide superior stiffness without compromising the performance and energy of the speakers toaffect. Everything that remains to be done is to finish it to match your decor or to paint it to aunique music furniture your own. Attention please note and for change requests please use the comment field or email change requestsaddress: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Fasings or rounds are only made on fully assembled housings.
Celine Gehäusebausatz
Gehäuse CelineThe matching enclosure for our speaker kit "Celine".
Ultimax18 Studio-Line Subwoofer High Gehäusebausatz
Ultimax18 Studio-Line Subwoofer High Cabinet Kitextra Flat 18" 46cm High-Performance HiFi and Home Theater Subwoofer.Ultimax Studio-Line Subwoofer, Flat HiFi and Home Cinema Subwoofer Kit and Finished Enclosure Bundles forIn-Wall, On-Wall, Baffle-Wall, DBA, SBA.Closed subwoofers for active operation, in the popular sizes 12" (30cm), 15" (40cm), 18" (46cm).Powerful subwoofers with minimal enclosure depth. This way, they lose only the slightest room depth.The enclosures are the ideal solution for space-limited applications. Ideal for standard rack works 50 and 60cm.Maximum membrane area and immense lifting power, as well as high load capacity, stand for the best subwoofers.the HiFi and home cinema class. Optimally tuned closed enclosures for the chassis parameters.Comprehensive reinforcements ensure a stable housing.Anschlussterminal Speakon NL4 socket, the professional solution, is positioned centrally on the side, and thusuniversally mountable on the left or right. Other connection solutions are also available upon request.as well as plate amp cutouts.The housings are rabbeted and grooved and precisely manufactured by our professional CNC. This guaranteesa nearly flawless assembly. Our experienced carpentry team is a well-coordinated team, in the construction ofLoudspeaker enclosures. The extra flat subwoofers are also offered as a pre-glued complete package.
Reference390 Studio-Line Subwoofer High Gehäusebausatz
Reference390 Studio-Line Subwoofer High Cabinet KitExtra Flat 15" 40cm High-Performance HiFi and Home Theater Subwoofer.Reference Studio-Line Subwoofer, Flat HiFi and Home Cinema Subwoofer Kit and Finished Enclosure Bundles forIn-Wall, On-Wall, Baffle-Wall, DBA, SBA.Geschlossene Subwoofer für aktiven Betrieb, in den beliebten Größen 12“, 15“, 18“.Powerful subwoofers with minimal enclosure depth. This way, they only lose the slightest room depth.The enclosures are the ideal solution for space-limited applications. Ideal for standard rack works 50 and 60cm.Maximal membrane area and immense lifting power as well as high durability stand for the best subwoofers.the HiFi and home cinema class. Optimally tuned closed enclosures for the chassis parameters.Comprehensive reinforcements ensure a stable housing.Anschlussterminal Speakon NL4 socket, the professional solution, is positioned centrally on the side, and thusuniversally mountable on the left or right. Other connection solutions are also available upon request.as well as plate amp cutouts.Die Gehäuse sind gefälzt und genutet und von unserer professionellen CNC passgenau gefertigt. Das garantierta nearly flawless assembly. Our experienced carpentry team is a well-coordinated team in the construction ofSpeaker enclosures. The extra flat subwoofers are also offered as a pre-glued complete package.
Anytime Lautsprecherbausatz
Anytime Speaker KitAnytime - 2-Way Bookshelf Speaker Assembly: Dayton Audio ND28F-6, W4-655; Crossover components Mundorf Hi-Quality Properties: A small frontrunner with very versatile talents, on and in the shelf, the sideboard, and evenfreestanding on a stand, he knows how to captivate his audience. In the beginning, he is even suitable for newcomerswith little to no self-construction knowledge. Anytime is not a party speaker, meaning,quiet to moderate volumes are its area of application. Every day, it means that no matter whichMusic, whichever place at home, whether living room, reading room, children's room, kitchen or otherwiseLounge areas. The Anytime always makes a good impression. The concept behind the Anytime is a goodMidwoofer (found in the W4-655) and a very interesting 28mm fabric tweeter from DaytonND28F-6. A large tweeter with a lot of dynamic reserves and brilliant high-frequency resolution withoutharden. A beautiful combination that requires a similarly good-natured and harmonious playing partner. TheCombination of the two was achieved with a clean 2nd order filter and is in our kit with veryhochwertigen Bauteilen von Mundorf bestückt. The choice of component quality is up to the two play partnersand due to their amazing sound qualities, trying to save money in the wrong place heremeans "sounds or does not sound". MCapEVO and Backlack air coils as well as metal oxide resistors are onthis position a must. Anytime presents itself as a harmoniously detailed all-rounder, and proves itself even underWinkel a consistent musical quality. The crossover is also very simple andshould be achievable by anyone with basic soldering skills. Variant also offers ready-built crossovers, as well as finished cuttings up to individually painted or veneered enclosures.
Roger Lautsprecherbausatz
Roger Speaker Kit Roger Modern Two-Way Concept Assembly: Dayton Audio RS 125-4, Dynavox AMT-2; Frequency crossover components Mundorf Hi-Quality: Properties: Enjoy precise playback, fantastic spatiality, and strong sound colors. Rated thousands of times4-inch mid-woofer with black anodized aluminum cone, high-load 6-hole cast basket,lossless rubber surround, massive aluminum phase plug, gold-plated connectors, and an AMT tweeter (AirMotion Transformer according to Oscar Heil principle) large-area ultra-light membrane, celebrating music enjoymentwith the finest resolution, strong bass contours, and dynamic response. Technical Specifications: Frequenzumfang: f-3dB: 65-30000Hz SPL: 85dB Gesamtimpedanz: 4 Ohm (Nom.) Principle of operation: Bass reflex B/H/T: 160x260x220mm Scope of delivery: Chassis Terminal Screws Bass reflex tube Cable (Interior) Insulation fleece Crossover Components (Loose) Construction/Switch Plan Die Lieferzeit bezieht sich auf den Bausatz ohne Gehäuse. For the selected quantity, it is pieces,nota pair. Images are exemplary.

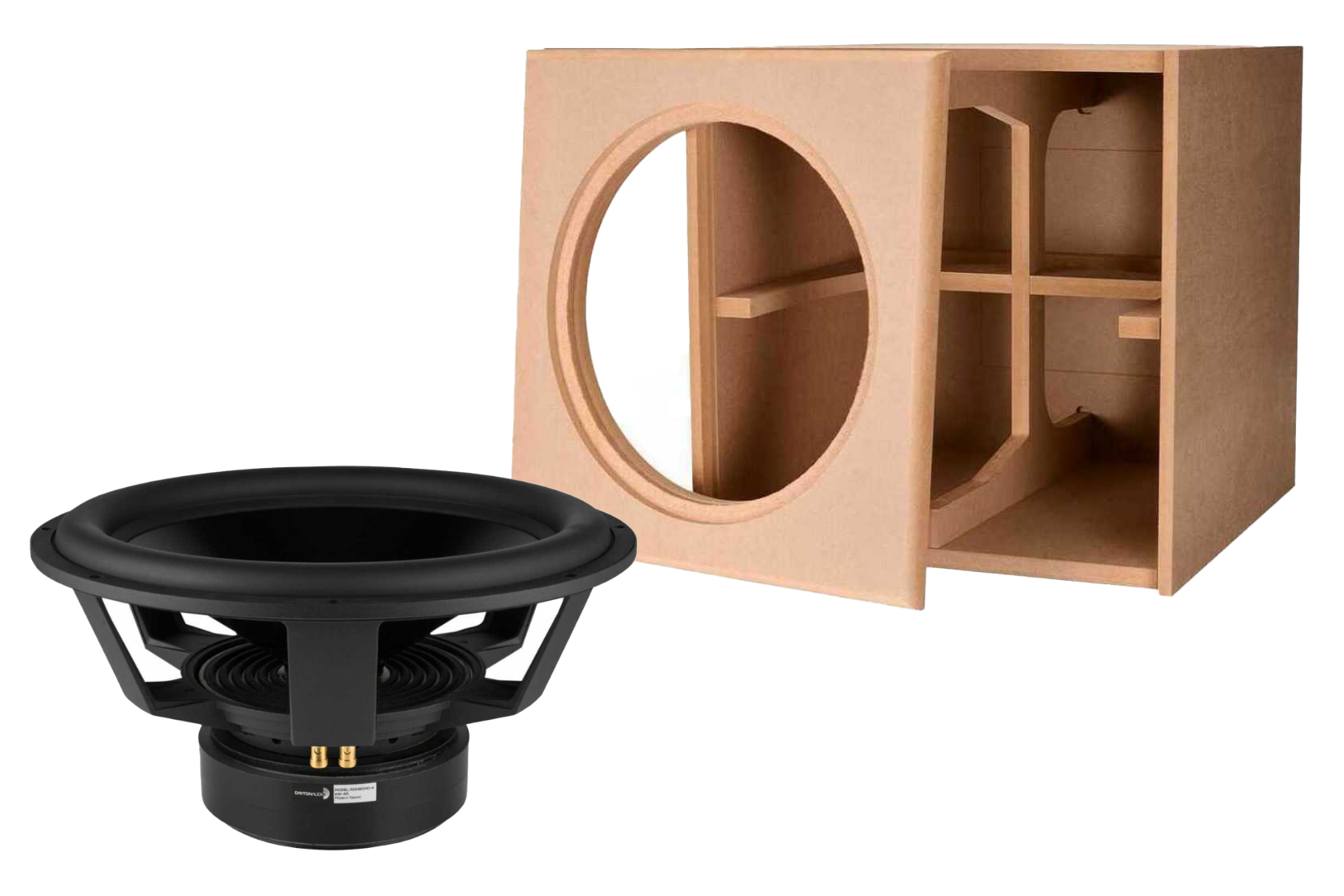

RSS460CB Kit/Bausatz
RSS460CB Kit/Set RSS460 Subwoofer Kit Dayton Audio 18" RSS Subwoofer without Enclosure Bundle Assembly: Dayton Audio RSS460HO-4 Properties: Dayton Audio RSS460 18" Subwoofer for e.g. 120L Flat Pack Enclosure About the CaseThis clever enclosure was specifically designed for the Dayton Audio 18" RSS Subwoofer. During the CNC manufacturing process, grooves and joints are cut into the back panel to join the platesprecisely align. A unique two-part strut provides superior stiffness withoutPerformance of the subwoofer. Both side walls have 19mm folded extensionswith cutouts to perfectly mount the first piece of the two-part, double-thick baffle. The final result is a resonance-free, closed subwoofer enclosure that has been specifically designed todie beste Leistung aus dem 18" RSS Subwoofer von Dayton Audio herauszuholen. Alles, was noch zu tunremains to refine it to match your decor or to paint it to stand out. Spezifikationen:- Panel thickness: 19mm, Baffle 38mm - Panel material: Medium Density Fiberboard (MDF) -Finished net cabinet volume (minus the double thick baffle, bracing, and theLow-frequency volume: 120L - External dimensions: 580mm H x 520mm W x 520mm D - Weight: 35 Kg. Über the subwoofer Die Subwoofer der Dayton Audio Reference Series bring the quality and performance of the much-praised RS-Linie in den Bereich der subwoofers. As with the other models of the Reference series, also withthese subwoofers focus on extremely low distortions. Second-, third-, andIntemodulation distortions are reduced by using three short-circuit paths within theMotor structure kept extremely low. A durable aramid fiber spider and extensiveVentilation openings ensure a quiet and even deflection. The black anodized diaphragm,die Gummisicke und der speziell angefertigte Korb verleihen diesem Lautsprecher einen einzigartigen High-End-Look. Let yourself be convinced and feel free to visit us on site to immerse yourself in a world of in our listening room.Sounds to dive into. Scope of delivery: Screws Chassis Terminal LS Cable Blueprint The delivery time refers to the kit without a case. Bei der ausgwewählten Anzahl handelt es sich um Stück,nota pair.
Case Anytime
Case AnytimeAnytime Gehäuse-Bausatz Geeignet für Bestückung: Anytime Lautsprecher-Bausatz Breite: 180 Höhe: 280 mm Tiefe: 230 Über das Gehäuse Die Gehäuse werden speziell für die von variant GmbH entwickelten Lautsprecher-Bausätze, entwickelt und gefertigt. Ausführungen entnehmen sie der Auswahllegende neben den Produktbildern. Grundlegend sind MDF Roh, durchgefärbtes MDF schwarz, und Grundierfoliertes MDF, in den Stärken 10, 12, 16, 19, 22 und größer für die Gehäuse-Bausätze vorgesehen. Auf Wunsch fertigen wir in unserer eigenen Großschreinerei auch in anderen Materialien wie, Multiplex, Stabverleimtes Vollholz, Echtholz (sofern geeignet) und ähnliches. Die Gehäuse-Bausätze werden während des CNC-Fertigungsprozesses auf Gehrung oder Falze und Fugen Technik gefertigt, um die Platten präzise auszurichten. In vielen Gehäuse-Bausätzen kommen Streben und Verstrebungen. Sie sorgen für überlegene Steifigkeit, ohne die Leistung und Energie der Lautsprecher zu beeinträchtigen. Das Endergebnis ist ein resonanzfreies, geschlossenes Gehäuse, das speziell entwickelt wurde, um die beste Leistung aus dem Lautsprechern herauszuholen. Alles, was noch zu tun bleibt, ist, es passend zu Ihrem Dekor zu veredeln oder es zu lackieren, um ein einzigartiges Stück Musikmöbel ihr Eigen zu nennen. Außenmaße: 180mm B x 280mm H x 235mm T Achtung bitte Beachten und bei änderungswüschen bitte Im Kommentar Feld oder per E-Mail änderungswüschen ansprechen: In all unseren Gehäusebausätzen sind so weit nicht anders erwähnt, Terminalausschnitte für unser Terminal T105 auf der Rückseite der Gehäuses, vorgefertigt! Alle Gehäusebausätze (nicht zusammengeleimt oder Lackiert) sind ohne Gerundete Kanten oder Fasen! Fasen oder Rundungen werden nur an Fertig aufgebauten Gehäusen gefertigt.
Cabinet Ultimax 12CB Kit
Ultimax 12 CB Enclosure KitUltimax 12 CB Cabinet KitSuitable for assembly:Dayton Audio UM12-22 76L Flat Pack Enclosure Kit About the CaseThis clever enclosure was specifically designed for the Dayton Audio 12" Ultimax subwoofer. During the CNC manufacturing process, grooves and joints are cut into the back panel to connect the boardsprecisely align. A unique two-part strut provides superior stiffness withoutperformance of the subwoofer. Both side walls feature 19mm rabbeted extensionswith cutouts to perfectly mount the first piece of the two-part, double-thick baffle. The final result is a resonance-free, closed subwoofer enclosure that has been specifically designed tothe best performance from the 12" Ultimax subwoofer by Dayton Audio. All that's left to doremains to refine it to match your decor or to paint it to stand out. Spezifikationen:- Plate thickness: 19mm, baffle 38mm - Plate material: Medium Density Fiberboard (MDF) -Finished net cabinet volume (excluding the double thick baffle, bracing, and theLow-frequency volume): 76L - External dimensions: 490mm H x 410mm W x 510mm D - Weight: 25kg Attention please note and for change requests please in the comment field or by email change requestsaddress: In all our case kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Chamfers or rounds are only made on fully assembled housings.
DayDream Center Bausatz
DayDream Center KitDayDream Center Loudspeaker system from Hobby Hifi 01/2021 Assembly: Dayton Audio Chassis RS150-4 Woofer / Tectonic TEBM46C20N-4B Full-Range, Bending Wave Transducer(Biegewellenstrahler), Balance Mode Radiator. Properties: Bei diesem Center ist der Name buchstäblich Programm, „DayDream“… diese Box lässt sie wirklich nur sodream away. It captivates its listeners even at minimal volume and is thus absolutely present. TheDayDream Speaker - Kit with Chassis from Dayton Audio is really something for the all-rounder, becauseDayDream allows you to experience almost all genres of music in a fantastic world of sound,not too intrusive but absolutely precise in spatiality. Hobby Hifi 1/2021 Conclusion: "The DayDream surround setup offers genuine audiophile sound quality – ona level that really has nothing to do with the low material price. With finished speakerswould a home cinema or surround system of this quality only be in the high four-digit rangefeasible." Modification Recommendation Keynote Adjustment In the lower frequency range (100-300Hz, the DayDream-Center plays depending on the speaker-Aufstellung unterschiedlich kräftig: With one-sided extended baffle, i.e., on a piece of furniture withclosed front placed, this area is about 1 to 2 dB stronger than with freestandingSetup (on a stand or on an open shelf). By varying the internal resistance of thein the low-frequency signal path coil, this is compensable "Variation Fundamental Tone Adjustment"; aexisting coil can also be made high-impedance by inserting a resistor in front or behindbe. Scope of delivery: Screws Chassis Mounting ring stainless steel incl. screws Terminal Grid Plate Cable (Internal) Insulation fleece Crossover Components (Loose) The delivery time refers to the kit without housing. The selected quantity refers to pieces, not pairs. The depicted box is a construction variation/suggestion from us on how it could be done.
