RSS315 CB Gehäuse-Bausatz

Picture similar to product

€30.00*

Prices incl. VAT plus shipping costs

Material

MDF black

MDF natural

Stage

Baffle

Flat pack

Assembled Cabinet

Surface Finish

Unfinished

primered white

primered black

painted in a RAL color

Product number: G3153G.1

Manufacturer: variant

Weight: 8 kg

Min. order quantity: 1

RSS315 CB Enclosure Kit

RSS315 CB Enclosure Kit
Suitable for assembly:Dayton Audio RSS315HFA-8/RSS315HF-4

60L Flat Pack Enclosure Kit

About the Case
Dieses clevere Gehäuse wurde speziell für das Dayton Audio RSS315HFA-8/ RSS315HF-4 Subwoofer-Chassis entwickelt.

During the CNC manufacturing process, grooves and joints are cut into the back panel to join the plates
precisely aligned. A unique two-part strut provides superior stiffness without
Performance of the subwoofer. Both side walls feature 19mm folded extensions
with cutouts to perfectly mount the first piece of the two-part, double-thick baffle.

The final result is a resonance-free, closed subwoofer enclosure that has been specially developed,
to get the best performance out of the 12" Reference Series subwoofer from Dayton Audio. Everything that
remains to be done is to finish it to match your decor or to paint it to stand out.

Specifications: - Panel thickness: 19mm, Baffle 38mm - Panel material: Medium Density Fiberboard (MDF)
- Finished net cabinet volume (minus the double thick baffle, bracing, and
Tieftonvolumens): 60L –

External dimensions: 430mm H x 430mm W x 430mm D - Weight: 21kg

Attention please note and for change requests please use the comment field or send change requests via email.
address:

In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminal
T105 on the back of the case, prefabricated!

All housing kits (not glued or painted) are without rounded edges or chamfers!

Chamfers or rounds are only made on fully assembled housings.

Manufacturer "variant"

Related links of the manufacturer

Manufacturer website

Accessory Items

RSS315CB Kit/Bausatz

RSS315CB Kit/Set RSS315 Subwoofer Kit Dayton Audio 12" RSS Subwoofer without Enclosure Bundle Assembly: Dayton Audio RSS315HFA-8 Properties: Dayton Audio RSS 12" Subwoofer for e.g. 60L Flat Pack Enclosure About the CaseThis enclosure was specifically designed for the Dayton Audio 12" RSS subwoofer. During the CNC manufacturing process, grooves and joints are cut into the back panel to assemble the platesprecisely aligned. A unique two-piece strut provides superior stiffness without thePerformance of the subwoofer. Both side panels feature folded extensions withCutouts to perfectly mount the first piece of the two-part, double-thick baffle. The end result is a resonance-free, closed subwoofer enclosure that is specifically designed togetting the best performance out of the 12" RSS315HFA-8 subwoofer from Dayton Audio. Everything that still needs totun bleibt, ist, es passend zu Ihrem Dekor zu veredeln oder es zu lackieren, um sich abzuheben. Spezifikationen:- Panel thickness: 19mm, Baffle 38mm - Panel material: Medium Density Fiberboard (MDF) -Finished net cabinet volume (minus the double thick baffle, the bracing and theTieftonvolumens): 60L - External dimensions: 430mm H x 430mm W x 430mm D - Weight: 17kg About the Subwoofer Die Subwoofers of the Dayton Audio Reference Series continue the quality and performance of the highly praised RS-Linie in den Bereich der subwoofers continues. As with the other models of the Reference series, also with the12" Driver RSS315HFA-8 focuses on extremely low distortions. Secondary, tertiary, andIntermodulation distortions are reduced by the use of three magnetic short-circuit paths withinthe motor structure extremely low. A durable aramid fiber spider and extensiveVentilation openings ensure a smooth and even stroke. The black anodized diaphragm, whichRubber surround and the custom-made basket give this driver a unique high-end look.Wählen Sie diese High Fidelity (HF) version for home speaker systems if you value aclean, deep bass and are not limited by the size of the enclosure. Technical Specifications: Frequency Range: f-3dB: SPL: B/H/T: 430x430x430mm Total impedance: 8 Ohms ((Nom.) 4 Ohms >2200Hz) Function principle:closed Execution Variation Amplifier Variante with PlateAmp:When executed with ÜlateAmp, the appropriate back panel, with matching milling, is delivered. (In the case of a housing kit or similar) Variant with terminal:Milling cutout suitable for terminal. Scope of delivery: Screws Chassis Terminal LS Cable Housing drawing The delivery time refers to the kit without a case. Bei der ausgwewählten Anzahl handelt es sich um Stück,nota pair.

€349.95*

Similar Items

Free shipping

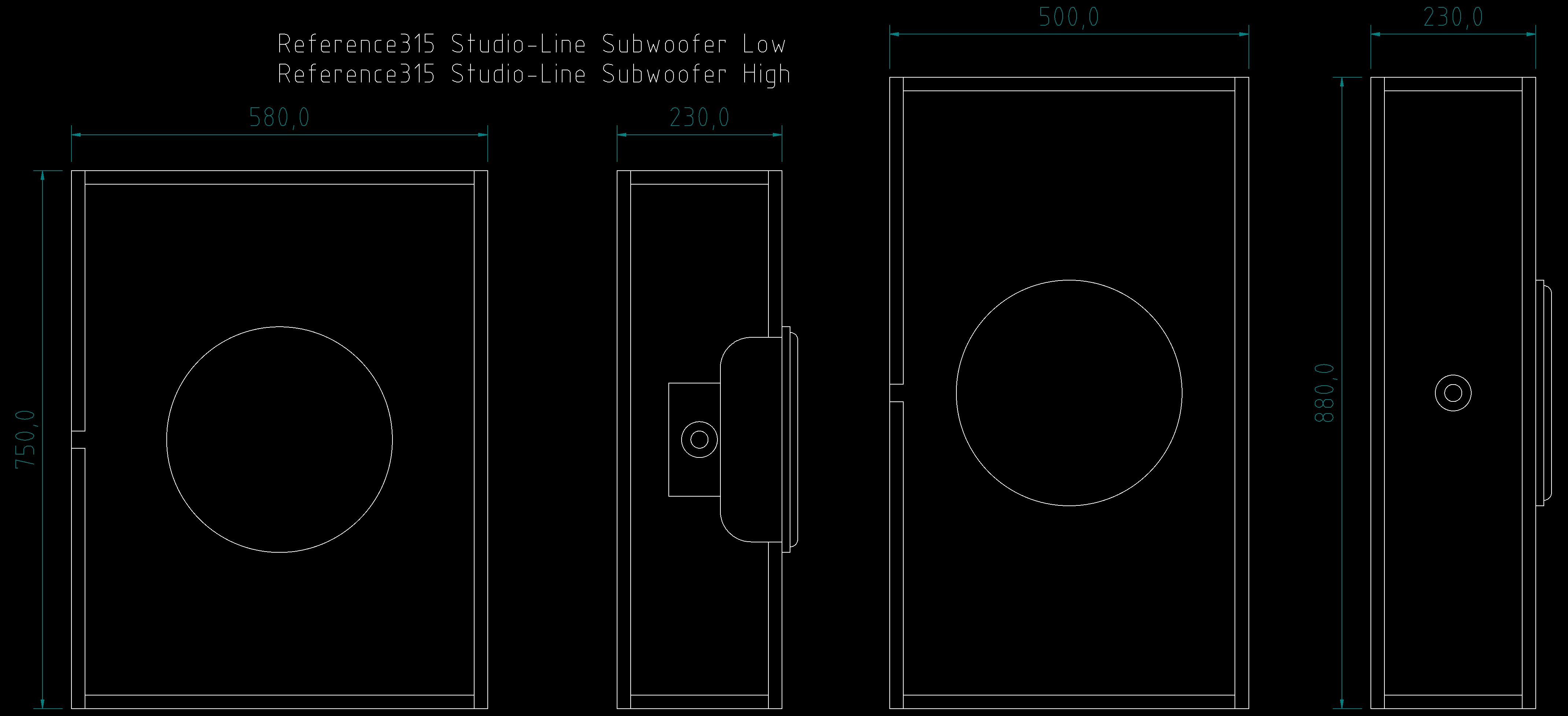

Reference315 Studio-Line Subwoofer High Gehäusebausatz

Reference315 Studio-Line Subwoofer High Cabinet Kitextra flat 12" 30cm high-performance HiFi and home theater subwoofer.Reference Studio-Line Subwoofer, Flat HiFi and Home Cinema Subwoofer Kit and Finished Enclosure Bundles forIn-Wall, On-Wall, Baffle-Wall, DBA, SBA.Closed subwoofers for active operation, in the popular sizes 12" (30cm), 15" (40cm), 18" (46cm).Powerful subwoofers with minimal enclosure depth. This way, they lose only the smallest amount of room depth.The enclosures are the ideal solution for space-limited applications. Ideal for standard rack systems 50 and 60cm.Maximum membrane area and immense lifting power as well as high durability represent the best subwoofers.the HiFi and home cinema class. Closed enclosures optimally tuned to the chassis parameters.Comprehensive reinforcements ensure a stable housing.Connection terminal Speakon NL4 socket, the professional solution, is positioned centrally on the side, and thusuniversally mountable on the left or right. Other connection solutions are also possible upon request.as well as plate amp cutouts.Die cases are rabbeted and grooved and precisely manufactured by our professional CNC. This guaranteesa nearly flawless assembly. Our experienced carpentry team is a well-coordinated team in the construction ofSpeaker enclosures. The extra flat subwoofers are also offered as a pre-glued complete package.

From €30.00*

Details

Free shipping

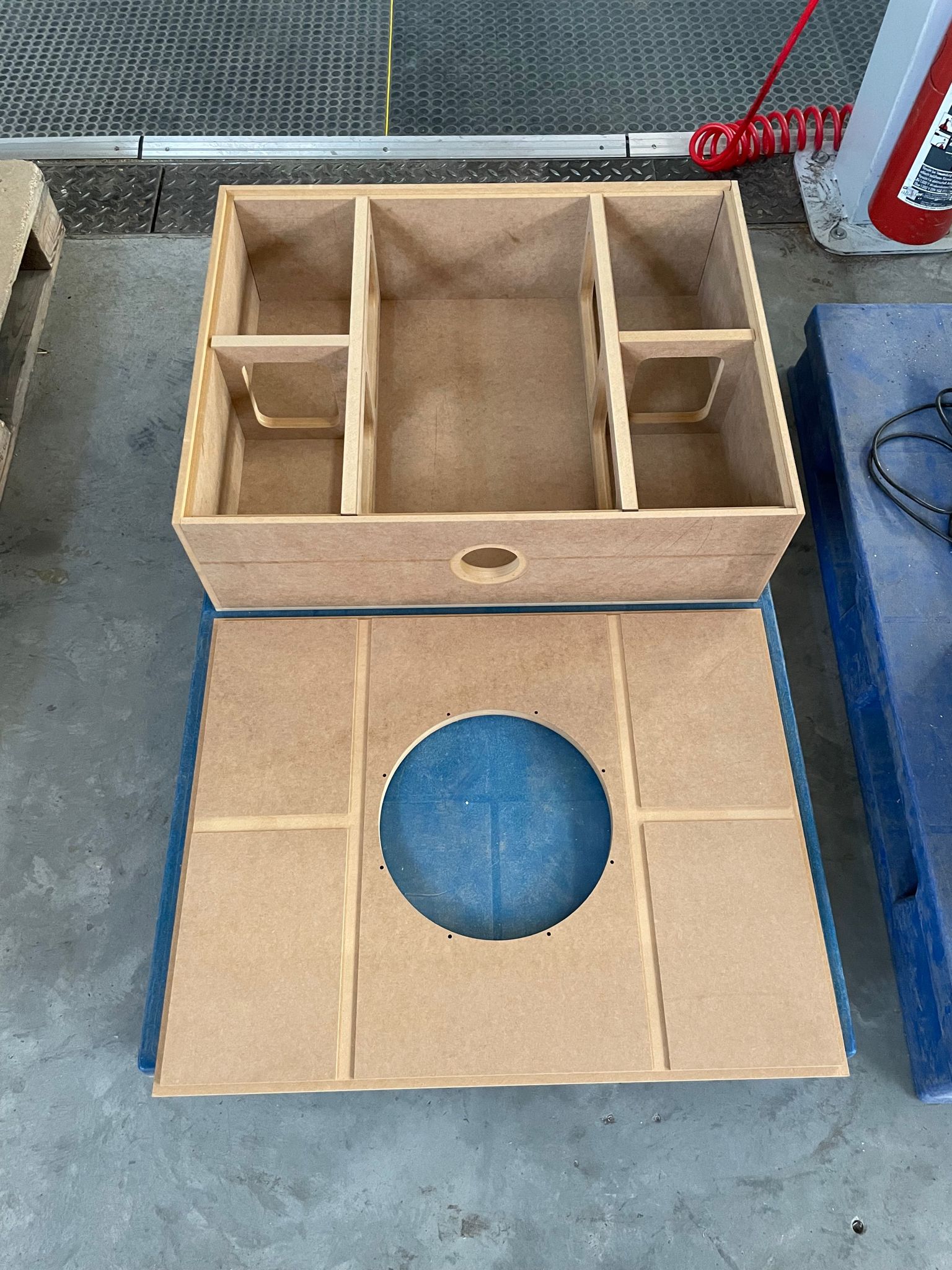

Reference315 Studio-Line Subwoofer Low Gehäusebausatz

Reference315 Studio-Line Subwoofer Low Cabinet Kitextra Flat 12" 30cm High-Performance HiFi and Home Theater Subwoofer.Reference Studio-Line Subwoofer, Flat HiFi and Home Cinema Subwoofer Kit and Finished Enclosure Bundles forIn-Wall, On-Wall, Baffle-Wall, DBA, SBA.Closed subwoofers for active operation, in the popular sizes 12" (30cm), 15" (40cm), 18" (46cm).Powerful subwoofers with minimal enclosure depth. This way, they lose only the slightest room depth.The enclosures are the ideal solution for space-limited applications. Ideal for standard rack works 50 and 60cm.Maximum membrane area and immense lifting power as well as high load capacity stand for the best subwoofers.the HiFi and home cinema class. Optimally tuned closed enclosures for the chassis parameters.Comprehensive reinforcements ensure a stable housing.Anschlussterminal Speakon NL4 socket, the Professional Solution, is positioned centrally on the side, and thusuniversally mountable on the left or right. Other connection solutions are also possible upon request.as well as plate amp cutouts.The housings are rabbeted and grooved and precisely manufactured by our professional CNC. This guaranteesa nearly flawless assembly. Our experienced carpentry team is a well-coordinated team in the construction ofSpeaker enclosures. The extra flat subwoofers are also offered as a pre-glued complete package.

From €30.00*

Details
