SB Acoustics 6" SB16PFCR25-4-COAX
Vented reinforced plastic chassis Proprietary cone material with natural fibers made in-house Soft low damping rubber surround for improved transient response Optimized motor system Non-resonant long life lead wires Compact large surround dome tweeter Kompakter Kalottenhochtöner mit großer Sicke
Faital Pro 8HX230-8
Hinweis; diese Daten gelten nur für Chassis die vor 3/25 gebaut wurden. Das neue Chassis ab 3/25 wird aktuell getestet und ggf. die Entwicklung des Bausatzes nagepasst. Eigenschaften Tieftöner Schwingspule 2,5 " - 65 mm Alu Schwingspule Ferrit Magnet Thiele & Small Parameter Fs 70 Hz Re 6,5 / 5,5 Ohm Qms 7,4 Le 0,57 mH Qes 0,38 Qts 0,36 Vas 8 l Mms 23,6 g BL 15,1 Tesla/meter Xmax 6,17 mm Cms 0,14 mm/N Sd 205 cm² Rms 1,79 kg/s Eigenschaften HF-Treiber Schwingspule HF Treiber 1,46 "- 37 mm nominale Impedanz HF-Treiber 8 Ohm nominale Belastbarkeit HF-Treiber 30 W maximale Belastbarkeit HF-Treiber 60 W Empfindlichkeit HF-Treiber (1 W / 1 m) 105 dB Frequenzgang HF-Treiber 1200 - 20000 Hz Schwingspulenträger HF-Treiber Kapton Diaphragmamaterial HF-Treiber Ketone Polymer Abstrahlwinkel (H x V) 100 ° <

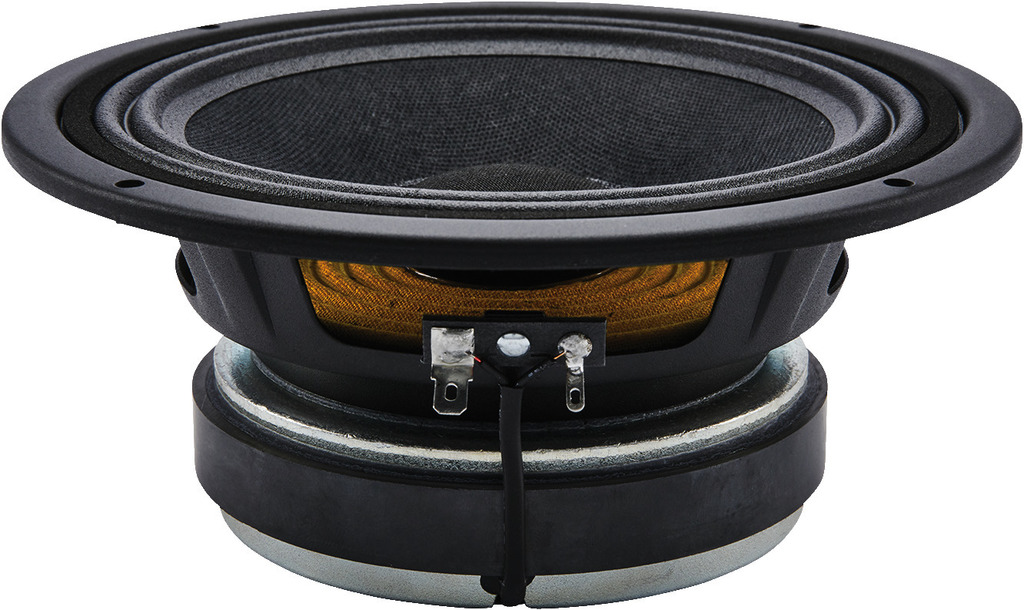

Celestion TFX0615/8
Celestion TFX0615/8 Celestion, one of the "most resonant" names in the world of speakers. The chassis of the TF series are characterized by an excellent price-performance ratio while maintaining very good sound properties, making them predestined for use in powerful and high-sound-quality PA speaker systems. PA coaxial speaker, 150 W, 8 Ω 16.5 cm coaxial speaker (6½") with sturdy metal basket 25 mm tweeter (1") with silk dome and neodymium magnet Integrated High-Frequency Waveguide Nominal high-frequency dispersion angle 110°
SB Acoustics 5" SB13PFCR25-4-COAX
Vented reinforced plastic chassis Proprietary cone material with natural fibers made in-house Soft low damping rubber surround for improved transient response Optimized motor system Non-resonant long life lead wires Compact large surround dome tweeter
SB Acoustic 4" SB12PFCR25-4-COAX
Vented reinforced plastic chassis Proprietary cone material with natural fibers made in-house Soft low damping rubber surround for improved transient response Optimized motor system Non-resonant long life lead wires Compact large surround dome tweeter Kompakter Kalottenhochtöner mit großer Sicke

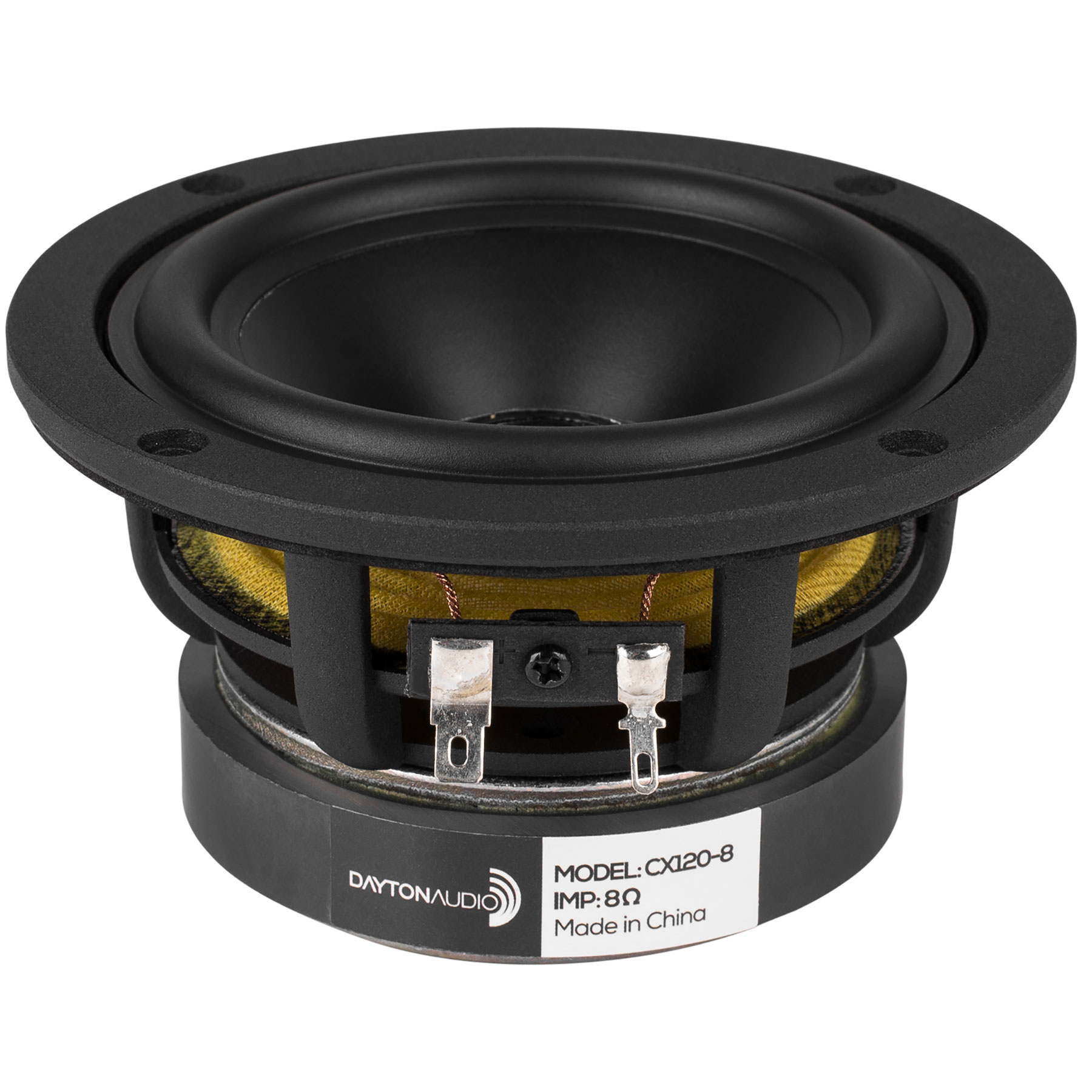

Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm
Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm With a natural sounding 3/4" soft dome tweeter concentrically mounted in a long throw poly cone 4" woofer Dayton Audio's CX120-8 will produce extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-way designs. This driver is perfect for compact designs, portable speakers, or even custom car audio systems. Key Features Full-range with accurate bass and extended high frequency response Coaxial mounted 3/4" silk dome tweeter Open cast frame for improved air flow and minimal power compression 4" curvilinear poly cone woofer with rubber half roll surround Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm The Dayton Audio CX120-8 is a full-range coaxial loudspeaker providing high quality sound in a very compact format featuring a 4" curved linear poly cone woofer mated with a 3/4" silk dome tweeter. The poly cone woofer provides a good balance between stiffness, low mass and damping making for a very natural sounding driver with a smooth frequency response. The silk dome tweeter provides detailed and clear high frequencies with minimal distortion. In addition, the optimized tweeter placement and flaring reduces the phase issues with the woofer that is commonplace with even the BIG brand coaxes. Designed for use as a full-range in a small bookshelf speaker, an extended range (i.e. midrange/tweeter) driver in a 3-way system, or even car audio systems. 4" Woofer: • 1" voice coil wound on an aluminum former for high power handling • Curved linear shaped poly cone provides a good balance between stiffness, low mass and damping making for a natural sounding driver with a smooth frequency response • Optimized rubber surround for reduced break up in the midrange band • Attractive rigid open cast frame cast frame to minimize reflections, resonances and improve air flow • High energy ceramic magnet for greater cone control and improved efficiency Specifications: • Power handling: 40 watts RMS/80 watts max • VCdia: 1" • Le: 0.62 mH • Impedance: 8 ohms • Re: 6.2 ohms • Frequency response: 90-5,500 Hz • Fs: 87.5 Hz • SPL: 88.5 dB 2.83V/1m • Vas: 0.10 ft³ (2.99 liters) • Qms: 2.89 • Qes: 0.57 • Qts: 0.48 • Xmax: 3.0 mm • Dimensions: Overall diameter: 4-3/4", Cutout diameter: 3-7/8", Depth: 2". 3/4" Tweeter: • Silk dome provides detail and clarity of high frequencies • Coaxially mounted to pole piece of woofer cone • Optimized placement and trimmed flaring to reduce phase issue interaction with woofer • Strong neodymium magnet • Trimmed flared throat to minimize phase issues causing suck-out with woofer • High pass filter required (not included) Specifications: • Power handling: 20 watts RMS/40 watts max • VCdia: 3/4" • Le: 0.04 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.6 ohms • Frequency response: 4,500-20,000 Hz • Fs: 2,745 Hz • SPL: 89.2 dB 2.83V/1m • Qms: 2.20 • Qes: 7.91 • Qts: 1.72.
Faital Pro 6FE200-4
Faital Pro 6FE200-4 Nominal Specifications Nominal Diameter 160 mm (6 in) Overall Diameter 167.4 mm (6.59 in) Bolt Circle Diameter 154 mm (6.06 in) Baffle Cutout Diameter 144 mm (5.67 in) Depth 77 mm (3.03 in) Flange and Gasket Thickness 8 mm (0.31 in) Net Weight 2 kg (4.4 lb) Shipping Box(Single Carton Box) 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in) Shipping Weight 2.2 kg (4.9 lb) Technical Parameters Nominal Impedance 4 Ohm Minimum Impedance 3.6 Ohm AES Power Handling (1) 130 W Maximum Power Handling (2) 260 W Sensitivity (1W/1m) 95 dB Frequency Range 85÷6000 Hz Voice Coil Diameter 37 mm (1.46 in) Winding Material Al Former Material Kapton Winding Depth 11.9 mm (0.47 in) Magnetic Gap Depth 8 mm (0.31 in) Flux Density 1 T Magnet Ferrite Ring Basket Material Steel Demodulation No Cone Surround (3) M-Roll NET Air Volume filled by Loudspeaker 0.45 dm^3 (0.016 ft^3) Spider Profile 1x constant height waves Thiele and small parameters Fs 120 Hz Re 3 Ohm Qes 0.45 Qms 6.2 Qts 0.42 Vas 4.3 dm^3 (0.15 ft^3) Sd 131 cm^2 (20.3 in^2) Xmax (4) 4.62 mm Xdamage (5) 10.4 mm Mms 9.7 g Bl 7 N/A Le 0.20 mH Mmd 8.0 g Cms 0.18 mm/N Rms 1.2 kg/s Eta Zero 1.61 % EBP 267 Hz PART NUMBER (P/N) Faston Terminals - 4 Ohm Version 01604055 Notes: (1) 2 Hours Test According to AES 2-1984 Rev. 2003 (2) Maximum power is defined as 3dB greater than nominal power. (3) Treated Polycotton (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) (5) Maximum excursion before permanent damage
