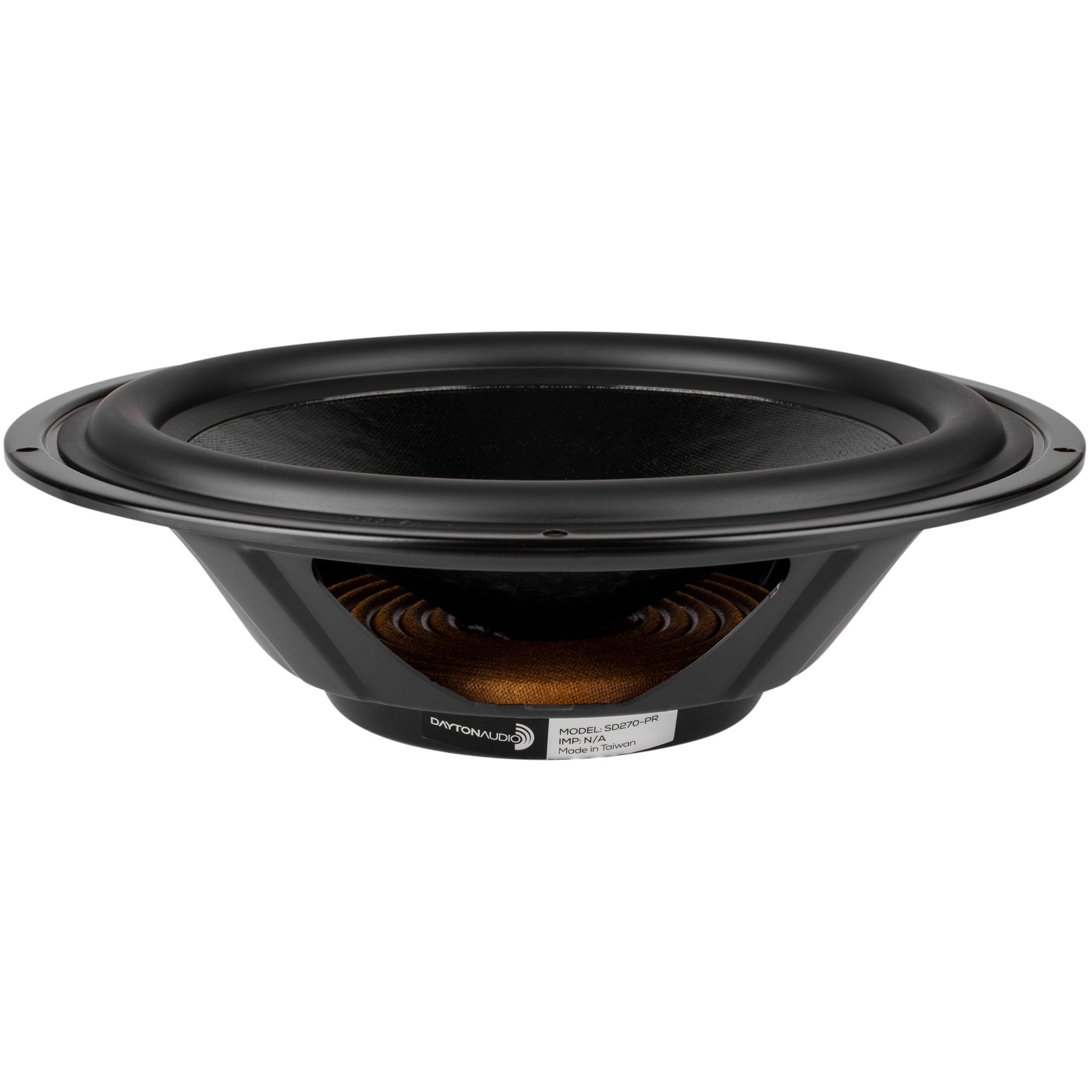

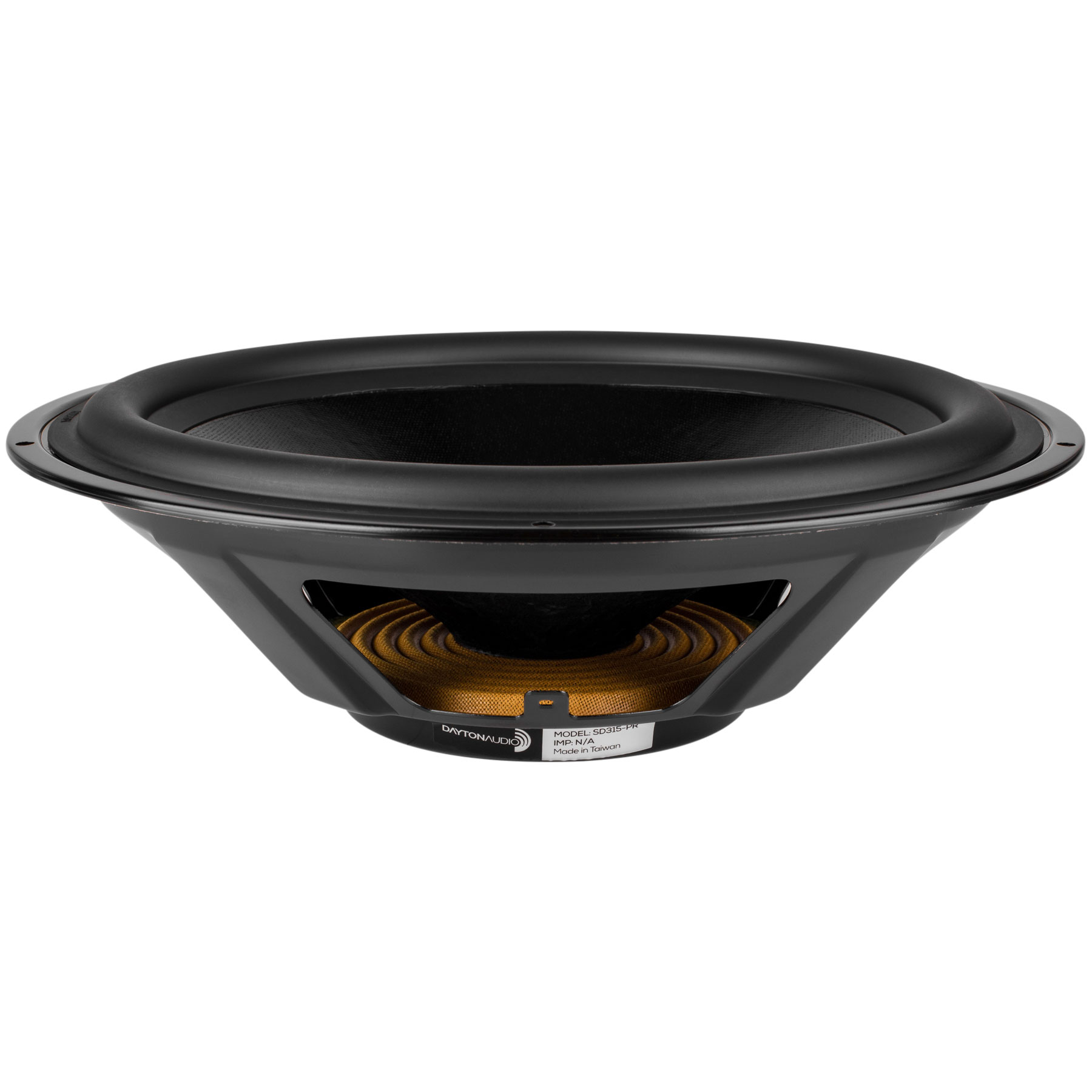

Dayton Audio DS270-PR
Dayton Audio DS270-PR 10" Designer Series Passive Radiator The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. Dayton Audio DS270-PR 10" Designer Series Passive Radiator The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems. Specifications: • Fs: 21.9 Hz • Vas: 3.73 cu. ft. • Qms: 3.98 • Cms: 0.60 mm/N • Rms: 3.1 kg/ • Mms: 88.4 g • Sd: 353 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 10.63", Cutout diameter: 8.94", Depth: 2.81". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 10" woofer/subwoofer that has 10mm of X-max would require 2-10" passive radiators with 10mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).
Dayton Audio DSA215-PR
Dayton Audio DSA215-PR 8" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical. Key Features Perfect match for Dayton Audio's aluminum cone Designer Series drivers Allows tuning small enclosures lower than using conventional ports Rear mounted screw allows easy mass adjustment for custom tuning Cosmetic frame edge looks great even when surface mounted Dayton Audio DSA215-PR 8" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to compact subwoofer systems. Specifications: • Fs: 25.6 Hz • Vas: 1.3 ft³ • Qms: 7.66 • Cms: 0.58 mm/N • Rms: 1.4 kg/s • Mms: 67 g • Sd: 211.2 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 8.50", Cutout diameter: 7.01", Depth: 2.30". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio DS175-PR
Dayton Audio DS175-PR 6-1/2" Designer Series Passive Radiator The Dayton Audio DS175-PR 6-1/2" passive radiator is excellent general-purpose radiator which allows lower tuning frequencies in smaller enclosures, suitable for replacement or for new construction. Key Features Long-throw suspension system for clean excursion Rugged stamped frame design with rear spider for stability Durable coated paper cone and rubber surround M5 threaded hole simplifies adding mass for lower tuning frequency Dayton Audio DS175-PR 6-1/2" Designer Series Passive Radiator The Dayton Audio DS175-PR 6-1/2" passive radiator is an excellent general-purpose radiator suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Designer Series line of drivers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems. Recommended for use in passive radiator enclosure alignments with active drivers from 3" to 6.5" in diameter. Dual passive radiators are recommended for use with 6.5" active drivers. Specifications: • Fs: 24.5 Hz • Vas: 0.95 cu. ft. • Qms: 5.57 • Cms: 1.15 mm/N • Rms: 1.0 kg/s • Mms: 36.6 g • Sd: 128.7 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 6.94", Cutout diameter: 5.63", Depth: 1.88" Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 6-1/2" woofer/subwoofer that has 8mm of Xmax would require 2 6-1/2" passive radiators with 8mm of Xmax. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).

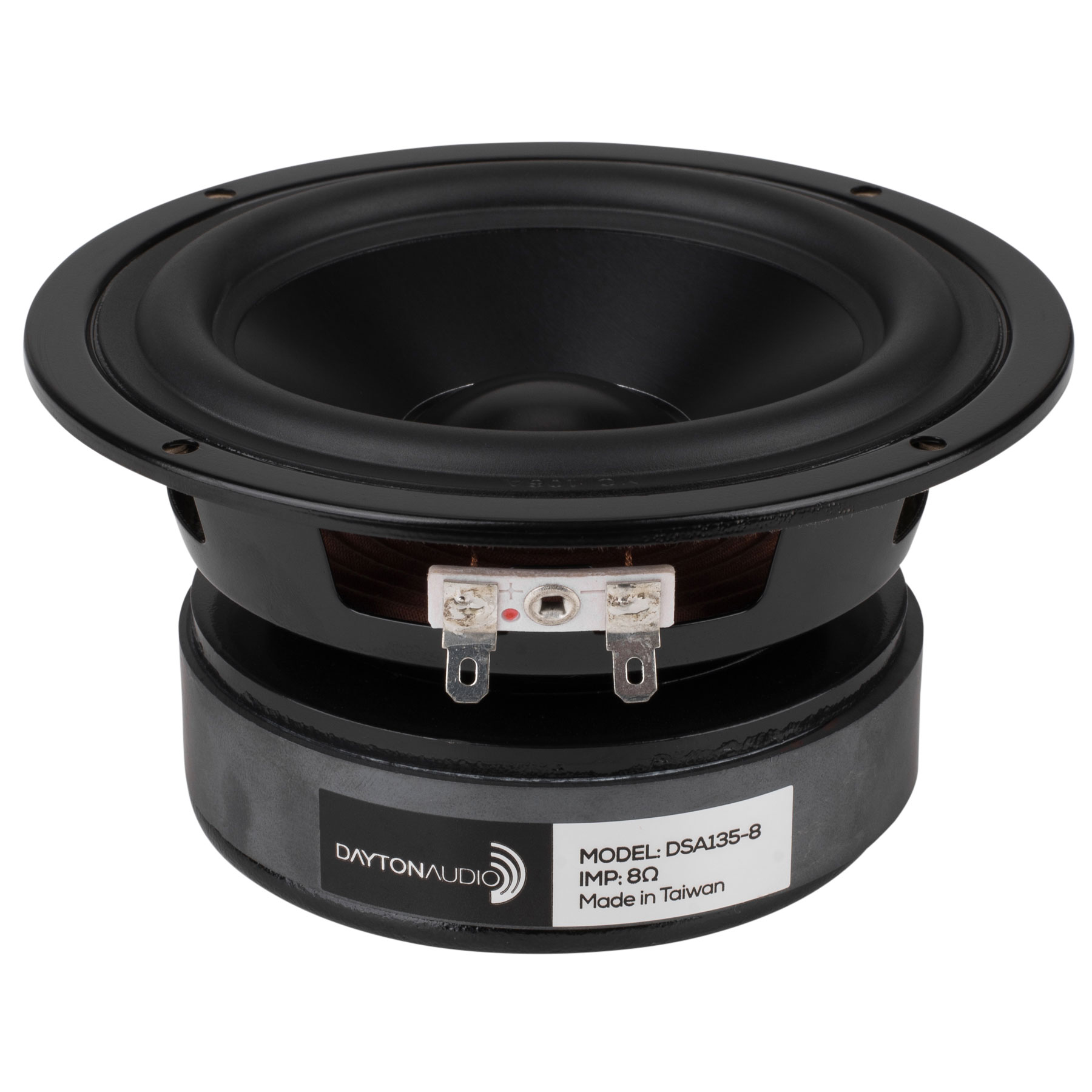

Dayton Audio DSA135-8
Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer The Designer Series DSA135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category. Key Features Cosmetic frame with low profile lip, designed for front mounting — no countersinking required! Low distortion motor system with copper shorting ring Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction Smooth frequency response and linear roll-off simplify filter design Vented pole piece for minimized power compression and maximized reliability Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Generous Xmax capability encourages use of moderate bass boost to tailor the response Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

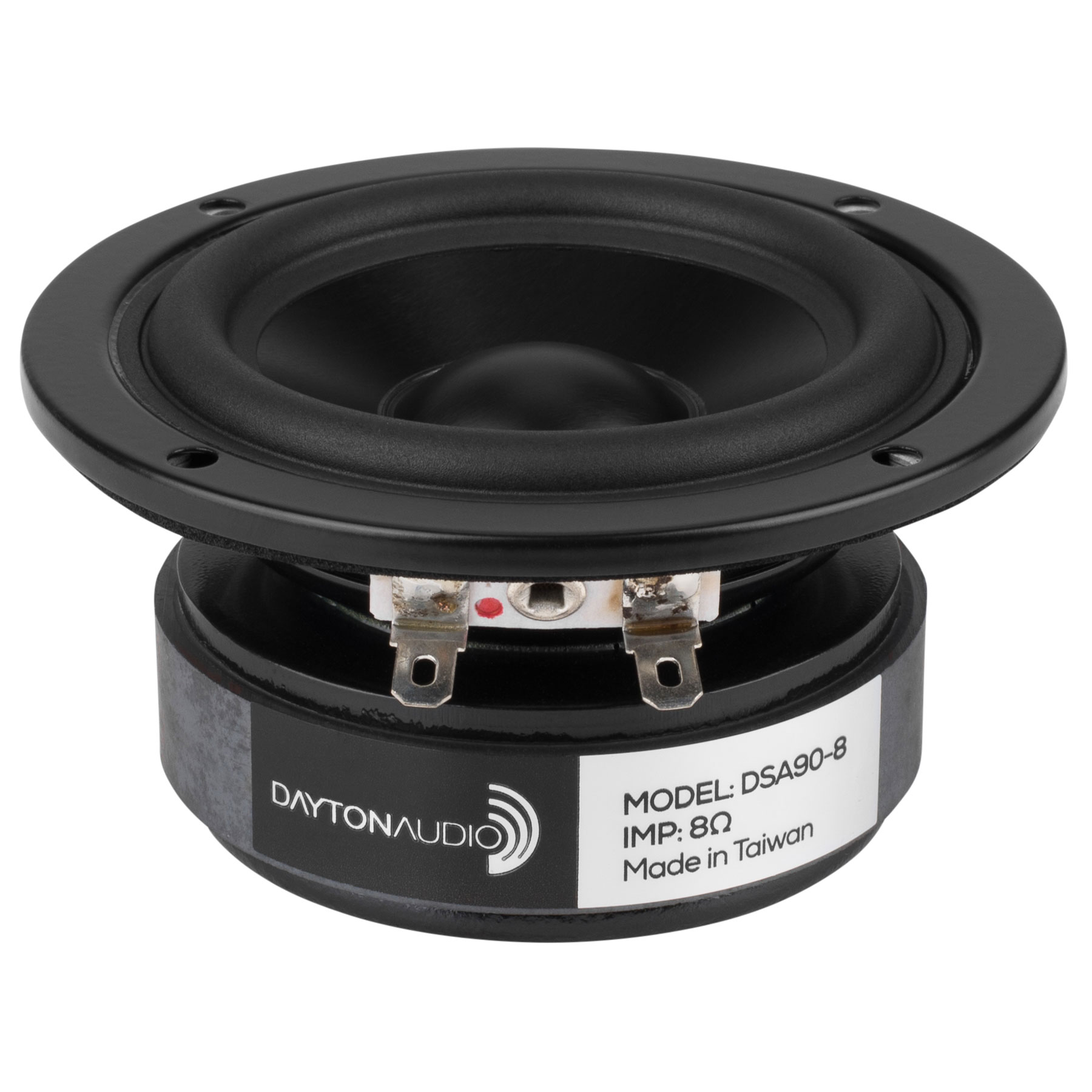

Dayton Audio DSA90-8
Dayton Audio DSA90-8 3" Designer Series Aluminum Cone Full-Range Driver 8 Ohm The Dayton Audio Designer Series DSA90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance. Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Low distortion motor system with copper shorting ring Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction Smooth frequency response and linear roll-off simplify filter design Vented pole piece for minimized power compression and maximized reliability Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Generous Xmax capability encourages use of moderate bass boost to tailor the response Dayton Audio DSA90-8 3" Designer Series Aluminum Cone Full-Range Driver 8 Ohm The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

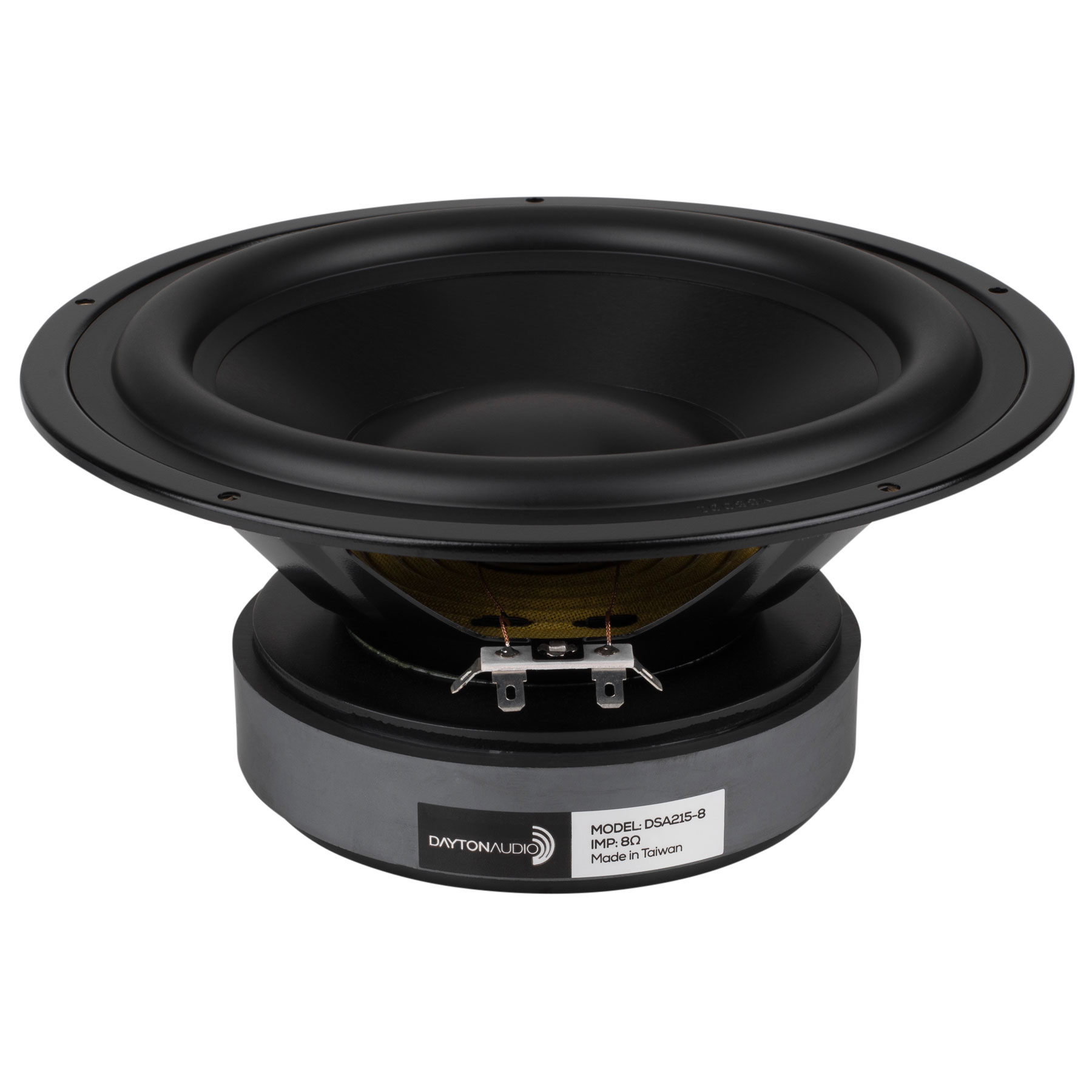

Dayton Audio DSA215-8
Dayton Audio DSA215-8 8" Designer Series Aluminum Cone Woofer Dayton Audio's Designer Series DSA215-8 8" woofer combines smooth response, excellent bass performance, and a stylish visual presentation. Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Low distortion motor system with copper shorting ring Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction Smooth frequency response and linear roll-off simplify filter design Vented pole piece for minimized power compression and maximized reliability Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Generous Xmax capability encourages use of moderate bass boost to tailor the response Dayton Audio DSA215-8 8" Designer Series Aluminum Cone Woofer The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
Dayton Audio DS115-PR
Dayton Audio DS115-PR 4" Designer Series Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and treated paper cone making them visually identical. Key Features Perfect match for Dayton Audio's paper cone Designer Series drivers Allows tuning small enclosures lower than using conventional ports Rear mounted screw allows easy mass adjustment for custom tuning Cosmetic frame edge looks great even when surface mounted Dayton Audio DS115-PR 4" Designer Series Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from bookshelf two-ways to portable battery powered speaker systems. Specifications: • Fs: 29.3 Hz • Vas: 0.33 cu. ft. • Qms: 3.66 • Cms: 2.27 mm/N • Rms: 0.7 kg/s • Mms: 13 g • Sd: 54.1 sq. cm. • Xmax: 6 mm • Dimensions: Overall diameter: 4.55", Cutout diameter: 3.69", Depth: 1.17". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio DS135-PR
Dayton Audio DS135-PR 5" Designer Series Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and treated paper cone making them visually identical. Key Features Allows tuning small enclosures lower than using conventional ports Rear mounted screw allows easy mass adjustment for custom tuning Perfect match for Dayton Audio's paper cone Designer Series drivers Cosmetic frame edge looks great even when surface mounted Dayton Audio DS135-PR 5" Designer Series Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from bookshelf two-ways to portable battery powered speaker systems. Specifications: • Fs: 27.7 Hz • Vas: 0.43 cu. ft. • Qms: 3.93 • Cms: 1.52 mm/N • Rms: 1.0 kg/s • Mms: 21.8 g • Sd: 75.4 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 5.31", Cutout diameter: 4.39", Depth: 1.5". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio DS215-PR
Dayton Audio DS215-PR 8" Designer Series Passive Radiator The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. Key Features Long-throw suspension system for clean excursion Durable coated paper cone and rubber surround M5 threaded hole simplifies adding mass for lower tuning frequency Cosmetically and mechanically matches the Designer Series line of drivers Dayton Audio DS215-PR 8" Designer Series Passive Radiator The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems. Specifications: • Fs: 23.3 Hz • Vas: 1.52 cu. ft. • Qms: 7.34 • Cms: 0.68 mm/N • Rms: 1.4 kg/s • Mms: 68.8 g • Sd: 211.2 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 8.50", Cutout diameter: 7.125", Depth: 2.28". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 8" woofer/subwoofer that has 9mm of X-max would require 2-8" passive radiators with 9mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).
Dayton Audio DSA115-PR
Dayton Audio DSA115-PR 4" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical. Key Features Cosmetic frame edge looks great even when surface mounted Rear mounted screw allows easy mass adjustment for custom tuning Allows tuning small enclosures lower than using conventional ports Perfect match for Dayton Audio's aluminum cone Designer Series drivers Dayton Audio DSA115-PR 4" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from desktop two ways to portable battery powered speaker systems. Specifications: • Fs: 30.9 Hz • Vas: 0.33 ft³ • Qms: 3.48 • Cms: 2.27 mm/N • Rms: 0.7 kg/s • Mms: 11.7 g • Sd: 54.1 sq. cm. • Xmax: 6 mm • Dimensions: Overall diameter: 4.55", Cutout diameter: 3.69", Depth: 1.17". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd

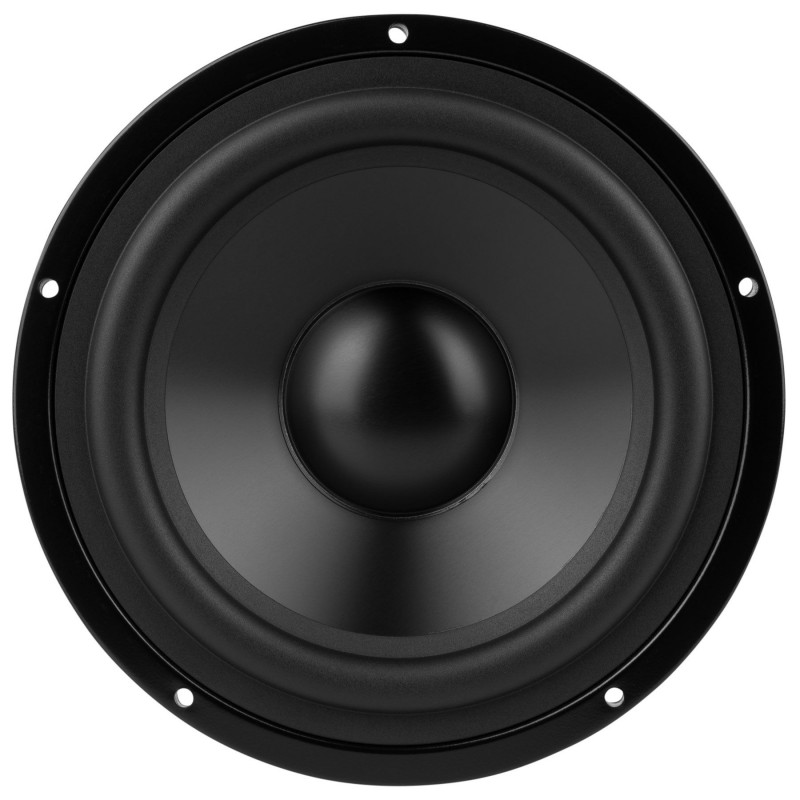

Dayton Audio DSA175-8
Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer Although it's true that the Dayton Audio Designer Series DSA175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 39 Hz without exceeding Xmax is very impressive! Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Low distortion motor system with copper shorting ring Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction Smooth frequency response and linear roll-off simplify filter design Vented pole piece for minimized power compression and maximized reliability Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Generous Xmax capability encourages use of moderate bass boost to tailor the response Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

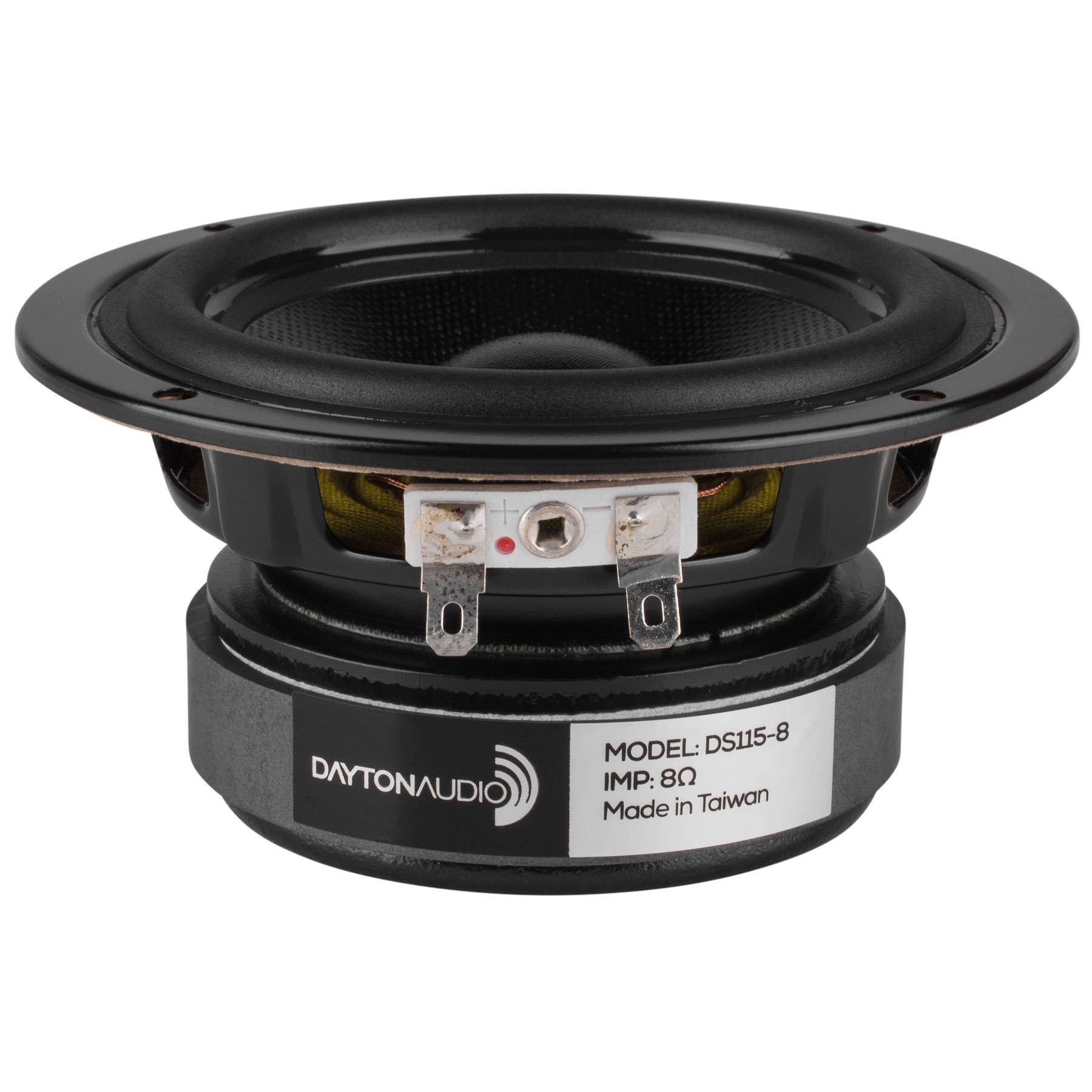

Dayton Audio DS115-8
Dayton Audio DS115-8 4" Designer Series Woofer Speaker More than just a pretty speaker, the Dayton Audio Designer Series DS115-8 4" woofer features an extremely neutral response and high Xmax capability. Key Features Coated paper cone, half roll rubber surround for durability and accurate reproduction Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet Vented pole piece for minimized power compression and maximized reliability Generous Xmax capability encourages use of moderate bass boost to tailor the response Smooth frequency response and linear roll-off simplify filter design, assuring good results with off-the-shelf crossovers Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Dayton Audio DS115-8 4" Designer Series Woofer Speaker The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence. • Suggested enclosures: Sealed cabinet: Type: Closed (alpha 1.9), Qtc 0.55; Size (internal) including volume displaced by driver: 0.1 ft³; Internal cabinet dimensions (golden ratio): 9"H x 5-1/2"W x 3-1/2"D. Typical results: 3 dB down-point (f3): 135 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 70 Hz. Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.12 ft³; Internal cabinet dimensions (golden ratio): 9-1/2"H x 5-7/8"W x 3-5/8"D; Port dimensions (with flared exit): 1" dia. x 6"L. Typical results: 3 dB down-point (f3): 73 Hz; Tuning frequency (fb): 69 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 55 Hz. Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.

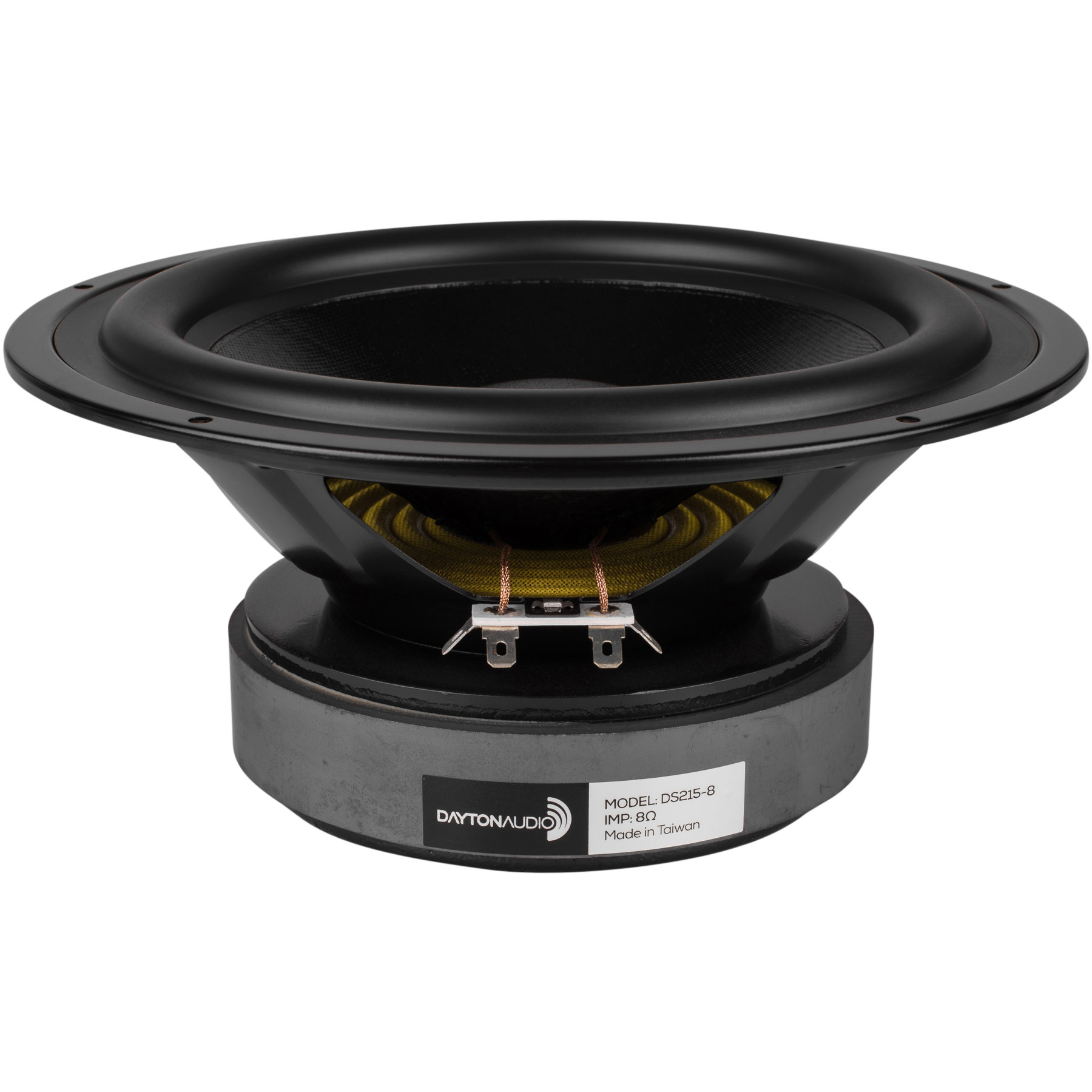

Dayton Audio DS215-8
Dayton Audio DS215-8 8" Designer Series Woofer Speaker Dayton Audio's Designer Series DS215-8 8" woofer combines smooth response, excellent bass performance, and a stylish visual presentation. Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Coated paper cone, half roll rubber surround for durability and accurate reproduction Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers Vented pole piece for minimized power compression and maximized reliability Generous Xmax capability encourages use of moderate bass boost to tailor the response Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Dayton Audio DS215-8 8" Designer Series Woofer Speaker The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
Dayton Audio DSA135-PR
Dayton Audio DSA135-PR 5" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical. Key Features Perfect match for Dayton Audio's aluminum cone Designer Series drivers Allows tuning small enclosures lower than using conventional ports Rear mounted screw allows easy mass adjustment for custom tuning Cosmetic frame edge looks great even when surface mounted Dayton Audio DSA135-PR 5" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to portable battery powered speaker systems. Specifications: • Fs: 27.9 Hz • Vas: 0.43 ft³ • Qms: 3.7 • Cms: 1.51 mm/N • Rms: 1.0 kg/s • Mms: 21.5 g • Sd: 75.4 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 5.31", Cutout diameter: 4.40", Depth: 1.5". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio DSA175-PR
Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical. Key Features Perfect match for Dayton Audio's aluminum cone Designer Series drivers Rear mounted screw allows easy mass adjustment for custom tuning Cosmetic frame edge looks great even when surface mounted Allows tuning small enclosures lower than using conventional ports Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to portable battery powered speaker systems. Specifications: • Fs: 26.8 Hz • Vas: 0.95 ft³ • Qms: 4.30 • Cms: 1.15 mm/N • Rms: 1.2 kg/s • Mms: 30.7 g • Sd: 128.7 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 6.91", Cutout diameter: 5.67", Depth: 1.85". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio DS315-PR
Dayton Audio DS315-PR 12" Designer Series Passive Radiator The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. Dayton Audio DS315-PR 12" Designer Series Passive Radiator The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems. Specifications: • Fs: 18.6 Hz • Vas: 5.73 cu. ft. • Qms: 4.27 • Cms: 0.50 mm/N • Rms: 4.0 kg/s • Mms: 147.1 g • Sd: 480 sq. cm. • Xmax: 13 mm • Dimensions: Overall diameter: 12.36", Cutout diameter: 10.71", Depth: 3.50". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 12" woofer/subwoofer that has 10mm of X-max would require 2-12" passive radiators with 10mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).

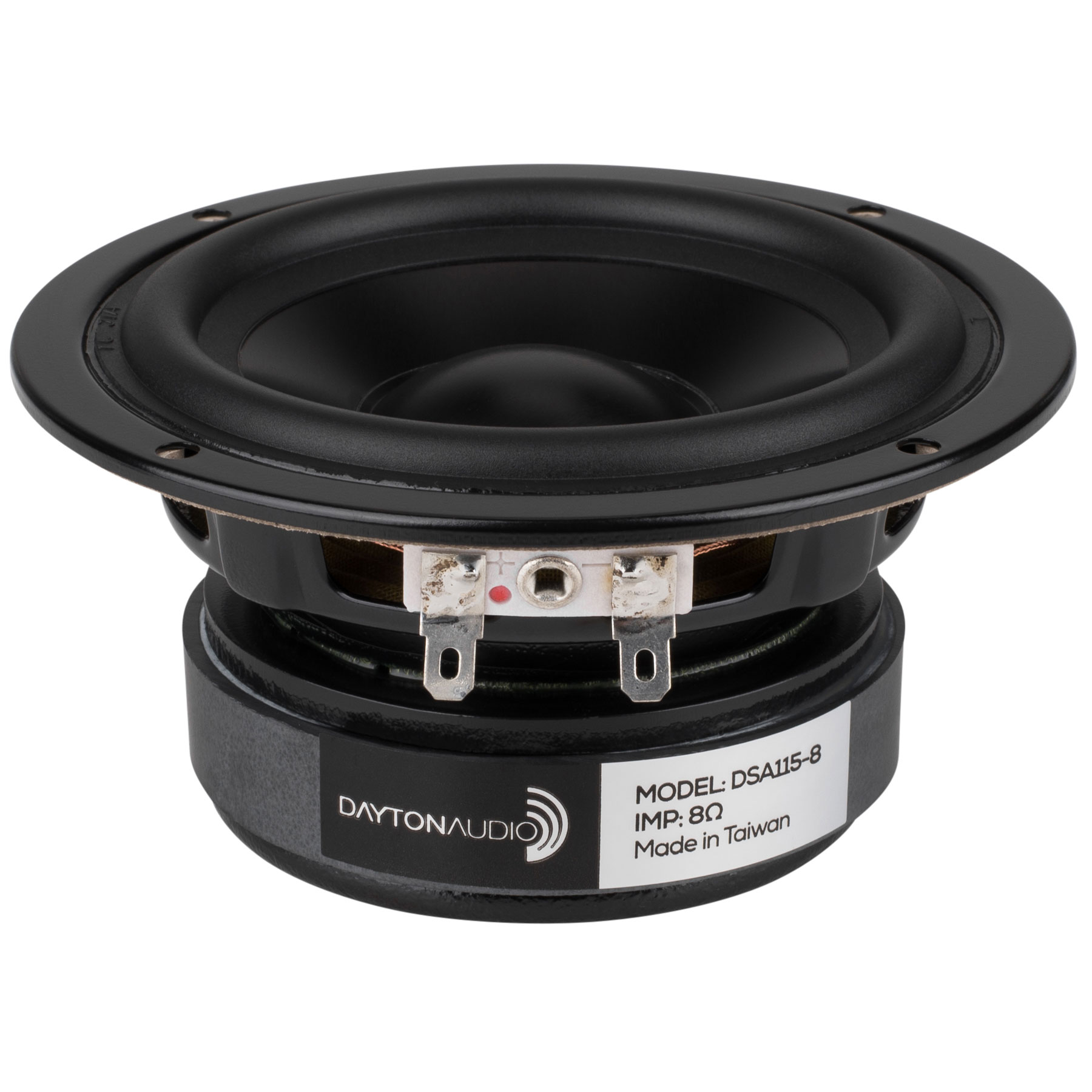

Dayton Audio DSA115-8
Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer More than just a pretty speaker, the Dayton Audio Designer Series DSA115-8 4" woofer features an extremely neutral response and high Xmax capability. Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Low distortion motor system with copper shorting ring Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction Smooth frequency response and linear roll-off simplify filter design Vented pole piece for minimized power compression and maximized reliability Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Generous Xmax capability encourages use of moderate bass boost to tailor the response Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

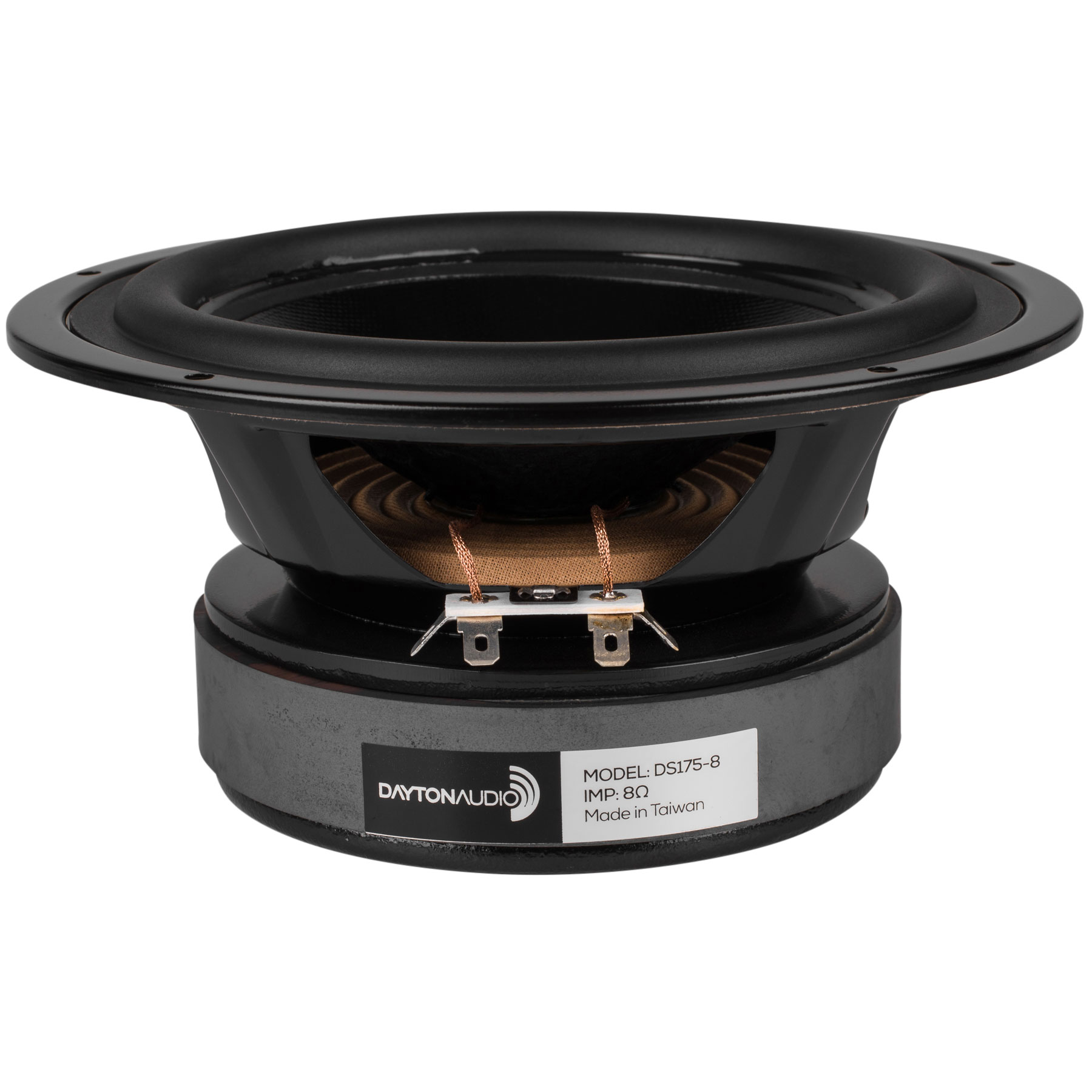

Dayton Audio DS175-8
Dayton Audio DS175-8 6-1/2" Designer Series Woofer Speaker Although it's true that the Dayton Audio Designer Series DS175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 40 Hz* without exceeding Xmax is very impressive! Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Coated paper cone, half roll rubber surround for durability and accurate reproduction Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers Vented pole piece for minimized power compression and maximized reliability Generous Xmax capability encourages use of moderate bass boost to tailor the response Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Dayton Audio DS175-8 6-1/2" Designer Series Woofer Speaker The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
Dayton Audio DSA315-PR
Dayton Audio DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical. Key Features Cosmetic frame edge looks great even when surface mounted Allows tuning small enclosures lower than using conventional ports Rear mounted screw allows easy mass adjustment for custom tuning Perfect match for Dayton Audio's aluminum cone Designer Series drivers Dayton Audio DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from large tower designs to compact subwoofer systems. Specifications: • Fs: 17.5 Hz • Vas: 6.74 ft³ • Qms: 6.23 • Cms: 0.58 mm/N • Rms: 2.5 kg/s • Mms: 142.6 g • Sd: 480 sq. cm. • Xmax: 13 mm • Dimensions: Overall diameter: 12.36", Cutout diameter: 10.71", Depth: 3.50". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio DS90-PR
Dayton Audio DS90-PR 3" Designer Series Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and treated paper cone making them visually identical. Key Features Perfect match for Dayton Audio's paper cone Designer Series drivers Allows tuning small enclosures lower than using conventional ports Rear mounted screw allows easy mass adjustment for custom tuning Cosmetic frame edge looks great even when surface mounted Dayton Audio DS90-PR 3" Designer Series Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to portable battery powered speaker systems. Specifications: • Fs: 42.4 Hz • Vas: 0.124 cu. ft. • Qms: 5.9 • Cms: 2.55 mm/N • Rms: 0.3 kg/s • Mms: 5.5 g • Sd: 31.2 sq. cm. • Xmax: 4 mm • Dimensions: Overall diameter: 3.63", Cutout diameter: 2.76", Depth: 0.86". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd

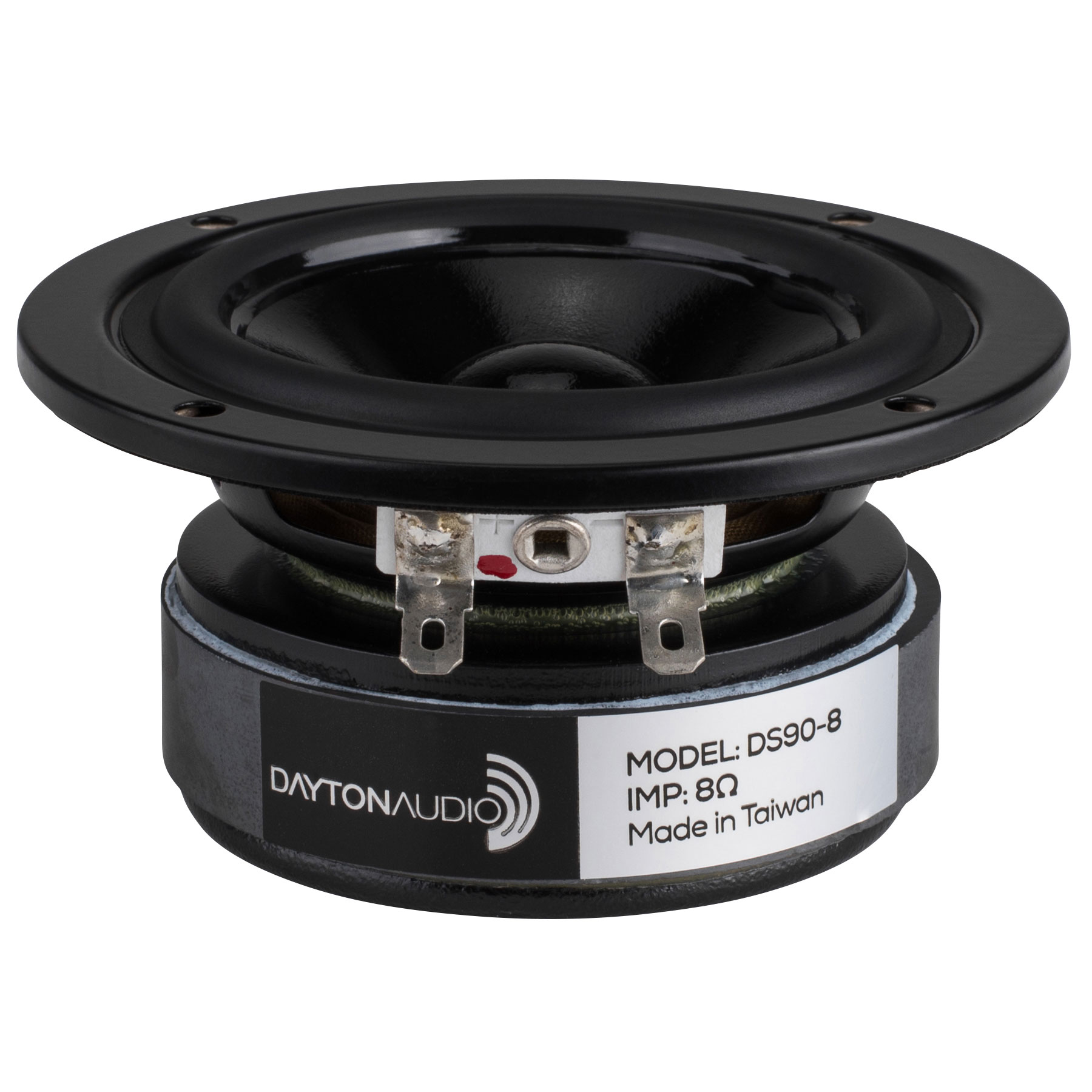

Dayton Audio DS90-8
Dayton Audio DS90-8 3" Designer Series Full-Range Driver 8 Ohm The Dayton Audio Designer Series DS90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance. Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Coated paper cone, half roll rubber surround for durability and accurate reproduction Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers Vented pole piece for minimized power compression and maximized reliability Generous Xmax capability encourages use of moderate bass boost to tailor the response Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Dayton Audio DS90-8 3" Designer Series Full-Range Driver 8 Ohm The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence. Suggested enclosures: Sealed cabinet: Type: Acoustic suspension (alpha 3.5), Qtc 0.69; Size (internal) including volume displaced by driver: 0.03 ft³; Internal cabinet dimensions (golden ratio): 6-1/4"H x 3-7/8"W x 2-3/8"D. Typical results: 3 dB down-point (f3): 158 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 90 Hz. Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.12 ft³; Internal cabinet dimensions (golden ratio): 7-3/4"H x 4-3/4"W x 3"D; Port dimensions (with flared exit): 1" dia. x 6"L. Typical results: 3 dB down-point (f3): 73 Hz; Tuning frequency (fb): 69 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 70 Hz. Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.

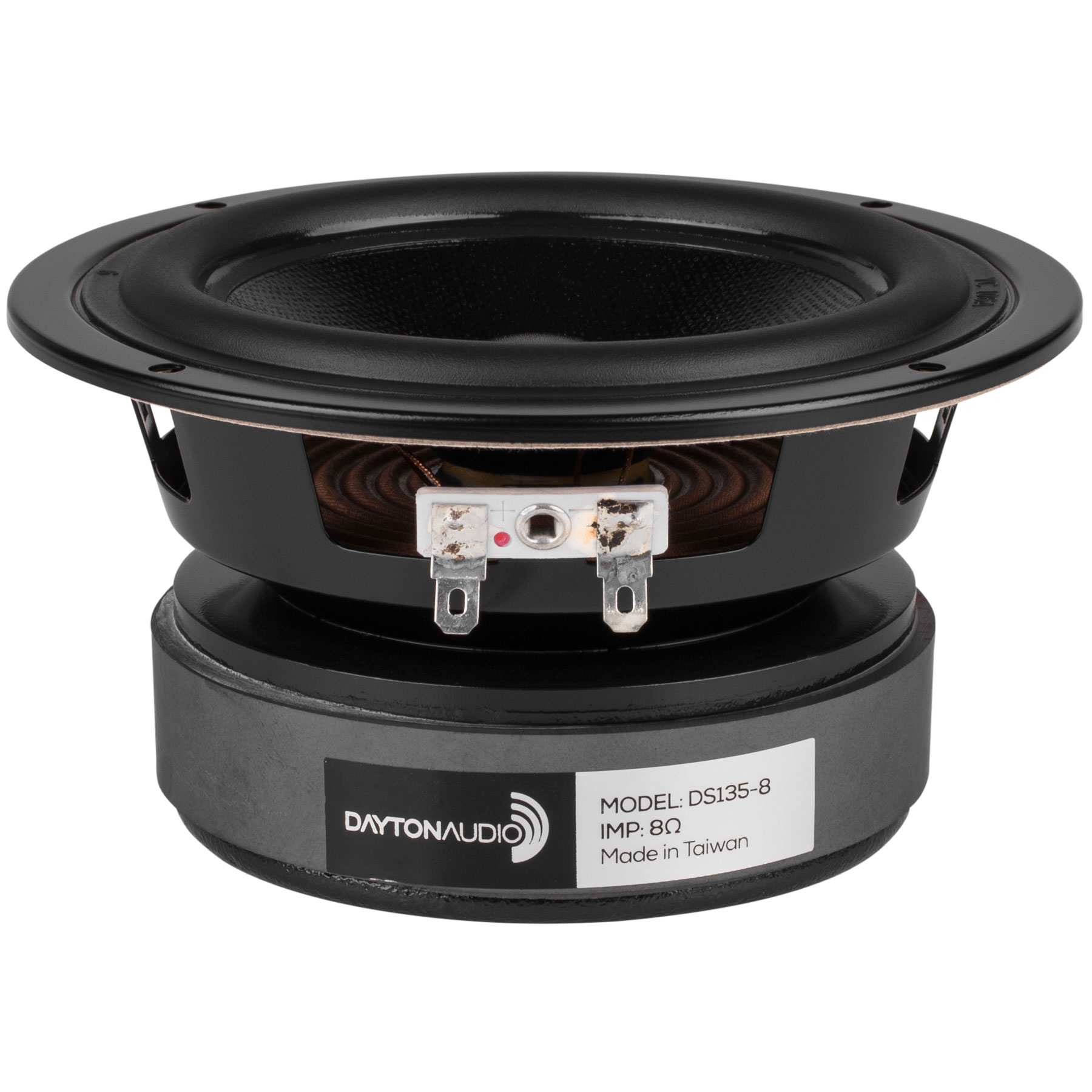

Dayton Audio DS135-8
CONCLUSION OF THE HOBBY HIFI 2/22 With the DS135-8, Dayton Audio delivers a low-frequency potent and level stable bass-midrange driver for two-way use in a pleasantly compact cabinet with a net volume of eight to ten litres. Dayton Audio DS135-8 5" Designer Series Woofer Speaker The Designer Series DS135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category. Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Coated paper cone, half roll rubber surround for durability and accurate reproduction Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers Vented pole piece for minimized power compression and maximized reliability Generous Xmax capability encourages use of moderate bass boost to tailor the response Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Dayton Audio DS135-8 5" Designer Series Woofer Speaker The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence. • Suggested enclosures: Sealed cabinet: Type: Acoustic suspension (alpha 3.0), Qtc 0.60; Size (internal) including volume displaced by driver: 0.1 ft³; Internal cabinet dimensions (golden ratio): 9-1/8"H x 5-5/8"W x 3-1/2"D. Typical results: 3 dB down-point (f3): 118 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 50 Hz. Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.17 ft³; Internal cabinet dimensions (golden ratio): 10-3/4"H x 6-5/8"W x 4-1/8"D; Port dimensions (with flared exit): 1" dia. x 4"L. Typical results: 3 dB down-point (f3): 66 Hz; Tuning frequency (fb): 62 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 48 Hz. Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.
Dayton Audio DS270-8
Dayton Audio DS270-8 10" Designer Series Woofer Speaker The Dayton Audio Designer Series DS270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax! Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Coated paper cone, half roll rubber surround for durability and accurate reproduction Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers Vented pole piece for minimized power compression and maximized reliability Generous Xmax capability encourages use of moderate bass boost to tailor the response Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Dayton Audio DS270-8 10" Designer Series Woofer Speaker The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

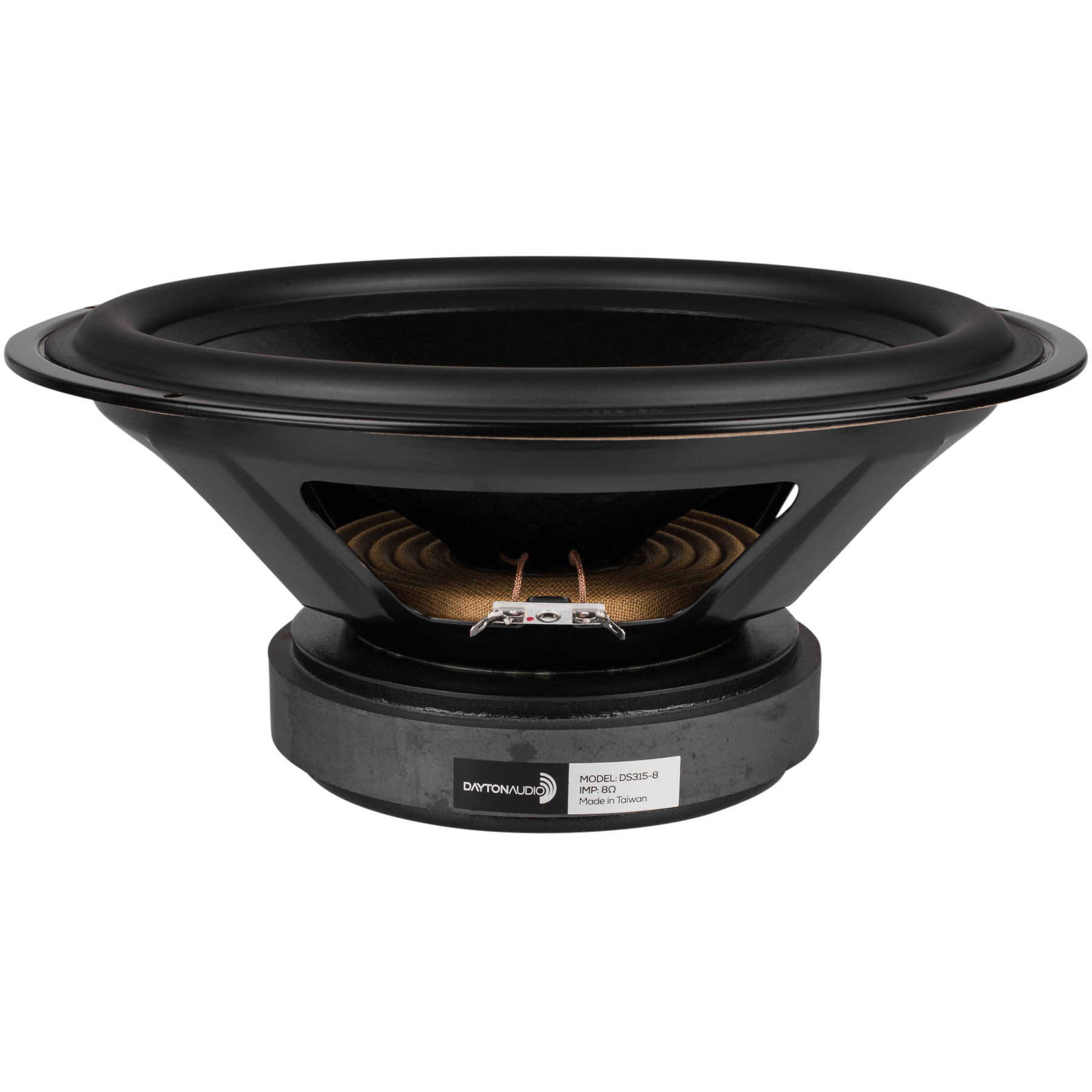

Dayton Audio DS315-8
Dayton Audio DS315-8 12" Designer Series Woofer Speaker Great looks, high efficiency, and clean bass are notable attributes of Dayton Audio's Designer Series DS315-8 12" woofer. Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Coated paper cone, half roll rubber surround for durability and accurate reproduction Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers Vented pole piece for minimized power compression and maximized reliability Generous Xmax capability encourages use of moderate bass boost to tailor the response Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Dayton Audio DS315-8 12" Designer Series Woofer Speaker The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
Dayton Audio DSA90-PR
Dayton Audio DSA90-PR 3" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical. Key Features Perfect match for Dayton Audio's aluminum cone Designer Series drivers Allows tuning small enclosures lower than using conventional ports Rear mounted screw allows easy mass adjustment for custom tuning Cosmetic frame edge looks great even when surface mounted Dayton Audio DSA90-PR 3" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from desktop two ways to portable battery powered speaker systems. Specifications: • Fs: 43.7 Hz • Vas: 0.124 ft³ • Qms: 5.72 • Cms: 2.55 mm/N • Rms: 0.2 kg/s • Mms: 5 g • Sd: 31.2 sq. cm. • Xmax: 4 mm • Dimensions: Overall diameter: 3.63", Cutout diameter: 2.76", Depth: 0.86". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd

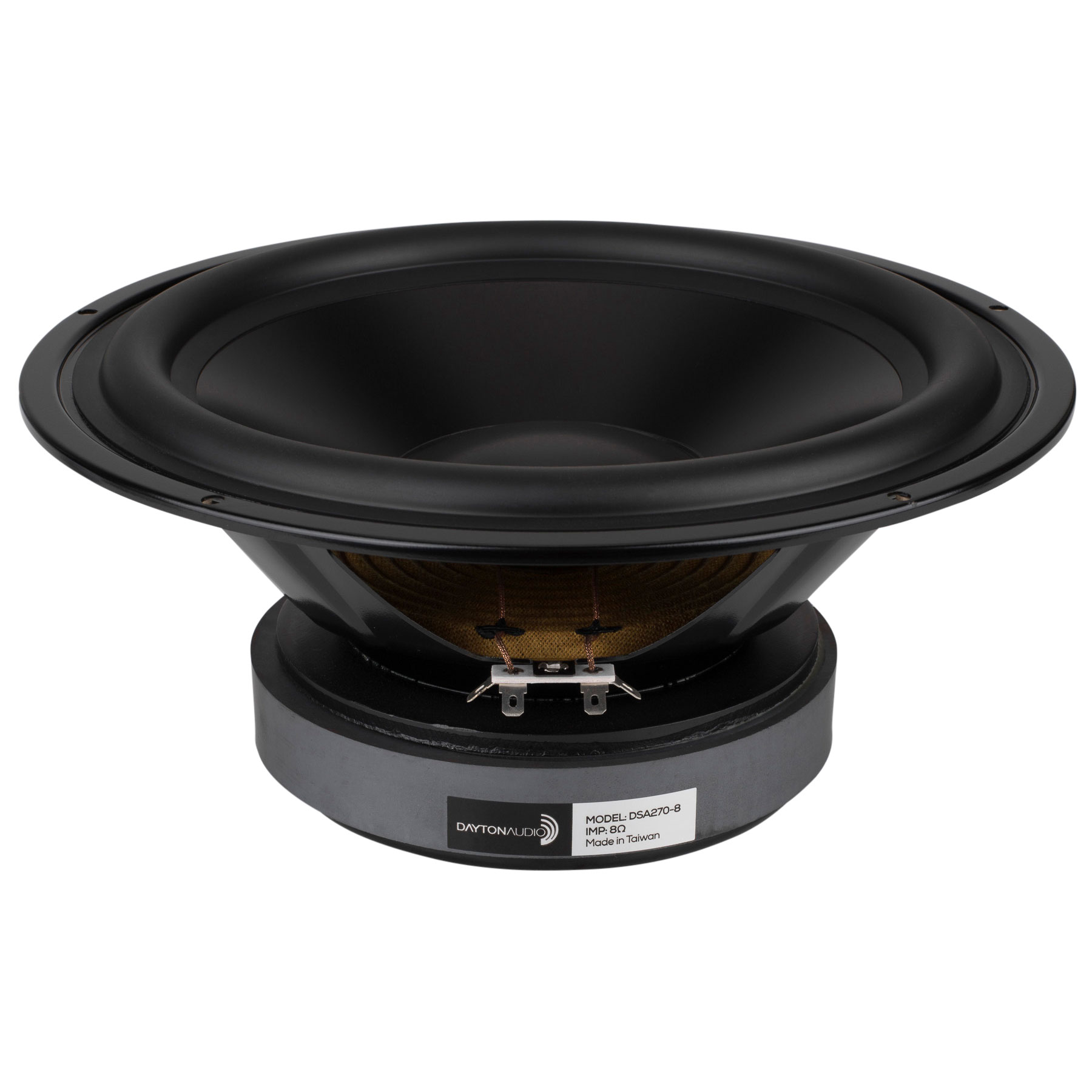

Dayton Audio DSA270-8
Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer The Dayton Audio Designer Series DSA270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax! Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Low distortion motor system with copper shorting ring Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction Smooth frequency response and linear roll-off simplify filter design Vented pole piece for minimized power compression and maximized reliability Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Generous Xmax capability encourages use of moderate bass boost to tailor the response Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
Dayton Audio DSA270-PR
Dayton Audio DSA270-PR 10" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical. Key Features Perfect match for Dayton Audio's aluminum cone Designer Series drivers Allows tuning small enclosures lower than using conventional ports Rear mounted screw allows easy mass adjustment for custom tuning Cosmetic frame edge looks great even when surface mounted Dayton Audio DSA270-PR 10" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from full size tower designs to compact subwoofer systems. Specifications: • Fs: 21.9 Hz • Vas: 3.74 ft³ • Qms: 5.26 • Cms: 0.60 mm/N • Rms: 2.3 kg/s • Mms: 88.4 g • Sd: 353 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 10.63", Cutout diameter: 8.94", Depth: 2.87". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd

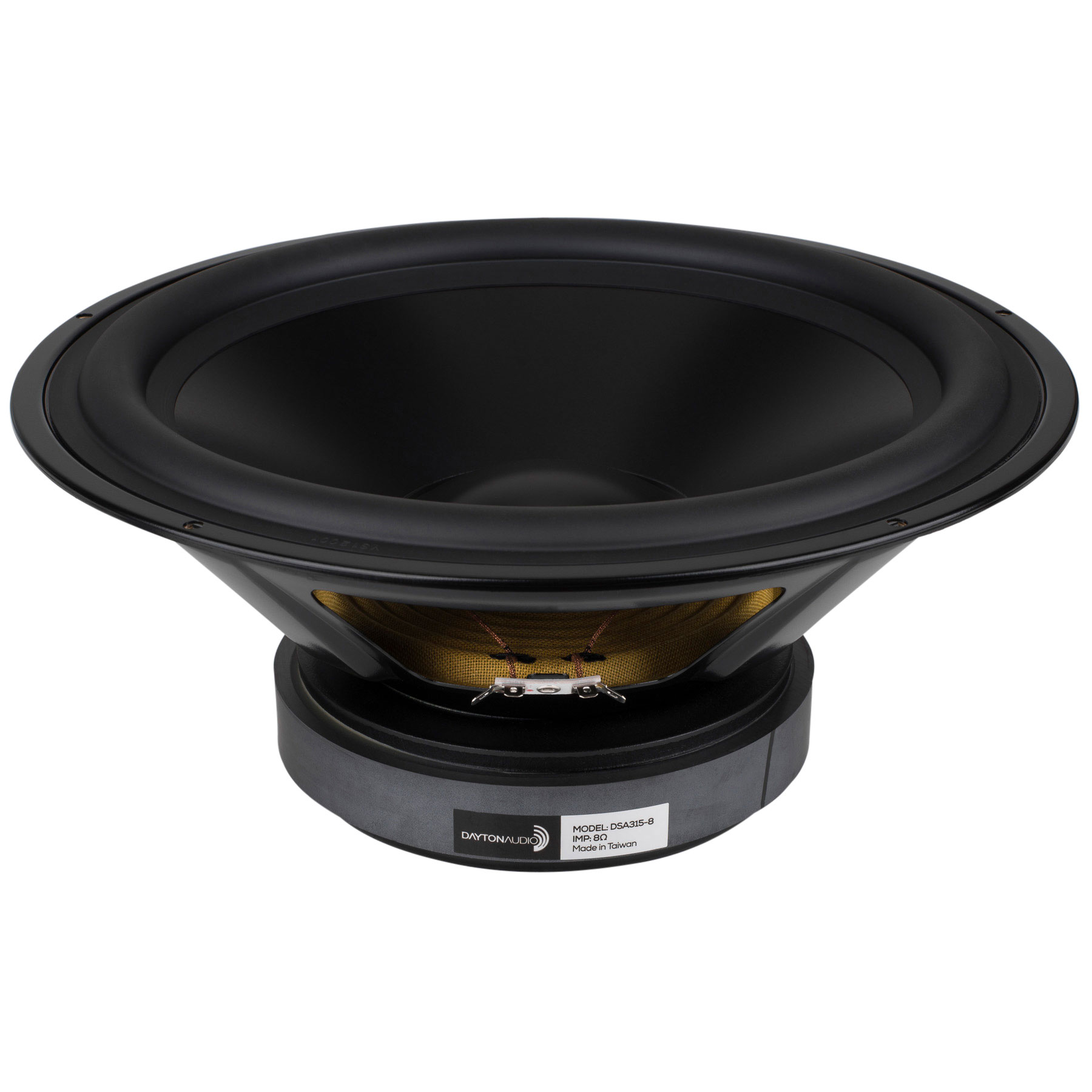

Dayton Audio DSA315-8
Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer Great looks, high efficiency, and clean bass are notable attributes of Dayton Audio's Designer Series DSA315-8 12" woofer. Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Low distortion motor system with copper shorting ring Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction Smooth frequency response and linear roll-off simplify filter design Vented pole piece for minimized power compression and maximized reliability Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Generous Xmax capability encourages use of moderate bass boost to tailor the response Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
