Gehäuse Celine kompakt

Celine Speaker KitCelineSpeaker kit Test in Klang+Ton 1/23 The conclusion on the Celine from hifitest.de High end and high dynamics in one – the Variant Céline is a bullseye! Test on hifitest.de 2-Way Floorstanding Speaker Assembly: 160mm Mundorf AMT U160W1.1-R, 270mm Woofer Dayton Audio RS270P-4, Crossover componentsMundorf Hi-Quality: Properties: "Celine" is Born! AMTU160 with front panel, Dayton Reference RS270P-4, and two passive radiators on theBackside. Two chassis, ten octaves. Celine is a two-way system of boundary areas. The AMT from the German manufacturer Mundorf® with an effective diaphragm area of 68.1 cm² is the flagship of the new AMT U Series and, unlike conventional tweeter domes with diameters from 19 to 32 mm, thus a maximum of 8.04 cm², simply a superior solution.Mouthorf AMT membraneare unique in their form. It is characterized by its exceptionally high internal damping and extremely low distortion values. This is especially true for the odd harmonic distortions K3 and K5. The guarantee for the highest level reserves with enormous fine detailing of the ultra-light membrane. From 1500Hz, the AMT never plays in the foreground. It accurately and dynamically traces every small impulse of the music. Its companion is an RS270P-4 from the reference series by Dayton Audio. The aluminum die-cast basket houses a lightweight paper cone, and a phase plug centrally dominates the visual aspect. The lightweight paper cone was already chosen for the smaller sister model "Melodie 8018" in two sizes smaller, and it also impresses in the larger version with detailed midrange, impressive bass, and the overall performance delivered seamlessly both in coarse and fine dynamics. We are inclined to award Celine the label "Speaker for everything." It could in our rooms; Small room 14m², acoustically dampened. Large room 24m², acoustically little damped, little window area. Second large room 35m², acoustically well-damped with lots of window space. In all situations, loud or quiet, always impress with transistor, tube, and digital amplifiers. Preferred in amplifiers, however, the strong guys, and can also handle loudness.   Scope of delivery: -          Chassis -          Passive membranes -          High-End Terminal -          Fastening screws -          Cable (internal wiring) -          Insulation material -          Crossover components (Loose) Die standard crossover are Mundorf; in the signal path: air coils, Mcap Evo capacitors, metal oxideResistors. As parallel component; Elko Rau, air coils, metal oxide resistors. In the High End version; In the signal path: MCAP EVO Oil, Backlack air coils, MRESIST Classic resistors.As parallel component: MCAP Classic, baked varnish and standard air coils, metal oxide resistors In the scope of delivery, an impedance linearization is already included.   Celine active Hypex 122: Scope of delivery. Hypex FA122 Pre-configured with Crossover Programming! Additional setup programming available for an extra charge! Dayton Audio RS270P Mundorf AMT U160 Dayton Audio DSA270-PR including additional weights Insulation material Screws Internal wiring The selected number refers to pieces,noa couple.

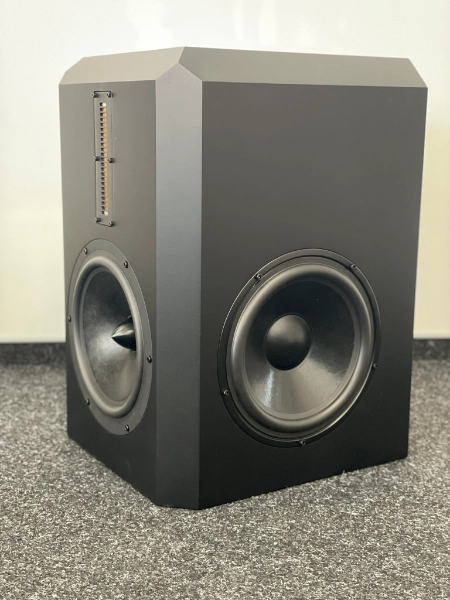

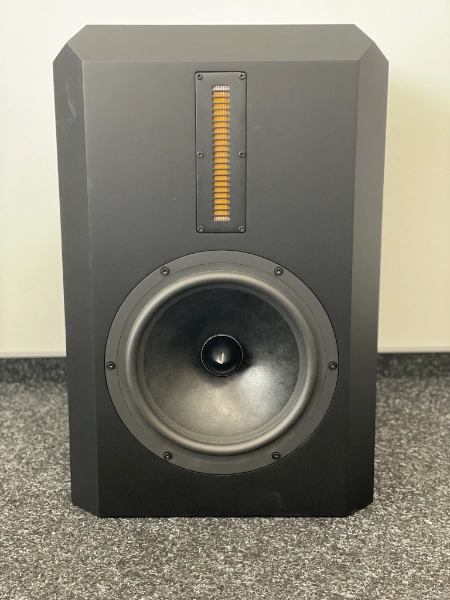

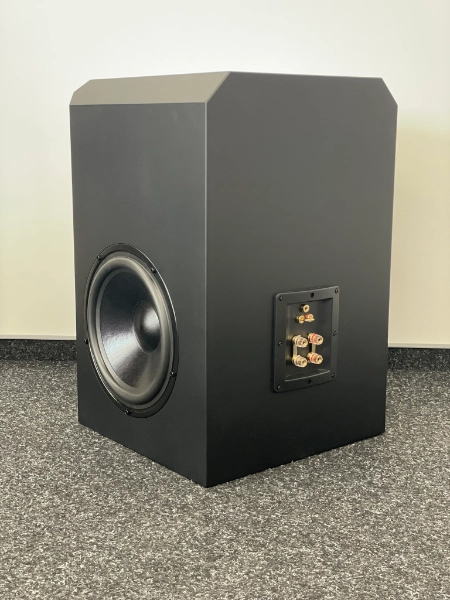

Celine Compact Speaker KitCeline Speaker Kit Test in Klang+Ton 1/23 (Standard Version) The conclusion on the Celine from hifitest.de (floorstanding version) High end and high dynamics in one – the Variant Céline is a bullseye! Test on hifitest.de 2-Way Compact Speaker Assembly: 160mm Mundorf AMT U160W1.1-R, 270mm Woofer Dayton Audio RS270P-4, Crossover componentsMundorf Hi-Quality: Properties: "Celine" is Born! AMTU160 with front panel, Dayton Reference RS270P-4, and two passive radiators on theBack. Two chassis, ten octaves. Also the compact version is convincing, the short or compact version includes, like the stand versionaround 62 liters. It delivers the same tonal performance as the stand version, only through thePossibility to design stand substructures variably, more flexible in setup. Celine is a two-way system of border areas. The AMT from the German manufacturer Mundorf® with an effective membrane area of 68.1 cm² is the flagship of the new AMT U Series and, unlike conventional tweeter domes with diameters from 19 to 32 mm, i.e., a maximum of 8.04 cm², simply a superior solution.Mundorf AMT membraneare unique in their form. It is characterized by its exceptionally high internal damping and extremely low distortion levels. This is especially true for the odd harmonic distortions K3 and K5. The guarantee for the highest level reserves with enormous detail of the ultra-light membrane. From 1500Hz, the AMT never takes center stage. It exemplarily and dynamically traces every little impulse of the music. Its companion is an RS270P-4 from the reference series by Dayton Audio. The aluminum die-cast basket houses a lightweight paper cone, and a phase plug centrally dominates the visual appearance. The lightweight paper cone was already chosen for the smaller sister model "Melodie 8018" in two sizes smaller, and it also impresses in the larger version with detailed midrange, impressive bass, and the overall performed presentation seamlessly both coarse and fine dynamics. We are inclined to attribute to Celine the label "speaker for everything." It was able to, in our rooms; Kleiner Raum 14m², acoustically dampened. Large room 24m², acoustically minimally damped, little window area. Second large room 35m², acoustically well damped with lots of window space. In all situations, loud or quiet, always convincing with transistor, tube, and digital amplifiers. Preferred for amplifiers are the strong guys, and can also handle loudness.   Scope of delivery: -          Chassis -          Passive Membranes -          High-End Terminal -          Fastening screws -          Cable (internal wiring) -          Insulation material -          Crossover components (Loose) Die standard-crossover are Mundorf; in the signal path: air coils, Mcap Evo capacitors, metal oxideResistors. As parallel component; Elko Rau, air coils, metal oxide resistors. In the High End version; In the signal path: MCAP EVO Oil, Backlack air coils, MRESIST Classic resistors.As parallel component: MCAP Classic, baked varnish and standard air coils, metal oxide resistors The delivery includes an impedance linearization.   Celine active Hypex 122: Scope of delivery. Hypex FA122 Pre-configured with Crossover Programming! Further setup programming available at an additional cost! Dayton Audio RS270P Mundorf AMT U160 Dayton Audio DSA270-PR including Additional Weights Insulation material Screws Internal wiring In the selected number, it is about pieces,nopair. This kit is compatible with both the floor-standing and compact speaker variants.
