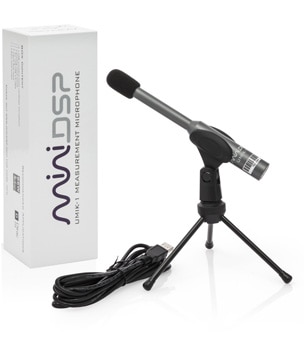

miniDSP UMIK-1
The UMIK-1 is an omni-directional USB measurement microphone providing Plug & Play acoustic measurement. From speaker & room acoustic measurement to recording, this microphone provides low noise and accurate results you can rely on. Forget about driver installation, OS compatibility and un-calibrated mics. The Umik-1 is a USB Audio class 1 device automatically recognized by all Operating Systems (Windows/Mac) and Ipad with Camera Connection Kit. It is provided with a unique calibration file based on the serial number to insure an accurate measurement. Combined with our recommended acoustic measurement software, it is the perfect match for a plug&play measurement system. Features Windows/Mac/Linux All measurement software Special features such as calibrated SPL measurement enabled under free Room EQ Wizard (REW) software Frequency response: 20 Hz - 20kHz +/-1dB with calibration loaded USB Audio: USB Audio class 1.0 Driverless interface for Windows, Mac & Linux What's in the box? 1 x UMIK-1 microphone 1 x shielded USB cable (1.5m) 1 x mini Tripod 1 x foam wind screen

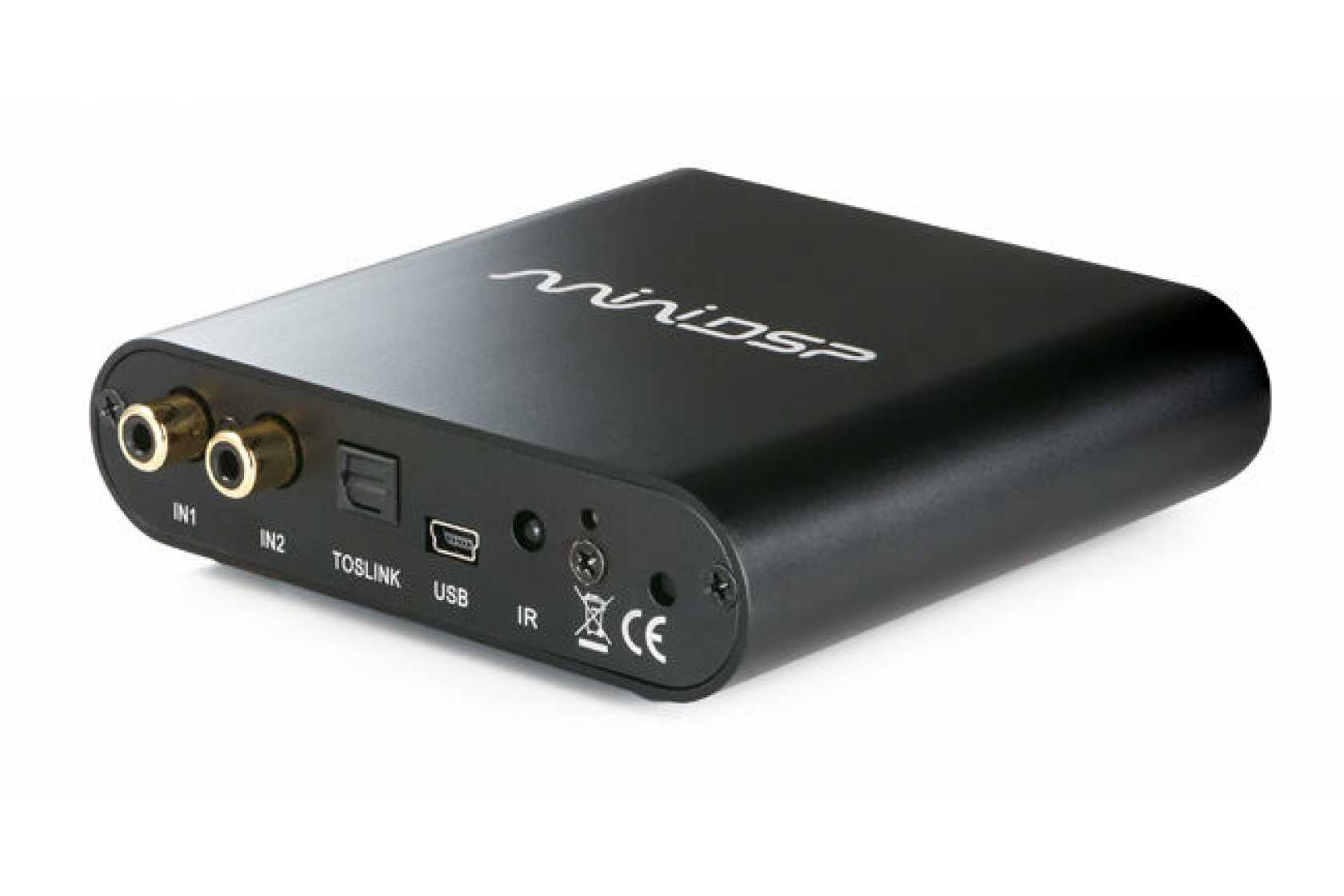

miniDSP 2x4HD Boxed
The miniDSP 2x4 in a box is a flexible pocket size DSP processor with 2 x analog IN, 4 x analog OUT. Combined with a plug-in software for programming, one can configure the on board Audio processing filters real time from a PC or Mac environment. Once the board configured, the device operates standalone and doesn't require a computer anymore. For more information on potential applications, please check the application section of our website. Features ADSP21489 400MHz Sharc DSP floating point engine XMOS Xcore200 for USB control and bidirectional audio streaming 24 bit ADC/DAC resolution Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms Toslink digital input Unbalanced outputs: Max 2Vrms USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx 4 preset configuration, recallable via IR, Software Plug&Play USB driver and real time Software configuration using miniDSP plug-ins Device does not required a PC once configured External single 12V supply

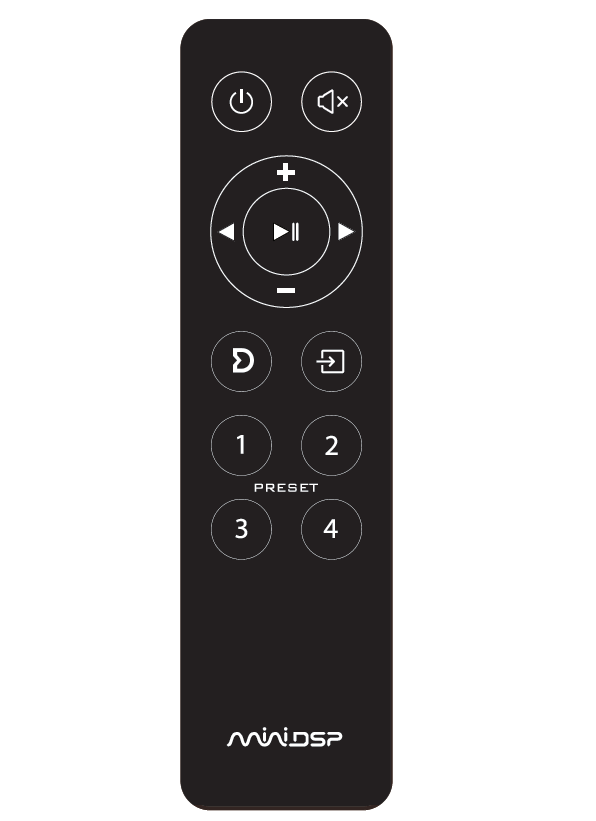

IR Fernbedienung v2
This IR remote is the newest version and is preprogrammed for miniDSP products without requiring any learning process. It is plug&play configured with the latest firmware. - miniDSP 2x4HD- SHD Series- DDRC-24/nanoSHARC kit- DDRC88/DDRC22 series/(FW 2.23)- OpenDRC series (all series)- CDSP 8x12/CDSP 8x12DL- miniDSP 2x8/8x8/4x10HD/10x10HD- nanoDIGI 2x8/nanoDIGI 2x8 kit- miniSHARC kit (FW 2.23) Note that Play/Pause/Next/Previous buttons are only enabled for the SHD series.

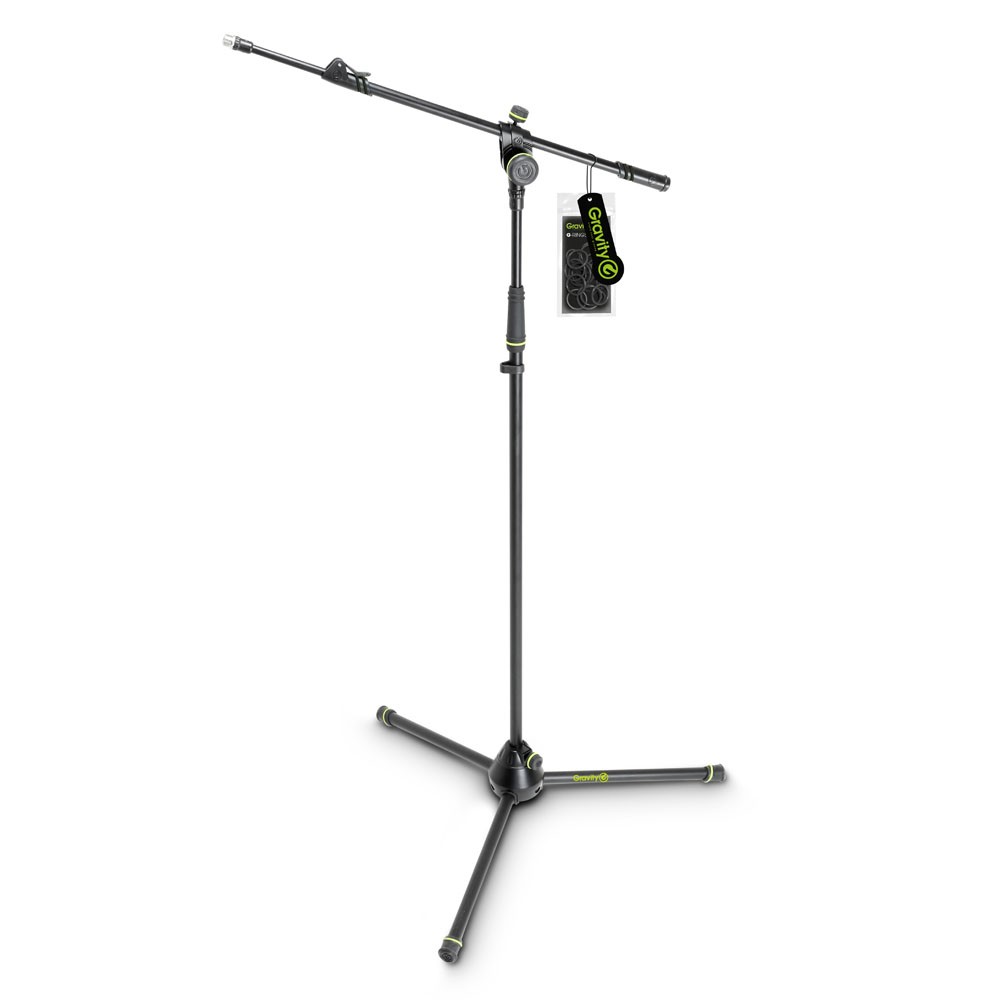

Mikrofonstativ Schwarz
Der MS 4322 ist ein Premium-Mikrofonständer mit besonders kräftiger Rohrstärke, Pulverbeschichtung und 169 cm maximaler Höhe. Der hochstabile Dreibeiner besitzt eine Glocke aus Zinkdruckguss und großzügig dimensionierte, passgenaue Klappfüße aus Stahl mit kräftigen Gummikappen zum Schutz der Stellfläche. Die Position und Neigung des Ausziehgalgens lassen sich an der Aufhängung mit 2 Spannschrauben exakt justieren. Er besitzt eine Schnellverriegelung und maximale Länge von 88 cm zur flexiblen Postionierung des Mikrofons. Der Griff der leichtgängigen, haltbaren Höhenverstellung des MS 4322 und die Schraubenknöpfe sind aus hochbeständigem ABS mit einem rutschfesten Soft-Touch-Überzug aus Thermoplastik zur komfortablen Bedienung. Dazu ermöglicht die speziell designte Gegenmutter eine rasche und feste Montage des Mikrofonhalters ohne Werkzeuge. Der MS 4322 wird mit einem zusätzlichen Satz schwarzer Kodierringe geliefert, weitere Ringe sind zur deutlichen Personalisierung in vielen Farben lieferbar.

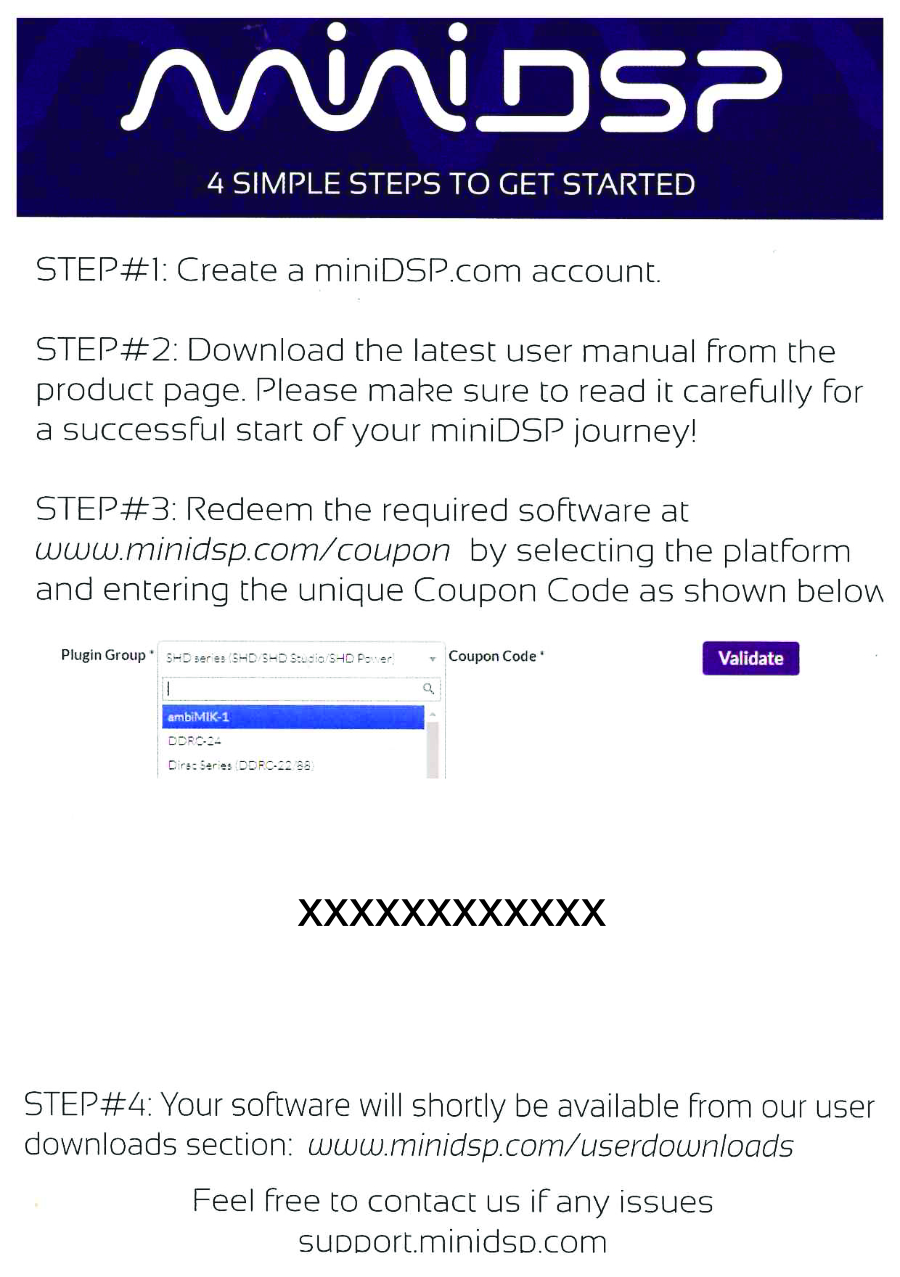

MiniDSP Software Code
MiniDSP Software CodeSoftware code for MiniDSP devices Code will be sent digitally via email.

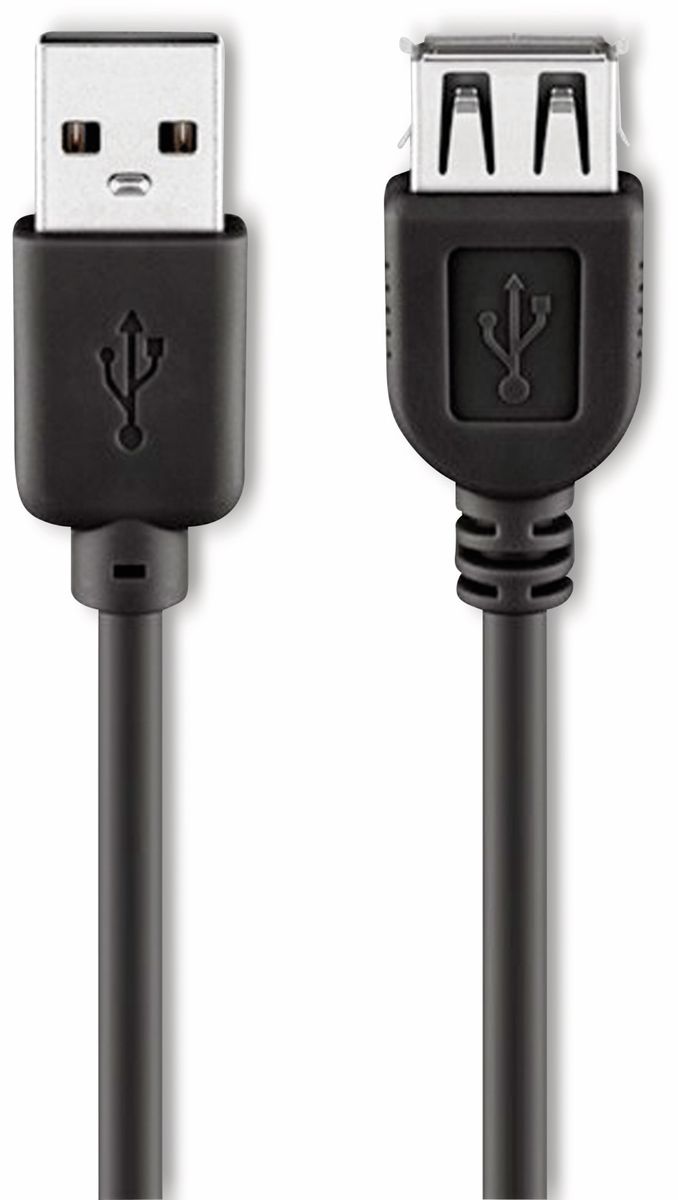

USB 2.0 Hi-Speed Verlängerungskabel 3m
USB 2.0 Hi-Speed Extension Cable 3mUSB 2.0 Hi-Speed Extension Cable High-quality USB 2.0 Hi-Speed cable with fast transfer rate for connecting USB-enabled devices. Cable extension compatible with USB-A connectors. Technical Specifications: Anschluss: USB-A Plug to USB-A Coupler USB Standard: 2.0 Übertragungsrate: 480 Mbit/s Voltage: 5 V- (DC) Material Inner Conductor: Copper Shielding: 2-fold Color: black Length: 3 m

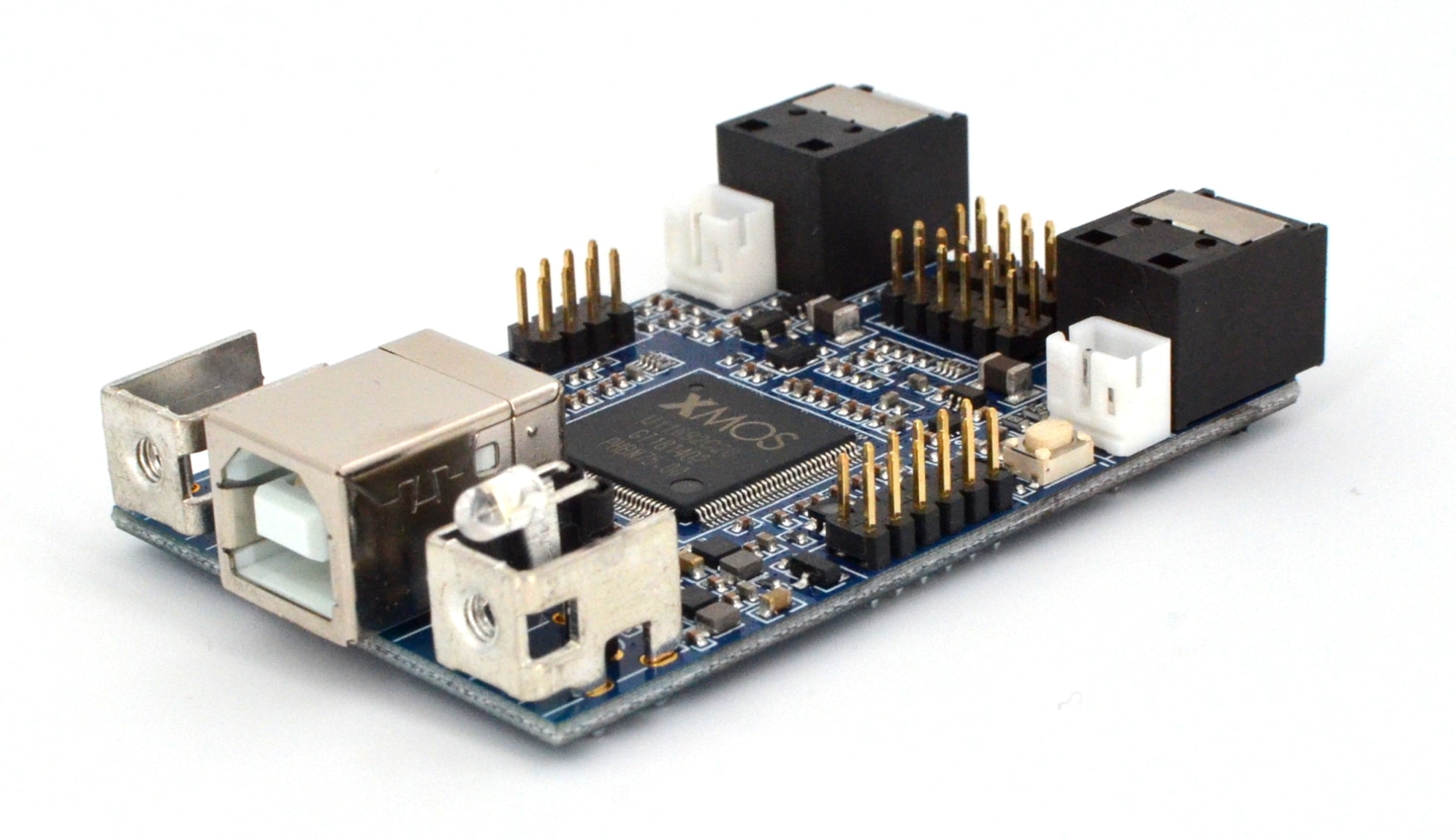

miniDSP MCH Streamer Kit
The MCHStreamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP's XMOS expertise. . Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research & Development applications. By loading one of the miniDSP-provided firmware packages, MCHStreamer supports optical TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats. This USB Audio Class 2 (UAC2) compliant interface truly is the swiss-army knife for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from 16x PDM MEMS microphone to I2S which makes it a powerful tool for beamforming/voice algorithm development. Features Multi-channel USB audio interface (up to 24x24) Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats Native support up to 32bit / 384kHz PDM to I2S converter for up to 16 MEMS microphones Multichannel DSD (up to 8ch) support USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle) Toslink (optical) and SPDIF (coax) transmitter and receiver Flexible board powering option: USB powered or External DC input power What's in the box? 1 x MCHStreamer board 1 x 1m long USB audio cable 2 * Toslink audio cables 2 * 2x6pin (2mm pitch) header cable harness for I2S In/Out interfacing

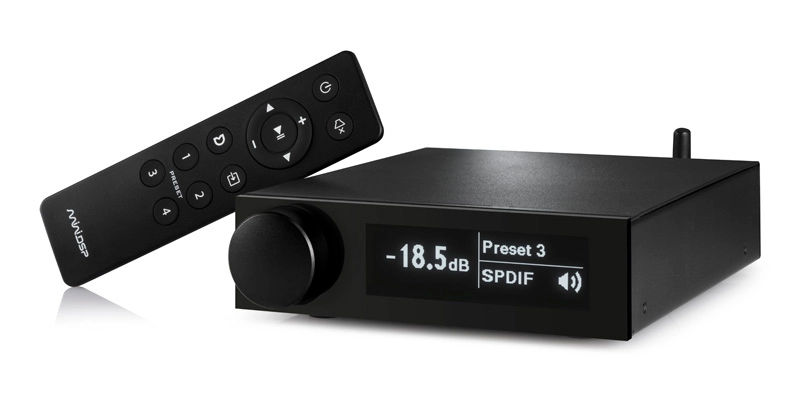

miniDSP Flex (RCA)
The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment. All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning. The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest! Hardware Features Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz) Audiophile performance (SNR@120dB(A), THD+N @ -110dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA) Flexible Output versions: Unbalanced (RCA), Balanced (TRS), Digital (Future) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller with IR control What's in the box? Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration IR remote v2 12V univeral power supply (UK/EU/US/AU plugs)
miniDSP DDRC-24
miniDSP introduces the DDRC-24, the world’s smallest Dirac Live® hardware processor. Dirac Live®, the world’s premier room correction solution, is now available in an unbelievably compact hardware unit. Powered by a 400 MHz Analog Devices SHARC processor, the DDRC-24 retains the 4-channel output of its sister unit, the miniDSP 2x4 Hd, in order to allow applications like subwoofer integration or even 2-way loudspeakers together with Dirac Live® room correction in a single tiny hardware platform. The matrix mixer and crossover functionality is accessed and programmed with miniDSP’s easy-to-use interface software. An all in one unit with USB DAC + Dirac Live Room Correction + Speaker processing. I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP DDRC-24 will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios anywhere a compact, powerful room correction processor is needed. Features ADSP21489 400MHz Sharc DSP floating point engine XMOS Xcore200 for USB control and bidirectional audio streaming 24 bit ADC/DAC resolution Dirac Live 3.x for miniDSP with 4 presets, fully configurable target curve Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms Toslink digital input Unbalanced outputs: Max 2Vrms USB Audio Class 2 Audio streaming with ASIO drivers, driverless under MAC OSx 4 preset configuration, recallable via IR, Software Wifi/Alexa voice control via WI-DG accessory What's in the box? 1 x DDRC-24 including Dirac Live license for miniDSP and DDRC-24 plugin 1 x 12V power supply with UK/EU/US/AU plugs 1 x shielded USB cable 1 x Dirac live license 3.x for miniDSP, full range correction 1 x DDRC-24 plugin for DSP control automatically added to your UserDownloads section on purchase

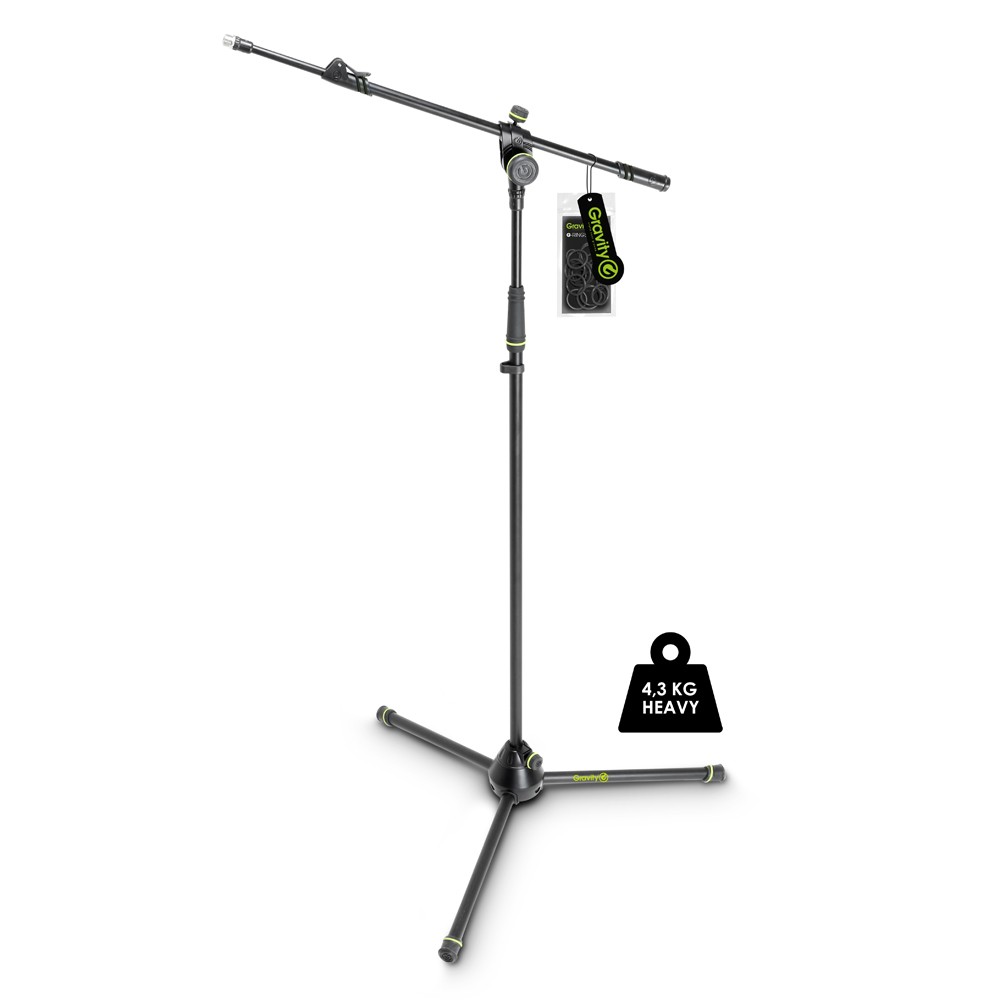

Mikrofonstativ schwere ausführung
Der MS 4322 HDB ist ein Premium-Mikrofonständer mit besonders kräftiger Rohrstärke, Pulverbeschichtung und 169 cm maximaler Höhe. Der hochstabile Dreibeiner besitzt eine Glocke aus Zinkdruckguss und besonders schwere Klappfüße aus massivem Stahl mit kräftigen Gummikappen zum Schutz der Stellfläche. Die Position und Neigung des Ausziehgalgens lassen sich an der Aufhängung mit 2 Spannschrauben exakt justieren. Er besitzt eine Schnellverriegelung und maximale Länge von 88 cm zur flexiblen Postionierung des Mikrofons. Der Griff der leichtgängigen, haltbaren Höhenverstellung des MS 4322 HDB und die Schraubenknöpfe sind aus hochbeständigem ABS mit einem rutschfesten Soft-Touch-Überzug aus Thermoplastik zur komfortablen Bedienung. Dazu ermöglicht die speziell designte Gegenmutter eine rasche und feste Montage des Mikrofonhalters ohne Werkzeuge. Der MS 4322 HDB wird mit einem zusätzlichen Satz schwarzer Kodierringe geliefert, weitere Ringe sind zur deutlichen Personalisierung in vielen Farben lieferbar.
miniDSP Flex (TRS) Symmetrisch
The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment. All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning. The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest! Hardware Features Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz) Audiophile performance (SNR@120dB(A), THD+N @ -110dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA) Flexible Output versions: Unbalanced (RCA), Balanced (TRS), Digital (Future) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller with IR control What's in the box? Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration IR remote v2 12V univeral power supply (UK/EU/US/AU plugs)

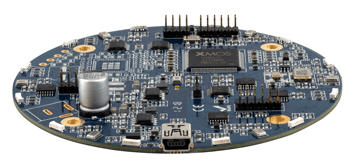

miniDSP UMA-8
The UMA-8 v2 is a high-performance yet low cost multichannel USB microphone array built around XMOS Vocal fusion series (XVF3000) with improved adaptive beamformer, full duplex AEC and barge-in, noise suppression, AGC. Seven high-performance MEMS microphones are configured in a circular arrangement to provide high-quality voice capture for a wide range of applications. Leveraging the onboard DSP processing, the UMA-8 supports voice algorithms including beamforming, noise reduction, acoustic echo cancellation and de-reverb. The UMA-8 is a fully compliant UAC2 audio interface with driverless support for Mac/Linux and ASIO drivers for Windows. From DIYers to OEM, this pocket-size platform is engineered for flexibility in firmware, software and hardware. Precompiled firmware versions, expansion connectors providing connectivity for additional PDM microphones, I2S in/out expansion and GPIO... It’s all there to grow with your application! Features Multichannel USB microphone array for voice command Onboard DSP for beamforming/ noise reduction / echo cancellation / de-reverd / Direction of Arrival (DOA) / Voice Activaty Dectection (VAD) 11 x RGB LED in ring configuration High quality MEMS from Knowles SPH1668LM4H Flexible Firmware (DSP mode @2ch beamformed, RAW mode @8ch audio from MEMS) Step by step app notes for Google SDK, Alexa-Pi, Cortana, Siri, IBM Watson and Matlab. More coming up soon... External enclosure is available here. What's in the box? 1 x UMA-8 USB microphone array interface Access to the UserDownloads section for drivers/firmware/GUI. 1 x 1.5m USB type B cable

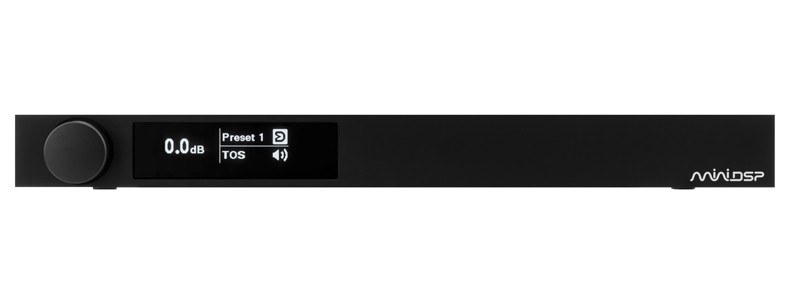

miniDSP SHD
miniDSP is proud to introduce the SHD (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. A natural evolution and extension of our considerable experience with Dirac Live implementation, the miniDSP SHD heralds a new era in affordable yet powerful DSP-based network streamers. First and foremost, the SHD is a stereo Dirac Live room correction processor. Three digital inputs, two analog inputs and USB Audio enable the SHD to fit right into any modern audio system, while processed outputs are available as unbalanced and balanced analog as well as digital. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to use calibration tool. We have also added network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. Finally, we’ve added a second pair of outputs and a suite of our powerful but user-friendly DSP audio tuning software - ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2x4 matrix mixer — for powerful audio system tuning in applications ranging from integrating a single subwoofer to a two-way active speaker. Features Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP 32bit Audiophile converters: AK5574 / AK4490EQ Powered by Dirac Live® 3.x Digital Room Correction Quad core ARM processor for network audio streaming - Preloaded with Volumio Inputs: Stereo digital (USB Audio/AES-EBU/SPDIF/Optical), stereo analog (Balanced XLR, unbalanced RCA) Outputs: 4 x digital (SPDIF out), 4 x analog out (Balanced XLR, unbalanced RCA) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller What's in the box? Dirac Series Audio Processor — SHD DSP USB Wifi 2.4GHz adaptor Dirac Live 3.x license for full range correction (20Hz~20kHz) IR remote v2 IEC power plug (UK/EU/US) Rack mounting kit (standard 1RU) NOTE: The Dirac Live Calibration Tools for miniDSP software is only compatible with the UMIK-1/UMIK-2 microphone for measurement.
miniDSP Flex digital (SPIDF/TOS)
The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment. All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning. The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest! Hardware Features Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz) Audiophile performance (SNR@120dB(A), THD+N @ -110dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA) Flexible Output versions: Unbalanced (RCA), Balanced (TRS), Digital (Future) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller with IR control What's in the box? Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration IR remote v2 12V univeral power supply (UK/EU/US/AU plugs)

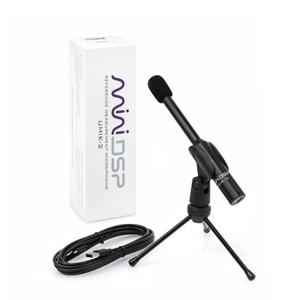

miniDSP UMIK-2
MiniDSP is pleased to introduce the UMIK-2, its second-generation omni-directional acoustic measurement microphone. The UMIK-2 has everything that made the first-generation UMIK-1 one of our best selling products, including a convenient plug-and-play USB connection and a unique calibration file for each microphone to ensure accuracy. However, the UMIK-2 is also a significant upgrade in performance and functionality. A larger 1/2-inch microphone capsule provides lower noise and lower distortion, which is preserved by the 32-bit ADC (analog-to-digital convertor) built into the microphone shell. Furthermore, sample rates are selectable from 44.1 to 192 kHz for compatibility with the widest possible range of measurement and recording software. The UMIK-2 is of course fully compatible with REW (Room EQ Wizard) and Dirac Live (version 3 and later). Driverless operation with macOS, Linux, Android and iOS, and a supplied ASIO driver for Windows ensure simple integration into many other measurement and recording applications. With the UMIK-2, miniDSP once agains stretch the limits of affordable acoustic measurement gear. Let the measurement fun begin! Features USB Audio Reference Measurement Microphone Unique calibration file for each microphone 1/2" capsule on 60 UNS thread 32bit 44.1~192kHz recording, Custom Windows ASIO drivers and Plug&Play on Linux/Mac OSx Low noise floor preamps, 120DR ADC Plug&Play compatible with wide range of software, including REW & Dirac Live platforms What's in the box? 1 x UMIK-2 microphone 1 x shielded USB type C cable (2m) 1 x mini Tripod + Mic Clamp 1 x wind screen

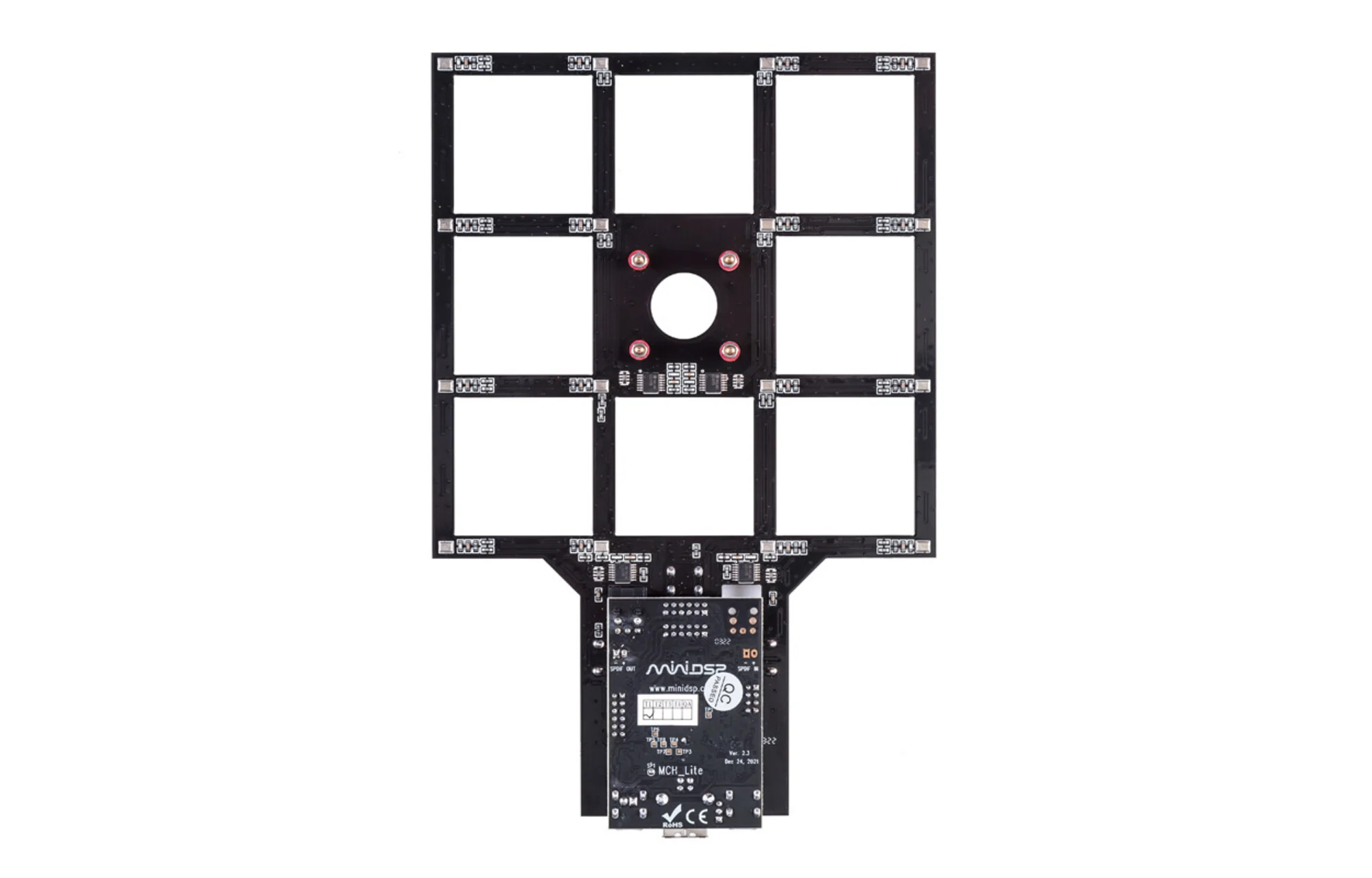

miniDSP UMA-16 v2 Mic Array
The UMA-16 is a high-performance yet low cost 16 channel USB microphone array with plug&play USB audio connectivity. With its onboard SHARC+XMOS controller board, the UMA-16 is the perfect fit for development of beamforming algorithms or DIY acoustic camera. Its system architecture consists of two core elements: - The microphone array PCB has 16 x SPH1668LM4H MEMS Knowles laid out in a Uniform Rectangular Array (URA). A center hole fits an optional USB camera for applications such as an acoustic camera. Being a simple 2layer PCN, one can easily customize his own array layout by following our schematics. - At the helm of the UMA-16 operation is the nanoSharc kit. A 400MHz SHARC ADSP21489 + 500MHz multicore CPU providing substantial processing power for high SNR PDM to PCM conversion and multichannel low latency USB audio. The UMA-16 can also be used as a low cost USB to PDM mems board to acquire and convert audio for 3rd party MEMS. With the UMA-16, miniDSP makes high channel count microphone array processing very affordable and hopes to further technological advances for beamforming technology. Features Multichannel USB microphone array for voice command 16 channels of RAW audio for development of custom beamforming algorithms High quality MEMS from Knowles SPH1668LM4H USB to PDM conversion for up to 16 x PDM MEMS microphones Center Hole for USB camera (Not provided) Sample Matlab code to get started What's in the box? 1 x UMA-16 USB microphone array interface 1 x 1.5m USB miniUSB cable 1 x 12V power supply with EU/UK/US plugs Access to the UserDownloads section for ASIO drivers/Firmware updates once the product purchased

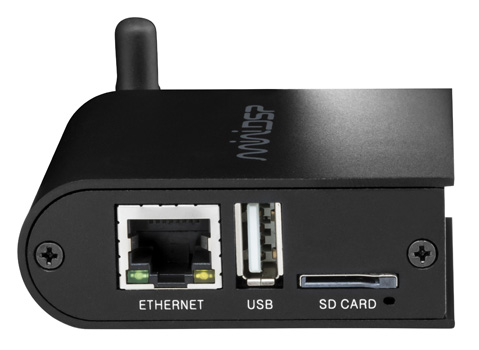

miniDSP WI-DG
The WI-DG is a Wifi/Ethernet to USB bridge that is pre-configured for Plug&Play discovery and control over IP networks. The Wi-DG is a tiny adaptor that interfaces to the USB port of a miniDSP hardware unit and acts as a Wi-Fi to USB bridge. Supported miniDSP plugins transparently detect and communicate with the miniDSP via the Wi-DG, enabling control and configuration over the network. Normally, the computer running the appropriate miniDSP plugin is connected directly to the miniDSP hardware unit using a USB cable. With the Wi-DG, however, the computer connects using Wi-Fi in 2 possible modes of operations: Station mode or Access Point mode. Please check out the user manual for more details. The WI-DG also supports Amazon Alexa voice control via our free Alexa Skill as described in this application note. Yet another way to easily control your audio system! Last but not least, all below supported platform can be controlled by miniDSP's free IoS/Android platform for basic control of Preset/Master Volume and active source. Check out our application note for more details. WARNING: The WIDG is only compatilbe with miniDSP plugins. Unfortunately it can't be used with Dirac Live software for control. Also note that only ONE WIDG can be used in a system at a time. Using multiple unit can lead to some unknown configurations. Features 2.4GHz b/g/n Wifi Router (Access point/Station Mode) Ethernet/Wifi control of miniDSP platforms over plugin/apps Support for voice control via miniDSP's Amazon Alexa Skill What's in the box? 1 x WI-DG interface 1 x 1m microUSB cable 1 x USB power supply with US/UK/EU plugs (removed on 17May2021) Supported plugins (IP field & Self discovery) miniDSP 2x4HD (Available) DDRC-24 (Available) miniDSP 2x8/8x8/4x10/10x10 (Available) nanoDIGI 2x8 (Available) C-DSP 6x8 (Available) C-DSP 8x12 (Available) miniSHARC series (Available) nanoSHARC series (Available) OpenDRC series (Available) DDRC-22 series (Future) DDRC-88A/D (Available) nanoAVR HD/HDA (Available) SHD series (Available) Supported platforms for Alexa voice control SHD (Available) 2x4HD (Available) DDRC-24 (Available) miniDSP 2x8/8x8/4x10/10x10 (Available) nanoDIGI 2x8 (Available) C-DSP 6x8 (Available) C-DSP 8x12 (Available) miniSharc series (Available) nanoSHARC (Available) OpenDRC series (Available) DDRC-22 series (Available) DDRC-88A/D (Available) nanoAVR HD/HDA (Available)
miniDSP Flex Eight 2x8
TheFlex Eightis the latest member of the miniDSP Flex family of advanced audio processors. We’ve taken advantage of our flexible hardware architecture to cram a full eight channels of DSP and a world-class analog output stage into the compact enclosure.With multiple digital inputs and eight unbalanced analog output channels, the miniDSP Flex Eightcan implement active speakers up to stereo four-way. Flexible 2x8 signal routing supports many other configurations such as two-way, three-way and multiple subwoofers. As always, a full suite of miniDSP’s tried and proven audio processing functionality is included: parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel.TheFlex Eighthas USB audio, S/PDIF (RCA and optical) and Bluetooth (LDAC/aptX) stereo digital inputs. An OLED front panel display and volume control/encoder knob provides easy control. Last but not least, it is easily software-upgradable with Stereo Dirac Live® for full range correction (20~20kHz), the world’s premiere room correction system. The miniDSPFlex Eightis the perfect solution for a modern compact integrated active speaker/subwoofer system. You just need to let your creativity do the rest!STOCK STATUS (18/10/2022):The Flex Eight is unfortunately out of stock at this time. We're expecting a new shipment by end of November. All orders will be backlogged and shipping in chronological order. Thanks for your patience! Hardware FeaturesProcessor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Stereo Full Range Room Correction (20~20kHz) Audiophile performance with very low noise floor and distortion (SNR @128dB(A), THD+N @ -111dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth) Outputs: Unbalanced (RCA) White/Black OLED front panel controller with IR control Control and configuration by miniDSP Device Console (DC) Weißes/schwarzes OLED-Bedienfeld auf der Vorderseite mit IR-Steuerung Steuerung und Konfiguration über miniDSP-Gerätekonsole (DC)

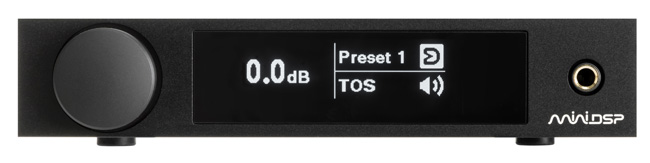

miniDSP SHD Studio
miniDSP is proud to introduce the SHD Studio (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. While physically the SHD Studio is the “baby brother” of the full-featured SHD — accomplished by removing the analog I/O connectors and circuitry — internally it packs the same powerful audio processing capabilities. First and foremost, the SHD is a stereo Dirac Live room correction processor. The SHD fits right into any digital processing path, with AES/EBU, SPDIF, optical and USB audio inputs, and four output channels on both SPDIF and AES/EBU. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to-use calibration tool. We have also included network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. The SHD Studio includes a suite of our powerful but user-friendly DSP audio tuning software - ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2x4 matrix mixer. Applications range from integrating a single subwoofer to a two-way active speaker. Outputs 3 and 4 also drive the headphone jack on the front panel for a uniquely flexible digital processing solution. Features Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP Powered by Dirac Live® 3.x Digital Room Correction Quad core ARM processor for network audio streaming - Preloaded with Volumio Inputs: Stereo digital channels (USB Audio/AES-EBU/SPDIF/Optical) Outputs: Dual Stereo digital channels (2 x stereo SPDIF RCA outputs and 2 x stereo AES-EBU Balanced XLR) / Headphone amplifier USB audio recording feature (4xCH processed output via USB audio to record inputs) White/Black OLED front panel controller What's in the box? SHD Studio processor with embedded Dirac Live 2.0 license USB Wifi 2.4GHz adaptor Dirac Live v3.x license for full range correction (20Hz~20kHz) IR remote v2 External universal power supply NOTE: The Dirac Live Calibration Tools for miniDSP software is only compatible with the UMIK-1/UMIK-2 microphone for measurement.

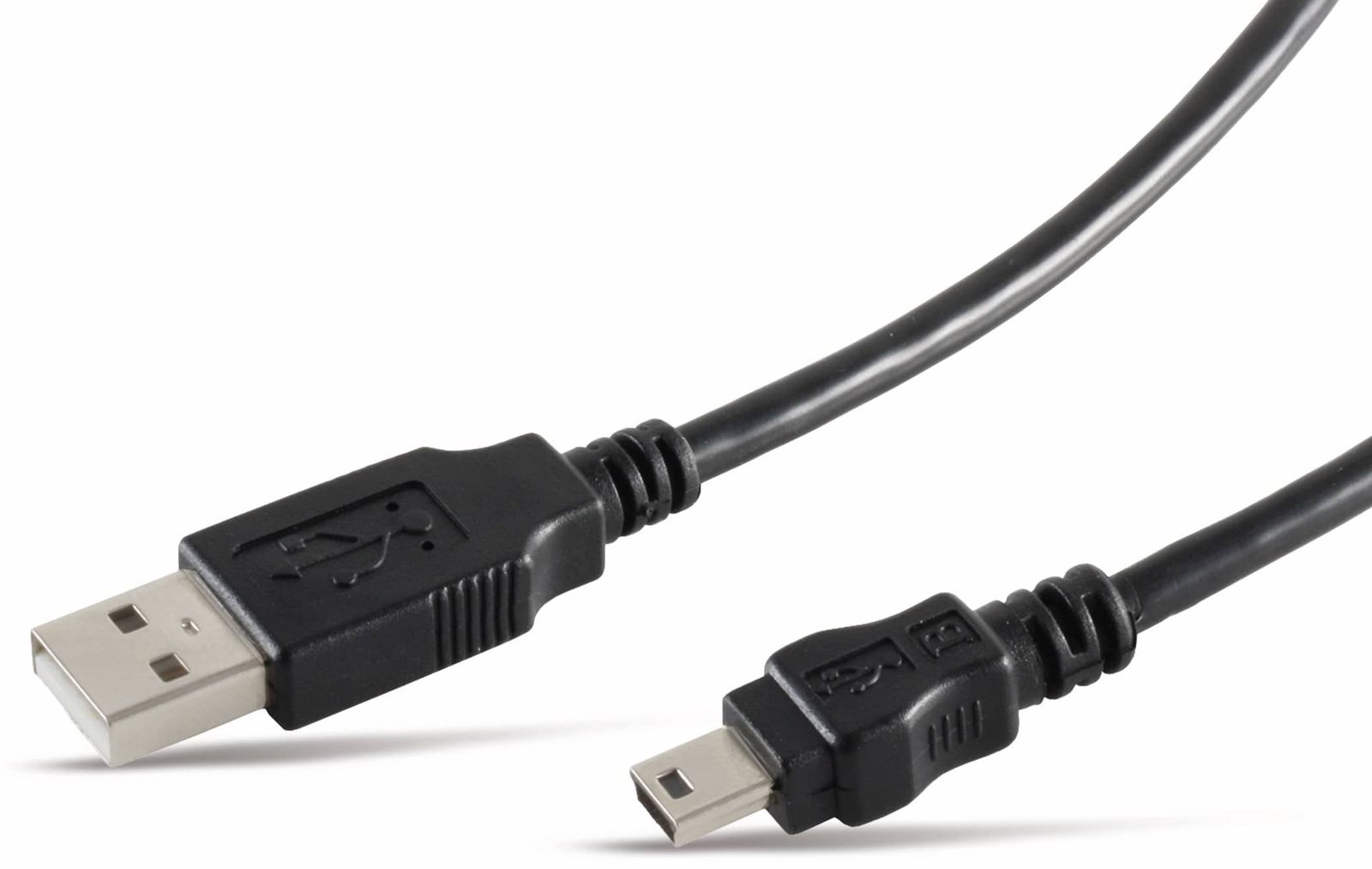

Mini-USB Cable, USB-A/USB-B Mini 5-pin, 3m
Mini-USB Cable, USB-A/USB-B Mini 5-pin, 3 m Technical Data: USB-A to USB-B Mini 4-pin USB-Standard: USB 2.0 Data rate: 480 MBit/s Shielding: woven and foil Plug Material: iron Contact surface: nickel color: black Length: 3m

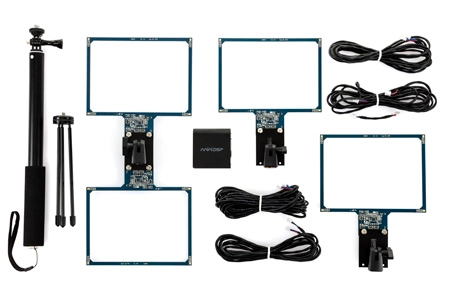

miniDSP UMIK-X-2
The UMIK-X consists of one to four UMA4 microphone modules and a USB-A2B interface to interface the modules to the computer. Between four and 16 microphones can therefore be connected. UMA4 modules are daisy-chained to each other using a single twisted-pair cable carrying Analog Devices A2B protocol for multichannel audio at 24-bit/44.1 or 48 kHz. A single cable for audio + power for up to 40m distance! Applications include environmental monitoring and distributed soundfield measurement. The distributed omnidirectional microphones in the array allow quick measurement and analysis in applications such as room equalization and distributed subwoofer tuning. The UMIK-X is a UAC-2 compliant interface comes with its own ASIO driver and is driverless for macOS and Linux. For Windows, an ASIO driver is provided. Last but not least, the UMIK-X is compatible with the new multi-channel measurement capability of Room EQ Wizard (v5.20 and up). While this is normally a paid upgrade (100USD), a license for the upgrade is already included with your purchase. The UMIK-X is now available for sale in 2 complete, ready to go packages to get up and running in no time! The basic package supports up to 8 x Channel recording (2 x UMA4 arrays) and 16 channel recording (4 x UMA4 arrays). Features Multichannel - Multipoint Microphone measurement system Up to 4 x UMA4 MEMS microphone arrays can be daisy chained Low Distortion, High AOP, High SNR Knowles MEMS (SPH0655LM4H-1) 24bit 44.1/48kHz recording, ASIO drivers USB to A2B® module for multichannel audio streaming over long cables (up to 40m) Includes REW license for Multichannel measurement (100USD worth) What's in the box? 1 x USB to A2B interface for multichannel audio streaming / Multichannel USB audio streaming 2 or 4 x UMA4 Microphone Modules based on option selected above 1 x License Code for Multichannel Audio Measurement with REW (100 USD worth) 1 x shielded USB cable (2m) A2B Twisted pair cable for microphone module daisy chainning: 2 x UMA4 pacackage (1 x 5m, 1 x 3m , 1 x 5cm), 4 x UMA4 package (1 x 5m, 3 x 3m , 2x 5cm) 2 or 4 (depending on package selected) Microphone monoPods / Extendable up to 1.2m height. (OPTIONAL) Linking brackets to link 2 x microphone arrays together

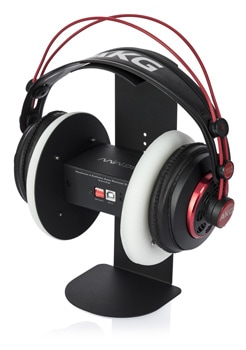

miniDSP EARS
Introducing "EARS", the Earphone Audio Response System. miniDSP EARS brings headphone measurement capability to "the masses" - it's just an extremely affordable measurement rig for headphones and IEMs that we've built using the same technology as our popular UMIK-1 calibrated measurement microphone. Alternatively one could use EARS as a binaural microphone with USB audio streaming. Each pair of EARS has two microphone capsules mounted in a minimal "dummy head". Measurement output is via the driverless USB connection. The EARS are powered from the USB so there is no need for an external power supply. To measure headphones, just mount your headphones on the rig and run a measurement sweep using your headphone amp and favorite measurement program (e.g. Room EQ Wizard). The supplied calibration file corrects for the response of the microphone capsule and the ear. The miniDSP EARS is the perfect tool for creating EQ filters for the miniDSP HA-DSP headphone amplifier or for any other headphone system with EQ capability. NOTE: It's written on our user manual (but we do know that not everybody read them..;-) Please note that EARS is not an industry-standard measurement head. Even expensive (i.e. tens of thousands of dollars) test jigs can produce measurements that are different to each other depending on the type of ear simulator. Our goal with the EARS is to produce something that is affordable and fun to use. Features Affordable Headphone test jig Plug&play USB audio streaming for Win/Mac/Linux Step by step application notes on how to Equalize your headphone using EARS What's in the box? 1 x EARS test jig 1 x shielded USB cable (1.5m)

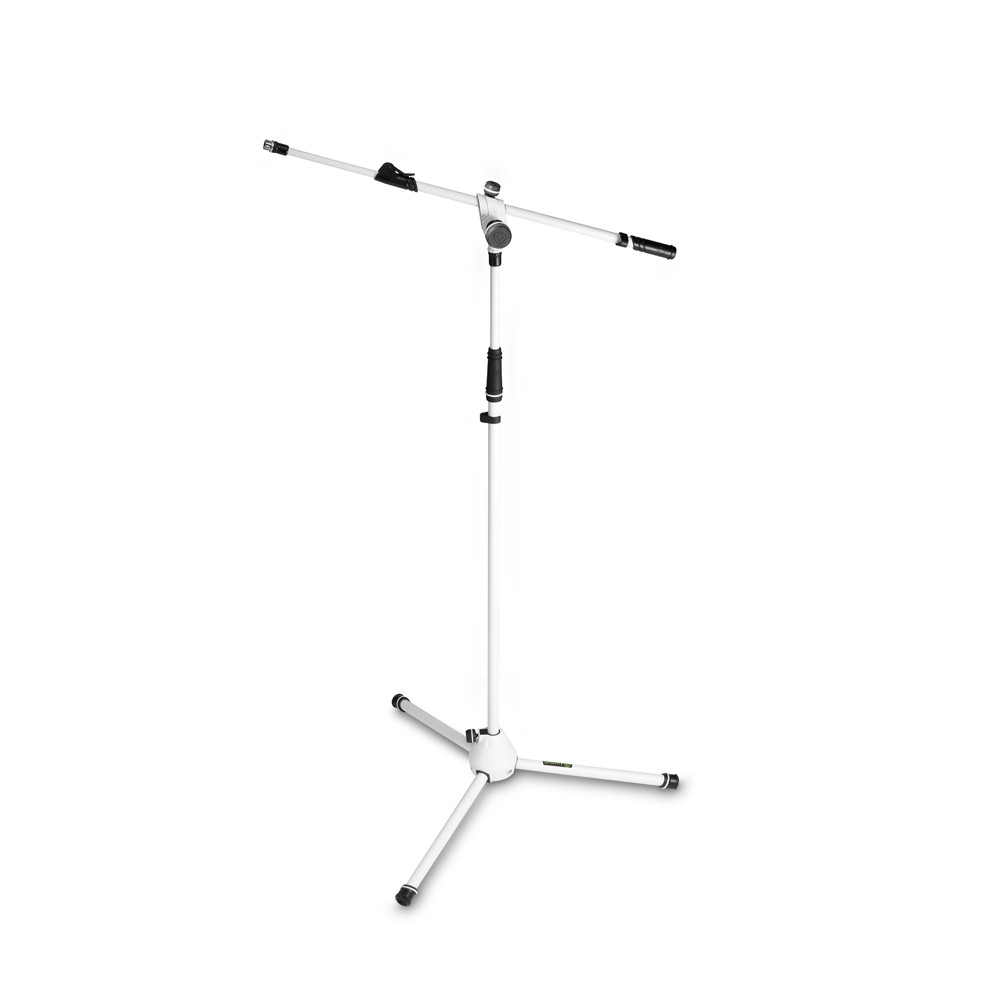

Mikrofonstativ Weiss
Der MS 4322 ist ein Premium-Mikrofonständer mit besonders kräftiger Rohrstärke, Pulverbeschichtung und 169 cm maximaler Höhe. Der hochstabile Dreibeiner besitzt eine Glocke aus Zinkdruckguss und großzügig dimensionierte, passgenaue Klappfüße aus Stahl mit kräftigen Gummikappen zum Schutz der Stellfläche. Die Position und Neigung des Ausziehgalgens lassen sich an der Aufhängung mit 2 Spannschrauben exakt justieren. Er besitzt eine Schnellverriegelung und maximale Länge von 88 cm zur flexiblen Postionierung des Mikrofons. Der Griff der leichtgängigen, haltbaren Höhenverstellung des MS 4322 und die Schraubenknöpfe sind aus hochbeständigem ABS mit einem rutschfesten Soft-Touch-Überzug aus Thermoplastik zur komfortablen Bedienung. Dazu ermöglicht die speziell designte Gegenmutter eine rasche und feste Montage des Mikrofonhalters ohne Werkzeuge. Der MS 4322 wird mit einem zusätzlichen Satz schwarzer Kodierringe geliefert, weitere Ringe sind zur deutlichen Personalisierung in vielen Farben lieferbar.

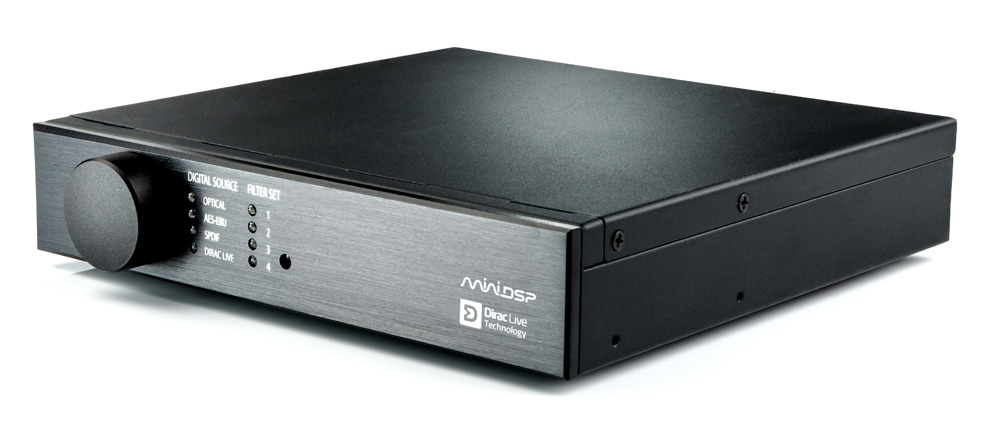

miniDSP DDRC-22D
The Dirac Series of 24/96 high-resolution audio processors with Dirac Live® are designed to fit into an existing system with minimum disruption, yet with the flexibility to allow for new and more cost-effective system configurations. The DDRC-22D interfaces via digital signals — AES-EBU on balanced XLR; coax/SPDIF on RCA, and optical/TOSLINK. The digital input source can be selected via the front panel or remote control, and all digital outputs are simultaneously active. The DDRC-22D can be simply inserted into the digital signal path of an existing system, or the on-board volume control used to simplify system configuration. Examples: Between one or more digital sources and a DAC Between one or more digital sources and active loudspeakers with digital input Anywhere in the digital signal chain Features Processor: 32-bit floating-point Analog Devices SHARC DSP Dirac V3.0 Compatible Input/output resolution: 24 bits Maximum input sample rate: 216 kHz Internal operating sample rate: 96 kHz Output sample rate: 96 kHz Supports for Dirac Live 2.0 What's in the box? Dirac Series 24/96 high-resolution audio processor — DDRC-22D Universal 5 VDC power supply with interchangeable plugs (UK/EU/US/AU) License for Dirac Live Calibration Tool Stereo for miniDSP (Win/Mac) USB cables for Dirac Series audio processor

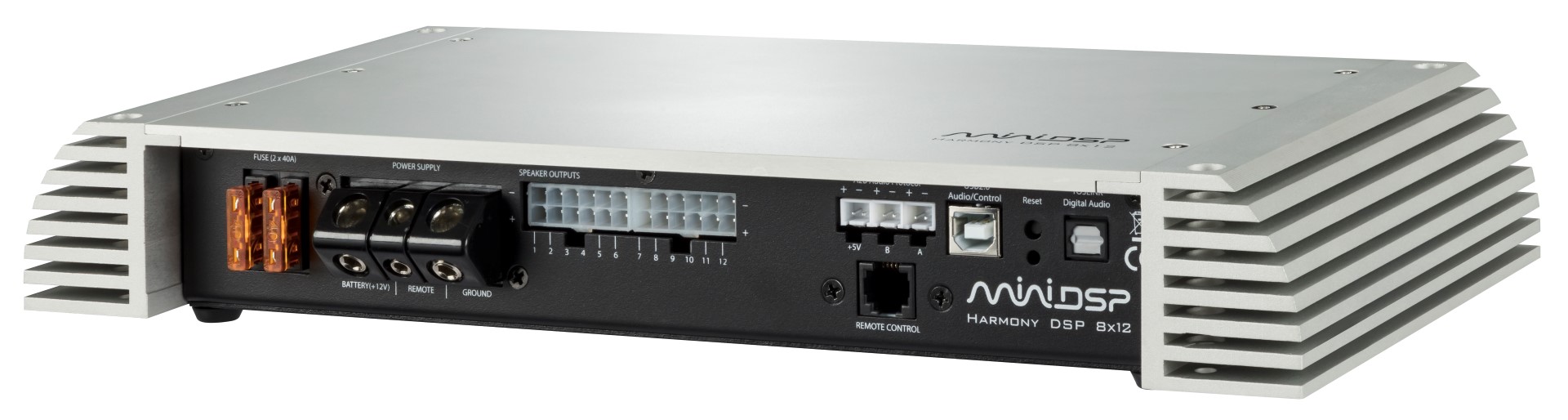

miniDSP Harmony 8x12
miniDSP is proud to introduce the latest addition to its line of innovative car audio processors. The all-digital Harmony DSP 8x12 integrated DSP/amplifier features six-channels digital audio input via USB, stereo digital optical input (TOSLINK), Dirac Live® acoustic correction and 12 output channels. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, and a wired remote with OLED display for dash or console. Flexible output configurations cater to a wide variety of system configurations: each output can be a 40 Wrms power amplifier or a line-level output for driving external amplifiers. In addition, each pair of outputs can be configured in parallel BTL mode for 80 W output into 2 Ω loads. In addition to Dirac Live, the Harmony DSP 8x12 includes miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete processing configurations are stored in flash memory for recall with a wired or infrared remote. Features 400MHz 32bit Sharc Floating point processor Dirac Live technology helps tune your cabin environment All Digital amplifier USB Audio (6ch), Toslink(2ch), A2B (future) digital inputs 12 channel flexible amplifier for Mono/Bridged mode and Line OUT(driving external amps) Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix Windows/Mac compatible GUI Remote control or preset/master & sub volume control What's in the box? 1 x Harmony 8x12 Car Amplifier 1 x Dirac Live license 2 x Speaker wiring harness 1 x 1m USB cable 1 x Control GUI plugin provided automatically under UserDownloads section on purchase 1 x 5m remote cable + OLED Remote control module
miniDSP C-DSP 8x12 v2
8-IN 12-OUT ADVANCED IN-CAR AUDIO PROCESSOR The C-DSP 8x12 is miniDSP’s next-generation processor for high-end mobile/car audio. The powerful 400 MHz SHARC floating-point processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. With a wealth of inputs and outputs in a compact, rugged enclosure, the C-DSP 8x12 is suitable for installations from simple stereo, through surround systems with subwoofer integration, up to advanced multichannel active systems. New to this upgraded version are the onboard 32bit AKM converters that provide low noise and improved dynamic range to perfect your miniDSP experience. The driverless USB interface is used to configure miniDSP’s powerful but easy-to-use audio processing: parametric EQ on all inputs and outputs, compressors and adjustable time delay on all outputs, crossovers up to 48 dB/octave, and an advanced matrix mixer. Four complete processing configurations are stored in flash memory for instant recall with a wired or infrared remote. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting, and a microSD card slot for offline configuration and firmware updates. Features 400MHz 32bit Sharc Floating point processor, Up to 192kHz processing 32bit DAC/ADC chipsets THD+N 0.0007%, 115dB SNR Digital and analog inputs (Low/High levels), 12 analog outputs Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix Fully differential balanced inputs Optional Dirac live upgrade Windows/Mac compatible GUI Remote control or preset/master & sub volume control What's in the box? 1 x C-DSP 8x12 DSP processor 1 x 1m USB cable 1 x Control GUI plugin provided automatically under UserDownloads section on purchase 1 x 5m remote cable + OLED Remote control module 1 x C-DSP 8x12 plugin license

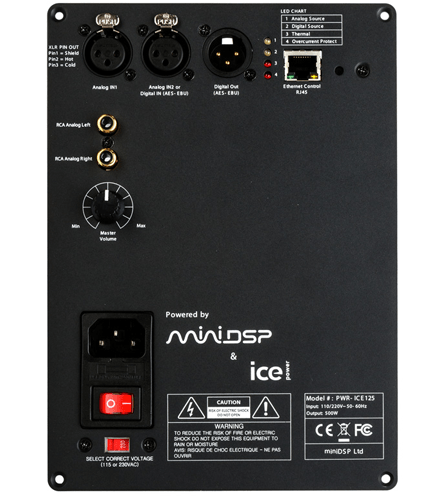

PWR-ICE 125
Introducing the PWR-ICE125, a DSP powered plate amplifier module for active 2 way loudspeakers or mono subwoofers. Result of the collaborative effort of two innovative technology companies, the PWR-ICEs series key features are: On the processing side is miniDSP's innovative software & firmware allowing a Plug & Play real time control of the onboard DSP over Ethernet/Wifi networks. Using our Zero Conf technology, multiple modules are automatically discovered and controlled from a single User interface in real time. The onboard Digital Signal Processors (DSP) provide real time all the processing a speaker designers will expect to excel at his crossover design task. These include FIR and IIR filters (biquad input), Parametric Equalizers (PEQ), level, crossovers, comp/limiter, delay and more. The Graphical User Interface (GUI) platform is supported on both Mac and Windows environment. On the power amplifier side, the ICEpower® modules are complete AC plug-to-speaker amplification audio solutions offering flexible two-channel or bridgeable speaker drive. Their compact size, audiophile audio quality and high power output make them perfect for high-performing audio products. The amplifier is rated for up to 2x125W @ 4Ω or 1 x 450W @ 4Ω. As for audio connectivity, the PWR-ICE125 is fitted with both analog balanced (XLR) & unbalanced inputs (RCA) to provide maximum compatibility. A digital input (AES-EBU) saves on the A-D conversion for maximum performance while a Digital output (AES-EBU) allows multiple plate amplifiers to be linked to each other. Features DSP Powered plate amplifier FIR + IIR filter options / Please consult manual for details. Powered by ICEpower® technology for 2x125W @ 4Ω or 1 x 450W @ 4Ω Windows & Mac IP control Analog & Digital input Multi-unit control via Ethernet What's in the box? 1 x PWR-ICE125 amplifier module 1 x CAT5 patch cable 1 x IEC power cord 4 x black wood screws for mounting 1 x Speaker wire harness to connect amplifier to speaker (60cm long) Access to UserDownloads section for free PWR-ICE IIR/FIR plugin.

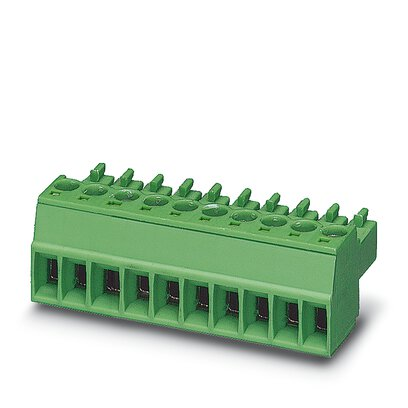

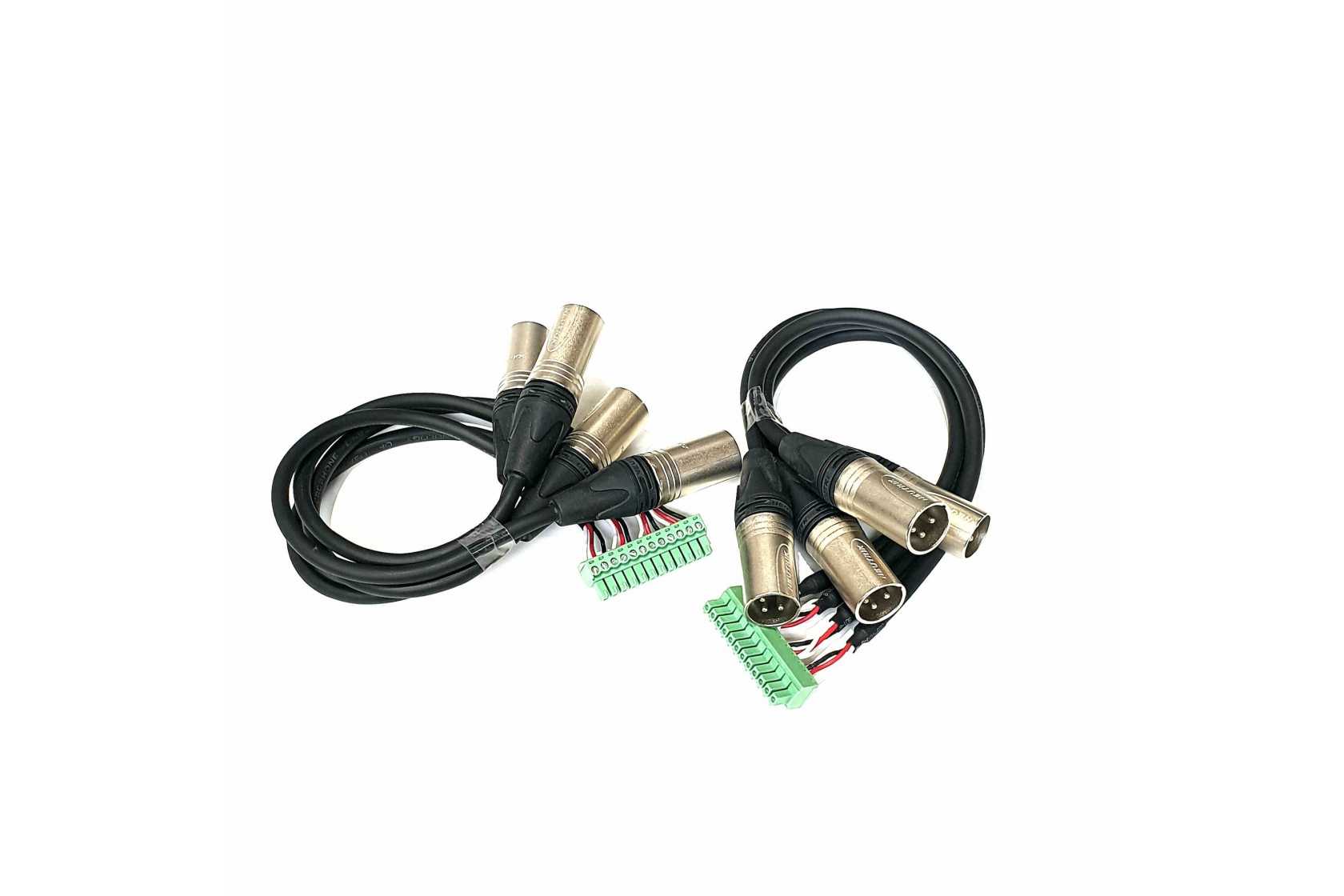

Phoenix to XLR male set
Male XLR to terminal strip cable pre-assembled for use with the DDRC-88. The price refers to 2 strips with 4 XLR connections each. The cables are approx. 40cm long.

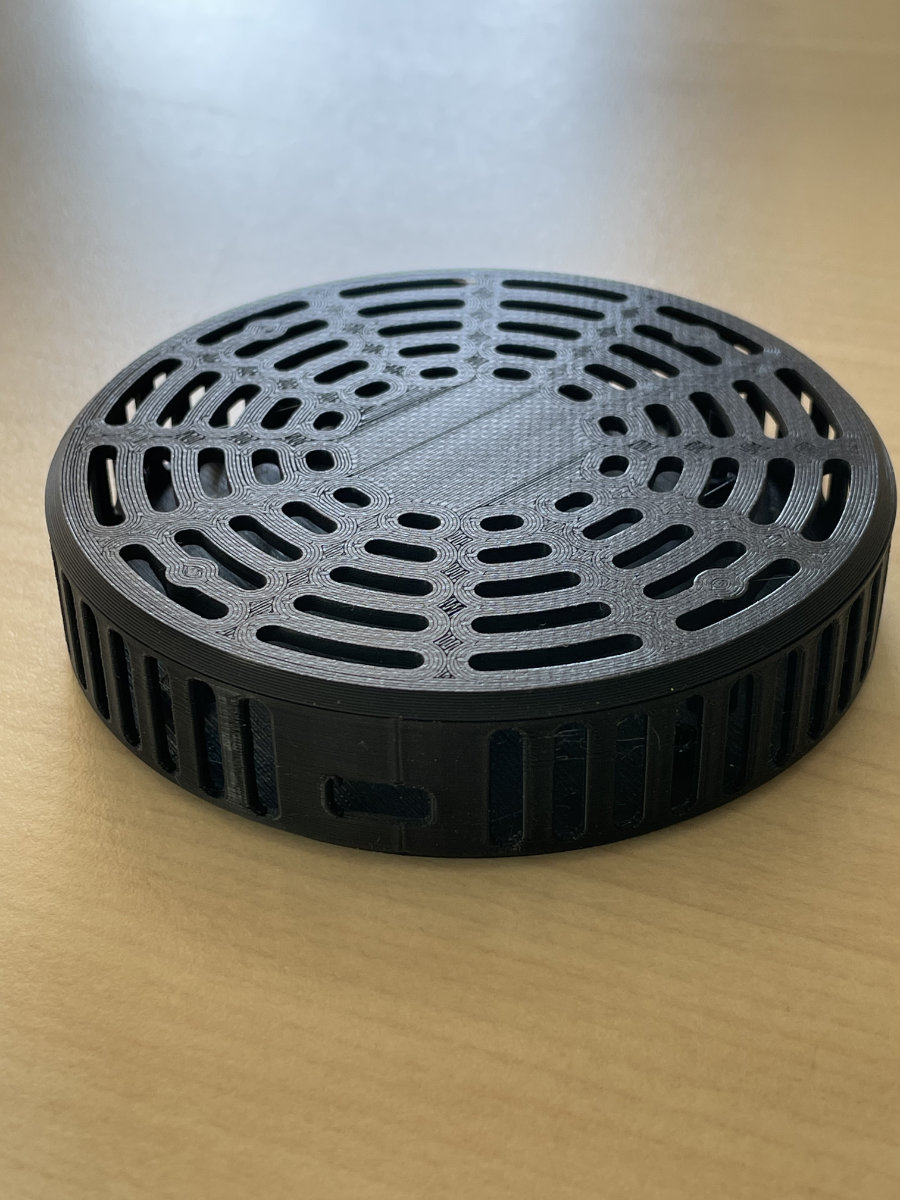

variant Gehäuse für MiniDSP UMA-8
variant case for MiniDSP UMA-8Gehäuse für Uma-8 von MiniDSP

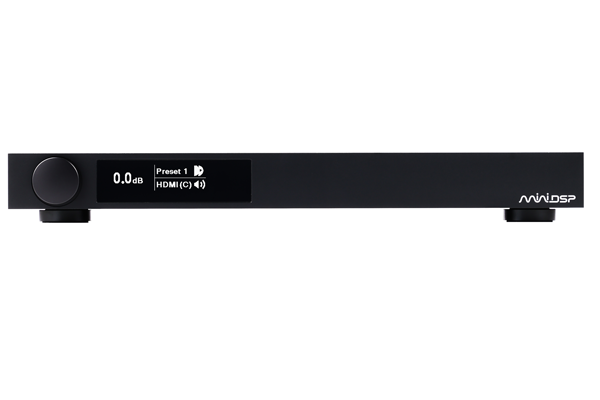

miniDSP Flex HTx
miniDSP Flex HTxThe Flex HTx is the bigger brother of the Flex HT and targets the need for a multi-channel processor with HDMI ARC/eARC capabilities and excellent analog and USB audio capabilities. In a single rack unit, we have included all possible connections we could find.The eight-channel audio input is via analog audio (RCA and TRS), eARC linear PCM via HDMI1, or USB Audio. An additional digital stereo input is supported via SPDIF and TOSLINK optical. Internally, we have provided a complete suite of flexible miniDSP routing and audio processing functions: bass management, parametric EQ, crossovers, advanced biquad programming, and delay/gain adjustments. Furthermore, the miniDSP Flex HTx can be upgraded via software with Dirac Live®, the world's leading room correction system.The Flex HTx focuses miniDSP on affordable high-performance audio and features class-leading noise and distortion values. An OLED display on the front and a volume control/encoder knob allow for easy control.The miniDSP Flex HTx is the perfect solution for a modern compact processor for home theater and multichannel sound.NOTE: Please note that the Flex HTx does not support bitstream decoding (e.g., Dolby/DTS). The audio source must be capable of outputting linear PCM (LPCM) to support multichannel sound over HDMI. Hardware FeaturesProcessor: 32-bit floating point 400MHz Analog Devices SHARC DSPMulticore USB Audio Processor (XMOS)HDMI EARC/ARC interface for multichannel sound in PCM. Note that Flex HTx does not support the bitstream format (Dolby/DTS encoded).Optional upgrade to Dirac Live® 3.x Digital Room Correction, Multichannel (8-channel) Full Bandwidth Room Correction (20~20kHz)Audiophile performance with very low noise floor and distortion (SNR @127dB(A), THD+N @ -120dB (0.0001%)Inputs: Stereo digital (SPDIF/Optical), Multichannel USB Audio Streaming (up to 7.1)Outputs: 8 audio channels duplicated on unbalanced (RCA)White/black OLED controller on the front with IR controlControl and configuration via miniDSP Device Console (DC)Rack Mounting with Removable Rack EARS
miniDSP Flex HT 8 Kanal DSP
miniDSP Flex HT 8 Channel DSPminiDSP Flex HT, 400 MHz Sharc DSP audio processor, 8-channel DAC, toolbox for subwoofer or multi-way speaker tuning, USB/HDMI ARC/EARC, optional WISA, optional Multichannel Dirac Live license for room correction.The Flex HT is miniDSP's response to our customers' requests for a pocket-sized multi-channel processor with HDMI ARC/eARC capabilities. Our team managed to pack full eight-channel DSP performance and a wide range of inputs and outputs into the incredibly compact enclosure.The eight-channel audio input is via eARC linear PCM over HDMI or USB audio. Additional stereo input is supported via SPDIF and TOSLINK optical. Internally, we have provided a full suite of miniDSP's flexible routing and audio processing functions: bass management, parametric EQ, crossovers, advanced biquad programming, and delay/gain adjustments. Additionally, the miniDSP Flex HT is software upgradeable with Dirac Live® full frequency, the world's leading room correction system.The eight-channel analog RCA outputs feature class-leading noise and distortion values. And last but not least, the Flex HT is the first product from miniDSP to offer WiSA capability (“Wireless Speaker and Audio Association”) as an optional feature (in the future). WiSA was specifically developed for low-latency multi-channel audio – a perfect complement to the Flex HT. The WiSA transmitter enables the lossless transmission of all eight output channels to WiSA-compatible speakers and subwoofers. Please note that the WiSA function will be a hardware option in future deliveries (expected Q1 2024) and is not included at this time.The miniDSP Flex HT is the perfect solution for a modern compact processor for home theater and multi-channel sound. The rest is up to your creativity!REMINDER: Please note that the Flex HT does not support bitstream decoding (e.g., Dolby/DTS). The audio source must be capable of outputting linear PCM (LPCM) for multichannel support over HDMI.

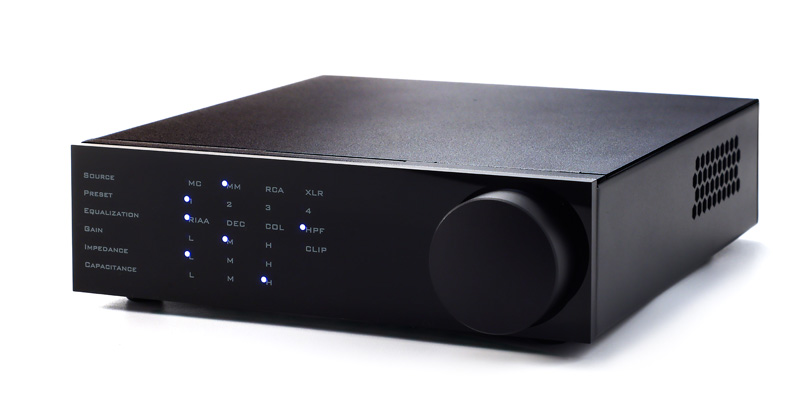

miniDSP ADept USB Connector
Audiophiler Analog-Digital-Wandler (A/D) Flexibler Phono-Vorverstärker mit digitaler Signalverarbeitung (DSP)SPDIF & TOSLINK für die computerlose Digitalisierung123 dB SNR / -117 dB THD+N maximale LeistungThe miniDSP ADept is a compact high-resolution A/D (analog-to-digital) convertor that accepts single-ended (RCA) or balanced (on XLR) audio signals. The digital output is available on SPDIF coaxial and TOSLINK optical connectors, and can also be recorded to a computer or mobile device via the USB-C connector. Adept combines low latency, high sample rate and extremely low noise floor performance to provide optimal digitization of your favorite analog audio content.The miniDSP ADept is also a phono preamp (with a turntable connected to the RCA inputs) with accurate phono equalization for moving magnet or moving coil cartridges. In addition to the standard RIAA phono equalization curves, we've used the power of DSP to provide additional curves that will be of interest to the keen collector of older vinyl. A range of input gain, resistance and capacitance values are provided to optimize for any cartridge and can easily be saved and recalled in your favorite preset.miniDSP once again innovates with audiophile performance in a package that doesn’t break the bank. FeaturesAudiophile Analog to Digital (A/D) converterFlexible Phono preamp powered by Digital Signal Processing (DSP)SPDIF&TOSLINK for computerles digitization123dB SNR / -117dB THD+N max performanceApplicationsConverting your analog audio sources to Digital (SPDIF/TOSLINK/USB)Audio measurements Adding a high quality ADC to your existing systemComputerless analog conversion for an all digital audio system. This device does NOT require a PC/Mac to convert your source to SPDIF/TOSLINK output. Digitizing Vinyl contentWhat's in the box?1 x ADept A/D converter1 x 1m long USB audio cable1 x Toslink audio cable1 x IR remote Technical Specifications Description USB & DSP Audio ProcessorXMOS Multicore processor, USB Asynchronous, UAC2 interface, Firmware upgradable ADC resolution/Sample rateESS ES9842 Pro - 32 bit/44.1~192kHz USB Audio supportUAC2 Audio - Custom ASIO driver (Windows) / Driverless on (Mac/Linux/Android/IoS) Digital Audio 1 x USB audio (PCM) on USB type C Output Connectivity1 x SPDIF on RCA connector, 1 x OPTICAL on Toslink connector Supported sample rates: 44.1 ~ 192 kHz Input/Output configuration2 x channel analog in (Unbalanced RCA or Balanced XLR), 2 x channel digital out Filtering Technology / PresetsIIR / Up to 4 presets Dimensions150x180x41 mm AccessoriesIR Remote for control of source/volume/preset/standby Power SupplyIncluded external switching PSU 12V/1.6A (US/UK/EU/AU plugs) Power Consumption6 W (idle) / 0.9 W (standby) Audio Specifications Input SourceMoving Coil (MC)/RCAMoving Magnet(MM)/RCALine-in/RCALine-in/XLRSelectable Phono Equalization mode (IIR+FIR)RIAA, IEC No.98 (500R-13.7) N/AN/ADecca 33.3, London M33 (500C-12)Columbia LP M33 (500C-16)Phono EQ Accuracy Within ± 0.1 dB (20 Hz – 20 kHz) (RIAA, Decca and Columbia)Optional High Pass Filter At 20 Hz with 24 dB/octave(Subsonic filter)Maximum analog input (before digital gain & RIAA EQ if applicable, at Low, Medium, High Gain)81mV, 29mV, 12mV220mV, 110mV, 68mVN/A, 2.2 V, 1.1 VN/A, 4.4 V, 2.2 VMaximum recommended cartridge output @1kHz, 5cm/sec (Low, Medium, High Gain)4.2mV, 1.5mV, 0.6mV13mV, 6.5mV, 4mVN/AN/ASelectable Input Impedance 50 Ω, 100 Ω, 1 kΩ33 kΩ, 50 kΩ, 100 kΩ33 kΩ, 50 kΩ, 100 kΩFixed at 200 kΩ(Low, Medium, High)Selectable Input Capacitance 1 nF, 3 nF, 5 nF50 pF, 100 pF, 500 pF50 pF, 100 pF, 500 pFFixed at 100 pF(Low, Medium, High)Frequency Response20 Hz – 20 kHz ± 0.2 dB20 Hz – 20 kHz ± 0.1 dB20 Hz – 20 kHz ± 0.05 dBSNR vs Low(L), Medium(M), High(H) gain settingWith RIAA EQWith RIAA EQ122 dB(A) at med gain123 dB(A) at med gain84 dB(A) ref @ 2mV (L)95 dB(A) ref @ 10mV (L)120 dB(A) at high gain122 dB(A) at high gain79 dB(A) ref @ 1mV (M)90 dB(A) ref @ 5 mV (M) 73 dB(A) ref @ 0.5mV (H)87 dB(A) ref @ 2.5 mV (H) THD+N vs Low(L), Medium(M), High(H) gain settingWith RIAA EQWith RIAA EQ-116 dB (0.00017 %) at med gain-117 dB (0.00015 %) at med gain-77 dB (0.014 %) ref @(L)-89 dB (0.0035 %)ref @(L)-115 dB (0.0002 %) at high gain-116 dB (0.00017 %) at high gain-71 dB (0.028 %) ref @(M)-83 dB (0.007 %) ref @(M) -65 dB (0.056 %) ref @(H)-80 dB (0.01 %) ref @ (H) Crosstalk-85 dB-100 dB-132 dB-138 dB

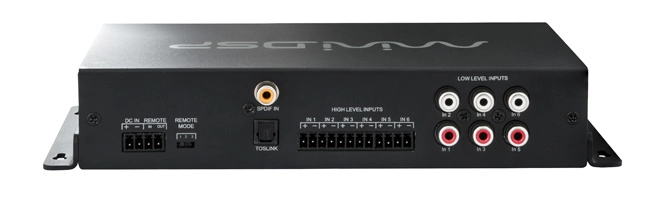

miniDSP C-DSP 8x12DL
8-IN 12-OUT ADVANCED IN-CAR AUDIO PROCESSORWITH DIRAC LIVE® ACOUSTIC CORRECTION miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment. Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs. On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration. Also included is miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete configurations are stored in flash memory for recall with a wired or infrared remote. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting and a microSD card slot for offline configuration. Features 400MHz 32bit Sharc Floating point processor Dirac Live technology helps tune your cabin environment 32bit DAC/ADC chipsets THD+N 0.0007%, 115dB SNR Digital and analog inputs (Low/High levels), 12 analog outputs Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix Fully differential balanced inputs Windows/Mac compatible GUI Remote control or preset/master & sub volume control What's in the box? 1 x C-DSP 8x12 DSP processor 1 x 1m USB cable 1 x Control GUI plugin provided automatically under UserDownloads section on purchase 1 x 5m remote cable + OLED Remote control module 1 x C-DSP 8x12 plugin license 1 x Dirac Live License

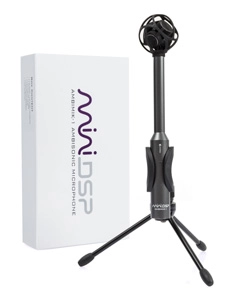

miniDSP ambiMIK
Introducing ambiMIK-1, an affordable First Order Ambisonic (FOA) microphone with embedded preamp, Analog to Digital converters (ADC) and USB processor. This compact solution enables high sample rates (up to 32bit/192kHz) in a portable package. With applications ranging from VR/AR & music recording, the ambiMIK-1 doesn’t require any bulky external preamp or XLR cables. A simple USB cable to your tablet/laptop and you’re ready to go! With its 4 low noise 14mm capsules, its slim aluminum body and nylon protective frame, the ambiMIK-1 package was engineered for durability and optimal performance without breaking the bank. Last but not least, miniDSP partnered with Dirac Research for the design of a VST plugin specifically calibrated for the ambiMIK-1 with over 1200 measurements. The controls include Yaw/Pitch/Roll/Output gain and Output Format (B format or Binaural). Features First Order Ambisonic Microphone Multichannel USB audio 32bit 44.1~192kHz recording, ASIO drivers Low noise capsules Binaural VST/AU plugin powered by Dirac Research A-B Conversion (Ambix Output) What's in the box? 1 x ambiMIK-1 microphone 1 x License for Dirac Research Ambisonic VST/AU plugin - Customized for ambiMIK-1 1 x shielded USB cable (2m) 1 x mini Tripod 1 x wind screen

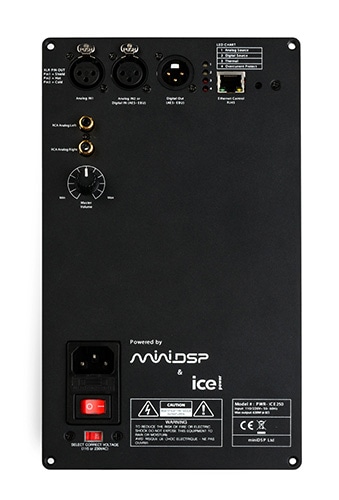

PWR-ICE250
Introducing the PWR-ICE250, a DSP powered plate amplifier module for active 2 way loudspeakers or mono subwoofers. Result of the collaborative effort of two innovative technology companies, the PWR-ICE250 core features include: On the processing side is miniDSP's innovative software & firmware allowing a Plug & Play real time control of the onboard DSP over Ethernet/Wifi networks. Using our Zero Conf technology, multiple modules are automatically discovered and controlled from a single User interface in real time. The platform is supported under Mac and Windows environment.The onboard Digital Signal Processors (DSP) provide real time all the processing a speaker designers will expect to excel at his crossover design task. These include FIR + IIR filters, Parametric Equalizers (PEQ), Level, crossovers, comp/limiter, delay and more. The Graphical User Interface (GUI) platform is supported on both Mac and Windows environment. On the power amplifier side, the ICEpower® 250ASX2 modules are complete AC plug-to-speaker amplification audio solutions offering flexible two-channel or bridgeable speaker drive. Their compact size, audiophile audio quality and high power output make them perfect for high-performing audio products. The amplifier is rated for up to 2x250W @ 4Ω or 1 x 500W @ 8Ω As for audio connectivity, the PWR-ICE250 is fitted with both analog balanced (XLR) & unbalanced inputs (RCA) to provide maximum compatibility. A digital input (AES-EBU/SPDIF) saves on the A-D conversion for maximum performance while a Digital output (AES-EBU/SPDIF) allows multiple plate amplifiers to be linked to each other. Features DSP Powered plate amplifier with FIR + IIR filters Powered by ICEpower® technology for 2x250W @ 4Ω or 1 x 500W @ 8Ω Windows & Mac compatible, IP control over Ethernet/Wifi Analog & Digital input Multi-unit control via Ethernet Perfect fit for 2way active speakers or Subwoofer plate amplifier What's in the box? 1 x PWR-ICE250 amplifier module 1 x CAT5 patch cable 1 x IEC power cord 4 x black wood screws for mounting 1 x Speaker wire harness to connect amplifier to speaker (60cm long) Access to UserDownloads section for PWR-ICE FIR/IIR plugins

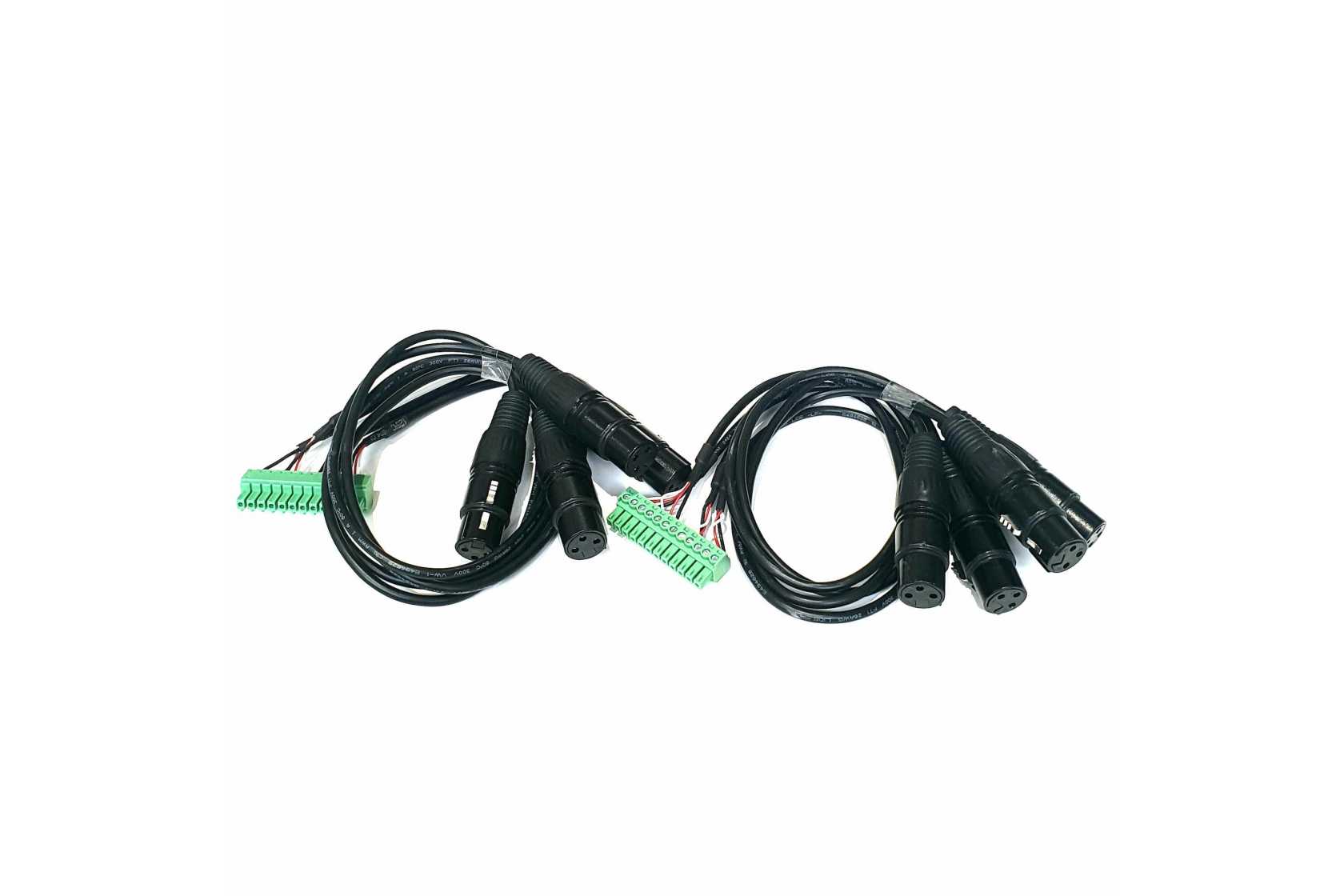

Phoenix to XLR females set
Female XLR to terminal strip cable pre-assembled for use with the DDRC-88. The price refers to 2 strips with 4 XLR connectors each. The cables are approx. 40cm long.
