miniDSP UMA-16 v2 Mic Array

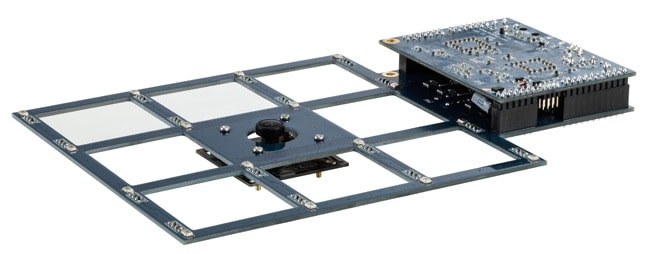

The UMA-16 is a high-performance yet low cost 16 channel USB microphone array with plug&play USB audio connectivity. With its onboard SHARC+XMOS controller board, the UMA-16 is the perfect fit for development of beamforming algorithms or DIY acoustic camera. Its system architecture consists of two core elements:

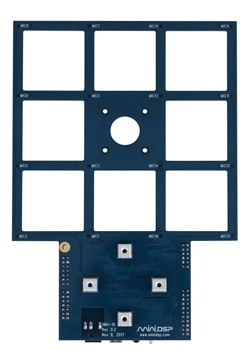

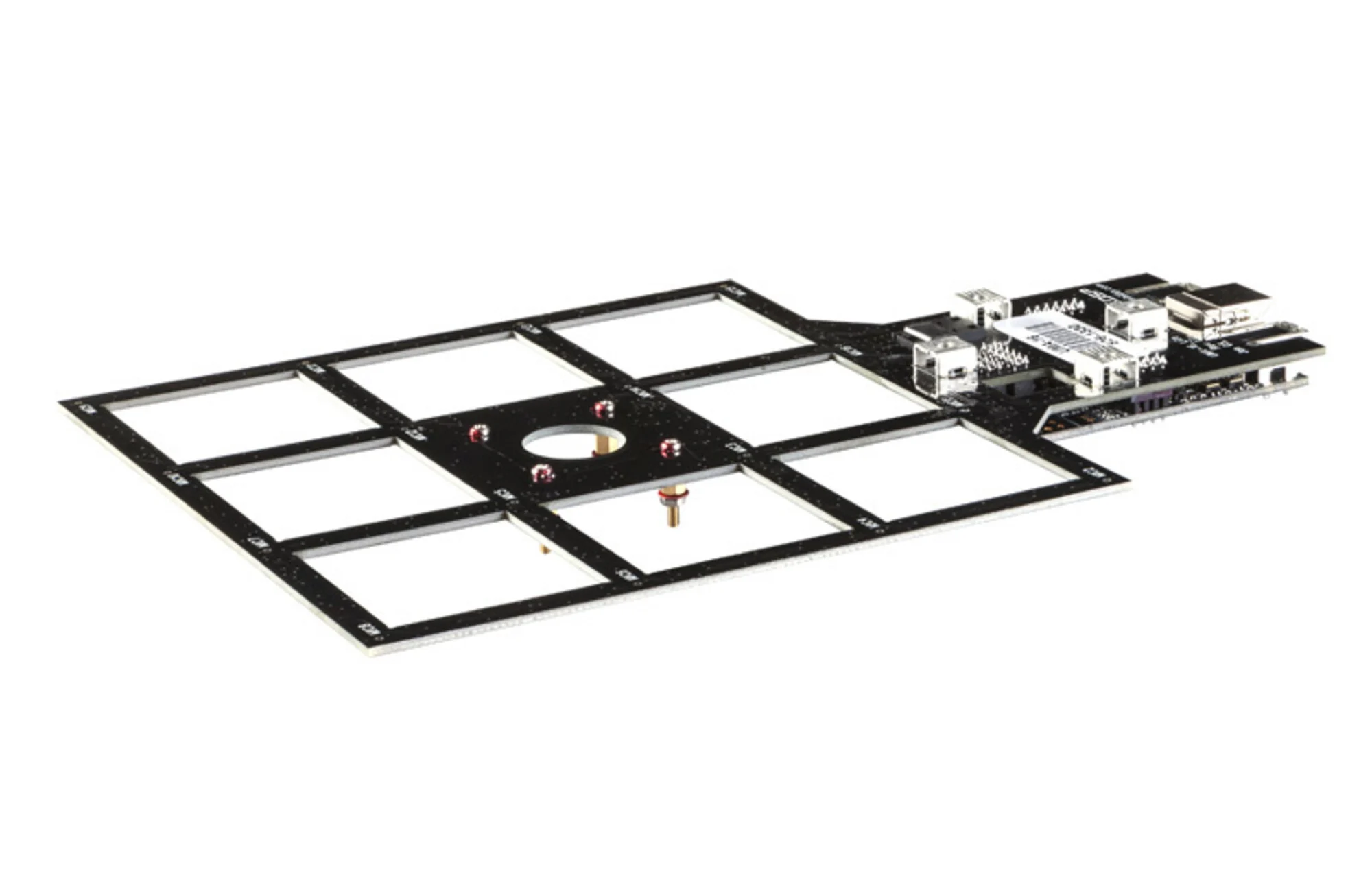

- The microphone array PCB has 16 x SPH1668LM4H MEMS Knowles laid out in a Uniform Rectangular Array (URA). A center hole fits an optional USB camera for applications such as an acoustic camera. Being a simple 2layer PCN, one can easily customize his own array layout by following our schematics.

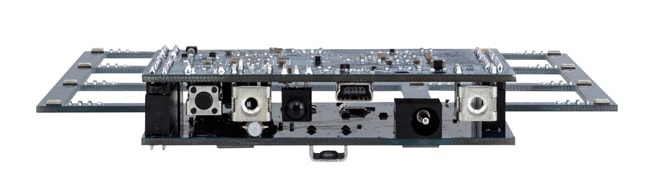

- At the helm of the UMA-16 operation is the nanoSharc kit. A 400MHz SHARC ADSP21489 + 500MHz multicore CPU providing substantial processing power for high SNR PDM to PCM conversion and multichannel low latency USB audio.
The UMA-16 can also be used as a low cost USB to PDM mems board to acquire and convert audio for 3rd party MEMS.
With the UMA-16, miniDSP makes high channel count microphone array processing very affordable and hopes to further technological advances for beamforming technology.
Features
- Multichannel USB microphone array for voice command
- 16 channels of RAW audio for development of custom beamforming algorithms
- High quality MEMS from Knowles SPH1668LM4H
- USB to PDM conversion for up to 16 x PDM MEMS microphones

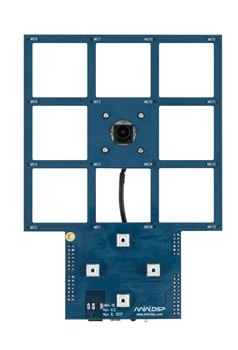

- Center Hole for USB camera (Not provided)
- Sample Matlab code to get started
What's in the box?
- 1 x UMA-16 USB microphone array interface
- 1 x 1.5m USB miniUSB cable
- 1 x 12V power supply with EU/UK/US plugs
- Access to the UserDownloads section for ASIO drivers/Firmware updates once the product purchased
