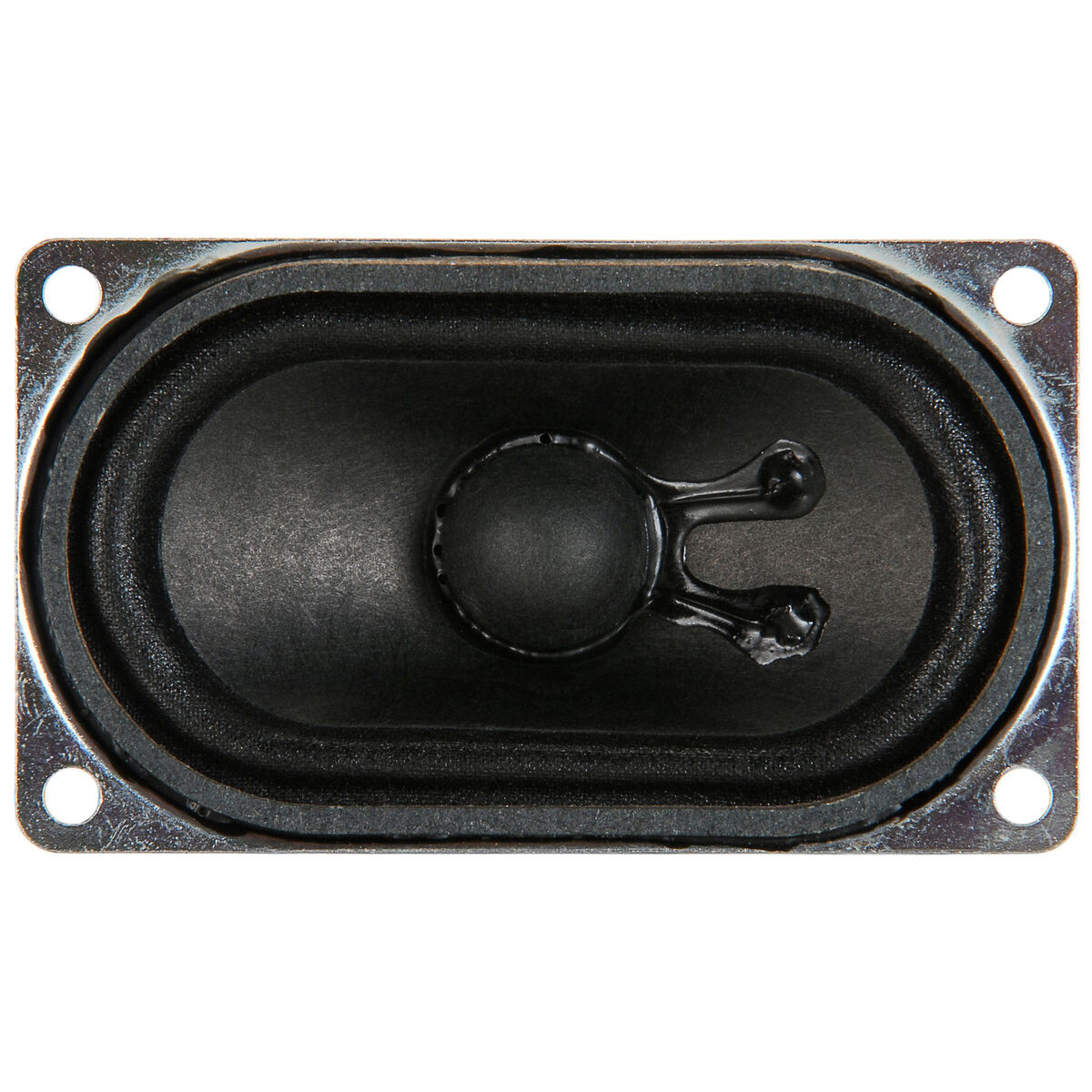

Dayton Audio CE Series CE70-40P-8 1-5/8" x 2-3/4" Full Range Driver
Dayton Audio’s CE70-40P-8 is an economical small full-range driver that features a narrow racetrack shape, a shielded ceramic magnet motor, a paper cone, a front gasket, and a steel frame. 8 ohm impedance.
Key Features
- Paper cone with fabric roll surround for high efficiency
- Rugged stamped steel closed back frame for reduced driver interaction in shared enclosures
- Shielded ceramic magnet motor
Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.
Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8”) to 90 mm (3-1/2”) in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.
The CE70-40P-8 features a ‘racetrack’ design that maximizes cone area for high output while fitting into narrow spaces. Its high-quality design features a paper cone, coated fabric surround, textile spider, shielded ceramic motor, and a rectangular steel frame with mounting lobes for conventional mounting.
| Artikel-Nr.: | 285-121 |
|---|---|
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 6,6 Ohm |
| EAN: | 848791000393 |
| Eff. Membranfläche (Sd): | 13,25cm² |
| Effektive Bewegte Masse (Mms): | 82 |
| Einbautiefe: | 35,1 mm |
| Einbauöffnung: | 35,8 x 65,5 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 992 |
| Frequenzbereich: | 419Hz |
| Gesamtgüte (Qts): | 276 |
| Größe: | 1 x 2 " |
| Impedanz (Z): | 8 Ohm |
| Kraftfaktor (BL): | 1,2T·m |
| Lineare Auslenkung (Xmax): | 0,5mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 382 |
| Membranmaterial: | Papier |
| Modell: | CE70-40P-8 |
| Nachgiebigkeit (Cms): | 0,18mm/N |
| Nennbelastbarkeit: | 3 Watt |
| Resonanzfrequenz (fs): | 419Hz |
| Schwingspulendurchmesser: | 13 mm |
| Schwingspulenind. (Le): | 0,28mH |
| Sensitivität: | 83dB 2,83V/1m |
| Sickenmaterial: | Gewebe |
