miniDSP UMIK-1
The UMIK-1 is an omni-directional USB measurement microphone providing Plug & Play acoustic measurement. From speaker & room acoustic measurement to recording, this microphone provides low noise and accurate results you can rely on. Forget about driver installation, OS compatibility and un-calibrated mics. The Umik-1 is a USB Audio class 1 device automatically recognized by all Operating Systems (Windows/Mac) and Ipad with Camera Connection Kit. It is provided with a unique calibration file based on the serial number to insure an accurate measurement. Combined with our recommended acoustic measurement software, it is the perfect match for a plug&play measurement system. Features Windows/Mac/Linux All measurement software Special features such as calibrated SPL measurement enabled under free Room EQ Wizard (REW) software Frequency response: 20 Hz - 20kHz +/-1dB with calibration loaded USB Audio: USB Audio class 1.0 Driverless interface for Windows, Mac & Linux What's in the box? 1 x UMIK-1 microphone 1 x shielded USB cable (1.5m) 1 x mini Tripod 1 x foam wind screen
miniDSP MCH Streamer Kit
The MCHStreamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP's XMOS expertise. . Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research & Development applications. By loading one of the miniDSP-provided firmware packages, MCHStreamer supports optical TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats. This USB Audio Class 2 (UAC2) compliant interface truly is the swiss-army knife for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from 16x PDM MEMS microphone to I2S which makes it a powerful tool for beamforming/voice algorithm development. Features Multi-channel USB audio interface (up to 24x24) Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats Native support up to 32bit / 384kHz PDM to I2S converter for up to 16 MEMS microphones Multichannel DSD (up to 8ch) support USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle) Toslink (optical) and SPDIF (coax) transmitter and receiver Flexible board powering option: USB powered or External DC input power What's in the box? 1 x MCHStreamer board 1 x 1m long USB audio cable 2 * Toslink audio cables 2 * 2x6pin (2mm pitch) header cable harness for I2S In/Out interfacing
miniDSP Flex (RCA)
The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment. All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning. The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest! Hardware Features Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz) Audiophile performance (SNR@120dB(A), THD+N @ -110dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA) Flexible Output versions: Unbalanced (RCA), Balanced (TRS), Digital (Future) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller with IR control What's in the box? Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration IR remote v2 12V univeral power supply (UK/EU/US/AU plugs)
miniDSP DDRC-24
miniDSP introduces the DDRC-24, the world’s smallest Dirac Live® hardware processor. Dirac Live®, the world’s premier room correction solution, is now available in an unbelievably compact hardware unit. Powered by a 400 MHz Analog Devices SHARC processor, the DDRC-24 retains the 4-channel output of its sister unit, the miniDSP 2x4 Hd, in order to allow applications like subwoofer integration or even 2-way loudspeakers together with Dirac Live® room correction in a single tiny hardware platform. The matrix mixer and crossover functionality is accessed and programmed with miniDSP’s easy-to-use interface software. An all in one unit with USB DAC + Dirac Live Room Correction + Speaker processing. I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP DDRC-24 will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios anywhere a compact, powerful room correction processor is needed. Features ADSP21489 400MHz Sharc DSP floating point engine XMOS Xcore200 for USB control and bidirectional audio streaming 24 bit ADC/DAC resolution Dirac Live 3.x for miniDSP with 4 presets, fully configurable target curve Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms Toslink digital input Unbalanced outputs: Max 2Vrms USB Audio Class 2 Audio streaming with ASIO drivers, driverless under MAC OSx 4 preset configuration, recallable via IR, Software Wifi/Alexa voice control via WI-DG accessory What's in the box? 1 x DDRC-24 including Dirac Live license for miniDSP and DDRC-24 plugin 1 x 12V power supply with UK/EU/US/AU plugs 1 x shielded USB cable 1 x Dirac live license 3.x for miniDSP, full range correction 1 x DDRC-24 plugin for DSP control automatically added to your UserDownloads section on purchase
miniDSP Flex (TRS) Symmetrisch
The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment. All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning. The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest! Hardware Features Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz) Audiophile performance (SNR@120dB(A), THD+N @ -110dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA) Flexible Output versions: Unbalanced (RCA), Balanced (TRS), Digital (Future) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller with IR control What's in the box? Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration IR remote v2 12V univeral power supply (UK/EU/US/AU plugs)
miniDSP SHD
miniDSP is proud to introduce the SHD (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. A natural evolution and extension of our considerable experience with Dirac Live implementation, the miniDSP SHD heralds a new era in affordable yet powerful DSP-based network streamers. First and foremost, the SHD is a stereo Dirac Live room correction processor. Three digital inputs, two analog inputs and USB Audio enable the SHD to fit right into any modern audio system, while processed outputs are available as unbalanced and balanced analog as well as digital. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to use calibration tool. We have also added network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. Finally, we’ve added a second pair of outputs and a suite of our powerful but user-friendly DSP audio tuning software - ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2x4 matrix mixer — for powerful audio system tuning in applications ranging from integrating a single subwoofer to a two-way active speaker. Features Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP 32bit Audiophile converters: AK5574 / AK4490EQ Powered by Dirac Live® 3.x Digital Room Correction Quad core ARM processor for network audio streaming - Preloaded with Volumio Inputs: Stereo digital (USB Audio/AES-EBU/SPDIF/Optical), stereo analog (Balanced XLR, unbalanced RCA) Outputs: 4 x digital (SPDIF out), 4 x analog out (Balanced XLR, unbalanced RCA) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller What's in the box? Dirac Series Audio Processor — SHD DSP USB Wifi 2.4GHz adaptor Dirac Live 3.x license for full range correction (20Hz~20kHz) IR remote v2 IEC power plug (UK/EU/US) Rack mounting kit (standard 1RU) NOTE: The Dirac Live Calibration Tools for miniDSP software is only compatible with the UMIK-1/UMIK-2 microphone for measurement.
miniDSP Flex digital (SPIDF/TOS)
The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment. All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning. The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest! Hardware Features Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz) Audiophile performance (SNR@120dB(A), THD+N @ -110dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA) Flexible Output versions: Unbalanced (RCA), Balanced (TRS), Digital (Future) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller with IR control What's in the box? Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration IR remote v2 12V univeral power supply (UK/EU/US/AU plugs)
miniDSP UMA-16 v2 Mic Array
The UMA-16 is a high-performance yet low cost 16 channel USB microphone array with plug&play USB audio connectivity. With its onboard SHARC+XMOS controller board, the UMA-16 is the perfect fit for development of beamforming algorithms or DIY acoustic camera. Its system architecture consists of two core elements: - The microphone array PCB has 16 x SPH1668LM4H MEMS Knowles laid out in a Uniform Rectangular Array (URA). A center hole fits an optional USB camera for applications such as an acoustic camera. Being a simple 2layer PCN, one can easily customize his own array layout by following our schematics. - At the helm of the UMA-16 operation is the nanoSharc kit. A 400MHz SHARC ADSP21489 + 500MHz multicore CPU providing substantial processing power for high SNR PDM to PCM conversion and multichannel low latency USB audio. The UMA-16 can also be used as a low cost USB to PDM mems board to acquire and convert audio for 3rd party MEMS. With the UMA-16, miniDSP makes high channel count microphone array processing very affordable and hopes to further technological advances for beamforming technology. Features Multichannel USB microphone array for voice command 16 channels of RAW audio for development of custom beamforming algorithms High quality MEMS from Knowles SPH1668LM4H USB to PDM conversion for up to 16 x PDM MEMS microphones Center Hole for USB camera (Not provided) Sample Matlab code to get started What's in the box? 1 x UMA-16 USB microphone array interface 1 x 1.5m USB miniUSB cable 1 x 12V power supply with EU/UK/US plugs Access to the UserDownloads section for ASIO drivers/Firmware updates once the product purchased
miniDSP WI-DG
The WI-DG is a Wifi/Ethernet to USB bridge that is pre-configured for Plug&Play discovery and control over IP networks. The Wi-DG is a tiny adaptor that interfaces to the USB port of a miniDSP hardware unit and acts as a Wi-Fi to USB bridge. Supported miniDSP plugins transparently detect and communicate with the miniDSP via the Wi-DG, enabling control and configuration over the network. Normally, the computer running the appropriate miniDSP plugin is connected directly to the miniDSP hardware unit using a USB cable. With the Wi-DG, however, the computer connects using Wi-Fi in 2 possible modes of operations: Station mode or Access Point mode. Please check out the user manual for more details. The WI-DG also supports Amazon Alexa voice control via our free Alexa Skill as described in this application note. Yet another way to easily control your audio system! Last but not least, all below supported platform can be controlled by miniDSP's free IoS/Android platform for basic control of Preset/Master Volume and active source. Check out our application note for more details. WARNING: The WIDG is only compatilbe with miniDSP plugins. Unfortunately it can't be used with Dirac Live software for control. Also note that only ONE WIDG can be used in a system at a time. Using multiple unit can lead to some unknown configurations. Features 2.4GHz b/g/n Wifi Router (Access point/Station Mode) Ethernet/Wifi control of miniDSP platforms over plugin/apps Support for voice control via miniDSP's Amazon Alexa Skill What's in the box? 1 x WI-DG interface 1 x 1m microUSB cable 1 x USB power supply with US/UK/EU plugs (removed on 17May2021) Supported plugins (IP field & Self discovery) miniDSP 2x4HD (Available) DDRC-24 (Available) miniDSP 2x8/8x8/4x10/10x10 (Available) nanoDIGI 2x8 (Available) C-DSP 6x8 (Available) C-DSP 8x12 (Available) miniSHARC series (Available) nanoSHARC series (Available) OpenDRC series (Available) DDRC-22 series (Future) DDRC-88A/D (Available) nanoAVR HD/HDA (Available) SHD series (Available) Supported platforms for Alexa voice control SHD (Available) 2x4HD (Available) DDRC-24 (Available) miniDSP 2x8/8x8/4x10/10x10 (Available) nanoDIGI 2x8 (Available) C-DSP 6x8 (Available) C-DSP 8x12 (Available) miniSharc series (Available) nanoSHARC (Available) OpenDRC series (Available) DDRC-22 series (Available) DDRC-88A/D (Available) nanoAVR HD/HDA (Available)
miniDSP Flex Eight 2x8
TheFlex Eightis the latest member of the miniDSP Flex family of advanced audio processors. We’ve taken advantage of our flexible hardware architecture to cram a full eight channels of DSP and a world-class analog output stage into the compact enclosure.With multiple digital inputs and eight unbalanced analog output channels, the miniDSP Flex Eightcan implement active speakers up to stereo four-way. Flexible 2x8 signal routing supports many other configurations such as two-way, three-way and multiple subwoofers. As always, a full suite of miniDSP’s tried and proven audio processing functionality is included: parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel.TheFlex Eighthas USB audio, S/PDIF (RCA and optical) and Bluetooth (LDAC/aptX) stereo digital inputs. An OLED front panel display and volume control/encoder knob provides easy control. Last but not least, it is easily software-upgradable with Stereo Dirac Live® for full range correction (20~20kHz), the world’s premiere room correction system. The miniDSPFlex Eightis the perfect solution for a modern compact integrated active speaker/subwoofer system. You just need to let your creativity do the rest!STOCK STATUS (18/10/2022):The Flex Eight is unfortunately out of stock at this time. We're expecting a new shipment by end of November. All orders will be backlogged and shipping in chronological order. Thanks for your patience! Hardware FeaturesProcessor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Stereo Full Range Room Correction (20~20kHz) Audiophile performance with very low noise floor and distortion (SNR @128dB(A), THD+N @ -111dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth) Outputs: Unbalanced (RCA) White/Black OLED front panel controller with IR control Control and configuration by miniDSP Device Console (DC) Weißes/schwarzes OLED-Bedienfeld auf der Vorderseite mit IR-Steuerung Steuerung und Konfiguration über miniDSP-Gerätekonsole (DC)
miniDSP SHD Studio
miniDSP is proud to introduce the SHD Studio (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. While physically the SHD Studio is the “baby brother” of the full-featured SHD — accomplished by removing the analog I/O connectors and circuitry — internally it packs the same powerful audio processing capabilities. First and foremost, the SHD is a stereo Dirac Live room correction processor. The SHD fits right into any digital processing path, with AES/EBU, SPDIF, optical and USB audio inputs, and four output channels on both SPDIF and AES/EBU. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to-use calibration tool. We have also included network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. The SHD Studio includes a suite of our powerful but user-friendly DSP audio tuning software - ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2x4 matrix mixer. Applications range from integrating a single subwoofer to a two-way active speaker. Outputs 3 and 4 also drive the headphone jack on the front panel for a uniquely flexible digital processing solution. Features Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP Powered by Dirac Live® 3.x Digital Room Correction Quad core ARM processor for network audio streaming - Preloaded with Volumio Inputs: Stereo digital channels (USB Audio/AES-EBU/SPDIF/Optical) Outputs: Dual Stereo digital channels (2 x stereo SPDIF RCA outputs and 2 x stereo AES-EBU Balanced XLR) / Headphone amplifier USB audio recording feature (4xCH processed output via USB audio to record inputs) White/Black OLED front panel controller What's in the box? SHD Studio processor with embedded Dirac Live 2.0 license USB Wifi 2.4GHz adaptor Dirac Live v3.x license for full range correction (20Hz~20kHz) IR remote v2 External universal power supply NOTE: The Dirac Live Calibration Tools for miniDSP software is only compatible with the UMIK-1/UMIK-2 microphone for measurement.
miniDSP DDRC-22D
The Dirac Series of 24/96 high-resolution audio processors with Dirac Live® are designed to fit into an existing system with minimum disruption, yet with the flexibility to allow for new and more cost-effective system configurations. The DDRC-22D interfaces via digital signals — AES-EBU on balanced XLR; coax/SPDIF on RCA, and optical/TOSLINK. The digital input source can be selected via the front panel or remote control, and all digital outputs are simultaneously active. The DDRC-22D can be simply inserted into the digital signal path of an existing system, or the on-board volume control used to simplify system configuration. Examples: Between one or more digital sources and a DAC Between one or more digital sources and active loudspeakers with digital input Anywhere in the digital signal chain Features Processor: 32-bit floating-point Analog Devices SHARC DSP Dirac V3.0 Compatible Input/output resolution: 24 bits Maximum input sample rate: 216 kHz Internal operating sample rate: 96 kHz Output sample rate: 96 kHz Supports for Dirac Live 2.0 What's in the box? Dirac Series 24/96 high-resolution audio processor — DDRC-22D Universal 5 VDC power supply with interchangeable plugs (UK/EU/US/AU) License for Dirac Live Calibration Tool Stereo for miniDSP (Win/Mac) USB cables for Dirac Series audio processor
miniDSP Harmony 8x12
miniDSP is proud to introduce the latest addition to its line of innovative car audio processors. The all-digital Harmony DSP 8x12 integrated DSP/amplifier features six-channels digital audio input via USB, stereo digital optical input (TOSLINK), Dirac Live® acoustic correction and 12 output channels. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, and a wired remote with OLED display for dash or console. Flexible output configurations cater to a wide variety of system configurations: each output can be a 40 Wrms power amplifier or a line-level output for driving external amplifiers. In addition, each pair of outputs can be configured in parallel BTL mode for 80 W output into 2 Ω loads. In addition to Dirac Live, the Harmony DSP 8x12 includes miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete processing configurations are stored in flash memory for recall with a wired or infrared remote. Features 400MHz 32bit Sharc Floating point processor Dirac Live technology helps tune your cabin environment All Digital amplifier USB Audio (6ch), Toslink(2ch), A2B (future) digital inputs 12 channel flexible amplifier for Mono/Bridged mode and Line OUT(driving external amps) Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix Windows/Mac compatible GUI Remote control or preset/master & sub volume control What's in the box? 1 x Harmony 8x12 Car Amplifier 1 x Dirac Live license 2 x Speaker wiring harness 1 x 1m USB cable 1 x Control GUI plugin provided automatically under UserDownloads section on purchase 1 x 5m remote cable + OLED Remote control module
miniDSP C-DSP 8x12 v2
8-IN 12-OUT ADVANCED IN-CAR AUDIO PROCESSOR The C-DSP 8x12 is miniDSP’s next-generation processor for high-end mobile/car audio. The powerful 400 MHz SHARC floating-point processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. With a wealth of inputs and outputs in a compact, rugged enclosure, the C-DSP 8x12 is suitable for installations from simple stereo, through surround systems with subwoofer integration, up to advanced multichannel active systems. New to this upgraded version are the onboard 32bit AKM converters that provide low noise and improved dynamic range to perfect your miniDSP experience. The driverless USB interface is used to configure miniDSP’s powerful but easy-to-use audio processing: parametric EQ on all inputs and outputs, compressors and adjustable time delay on all outputs, crossovers up to 48 dB/octave, and an advanced matrix mixer. Four complete processing configurations are stored in flash memory for instant recall with a wired or infrared remote. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting, and a microSD card slot for offline configuration and firmware updates. Features 400MHz 32bit Sharc Floating point processor, Up to 192kHz processing 32bit DAC/ADC chipsets THD+N 0.0007%, 115dB SNR Digital and analog inputs (Low/High levels), 12 analog outputs Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix Fully differential balanced inputs Optional Dirac live upgrade Windows/Mac compatible GUI Remote control or preset/master & sub volume control What's in the box? 1 x C-DSP 8x12 DSP processor 1 x 1m USB cable 1 x Control GUI plugin provided automatically under UserDownloads section on purchase 1 x 5m remote cable + OLED Remote control module 1 x C-DSP 8x12 plugin license
miniDSP Flex HTx
miniDSP Flex HTxThe Flex HTx is the bigger brother of the Flex HT and targets the need for a multi-channel processor with HDMI ARC/eARC capabilities and excellent analog and USB audio capabilities. In a single rack unit, we have included all possible connections we could find.The eight-channel audio input is via analog audio (RCA and TRS), eARC linear PCM via HDMI1, or USB Audio. An additional digital stereo input is supported via SPDIF and TOSLINK optical. Internally, we have provided a complete suite of flexible miniDSP routing and audio processing functions: bass management, parametric EQ, crossovers, advanced biquad programming, and delay/gain adjustments. Furthermore, the miniDSP Flex HTx can be upgraded via software with Dirac Live®, the world's leading room correction system.The Flex HTx focuses miniDSP on affordable high-performance audio and features class-leading noise and distortion values. An OLED display on the front and a volume control/encoder knob allow for easy control.The miniDSP Flex HTx is the perfect solution for a modern compact processor for home theater and multichannel sound.NOTE: Please note that the Flex HTx does not support bitstream decoding (e.g., Dolby/DTS). The audio source must be capable of outputting linear PCM (LPCM) to support multichannel sound over HDMI. Hardware FeaturesProcessor: 32-bit floating point 400MHz Analog Devices SHARC DSPMulticore USB Audio Processor (XMOS)HDMI EARC/ARC interface for multichannel sound in PCM. Note that Flex HTx does not support the bitstream format (Dolby/DTS encoded).Optional upgrade to Dirac Live® 3.x Digital Room Correction, Multichannel (8-channel) Full Bandwidth Room Correction (20~20kHz)Audiophile performance with very low noise floor and distortion (SNR @127dB(A), THD+N @ -120dB (0.0001%)Inputs: Stereo digital (SPDIF/Optical), Multichannel USB Audio Streaming (up to 7.1)Outputs: 8 audio channels duplicated on unbalanced (RCA)White/black OLED controller on the front with IR controlControl and configuration via miniDSP Device Console (DC)Rack Mounting with Removable Rack EARS
miniDSP Flex HT 8 Kanal DSP
miniDSP Flex HT 8 Channel DSPminiDSP Flex HT, 400 MHz Sharc DSP audio processor, 8-channel DAC, toolbox for subwoofer or multi-way speaker tuning, USB/HDMI ARC/EARC, optional WISA, optional Multichannel Dirac Live license for room correction.The Flex HT is miniDSP's response to our customers' requests for a pocket-sized multi-channel processor with HDMI ARC/eARC capabilities. Our team managed to pack full eight-channel DSP performance and a wide range of inputs and outputs into the incredibly compact enclosure.The eight-channel audio input is via eARC linear PCM over HDMI or USB audio. Additional stereo input is supported via SPDIF and TOSLINK optical. Internally, we have provided a full suite of miniDSP's flexible routing and audio processing functions: bass management, parametric EQ, crossovers, advanced biquad programming, and delay/gain adjustments. Additionally, the miniDSP Flex HT is software upgradeable with Dirac Live® full frequency, the world's leading room correction system.The eight-channel analog RCA outputs feature class-leading noise and distortion values. And last but not least, the Flex HT is the first product from miniDSP to offer WiSA capability (“Wireless Speaker and Audio Association”) as an optional feature (in the future). WiSA was specifically developed for low-latency multi-channel audio – a perfect complement to the Flex HT. The WiSA transmitter enables the lossless transmission of all eight output channels to WiSA-compatible speakers and subwoofers. Please note that the WiSA function will be a hardware option in future deliveries (expected Q1 2024) and is not included at this time.The miniDSP Flex HT is the perfect solution for a modern compact processor for home theater and multi-channel sound. The rest is up to your creativity!REMINDER: Please note that the Flex HT does not support bitstream decoding (e.g., Dolby/DTS). The audio source must be capable of outputting linear PCM (LPCM) for multichannel support over HDMI.
miniDSP ADept USB Connector
Audiophiler Analog-Digital-Wandler (A/D) Flexibler Phono-Vorverstärker mit digitaler Signalverarbeitung (DSP)SPDIF & TOSLINK für die computerlose Digitalisierung123 dB SNR / -117 dB THD+N maximale LeistungThe miniDSP ADept is a compact high-resolution A/D (analog-to-digital) convertor that accepts single-ended (RCA) or balanced (on XLR) audio signals. The digital output is available on SPDIF coaxial and TOSLINK optical connectors, and can also be recorded to a computer or mobile device via the USB-C connector. Adept combines low latency, high sample rate and extremely low noise floor performance to provide optimal digitization of your favorite analog audio content.The miniDSP ADept is also a phono preamp (with a turntable connected to the RCA inputs) with accurate phono equalization for moving magnet or moving coil cartridges. In addition to the standard RIAA phono equalization curves, we've used the power of DSP to provide additional curves that will be of interest to the keen collector of older vinyl. A range of input gain, resistance and capacitance values are provided to optimize for any cartridge and can easily be saved and recalled in your favorite preset.miniDSP once again innovates with audiophile performance in a package that doesn’t break the bank. FeaturesAudiophile Analog to Digital (A/D) converterFlexible Phono preamp powered by Digital Signal Processing (DSP)SPDIF&TOSLINK for computerles digitization123dB SNR / -117dB THD+N max performanceApplicationsConverting your analog audio sources to Digital (SPDIF/TOSLINK/USB)Audio measurements Adding a high quality ADC to your existing systemComputerless analog conversion for an all digital audio system. This device does NOT require a PC/Mac to convert your source to SPDIF/TOSLINK output. Digitizing Vinyl contentWhat's in the box?1 x ADept A/D converter1 x 1m long USB audio cable1 x Toslink audio cable1 x IR remote Technical Specifications Description USB & DSP Audio ProcessorXMOS Multicore processor, USB Asynchronous, UAC2 interface, Firmware upgradable ADC resolution/Sample rateESS ES9842 Pro - 32 bit/44.1~192kHz USB Audio supportUAC2 Audio - Custom ASIO driver (Windows) / Driverless on (Mac/Linux/Android/IoS) Digital Audio 1 x USB audio (PCM) on USB type C Output Connectivity1 x SPDIF on RCA connector, 1 x OPTICAL on Toslink connector Supported sample rates: 44.1 ~ 192 kHz Input/Output configuration2 x channel analog in (Unbalanced RCA or Balanced XLR), 2 x channel digital out Filtering Technology / PresetsIIR / Up to 4 presets Dimensions150x180x41 mm AccessoriesIR Remote for control of source/volume/preset/standby Power SupplyIncluded external switching PSU 12V/1.6A (US/UK/EU/AU plugs) Power Consumption6 W (idle) / 0.9 W (standby) Audio Specifications Input SourceMoving Coil (MC)/RCAMoving Magnet(MM)/RCALine-in/RCALine-in/XLRSelectable Phono Equalization mode (IIR+FIR)RIAA, IEC No.98 (500R-13.7) N/AN/ADecca 33.3, London M33 (500C-12)Columbia LP M33 (500C-16)Phono EQ Accuracy Within ± 0.1 dB (20 Hz – 20 kHz) (RIAA, Decca and Columbia)Optional High Pass Filter At 20 Hz with 24 dB/octave(Subsonic filter)Maximum analog input (before digital gain & RIAA EQ if applicable, at Low, Medium, High Gain)81mV, 29mV, 12mV220mV, 110mV, 68mVN/A, 2.2 V, 1.1 VN/A, 4.4 V, 2.2 VMaximum recommended cartridge output @1kHz, 5cm/sec (Low, Medium, High Gain)4.2mV, 1.5mV, 0.6mV13mV, 6.5mV, 4mVN/AN/ASelectable Input Impedance 50 Ω, 100 Ω, 1 kΩ33 kΩ, 50 kΩ, 100 kΩ33 kΩ, 50 kΩ, 100 kΩFixed at 200 kΩ(Low, Medium, High)Selectable Input Capacitance 1 nF, 3 nF, 5 nF50 pF, 100 pF, 500 pF50 pF, 100 pF, 500 pFFixed at 100 pF(Low, Medium, High)Frequency Response20 Hz – 20 kHz ± 0.2 dB20 Hz – 20 kHz ± 0.1 dB20 Hz – 20 kHz ± 0.05 dBSNR vs Low(L), Medium(M), High(H) gain settingWith RIAA EQWith RIAA EQ122 dB(A) at med gain123 dB(A) at med gain84 dB(A) ref @ 2mV (L)95 dB(A) ref @ 10mV (L)120 dB(A) at high gain122 dB(A) at high gain79 dB(A) ref @ 1mV (M)90 dB(A) ref @ 5 mV (M) 73 dB(A) ref @ 0.5mV (H)87 dB(A) ref @ 2.5 mV (H) THD+N vs Low(L), Medium(M), High(H) gain settingWith RIAA EQWith RIAA EQ-116 dB (0.00017 %) at med gain-117 dB (0.00015 %) at med gain-77 dB (0.014 %) ref @(L)-89 dB (0.0035 %)ref @(L)-115 dB (0.0002 %) at high gain-116 dB (0.00017 %) at high gain-71 dB (0.028 %) ref @(M)-83 dB (0.007 %) ref @(M) -65 dB (0.056 %) ref @(H)-80 dB (0.01 %) ref @ (H) Crosstalk-85 dB-100 dB-132 dB-138 dB
miniDSP C-DSP 8x12DL
8-IN 12-OUT ADVANCED IN-CAR AUDIO PROCESSORWITH DIRAC LIVE® ACOUSTIC CORRECTION miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment. Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs. On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration. Also included is miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete configurations are stored in flash memory for recall with a wired or infrared remote. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting and a microSD card slot for offline configuration. Features 400MHz 32bit Sharc Floating point processor Dirac Live technology helps tune your cabin environment 32bit DAC/ADC chipsets THD+N 0.0007%, 115dB SNR Digital and analog inputs (Low/High levels), 12 analog outputs Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix Fully differential balanced inputs Windows/Mac compatible GUI Remote control or preset/master & sub volume control What's in the box? 1 x C-DSP 8x12 DSP processor 1 x 1m USB cable 1 x Control GUI plugin provided automatically under UserDownloads section on purchase 1 x 5m remote cable + OLED Remote control module 1 x C-DSP 8x12 plugin license 1 x Dirac Live License

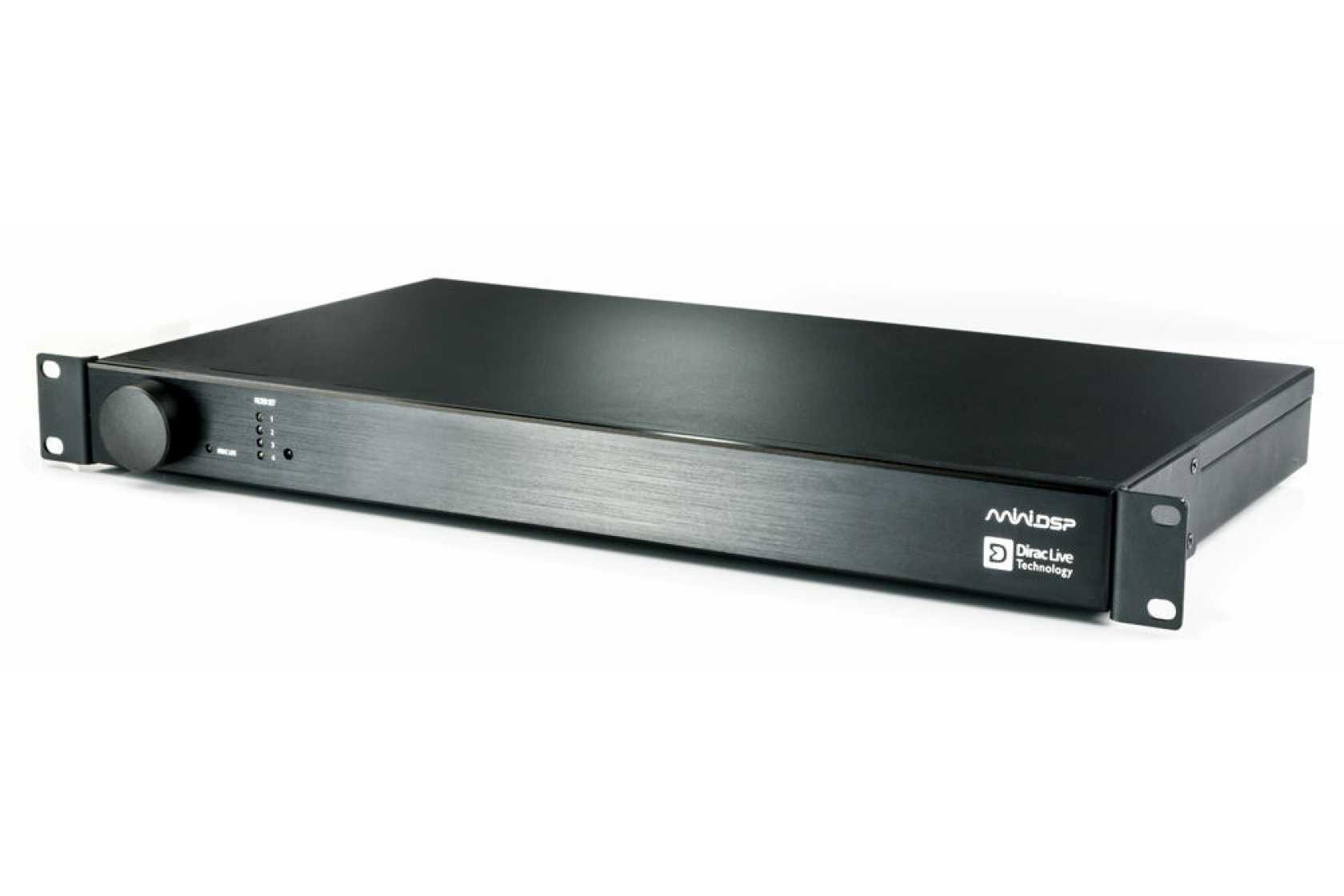

miniDSP DDRC-88A inkl. BM
Introducing the miniDSP Dirac Series, powered by Dirac Live®, the world's premier room correction solution. We are delighted to offer you this software and hardware combination, the fruit of many years of experience in sound system tuning and extensive research and development. The DDRC-88A is the big brother of the stereo DDRC platform introduced early 2014. Based on our proven 8x8 DSP board and miniSHARC powerful module, the DDRC-88A combines two successful & proven platforms into a cost effective one rack unit processor. An infrared remote learning feature and the front panel rotary encoder allow for control of the DDRC-88A processor without any need for a connected PC, once the processor is configured and filters loaded. Finally, the DDRC-88A is an upgradable platform thanks to the power of the DDRC-88BM plugin. The software plug-in extends the capabilities of the DDRC-88A multichannel Dirac Live® processor. 100% compatible with all DDRC-88A units in the field, the DDRC-88BM adds comprehensive fine-grained bass management and crossover capabilities. The input signals are low-pass filtered and summed to generate the subwoofer signal; a matrix mixer routes or mixes these channels for the Dirac Live® algorithm, which in turn has its outputs routed or mixed to the output channels, where additional high/low pass and parametric filtering takes place. In addition to improved bass management for conventional home theater signal paths, the DDRC-88BM allows innovative solutions like multi-subwoofer control and combined DRC/active loudspeaker setups. Features Processor: 32-bit floating-point Analog Devices SHARC DSP Dirac v3.0 support Input/output resolution: 24 bits Analog inputs: 8x balanced RCA / 8x balanced phoenix terminal blocks Analog outputs: 8x balanced RCA / 8x balanced phoenix terminal blocks Internal operating sample rate: 48 kHz
miniDSP Flex (DL)
The miniDSPFlex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment.All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning.The miniDSPFlexwill find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest!Hardware Features Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSPMulti-Core USB Audio processor (XMOS)Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBCOptional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz)Audiophile performance (SNR@120dB(A), THD+N @ -110dB (0.0003%)Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA)Flexible Output versions: Unbalanced (RCA), Balanced (TRS), Digital (Future) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl)White/Black OLED front panel controller with IR controlWhat's in the box? Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration IR remote v2 12V univeral power supply (UK/EU/US/AU plugs) Bluetooth-Streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optionales Upgrade auf Dirac Live® 3.x Digitale Raumkorrektur, Full Range Room Correction (20~20kHz) Audiophile Leistung (SNR@120dB(A), THD+N @ -110dB (0.0003%) Eingänge: Stereo-Digital (USB Audio/SPDIF/Optical/Bluetooth), Stereo-Analog (unsymmetrischer RCA) Ausgang: digital,4 x Output channels(Post DSP)on USB Audio andSPDIF& TOSLINK (duplicated) USB-Audioaufnahmefunktion (4xCH verarbeiteter Ausgang über USB-Audio zu Aufnahmeeingängen, z. B. Vinyl) Weißes/schwarzes OLED-Bedienfeld mit IR-Steuerung Was ist im Lieferumfang enthalten? Digitaler Audioprozessor - Flex basierend auf der gewählten I/O-Konfiguration. Keine Dirac Live-Lizenz für die Standardkonfiguration IR-Fernbedienung v2 12V-Universal-Netzteil (UK/EU/US/AU-Stecker)

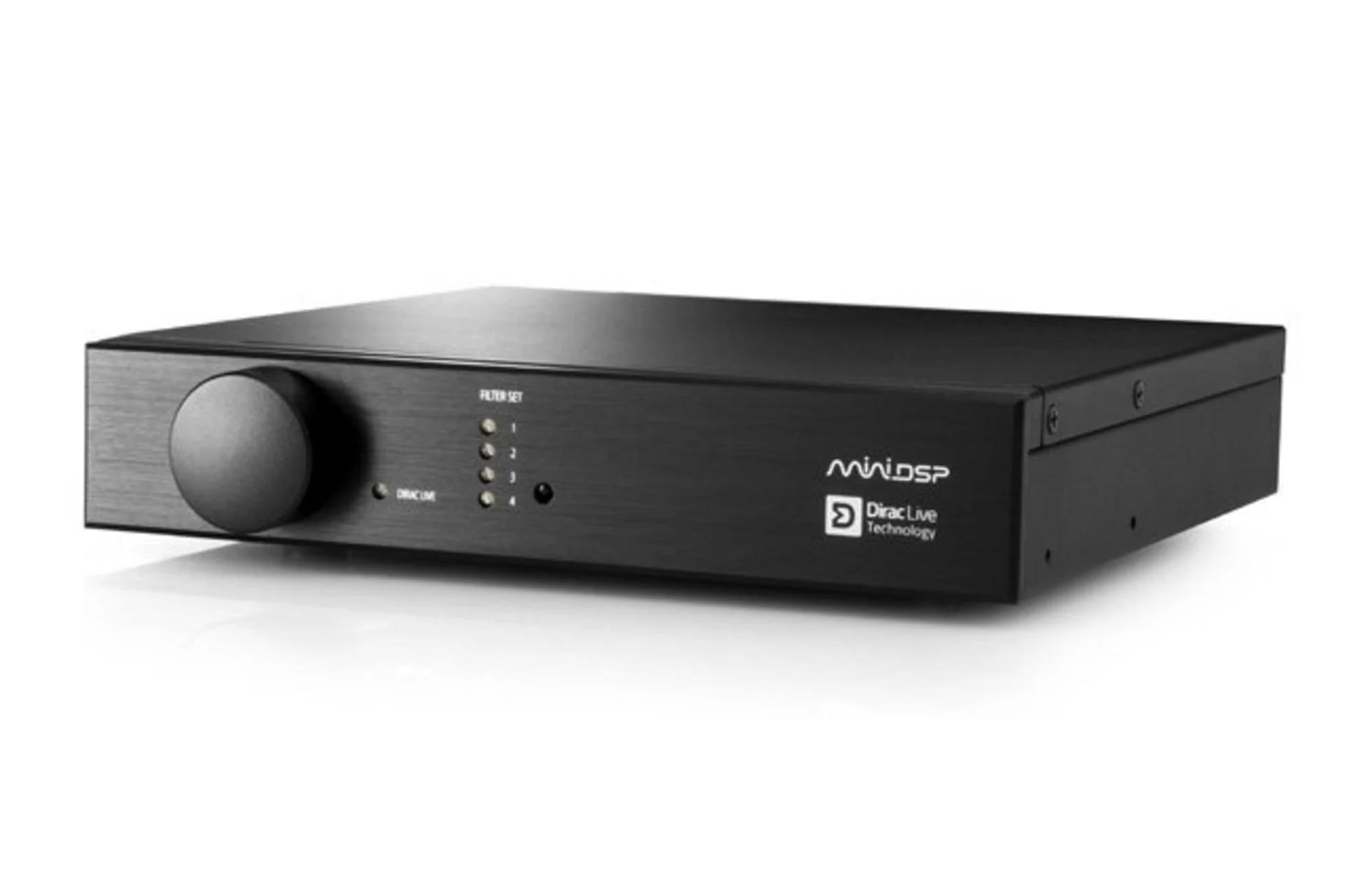

miniDSP DDRC-88D Digital Multi-Channel I/O Dirac Live-Prozessor
The MiniDSP DDRC-88D is a state-of-the-art digital audio processor with comprehensive Dirac Live® room correction. With its 8-channel digital input and output configuration, it is ideal for professional audio environments such as studios, broadcast systems, high-end hi-fi and digital cinemas.Technical specificationsThe processor is based on a powerful 32-bit floating point SHARC DSP from Analog Devices and processes audio signals with a resolution of 24 bits. The sampling rate is automatically adapted to the first input channel, which means that 192 kHz, for example, is supported throughout.Connections and connectivity8 channels via 4 stereo AES-EBU/SPDIF inputs 8 channels via 4 stereo AES-EBU/SPDIF outputs DB25 connection for DCI processorsSpecial featuresThe DDRC-88D comes in a compact housing and offers professional functions for room acoustic optimisation. An optional DDRC-88BM plug-in extends the functionality with bass management and active speaker processing.Scope of delivery DDRC-88D audio processor 5VDC power supply with IEC cable DB25 adapter cable (either XLR-AES-EBU or SPDIF/COAX) USB cable Microphone standPlug-in voucherConfiguration is user-friendly via USB using the supplied software suite for Mac or Windows. Four presets can be called up directly on the device or via remote control. DDRC-88D Audioprozessor 5VDC-Netzteil mit IEC-Kabel DB25-Adapterkabel (wahlweise XLR-AES-EBU oder SPDIF/COAX) USB-Kabel Mikrofonstativ Plugin-Gutschein Die Konfiguration erfolgt benutzerfreundlich über USB mittels der mitgelieferten Software-Suite für Mac oder Windows. Vier Voreinstellungen können direkt am Gerät oder per Fernbedienung abgerufen werde
