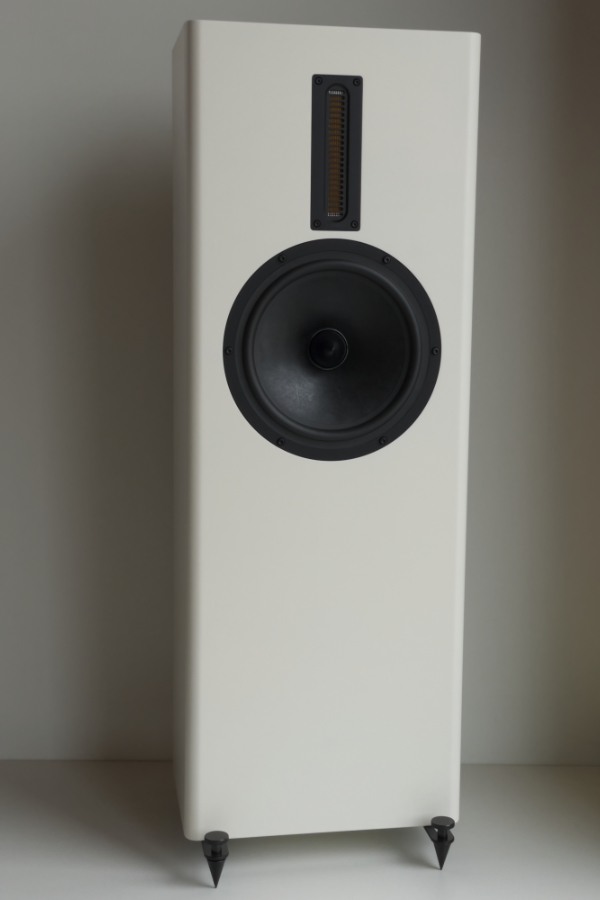

Celine Lautsprecherbausatz
Celine Speaker KitCelineSpeaker kit Test in Klang+Ton 1/23 The conclusion on the Celine from hifitest.de High end and high dynamics in one – the Variant Céline is a bullseye! Test on hifitest.de 2-Way Floorstanding Speaker Assembly: 160mm Mundorf AMT U160W1.1-R, 270mm Woofer Dayton Audio RS270P-4, Crossover componentsMundorf Hi-Quality: Properties: "Celine" is Born! AMTU160 with front panel, Dayton Reference RS270P-4, and two passive radiators on theBackside. Two chassis, ten octaves. Celine is a two-way system of boundary areas. The AMT from the German manufacturer Mundorf® with an effective diaphragm area of 68.1 cm² is the flagship of the new AMT U Series and, unlike conventional tweeter domes with diameters from 19 to 32 mm, thus a maximum of 8.04 cm², simply a superior solution.Mouthorf AMT membraneare unique in their form. It is characterized by its exceptionally high internal damping and extremely low distortion values. This is especially true for the odd harmonic distortions K3 and K5. The guarantee for the highest level reserves with enormous fine detailing of the ultra-light membrane. From 1500Hz, the AMT never plays in the foreground. It accurately and dynamically traces every small impulse of the music. Its companion is an RS270P-4 from the reference series by Dayton Audio. The aluminum die-cast basket houses a lightweight paper cone, and a phase plug centrally dominates the visual aspect. The lightweight paper cone was already chosen for the smaller sister model "Melodie 8018" in two sizes smaller, and it also impresses in the larger version with detailed midrange, impressive bass, and the overall performance delivered seamlessly both in coarse and fine dynamics. We are inclined to award Celine the label "Speaker for everything." It could in our rooms; Small room 14m², acoustically dampened. Large room 24m², acoustically little damped, little window area. Second large room 35m², acoustically well-damped with lots of window space. In all situations, loud or quiet, always impress with transistor, tube, and digital amplifiers. Preferred in amplifiers, however, the strong guys, and can also handle loudness. Scope of delivery: - Chassis - Passive membranes - High-End Terminal - Fastening screws - Cable (internal wiring) - Insulation material - Crossover components (Loose) Die standard crossover are Mundorf; in the signal path: air coils, Mcap Evo capacitors, metal oxideResistors. As parallel component; Elko Rau, air coils, metal oxide resistors. In the High End version; In the signal path: MCAP EVO Oil, Backlack air coils, MRESIST Classic resistors.As parallel component: MCAP Classic, baked varnish and standard air coils, metal oxide resistors In the scope of delivery, an impedance linearization is already included. Celine active Hypex 122: Scope of delivery. Hypex FA122 Pre-configured with Crossover Programming! Additional setup programming available for an extra charge! Dayton Audio RS270P Mundorf AMT U160 Dayton Audio DSA270-PR including additional weights Insulation material Screws Internal wiring The selected number refers to pieces,noa couple.

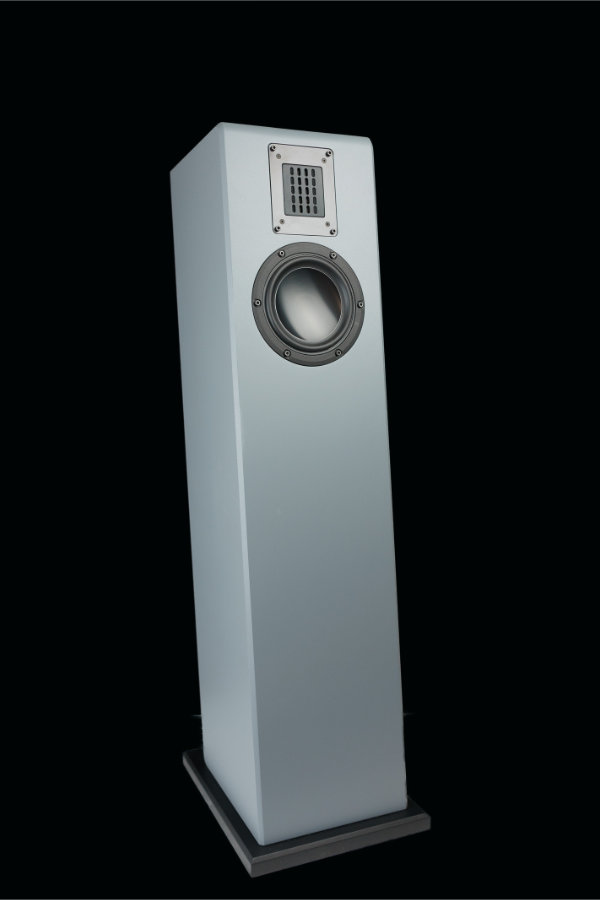

Apart 150 Lautsprecherbausatz
Apart 150 Speaker Kit For a price of just 200 euros per box, a really hot tip for people who want to try differentWant to listen to music of a high standard. Thomas Schmidt / Sound & Tone 1/2024 With 6" in slim elegance, petite small floor-standing speaker. Fascinating as the Apart120 alwaysstill rather small-box but with great sound potential. The new Dayton Audio Signature Series is forAudiophile applications developed and optimized, meticulously and with great attention to detail. TheMidrange drivers of the Signature series deliver sound. The one-piece dome-shaped aluminum diaphragm,low-loss corrugations and voice coil carriers ensure low distortion and minimal intermodulation. In the high tones, a magnetostat shines, proven thousands of times in countless concepts, some of them legendaryLoudspeaker constructions. Its large diaphragm area and the low weight compared to classic fabricor metal dome tweeters, gives it delicate resolution capabilities and dynamicImpulse Behavior. The interplay of the two chassis in the sophisticated housing principle, which this delicate elegancepossesses, is like cast from a single mold. Incredible how easily and effortlessly she fills even the low tones completely andkonturiert beherrscht. Homogeneous mids and this lightness in the treble invite you to relaxedkleinen listening rendezvous with a captivating completeness and naturalness that does not reveal its greatnesssuggests.
Wallflower R Lautsprecherbausatz
Wallflower R Speaker KitWallflower R 1-Way Broadband Wall/Floor Speaker Assembly: W4-655; Crossover components Mundorf Hi-Quality: Properties: Hifi and/or surround sound for impressive movie moments. Low space requirement. Living room cinema basefor your future In-Wall or On-Wall. Space-saving OnWall desk solution with full sound range,Disappearingly inconspicuous living room/dining room/lobby sound system. A proven 10cm full-range speaker inflatter housing design. In two design proposals. The sound character is characterized by asaturated, powerful bass, a homogeneous mid-high range performance, and a perfect stage imaging withbroadband typical spatiality. This kit is ideally suited for the most diverseApplications and in places where space is limited. From the simple stereo placement in theLiving room and as TV sound enhancement in the home cinema, for secondary room sound or accompaniment ofPresentations in the studio. As wall speakers in two formats, as floor-standing speakers with stand base additionor flush-mounted. In our kits, we don't want to leave anything to chance! That's why all the materials needed for assembly are included with us.inclusive: the chassis W4-655, crossover components, screws, cables, damping material, connection terminal, and the MDF cutouts. The latter are manufactured in such a way that assembly is easy even for the inexperienced. Gestalterisch sind Ihren Fantasien und Vorstellungen keine Grenzen gesetzt: paint, veneer,foil, wallpaper – you decide and give your new speakers aindividual appearance. All in all, this system offers you a sensationally affordable and creative solution for every music-and film sound enthusiasts who, despite a small apartment, do not want to miss out on good sound and/or the certainCinematic experience would like to forego. Wallflower – whether rectangular or square – strikingly sonorous. Schedule an appointment and let us convince you on site in Marburg.
Home Cinema F1 Lautsprecher- + Gehäusebausatz in MDF roh Bundle
Price on request

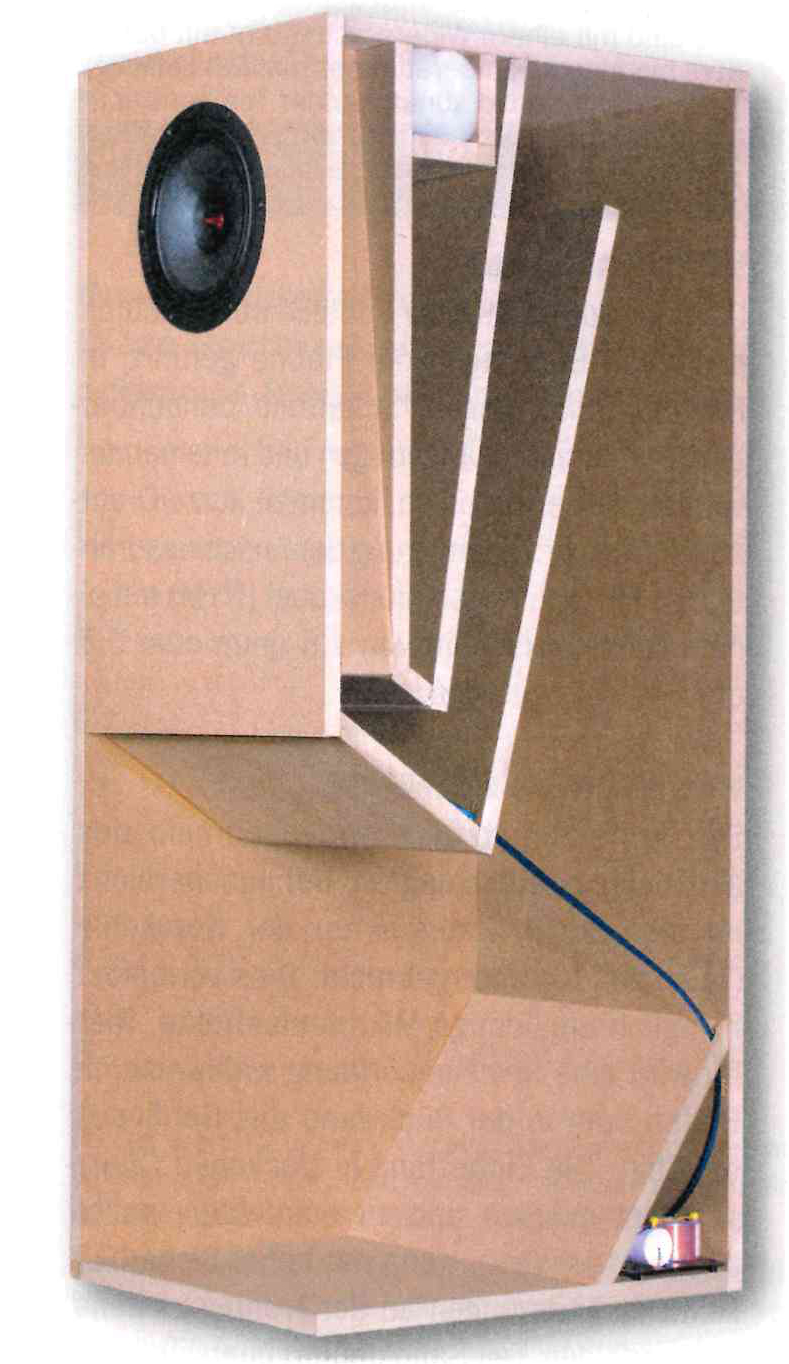

Jericho 23 Lautsprecherbausatz
Jericho 23 Speaker KitZitat Bernd Timmermanns Hobby HiFi 2-3/23; "Full-range speakers and horn systems: That simply belongstogether. Jericho 23 stunningly good!“ Description; The Jericho Horn is a long-standing design in the DIY scene, nevertheless, you can findimmer wieder pearls that pay tribute to the construction and play wonderfully, even earlier line-upsleave behind. So the Dayton Audio PS220-8 joins with its balanced qualities in both the bass and treble range.also into the top tier of horn equipment. To the highest form, according to the creator BerndTimmermanns, who subjects every 20cm full-range driver tested in his magazine Hobby HiFi to a suitability testfor the Jericho Horn undergoes, is the verdict. Additionally, the correction network is so economical andlow-value, so that the costs in even high-quality components do not immediately lead to financial ruinführen. Thus, in the high-end version, there are baked wire air coils and finest oil film capacitorsa very budget-conscious decision. For music lovers of the purely instrumental kind, you can eventhese components (provided room acoustic measures are in place). However, voices require theminimal but quite effective intervention of the blocking circuits. Such an extraordinary horn construction paired with the PS220-8 allows percussive sounds withschlagartigen Impulsen, like small explosions, resound vividly. Start quickly and lively. TheHorn underscores this tonal balance with a powerful, physically palpable bass. Uncontested strengths of broadband are their spatial representation power, they create tangibleSpace. Jericho 23, is in any case an extremely level-stable as well as sonically outstanding construction, as itnot created every day. And the demands on the electronics are also performance-efficient. But you can almost listen even more beautifully, quietly without missing details, dynamics, or resolution.

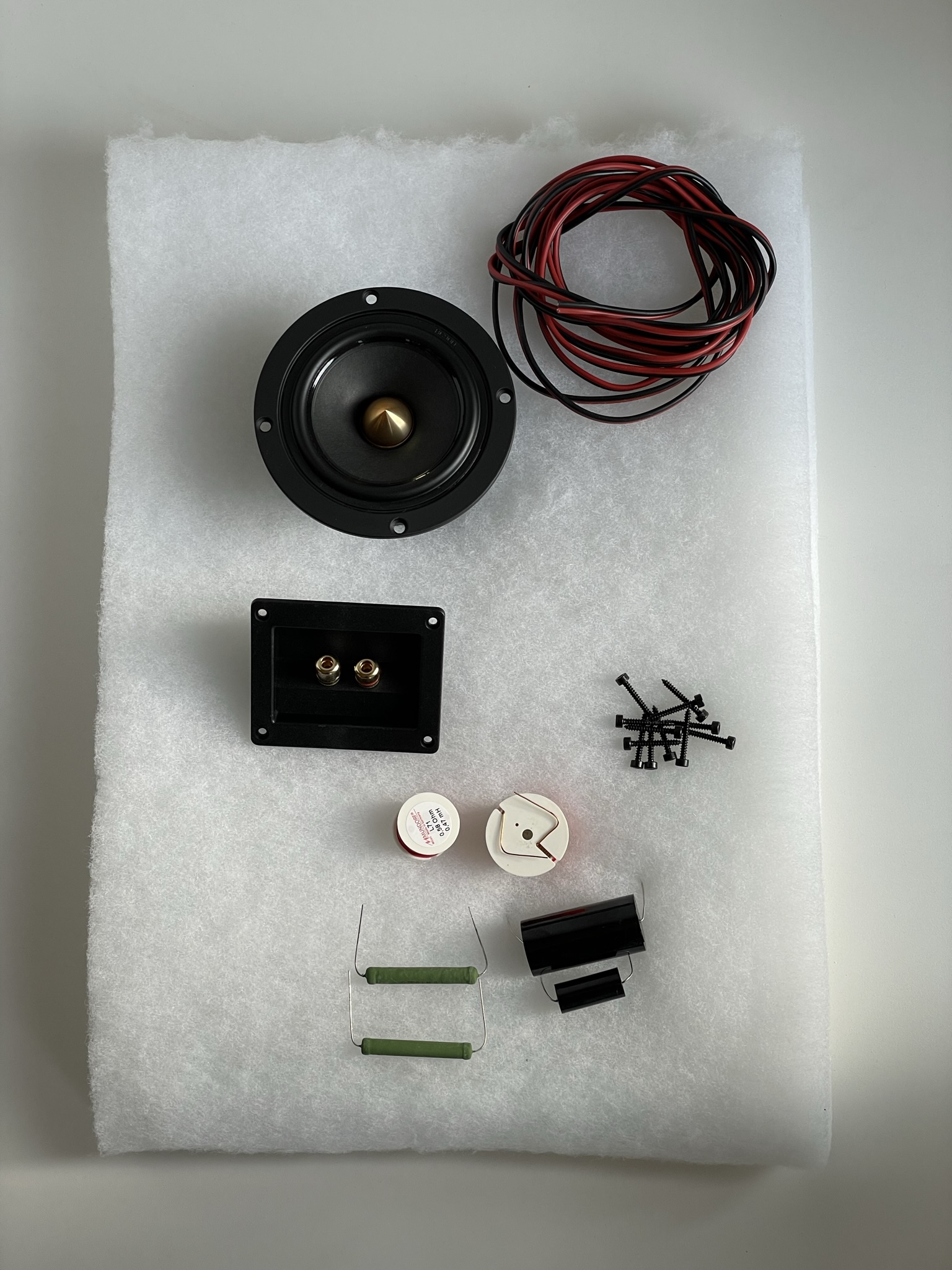

DayDream Mikro TL
DayDream Micro TLFrom Hobby HiFi 1/2024 Loudspeaker Kit DayDream Micro TL, the execution includes: RS100-4 ND25FA-4 Frequencies crossover components loose (Standard or High-End. Please select) Kabel for indoors, screws, insulation material, perforated board, terminal. Construction/Insulation and Switch Plan.
DayDream Signatur 270 Lautsprecherbausatz
DayDream Signature 270 Speaker KitThe crowning of the DayDream series...Three that harmonize and that in the Golden Ratio. Hobby HiFi 1/2025 Harmonious Sophisticate. DayDream Signature 270: Three-way Concept in Retro Look, with the Latest Technology! Sound description: Again, we experienced a soundscape full of lush power, with clear structure, finest resolution, and greatAttention to detail. Just a generous portion more opulent, powerful, explosive than the DayDream.Signatur 225. Once again, delicate detail drawing, authentic voice reproduction,powder-dry and magnificent basses. The three chassis harmonize ideally and merge into aseamless unit. Highly musical, the chic retro boxes provide a stage for a wide variety of music genres. From completelybegeisternder tonal neutrality is to be reported. Solo voices were impressively vivid,spatially perfectly draped and exemplary authentic. That all works up to a fabulous volume completely confidently, without any limitations. These speakers fill even large rooms with sound effortlessly. The AMTHR4-4 Air-Motion-Transformer meticulously resolves even the finest acoustic structures. It presentsfiligree details quite naturally. The music spreads out in a wide and deep space,she appears tonally and spatially truthful and authentic. Der SIG180-4, State-of-the-art chassis design developed with the acoustic measurement system by Professor Klippel (TUDresden). Suitable for the level-fixed concept. From 400 to 2500Hz, the 18-inch "midrange driver" is an easily solvableTask Der SIG270-4, Most advanced chassis design developed with the acoustic measurement system by Professor Klippel (TUDresden). Large-format and highly resilient woofer, with impressive sound qualities, especiallyimpressive deep bass and additionally remarkably level-resistant. The enclosures or just the baffle are available as usual in the standard versions MDF raw orMDF black through-dyed at unbeatable prices directly from our joinery. Wählen Sie, welche Ausbaustufe für Sie die richtige ist, ob Sie lieber verleimte und grundierte oderlackiert Gehäuse wüschen. If the appropriate Finnish is not listed, please contact us. By email, byPhone, we also manufacture according to your specifications or execution requests.
Ava23 Lautsprecherbausatz
Ava23 Speaker Kit [...] the Ava23 impresses all along the line: The expected balanced bass tuning in the room providesin the form of a calm and profound bass reproduction, which provides a solid foundationprovides. Punch is there when required, wide areas from synthetic sound sources as well - and the wholejust beautifully differentiated and defined. The midrange and bass are actually slightly in focus in the reproduction and emphasize voices andSoloinstruments beautifully in front of the background - and of course with all the spatial precision andPlastizität, to which a point sound source is indeed capable. And at the very top, there is awohldosierten high-frequency range, which can be achieved by experimenting a bit with the angle of the box just like thiseinstellen kann, wie man Ihn gerne hat. Overall, the Ava23 is an excellent choice for a broadband box.Allrounder that I can even recommend as the only speaker in the house. Thomas Schmidt / Sound & Tone 4/2023 1 Way Full-Range Speaker Kit (without enclosure, please order separately) 1-Way Main Floorstanding Speaker Assembly: 8“ 22cm Dayton Audio Full-Range Speakers, Crossover Components Mundorf Hi-Quality: Properties: Ava 23 (Persian, "voice" "sound" "the melodious") is a TQWT (Tapered Quarter Wave Tube)with 20 cm broadband speaker chassis configuration. The full-range speaker from Dayton Audio is no longer an insider tip or a newly undiscovered gem. Sein hoher Kennschalldruck und sein ausgewogener Frequenzumfang, haben schon das ein oder andere schöneLautsprecherkonzept entstehen lassen e.g. in the specialist magazine Hobby HiFi 2-3/23. There, Bernd indulgedTimmermanns a Back Loaded Horn (Jericho) that suits the full-range speaker wonderfully, and in thedynamischen Bereich seine Stärken hat. Die Ava 23 ist ein deutlich kleineres Gehäuse design, die auf einrundum optimized for a more homogeneous sound image. It is a speaker that reveals details even at low volumes.präzise räumlich darstellt, der aber auch bei größeren Pegeln nicht gleich die Segel streicht. Broadbandtypically, she succeeds in creating a spatial representation of the music and its performers that is extraordinaryand depth and width are excellently combined. Its sleek case design appears well-proportioned andelegant, and the Finnish allows for many degrees of freedom in design to the dream speakerrealize. Scope of delivery: - Variation: Standard Crossover Design High End Crossover Design For the selected number, it is pieces,nota couple.

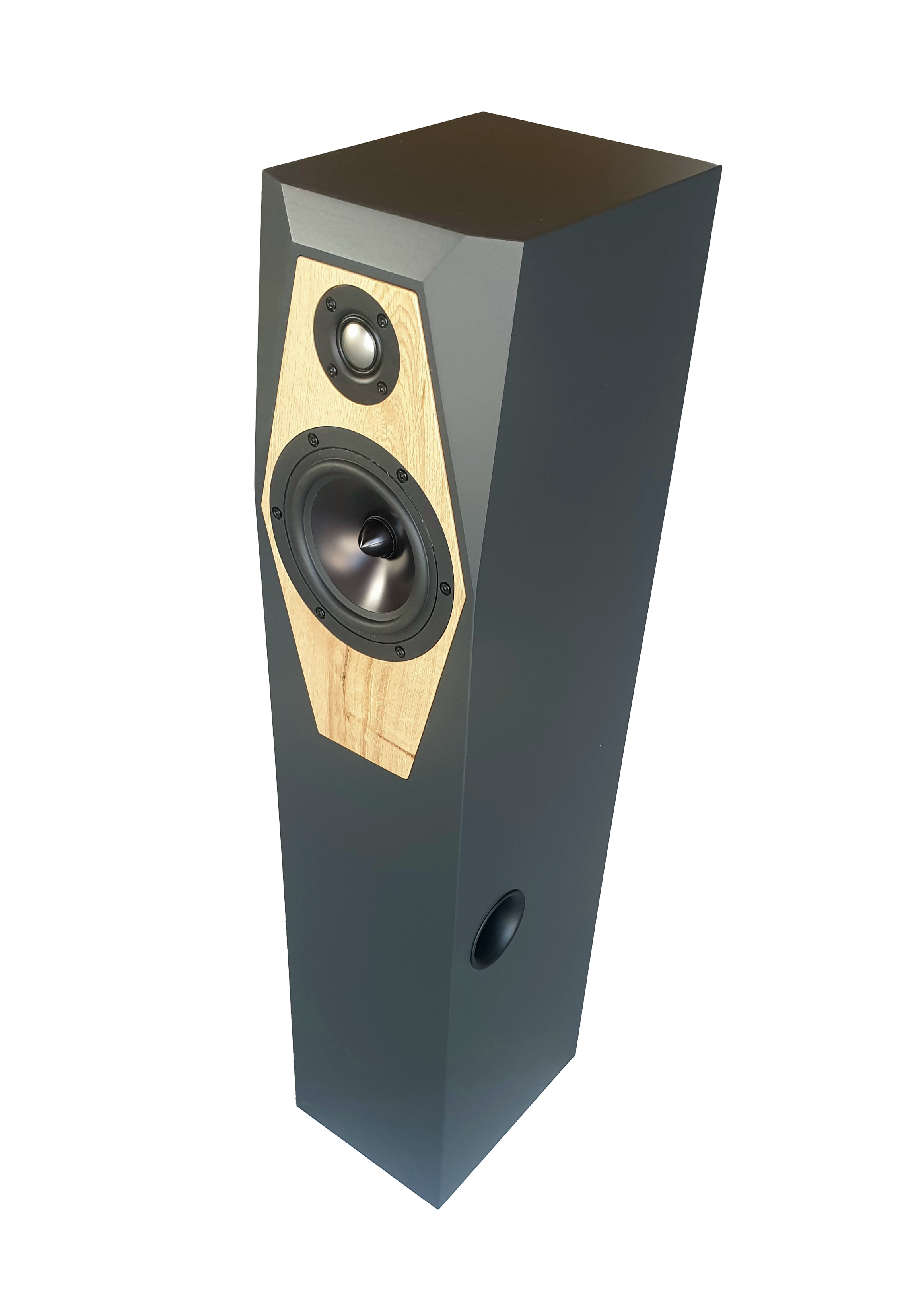

DayDream Lautsprecher-Bausatz
DayDream Speaker KitDay Dream Loudspeaker system from Hobby Hifi 04/2020 Assembly: Dayton Audio Chassis RS150-4 Woofer / NHP25Ti-4 Tweeter Properties: Bei dieser Standbox ist der Name buchstäblich Programm, „DayDream“… diese Box lässt sie wirklich nur sodahin träumen. She captivates her listeners even at minimal volume and is so absolutely present. TheDayDream Speaker - Kit with Chassis from Dayton Audio is truly something for the all-rounder, becauseDayDream allows you to experience almost all genres of music in a fantastic sound world,not too intrusive but absolutely precise in spatiality. Hobby Hifi Conclusion: "The handsome floor-standing speakers acoustically outgrow their delicate physical formatfar beyond: They offer authentic sound quality, which at both high and low volume levelsinspire knows. Exceptionally low costs of just around 300€ for a pair of speakers-if theHousings manufactured in-house certainly do not make the decision for this construction proposal easier.completely insignificant. However, one should not be misled by the low costs: In terms of sound, it offersDayDream excellent quality, in no way inferior to the ready-made boxes in the four-digit price range." Scope of delivery: Screws Chassis Terminal Bass reflex tube Cable (Interior) Insulation fleece Crossover Components (Loose) The delivery time refers to the kit without a case. In the selected quantity, it is pieces, not pairs. The illustrated box is a construction variation/suggestion from us on how it could be done.

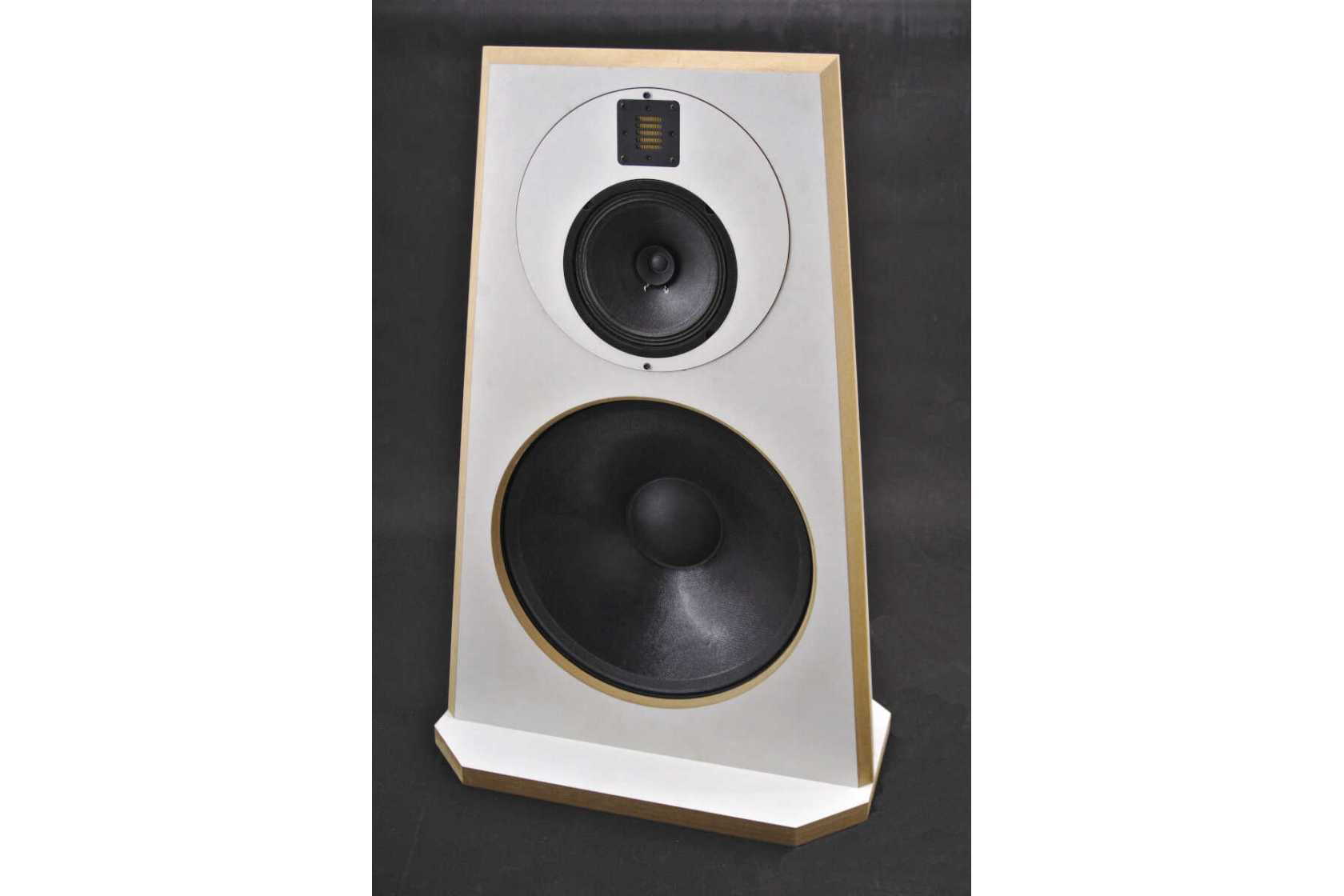

Axiom18MKII Lautsprecherbausatz
Axiom18MKII Speaker KitAxiom 18 MK2 Kit 3-Way Open Baffle Dipole Floorstanding Speaker Assembly: variant TT18D, Visaton BG20, AMT-2; Frequency crossover components Mundorf Hi-Quality: Properties: Dipole, Open baffle with 46cm (18inch) woofer, 20cm (8inch) midrange, and AMT tweeter. Allim allen LOTS of membrane area for each of the 3 ways. The good-naturedness of the selected chassis is toverdanken, that also in terms of switches the specialized and highly qualified MundorfFrequenzweichenbauteile have little to no trouble performing their tasks. The new player isa midrange broadband chassis from the German manufacturer that has been tried and tested for decades and is popularVisaton. The class in the midrange compared to the predecessor is a significant improvement. Light paperMembrane in the bass and midrange, extracting the last bit of detail. This is how the threeActors, even after passively softened three ways, to perform as a unit in entirety. Fresh, free andthundering deep, after all, 30 Hz -3dB as a cutoff frequency is quite a statement. Upwards, theAMT with its large-area membrane leaves nothing to chance, and its super-light film goes far beyond anoch sinnvoll hörbaren Frequenzbereich hinaus. In die Mitte gesellt sich der 20cmPaper diaphragm full-range drivers with a small whizzer cone. In this project, however, it only serves as a midrange driver.and he performs this task exceptionally well. The Open Baffle is simply fun, it succeedsat first glance a split of voluminous size and fine-drawing precision. Without exaggerating or evento roar, it goes deep down into the bass cellar, dipole-typically precise and contoured. TheBühnenbildern experimentieren.Experimenting with wall distances will certainly be rewarded. Anyone who has experienced dipoles and has been convinced bythem address or even let themselves be convinced, they will find it difficult to relate to classic monopolieswant to reorient. The efficiency is with 90dB, at a termination impedance of 8 Ohms, also still tube-compatible (withoutadditional components for impedance linearization). Hearing impressions: To the hearing test, let the small 30-watt tube warm up again in peace and then be amazedrealize that without even checking the time once, you listened to the music for four hours. Then followed the usual daily amplifiers of the digital faction and a few already in theJahre gekommen AB Transen. Dieser Lautsprecher vermag es auf Anhieb die Geräte im Klang zudistinguishes, but makes music with HiFi suitable entourage Ein DIY project that allows for a lot of interpretation and tuning for Finnish andStructurally requires little knowledge. If it stands stable and with mass, then everything has been done correctly.done. Technical Specifications: Frequency range: f-3dB: 30-30000Hz SPL: 90dB Gesamtimpedanz: 8 Ohm (Nom.) Principle of Operation: Dipole/Open Baffle B/H/T: approx:580x890x450mm Scope of delivery: - Screws - Chassis - Terminal (Binding Posts) - Cable (Interior) - Crossover components (Loose) The delivery time refers to the kit without a case. The selected number refers to pieces,notto pair.
Apart 120 Lautsprecherbausatz
Apart 120 Speaker Kit Es funktioniert immer wieder: Give a small box a little more level in the upper bass range and it willimmer voll und komplett klingen. That worked with our last Cheap Trick and thatfunktioniert noch viel besser bei der Apart 120. Okay, if you take it very precisely, you canSubstance in the lowest layers is missing, but when you just listen to music, the mini floorstander convinces.with power and dynamics in the bass, clean vocal reproduction and clear and precise highs that theFolienhochtöner dynamically and finely resolved reproduces. And yes, the small box can also handle volume.and then it also pushes a lot of air – you can and should let the small Dayton bass worklet. This does not just end in a short "Oh, the little one can be really loud" effect,but also works permanently, as the clean and dynamic sound is thoroughly suitable for long-term use.Good box! Thomas Schmidt / Sound & Tone 6/2023 Small Box, Big Impact! The new Signature Chassis from Dayton Audio are quite attractive and affordable. Astable yet delicate cast basket with 6 mounting holes offers more than enough support. Theinverse aluminum dome membrane is extremely robust and black anodized. The Apart 120 has proven itself as a small floor-standing and sideboard speaker. With its slim design andslightly angled positioning convinced them the most in our rooms. Initially, it was alonger and deeper tuned line planned, but for a bit more level stability, aAbstimmung omitted at 45Hz. This works absolutely satisfactorily, as we find. A -3dB-Point at 70Hz, which extends to 60Hz depending on room acoustics, ensures tight bass without excessivewummernd zu wirken. The frequency response shows a gentle decrease over the entire range, with abovefrom 12kHz there is still a slight increase to note, which, however, does not make a noticeable difference in sound.The crossover frequency is at 2000Hz with an 18dB slope, an impedance linearization, andVoltage divider before the tweeter, which works wonderfully with resistance values in a 12-series +1dB/-1dBcan be regulated. The insulation is easy to perform. At the beginning (in the tapered part), it is tightly packed, with aMatte polyester batting in the format 45-50cm x 45-50cm is used, which reaches up to the top edge of theSeparation component is sufficient. At the larger end of the line, below the BR pipe, another mat is placed withapproximately 45cm x 45cm polyester wadding tightly rolled, so that the inner end of the tube remains free. The tweeter is already well-known and has impressed multiple times under various names. The emptyFach hinter dem Hochtöner bietet Platz für die Frequenzweiche (Note: During the later assembly of theSoft should this be constructed in a more elongated manner, taking into account the cutout dimensions of the tweeter.should be). When attaching the mounting frame for the tweeter, care should be taken becausethe frame is very delicate and can bend if too much screwing pressure is applied. The soldering of theHochtöners should be avoided, as excessive heat can damage the foil. With the SIG120-4, this isSoldering, on the other hand, is harmless as it is the safest connection. A socket plate or otherstabilizing measures should definitely be considered. The kit also includes 2x1.5qmm speaker cable (by the meter) and flat connectors for crimping, aConnection terminal with solid gold-plated screw terminals as well as elegant hexagon socket wood screws forMounting of chassis and terminal. Of course, we also offer housing options, from simple MDF-Housing with baffle and milled openings for the chassis (also rear-milled) up to the finishedglued and/or lacquered enclosure. Baffle and kit are standard in raw MDF orblack through-dyed MDF available. Special requests such as plywood or real wood are of coursealso fulfilled.

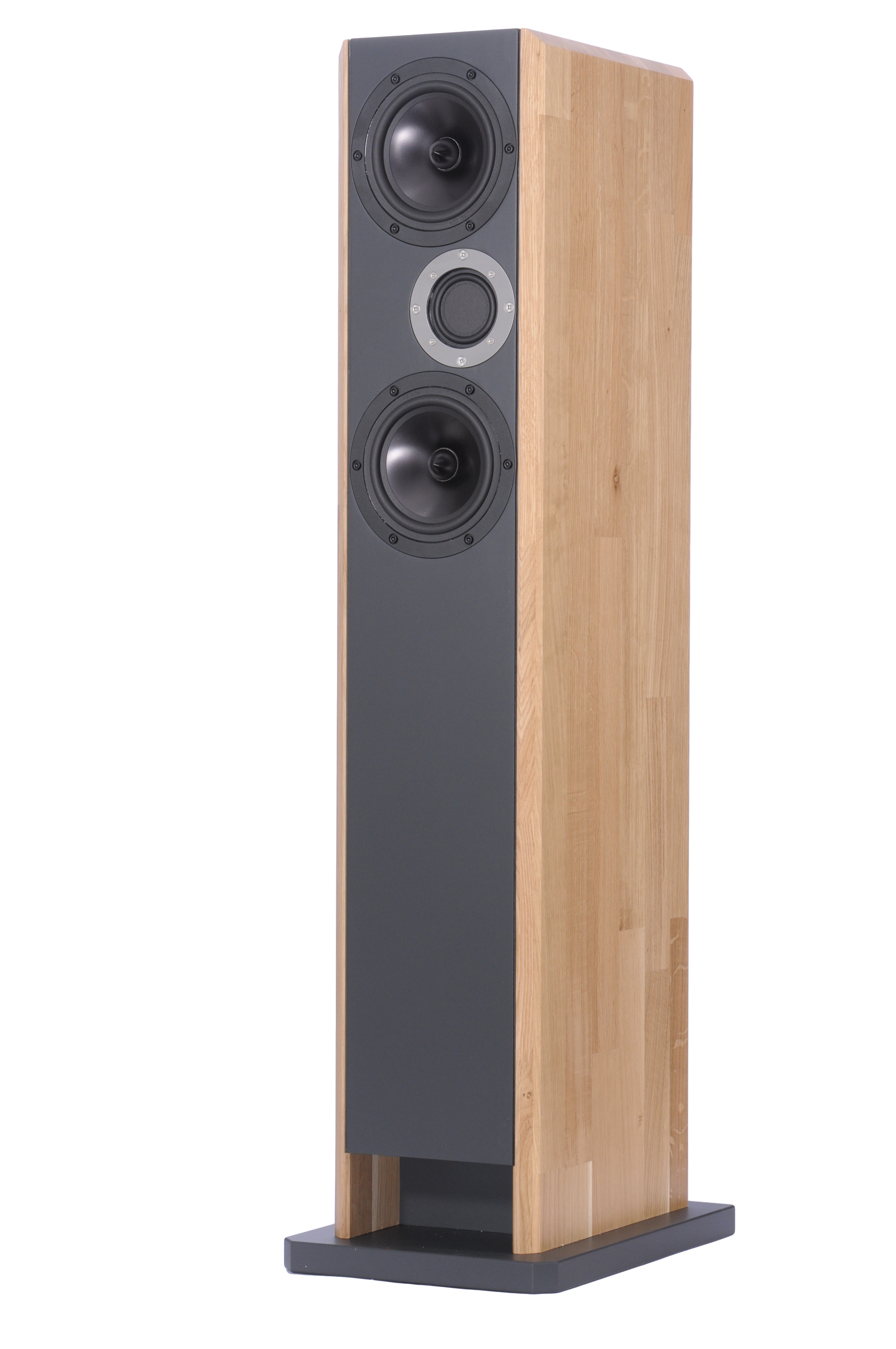

DayDream TLR Lautsprecher-Bausatz
DayDream TLR Speaker KitDayDream TLR 2-Way Floorstanding Speaker Assembly: Dayton Audio RS150-4, Tectonic TEBM46C20N-4B Full-range, Bending Wave Transducer (Bending Wave Radiator),Balance Mode Radiator.; Frequency crossover components Mundorf Hi-Quality Erfahrungsberichte aus dem Cologne Listening Center von den DayDream Days Properties: The DayDream by Bernd Timmermanns from the specialist magazine Hobby-HiFi is a success story like itlong absent in self-construction. From its first appearance in 2020, it was always a livelyInterest. The extensions for the center and large stand box as well as the planned extensions insmaller models that can then take over the Rar tasks in a home theater are this largeDemand from customers owed. Obviously, design and sound hit the nail on the head! ThePreiswürdigkeit plays certainly also a significant role. However, the sound is what the customers whoschon gebaut haben as the most important and striking element of the DayDream. ModernTechnology, mature sophisticated qualitative classical construction forms and skillful case design withklanglich optimized crossover tuning and quality make DayDream something special. The best of both worlds, Transmission line and bass reflex combined – That's how bass works! Breitbänder as mid-high frequency drivers, Reference Woofer from Dayton Audio CONCLUSION Hobby-HiFi 3/2021: Not too large floor-standing speakers with great sound, with superb resolution, with a holographically realistic spatiality and with remarkable Dynamism: This is DayDream TLR! These speakers use affordable Chassis material, but it is of excellent quality. Not least thanks to a sophisticated housing design and highly musical acoustic tuning succeeds an audiophile result that exceeds the favorable material price many times over. Scope of delivery: Screws Chassis Terminal Cable (Interior) Insulation material Crossover Components (Loose) Grid plate Stainless steel ring for Tectonic TEBM46C20N Variation: In the variation,…. The delivery time refers to the kit without a case. In the selected quantity, it is pieces, not pairs.

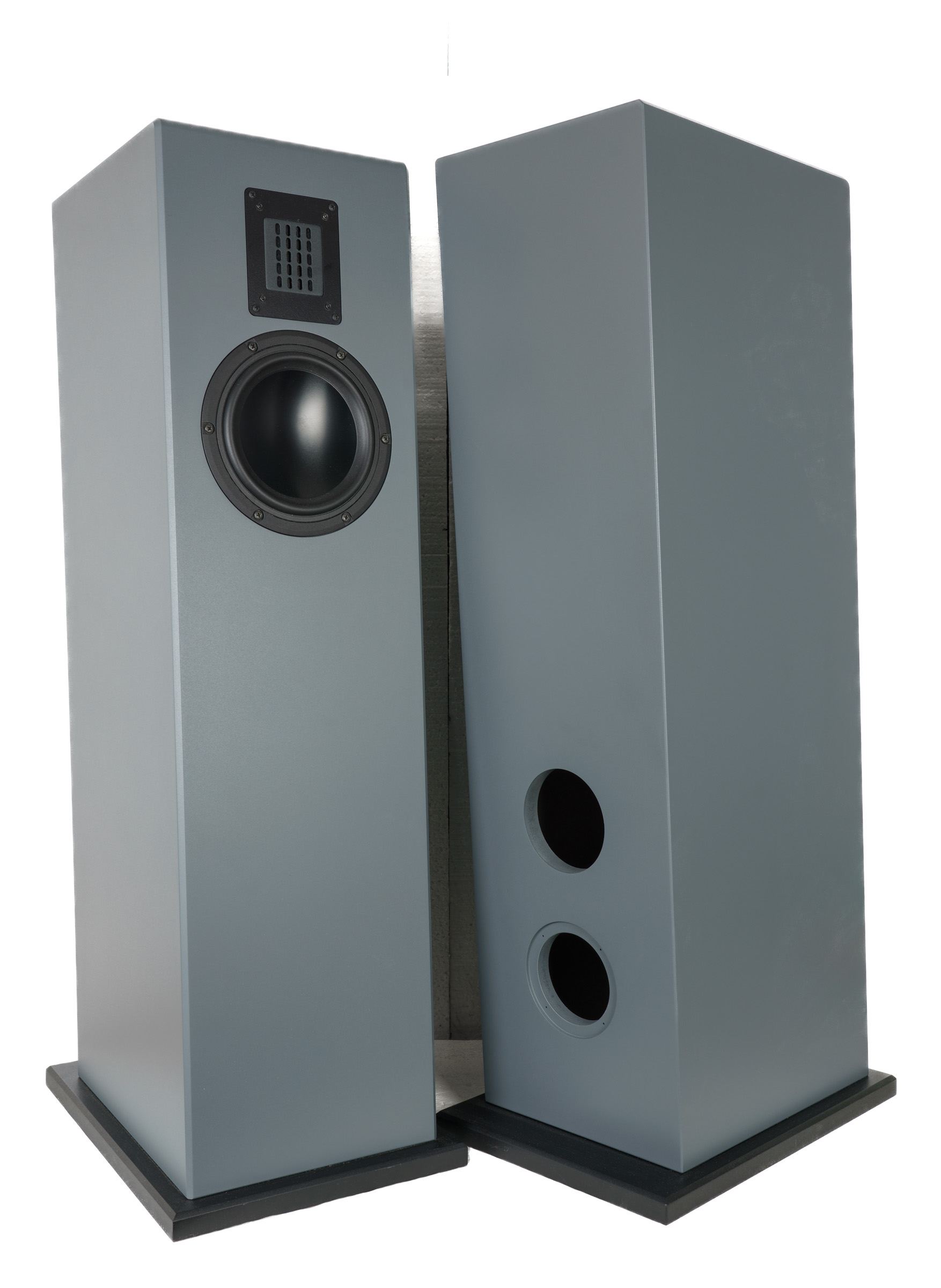

Apart 180 HSB
Apart 180 HSBThe Apart 180 HBS, another offshoot from Thorsten Fischer's idea for the new Dayton Audio Chassis Series Signature. Theo Winterscheid and Thomas Ahlersmeyer were equally enthusiastic about the concept, so the development for the Apart 180 went to HiFi Selbstbau. Just like the choice of chassis, the housing concept and design were also adopted. In the development of the crossover, the ICY Medien team took their usual time and effort. The result is coherent, despite different developers of the series.The Apart180 is certainly the more mature version, no, fully grown. It powerfully delivers low tones and bass with authority and precision, transporting them deep and rumbling towards the ear canal. The tonal gene of the Signature series is also inherent in the SIG180-4, and its powerful bass capability is by no means all it offers. It delivers midrange with faithful color and homogeneity, perfectly suited to every music genre. The GRS PT2522C-4 ribbon tweeter shines with its large surface, stress-free, elegant, and detail-oriented. Additionally, it offers enough reserves for personal adaptation to room conditions, even in heavily dampened rooms, it can still illuminate tonally. The harmoniously lowest crossover frequency ensures seamless integration. Even in terms of macro dynamics, the Apart180HSB proves to have real resilience. The Apart180HSB fits seamlessly into the Apart series, thus complementing a range that has something suitable for every HiFi enthusiast. That it is also affordable is another convincing argument in our view.

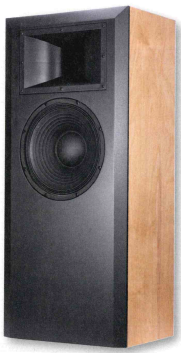

Sonoro HobbyHifi
Sonoro HobbyHifi 4-5/2025 Clevere Concepte CC255 HiFi Zweiweger mit PA Genen, oder HiFi PA?! Sonoro ist eine Spaßmaschine auf höchsten Niveau - gnadenlos pegelfest, wenn es darauf ankommt, aber auch vollkommen souverän bis hin zu geringster Lautstärke. Lieferumfang: - Chassis - Horn - Dämm/Dämpfungsmaterial - Innenverkabelung - Schrauben (Chassis/Terminal) - Anschlussterminal - Frequenzweichenbauteile Lose - Rasterplatte - Dichtband - Bau/Dämm/Weichenplan

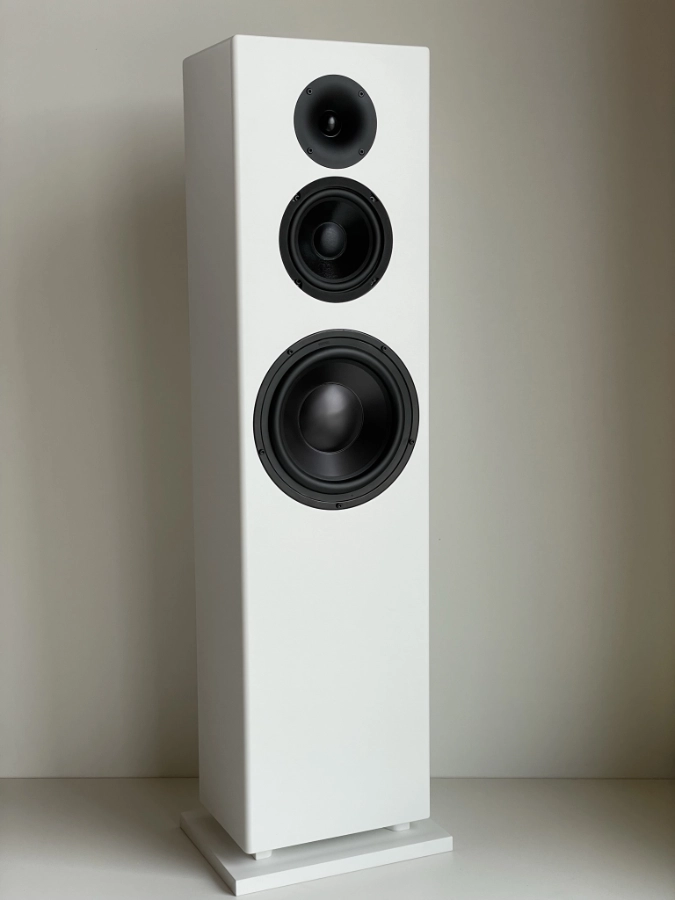

Home Cinema F1 Lautsprecherbausatz
Home Cinema F1 Speaker KitHome Cinema F1 3-Way Bass Reflex Floorstanding Speaker Assembly: Dayton Audio, DSA215-8, DC130B-8, ND25FW-4, Crossover Components Mundorf Hi-Quality: Properties: Modern designed floor-standing speaker for HiFi and home cinema. The slim design adapts to thetoday's apartment furnishings. A 3-way speaker with a consistently homogeneous sound characteristic,dynamic, powerful through an aluminum bass membrane, distortion-free homogeneous mids through thelight paper membrane and finely resolving treble with plenty of dynamic reserves. Even for wall proximityLineup suitable. Customer Review: Die CB F1 was for my son's children's room. So I built it with multiplex wood, because children's roomeverything is made of wood. Since I cannot saw, we bought enclosures with openings ready-made, that is great service becauseeverything fit perfectly right away. I am an electrician and can solder quite well, but not important at all thethe crossover is so simple that my 12-year-old soldered it under my guidance, turned out great withzweiten Anlauf, denn ganz wichtig dear HiFi variant the chokes must all be free from the protective varnishscraped off. Then we screwed it in and test run. Super sound at low tones. But at loudtones something was not right. Pulled and was like contact error. Checked everything and reviewed, then athifi variant called and after conversation error found. IMPORTANT, crossover must not be behind the magnets,must be at the bottom in the box. Then it sounded huge. Bass was with pressure, midrange clear and tweeter super clear. When we placed the box very close to the wallstellten wurde Bass noch mehr aber ohne dröhn. What the speakers from others did not do well, thefrom xxx were not so good. My son is happy and I am now building them for the living room as well. Regards, Piotrand Tomasz Scope of delivery: Screws Chassis Terminal Bass reflex tube Cable (Interior) Insulation fleece Crossover Components (Loose) Circuit board

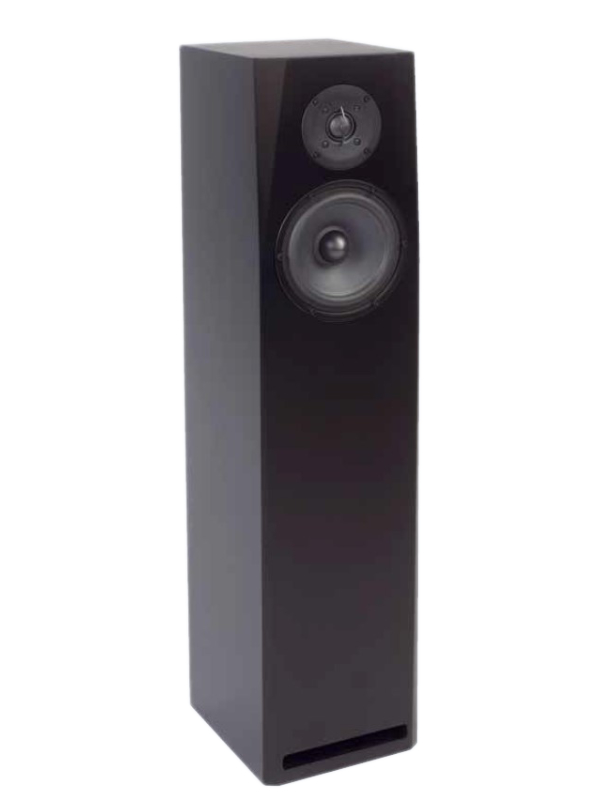

CO-Bold Lautsprecherbausatz
CO-Bold Speaker KitCO-Bold 2-way Floorstanding Speaker Co-Bold "Sound + Tone 2/2022 Assembly: 29mm fabric tweeter "Bold North Audio", 170mm woofer "Bold North"Audio“, Frequency Crossover Components Mundorf Hi-Quality: Properties: Unusual two-way construction, in a collaboration between Klang+Ton and variant-hifi. The new chassis from the manufacturer Misco, exclusively distributed by variant, of the brand Bold North Audio,gehören zu den technisch new developments, die mit der Erfahrung eines großen und erfahrenen Teamoriginated. The technical specifications of the mid-woofer with patented XBL2 magnet design, the 10mmLinear stroke guaranteed, double copper short-circuit rings to prevent impedance increase andDistortions, thus helps to achieve a wide frequency range. The maximum compact builderHigh-energy neodymium ring magnets, which guarantee a high BL and minimal reflectionFlats shaft, and with the elegant die-cast basket with six mounting points for secure hold. TheAbaca fiber membrane with long-term stable rubber surround also help the BWX-6501 midwoofer toacoustic peak performances. The tweeter BDT-2901 is a completely newly developed large fabric tweeter with KlippelCoupling volume, which creates a deep resonance frequency and room for takeover frequencies. Also, for the tweeter, NBA uses a high-energy neodymium ring magnet. But in the end, the sonic attributes count, which is why the final judge at Misco is the ear. This is the material from which good speakers can be made. Thomas Schmidt Editor-in-Chief of Klang+Tonhad dealt with the chassis and deemed them worthy of a two-way concept, andzauberte die Co-Bold. „Quote Klang+Ton 2/2022“ Simply a solid and good-sounding floor-standing speaker, good inLiving space integrable and still affordable in the true sense of the word… Scope of delivery: Chassis Crossover Components (Loose) Insulation material Fastening screws Connection terminal Bass reflex tube Cable (Internal Wiring) In the selected quantity, it is a piece, not a pair.

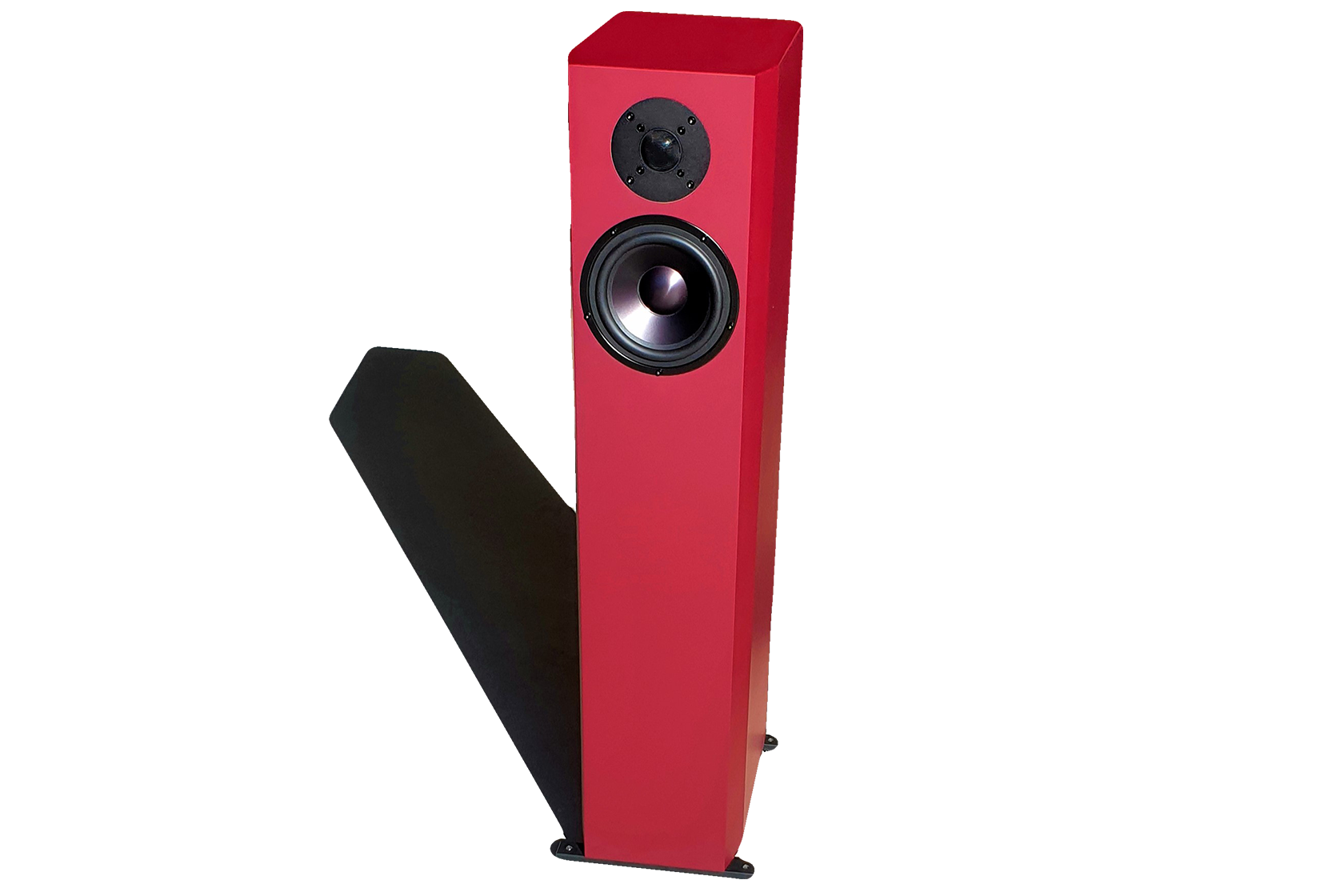

Leto Lautsprecherbausatz
Leto Speaker KitLeto Elegant classic 2-way floor-standing speaker. Assembly: Dayton aluminum cone, midwoofer DSA175-8, Dayton aluminum cone tweeter RST28F-4;Frequenzweichenbauteile Mundorf Hi-Quality Properties: Precise and deep-reaching bass. Multi-layered and attractive midrange with considerableDetails. Brilliant and high-resolution treble range, even far beyond human hearingout. Leto impresses even at very low volumes with outstanding resolution and thus delights as wellthe neighbors. When a little more volume is needed, the metal membrane steps up and deliversproper pressure without sacrificing precision. All in all, an everyday speaker with pronounced depth and remarkably largeDetail richness.
Melodie 8018 Lautsprecherbausatz
Melody 8018 Speaker KitMelody 8018 Klang + Ton 01/2021 2-Way Design Floorstanding Speaker Assembly: Mundorf AMTU80W1.1, Dayton Audio RS180p-4; Crossover components Mundorf Hi-Quality. Conclusion Klang+ Ton 01/2021 Hearing test And as confidently as in the measuring room, the Melodie 8018 also impresses in the listening test: Deep and powerful bass captivates the listener – you can build on such a foundation. The very low tones find an optimal mix of elasticity and hardness – a very successful combination, we think. The midrange is clear and seamlessly transitions into the equally defined high range. This has absolutely audiophile qualities, which can be slightly adjusted with the voltage divider before the AMT if greater sound quality is desired. We are thoroughly impressed with the extremely spatial and defined performance of the Melodie 8018..Thomas Schmitz Properties: Floor-standing speakers in a slim design silhouette for modern living style (possible close-to-wall placement).As a topping, you can choose an 8mm stainless steel base plate that provides stable support as an extra. Variant also delivers the cuttings and pre-milled fronts or complete kits, in MPX, raw MDF,Black or primed foil up to fully painted and assembled LS. Ihre hochwertigen Komponenten vereinen sich wunderbar zu einem Ganzen. Not a pretty player and not aPoet. She plays with what she is fed. Experience their music preserves as they are, withoutMistunings or discolorations disturb the sound experience. The Mundorf AMT from the brand new U-profile series shows what modern foil tweeters are capable ofleisten sind. Finest details, brilliant resolution, and dynamic treble behavior, without everintrusive or superficial, that is the supreme discipline of tweeters. Der Reference mid-bass driver with a powerful ferrite magnet, the stable die-cast basket with6 mounting holes that guarantee a firm hold and the coated lightweight paper membrane, theyguarantees the homogeneous sound unity and delivers powerful bass. The passive membranes areinstead of bass reflex tubes and do not tend to air flow noise when tuned low, andcreate tuning options to respond to room-related modes and room gain.
CSS Criton 2TD-X Tower Kit (Pair)
The Criton 2TD-X uses our new LD25X tweeter to bring a new level of detail to the Criton lineup. This kit is our highest output, lowest distortion offering. It's the Criton 1TD-X on steroids. Basically it is everything good about the Criton 1TD-X turned up to 11. By moving to a tower design, we've extended the bass down to 30 Hz anechoic and 20 Hz in room. For music, you definitely don't need a subwoofer with this one.How do we achieve such great sound at this price point? It starts first with great drivers that are made to our specifications. This allows us to pick exactly what qualities we want to be able to blend our drivers seamlessly and highlight all their strengths. Most smaller manufacturers use off-the-shelf drivers available to the DIY community so they don't have to buy in large quantities but this increases the per unit cost. Large production runs solely for us reduce our cost per unit and allow us to pass savings along to you by offering very high quality drivers at reasonable prices. Next, we offer you a variety of configurations that gives you control over what you spend your money on. You havethe chance to take on some of the labor costs involved in assembling and finishing a speaker in stages depending on what you are comfortable doing yourself. Upgrade options allow you to additional configure our speakers to your budget.Crossover Point: 1800 HzRecommended Power: 20-100 wattsNominal Impedance: 6 Ohm Frequency Response:+/- 1.5 dB from 35 Hz to 17 kHz anechoic+/- 3 dB from 30 Hz to 20 kHz anechoic20 Hz to 20 kHz in roomSensitivity: 90 dBExternal Dimensions: 44"H x 8.5"W x 10.5"D uns, die Einsparungen an Sie weiterzugeben, indem wir sehr hochwertige Treiber zu vernünftigen Preisen anbieten. Außerdem bieten wir Ihnen eine Vielzahl von Konfigurationen an, die Ihnen die Kontrolle darüber geben, wofür Sie Ihr Geld ausgeben. Sie haben die Möglichkeit, einen Teil der Arbeitskosten zu übernehmen, die mit dem Zusammenbau und der Fertigstellung eines Lautsprechers verbunden sind, je nachdem, was Sie selbst gerne tun möchten. Mit Upgrade-Optionen können Sie unsere Lautsprecher zusätzlich an Ihr Budget anpassen. Einfach zu montieren Wir wissen, dass die Aufgabe, einen Lautsprecher selbst zu bauen, entmutigend sein kann. Deshalb haben wir den Zusammenbau so einfach wie möglich gestaltet. Unsere Flat Packs sind mit CNC-gefrästen Kanten versehen, die alle Gehäuseteile leicht an der richtigen Stelle ausrichten. Unsere SmartNode- Weichenplatinen machen das Lesen komplexer oder verwirrender Schaltpläne überflüssig, da sie die beste vorgegebene Einbauposition für jedes Weichenbauteil und ein vereinfachtes Beschriftungssystem für den Anschluss der Leitungen unter der Platine bieten. Es geht nicht nur schnell und einfach, sondern Sie erhalten am Ende auch ein professionell aussehendes Produkt! Großartiger Klang Alle unsere Lautsprecher sind so konzipiert, dass sie ausgewogen und nicht ermüdend klingen. Wir verwenden eine Kombination aus detaillierten Messungen, Modellierung und Hörtests, um unsere Lautsprecher zu bewerten, bevor das endgültige Design festgelegt und für unsere Kunden freigegeben wird. Wir konzentrieren uns stets darauf, unsere Lautsprecher so ansprechend und musikalisch wie möglich klingen zu lassen. Der Mitteltonbereich ist der Bereich, in dem sich der Großteil der Musik abspielt, und doch ist er oft der Bereich, den Lautsprecher nicht richtig wiedergeben. Wir haben uns jahrelang mit der Entwicklung von Frequenzweichen beschäftigt, um genau zu verstehen, wie man sie transparent machen kann. Tatsächlich ist die Integration unserer Frequenzweichen so gut, dass wir zahlreiche Kunden, die zuvor nur Systeme ohne Frequenzweichen verwendet haben, zu Lautsprechern für den gesamten Frequenzbereich bekehrt haben. Wir haben uns um das Design der Frequenzweichen, die Abstimmung der Boxen und alle anderen wichtigen Details gekümmert, damit Sie Ihren Bausatz mit der Gewissheit bauen können, dass er nach Fertigstellung großartig klingen wird. Frequenzweiche: 1600 HzEmpfohlene Leistung: 20-100 WattNennimpedanz: 6 Ohm Frequenzgang: +/- 1,5 dB von 36 Hz bis 17 kHz reflexionsfrei +/- 3 dB von 30 Hz bis 20 kHz reflexionsfrei 20 Hz bis 20 kHz im Raum Empfindlichkeit: 90 dB Äußere Abmessungen: 44" H x 8,5" B x 10,5" T
CSS Criton 2TD-X Tower Kit (Pair)
The Criton 2TD-X uses our new LD25X tweeter to bring a new level of detail to the Criton lineup. This kit is our highest output, lowest distortion offering. It's the Criton 1TD-X on steroids. Basically it is everything good about the Criton 1TD-X turned up to 11. By moving to a tower design, we've extended the bass down to 30 Hz anechoic and 20 Hz in room. For music, you definitely don't need a subwoofer with this one.How do we achieve such great sound at this price point? It starts first with great drivers that are made to our specifications. This allows us to pick exactly what qualities we want to be able to blend our drivers seamlessly and highlight all their strengths. Most smaller manufacturers use off-the-shelf drivers available to the DIY community so they don't have to buy in large quantities but this increases the per unit cost. Large production runs solely for us reduce our cost per unit and allow us to pass savings along to you by offering very high quality drivers at reasonable prices. Next, we offer you a variety of configurations that gives you control over what you spend your money on. You havethe chance to take on some of the labor costs involved in assembling and finishing a speaker in stages depending on what you are comfortable doing yourself. Upgrade options allow you to additional configure our speakers to your budget. Crossover Point: 1800 HzRecommended Power: 20-100 watts Nominal Impedance: 6 Ohm Frequency Response: +/- 1.5 dB from 35 Hz to 17 kHz anechoic +/- 3 dB from 30 Hz to 20 kHz anechoic 20 Hz to 20 kHz in room Sensitivity: 90 dB External Dimensions: 44"H x 8.5"W x 10.5"D Empfindlichkeit: 90 dB Äußere Abmessungen: 44" H x 8,5" B x 10,5" T
Home Cinema F1 Lautsprecher- + Gehäuse in MDF roh fertig verleimt Bundle
Home Cinema F1 Speaker + Enclosure in MDF Raw Pre-glued BundleHome Cinema F1 Speaker + Enclosure (in raw MDF!) pre-glued Bundle 3-Way Bass Reflex Floorstanding Speaker Assembly```html <!DOCTYPE html> <html lang="de"> <head><meta charset="UTF-8"><meta name="viewport" content="width=device-width, initial-scale=1.0"><title>Meine Webseite</title></head> <body> <header><h1>Willkommen auf meiner Webseite</h1></header> <nav> <ul><li><a href="#home">Startseite</a></li> <li><a href="#about">Über uns</a></li><li><a href="#services">Dienstleistungen</a></li> <li><a href="#contact">Kontakt</a></li></ul></nav><main> <section id="home"><h2>Startseite</h2> <p>Dies ist die Startseite meiner Webseite.</p></section> <section id="about"> <h2>Über uns</h2> <p>Erfahren Sie mehr über uns und unsere Mission.</p> </section> <section id="services"> <h2>Dienstleistungen</h2> <p>Wir bieten eine Vielzahl von Dienstleistungen an, um Ihre Bedürfnisse zu erfüllen.</p> </section> <section id="contact">

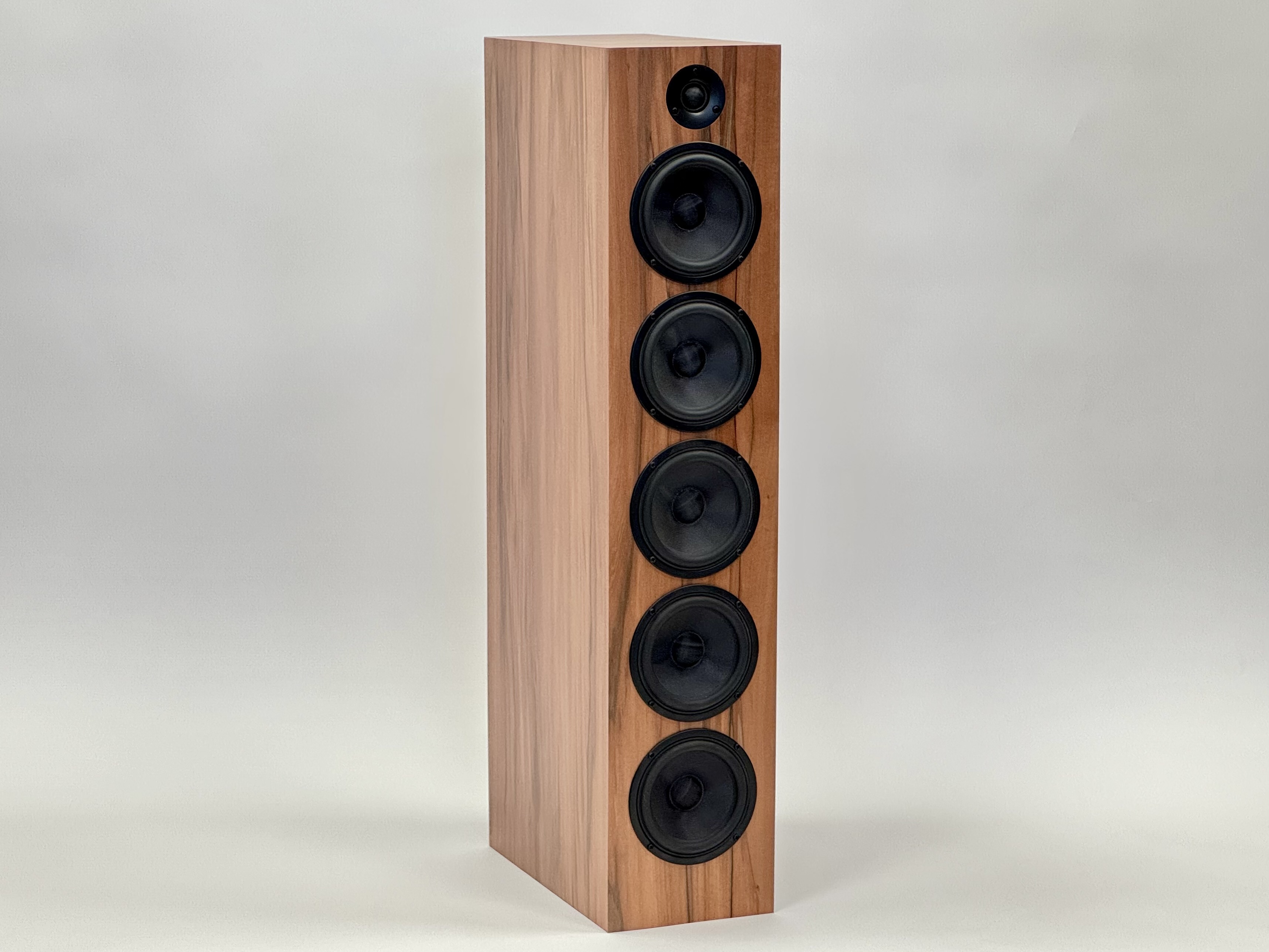

Torii Tower S4 (Paar)
Torii Tower S4 (Pair)Due to the success of the Torii entry-level model, CSS wanted to add a small tower to the range.record. Both are 3-way constructions that use the same drivers as the current Torii.verwenden, um eine möglichst gute Stimmanpassung zu erreichen. Der Torii Tower S4 increases the number ofTieftöner auf fünf pro Seite, wobei einer als Mitteltöner fungiert. Das Design ist mit einem f3 von 57 Hzsealed, which fits well into smaller rooms and also offers easier crossover integration forthe use in a home theater or when transitioning to a subwoofer. With over 15% moreSurface as a conventional 10-inch woofer, this speaker offers plenty of deep bass andImpact, without losing its relatively small and slim profile. The 8-ohm load isfor each amplifier easy to control. These properties make it ideal for use in theHome theater.

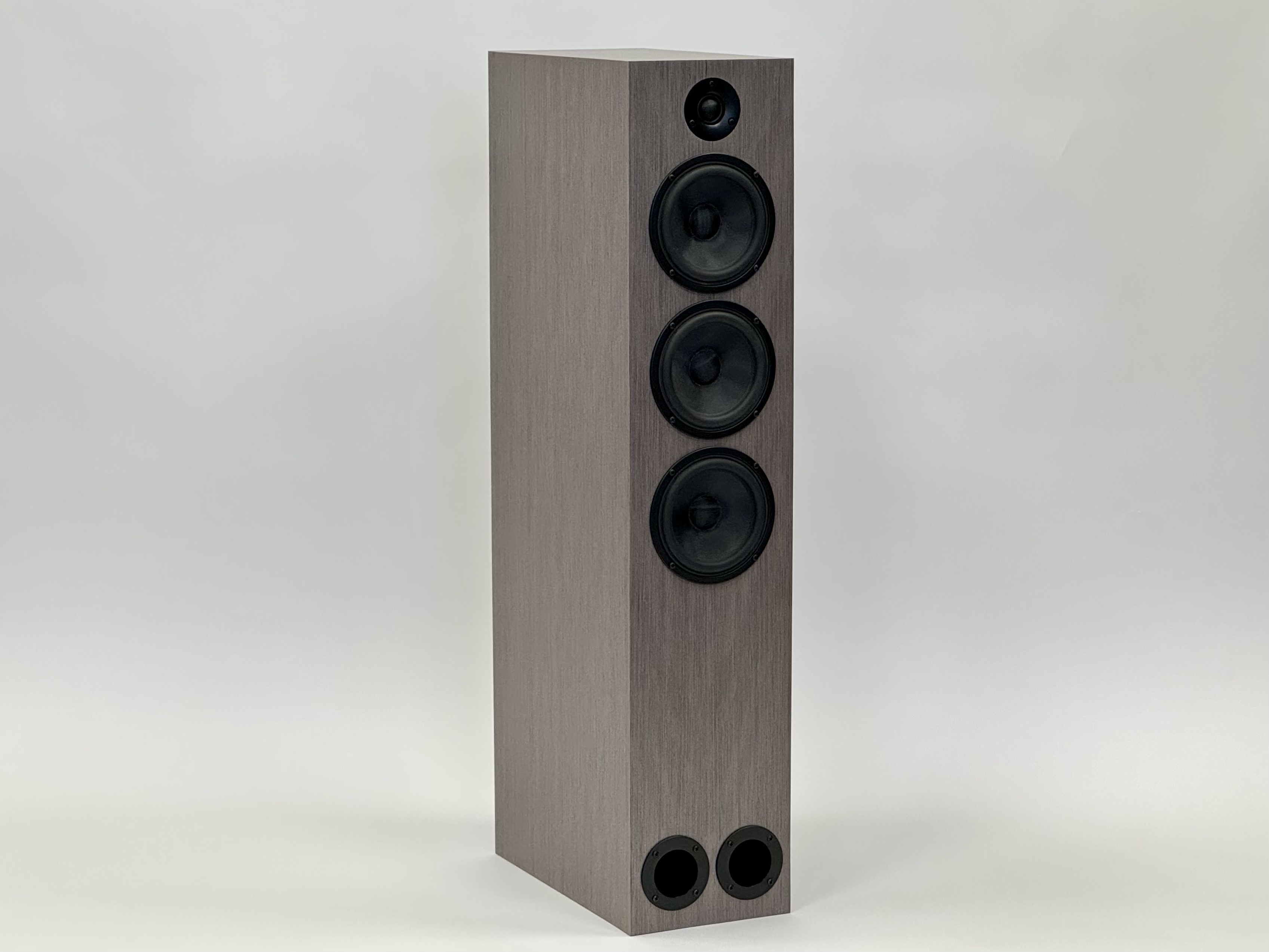

Torii Tower P2 (Paar)
Torii Tower P2 (Pair)Torii Tower P2 and Torii Tower S4 are both 3-way designs, where the sameDrivers such as those used in the current Torii and Torii Center are used to achieve the best possibleVoice adjustment to achieve. With only 2 instead of 4 woofers, the Torii Tower P2 uses the additionalCabinet volume to produce deeper bass, down to 32 Hz. This is a true, small full-Range tower that does not need a subwoofer for music. With 2 fewer woofers, it becomes acheaper price available and is ideal for a cost-effective 2-channel system. We have theFeedback from our customers considered and we opted for a design with front openings so thatdie openings are not blocked when placed against a wall.

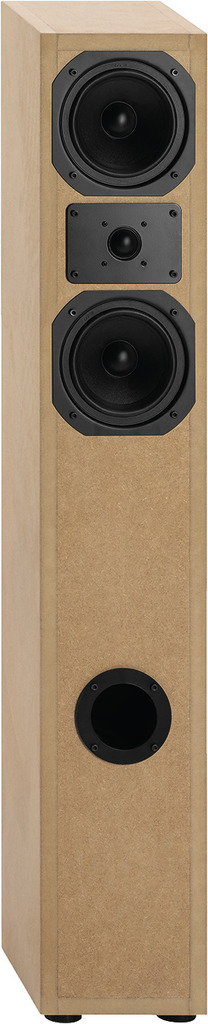

Monacor Aspera MK3 Lautsprecherbausatz
Monacor Aspera MK3 Speaker Kit A box with pep,nicht nur für pop Wanted: A speaker that is affordable, easy to replicate, robust enough for a small party, suitable for any type of music, bass-strong even without a subwoofer, compact enough for any room size, uncritical in placement, and preferably also visually appealing.Found: the ASPERA.Undoubtedly one of the most frequently built construction proposals from the MONACOR INTERNATIONAL range, this concept is precisely the right speaker for anyone who simply wants to enjoy music with pleasure, preferably from morning to evening and on all occasions, without being tightly focused on the "sweet spot" in the stereo triangle. There may be moments when the "higher" classes of hi-fi speakers can score with a bit more tonal balance, even more dynamic capability, and an even more realistic spatial representation of an orchestra.Only for the hi-fi enthusiast is this additional effort worthwhile - All others can find their favorite speaker with the ASPERA/MK3 with the further optimized crossover. Not a cheap one, but the right one!

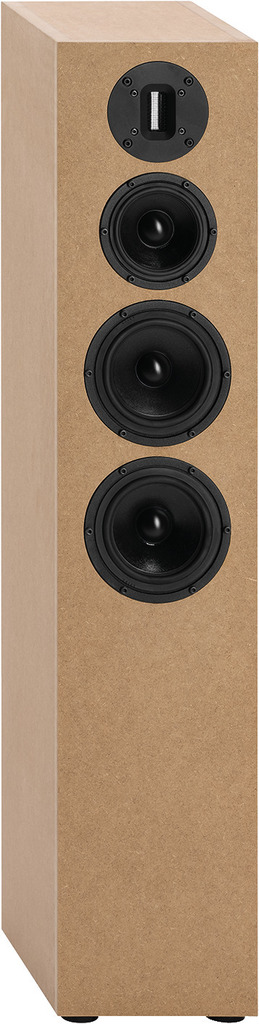

Monacor Diva Simone Lautsprecherbausatz
Monacor Diva Simone Speaker Kit A 3-way hi-fi speaker remains a challenge for the developer. This task was undertaken by Jens Heerklotz, known under the nickname Sonicfurby or Sonicfury in various DIY speaker forums, and the result is truly something to hear and see. In addition to the excellent sound properties of the box, great emphasis was also placed on the aesthetics and living room suitability. A slim floor-standing speaker was realized with HQ series chassis from German production and a real ribbon tweeter. It quickly becomes clear acoustically that the MSH-115HQ is a true midrange specialist at work here, harmonizing excellently with the RBT-10 ribbon. The two SPH-145HQs provide a wonderful bass foundation in the slim box.Dynamic music is implemented by the DIVA SIMONE with astonishing confidence. Solid and powerful bass, clear, structured, and transparent mids, and a very finely detailed tweeter make listening to music up to elevated volumes a pleasure. However, the DIVA SIMONE is not a party speaker for high volumes. Bill of Materials Contents Chassis: Subwoofer 2 pieces SPH-145HQ Midrange 1 Piece MSH-115HQ Tweeter 1 piece RBT-10 Soft: L1 1 x LSIP-390 L2 1 x LSIF-560 L3 1 x LSIP-56/1 L4 1 x LSIP-18/1 L5 1 x LSIF-470/1 L6 1 x LSIP-18/1 C1 1 x 560µF Electrolytic Capacitoror 2 x LSC-2200NP, 1 x LSC-1000NP, 1 x LSC-220NP in parallel C2 1 x MKTA-470 C3 1 x MKTA-100 C4 1 x MKTA-150 C5 1 x 360µF electrolytic capacitoror 1 x LSC-2200NP, 1 x LSC-1500NP, 1 x LSC-220NP in parallel C6 1 x 5.6µF foil or MKTA-100 + MKTA-120 in parallel C7 1 x MKTA-150 R1 1 x LSR-33/20 R2 1 x LSR-56/10 R3 1 x LSR-82/10 R4 1 x LSR-27/10 R5 1 x LSR-47/10 R6 optional 1.5-2.7 Ohm Accessories: Terminal 1 x ST-960GM Bass reflex tube 1 x MBR-70 length 150-200 mm Insulation 2 bags MDM-4, 1 x MDM-40 Schrauben 2 Bags MZF-8614 Cable 3 m SPC-125 Dichtband 1 x MDM-5

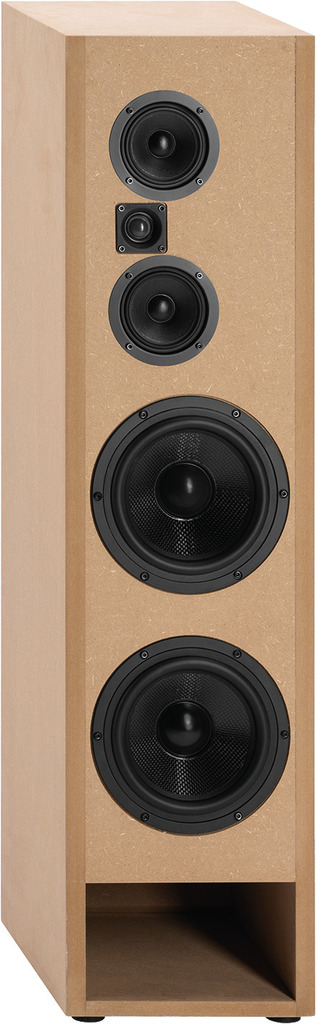

Monacor Kodex Lautsprecherbausatz
Monacor Codex Speaker Kit Hi-Fi without Compromises Now and then, it's time to explore the limits of what's possible!In speaker DIY suggestions - and even more so in finished speakers - this quickly leads to boxes with flagship character and almost unaffordable effort.First applies certainly to the KODEX. That the effort remains realistic is, in a proposal from MONACOR INTERNATIONAL, so to speak, in the nature of things.Nevertheless, the KODEX is not a classic beginner's kit but rather suitable to be at least an initial final solution - of course, only until the urge to build strikes again.Until then, however, the reward for the effort is a dream speaker that gets so much right that you will be fascinated time and again. Whether it's modern music material at realistic volume or classical music with an impressively reproduced spatiality, the virtues of the KODEX are always present.The enormous bandwidth, distortion-free sound at the highest level, endless dynamics, perfect tonality that truly reveals even the smallest differences in timbre - you can expect all these qualities. At the same time, you build more than the sum of these values. With the KODEX, you build a large speaker. The concept of the KODEX is a 3-way double bass D'Appolito arrangement in a cabinet that is designed as a borderline case between a transmission line and a bass reflex system. This results in a minimum of modulation distortions in the midrange, an optimally stable radiation pattern, and a deep bass foundation that is built with a precision unattainable with significantly smaller boxes. The KODEX sounds sometimes downright slim and astonishingly dry when properly dampened to match the room (more on that later), until a real low-frequency signal is reproduced that truly makes the walls shake (and that you don't even notice with many other speakers).The chassis used by MONACOR are selected according to a simple principle: always only the best! Of course, the best for this purpose. An MSH-116/4 may seem simple at first glance; in a dual arrangement above high-tech 20 cm woofers like the current long-throw carbon diaphragm chassis SPH-225C, there are probably no superior drivers. Perfect is simply perfect. With the 28 mm silk dome DT-28N, the team is then complete. More than such a tweeter with very deep applicability, high efficiency, and brilliance capability without limitation is not needed to build a high-fidelity speaker for exclusive demands. Bill of Materials Contents Chassis: Woofer 2 pieces SPH-225C Mitteltöner 2 pieces MSH-116/4 Hochtöner 1 Piece DT-28N Crossover: L1 1 x LSI-82T L2-3 2 x LSI-82T L4 1 x LSIP-56 L5 1 x LSI-82T L6 1 x LSIP-39/1 C1 1 x LSC-680NP + C2 1 x MKTA-330 C3 1 x LSC-1000NP + C4 1 x LSC-1800NP (or LSC-1500NP + LSC-330NP in parallel) C5 1 x MKTA-680 C6 1x MKTA-82 C7 1 x MKTA-10 C8 1 x MKPA-47 C9 1 x MKPA-15 R1-3 3 x LSR-120/20 R4-5 2x LSR-56/20 R6 1 x LSR-120/20 R7 1 x LSR-33/20 R8 1 x LSR-180/20 R9 1 x LSR-56/20 Accessories: Terminal 1 x ST-960GM Insulation 0.5 x MDM-40 + 4 MDM-2 Screws 12 x MZF-8615 (PU=16) Screws 16 x MZF-8614 (PU=16)
DreiZwo Standlautsprecher Bausatz PAAR
HiFi-Selbstbau Bausatz Lautsprecher Auch in unserem Hörraum präsentiert die DreiZwo MK3 ein erstaunlich reifes und ausgewogenes Klangbild. Der Bassbereich ist für die Größe der Box beeindruckend tief und Präzise Thomas Schmidt / Klang & Ton 5/2025 Der fast fertig Bausatz. Die Evolution der DreiZwo beginnt 2010. Das Konzept: Schlanke Box mit Wucht. Die Lösung: 3“ ca. 11cm Außen Durchmesser Koaxial-Chassis (Mitteltöner und Hochtöner) in der Front, und seitlich ein 8“ ca. 22cm Außen Durchmesser. In der ersten Version noch ei 6x9cm Oval Tieftöner von Tang Band. 2016 begann die MK2 formen anzunehmen. Mit der Weiterentwicklung des Koaxial Chassis und einem neuen Tieftöner, wurde in langen Sitzungen die DreiZwo MKII entwickelt. Das Konzept wurde schon in der ersten Version ein absoluter Hit. Die MKIII setzt nochmals einen drauf. Nochmals wurde mit einem neuem Tieftöner, die Performens gesteigert. Zudem gibt es jetzt eine Optimierte Fertig aufgebaute Frequenzweiche und den Gehäusebausätzen von variant-hifi.de bis hin zu Fertiggehäuse für die DreiZwo, ist ein Bausatz entstanden der nicht nur Klanglich, Spitzenklasse besitzt, sondern auch den Optisch ambitionierten, eine Grundlage in die Hand gibt. Wir könnte jetzt unsere 45 Jahre Erfahrung nutzen, die klanglichen Vorteile, die Grundsätzlichen Anforderungen an Lautsprechern und hochtrabende Worte finden, um die DreiZwo MKIIIp in den Himmel zu loben. Verbal machen wir das auch manchmal. Aber wenn dieser Lautsprecher von Form und Preis Sie anspricht, vereinbaren sie einen Termin, in Köln (HiFi-Selbstbau.de) oder Marburg (variant-hifi.de) und lassen sie die DreiZwo selbst sprechen, ob sie ihren klanglichen Anforderungen genügt! Den Lautsprecher-Bausatz (alles, was nicht Holz ist) und das Gehäuse (vom Gehäuse-Bausatz bis zu Fertiggehäuse ohne und mit Farbe oder Furnier) als sorglos Packet bei variant-hifi.de. Die DreiZwo ist mit Chassis der Marke Omnes Audio bestückt. Leider ist der Schöpfer dieser Marke und Vertriebler Nick Baur 2024 verstorben. Auch zu ehren seines einflussreichen Schaffens im Lautsprecher Selbstbaubereich, ist die DreiZwo ein Erbe mit Format. Sie erhalten im Technik Pack folgende Teile zum Bau der DreiZwo MkIII für ein Paar.Die Lieferung besteht aus:2 Stk. Omnes Audio MW8 Alu2 Stk. Omnes Audio CX 3.12 Stk. Fertigweiche2 Stk. Bassreflexrohr 60mm Ø2 Stk. Mitteltonabdeckung für den CX 3.1Absorptionsmaterial für beide Lautsprecher.1 Stk. Bauplan (geduckt)Sollten Sie die Chassis schon besitzen, besteht auch die Möglichkeit die passende Fertigweiche + Bauplan zu erwerben.ACHTUNG: Wir weisen darauf hin das wir bei einem Widerruf für den Bauplan 35 € berechnen ohne Gehäuse
