Dayton Audio UM18-22 18" Ultimax
Dayton Audio UM18-22 18" Ultimax DVC Subwoofer 2 ohms Per Coil Dayton Audio’s Ultimax Series DVC subwoofers are purpose-built to move tons of air and create clean, articulate, fast bass. Experience the apex of subwoofer design! Key Features 18" design for enormous air movement Over 2" of total cone travel! 1000 watts RMS power handling Dual mirror-imaged linear spiders ensure distortion-free excursion Dual 2 ohm, 2-layer copper voice coils Large vented pole piece and under-spider venting Dayton Audio UM18-22 18" Ultimax DVC Subwoofer 2 ohms Per Coil If you want outrageous amounts of bass, you gotta move some air With the UM18-22 Ultimax 18" driver, Dayton Audio has taken everything about the respected Dayton Audio Ultimax subwoofers to the extreme! Providing over 2" of peak-to-peak excursion, the Ultimax 18 sweeps over six liters of air with each stroke! Truly not for the faint of heart! An audio bulldozer with the finesse of a sports car Like the rest of the Ultimax series, the UM18-22 plays it clean, low, fast, and LOUD. Designed to excel in either sealed or vented enclosures, it features an ultra-powerful triple stack of high-grade ferrite ceramic magnets for ultra-high force and exceptional control, plus dual aluminum shorting rings above and below the magnetic gap for minimized inductance, "faster"-sounding bass response, and perfect magnetic symmetry. The voice coil diameter has been increased to 3 inches, for even more thermal dissipation area that allows the 18" model to withstand 1,000 watts of punishing bass power continuously without thermal fatigue. Dual 2-ohm voice coils allow for stereo 2 ohm operation, or mono operation in 1 ohm or 4 ohm configurations, for true design flexibility. Built to produce massive low frequency output and keep on doing it The huge 18" Nomex honeycomb composite curved cone features woven fiberglass outer skins for the ultimate in rigidity and resistance to damage, while the "tall-boy" rubber surround with integral gasket supports extreme stroke with linearity and durability. Dual 8" spiders are mirror-imaged, to keep the 2" of excursion completely linear and provide cancellation of distortion due to compliance asymmetry, for ultra-low mechanical distortion even at the outer limits of travel. And it's all held in perfect alignment by a rigid cast aluminium 12-spoke frame, for stability in any mounting position. Car audio recommended alignments: Sealed 3 cubic ft. (net internal, not including driver) for an f3 of 32 Hz with a Qtc of .78 Vented 4 cubic ft. (net internal, not including driver or vent ) tuned to 22 Hz, with 2 flared vents 4" diameter by 32" long, for an f3 of 24 Hz Home theater/stereo recommended alignments Sealed (home theater/music): 4 cubic ft. (net internal, not including driver) for an f3 of 31 Hz, f10 of 18 Hz with a Qtc of 0.72 Sealed (music): 7 cubic ft. (net internal, not including driver) for an f3 of 31 Hz, f10 of 15.8 Hz with a Qtc of 0.62 Vented (home theater): 8 cubic ft. (net internal, not including driver or vent) tuned to 20 Hz, with 3 flared vents 4" diameter by 28.5" long, for an f3 of 18 Hz Vented (infra-sub): 12 cubic ft. (net internal, not including driver or vent) tuned to 15.5 Hz, with 3 flared vents 4" diameter by 32" long, for an f3 of 15 Hz Infinite Baffle: Approved Note: All specifications are derived with voice coils wired in series.
Dayton Audio UM12-22 12" Ultimax
Dayton Audio UM12-22 12" Ultimax DVC Subwoofer 2 ohms Per Coil Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design. Key Features Thick, one-piece Nomex honeycomb covered cone with woven heavy-duty glass-fiber Tall-boy rubber surround for extra-long linear excursion without reducing cone surface area 600 watts RMS power handling Copper shorting rings and cap reduce distortion due to inductance variations Dual 2 ohm, 2-layer copper voice coils Large vented pole piece and under-spider venting Black anodized aluminum former and black pole improves heat dissipation Dayton Audio UM12-22 12" Ultimax DVC Subwoofer 2 ohms Per Coil If you want outrageous amounts of bass, you gotta move some air The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass. The versatility you need for mobile, home, or pro subwoofer excellence Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility. Built to produce massive low frequency output and keep on doing it To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils. Over 1-1/2" of travel (3/4" Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. "Tall-boy" rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation. A strong motor takes you to wherever you want to be A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.

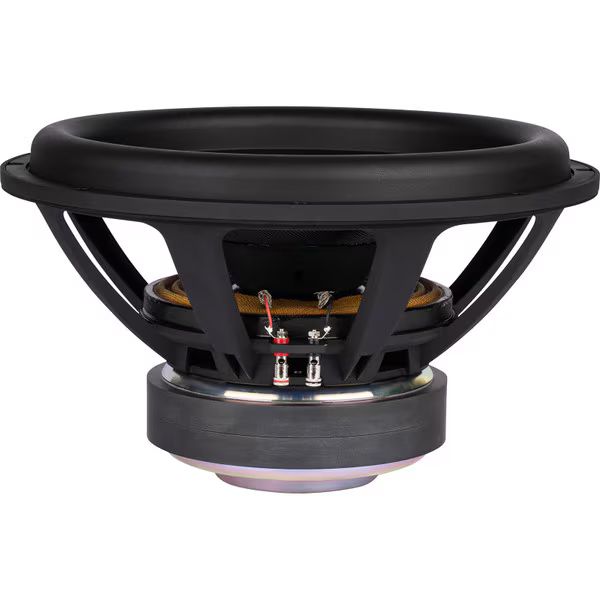

Dayton Audio UMII15-22 Ultimax II
Wir präsentieren den UMII5-22 Ultimax II 15" Kohlefaser-Membran Subwoofer von Dayton Audio. Aufbauend auf dem Erfolg ihres Vorgängers wurden diese Subwoofer sorgfältig entwickelt, um alle Erwartungen zu übertreffen. Mit verbesserter Auslenkungsfähigkeit, geringerer Verzerrung, höherer Belastbarkeit, besserer Effizienz und erhöhter Leistung heben die neue Ultimax II Generation Subwoofer und Ihr Audioerlebnis auf neue Tiefenton Erfahrungen. Tauchen Sie ein in satte, drückende Bässe, die Sie bis ins Mark erschüttern werden. Dayton Audio definiert mit dem UMII5-22 Subwoofer weiterhin die Grenzen der Exzellenz neu. Hauptmerkmale Eine große Aluminium-Kurzschlusskappe helfen, die Induktivität linear zu halten, um minimale Verzerrungen zu garantieren. Die starre und dennoch leichte gewebte Carbonfaser Membran liefert eine schnelle, detaillierte und genaue Reaktion. Mit ±24 mm xmax können Sie eine kraftvolle und tiefe Bassreaktion erwarten, die Ihr Audioerlebnis auf die nächste Stufe hebt. Ausgestattet mit einer 4-lagigen 3" flach gewickelten Schwingspule, die bis zu 900 Watt RMS verarbeiten kann. Korb und Antrieb sind umfassend belüftet, was eine effiziente Wärmeableitung für einen gleichmäßigen und zuverlässigen Betrieb gewährleistet und gleichzeitig die Leistungskompression minimiert. Doppelte Spinnen halten die Membranlinearität auch bei extrem hohen Auslenkungspegeln aufrecht und bieten jederzeit eine optimale Audioleistung. Optimiert für kompakte, geschlossene Gehäuse, aber in der Lage, in Bassreflex Designs eine außergewöhnliche Niederfrequenzerweiterung zu erzielen – bietet Ihnen die Freiheit, das perfekte Audio-Setup zu erstellen.

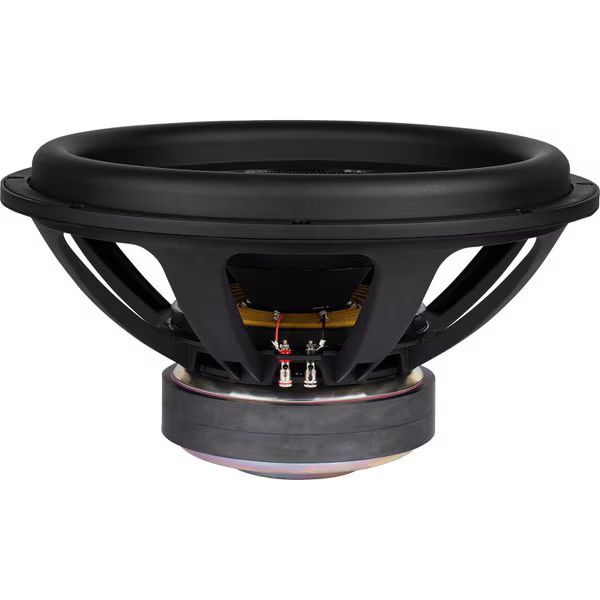

Dayton Audio UMII18-22 Ultimax II
Wir präsentieren den UMII18-22 Ultimax II 18" Kohlefaser-Membran Subwoofer von Dayton Audio. Aufbauend auf dem Erfolg ihres Vorgängers wurden diese Subwoofer sorgfältig entwickelt, um alle Erwartungen zu übertreffen. Mit verbesserter Auslenkungsfähigkeit, geringerer Verzerrung, höherer Belastbarkeit, besserer Effizienz und erhöhter Leistung heben die neue Ultimax II Generation Subwoofer und Ihr Audioerlebnis auf neue Tiefenton Erfahrungen. Tauchen Sie ein in satte, drückende Bässe, die Sie bis ins Mark erschüttern werden. Dayton Audio definiert mit dem UMII8-22 Subwoofer weiterhin die Grenzen der Exzellenz neu. Hauptmerkmale Eine große Aluminium-Kurzschlusskappe helfen, die Induktivität linear zu halten, um minimale Verzerrungen zu garantieren. Die starre und dennoch leichte gewebte Carbonfaser Membran liefert eine schnelle, detaillierte und genaue Reaktion. Mit ±28 mm xmax können Sie eine kraftvolle und tiefe Bassreaktion erwarten, die Ihr Audioerlebnis auf die nächste Stufe hebt. Ausgestattet mit einer 4-lagigen 3" flach gewickelten Schwingspule, die bis zu 1200 Watt RMS verarbeiten kann. Korb und Antrieb sind umfassend belüftet, was eine effiziente Wärmeableitung für einen gleichmäßigen und zuverlässigen Betrieb gewährleistet und gleichzeitig die Leistungskompression minimiert. Doppelte Spinnen halten die Membranlinearität auch bei extrem hohen Auslenkungspegeln aufrecht und bieten jederzeit eine optimale Audioleistung. Optimiert für kompakte, geschlossene Gehäuse, aber in der Lage, in Bassreflex Designs eine außergewöhnliche Niederfrequenzerweiterung zu erzielen – bietet Ihnen die Freiheit, das perfekte Audio-Setup zu erstellen.

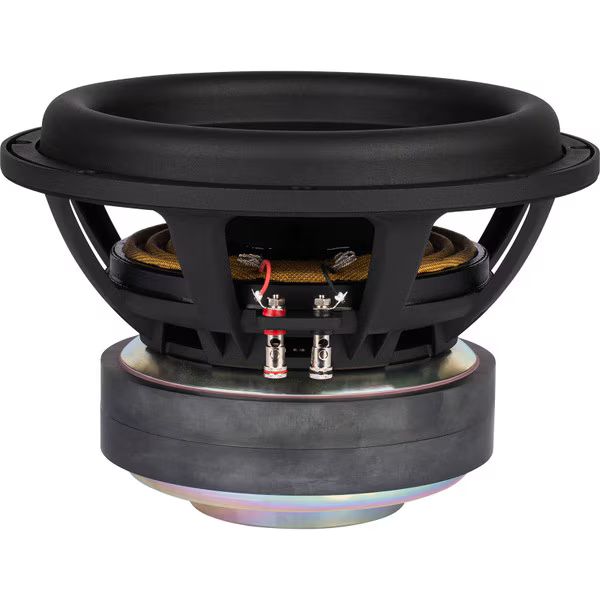

Dayton Audio UMII10-22 Ultimax II
Wir präsentieren den UMII0-22 Ultimax II 10" Kohlefaser-Membran Subwoofer von Dayton Audio. Aufbauend auf dem Erfolg ihres Vorgängers wurden diese Subwoofer sorgfältig entwickelt, um alle Erwartungen zu übertreffen. Mit verbesserter Auslenkungsfähigkeit, geringerer Verzerrung, höherer Belastbarkeit, besserer Effizienz und erhöhter Leistung heben die neue Ultimax II Generation Subwoofer und Ihr Audioerlebnis auf neue Tiefenton Erfahrungen. Tauchen Sie ein in satte, drückende Bässe, die Sie bis ins Mark erschüttern werden. Dayton Audio definiert mit dem UMII0-22 Subwoofer weiterhin die Grenzen der Exzellenz neu. Hauptmerkmale Eine große Aluminium-Kurzschlusskappe helfen, die Induktivität linear zu halten, um minimale Verzerrungen zu garantieren. Die starre und dennoch leichte gewebte Carbonfaser Membran liefert eine schnelle, detaillierte und genaue Reaktion. Mit ±20 mm xmax können Sie eine kraftvolle und tiefe Bassreaktion erwarten, die Ihr Audioerlebnis auf die nächste Stufe hebt. Ausgestattet mit einer 4-lagigen 2-1/2" flach gewickelten Schwingspule, die bis zu 600 Watt RMS verarbeiten kann. Korb und Antrieb sind umfassend belüftet, was eine effiziente Wärmeableitung für einen gleichmäßigen und zuverlässigen Betrieb gewährleistet und gleichzeitig die Leistungskompression minimiert. Doppelte Spinnen halten die Membranlinearität auch bei extrem hohen Auslenkungspegeln aufrecht und bieten jederzeit eine optimale Audioleistung. Optimiert für kompakte, geschlossene Gehäuse, aber in der Lage, in Bassreflex Designs eine außergewöhnliche Niederfrequenzerweiterung zu erzielen – bietet Ihnen die Freiheit, das perfekte Audio-Setup zu erstellen.
Dayton Audio UMII12-22 Ultimax II
Dayton Audio UMII12-22 Ultimax IIWe present the UMII12-22 Ultimax II 12" Carbon Fiber Cone Subwoofer from Dayton Audio. Building onon the success of their predecessor, these subwoofers have been carefully developed to meet all expectations ofoutperform. With improved excursion capability, lower distortion, higher power handling,better efficiency and increased performance elevate the new Ultimax II generation subwoofers and yourAudio experience with new low-frequency experiences. Immerse yourself in rich, powerful bass that will take you to theMark will be shaken. Dayton Audio continues to define the boundaries of the UMII12-22 subwoofer.Excellence new. Main features A large aluminum short-circuit cap helps to linearlyhold to guarantee minimal distortions. The rigid yet lightweight woven carbon fiberMembrane provides a fast, detailed, and accurate response. With ±22 mm xmax, you can apowerful and deep bass response that elevates your audio experience to the next level.Equipped with a 4-layer 3" flat wound voice coil that can handle up to 800 watts RMScan. The basket and drive are comprehensively ventilated, allowing for efficient heat dissipation for aconsistent and reliable operation ensured while simultaneously performance compressionminimized. Dual spiders maintain membrane linearity even at extremely high excursion levelsand always provide optimal audio performance. Optimized for compact, closed enclosures, but inder Lage, in Bassreflex Designs eine außergewöhnliche Niederfrequenzerweiterung zu erzielen – offersYou the freedom to create the perfect audio setup.

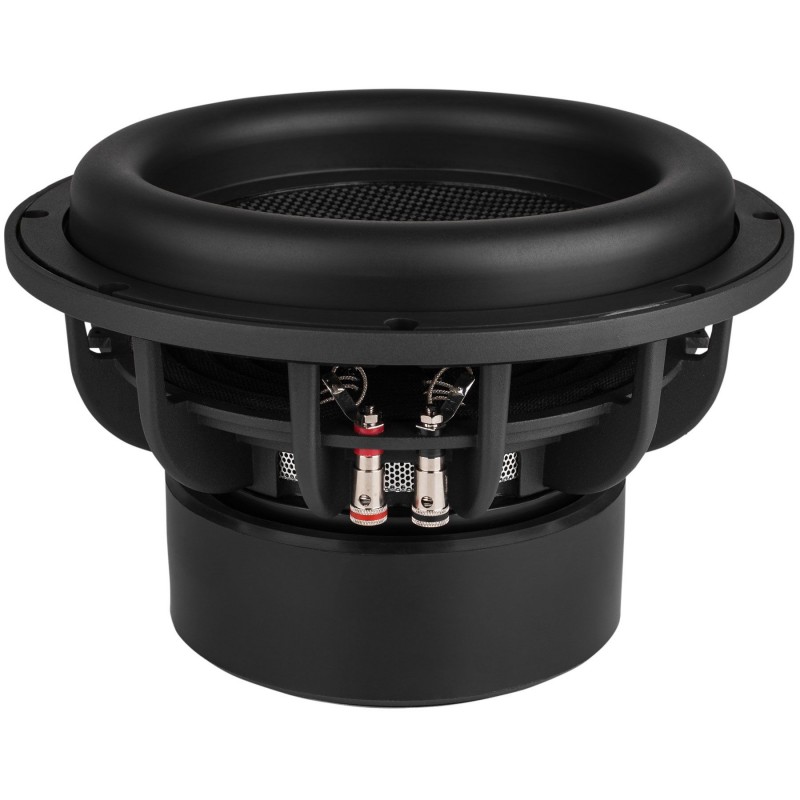

Dayton Audio UM10-22 10" Ultimax
Dayton Audio UM10-22 10" Ultimax DVC Subwoofer 2 ohms Per Coil Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design. Key Features Dual 2 ohm, 2-layer copper voice coils Large vented pole piece and under-spider venting 500 watts RMS power handling Black anodized aluminum former and black pole improves heat dissipation Thick, one-piece Nomex honeycomb covered cone with woven heavy-duty glass-fiber Tall-boy rubber surround for extra-long linear excursion without reducing cone surface area Dual linear stiffness spiders limit distortion and rocking modes Dayton Audio UM10-22 10" Ultimax DVC Subwoofer 2 ohms Per Coil If you want outrageous amounts of bass, you gotta move some air The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass. The versatility you need for mobile, home, or pro subwoofer excellence Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility. Built to produce massive low frequency output and keep on doing it To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils. Over 1-1/2" of travel (3/4" Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. "Tall-boy" rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation. A strong motor takes you to wherever you want to be A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures. Cabinet recommendations: Sealed 0.63 cubic ft. (net internal), f3 of 45 Hz with a 0.707 Qtc alignment Vented 1.75 cubic ft. (net internal, not including driver or port volume) tuned to 25 Hz with a 10" wide by 1" high slot port that is 24" long, which yields an f3 of 23 Hz Note: All parameters derived with voice coils wired in series.

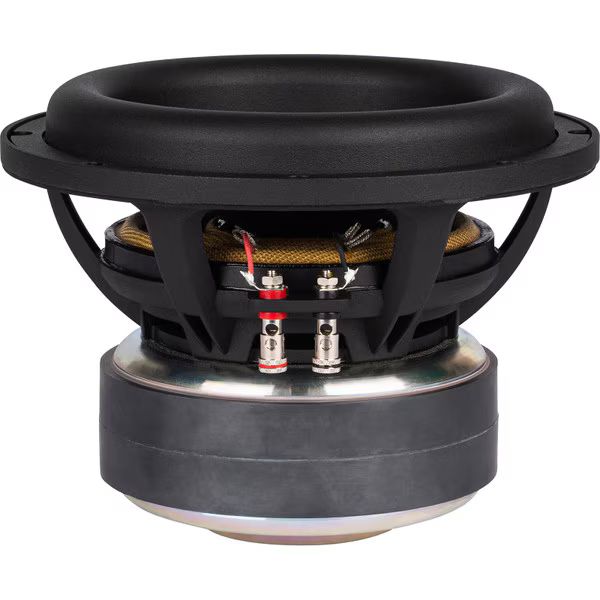

Dayton Audio UMII8-22 Ultimax II
Dayton Audio UMII8-22 Ultimax IIWir präsentieren den UMII8-22 Ultimax II 8" Carbon Fiber Cone Subwoofer von Dayton Audio. Building onthe success of their predecessor, these subwoofers were carefully developed to meet all expectations ofoutperform. With improved excursion capability, lower distortion, higher power handling,better efficiency and increased performance elevate the new Ultimax II generation subwoofers and yourAudio experience with new low-frequency experiences. Immerse yourself in rich, powerful bass that takes you to theMark will be shaken. Dayton Audio continues to define the boundaries of the UMII8-22 subwoofer in theExcellence new. Main features A large aluminum short-circuit cap helps to linearlyhold to guarantee minimal distortions. The rigid yet lightweight woven carbon fiberMembrane provides a fast, detailed, and accurate response. With ±18 mm xmax, you can apowerful and deep bass response that takes your audio experience to the next level.Equipped with a 4-layer 2-1/2" flat wound voice coil, handling up to 400 watts RMScan process. The basket and drive are comprehensively ventilated, allowing for efficient heat dissipation for aensures consistent and reliable operation while simultaneously performance compressionminimized. Dual spiders maintain membrane linearity even at extremely high excursion levelsand always provide optimal audio performance. Optimized for compact, closed enclosures, but inder Lage, in Bassreflex Designs eine außergewöhnliche Niederfrequenzerweiterung zu erzielen – offersYou the freedom to create the perfect audio setup.
