Dayton Audio PS220-8
€239.95*
Dayton Audio PS220-8 8” Point Source Full-Range Neo Driver
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.
Key Features
High sensitivity/minimal distortion—an ideal match for lower powered amplifiers
Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
Solid bass performance, thanks to usefully high excursion capability (4.8 mm Xmax)
Optimized neodymium magnet provides high motor strength
Low-mass copper clad aluminum voice coil
Copper cap and copper ring on pole piece reduce inductance and distortion
Kevlar reinforced paper cone is lightweight yet rigid and well controlled
Dayton Audio PS220-8 8" Point Source Full-Range Neo Driver
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS220-8 8" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!

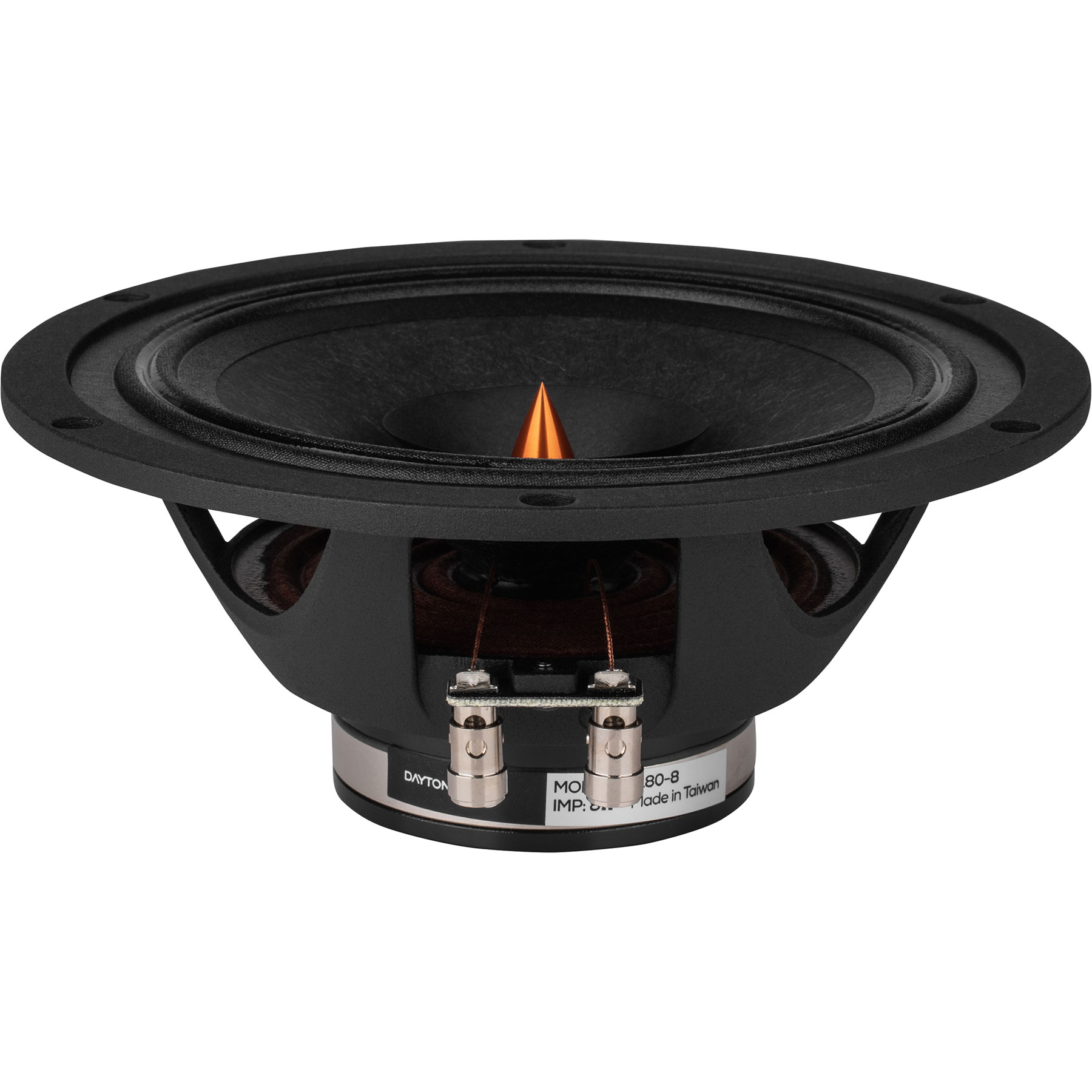

Dayton Audio PS180-8
€179.95*
Dayton Audio PS180-8 6-1/2” Point Source Full-Range Neo Driver
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.
Key Features
High sensitivity/minimal distortion—an ideal match for lower powered amplifiers
Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
Solid bass performance, thanks to usefully high excursion capability (4.6 mm Xmax)
Optimized neodymium magnet provides high motor strength
Low-mass copper clad aluminum voice coil
Copper cap and copper ring on pole piece reduce inductance and distortion
Kevlar reinforced paper cone is lightweight yet rigid and well controlled
Dayton Audio PS180-8 6-1/2" Point Source Full-Range Neo Driver
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS180-8 6-1/2" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!
Only 4 available

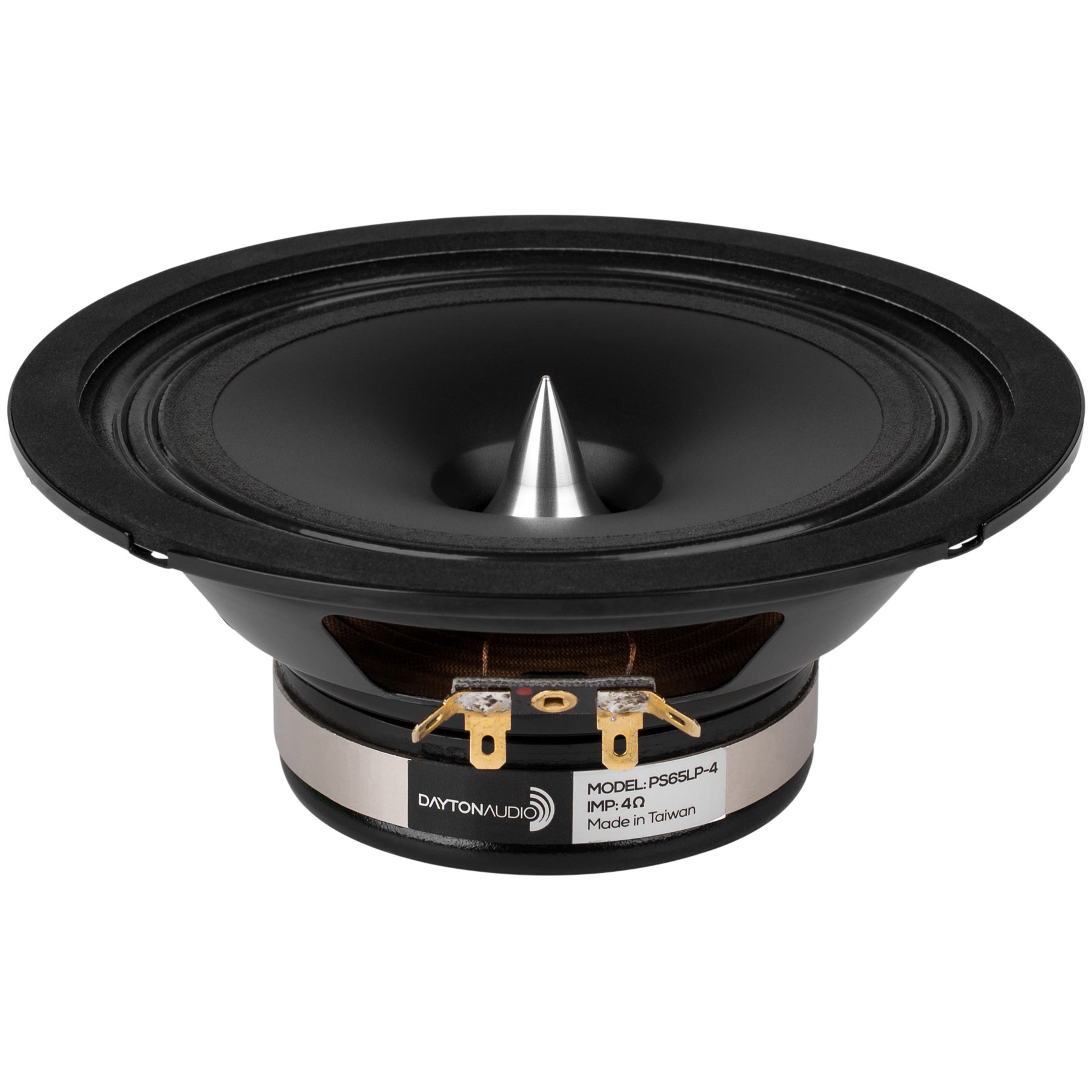

Dayton Audio PS65LP-4
€124.95*
Dayton Audio PS65LP-4 6-1/2” Point Source Full-Range Neo Driver
The Dayton Audio PS65LP-4 6-1/2" high efficiency full-range driver could be the ultimate upgrade for your factory stereo system. Designed to be a simple drop in replacement for your stock speakers, this driver's amazing efficiency can increase the output by up to 10 dB without adding any additional amplification. Also, this is an excellent driver for use in any high efficiency full range speaker designs.
Key Features
Ultra-efficient, high SPL (99 dB @ 2.83V/1m*) high-performance driver
Low-profile 2-3/8" mounting depth suitable for car doors or any shallow designs
Smooth high frequency roll-off even at 75° off-axis
Unique patent-pending bi-conical cone geometry provides high frequency extension and dispersion, as well as cone rigidity
Highly damped polypropylene cone controls cone break-up and provides a smooth roll-off
Copper cap controls inductance and extends high frequency response
Powerful 1.4 Tesla neodymium motor makes this one of the most efficient 6-1/2" car audio speaker on the market!
Dayton Audio PS65LP-4 6-1/2" Ultra Efficient Low Profile Full-Range Driver 4 Ohm
Aside from adding an amplified subwoofer you simply can’t make a better, more cost effective improvement to your factory car stereo than swapping out those mediocre factory speakers for the Dayton Audio PS65LP-4 ultra-efficient 6-1/2" drivers.
Today even the most basic factory audio systems have various other electronic components and systems integrated into the head unit, as a result less consumers are willing to replace the head unit. Not only could you lose certain features but in some cases may end up with electrical problems. Who wants to take out the head unit anyway!
Although the Dayton Audio PS65LP-4 (with 2-3/8" mounting depth, full-range capability, excellent off-axis response and exceptional efficiency) was purposely built for car audio, its parameters and design features serve it well for numerous other applications. Such as, but certainly not limited to: a full-range in-wall/on-wall/ceiling speaker system, a devoted midrange in a ultra-efficient three-way system, or as a great candidate for a folded horn or transmission line design for the class “A" amplifier guys.
The graph below illustrates how the typical bass and treble controls in most stock head units (i.e. center frequencies of 100 Hz and 10,000 Hz) can be used to dramatically flatten the response of the PS65LP-4.
