Dayton Audio DMA80-PR

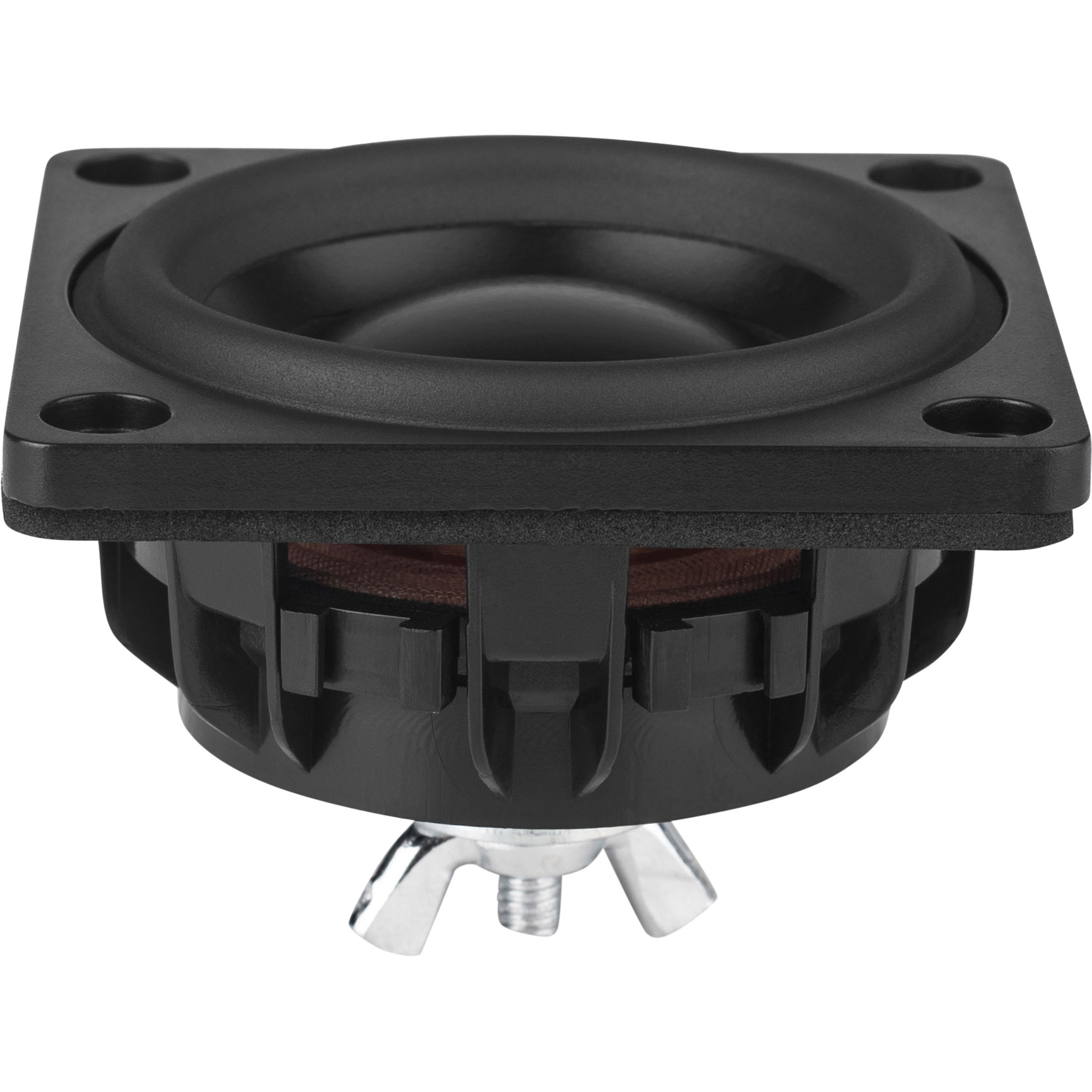

Dayton Audio DMA80-PR 3" DMA Series Passive Radiator Dayton Audio's DMA80-PR 3" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers. Key Features Perfect match for the Dayton Audio DMA series drivers Allows tuning small enclosures lower than possible using conventional ports Rear mounted threaded post allows easy mass adjustment for custom tuning DIY friendly, oversized mounting flange makes installation simple Dayton Audio DMA80-PR 3" DMA Series Passive Radiator The DMA80-PR 3" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA80-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA80-PR introduces a new range of possibilities. Specifications: • Fs: 34.6 Hz • Vas: 0.071 ft³ (1.9 liters) • Qms: 8.91 • Cms: 1.41 mm/N • Mms: 13.7 g • Rms: 0.35 kg/s • Sd: 31.2 sq. cm. • Xmech: 7 mm • Dimensions: Overall diameter: 3.17" x 3.17", Cutout diameter: 2.93", Depth: 1.76". Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio DMA105-4
Dayton Audio DMA105-4 4" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm Dayton Audio's DMA105-4 4" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make Dayton Audio's DMA series drivers and passive radiators the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design. Key Features Excellent high frequency response for true full-range applications Dual neodymium motor to create a symmetrical magnetic field for superb control Large copper cap lowers distortion while improving high frequency response Vented aluminum voice coil former with exceptional heat dissipation for high power handling Exclusive 12-spoke open frame design provides extensive venting and minimal reflection DIY friendly, oversized mounting flange makes installation simple Matching tunable passive radiators also available! Dayton Audio DMA105-4 4" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm Providing high efficiency with low distortion, Dayton Audio's DMA105-4 4" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA105-4 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA105-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.
Dayton Audio DMA45-8
Dayton Audio DMA45-8 1-1/2" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Dayton Audio's DMA45-8 1.5" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make Dayton Audio's DMA series drivers and passive radiators the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design. Key Features Excellent high frequency response for true full-range applications Dual neodymium motor to create a symmetrical magnetic field for superb control Remarkably flat full-range response with excellent off axis performance Large copper cap lowers distortion while improving high frequency response Exclusive 8-spoke open frame design provides extensive venting and minimal reflection DIY friendly, oversized mounting flange makes installation simple Matching tunable passive radiators also available! Dayton Audio DMA45-8 1-1/2" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Providing high efficiency with low distortion, Dayton Audio's DMA45-8 1.5" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA45-8 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA45-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 0.75" voice coil is wound on a vented polyimide former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.
Dayton Audio DMA70-8
Dayton Audio DMA70-8 2-1/2" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Dayton Audio's DMA70-8 2.5" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make Dayton Audio's DMA series drivers and passive radiators the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design. Key Features Excellent high frequency response for true full-range applications Dual neodymium motor to create a symmetrical magnetic field for superb control Large copper cap lowers distortion while improving high frequency response Vented aluminum voice coil former with exceptional heat dissipation for high power handling Exclusive 8-spoke open frame design provides extensive venting and minimal reflection DIY friendly, oversized mounting flange makes installation simple Dayton Audio DMA70-8 2-1/2" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Providing high efficiency with low distortion, Dayton Audio's DMA70-8 2.5" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA70-8 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA70-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.
Dayton Audio DMA70-4
Dayton Audio DMA70-4 2-1/2" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm Dayton Audio's DMA70-4 2.5" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make Dayton Audio's DMA series drivers and passive radiators the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design. Key Features Excellent high frequency response for true full-range applications Dual neodymium motor to create a symmetrical magnetic field for superb control Large copper cap lowers distortion while improving high frequency response Vented aluminum voice coil former with exceptional heat dissipation for high power handling Exclusive 8-spoke open frame design provides extensive venting and minimal reflection DIY friendly, oversized mounting flange makes installation simple Matching tunable passive radiators also available! Dayton Audio DMA70-4 2-1/2" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm Providing high efficiency with low distortion, Dayton Audio's DMA70-4 2.5" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA70-4 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA70-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.
Dayton Audio DMA58-8
Dayton Audio DMA58-8 2" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Dayton Audio's DMA58-8 2" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make Dayton Audio's DMA series drivers and passive radiators the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design. Key Features Excellent high frequency response for true full-range applications Dual neodymium motor to create a symmetrical magnetic field for superb control Large copper cap lowers distortion while improving high frequency response Vented aluminum voice coil former with exceptional heat dissipation for high power handling Exclusive 8-spoke open frame design provides extensive venting and minimal reflection DIY friendly, oversized mounting flange makes installation simple Matching tunable passive radiators also available! Dayton Audio DMA58-8 2" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Providing high efficiency with low distortion, Dayton Audio's DMA58-8 2" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA58-8 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA58-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.
Dayton Audio DMA45-4
Dayton Audio DMA45-4 1-1/2" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm Dayton Audio's DMA45-4 1.5" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make Dayton Audio's DMA series drivers and passive radiators the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design. Key Features Excellent high frequency response for true full-range applications Dual neodymium motor to create a symmetrical magnetic field for superb control Large copper cap lowers distortion while improving high frequency response Remarkably flat full-range response with excellent off axis performance Exclusive 8-spoke open frame design provides extensive venting and minimal reflection DIY friendly, oversized mounting flange makes installation simple Matching tunable passive radiators also available! Dayton Audio DMA45-4 1-1/2" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm Providing high efficiency with low distortion, Dayton Audio's DMA45-4 1.5" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA45-4 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA45-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 0.75" voice coil is wound on an vented polyimide former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.
Dayton Audio DMA105-8
Dayton Audio DMA105-8 4" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Dayton Audio's DMA105-8 4" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make Dayton Audio's DMA series drivers and passive radiators the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design. Key Features Excellent high frequency response for true full-range applications Dual neodymium motor to create a symmetrical magnetic field for superb control Large copper cap lowers distortion while improving high frequency response Vented aluminum voice coil former with exceptional heat dissipation for high power handling Exclusive 12-spoke open frame design provides extensive venting and minimal reflection DIY friendly, oversized mounting flange makes installation simple Matching tunable passive radiators also available! Dayton Audio DMA105-8 4" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Providing high efficiency with low distortion, Dayton Audio's DMA105-8 4" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA105-8 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA105-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.

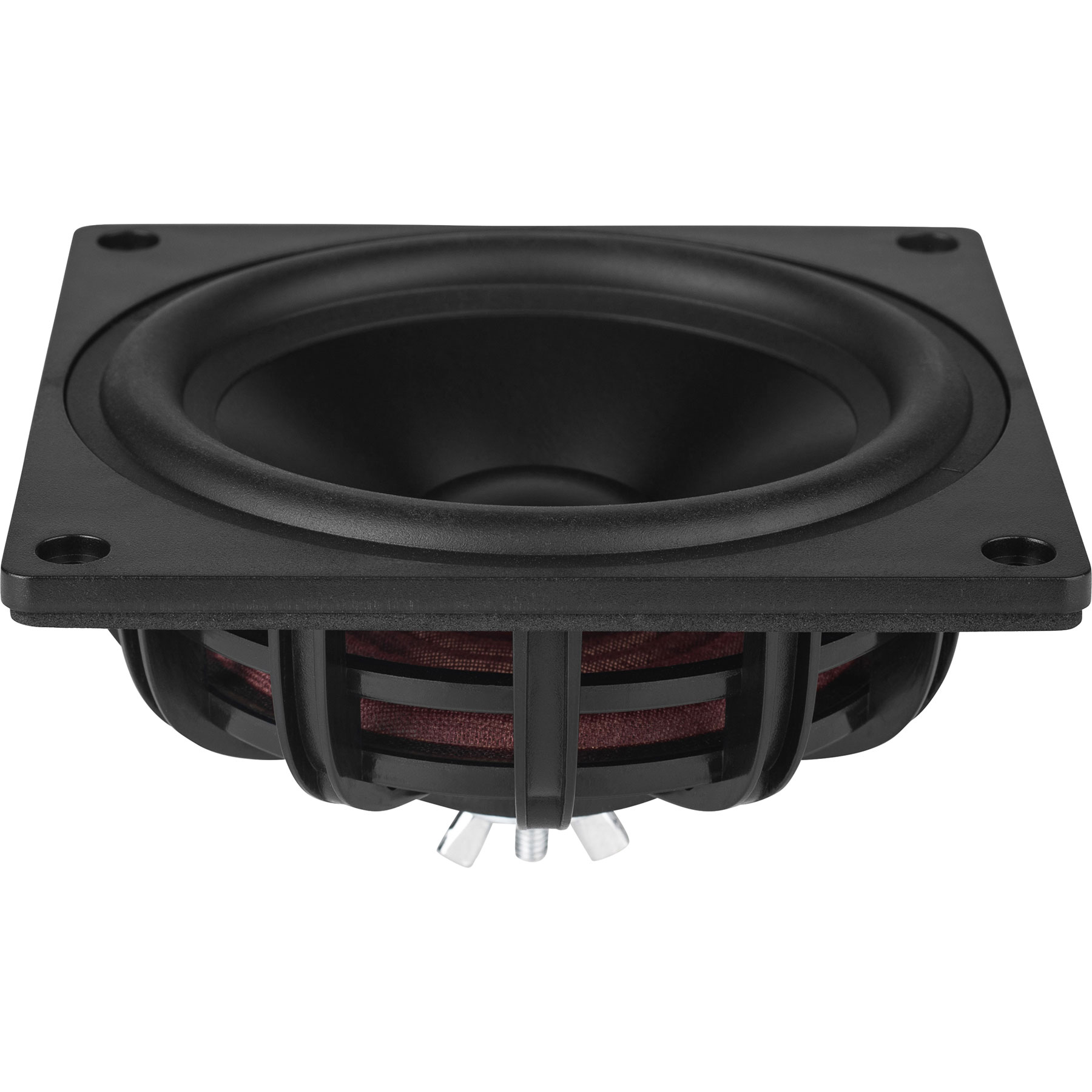

Dayton Audio DMA105-PR
Dayton Audio DMA105-PR 4" DMA Series Passive Radiator Dayton Audio's DMA105-PR 4" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers. Key Features Perfect match for the Dayton Audio DMA series drivers Allows tuning small enclosures lower than possible using conventional ports Rear mounted threaded post allows easy mass adjustment for custom tuning DIY friendly, oversized mounting flange makes installation simple Dayton Audio DMA105-PR 4" DMA Series Passive Radiator The DMA105-PR 4" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA105-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA105-PR introduces a new range of possibilities. Specifications: • Fs: 37.9 Hz • Vas: 0.089 ft³ (2.51 liters) • Qms: 7.80 • Cms: 0.60 mm/N • Mms: 29.3 g • Rms: 0.89 kg/s • Sd: 54.1 cm² • Xmech: 9 mm • Dimensions: Overall diameter: 4.1" x 4.1", Cutout diameter: 3.77", Depth: 2.17". Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio DMA80-8
Dayton Audio DMA80-8 3" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Dayton Audio's DMA80-8 3" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make Dayton Audio's DMA series drivers and passive radiators the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design. Key Features Excellent high frequency response for true full-range applications Dual neodymium motor to create a symmetrical magnetic field for superb control Large copper cap lowers distortion while improving high frequency response Vented aluminum voice coil former with exceptional heat dissipation for high power handling Exclusive 12-spoke open frame design provides extensive venting and minimal reflection DIY friendly, oversized mounting flange makes installation simple Matching tunable passive radiators also available! Dayton Audio DMA80-8 3" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Providing high efficiency with low distortion, Dayton Audio's DMA80-8 3" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA80-8 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA80-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.
Dayton Audio DMA58-PR
Dayton Audio DMA58-PR 2" DMA Series Passive Radiator Dayton Audio's DMA58-PR 2" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers. Key Features Perfect match for the Dayton Audio DMA series drivers Allows tuning small enclosures lower than possible using conventional ports Rear mounted threaded post allows easy mass adjustment for custom tuning DIY friendly, oversized mounting flange makes installation simple Dayton Audio DMA58-PR 2" DMA Series Passive Radiator The DMA58-PR 2" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA58-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA58-PR introduces a new range of possibilities. Specifications: • Fs: 39.8 Hz • Vas: 0.025 ft³ (0.72 liters) • Qms: 3.93 • Cms: 2.4 mm/N • Mms: 6.7 g • Rms: 0.432 kg/s • Sd: 14.5 cm² • Xmech: 7 mm • Dimensions: Overall diameter: 2.2" x 2.2", Cutout diameter: 1.97", Depth: 1.5". Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio DMA70-PR
Dayton Audio DMA70-PR 2-1/2" DMA Series Passive Radiator Dayton Audio's DMA70-PR 2-1/2" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers. Key Features Perfect match for the Dayton Audio DMA series drivers Allows tuning small enclosures lower than possible using conventional ports Rear mounted threaded post allows easy mass adjustment for custom tuning DIY friendly, oversized mounting flange makes installation simple Dayton Audio DMA70-PR 2-1/2" DMA Series Passive Radiator The DMA70-PR 2-1/2" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA70-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA70-PR introduces a new range of possibilities. Specifications: • Fs: 34.5 Hz • Vas: 0.046 ft³ (1.32 liters) • Qms: 3.86 • Cms: 1.77 mm/N • Mms: 12.0 g • Rms: 1.49 kg/s • Sd: 22.9 cm² • Xmech: 7 mm • Dimensions: Overall diameter: 2.75" x 2.75", Cutout diameter: 2.52", Depth: 1.73". Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio DMA90-8
Dayton Audio DMA90-8 3-1/2" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Dayton Audio's DMA90-8 3-1/2" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make Dayton Audio's DMA series drivers and passive radiators the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design. Key Features Excellent high frequency response for true full-range applications Dual neodymium motor to create a symmetrical magnetic field for superb control Large copper cap lowers distortion while improving high frequency response Vented aluminum voice coil former with exceptional heat dissipation for high power handling Exclusive 12-spoke open frame design provides extensive venting and minimal reflection DIY friendly, oversized mounting flange makes installation simple Matching tunable passive radiators also available! Dayton Audio DMA90-8 3-1/2" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm Providing high efficiency with low distortion, Dayton Audio's DMA90-8 3-1/2" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA90-8 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA90-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.
