miniDSP UMIK-1
The UMIK-1 is an omni-directional USB measurement microphone providing Plug & Play acoustic measurement. From speaker & room acoustic measurement to recording, this microphone provides low noise and accurate results you can rely on. Forget about driver installation, OS compatibility and un-calibrated mics. The Umik-1 is a USB Audio class 1 device automatically recognized by all Operating Systems (Windows/Mac) and Ipad with Camera Connection Kit. It is provided with a unique calibration file based on the serial number to insure an accurate measurement. Combined with our recommended acoustic measurement software, it is the perfect match for a plug&play measurement system. Features Windows/Mac/Linux All measurement software Special features such as calibrated SPL measurement enabled under free Room EQ Wizard (REW) software Frequency response: 20 Hz - 20kHz +/-1dB with calibration loaded USB Audio: USB Audio class 1.0 Driverless interface for Windows, Mac & Linux What's in the box? 1 x UMIK-1 microphone 1 x shielded USB cable (1.5m) 1 x mini Tripod 1 x foam wind screen
miniDSP 2x4HD Boxed
The miniDSP 2x4 in a box is a flexible pocket size DSP processor with 2 x analog IN, 4 x analog OUT. Combined with a plug-in software for programming, one can configure the on board Audio processing filters real time from a PC or Mac environment. Once the board configured, the device operates standalone and doesn't require a computer anymore. For more information on potential applications, please check the application section of our website. Features ADSP21489 400MHz Sharc DSP floating point engine XMOS Xcore200 for USB control and bidirectional audio streaming 24 bit ADC/DAC resolution Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms Toslink digital input Unbalanced outputs: Max 2Vrms USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx 4 preset configuration, recallable via IR, Software Plug&Play USB driver and real time Software configuration using miniDSP plug-ins Device does not required a PC once configured External single 12V supply

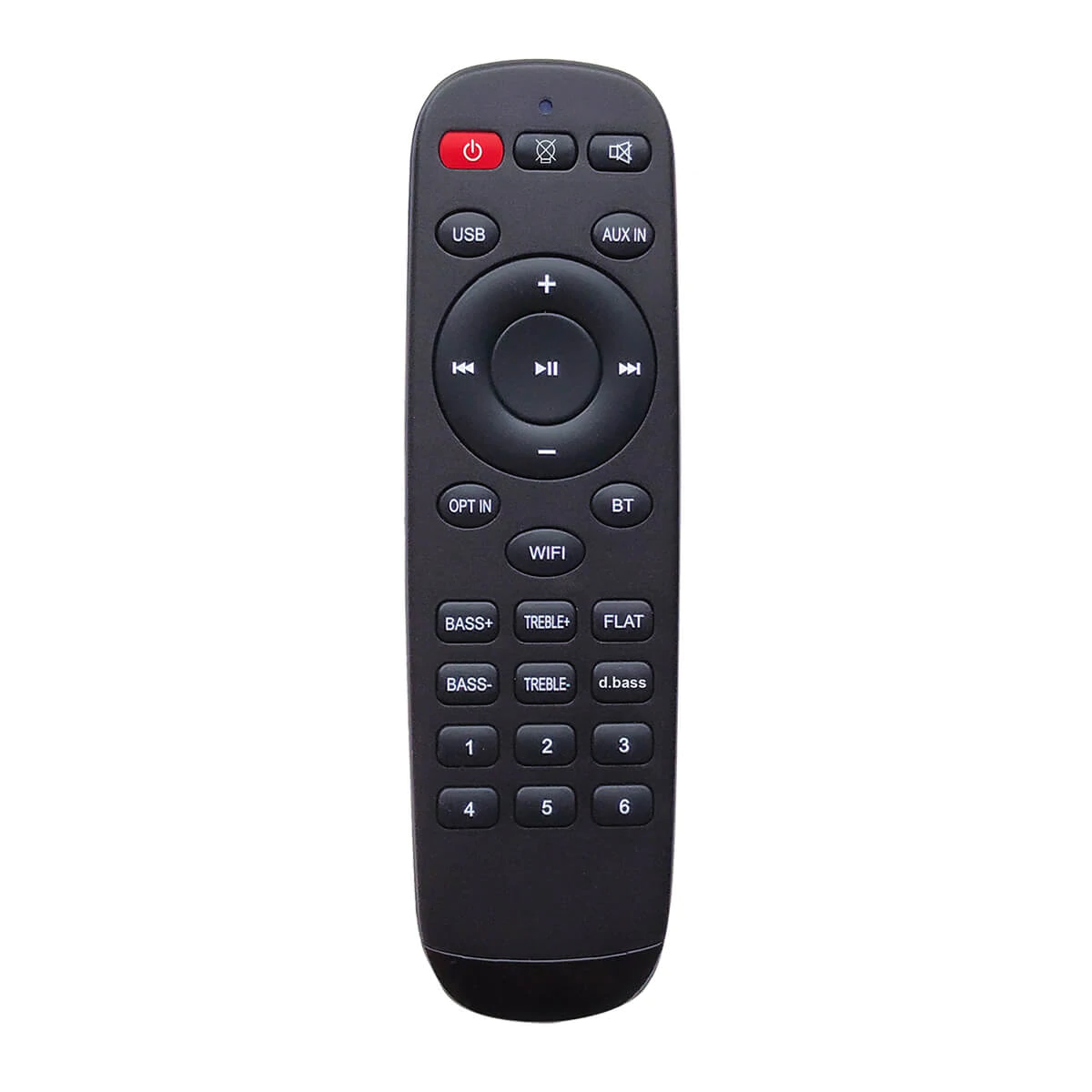

IR Fernbedienung v2
This IR remote is the newest version and is preprogrammed for miniDSP products without requiring any learning process. It is plug&play configured with the latest firmware. - miniDSP 2x4HD- SHD Series- DDRC-24/nanoSHARC kit- DDRC88/DDRC22 series/(FW 2.23)- OpenDRC series (all series)- CDSP 8x12/CDSP 8x12DL- miniDSP 2x8/8x8/4x10HD/10x10HD- nanoDIGI 2x8/nanoDIGI 2x8 kit- miniSHARC kit (FW 2.23) Note that Play/Pause/Next/Previous buttons are only enabled for the SHD series.
Mikrofonstativ Schwarz
Der MS 4322 ist ein Premium-Mikrofonständer mit besonders kräftiger Rohrstärke, Pulverbeschichtung und 169 cm maximaler Höhe. Der hochstabile Dreibeiner besitzt eine Glocke aus Zinkdruckguss und großzügig dimensionierte, passgenaue Klappfüße aus Stahl mit kräftigen Gummikappen zum Schutz der Stellfläche. Die Position und Neigung des Ausziehgalgens lassen sich an der Aufhängung mit 2 Spannschrauben exakt justieren. Er besitzt eine Schnellverriegelung und maximale Länge von 88 cm zur flexiblen Postionierung des Mikrofons. Der Griff der leichtgängigen, haltbaren Höhenverstellung des MS 4322 und die Schraubenknöpfe sind aus hochbeständigem ABS mit einem rutschfesten Soft-Touch-Überzug aus Thermoplastik zur komfortablen Bedienung. Dazu ermöglicht die speziell designte Gegenmutter eine rasche und feste Montage des Mikrofonhalters ohne Werkzeuge. Der MS 4322 wird mit einem zusätzlichen Satz schwarzer Kodierringe geliefert, weitere Ringe sind zur deutlichen Personalisierung in vielen Farben lieferbar.
MiniDSP Software Code
MiniDSP Software CodeSoftware code for MiniDSP devices Code will be sent digitally via email.

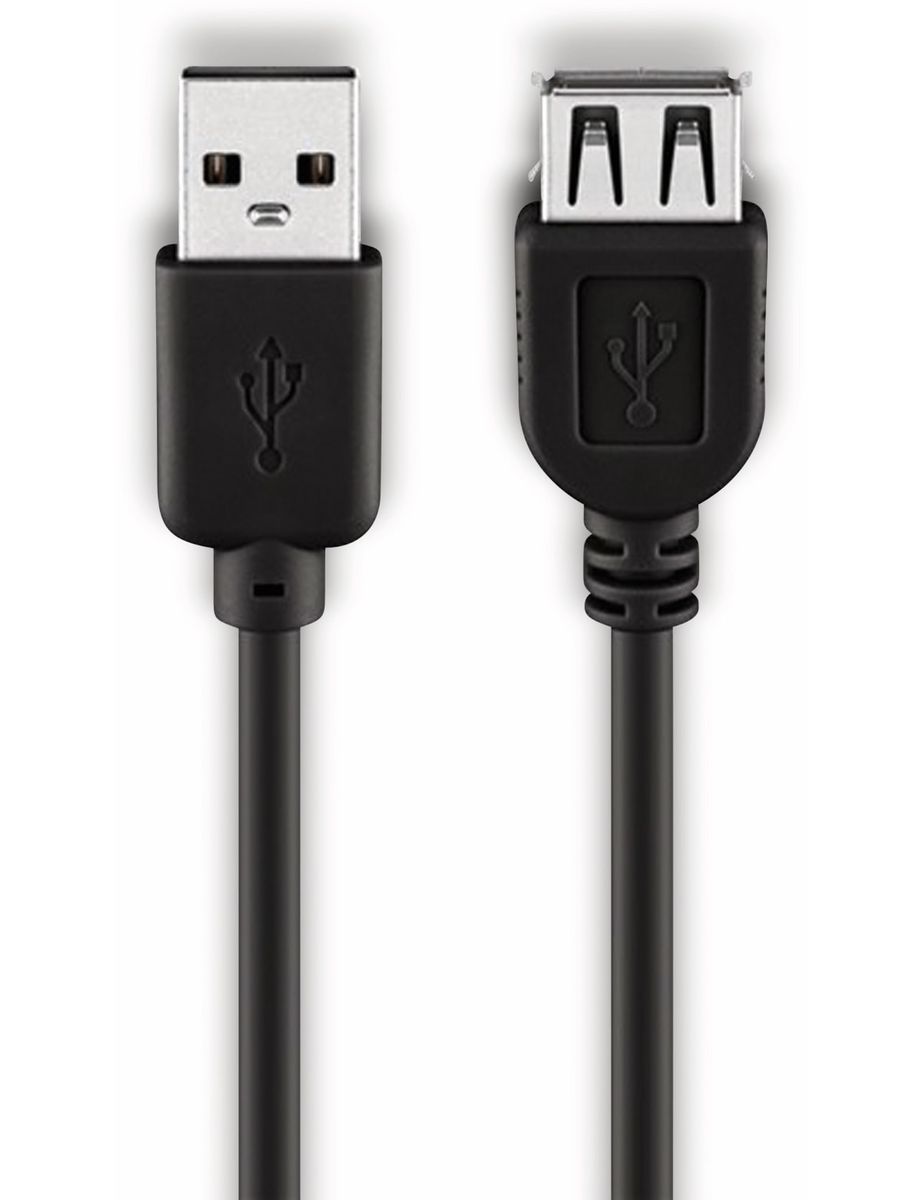

USB 2.0 Hi-Speed Verlängerung 5m
USB 2.0 Hi-Speed Extension 5mUSB 2.0 Hi-Speed Extension, A/A, 68905, 5 m, black High-quality USB 2.0 Hi-Speed cable with fast transfer rate for connecting USB-enabled devices.Cable extension compatible with USB-A connectors. Top Features: High-quality USB 2.0 Hi-Speed Cable Fast transfer rate for connecting USB-enabled devices Compatible with USB-A connectors Connection: USB-A plug to USB-A socket USB Standard: 2.0
Dayton Audio iMM-6C Calibrated USB-C Measurement Microphone
Dayton Audio iMM-6C Calibrated USB-C Measurement MicrophonePrecision condenser microphone for frequency response measurementsFor use with any smartphone or tablet with a USB-C portReal spherical characteristic with calibrated, flat frequency responseHeadphone/Line-Out Pass-Through Jack for Test Signals or MonitoringKickstand function for raising and tilting device and microphone capsuleRobust construction with high-quality components Dayton Audio IMM-6C USB-C Measurement Microphone for Tablets iPhone iPad and AndroidWith the calibrated USB-C measurement microphone iMM-6C from Dayton Audio, you can turn any phone or tablet with a USB-C connection into a lab-quality audio measurement device. Each iMM-6 is individually hand-calibrated using a laboratory-standard measurement microphone to enable consistent, repeatable measurements that match the precision level previously offered only by expensive stand-alone microphones. Specifications:Kapsel Type: Precision 6 mm Electret CondenserRichtcharakteristik: True omnidirectional characteristicFrequency response: 18-20,000 Hz ±0.5 dB (calibrated)S/N ratio: 70dB (A-weighted, varies depending on host device)Anschluss: USB-C Note:To use your iMM-6C as a calibrated measurement microphone, you may need to purchase an app for your tablet or smartphone. Dayton Audio suggestsAudioTool for AndroidandAudiotools for IOS
USB 2.0 Hi-Speed Verlängerungskabel 3m
USB 2.0 Hi-Speed Extension Cable 3mUSB 2.0 Hi-Speed Extension Cable High-quality USB 2.0 Hi-Speed cable with fast transfer rate for connecting USB-enabled devices. Cable extension compatible with USB-A connectors. Technical Specifications: Anschluss: USB-A Plug to USB-A Coupler USB Standard: 2.0 Übertragungsrate: 480 Mbit/s Voltage: 5 V- (DC) Material Inner Conductor: Copper Shielding: 2-fold Color: black Length: 3 m
miniDSP MCH Streamer Kit
The MCHStreamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP's XMOS expertise. . Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research & Development applications. By loading one of the miniDSP-provided firmware packages, MCHStreamer supports optical TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats. This USB Audio Class 2 (UAC2) compliant interface truly is the swiss-army knife for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from 16x PDM MEMS microphone to I2S which makes it a powerful tool for beamforming/voice algorithm development. Features Multi-channel USB audio interface (up to 24x24) Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats Native support up to 32bit / 384kHz PDM to I2S converter for up to 16 MEMS microphones Multichannel DSD (up to 8ch) support USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle) Toslink (optical) and SPDIF (coax) transmitter and receiver Flexible board powering option: USB powered or External DC input power What's in the box? 1 x MCHStreamer board 1 x 1m long USB audio cable 2 * Toslink audio cables 2 * 2x6pin (2mm pitch) header cable harness for I2S In/Out interfacing

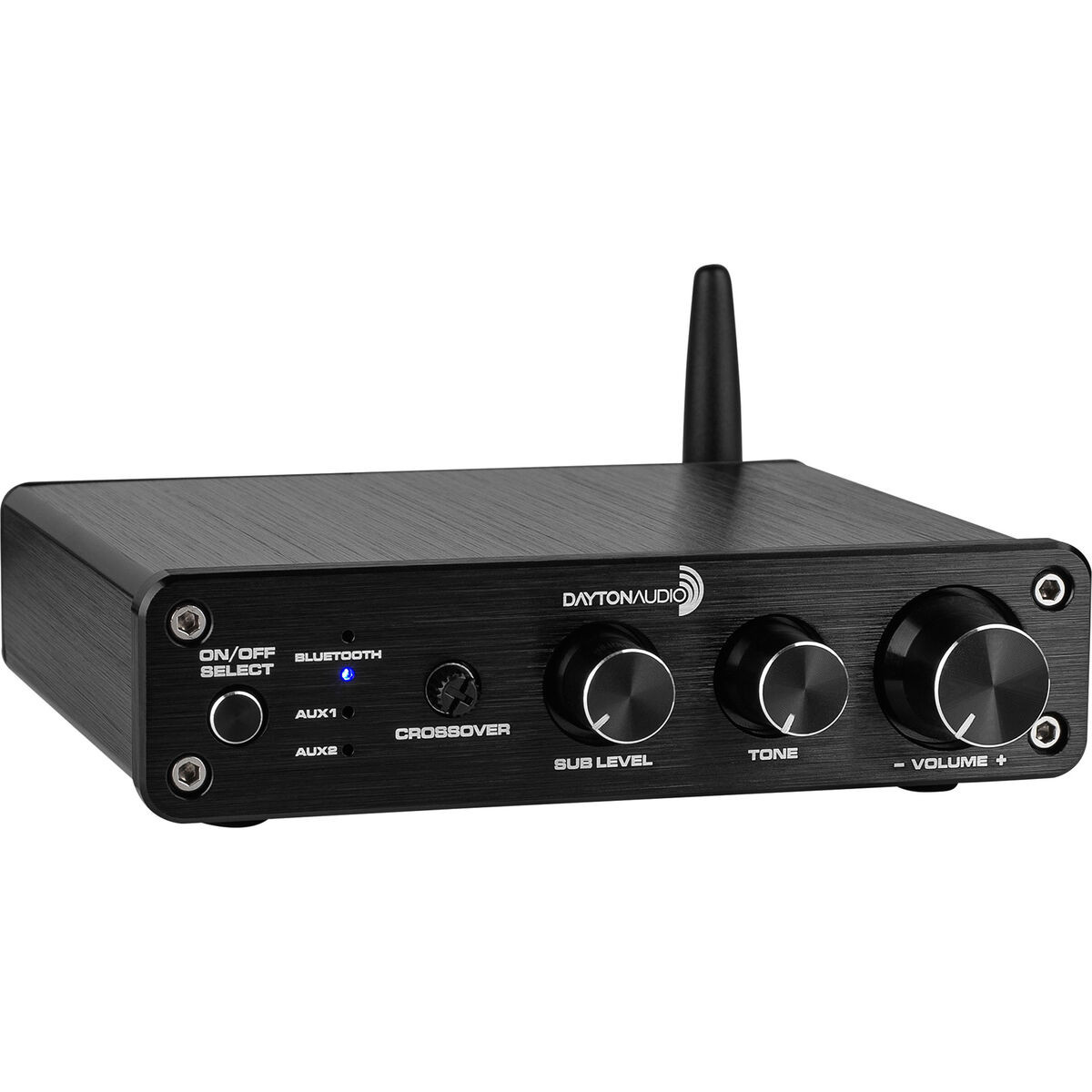

Dayton Audio DTA-2.1BT2 100W 2.1 Class D Bluetooth Amplifier with Sub Frequency Adjustment
The Dayton Audio DTA-2.1BT2 amplifier provides clean Class D power from an extremely compact and lightweight design. Enough power for most speakers and is also able to power a passive subwoofer. Built from the Dayton Audio DTA-2.1BT, the improved design gives the user the ability to adjust the sub crossover frequency. This allows you to create an inexpensive and high-performance 2.1 set up for any office, bedroom, or small home theater. Key Features Ultra-efficient Class D 2.1 amplifier with 2 x 50 watt stereo output and an additional 100 watt passive subwoofer output perfect for home theaters, listening rooms, and small offices Front panel sub crossover frequency adjustment, sub level, tone, and volume controls provide the user with the ability to easily dial in their preferred sonic character Variety of inputs including Bluetooth, stereo RCA, and 3.5mm Aux provide flexible options in application Rugged build with high-quality components and binding posts ensures a long life without audio quality degradation Sleek black aluminum enclosure is aesthetically attractive and unobtrusive With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise The Dayton Audio DTA-2.1BT2 is a discrete whole system amplifier that provides output for 2 speakers and a passive subwoofer. This design allows you to create a compact 2.1 setup for virtually any room whether it be an office, bedroom, or even a small home theater. The 2 x 50W output power is more than enough for most bookshelf speakers, and the subwoofer output of 100W is ideal for a small subwoofer. The reason the DTA-2.1BT2 is able to produce this exceptional power in such a small package is the Class D topology that is being utilized. This amplifier technology also provides high-efficiency for a low power draw on your electrical system. The DTA-2.1BT2 features the three most popular audio inputs: 3.5 mm, stereo RCA, and of course Bluetooth. The 3.5 mm and RCA inputs are found on the rear of the unit labeled Aux 1 and Aux 2, respectively. The Bluetooth connectivity is extremely convenient for wireless audio playback and is a key feature for any audio enthusiast. The front plate of the DTA-2.1BT2 features 3 knobs providing a gentile tactile feel. The first knob on the left provides control over the subwoofer output. The second knob is a tone control that allows you to attenuate the sonic signature of your speakers. The final and largest knob is the volume control located on the right of the faceplate. The front plate also features an adjustable knob for the 2nd order crossover to fine tune your system (50-120 Hz). There is a discrete push button power switch/source selector located on the front of the unit on the left-hand side. The DTA-2.1BT2 aesthetics offer you an attractive black aluminum case that can easily be the focal point of your 2.1 system. Note: The stereo outputs of the DTA-2.1 are full-range and are unaffected by the subwoofer crossover. Specifications: • Power output: 50W x 2 • Power output (subwoofer): 100W • Sub crossover: 50-120 Hz 12dB slope • Impedance: 4-8 ohms • THD: 0.4% at 25WPC, ~5% at rated power output • Amplifier input voltage: 24 VDC • Power supply voltage: 100~240 VAC, 50/60 Hz • Power supply output voltage: 24V • Power supply amperage: 4A • Amplifier class: Class D • Chipset: TPA3116 • Bluetooth chipset: CSR8635 4.0 • Bluetooth compatibility: A2DP, AVRCP • Bluetooth distance: Up to 98 feet • Dimensions: 5.1" W x 6" L x 1.5" H.
miniDSP Flex (RCA)
The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment. All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning. The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest! Hardware Features Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz) Audiophile performance (SNR@120dB(A), THD+N @ -110dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA) Flexible Output versions: Unbalanced (RCA), Balanced (TRS), Digital (Future) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller with IR control What's in the box? Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration IR remote v2 12V univeral power supply (UK/EU/US/AU plugs)

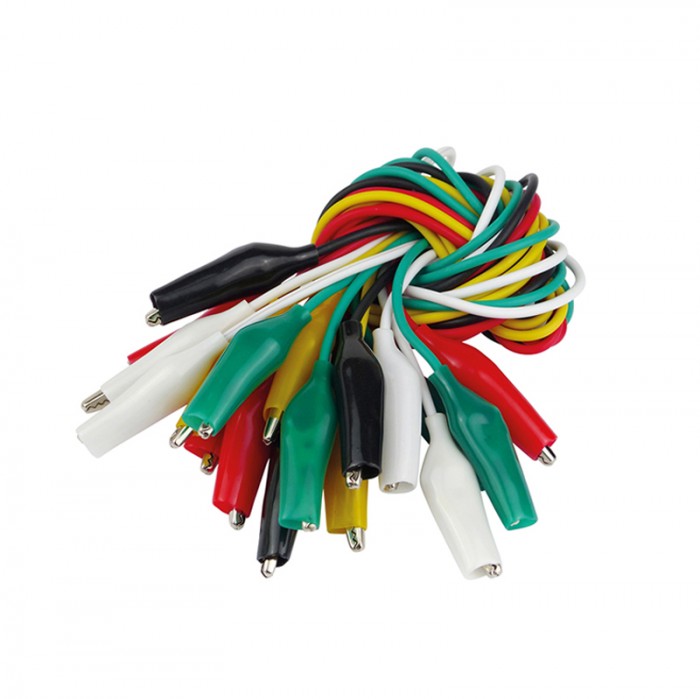

Crocodile clips 10-way
Crocodile quick connector set. 450 mm long. One coloured insulated crocodile clip on each side. Ideal for quick assembly of circuits or test fixtures. Max. 12 V / 5 A. Set consisting of 10 cables 2 x black/2 x red/2 x yellow/2 x green/2 x white.
miniDSP DDRC-24
miniDSP introduces the DDRC-24, the world’s smallest Dirac Live® hardware processor. Dirac Live®, the world’s premier room correction solution, is now available in an unbelievably compact hardware unit. Powered by a 400 MHz Analog Devices SHARC processor, the DDRC-24 retains the 4-channel output of its sister unit, the miniDSP 2x4 Hd, in order to allow applications like subwoofer integration or even 2-way loudspeakers together with Dirac Live® room correction in a single tiny hardware platform. The matrix mixer and crossover functionality is accessed and programmed with miniDSP’s easy-to-use interface software. An all in one unit with USB DAC + Dirac Live Room Correction + Speaker processing. I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP DDRC-24 will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios anywhere a compact, powerful room correction processor is needed. Features ADSP21489 400MHz Sharc DSP floating point engine XMOS Xcore200 for USB control and bidirectional audio streaming 24 bit ADC/DAC resolution Dirac Live 3.x for miniDSP with 4 presets, fully configurable target curve Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms Toslink digital input Unbalanced outputs: Max 2Vrms USB Audio Class 2 Audio streaming with ASIO drivers, driverless under MAC OSx 4 preset configuration, recallable via IR, Software Wifi/Alexa voice control via WI-DG accessory What's in the box? 1 x DDRC-24 including Dirac Live license for miniDSP and DDRC-24 plugin 1 x 12V power supply with UK/EU/US/AU plugs 1 x shielded USB cable 1 x Dirac live license 3.x for miniDSP, full range correction 1 x DDRC-24 plugin for DSP control automatically added to your UserDownloads section on purchase
Dayton Audio SPA250DSP 250W Subwoofer Plate Amplifier with DSP
The Dayton Audio SPA250DSP digitally processed plate amplifier offers an elite level of control over your entire system (i.e. subwoofer and mains). This unique amplifier allows you to fine tune your system's low frequency performance, and at the same time high pass to your mains (or satellites) protecting them from damage due to over excursion. Key Features DSP functions include: 7 PEQ bands, LPF, phase, subsonic filter, limiter, mains delay, and HPF Single-knob control panel with high-contrast LCD display and status LEDs Fast, intuitive PC-based GUI software enables full access to the DSP functions Efficient Class D output topology ensures high-impact low frequency performance Includes both balanced and unbalance line level inputs and outputs With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise Dayton Audio's SPA250DSP true 250 watt digital switching plate amplifier features advanced signal processing control that every audio enthusiast wants. This power and flexibility is accessible via PC-GUI software and our innovative single-knob LCD control panel. For retrofit and enclosure designs with no amplifier cutout an optional amplifier mounting frame is available for this amplifier. Note: Windows 10 and 11 UsersMicrosoft .net Framework 3.5 is required for the SPA250-DSP software to run properly. This is not installed by default in Windows 10 or 11. 1. Power Mode: Select the either energy-saving or “always-on” power mode Auto: Amp goes into standby after no detected signal input for 20 minutes* On: Amp is always on, regardless of input signal status. * Amp will automatically turn on typically in one second or less once audio signals are resumed. 2. Analog input attenuation: Affects analog balanced and unbalanced inputs only. Normal: No attenuation. Hi: Attenuates input signal by -6dB. 3. USB Control: Used for PC-GUI communication with custom PC software included with your amp. 4. Feature Control: Single knob digital actuator with single/double-click enabled with rotary scrolling to navigate the amp’s extensive feature menu. 5. Limiter LED: Lit when Limiter is active (Red). 6. Standby/On LED: Red when amp is in energy saving “stand by” state. Green when amp is operating normally.
Up2Stream Amp 2.0 V4
Airplay 2 Compatible: Up2Stream HD DAC lets you stream audio throughout your house via Apple Airplay 2. Using Airplay 2 from your iOS device, you can easily stream music to multiple Apple audio devices at the same time. 192khz/24bits Hi-Res Audio: Up2stream HD DAC supports 1:1 high-fidelity lossless 192khz/24bits audio output. What's more, the high-performance ESS 9038Q2M plays a big role in sound quality. Enjoy high quality sound from high performance hardware with your stereo system. Spotify Connect & Tidal Connect: With Spotify Connect and Tidal connect compatibility, you can stream music directly from Spotify or Tidal without using our 4Stream app. Build Your Wireless Streaming Audio System: Perfect to add dual band WiFi, Airplay 2, Spotify Connect, Tidal Connect, and Aptx HD Bluetooth 5.0 wireless capability to your DIY audio projects. Build a wireless speaker, wireless streamer, or convert your traditional stereo system into an advanced wireless multiroom streaming system. Bring Multiroom Capabilities to Your Next Project: Our wide range of Up2Stream boards are small enough to fit in all kinds of audio projects. Add an amplified streamer inside speaker boxes, or tiny receiver boards inside home theater amps. Their size and powerful connectivity bring new life to vintage gear and new ideas for your next DIY build. *All Arylic products are compatible with each other for multiroom installations. Stream with HD Music: Up2Stream HD DAC is able to stream with Qobuz HD and Tidal HiFi to give you the true high-resolution audio experience. More HD music will be updated and supported in the future. Along with this HD music, it also supports Spotify, Amazon Music, Deezer, Internet Radio, iHeartRadio, Napster, and more. Enhanced Up2Stream: The Up2Stream HD DAC is easily expandable, you can add new features to better fit your project. For example, you can add a display panel(coming in the future) to add a visual of the system, an acrylic case for protection, you can also add a button board, an IR receiver, and more. You can find all these expansion boards in our Accessories section. Powerful 4STREAM App: Choose your music source and control playback, set EQ, control multiroom/independent playback, select preset content, control alarm clock, WiFi settings, update firmware, and more... All the useful features you need in our free 4STREAM App for iOS & Android. Bring Airplay 2 & Brilliant Sound To Your Whole House Up2Stream HD DAC is a high quality mulitroom wireless audio preamplifier board that supports Airplay 2, APTX HD, Sportify Connect and Tidal Connect. It uses ESS9038Q2M and has excellent sound performance to output 192kHz/24bit High-Res audio. With Up2Stream HD DAC you can enjoy your audiophile home audio system throughout your home. Airplay 2 Compatible Up2Stream HD DAC lets you stream audio throughout your house via Apple Airplay 2. Using Airplay 2 from your iOS device, you can easily stream music to multiple Apple audio devices at the same time. 192khz/24bits Hi-Res Audio Up2stream HD DAC supports 1:1 high-fidelity lossless 192khz/24bits audio output. What's more, the high-performance ESS 9038Q2M plays a big role for sound quality. Enjoy high quality sound from high performance hardware with your stereo system. Spotify Connect & Tidal Connect With Spotify connect and Tidal connect compatibility, you can stream music directly from Spotify or Tidal without using our 4Stream app. Bring Multiroom Capabilities to Your Next Project Our wide range of Up2Stream boards are small enough to fit in all kinds of audio projects. Add an amplified streamer inside speaker boxes, or tiny receiver boards inside home theater amps. Their size and powerful connectivity brings new life to vintage gear and new ideas for your next DIY build. *All Arylic products are compatible with each other for multiroom installations. Stream with HD Music Up2Stream HD DAC is able to stream with Qobuz HD and Tidal HiFi to give you the true high resolution audio experience. More HD music will be update and support in the future. Along with this HD music, it also support Spotify, Amazon Music, Deezer, Internet Radio, iHeartRadio, Napster and more. Enhanced Up2Stream The Up2Stream HD DAC is easily expaniable, you can add new features to better fit your project. For example, you can add a display panel to add visal of the system, acrylic case for protection, you can also add button board, volume knob, IR receiver and more. You can find all these expansion board in our Accessories section. Powerful 4stream App Choose your music source and control playback, set EQ, control multiroom/independent playback, manage playlists, control alarm clock, WiFi settings, update firmware and more... All the useful features you need in our free 4STREAM App for iOS & Android. Remote Control The included remote can control all your Arylic models within a ~15 meter/50 foot range. Package Includes Up2Stream HD DAC, Internal Antenna (WiFi & Bluetooth), User Manual, PH2.0 Aux Cable(3 Pin).
Mikrofonstativ schwere ausführung
Der MS 4322 HDB ist ein Premium-Mikrofonständer mit besonders kräftiger Rohrstärke, Pulverbeschichtung und 169 cm maximaler Höhe. Der hochstabile Dreibeiner besitzt eine Glocke aus Zinkdruckguss und besonders schwere Klappfüße aus massivem Stahl mit kräftigen Gummikappen zum Schutz der Stellfläche. Die Position und Neigung des Ausziehgalgens lassen sich an der Aufhängung mit 2 Spannschrauben exakt justieren. Er besitzt eine Schnellverriegelung und maximale Länge von 88 cm zur flexiblen Postionierung des Mikrofons. Der Griff der leichtgängigen, haltbaren Höhenverstellung des MS 4322 HDB und die Schraubenknöpfe sind aus hochbeständigem ABS mit einem rutschfesten Soft-Touch-Überzug aus Thermoplastik zur komfortablen Bedienung. Dazu ermöglicht die speziell designte Gegenmutter eine rasche und feste Montage des Mikrofonhalters ohne Werkzeuge. Der MS 4322 HDB wird mit einem zusätzlichen Satz schwarzer Kodierringe geliefert, weitere Ringe sind zur deutlichen Personalisierung in vielen Farben lieferbar.
Dayton Audio KAB-PMV3 Panel Mount for Most KAB Boards with Function, LED, and Install Kit
Add a professional finish to your Dayton Audio KAB amp board projects with this KAB panel accessory kit. Key Features Silk screen labels identify each function for ease of use and a professional finish Predrilled holes save time mounting each component Standoffs attach the KAB board to the KAB panel for one piece installation Gasket tape and wood screws for a secure fit Included components plug directly into the board without soldering 5052 sheet aluminum and SUS304 stainless steel standoff for long lasting performance Give your Dayton Audio KAB sound projects a professional finish with the KAB-PMV3 Panel Mount Kit. It includes the function and LED light kit needed to get your KAB amp board ready for power. It also includes a DC coax 2.1 x 5.5 mm power jack, a rocker switch, standoffs, gasket tape and mounting screws to help complete the project. Each component plugs directly in the board without having to solder. Predrilled holes make installation a breeze with silk screen white labels to identify each components location and function. The standoffs hold the panel and the KAB board firmly together for one piece mounting. Gasket tape and screws securely mount the panel to your project. Note: Pairing switch doesn't hook up to the KAB-215 series. Parts Description Specification Qty Panel Black metal 4.75" H x 3.76" W x 0.09" D (120 x 95 x 2.3 mm) with screw hole spacing 4.37" and 3.39" (111 x 86 mm) apart for mounting 1 Screws Black for front of standoff M3 x 6 mm 4 Screws Silver for rear of standoff M3 x 6 mm 4 Standoffs Silver M3 x 60 mm 4 Screws Black wood screws for mounting M3 x 16 mm 8 LEDs Red, green, and blue with metal socket and cables 5 mm with 20" (500 mm) leads 3 Potentiometer Volume control, knob, and cable 1K ohm with 20" (500 mm) leads 1 Push button switch Push button and cable for Bluetooth pairing SPST momentary N.O. with 20" (500 mm) leads 1 Stereo phone Jack Aux input and cable 3-conductor 3.5 mm with 20" (500 mm) leads 1 DC coax jack DC input and cable 2.1 x 5.5 mm with 20" (500 mm) leads 1 Rocker Switch On-Off switch and cable SPST with 20" (500 mm) leads 1 Gasket tape Gasket tape for underneath the outer diameter of the panel 4.61" L x 0.39" W (117 x 10 mm) 2 Gasket tape Gasket tape for underneath the outer diameter of the panel 3.47" L x 0.39" W (88 x 10 mm) 2

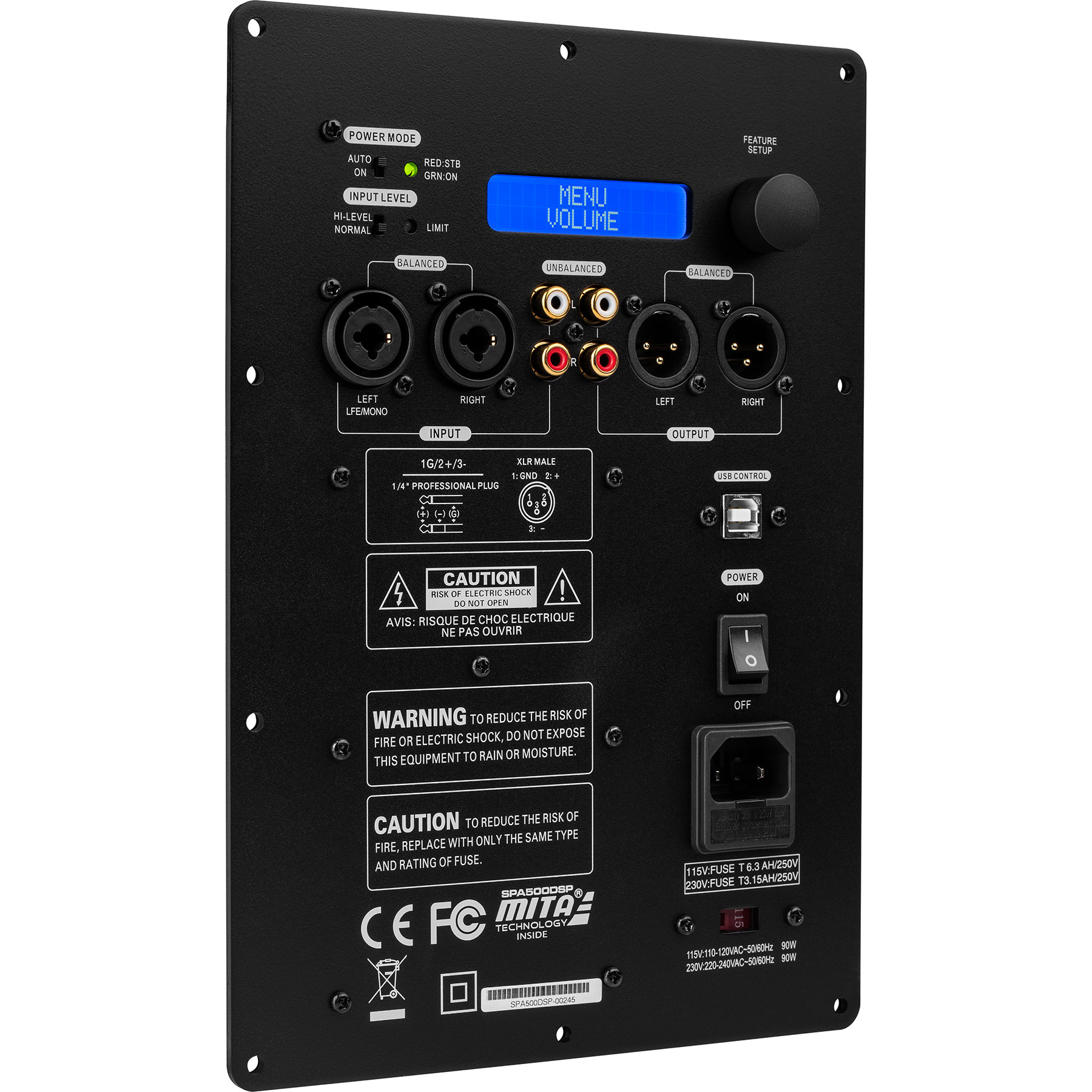

Dayton Audio SPA500DSP
The setting options are extensive, convenient and intuitive to use, and the amplifier power is sufficient even for bass speakers in the 18-inch class. The user manual, which is only available online, requires English language skills, which should be taken into account. However, English is on its way from a foreign language to a mother tongue. Dayton Audio SPA500DSP – Review Hobby HiFi 1/2022 Dayton Audio SPA500DSP 500W Subwoofer Plate Amplifier with DSP The Dayton Audio SPA500DSP digitally processed plate amplifier offers an elite level of control over your entire system (i.e. subwoofer and mains). This unique amplifier allows you to fine tune your system's low frequency performance, and at the same time high pass to your mains (or satellites) protecting them from damage due to over excursion. We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability. Key Features DSP functions include: 7 PEQ bands, LPF, phase, subsonic filter, limiter, mains delay, and HPF Single-knob control panel with high-contrast LCD display and status LEDs Fast, intuitive PC-based GUI software enables full access to the DSP functions Efficient Class D output topology ensures high-impact low frequency performance Includes both balanced and unbalance line level inputs and outputs With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise Dayton Audio SPA500DSP 500W Subwoofer Plate Amplifier with DSP Dayton Audio's SPA500DSP true 500 watt digital switching plate amplifier features advanced signal processing control that every audio enthusiast wants. This power and flexibility is accessible via PC-GUI software and our innovative single-knob LCD control panel. For retrofit and enclosure designs with no amplifier cutout an optional amplifier mounting frame is available for this amplifier. Note: Windows 10 Users Microsoft .net Framework 3.5 is required for the SPA500-DSP software to run properly. This is not installed by default in Windows 10.
miniDSP Flex (TRS) Symmetrisch
The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment. All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning. The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest! Hardware Features Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz) Audiophile performance (SNR@120dB(A), THD+N @ -110dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA) Flexible Output versions: Unbalanced (RCA), Balanced (TRS), Digital (Future) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller with IR control What's in the box? Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration IR remote v2 12V univeral power supply (UK/EU/US/AU plugs)

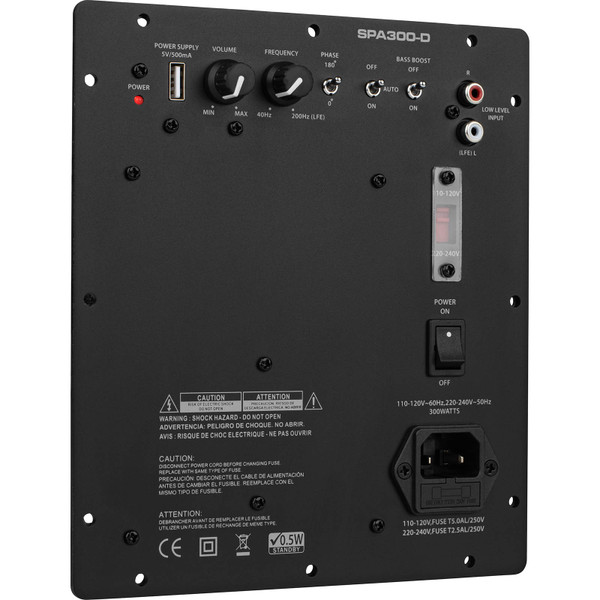

Dayton Audio SPA300-D 300 Watt Class-D Subwoofer Plate Amplifier
The Dayton Audio SPA300-D high-efficiency subwoofer plate amp packs big-amp features into a compact chassis that is ideal for installation into cabinets that can't accommodate bulky old-style amps. Key Features 300W RMS Output @ 4 ohms Switchable 6 dB @ 30 Hz bass boost Class-D output stage for highly efficient, well defined output Manual and Auto on/off modes for compatibility with any automated system Variable gain, crossover point and switchable phase controls optimize room integration Switchable 120/240V input voltage With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise. We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability. Dayton Audio SPA300-D 300 Watt Class-D Subwoofer Plate Amplifier The plate amplifier that packs a punch! The Dayton Audio SPA300-D high-efficiency subwoofer plate amp packs big-amp features into a compact chassis that is ideal for installation into cabinets that can't accommodate bulky old-style amps. A Class-D topology makes it small, but with the same output capability as a traditional amplifier topology. We've included everything that you need to connect the amp to your system and get maximum performance!
miniDSP UMA-8
The UMA-8 v2 is a high-performance yet low cost multichannel USB microphone array built around XMOS Vocal fusion series (XVF3000) with improved adaptive beamformer, full duplex AEC and barge-in, noise suppression, AGC. Seven high-performance MEMS microphones are configured in a circular arrangement to provide high-quality voice capture for a wide range of applications. Leveraging the onboard DSP processing, the UMA-8 supports voice algorithms including beamforming, noise reduction, acoustic echo cancellation and de-reverb. The UMA-8 is a fully compliant UAC2 audio interface with driverless support for Mac/Linux and ASIO drivers for Windows. From DIYers to OEM, this pocket-size platform is engineered for flexibility in firmware, software and hardware. Precompiled firmware versions, expansion connectors providing connectivity for additional PDM microphones, I2S in/out expansion and GPIO... It’s all there to grow with your application! Features Multichannel USB microphone array for voice command Onboard DSP for beamforming/ noise reduction / echo cancellation / de-reverd / Direction of Arrival (DOA) / Voice Activaty Dectection (VAD) 11 x RGB LED in ring configuration High quality MEMS from Knowles SPH1668LM4H Flexible Firmware (DSP mode @2ch beamformed, RAW mode @8ch audio from MEMS) Step by step app notes for Google SDK, Alexa-Pi, Cortana, Siri, IBM Watson and Matlab. More coming up soon... External enclosure is available here. What's in the box? 1 x UMA-8 USB microphone array interface Access to the UserDownloads section for drivers/firmware/GUI. 1 x 1.5m USB type B cable

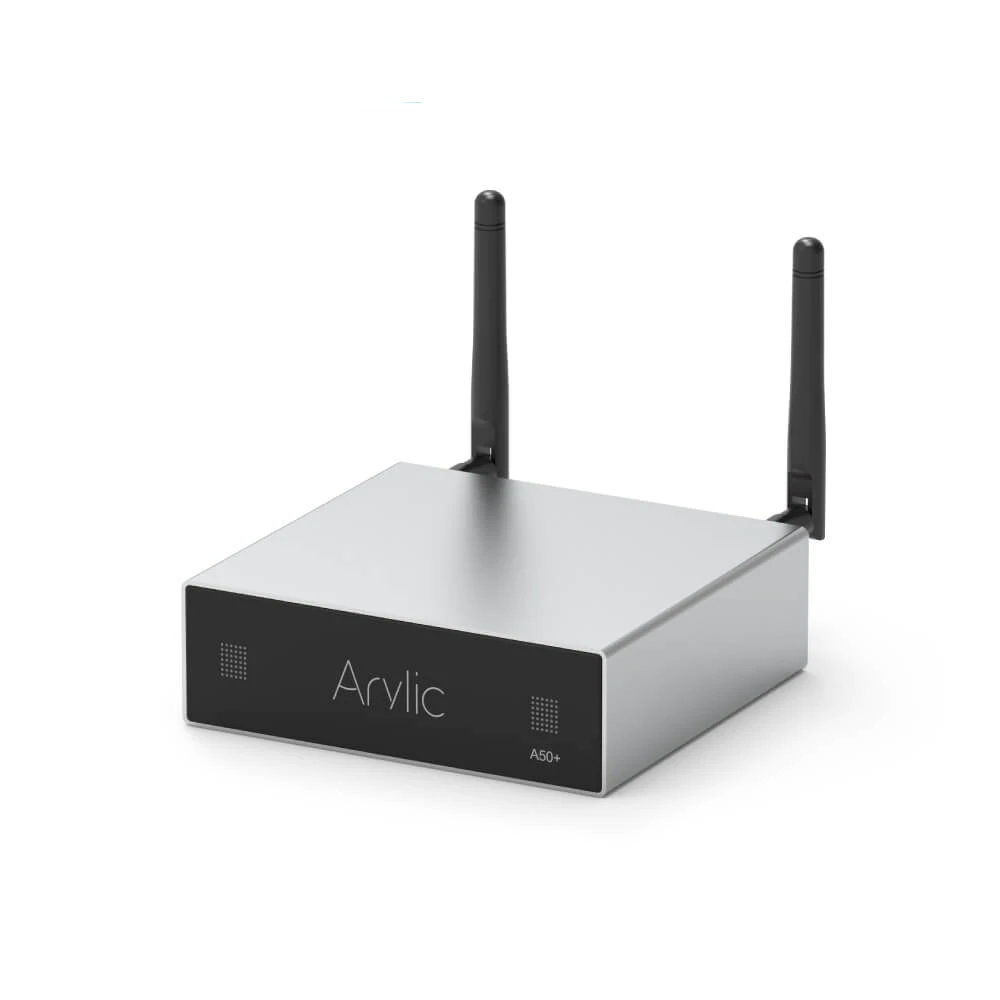

Arylic A50+ Wireless Multiroom Stereo Amplifier
Stream Whole House Audio Wirelessly The A50+ is a multi-functional wireless stereo amplifier that can stream a variety of sources to your passive speakers and active subwoofers. The powerful 50W x2 output lets you enjoy striking music at home anytime, in any room. Set up an A50+ in each of your rooms, and you'll have a multi-room system that easily combines all of your audio gear into one system! Multiroom Audio System Mix and match any combination of Arylic products to create a custom multiroom system and play the same music throughout your home, send different sources to each room at the same time, or create your own custom-defined multiroom zones... All are controlled via our 4stream App. Powerful Stereo Amplifier A50+ wireless stereo amplifier has powerful 50W*2 output with 4Ω passive speakers at 24V, with Sub Out for powered subwoofers. Hear and feel the striking, powerful stereo sound all around your house. *Accept 12V-24V power input and 4Ω-8Ω speaker. Brilliant Sound Streamed Directly From Your Favorite Providers Spotify, Amazon Music, Tidal, Qobuz, Deezer, Napster, TuneIn, Internet Radio, iHeart Radio, QQ Music, QQ FM. The A50+ connects directly to your online streaming providers to play high quality audio, avoiding Bluetooth bottlenecks and compression. All The Sources You Love In One System Send audio via Airplay from iOS or Bluetooth 5.0 from any device. Stream from iTunes, Musicbee, and other DLNA/UPnP compliant 3rd party software on a PC or NAS, connect your CD Player, Phono Preamp, Tuner, TV, or other audio hardware, output your computer audio, play music off USB sticks... Multiple interfaces make the A50+ highly flexible. Variety Of Interfaces The A50+ Wireless Stereo Amplifier includes Stereo RCA Line In, Optical In, Micro USB, USB A, RJ45 Lan (Ethernet), Speaker Out (4-Wire Phoenix Connector included), Sub Out, WiFi and Bluetooth 5.0 Tune Like An Expert Fine tune your listening experience with our exclusive ACPWorkbench tuning tool. Find the perfect sound for each channel with EQ, Bass Enhancement, Advanced DSP effects, Gain, Pregain and more. Powerful 4stream App Choose your music source and control playback, set EQ, control multiroom/independent playback, manage playlists, control alarm clock, WiFi settings, update firmware and more... All the useful features you need in our free 4STREAM App for iOS & Android. Remote Control The included remote can control all your Arylic models within a ~15 meter/50 foot range. Web & PC Control Control your devices via browser from any PC, tablet, or other device, no app required. Or stream music using any software that supports Airplay, Spotify Connect, UPNP or DLNA protocols, including iTunes, Spotify, Musicbee and more. Package Includes A50+, User Manual, Remote, 24V 4.16A DC Power Adapter, External Antennas (Bluetooth & WiFi), 2-1 RCA Cable, 2-2 RCA Cable, Screw Driver, 4 Pin Phoenix Connector (for speakers).
miniDSP SHD
miniDSP is proud to introduce the SHD (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. A natural evolution and extension of our considerable experience with Dirac Live implementation, the miniDSP SHD heralds a new era in affordable yet powerful DSP-based network streamers. First and foremost, the SHD is a stereo Dirac Live room correction processor. Three digital inputs, two analog inputs and USB Audio enable the SHD to fit right into any modern audio system, while processed outputs are available as unbalanced and balanced analog as well as digital. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to use calibration tool. We have also added network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. Finally, we’ve added a second pair of outputs and a suite of our powerful but user-friendly DSP audio tuning software - ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2x4 matrix mixer — for powerful audio system tuning in applications ranging from integrating a single subwoofer to a two-way active speaker. Features Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP 32bit Audiophile converters: AK5574 / AK4490EQ Powered by Dirac Live® 3.x Digital Room Correction Quad core ARM processor for network audio streaming - Preloaded with Volumio Inputs: Stereo digital (USB Audio/AES-EBU/SPDIF/Optical), stereo analog (Balanced XLR, unbalanced RCA) Outputs: 4 x digital (SPDIF out), 4 x analog out (Balanced XLR, unbalanced RCA) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller What's in the box? Dirac Series Audio Processor — SHD DSP USB Wifi 2.4GHz adaptor Dirac Live 3.x license for full range correction (20Hz~20kHz) IR remote v2 IEC power plug (UK/EU/US) Rack mounting kit (standard 1RU) NOTE: The Dirac Live Calibration Tools for miniDSP software is only compatible with the UMIK-1/UMIK-2 microphone for measurement.
Dayton Audio KAB-250v4 2 x 50W Class D Audio Amplifier Board with Bluetooth 5.0
The Dayton Audio KAB-250v4 Bluetooth Amplifier Board makes it quick and easy to add audio to your project, speaker build, point-of-purchase display, kiosk, or any location where music or sound enhances the experience. With an output of 2 x 50 watts, there is more than enough power to drive stereo speakers, yet the board is small enough to integrate into nearly any project.Key Features Efficient 2 x 50 watts of power from the TPA3116 amp chipBluetooth 5.0 with aptX HD built directly into board -- no need for a separate module Add programmable sound customization with the free KABX software via the KPX programmer board (sold separately) Plug-N-Play JST-PH and Molex Mini-Fit Jr wire harnesses make installation quick and simple -- includes power, Bluetooth reset button and speaker cables Separate ports for powering by battery or direct DC input from a power adapter Optional accessories expand functionality and more 5-year Dayton Audio warranty Easy to use Bluetooth 5.0 and amplification The Dayton Audio KAB-250v4 Bluetooth Amplifier Board makes it quick and easy to add audio to your project, speaker build, point-of-purchase display, kiosk, or any location where music or sound enhances the experience. With an output of 2 x 50 watts, there is more than enough power to drive stereo speakers, yet the board is small enough to integrate into nearly any project. High Quality Audio Performance The Dayton Audio KAB-250v4 Bluetooth Amplifier Board delivers high quality sound without drawing a lot power. This is due to the highly efficient TPA3116 Class D amplifier chip. The TPA3116 operates at 90% efficiency, thus eliminating the need for a heat sink and reducing its overall size. Its high efficiency becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build. Integrated Bluetooth Unlike other amplifier boards, the Dayton Audio KAB-250v4 includes a built-in Qualcomm Bluetooth 5.0 module with aptX HD and DSP programing option with KPX board (sold separately). The advantage of Bluetooth 5.0 is its low power consumption which prolongs the playtime of battery powered builds. The streaming audio quality rivals that of CDs since the Bluetooth chip supports aptX, aptX HD, aptX LL, SBC & AAC. High receive sensitivity with RF power up to 9 dBm and -90 dBm, and on board antenna insure stable wireless connectivity up to 15m (50ft.) On board external antenna jack enables the KAB board to be mounted in a metal enclosure with an external antenna (sold separately). Designed and built for Bluetooth demonstration purposes, this fully functioning module provides a turn-key approach to Bluetooth certification for consumer goods. If the application of this board is for the hobbyist or industrial purposes then nothing is required to enjoy the full convenience of pairing and streaming high quality Bluetooth audio. The KAB-250v4 is also CE and FCC ready for certification purposes. Easy Installation Due to the overall audio performance and built-in Bluetooth with DSP Programing option, this amp board has almost endless application possibilities.Included with the KAB-250v4 are two wire harnesses: one for DC power and the other for connecting to stereo speakers. For many users, these cables are all that is needed to complete a project. Since they have additional on board connectors with wiring harnesses (sold separately) available to speed-up installation and create confident connections, there is no need to solder or troubleshoot loose and unstable contacts. Dayton Audio also offers a variety of accessories with robust features to make installation even easier. Find out more about optional accessories below. Package IncludesOne Dayton Audio KAB-250v4 Bluetooth Amplifier BoardOne 2-conductor power cable 20"One 4-conductor speaker cable 20" One Bluetooth pairing reset push button switch with cable 20" Specifications: Power output (w/ 21 VDC power supply): 2 x 50W @ 4 ohms SNR: 92 dB THD: 0.02% @ 8 ohms, 10W, 1 kHz Frequency response: 22 to 22,000 Hz (±3 dB) Impedance: 4-8 ohms Bluetooth range: 30 ft. Mono mixed audio output: Low pass filter set at 220 Hz, volume isn't effected by on board control Recommended power supply: 12 to 24 VDC, 4A Recommended recharging power supply (NiMH, lead acid, or NiCad) 15 to 24 VDC, 1A Recommended recharging power supply (Li-Ion) 19 VDC, 1-5A Board mounting holes center to center spacing: 3.32" x 2.4" (84 x 61 mm) Hole diameter: 0.14" (3.5 mm) Dimensions: 3.6" L x 2.7" W x 0.9" H Empfohlene Spannungsversorgung: 12 bis 24 VDC, 4A Empfohlenes Netzteil zum Aufladen (NiMH, Bleisäure oder NiCad) 15 bis 24 VDC, 1A Empfohlene Stromversorgung zum Aufladen (Li-Ion) 19 VDC, 1-5A Abstand der Befestigungslöcher auf der Platine von Mitte zu Mitte: 3,32" x 2,4" (84 x 61 mm) Lochdurchmesser: 0,14" (3,5 mm) Abmessungen: 3,6" L x 2,7" B x 0,9" H

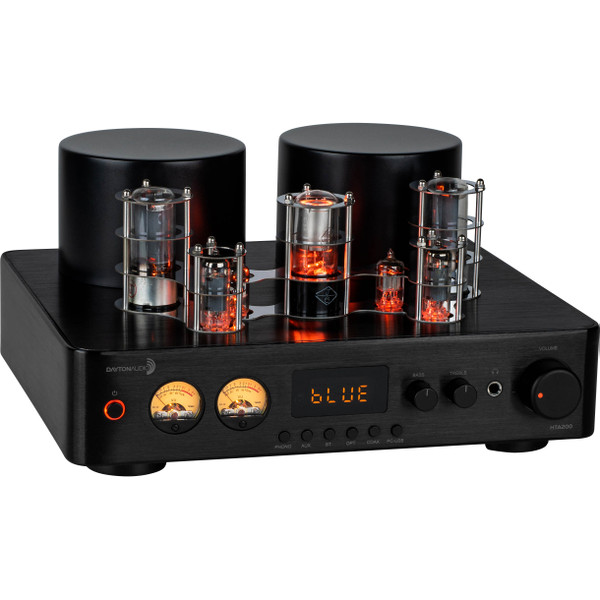

Dayton Audio HTA200 Integrierter Stereo-Hybrid-Röhren-Verstärker 200 Watt
Dayton Audio HTA200 Integrated Stereo Hybrid Tube Amplifier 200 WattDayton Audio HTA200 Integrated Stereo Hybrid Tube Amplifier 200 Watt The Dayton Audio HTA200 is a powerful hybrid tube amplifier that delivers a rich, 200-wattwarm sound with amber-colored preamp tubes. It offers several input options, includingBluetooth, coaxial, optical digital, line-in, and phono RCA inputs as well as a preamplifier andGround connection for turntable. With the built-in sound controls, you can adjust the sound to yourSet preferences while the backlit VU meters add a touch of retro charmemit. The motorized volume control is a practical feature that can be adjusted with theincluded remote control easily. The HTA200 is perfect for large listening environmentsand is the ultimate choice for audiophile people who want the best possible sound quality. Important Note: Dear Customers, Dayton Audio electrical devices are pre-configured for the US market with a 110-volt supply voltage. They are generally, at least those that we also distribute, designed for the European standard 220-240V. It is important that before commissioning, the operating instructions must be read carefully and it must be checked whether the adjustments for operation with 220-240V have been made. Essential Features Powerful and stylish: The Dayton Audio HTA200 is as beautiful as it is powerful. This mighty audio amplifier packs a punch, delivering 100 watts RMS per channel of clean power. The tube preamp generates a subtle character and warmth that is a charming homage to the classics. Versatile connectivity options: With multiple inputs, including RCA, optical connection, Bluetooth, USB-DAC, and phono preamp, the HTA200 offers seamless, modern connectivity for your favorite audio sources, whether turntable, smartphone, or music player. Die Wärme von Röhren und die Performance A/B Topologie: Der Dayton Audio HTA200 ist ein Hybrid-Röhrenverstärker, der die besten Eigenschaften von beidem in sich vereint: Er nutzt das klassische Design einer Klasse-A/B-Verstärkertopologie und verwendet gleichzeitig Vakuumröhren im Vorverstärkerschaltkreis für Wärme und Klarheit. Looks great next to your vintage turntable: The classic VU meters on the front of the HTA200 perfectly complement the sleek, black brushed aluminum casing. And the glow of the exposed tubes contributes to the modernized vintage aesthetic of the HTA200. You have the control: The motorized volume control is a convenient feature that can be easily operated with the included remote control. The HTA200 is perfect for large listening rooms and is the ultimate choice for audiophiles who want to impress their friends. Dayton Audio HTA200 Hybrid Tube Amplifier The HTA200 is the perfect solution to bring the rich sound of a tube amplifier into your home system tobring. The innovative design of the HTA200 combines the best of both worlds - the classic soundfrom vintage tube amplifiers and the modern convenience of a solid-state amplifier. This amplifieroffers an excellent price-performance ratio, allowing you to enjoy classic hi-fi soundcan, that you have always dreamed of, without breaking the bank. A contemporary classic Man mag darüber streiten, ob Halbleiter- oder Röhrenverstärker ein besseres Hörerlebnis bieten; DaytonAudio, however, resolves the debate. The Dayton Audio HTA200 hybrid tube amplifier combines the bestProperties of both systems and uses the classic design of a Class A/B amplifier topology withVacuum tubes in the preamp circuit. The subtle character and warmth of the tubes are acharming homage to the classic tube amplifiers of the past. Flexibility and Performance Mit einer RMS output power of 100 watts per channel at 4 ohms, the HTA200 boasts an impressivePower suitable for almost any home audio system. The added convenience of Bluetooth 5.0ensures that your wireless streaming has the best possible quality and functionality. Connected Versatility Die rückseitig angebrachten analogen und digitalen Eingänge ermöglichen dauerhafte Verbindungen zularger input sources. The HTA200 features a dedicated phono input, a USB DAC, and aoptical output as well as a subwoofer output, allowing you to integrate all your devices,to enjoy the classic sound of tube devices. An Homage to the Classics The classic VU meters on the front of the HTA200 perfectly match the modern, sleek casing.made of brushed aluminum. The exposed tubes contribute to the modernized vintage aesthetic of the HTA200at. A large motorized volume control, bass and treble controls, input selection, and aEntrance display on the front provides you access to the features you need to make yourperfect sound. Specifications: Output Power: 100 WPC RMS @ 4 Ohm KLIRRFAKTOR: <1.5% at nominal power Minimale Lautsprecherimpedanz: 4 Ohms SNR: 80 dB Frequency response: 15-20,000 Hz Sub-Output: Full-Range Preamp Output Preamp tubes: 13P1P x 2, 6H2 x 2, 6K4 x 2, WY-3P Bluetooth: Version 5 Supports Bluetooth codecs: SBC and AAC Digitale Audio-Abtastrate: Up to 16-bit/48kHz Power supply: 110/220 VAC, 50/60 Hz Standard IEC connection Sicherung Value (120v): 5x20mm 5AL Abmessungen: 13.1" x 6.6" x 12.5"

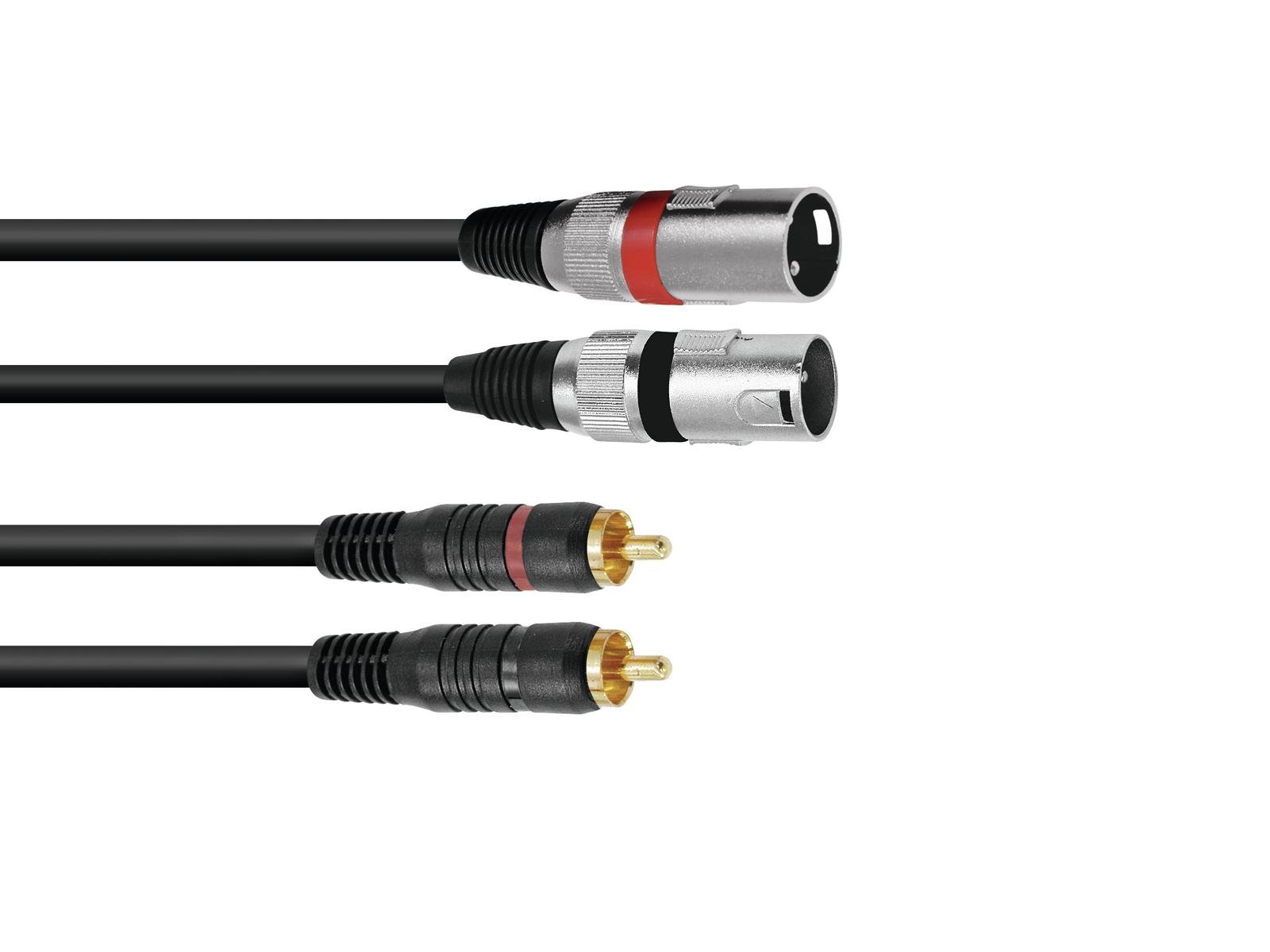

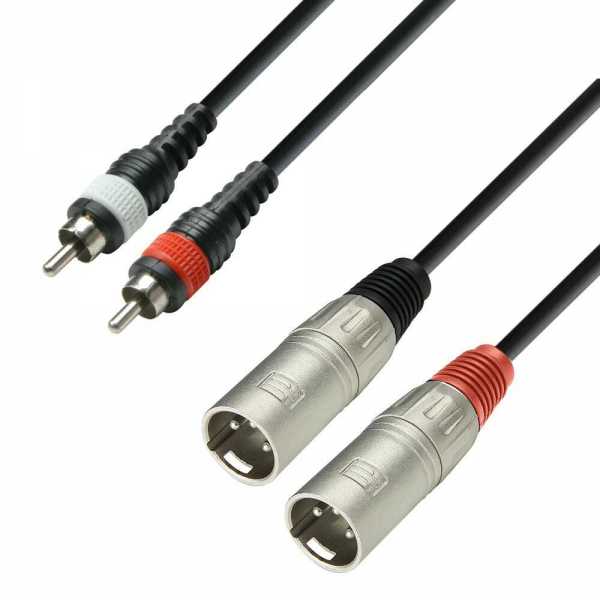

XLR auf Cinch Kabel 1,5m Stecker/Stecker
XLR to RCA Cable 1.5m Plug/PlugAdapter cable 2xXLR(M)/2xRCA 1.5m blk

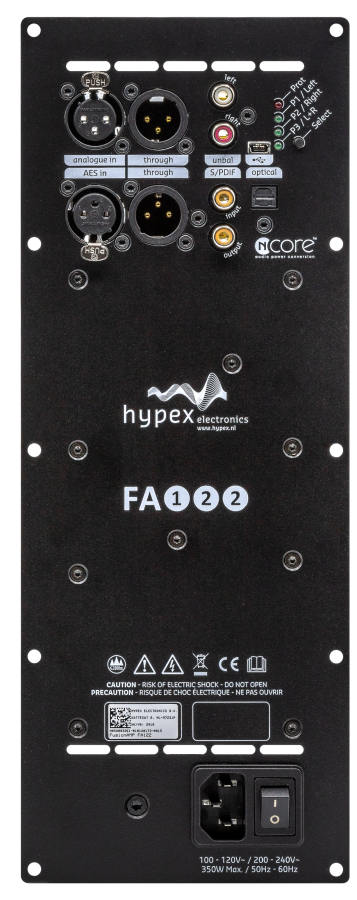

Hypex FUSIONAMP FA122
This FusionAmp can be the basis of e.g. a powerful two- or three-way monitor.The FA123 has two 125 Wrms Ncore® amplifiers which can also be bridged to form one powerful 250 Wrms amplifier. Additionaly, a 100 Wrms Ncore® tweeter channel is added. Dimensions: 360 * 120 x 55 mm Weight: 955 gram (1615 gram incl. packing) Connections Analogue balanced XLR in and through Analogue unbalanced RCA input Digital AES in and through Digital S/PDIF in and through Digital Optical TosLink input USB 2.0 configuration interface Features 15 biquads per amplifier Three selectable presets for filters Source selection Signal detect Auto shutdown BTL capable Clip protect Thermal protect Filter protection What is included in the box: The FA123 A printed copy of the user guide Speaker connection cables

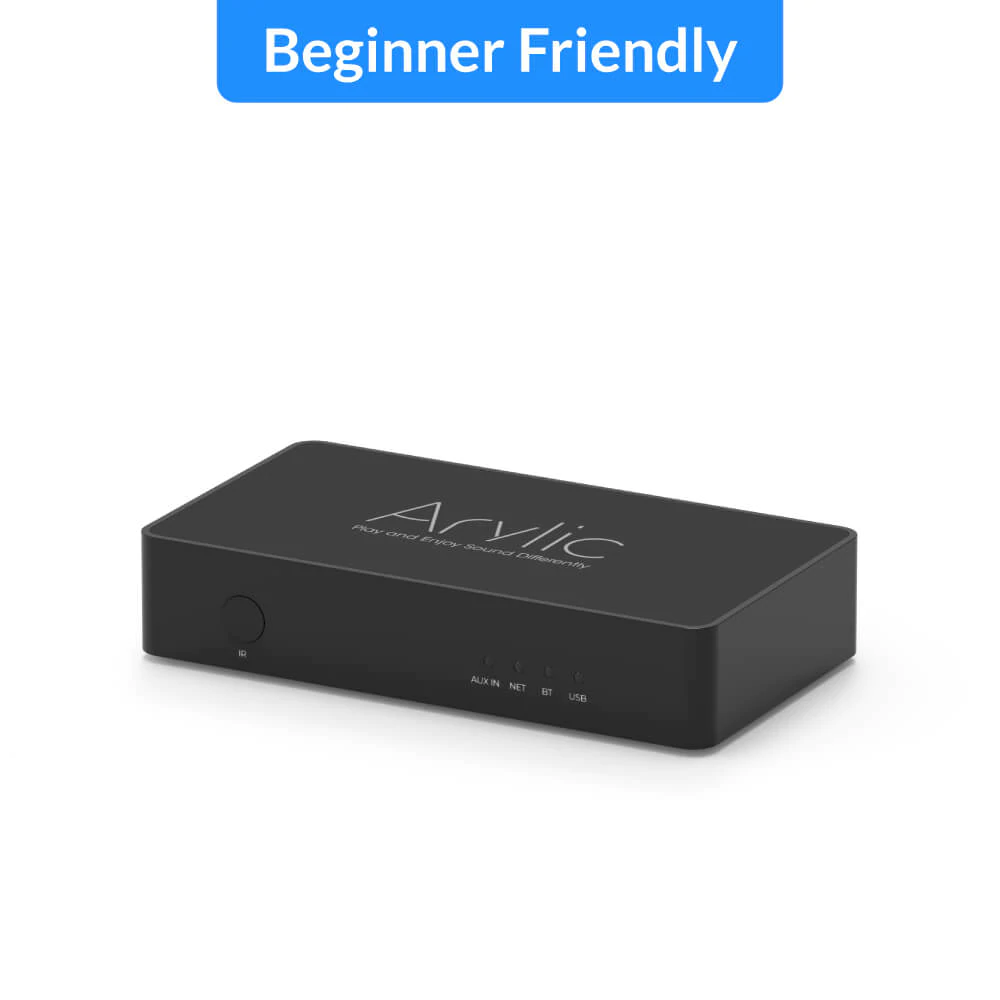

Arylic S10 Wireless Multiroom Music Streamer
Easily Stream Your Audio Wireless The S10 is a great wireless audio streamer for new wireless audio players to get started on budget. The S10 allows you to stream audio to your home audio system wirelessly via WiFi, Airplay, Bluetooth 5.0 and Spotify Connect. You can also add other Arylic devices to build a multiroom system, manage and control all your audio devices in one app (4STREAM)! Multiroom Audio System Mix and match any combination of Arylic products to create a custom multiroom system and play the same music throughout your home, send different sources to each room at the same time, or create your own custom-defined multiroom zones... All are controlled via our 4stream App. Brilliant Sound Streamed Directly From Your Favorite Providers Spotify, Amazon Music, Tidal, Qobuz, Deezer, Napster, TuneIn, Internet Radio, iHeart Radio, QQ Music, QQ FM. The S10 connects directly to your online streaming providers to play high quality audio, avoiding Bluetooth bottlenecks and compression. Tune Like An Expert Fine tune your listening experience with our exclusive ACPWorkbench tuning tool. Find the perfect sound for each channel with EQ, Bass Enhancement, Advanced DSP effects, Gain, Pregain and more. Powerful 4stream App Choose your music source and control playback, set EQ, control multiroom/independent playback, manage playlists, control alarm clock, WiFi settings, update firmware and more... All the useful features you need in our free 4STREAM App for iOS & Android. Remote Control The included remote can control all your Arylic models within a ~15 meter/50 foot range. Web & PC Control Control your devices via browser from any PC, tablet, or other device, no app required. Or stream music using any software that supports Airplay, Spotify Connect, UPNP or DLNA protocols, including iTunes, Spotify, Musicbee and more. Package Includes S10, User Manual, Remote, 5V1A Micro USB Power Adapter, Aux 3.5mm cable, 2-1 RCA Cable.
miniDSP Flex digital (SPIDF/TOS)
The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment. All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning. The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest! Hardware Features Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz) Audiophile performance (SNR@120dB(A), THD+N @ -110dB (0.0003%) Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA) Flexible Output versions: Unbalanced (RCA), Balanced (TRS), Digital (Future) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller with IR control What's in the box? Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration IR remote v2 12V univeral power supply (UK/EU/US/AU plugs)
KABD-SPF Function Cables for KABD Series
KABD-SPF Function Cables for KABD SeriesDiese Funktionskabel bieten zusätzliche Optionen zur Anpassung von Dayton Audio KABD Bluetooth-Verstärkerplatinen-Soundprojekten. Key Features 3.5 mm AUX-in cable with jack provides a way to play music with non-Bluetooth devices Vier externe Potentiometer mit Kabeln und Knöpfen zur Klanganpassung Batteriekabel für echte tragbare Projekte Externe LEDs für Bluetooth und Quellstatus Switch for power on/off or mute to increase battery life 6-pin Aux-out cable for additional amplifier option External stick on antenna to mount outside metal enclosures
Dayton Audio KPX In-Circuit Programmer USB
Dayton Audio KPX In-Circuit Programmer USBThe dual-purpose Dayton Audio KPX allows you to unlock the full potential of your DSPB/KABD amplifier or preamp boards by connecting them to the easy to use, Analog Devices SigmaStudio visual programming tool. KPX also enables you to use KABX software to preset equalization settings and more for the KAB-250v4, KAB-230v4, and KAB-100Mv2. Key Features Programs with readily available SigmaStudio or KABX computer software Connects to your computer using a standard USB-C cable (sold separately) 50 x 50 mm size fits into small enclosure projects for permanent installations or easy connection to your KABD/DSPB amplifier or preamp boards Includes a 6-pin, 8" jumper cable that plugs directly into Dayton Audio DSPB and KABD amplifier and preamp boards Includes a 4-pin, 8" jumper cable that plugs directly into Dayton Audio KAB-250v4, KAB-230v4, and KAB-100Mv2 amplifier boards Built-in switch toggles between the two software programs/ports 5 Jahre Dayton Audio Garantie
Dayton Audio KAB-100Mv2
Dayton Audio KAB-100Mv2Dayton Audio KAB-100Mv2 1 x 100W Class D Audio Amplifier Board with aptX HD Bluetooth 5.0 With the Dayton Audio KAB-100Mv2 Bluetooth Amplifier Board, you can quickly and easily provide audio to your project, speaker build, sales display, kiosk, or any other place where music or sound enhances the experience. With an output power of 1 x 100 watts, there is more than enough power to drive stereo speakers, yet the board is small enough to be integrated into almost any project.Key Features Efficient performance of 1 x 100 watts through the TPA3116 amplifier chip Bluetooth 5.0 with aptX HD directly integrated on the board - no separate module required Programmable sound adjustment with the free KABX software via the KPX programming board (sold separately) Plug-N-Play JST-PH and Molex Mini-Fit Jr wiring harnesses enable quick and easy installation - including power cable, Bluetooth reset button, and speaker cable Separate connections for battery operation or direct DC supply via a power adapter Optional accessories extend functionality and more Simple use of Bluetooth 5.0 and amplification With the Dayton Audio KAB-100Mv2 Bluetooth Amplifier Board, you can enhance your project, your speaker build,Your sales display, your kiosk, or any other place where music or sound enhances the experience,quickly and easily with audio. With an output power of 1 x 100 watts, it is more than enoughPower available to drive stereo speakers, yet the board is small enough to fit inalmost every project to be integrated. High-quality audio performance Das Dayton Audio KAB-100Mv2 Bluetooth Amplifier Board delivers high sound quality without consuming much power.consume. This is due to the highly efficient TPA3116 Class D amplifier chip. The TPA3116works with an efficiency of 90%, so no heat sink is required and the overall sizereduces. Its high efficiency is a great advantage when operated with batteries, aser extend the playtime with a single charge. The extremely low distortion and the crack-freeLeistung make this HiFi amplifier board an indispensable component of any high-qualityAudio system. Integrated Bluetooth In contrast to other amplifier boards, the Dayton Audio KAB-100Mv2 features an integratedQualcomm Bluetooth 5.0 module with aptX HD and DSP programming option with KPX board (sold separately).The advantage of Bluetooth 5.0 is the low power consumption, which extends the playtime of battery-poweredDevices extended. The streaming audio quality is comparable to that of CDs, as the Bluetooth chipaptX, aptX HD, aptX LL, SBC and AAC supported. The high reception sensitivity with an RF powerfrom up to 9 dBm and -90 dBm and the integrated antenna ensure a stable wireless connection up toto 15 m. The integrated connector for an external antenna allows the installation of the KAB card in aMetall housing with an external antenna (sold separately). This fully functional module wasfor Bluetooth demonstration purposes developed and built, providing a turnkey approach forthe Bluetooth certification of consumer goods. Whether this card is for the hobbyist or for industrialpurposes, nothing is required to enjoy the full comfort of coupling and streaming ofBluetooth audio in high quality. The KAB-100Mv2 is also CE and FCCcertifiable. Simple Installation Due to the overall audio performance and the integrated Bluetooth with DSP programming option, thisAmplifier board with almost unlimited application possibilities. The KAB-100Mv2 includes twoKabelbäume enthalten: one for DC power supply and the other for connection toStereo speakers. For many users, these cables are all they need for a project. Since theyabout additional on-board connectors with wiring harnesses (sold separately) to facilitate installationto accelerate and establish secure connections, eliminating the need for soldering orTroubleshooting loose and unstable connections. Dayton Audio also offers a range of accessoriesmit robusten Funktionen an, die die Installation noch einfacher machen. Learn more about belowoptional accessories. Infinite application possibilities Due to the overall audio performance and the built-in Bluetooth function with DSP programming, this amplifier board offers virtually unlimited application possibilities. From hobbyists and DIY enthusiasts to manufacturers and installation companies, this Bluetooth amplifier board provides immense flexibility. For orders of more than 20 pieces, custom OEM Bluetooth pairing names are available - send an email to [email protected] for more information. Even if you bypass the Bluetooth function, this amplifier board can be easily integrated into any task thanks to the numerous included and optional wiring harnesses. Examples of applications include: Extremely low standby power The Dayton Audio KAB-100Mv2 can be operated in standby mode for up to 7 days, even when Bluetoothactivated. This standby time is about 4x longer than the competition, as a highly efficient DC/DC-Wandler is used, which reduces power consumption thanks to the use of a microcontroller as a PMU(Power Management Unit) minimized. Das Dayton Audio KAB-100Mv2 offers numerous power supply options for creative, wirelessSound projects. This flexibility eliminates the limitations that most other amplifier boardsbring with them. Therefore, your design can be both wired and truly portable. Für portable applications, there is an optional function cable kit (KAB-FC) that allows the connection ofrechargeable batteries to power the board. NiMH, lead-acid, or NiCad batteriescan be charged directly via the board with a 15~24 VDC, 1A power supply. Beextremely cautious, as the Bluetooth amp board does not provide protection against undercharging or overcharging and theangeschlossene Stromadapter nicht mehr als 30 Watt Leistung hat. Solarcharging is also an option; for this application, solar batteries with aMaintenance voltage of 16.5 to 21.5 VDC and a 20 to 100-watt panel required. Eight AA-Alkaline batteries can also power this card, but for this type of use, onlythe charging function cannot be connected. Mehrere Strompfade Die beste Option für wiederaufladbare Batterien ist eine separate Verbindungsplatine von Dayton Audio(KAB-BE), which can accommodate three 18650 Li-Ion batteries. This portable power source is veryrecommended, as this additional battery holder board provides protection against under- and overvoltageoffers. A 19 VDC, 1-5A power supply is the best choice for charging the expansion card. (At least 15 VDCand a maximum of 24 VDC required). Package includes A Dayton Audio KAB-100Mv2 Bluetooth Amplifier Board A 2-wire power cable (20") A 4-core speaker cable (20") A push button switch to reset Bluetooth pairing with cable (20") Specifications Output power (with 24 VDC power supply): 1 x 100 W @ 2 Ohm SNR: 92 dB Distortion Factor: 0.02% at 2 Ohms, 10 W, 1 kHz Frequency Response: 22 to 22,000 Hz (±3 dB) Impedance: 2-8 Ohms Bluetooth range: 30 ft. Mixed mono audio output: Low-pass filter set to 220 Hz, volume is not affected by the integrated control Recommended Power Supply: 12 to 24 VDC, 4A Recommended power supply for charging (NiMH, Lead Acid or NiCad) 15 to 24 VDC, 1A Recommended power supply for charging (Li-Ion) 19 VDC, 1-5A Distance of the mounting holes on the board from center to center: 3.32" x 2.4" (84 x 61 mm) Loch diameter: 0.14" (3.5 mm) Dimensions: 3.6" L x 2.7" W x 0.9" H

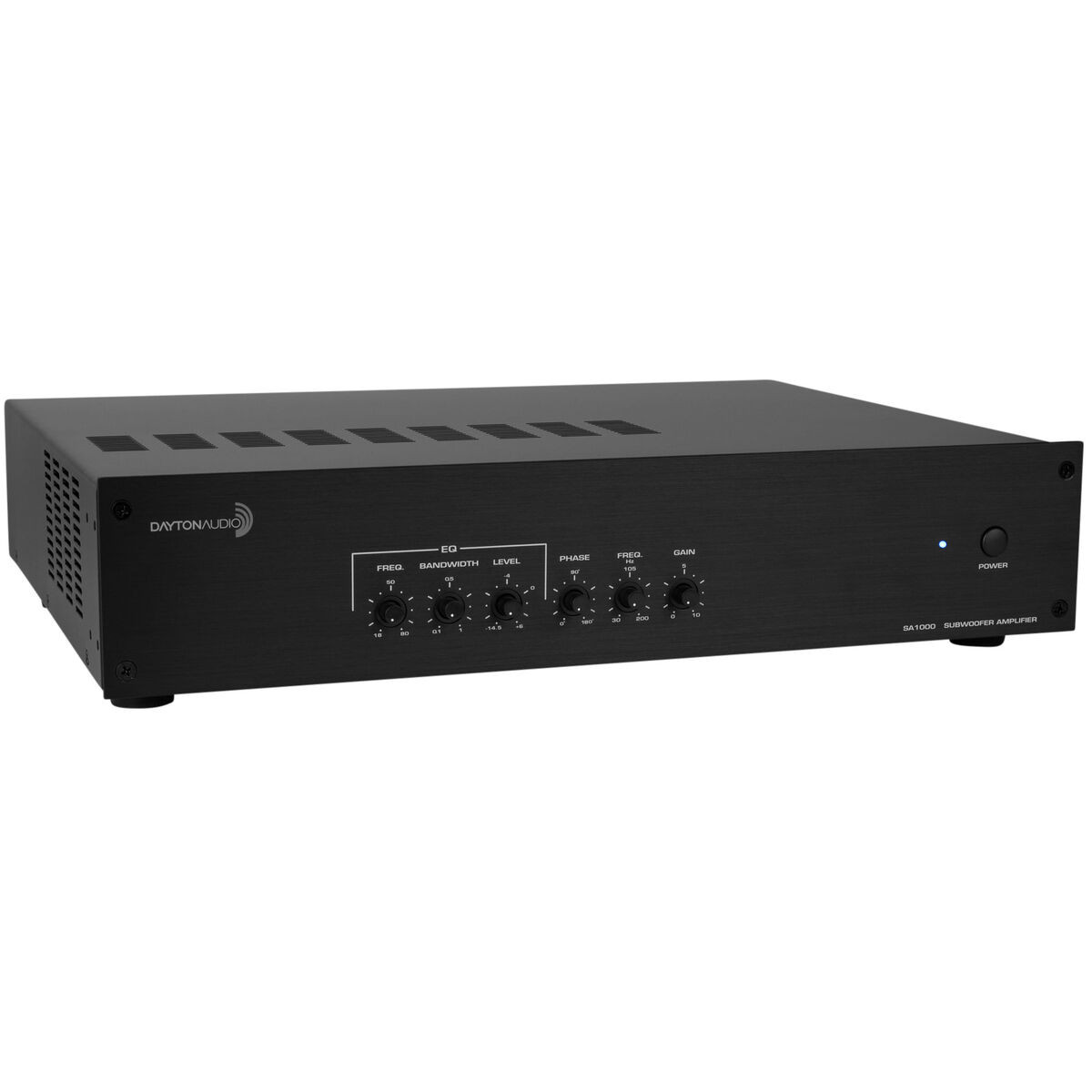

Dayton Audio SA1000 Subwoofer Amplifier Rack Mountable
Dayton Audio's SA1000 mono subwoofer amplifier provides nearly a kilowatt of clean, solid power to your home theater or music playback system. The amp's convenient freestanding or rack-mountable configurations make it an ideal partner for high-performance subwoofer speaker systems.We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability. Key Features Patented tracking down-converter power supply for high efficiency Class-AB output stage for clean, controlled amplification Low frequency parametric EQ allows you to boost or cut to custom-tailor the sound Sophisticated soft clip circuitry improves headroom and protects woofers Manual, auto, or triggered on/off for integration into any automated system Switchable subsonic and bass boost filters High pass output for looping signal back into distributed audio systems The Dayton Audio SA1000 is a freestanding, high-power subwoofer amplifier designed for the DIYer, installer, and systems integrator. This unique monaural audio device delivers the raw power of a pro-sound amp, but with the features and flexibility of a dedicated subwoofer amplifier. It can be configured for stacking with other audio components, and includes removable ears for mounting in standard audio racks (2RU). The SA1000's patented tracking down-converter power supply ensures headroom for instantaneous power needs and the amp stays cool, thanks to its high-efficiency design. A Class-AB amplifier configuration provides the SA1000 with clean and controlled output. From an application standpoint, the SA1000's low frequency parametric EQ enables you to boost or cut to custom-tailor the sound to suit the listening environment. Sophisticated soft clip circuitry provides cleaner transient peaks while protecting your driver from over-excursion. The amp's switchable subsonic filter removes subsonic information from the signal, which tightens the low end response of some subwoofer systems. On-board bass boost filters enhance LF performance while leaving the parametric EQ function available to address room modes, like cutting an excessively loud room resonance. The high-pass outputs provide a user the option to feed the signal back into their other audio components or a distributed audio system. Manual, automatic on/off or triggered 12V input modes allow easy integration into automated systems. The stealthy pop-out knobs on the front panel make adjustments easy, while minimizing the risk of accidental disturbance. The SA1000's subdued brushed black aluminum faceplate allows the amp to blend cosmetically with any type of audio gear. Accommodates RCA line-level inputs, includes insulated binding posts for the speaker outputs, and accepts a 12V trigger via a 3.5 mm mini-jack. Specifications: • Rated power output (0.92% THD): 497 watts into 8 ohms, 950 watts into 4 ohms • Signal to noise ratio: 98 dB A-weighted • Efficiency: 86% • Input impedance: 12K ohms • Input sensitivity: 775 mV • Subsonic filter: -3 dB @ 18 Hz, Q=0.8 • Bass boost: +3 dB @ 25 Hz, Q=1.4 • High pass output: -3 dB @ 80 Hz, 12 dB/octave • Low pass adjustment: 30-200 Hz with 24dB per octave slope • Phase adjustment: 0°–180° • Parametric EQ frequency: 18–80 Hz • Bandwidth: 0.1–1.0 Q • Level: -14.5 dB to +6 dB • Dimensions: 17-1/2" W x 4" H x 13" D (tabletop configuration) • Power requirements: 120/230 VAC, 60/50 Hz • Stand-by power rating: 120V 24W; 230V 18.4W • Weight: 28 lbs. • Power rating based on one-third power duty cycle.
XLR male auf RCA male Kabel 1m
High-quality stereo audio cable with moulded-in RCA plugs and XLR sockets. The clear identification of the channels with coloured rings and high-quality cable material round off the features of this cable. Equally suitable for studio or demanding hi-fi applications. Product type Cable Assembled Type Audio cable Cable length 1 m Colour black Cable diameter 4 x 8 +/- 0,2 mm Inner conductor cross-section 0,22 mm² Connection 1 RCA Number of connections Connection 1 2 Gender Connection 1 Male Number of poles connection 1 2 Contacts Connection 1 nickel-plated Manufacturer Connection 1 Adam Hall Model Number Connector 1 Custom Made Connector 2 XLR Number of connections Connector 2 2 Gender Connector 2 Female Number of poles connection 2 3 Contacts Connection 2 nickel-plated Manufacturer Connector 2 Adam Hall Model number Connection 2 Custom Made Weight 0,1 kg
Acrylic Case Up2Stream Amp 2.1
Airplay 2 Compatible: Up2Stream HD DAC lets you stream audio throughout your house via Apple Airplay 2. Using Airplay 2 from your iOS device, you can easily stream music to multiple Apple audio devices at the same time. 192khz/24bits Hi-Res Audio: Up2stream HD DAC supports 1:1 high-fidelity lossless 192khz/24bits audio output. What's more, the high-performance ESS 9038Q2M plays a big role in sound quality. Enjoy high quality sound from high performance hardware with your stereo system. Spotify Connect & Tidal Connect: With Spotify Connect and Tidal connect compatibility, you can stream music directly from Spotify or Tidal without using our 4Stream app. Build Your Wireless Streaming Audio System: Perfect to add dual band WiFi, Airplay 2, Spotify Connect, Tidal Connect, and Aptx HD Bluetooth 5.0 wireless capability to your DIY audio projects. Build a wireless speaker, wireless streamer, or convert your traditional stereo system into an advanced wireless multiroom streaming system. Bring Multiroom Capabilities to Your Next Project: Our wide range of Up2Stream boards are small enough to fit in all kinds of audio projects. Add an amplified streamer inside speaker boxes, or tiny receiver boards inside home theater amps. Their size and powerful connectivity bring new life to vintage gear and new ideas for your next DIY build. *All Arylic products are compatible with each other for multiroom installations. Stream with HD Music: Up2Stream HD DAC is able to stream with Qobuz HD and Tidal HiFi to give you the true high-resolution audio experience. More HD music will be updated and supported in the future. Along with this HD music, it also supports Spotify, Amazon Music, Deezer, Internet Radio, iHeartRadio, Napster, and more. Enhanced Up2Stream: The Up2Stream HD DAC is easily expandable, you can add new features to better fit your project. For example, you can add a display panel(coming in the future) to add a visual of the system, an acrylic case for protection, you can also add a button board, an IR receiver, and more. You can find all these expansion boards in our Accessories section. Powerful 4STREAM App: Choose your music source and control playback, set EQ, control multiroom/independent playback, select preset content, control alarm clock, WiFi settings, update firmware, and more... All the useful features you need in our free 4STREAM App for iOS & Android. Bring Airplay 2 & Brilliant Sound To Your Whole House Up2Stream HD DAC is a high quality mulitroom wireless audio preamplifier board that supports Airplay 2, APTX HD, Sportify Connect and Tidal Connect. It uses ESS9038Q2M and has excellent sound performance to output 192kHz/24bit High-Res audio. With Up2Stream HD DAC you can enjoy your audiophile home audio system throughout your home. Airplay 2 Compatible Up2Stream HD DAC lets you stream audio throughout your house via Apple Airplay 2. Using Airplay 2 from your iOS device, you can easily stream music to multiple Apple audio devices at the same time. 192khz/24bits Hi-Res Audio Up2stream HD DAC supports 1:1 high-fidelity lossless 192khz/24bits audio output. What's more, the high-performance ESS 9038Q2M plays a big role for sound quality. Enjoy high quality sound from high performance hardware with your stereo system. Spotify Connect & Tidal Connect With Spotify connect and Tidal connect compatibility, you can stream music directly from Spotify or Tidal without using our 4Stream app. Bring Multiroom Capabilities to Your Next Project Our wide range of Up2Stream boards are small enough to fit in all kinds of audio projects. Add an amplified streamer inside speaker boxes, or tiny receiver boards inside home theater amps. Their size and powerful connectivity brings new life to vintage gear and new ideas for your next DIY build. *All Arylic products are compatible with each other for multiroom installations. Stream with HD Music Up2Stream HD DAC is able to stream with Qobuz HD and Tidal HiFi to give you the true high resolution audio experience. More HD music will be update and support in the future. Along with this HD music, it also support Spotify, Amazon Music, Deezer, Internet Radio, iHeartRadio, Napster and more. Enhanced Up2Stream The Up2Stream HD DAC is easily expaniable, you can add new features to better fit your project. For example, you can add a display panel to add visal of the system, acrylic case for protection, you can also add button board, volume knob, IR receiver and more. You can find all these expansion board in our Accessories section. Powerful 4stream App Choose your music source and control playback, set EQ, control multiroom/independent playback, manage playlists, control alarm clock, WiFi settings, update firmware and more... All the useful features you need in our free 4STREAM App for iOS & Android. Remote Control The included remote can control all your Arylic models within a ~15 meter/50 foot range. Package Includes Up2Stream HD DAC, Internal Antenna (WiFi & Bluetooth), User Manual, PH2.0 Aux Cable(3 Pin).
