SPX-31M
SPX-31MPropertiesHi-Fi Broadband Speaker, 20 W, 8 ΩVery good sound qualityHigh-quality paper membranePhase plug made of aluminum to optimize radiation behaviorVentilated centering spiderShielded Magnetic SystemUse in small speakers or satellite systemsIdeal for use in FAST speakers (Fullrange and Subwoofer Technology)HOBBY HiFi 05/2019"The SPX-31M is ideally suited for a desktop speaker system where level stability is less important, but clean sound at low volume is all the more important."Klang+Ton 02/2016The RAPTOR-6 and SPX-31M in the K+T project MONACOR soundbar:„Dynamically, the construction outshines pretty much everything else the industry has to offer in terms of finished products.“Hobby HiFi 06/2015„Ideally suited for a desktop speaker system.Processing: spotlessly clean.
Monacor MRH-180 Celestion H1-7050
Monacor MRH-180 Celestion H1-7050PA mid-high hornHorn made of cast aluminumResonance-free through inserted rubber elements25 mm flange connection (1") with standard 2-hole fastening (hole spacing 76 mm)Recommended crossover frequency at least 1.5 kHz

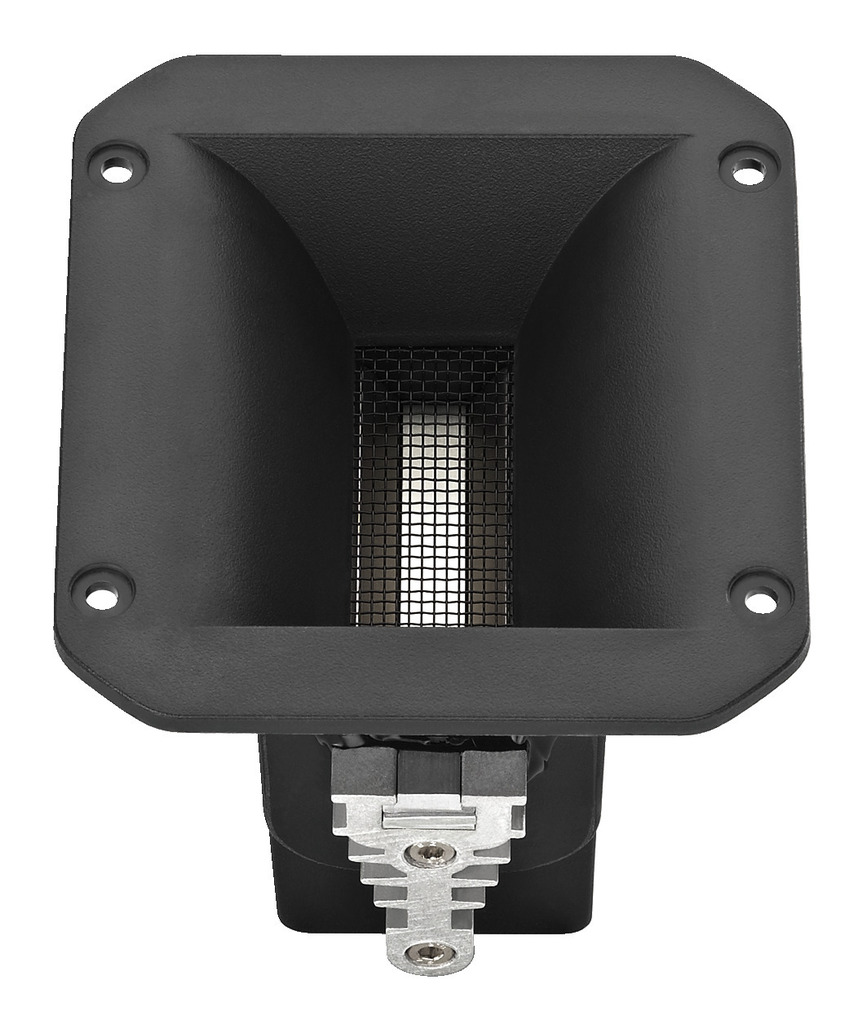

Monacor RBT-35SR
The new high-end tweeters RBT-10, RBT-20 and RBT-35SRbelong to the group of "real" ribbon tweeters. These are characterised by an extremely light diaphragm consisting of an aluminium foil through which the sound signal flows completely. The low impedance of this diaphragm is transformed to an amplifier-uncritical 5-8 ohms by a built-in, high-quality transformer. Ribbon tweeters convince with an extremely fine resolution and brilliant sound in the high frequency range. Due to continuous development, these ribbon tweeters can nowadays be used from crossover frequencies of 2500 Hz, depending on the type, and are the choice when it comes to high-quality hi-fi loudspeakers or studio monitors. Ribbon tweeters must not be operated without a crossover! High-end ribbon tweeter horn pair, selected, 12 W, 7 Ω Real ribbon with neodymium magnet system and transformer Very high sound pressure level and constant directivity due to horn front attachment Brilliant, fine-drawing high-frequency reproduction Smooth, non-embossed aluminium sandwich cone 9 x 60 x 0.015 mm Can be used from 2500 Hz via 18 dB filter Horn with mounting flange and protective grille "The waterfall diagram shows above the fundamental resonance a completely flawless, wonderfully fast and interference-free decay. ... A first-class tweeter solution with a pleasingly broadband application." Hobby HiFi 06/2014
EX-40/8
EX-40/8 Audio exciters/resonators, 20 W, 4 Ω (/4) or 8 Ω (/8) Exciters are suitable for music and speech reproduction over vibratable surfaces. They are simply glued onto doors, cabinet doors, shelves, tabletops, lightweight walls, ceiling panels, or a variety of other surfaces to be set into vibration and create an impressive sound with these surfaces throughout the entire environment. In dependence on the mounting surface, very broadband reproduction with astonishing richness of sound High sound quality High Resilience Suitable for discreet sound, e.g. on doors, cabinets, shelves, glass panes Delivery with 3M adhesive pad Technical Specifications EX-40/8 Low ohm 1 Impedance (Z) 8 Ω Frequency range fx-20000 Hz Resonance Frequency (fs) 300 Hz Rated Power (RMS) 20 W Music Load Capacity (MAX) 40 W Max. Nominal Sound Pressure no information Voice coil diameter. Ø 32 mm Voice coil former KSV Dimensions Ø 61 mm x 20 mm Outer diameter Ø 61 mm Width 61 mm Height 61 mm Depth 20 mm Color Black/Silver Permissible Operating Temperature 0-40 °C Weight 0.129 kg Packaging unit 1 Packaging dimensions (W x H x L) 0.08 x 0.033 x 0.08 m Gross weight 0.144 kg Net weight 0.129 kg

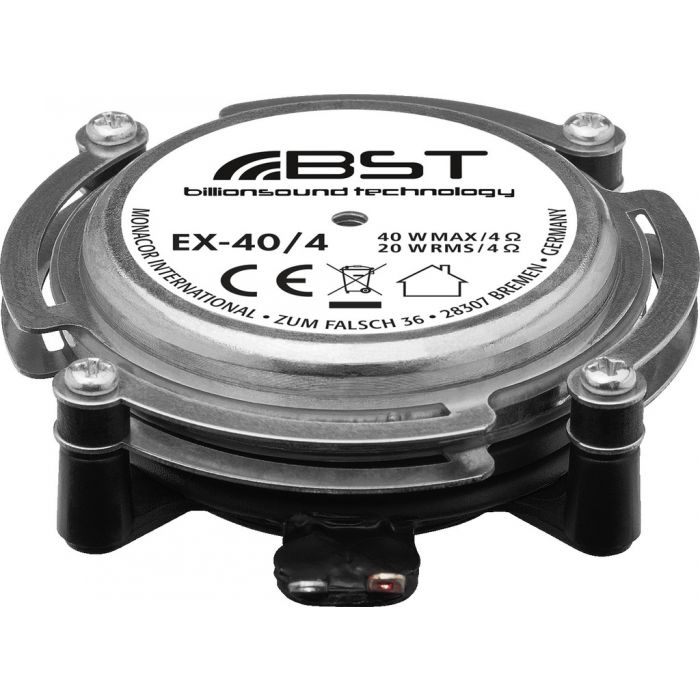

Ex-40/4
Ex-40/4 Audio Exciters/Resonators, 20 W, 4 Ω (/4) or 8 Ω (/8) Exciters are suitable for music and speech reproduction via vibratory surfaces. They are simply adhered to doors, cabinet doors, shelves, tabletops, lightweight walls, ceiling panels, or a variety of other surfaces to be set into vibration, and they produce an impressive sound with these surfaces throughout the entire environment. Depending on the mounting surface, very broadband reproduction with astonishing sound richness High sound quality High resilience Suitable for discreet sound, e.g., on doors, cabinets, shelves, glass panes Delivery with 3M adhesive pad Technical Specifications EX-40/4 Low ohm 1 Impedance (Z) 4 Ω Frequency range fx-20000 Hz Resonance frequency (fs) 300 Hz Rated load capacity (RMS) 20 W Music Load Capacity (MAX) 40 W Max. Nominal Sound Pressure no information Voice coil diameter. Ø 32 mm Voice coil former KSV Dimensions Ø 61 mm x 20 mm Outer diameter Ø 61 mm Width 61 mm Height 61 mm Depth 20 mm Color Black/Silver Permissible Operating Temperature 0-40 °C Weight 0.129 kg Packaging unit 1 Packaging dimensions (W x H x L) 0.08 x 0.033 x 0.08 m Gross weight 0.144 kg Net weight 0.129 kg

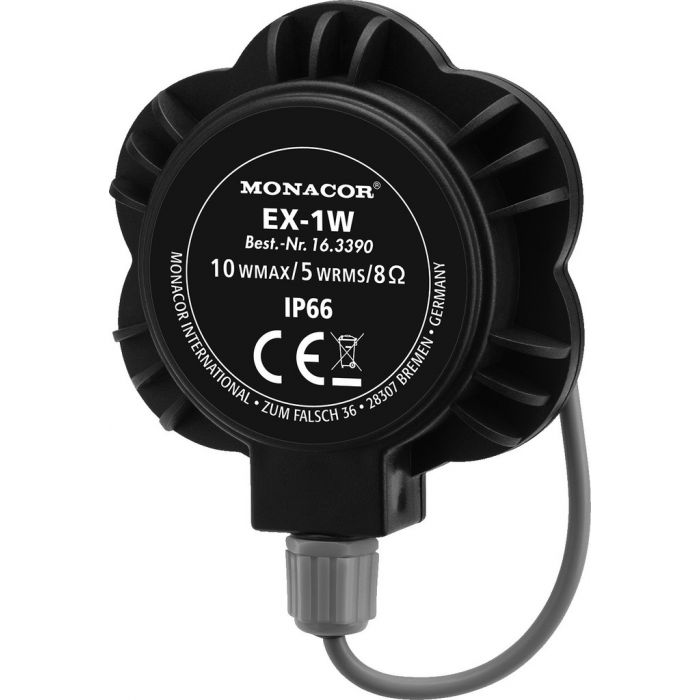

EX-1W
EX-1W Audio Exciter/Resonator, 5 W, 8 Ω Exciters are suitable for music and speech playback over vibrating surfaces. They are simply glued onto doors, cabinet doors, shelves, tabletops, lightweight walls, ceiling panels, or a variety of other surfaces to be set into vibration and create an impressive sound with these surfaces throughout the entire environment. In dependence on the mounting surface, very broadband reproduction with astonishing sound richness Good sound quality Dustproof and protected against powerful water jets according to IP66 Suitable for discreet sound, e.g. on doors, cabinets, shelves, glass panes, tabletops, shower enclosures Delivery with 3M adhesive pad Technical Data EX-1W Low ohm 1 Impedance (Z) 8 Ω Frequency range installation-dependent, up to over 20 kHz Resonance frequency (fs) 1200 Hz Rated Power (RMS) 5 W Music Load Capacity (MAX) 10 W Sound pressure level no information Voice coil diameter. Ø 25 mm Voice coil former KSV Dimensions 85 x 65 x 21 mm Width 85 mm Height 65 mm Depth 21 mm Color Black Protection rating IP66 Permissible Operating Temperature -10 °C to +40 °C Weight 0.107 kg Packaging unit 1 Packaging dimensions (W x H x L) 0.126 x 0.032 x 0.137 m Gross weight 0.138 kg Net weight 0.107 kg
AR-50
AR-50 Weatherproof, robust exciters/resonators for music and speech playback via vibrating surfaces. These resonators are simply screwed onto doors, cabinet doors, shelves, tabletops, lightweight walls, ceiling panels, or a variety of other surfaces to be set into vibration. An impressive sound is partially generated in the entire environment with these surfaces. These resonators are not suitable for use on glass surfaces! Weatherproof Audio Exciter/Resonator, 8 Ω In dependence on the mounting surface, very broadband reproduction with astonishing volume Very robust, weatherproof design and therefore suitable for outdoor use and under difficult dirt conditions Suitable for home and outdoor sound systems, e.g., on doors, cabinets, shelves, and boats Waterproof (IP68) Delivery with screwable mounting plate Technical Specifications AR-50 Outdoor Area 1 Weatherproof <!DOCTYPE html> <html lang="de"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>Meine Webseite</title> </head> <body> <header> <h1>Willkommen auf meiner Webseite</h1> </header> <nav> <ul> <li><a href="#home">Startseite</a></li> <li><a href="#about">Über uns</a></li> <li><a href="#services">Dienstleistungen</a></li> <li><a href="#contact">Kontakt</a></li> </ul> </nav> <main> <section id="home"> <h2>Startseite</h2> <p>Dies ist die Startseite meiner Webseite.</p> </section> <section id="about"> <h2>Über uns</h2> <p>Wir sind ein Unternehmen, das sich auf Webentwicklung spezialisiert hat.</p> </section> <section id="services"> <h2>Dienstleistungen</h2> <p>Wir bieten eine Vielzahl von Dienstleistungen an, darunter Webdesign und SEO.</p> </section> <section id="contact"> <h2>Kontakt</h2> <p>Kontaktieren Sie uns per E-Mail oder Telefon.</p> </section> </main> <footer> <p>© 2023 Meine Webseite. Alle Rechte vorbehalten.</p> </footer> </body>

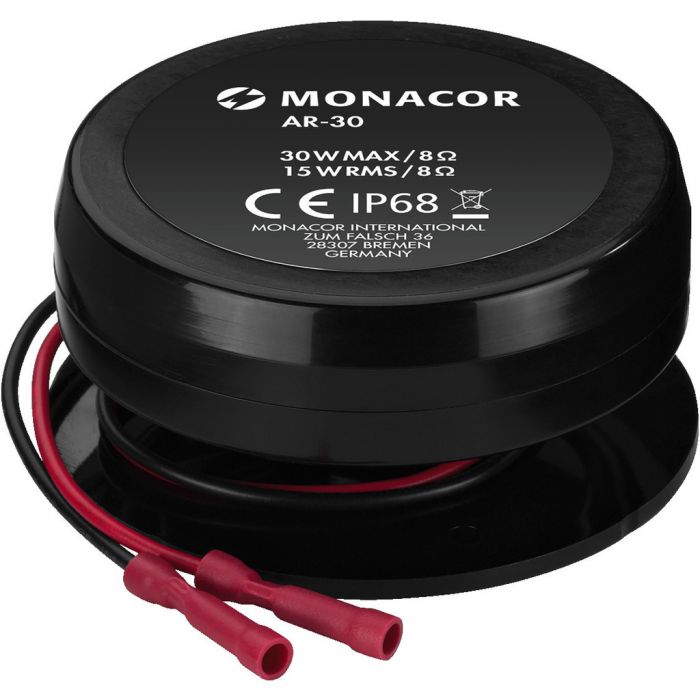

AR-30
AR-30 Weatherproof, robust exciters/resonators for music and speech playback over vibratable surfaces. These resonators are simply screwed onto doors, cabinet doors, shelves, table tops, lightweight walls, ceiling panels, or a variety of other surfaces to be set into vibration. An impressive sound is partially created in the entire environment with these surfaces. These resonators are not suitable for use on glass surfaces! Weatherproof Audio Exciter/Resonator, 8 Ω Depending on the mounting surface, very broadband reproduction with astonishing volume Very robust, weatherproof design and therefore suitable for outdoor use and under difficult dirt conditions Suitable for home and outdoor sound systems, e.g., on doors, cabinets, shelves, and boats Waterproof (IP68) Delivery with screwable mounting plate Technical Data AR-30 Outdoor Area 1 Weatherproof 1 Low ohm 1 Impedance (Z) 8 Ω Frequency range installation-dependent Resonance frequency (fs) 600 Hz Rated power handling (RMS) 15 W Music Power Handling (MAX) 30 W Sound pressure level no information available Installation opening n/a Dimensions Ø 80 mm x 40 mm Outer diameter Ø 80 mm Width Ø 80 mm Height 40 mm Color Black Protection class IP68 Permissible Operating Temperature 0-40 °C Weight 0.425 kg Packaging unit 1 Packaging dimensions (W x H x L) 0.085 x 0.045 x 0.085 m Gross weight 0.455 kg Net weight 0.425 kg

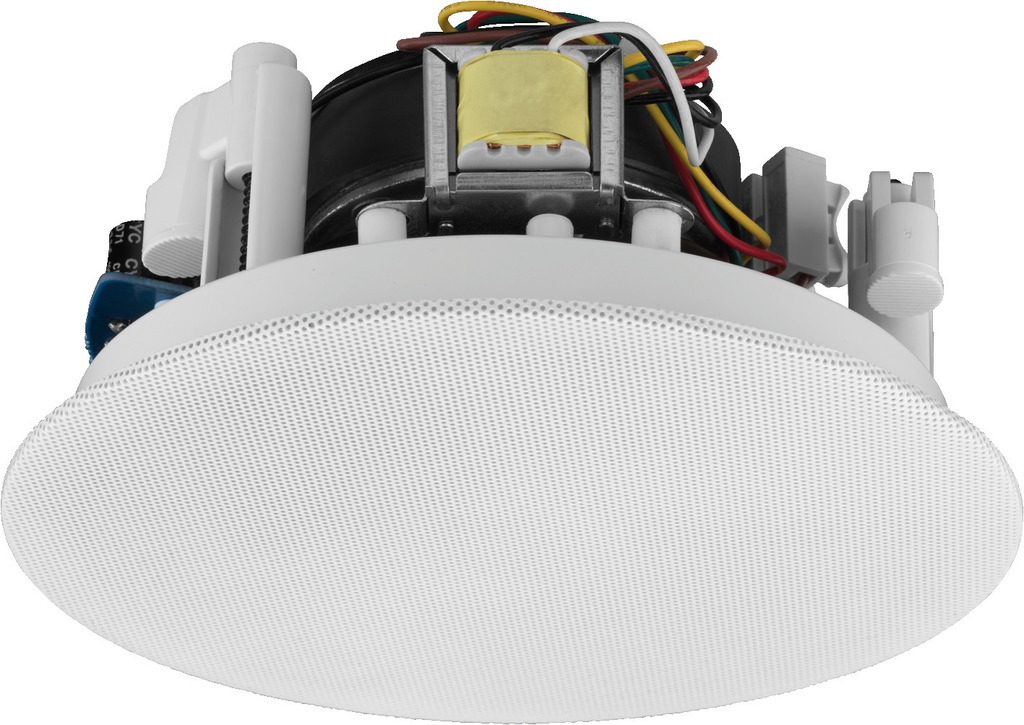

EDL-42HQ ELA-Hi-Fi-Wand- und -Deckenlautsprecher
ELA-Hi-Fi-Wand- und -Deckenlautsprecher, 15 W 100-V-Übertragungstechnik oder 8-Ω-Betrieb Leistungsabgriffe 100 V (8/4/2/1 W) 2-Wege-Ausführung mit koaxialem Kalottenhochtöner 10-cm-Tieftöner (4") mit Waveguide und 20-mm-Seidenkalotte (3/4") Hervorragende klangliche Eigenschaften Beiliegend zwei formschöne Metallschutzgitter für unterschiedliche Einbauoptik Magnetische Befestigung des Schutzgitters Für Wand-/Deckenstärken 8-30 mm Herstellerinformation MONACOR INTERNATIONAL GmbH & Co. KGKonsul-Smidt-Str. 6828217 [email protected] Impedanz (Z) 8 Ω Übertragungstechnik 100 V oder niederohmig Frequenzbereich 70-20000 Hz Resonanzfrequenz (fs) 70 Hz Nennbelastbarkeit (RMS) 15 W (8 Ω) 8/4/2/1 W (100 V) Musikbelastbarkeit (MAX) 30 W Kennschalldruck 85 dB/W/m Max. Nennschalldruck 96 dB Einbauöffnung Ø 141 mm Einbautiefe 70 mm Abmessungen Ø 158 mm x 72 mm Außendurchmesser Ø 158 mm Breite Ø 158 mm Höhe Ø 158 mm Tiefe 70 mm Farbe Weiß Zul. Einsatztemperatur 0-40 °C Gewicht 0,930 kg Verpackungseinheit 1 Lautsprechertyp 100 Verpackungsmaße (B x H x L) 0,174 x 0,085 x 0,174 m Bruttogewicht 1,08 kg Nettogewicht 0,945 kg EAN-Code 4007754272024 Nettogewicht 0,945 kg Frontgitter Metall/Kunststoff
