Dayton Audio H6512
Dayton Audio H6512 6-1/2” x 12” Waveguide 1-3/8”- 18TPI The Dayton Audio H6512 high frequency waveguide is precision molded from high-performance plastic, and has an industry-standard 1-3/8" x 18 TPI throat for mounting screw-on style drivers. Key Features Uncolored, natural sound Durable ABS plastic construction with threaded throat Standard 1-3/8" x 18 TPI mounting for screw-on drivers Even, consistent coverage pattern Great for PA, stage monitors, or any demanding application Dayton Audio H6512 6-1/2" x 12" Waveguide 1-3/8"- 18 TPI The Dayton Audio H6512 high frequency waveguide is precision molded from durable ABS plastic, and has an industry-standard 1-3/8" x 18 TPI throat for mounting screw-on style drivers. Its unique flare geometry exhibits a nominal 90° horizontal x 50° vertical coverage pattern, and will provide useful acoustical loading down to 1,000 Hz. Used in many DIY audio Econowave designs. Specifications: • Throat diameter: 1" • Driver mounting: 1-3/8"-18 TPI • Nominal coverage: 90°H x 50° V • Cutoff frequency: 1,000 Hz • Dimensions: 6-1/2" H x 12" W x 4-1/4" D • Cutout dimensions: 5" H x 10-1/2" W. A waveguide couples the high frequency driver to the listening space without the harmful distortion artifacts of marginally designed and implemented horn loading. It achieves this through the use of non-traditional geometries and lower expansion rates.The resultant sound has less distortion, with an "open" characteristic not often associated with typical "pinched" or "honky" compression driver/horn combinations. Dayton Audio professional waveguides reveal all of the articulate, accurate sound reproduction that your HF drivers are capable of delivering, whether the application is live sound, critical studio monitoring, or demanding home audio playback.

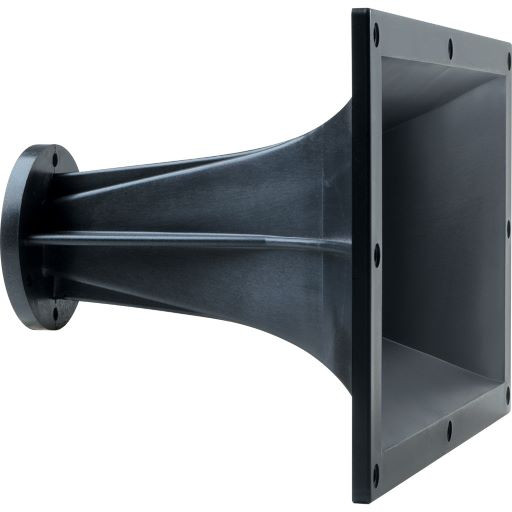

H1-9040P Horn 90x40
H1-9040P Horn 90x40H1-9040P Horn/Injection Molding Plastic 90x40 Assembly: Einbauöffnung: 115mm/4.5inch Diameter Number of mounting slots: 2 openings at 76mm/2.9in Anschluss Öffnung: 25.4mm/1in

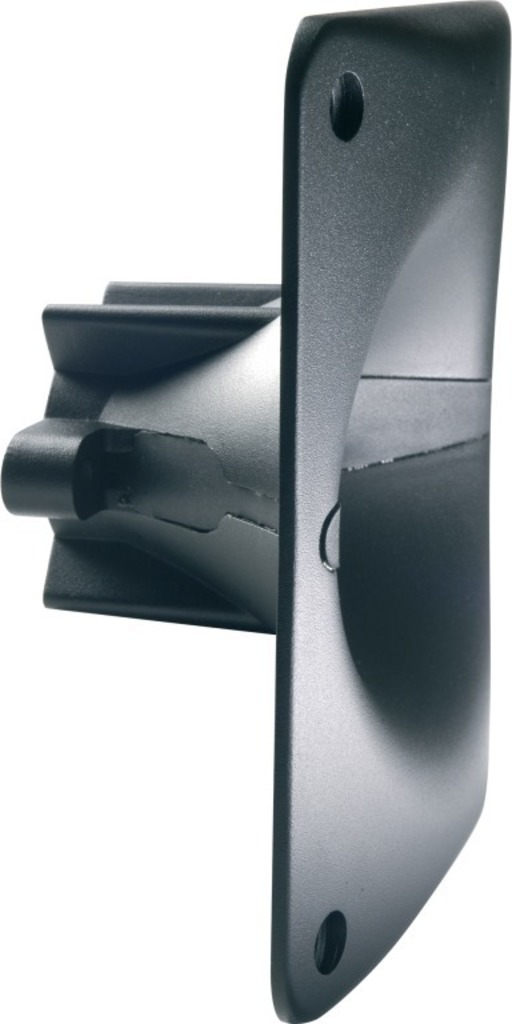

Monacor MRH-180 Celestion H1-7050
Monacor MRH-180 Celestion H1-7050PA mid-high hornHorn made of cast aluminumResonance-free through inserted rubber elements25 mm flange connection (1") with standard 2-hole fastening (hole spacing 76 mm)Recommended crossover frequency at least 1.5 kHz
Dayton Audio H110
Dayton Audio H110 1” Constant Directivity Horn 90x40 1-3/8”- 18TPI The Dayton Audio H110 horn is engineered to operate smoothly down to the lowest possible crossover frequency, while maintaining consistent and predictable dispersion throughout its intended range. Key Features Symmetrical horn mouth rotates easily for multi-position cabinet designs Glass-reinforced polycarbonate construction Useable to 700 Hz 90° H x 40° V Coverage Dayton Audio H110 1” Constnat Directivity Horn 90x40 1-3/8” – 18TPI Dayton Audio horns are engineered to operate smoothly down to the lowest possible crossover frequency, while maintaining consistent and predictable dispersion throughout their intended range. The medium-format constant directivity H110 is intended for large PA cabinets, and its symmetrical mouth permits easy rotation when used in multi-application enclosures. The horn is precision molded from glass-reinforced polycarbonate, and has a threaded 1-3/8" x 18 TPI throat for mounting screw-on style drivers. Specifications: • Lowest recommended crossover frequency: 700 Hz • Nominal coverage: 90° H x 40° V • Dimensions: 11-1/2" H x 11-1/2" W x 9-5/8" D.

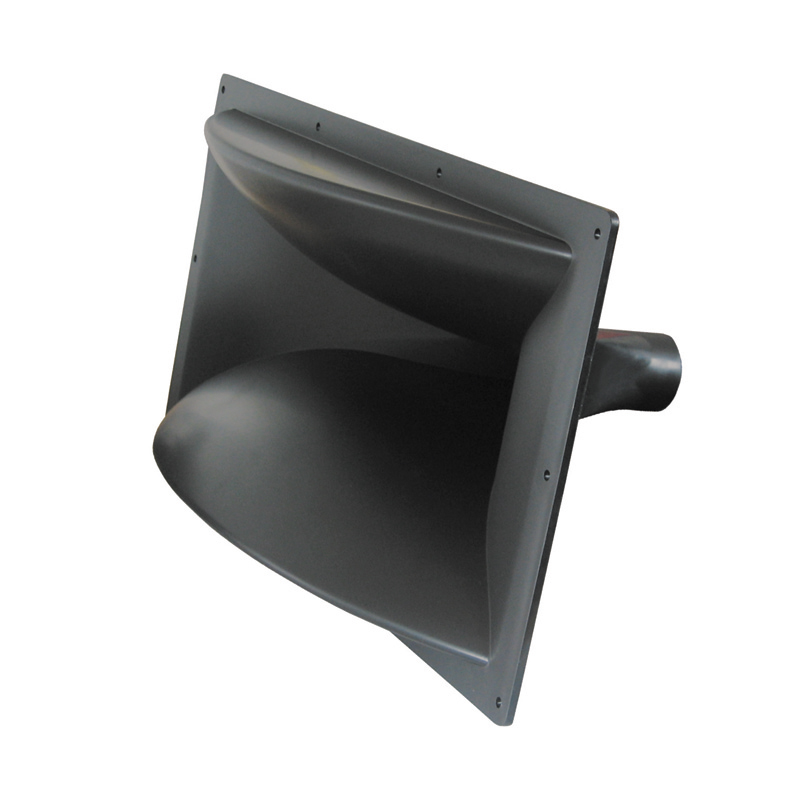

McGee PA Tweeter Horn HL-1018
The Horn from our Modern Retro Speakers 465mmx 245mm Screw connection 1 3/8" TPI Material ABS Installation dimension approx. 410 x 190 mm Installation depth approx. 220 mm Weight 1,2 kg

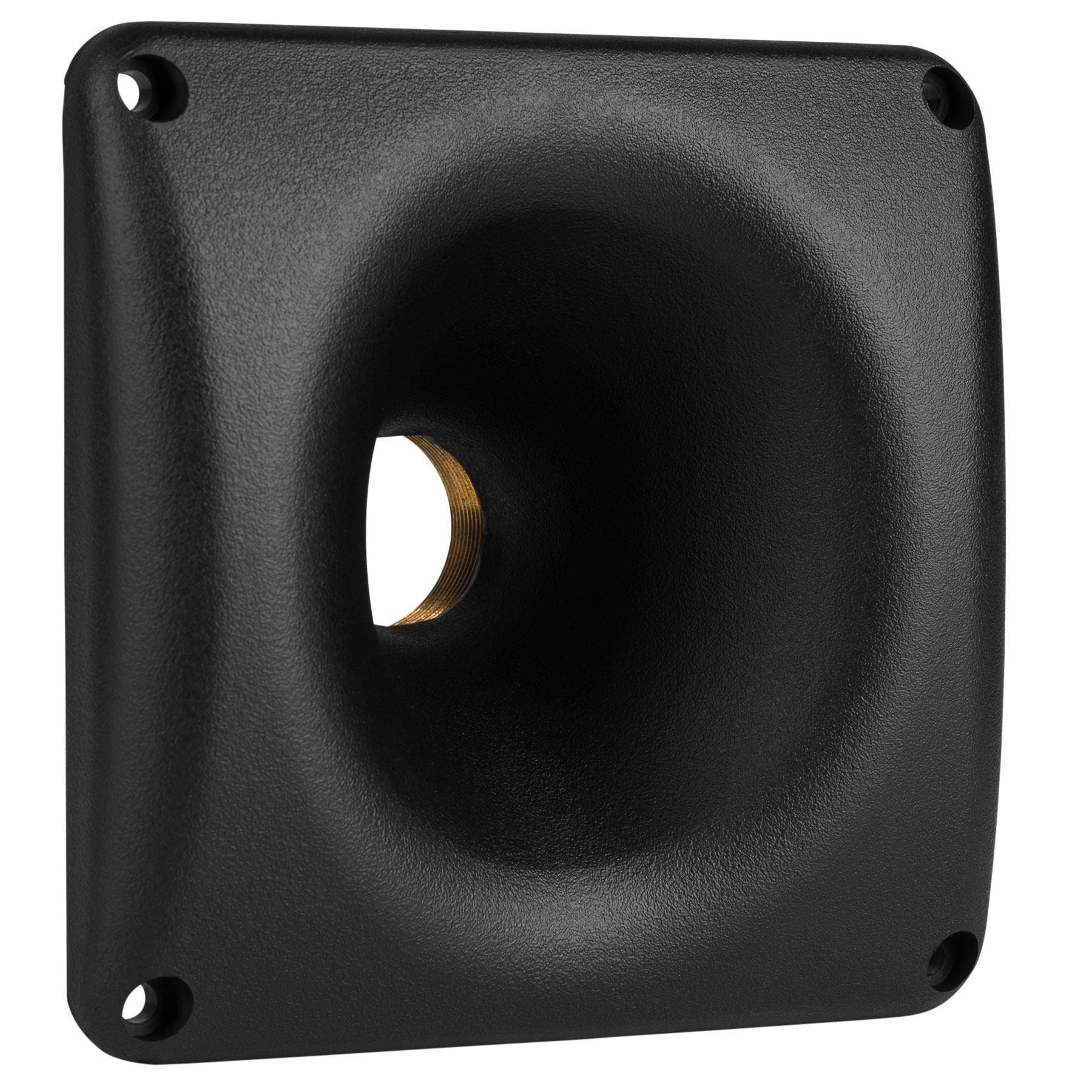

Dayton Audio H07E
Dayton Audio H07E 6” x 6” Elliptical Waveguide 1-3/8”- 18TPI The Dayton Audio H07E high frequency waveguide is precision molded from high-performance plastic, and has an industry-standard 1-3/8" x 18 TPI throat for mounting screw-on style drivers. Key Features Uncolored, natural sound Precision molded from high-performance plastic Standard 1-3/8" x 18 TPI mounting for screw-on drivers Nominal dispersion pattern: 80°H x 50°V Recommended minimum crossover frequency of 3,500 Hz Dayton Audio H07E 6" x 6" Elliptical Waveguide 1-3/8"- 18 TPI A waveguide couples the high frequency driver to the listening space without the harmful distortion artifacts of marginally designed and implemented horn loading. It achieves this through the use of non-traditional geometries and lower expansion rates. The resultant sound has less distortion, with an "open" characteristic not often associated with typical "pinched" or "honky" compression driver/horn combinations. Dayton Audio waveguides reveal all of the articulate, accurate sound reproduction that your HF drivers are capable of delivering, whether the application is live sound, critical studio monitoring, or demanding home audio playback. The Dayton Audio H07E high frequency waveguide is precision molded from high-performance plastic, and has an industry-standard 1-3/8" x 18 TPI throat for mounting screw-on style drivers. Its unique elliptical flare exhibits a nominal 80° horizontal x 50° vertical coverage pattern, and will provide useful acoustical loading down to 2,200 Hz. Dimensions: 5-7/8" H x 5-7/8" W x 3-3/4" D.

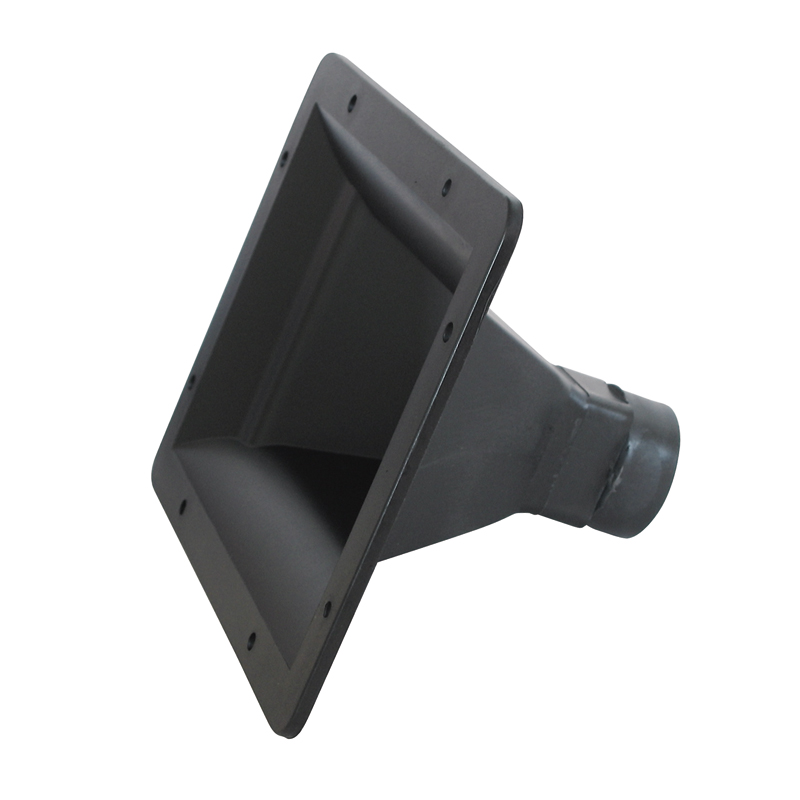

McGee PA Hochtonhorn
McGee PA High Tone HornMcGee PA High Tone Horn. Material ABS Plastic. Suitable Driver (BN 203440). Technical Data: Type:McGee PA High Frequency Horn; Connection: 34.9 mm (1 3/8") TPI screw connection; Cutout circle: 160 x 117mm; Dimensions: 195 x 155 x 115 mm; Weight: approx. 160 g

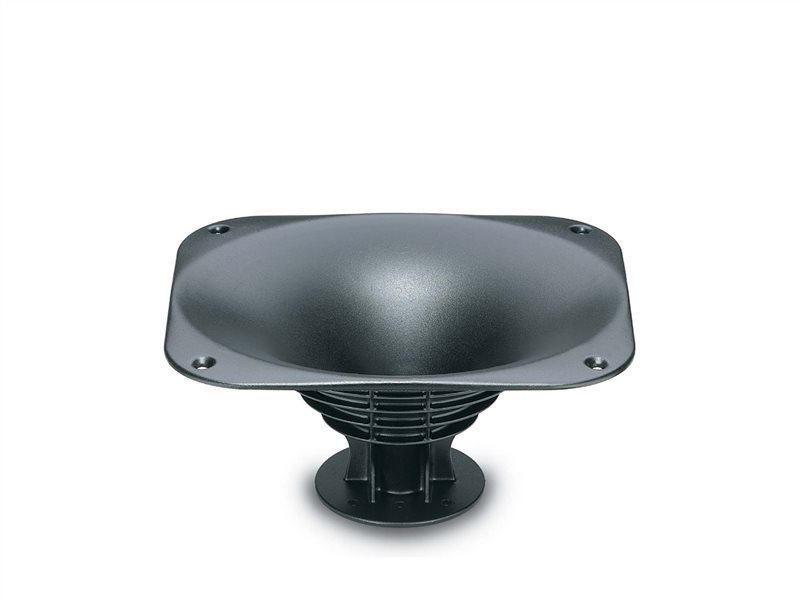

XT1086 Hochtonhorn Aludruckguss
Das XT1086 Constant Coverage High Frequency Horn mit der einzigartigen elliptischen Form von Eighteen Sound (ESS-Technologie) wurde für den Einsatz in Soundsystemen entwickelt, in denen höchste Klangqualität erforderlich ist. Mit einer 1-Zoll-Einlassöffnung wurde das XT1086 so konzipiert, dass es perfekt zu den 1-Zoll-Hochfrequenz-Kompressionstreibern von Eighteen Sound passt. Das XT1086 hält eine nominale horizontale 80° x 60° vertikale Mustersteuerung. Es bietet einen konsistenten On-Axis- und Off-Axis-Frequenzgang von 1,4 kHz bis 16 kHz in der horizontalen Ebene und von 1,5 kHz bis 16 kHz in der vertikalen Ebene. Die Hornrichtwirkung ist ab 1,4 kHz konstant. Dank seiner kompakten vertikalen Mundabmessung kann das XT1086 leicht vertikal aufgestellt werden, wenn eine Steuerung niedrigerer Frequenzen erforderlich ist. Die wichtigste Neuerung des XT1086 ist die verbesserte Außenform, die für eine hohe strukturelle Steifigkeit sorgt. Diese wurde unter Verwendung eines exklusiven computergestützten Schwingungsanalysesystems entwickelt. Dieses Produkt bietet geringe Verzerrungen und eine sphärische Wellenfront, wodurch Reflexionen und andere Nachteile vermieden werden, die normalerweise mit Beugungshörnern verbunden sind. Die Konstruktion aus Aluminiumdruckguss sorgt für optimale Wärmeübertragung, verringert die Leistungskompression des Treibers und verbessert seine allgemeine Belastbarkeit.
