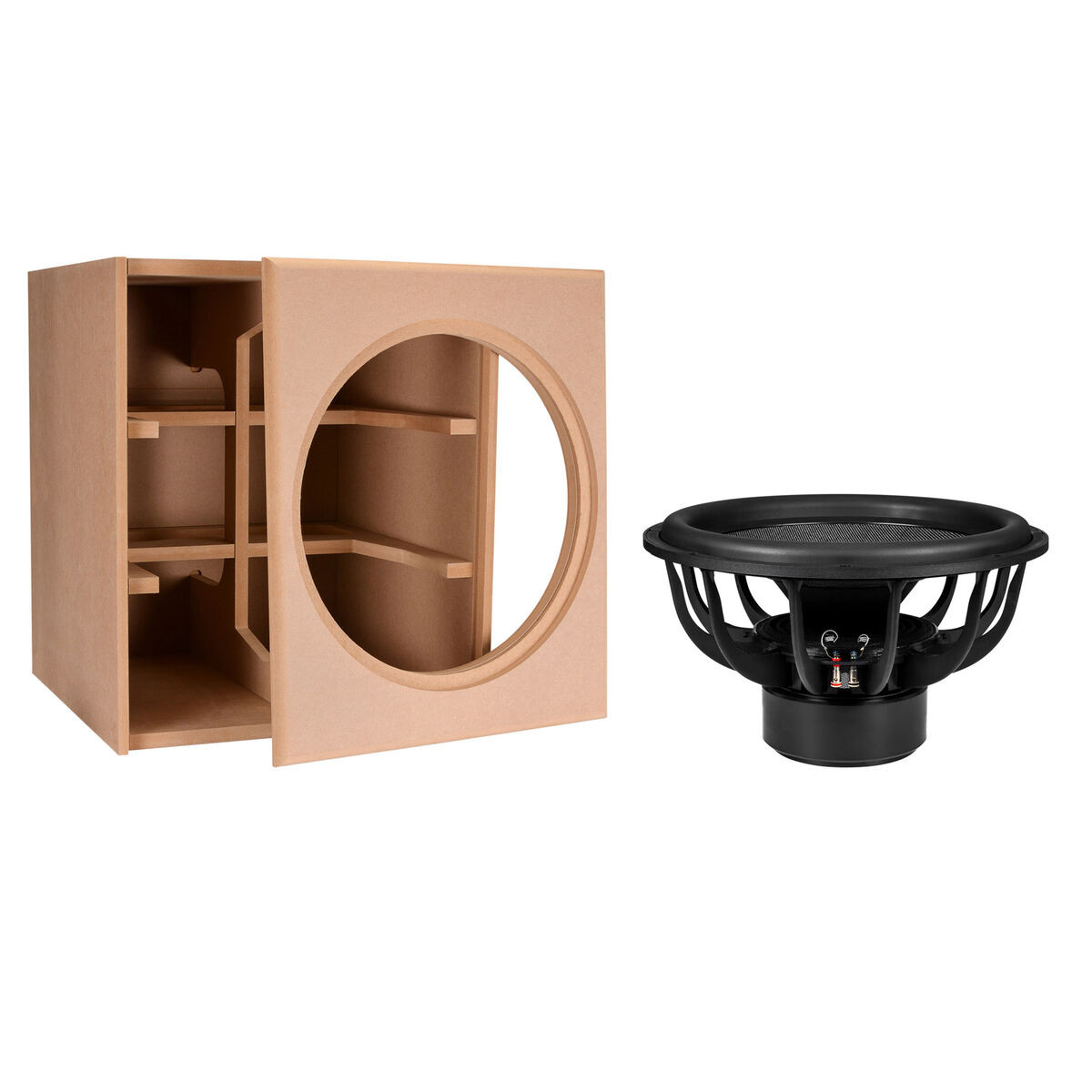

Ultimax 15 Kit + Gehäusebausatz Bundle
Ultimax 15 Kit + Case Kit BundleAbout the Subwoofer Die Ultimax series of subwoofers with dual voice coil from Dayton Audio are not for the faint of heart.Gebaut mit der neuesten Technologie, sind Ultimax-Subwoofer der Gipfel der tiefen Frequenzen-Treiber-Design. An Ultimax subwoofer tests the strength of your foundations with fast, precise, andfrightening bass. Dual 2-ohm voice coils enable stereo 2-ohm and mono 1-ohm configurations when connected to high currentCar stereo systems and professional amplifiers to gain maximum performance. ForHome applications make it easy to connect the voice coils in series to achieve a safe 4-ohm load.for greater amplifier compatibility. To improve power consumption, increase thermal management, and performance compressionto reduce, Dayton Audio has designed the Ultimax series with large black anodized formers and ventilatedPolstücken, under-spider ventilation, and dual-layer copper voice coils developed. Over 1-1/2" stroke (3/4" Xmax) remain completely linear through the use of dual spiders, which alsoLimit distortions and vibration modes. The "Tall-boy" rubber surround with integrated sealskeeps the driver surface stable during extreme excursion movements. Thick, one-piece Nomex honeycombcovered membranes coated with woven, robust glass fibers create ultra-stable membranes,the deformations resist. A large copper jacket and a copper pole cap in the engine reduce energy storage fromInductance with the added benefit of reducing distortion for a "faster" response.Große dual-stacked, high-energy magnets take on the heavy lifting and bring Qts to aLevel at which Ultimax subwoofers are used in vented or sealed enclosures and enclavescan. About the Case The clever enclosure was specifically designed for the Dayton Audio 15" Ultimax subwoofer. Through the CNC-Fertigungsprozess werden Falze und Fugen präzise in die Rückwand geschnitten. A unique,zweiteilige Strebe sorgt für überlegene Steifigkeit ohne Beeinträchtigung der Subwoofer-Leistung. The19mm folded extensions on both side walls and cutouts allow for perfect installationthe double thick baffles. The end result is a resonance-free, closed subwoofer enclosure,that can be refined or painted to match your own decor. Specifications: - Plate thickness: 22mm, the front baffle is 38mm - Plate material: Medium densityFiberboard (MDF) - Finished net cabinet volume (excluding the double thick baffle, theBracing and low-frequency volume): 92L - External dimensions: 490" H x 490" W x 510mm D Scope of delivery: Screws Chassis Terminal LS Cable Blueprint Enclosure as a kit in raw MDF

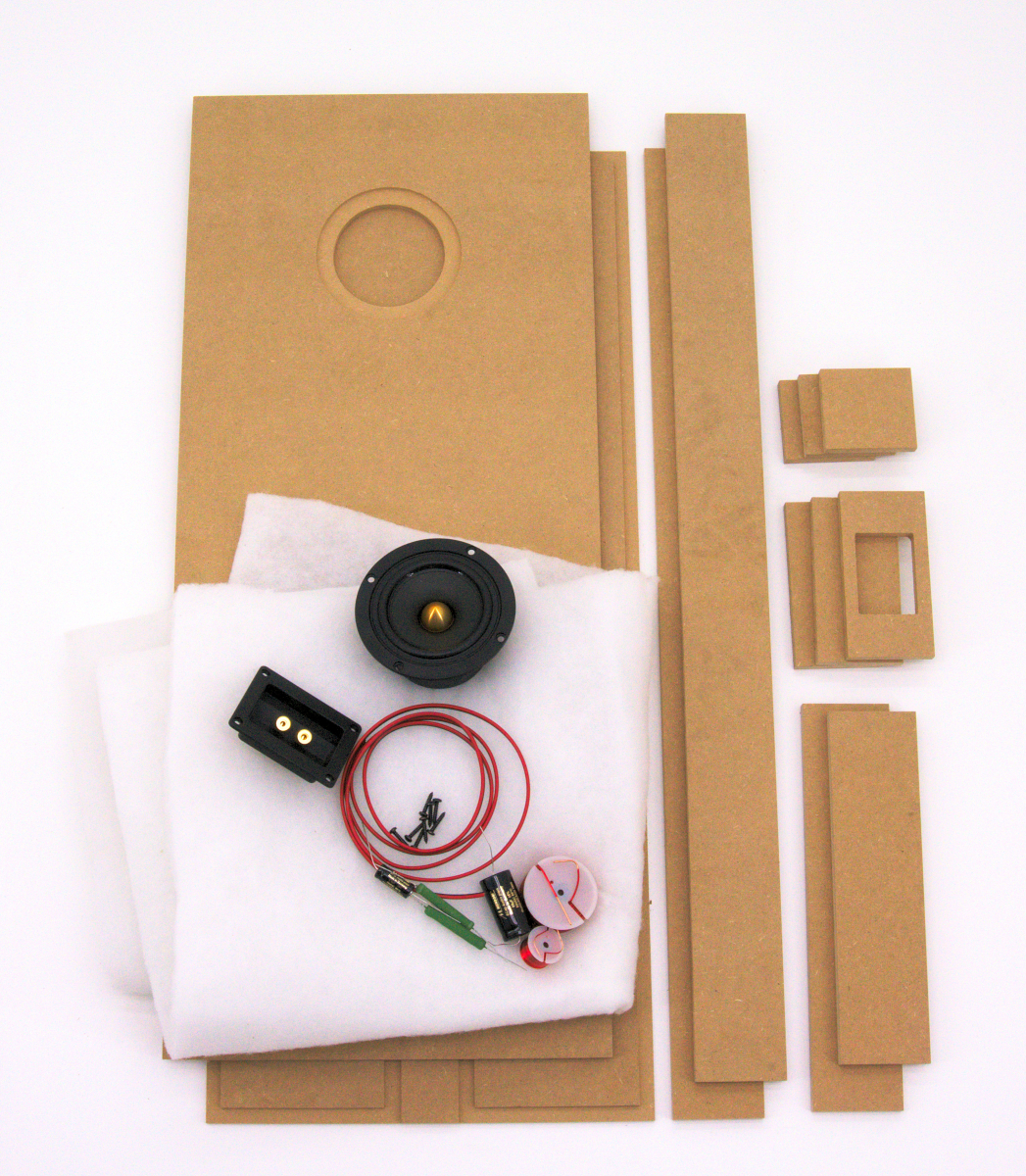

Wallflower R Lautsprecherbausatz + Gehäuse Bundle
Wallflower R Speaker Kit + Enclosure BundleWallflower R 1-Way Broadband Wall/Floor Speaker Assembly: W4-655; Frequency Crossover Components Mundorf Hi-Quality: Properties: Hifi and/or Surround Sound for impressive movie moments. Low space requirement. Living room cinema basefor your future In-Wall or On-Wall. Space-saving OnWall desk solution with full sound range,Vanishingly inconspicuous living room/dining room/lobby sound system. A proven 10cm full-range speaker inflat housing design. In two design proposals. The sound character is characterized by arich, powerful bass, a homogeneous mid-high tone performance, and a perfect stage imaging withbroadband typical spatiality. This kit is ideally suited for the most diverseApplications and in places where there is a lack of space. From the simple stereo placement in theLiving room and as TV sound enhancement in the home cinema, for secondary room sound or accompaniment ofPresentations in the studio. As wall speakers in two formats, as a floor-standing speaker with stand additionor flush-mounted. In our kits, we don't want to leave anything to chance! That's why all the materials needed for assembly are included with us.inclusive: the chassis W4-655, crossover components, screws, cables, damping material, connection terminal, and the MDF cuttings. The latter are manufactured in such a way that assembly is easy even for the inexperienced. Gestalterisch sind Ihren Fantasien und Vorstellungen keine Grenzen gesetzt: paint, veneer,folieren, tapezieren – you decide for yourself and thus give your new speakers aindividual appearance. All in all, this system offers you a sensationally affordable and creative solution for every music-and film sound enthusiasts who, despite having a small apartment, do not want to miss out on good sound and/or that certainKino experience would like to forego. Wallflower – whether rectangular or square – strikingly sonorous. Schedule an appointment and let us convince you on site in Marburg. In this bundle, the case is included as a kit in raw MDF.

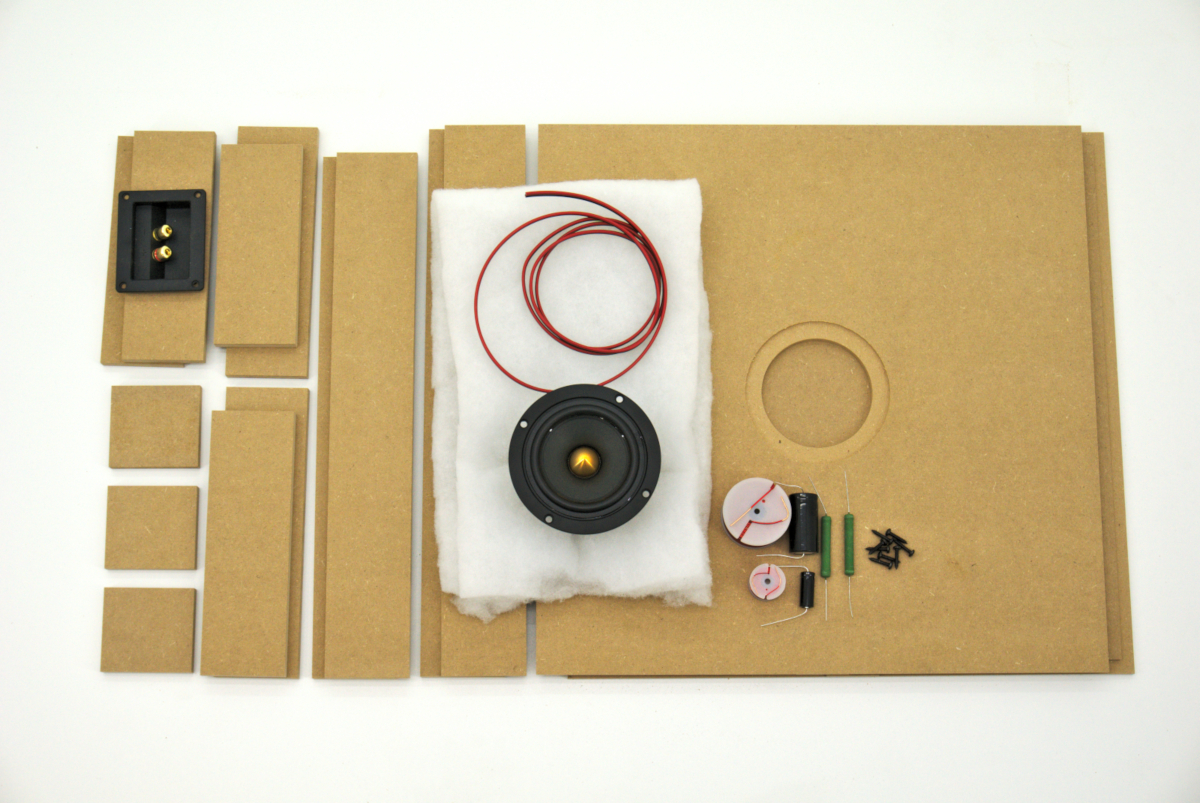

Wallflower Q Lautsprecherbausatz + Gehäuse Bundle
Wallflower Q Speaker Kit + Enclosure BundleWallflower Q 1-Way Broadband Wall/Floor Speaker Assembly: W4-655; Frequency Crossover Components Mundorf Hi-Quality: Properties: Hifi and/or Surround Sound for impressive movie moments. Low space requirement. Living room cinema basefor your future In-Wall or On-Wall. Space-saving OnWall desk solution with full sound range,Inconspicuously unobtrusive living room/dining room/lobby sound system. A proven 10cm full-range speaker inflat housing design. In two form proposals. The sound character is characterized by arich, powerful bass, a homogeneous mid-high tone performance, and a perfect stage imaging withbroadband typical spatiality. This kit is ideally suited for the most diverseApplications and in places where there is a lack of space. From the simple stereo placement in theLiving room and as TV sound enhancement in the home cinema, for secondary room sound or accompaniment ofPresentations in the studio. As wall speakers in two formats, as a floor-standing box with stand base additionor flush-mounted. Zu unseren Bausätzen wollen wir nichts dem Zufall überlassen! Deshalb können bei uns alle für den Aufbaubenötigten Materialien zum Lautsprecher-Bausatz: Chassis W4-655, crossover components, screws,Cables, insulation material, connection terminal, as well as the housing kits can be ordered. The latter are somanufactured so that assembly is easy even for the inexperienced. Gestalterisch sind Ihren Fantasien und Vorstellungen keine Grenzen gesetzt: paint, veneer,foil, wallpaper – you decide and thus give your new speakers aindividual appearance. All in all, this system offers you a sensationally affordable and creative solution for every music-and film sound enthusiasts who, despite having a small apartment, do not want to miss out on good sound and/or the certainCinema experience would like to do without. Wallflower – whether rectangular or square – strikingly sonorous. Schedule an appointment and let us convince you on site in Marburg. Technical Specifications: Frequenzumfang: f-3dB: 50-18000Hz SPL: 86dB Gesamtimpedanz: 8 Ohm ((Nom.) Funktionsprinzip: Bass reflex B/H/T: 486x486x86mm (Recommended Case Dimensions) Scope of delivery: Screws Chassis Terminal Cable (Inside) Insulation fleece Crossover Components (Loose) Enclosure Kit MDF Raw The housing in the kit version in raw MDF is included! In the selected number, it is about pieces,nota couple.
Home Cinema F1 Lautsprecher- + Gehäusebausatz in MDF roh Bundle
Price on request

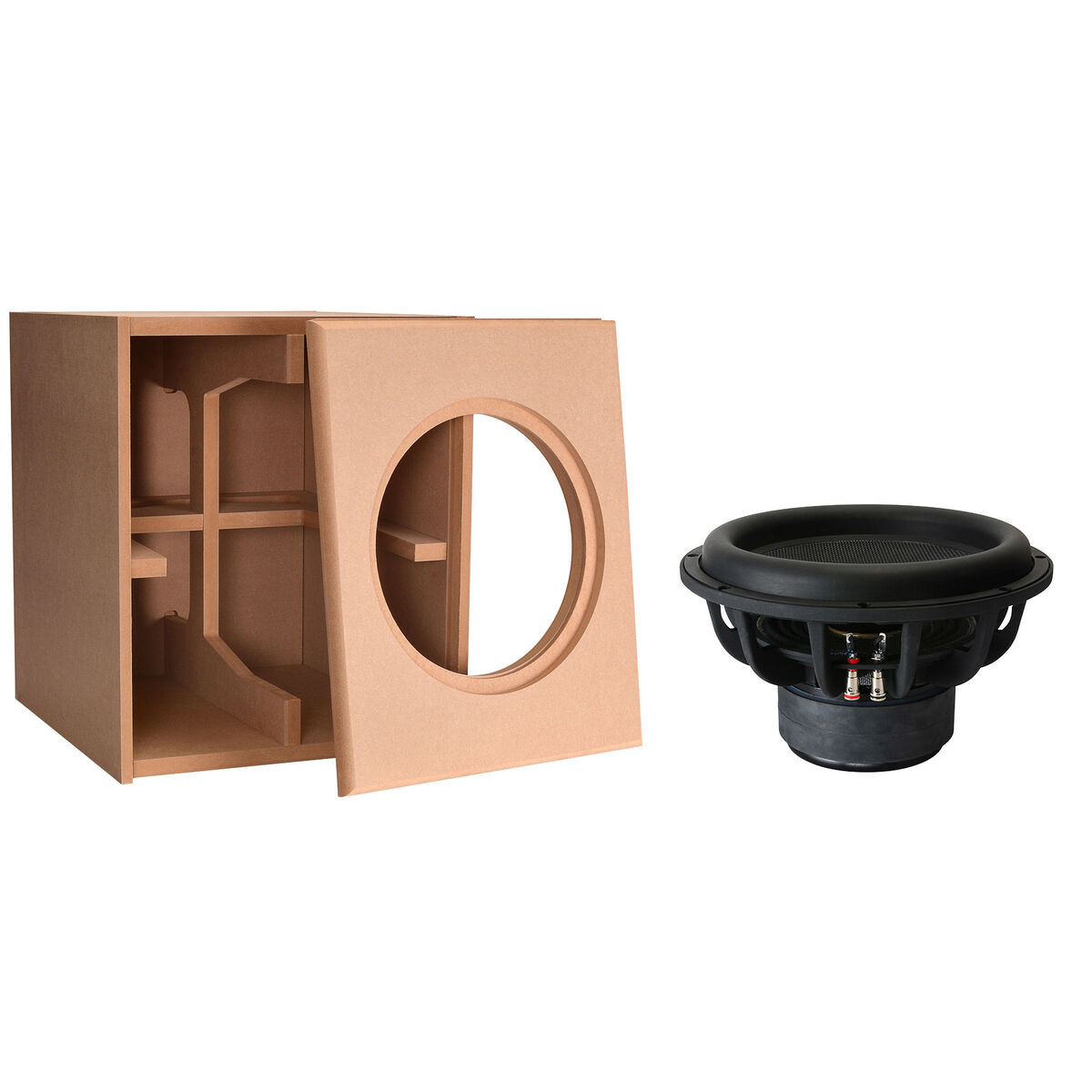

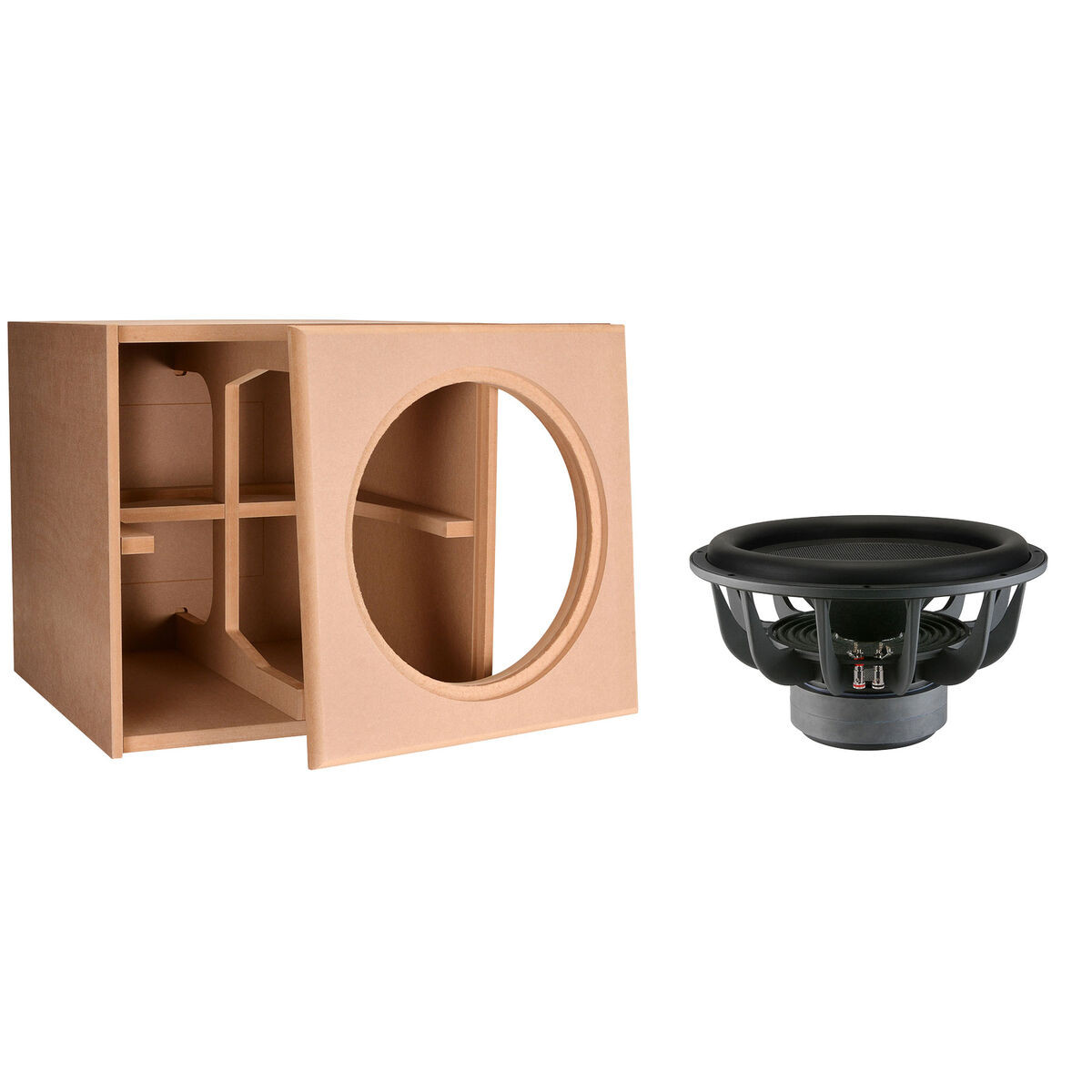

Ultimax 12 Kit + Cabinet Bundle
Ultimax 12 CB Kit passiveDayton Audio 12" Ultimax subwoofer without cabinet bundle Equipment: Dayton Audio UM12 Features: Dayton Audio UM12-22 12" subwoofer for e.g. 76L flat pack enclosure. About the enclosure This enclosure is designed specifically for the Dayton Audio 12" Ultimax subwoofer.During the CNC manufacturing process, folds and joints are cut into the back panel to precisely align the panels. A unique two-piece brace provides superior rigidity without compromising the subwoofer's performance. Both side panels feature folded extensions with cutouts to perfectly fit the first piece of the two-piece, double-thickness baffle. The end result is a resonance-free, sealed subwoofer enclosure specifically designed to get the best performance out of Dayton Audio's 12" Ultimax subwoofer. All that's left to do is finish it to match your decor or paint it to stand out.Specifications:- Panel thickness: 19mm, baffle 38mm - Panel material: medium-density fiberboard (MDF) - Finished net cabinet volume (minus double-thick baffle, bracing and woofer volume): 76L - Overall dimensions: 490mm H x 410mm W x 510mm D - Weight: 17kg.About the subwooferthe UM12-22 Ultimax 12" driver from Dayton Audio offers over 19mm Xmax. The 12" Nomex honeycomb composite cone features a fiberglass cloth outer skin for ultimate rigidity and resistance, while the "tall-boy" rubber surround with integral gasket supports extreme excursion with linearity and durability. Dual center spiders are mirror-imaged to keep excursion completely linear and eliminate distortion due to compliance asymmetry, and for extremely low mechanical distortion even at the outer limits of movement. And the whole is perfectly aligned by a rigid die-cast aluminum basket, for stability in any mounting position.Let us convince you and feel free to visit us on site to dive into a world of sound in our listening room.Technical data: Frequency response: f-3dB:SPL:W/H/D: 410x490x510mm Total impedance: 4 Ohm ( Nom.) 4 Ohm >2200Hz)Operating principle: closed Scope of delivery:ScrewschassisTerminalLS cableConstruction planCabinet in MDF raw as kit The selected number is a piece, not a pair. Töne abzutauchen. Technische Daten: Frequenzumfang: f-3dB: SPL: B/H/T: 410x490x510mm Gesamtimpedanz: 4 Ohm ((Nom.) 4 Ohm >2200Hz) Funktionsprinzip: geschlossen Lieferumfang: Schrauben Chassis Terminal LS Kabel Bauplan Gehäuse in MDF roh als Bausatz Bei der ausgwewählten Anzahl handelt es sich um Stück, nicht um Paar.

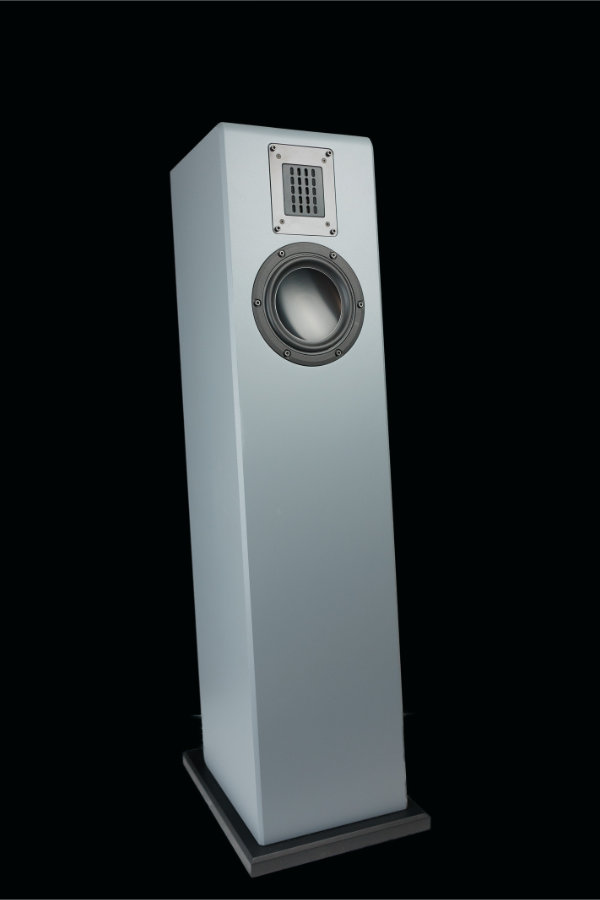

Apart 150 - Speaker & cabinet kit bundle
With 6" in slim elegance, petite small floorstanding loudspeaker. Fascinating like the Apart120 still rather small speaker but with great sound potential. The new Dayton Audio Signature series has been developed and optimised for audiophile applications, meticulously and with great attention to detail. The bass-midrange drivers of the Signature series deliver sound. The one-piece dome-shaped aluminium cone, low-loss surrounds and voice coil former guarantee low distortion and low intermodulation. A magnetostat, proven a thousand times over in countless concepts, some of them legendary loudspeaker designs, shines in the treble range. Its large diaphragm surface and low weight compared to classic fabric or metal dome tweeters give it a filigree resolution and dynamic impulse behaviour.The interplay of the two drivers in the ingenious housing principle, which possesses this delicate elegance, is as if cast from a single mould. It is unbelievable how easily and effortlessly it masters even the low frequencies in a full and contoured manner. Homogeneous mids and this lightness in the high frequencies set the mood for a relaxed little listening rendezvous with a beguiling completeness and naturalness that its size would not suggest. Thomas Schmidt / Klang & Ton 1/2024 Mit 6“ in schlanker Eleganz, zierliche kleiner Standlautsprecher. Faszinierend wie die Apart120 immer noch eher klein-Box aber mit großem klangpotential. Die neue Dayton Audio Signature Serie ist für Audiophile Anwendungen entwickelt und optimiert, akribisch und mit viel Liebe zum Detail. Die Tiefmitteltöner der Signature-Reihe liefern klang ab. Die einteilige Kalotten-förmige Aluminiummembran, verlustarme Sicken und Schwingspulenträger, garantieren Klirrarmut und geringe Intermodulation. Im Hochton glänzt ein Magnettostat, tausendfach bewehrt in unzähligen Konzepten z.T. legendärer Lautsprecherkonstruktionen. Sein große Membranfläche und das geringe Gewicht gegenüber klassischem Gewebe oder Metall- Kalotten-Hochtöner, verleiht ihm filigranes Auflösungsvermögen und dynamischen Impulsverhalten. Das Zusammenspiel der beiden Chassis in dem ausgeklügelten Gehäuseprinzip, das diese zierliche Eleganz besitzt, ist wie aus einem Guss. Unglaublich wie leicht und locker sie selbst den Tiefton voll und konturiert beherrscht. Homogene Mitten und diese Leichtigkeit im Hochton stimmen ein zum entspannten kleinen Hör-Rendezvous mit einer betörenden vollständig und Selbstverständlichkeit, die ihre Größe nicht vermuten lässt.
Ultimax 18 Kit + Gehäuse fertig verleimt Bundle
Ultimax 18 Kit + Enclosure Pre-glued BundleDas Ultimax 18 Bundle with pre-glued enclosure in raw MDF TheDaytonAudioUM18-22Ultimax18"Driveroffersover50mmpeakexcursion,adisplacementvolumeofsixlitersandacontinuousbassoutputof1000Watts.Thedriverfeaturesanultra-leistungsfähigen dreifach gestapelten hochwertigen Ferrite ceramic magnets, two aluminum-Short-circuit rings above and below the magnetic gap, a 3" voice coil, and a huge 18" Nomex honeycomb composite diaphragm with a fiberglass fabric construction. Dual 200mm centering spiders are symmetrically mounted to keep the 50mm excursion completely linear and minimize distortion due to compliance-Asymmetrytoremove.Thestiff12-spokealuminumcastframeallows That specifically for the Dayton Audio 18" Ultimax-Subwoofer developed housing allows optimal utilization of the subwoofer's performance. Thanks to the CNC-Fertigungsprozesses werden Falze und Fugen präzise in die Rückwand geschnitten, während eine einzigartige, zweiteilige Strebe für überlegene Steifigkeit sorgt, ohne die Leistung des Subwoofers zu beeinträchtigen. Beide Seitenwände sind mit 19mm gefalzten Verlängerungen und Aussparungen ausgestattet, um das erste Stück dertwo-part, double-thick baffles to mount. The end result is a resonance-free,closed subwoofer enclosure that can adapt to the decor. Spezifikationen:- Panel thickness: 19mm, Baffle 38mm - Panel material: Medium Density Fiberboard (MDF) -Finished net enclosure volume (minus the double thick baffle, bracing, and theTieftonvolumens): 120L - External dimensions approx.: 580mm H x 520mm W x 520mm D - Weight: 35 Kg. Scope of delivery: Screws Chassis Terminal LS Cable Blueprint Housing glued ready (raw MDF)

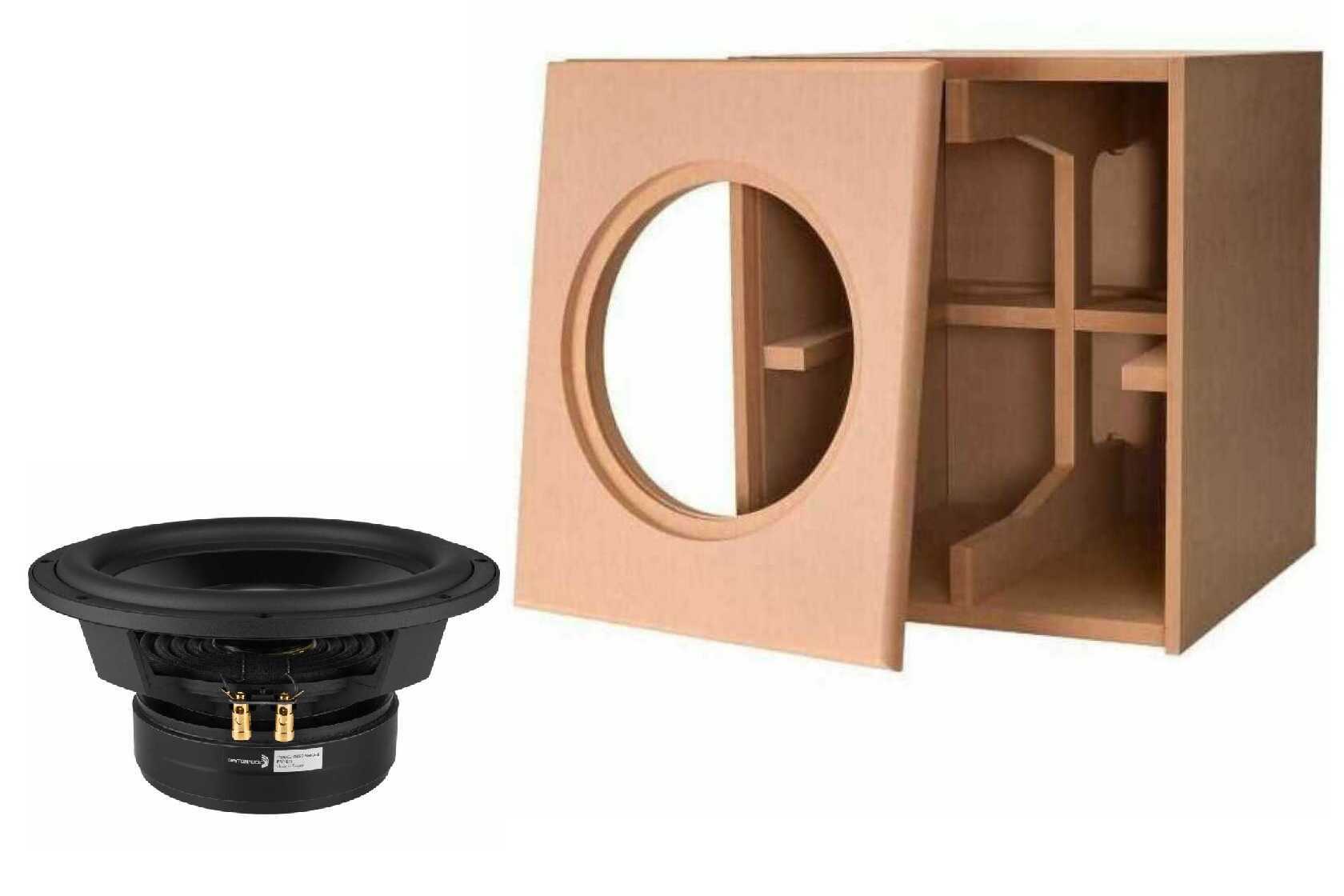

Amptlich 12 250 Aktiv + Gehäusebausatz
Amptlich 12 250 Active + Housing KitAMPtlich RSS315 Kit + Enclosure Kit Dayton Audio 12" RSS Subwoofer with Enclosure Bundle Assembly: Dayton Audio RSS315HFA-8, Dayton Audio SPA250DSP Properties: Dayton Audio RSS 12" Subwoofer for a 60L Flat Pack Enclosure About the CaseThis enclosure was specifically designed for the Dayton Audio 12" RSS subwoofer. During the CNC manufacturing process, grooves and joints are cut into the back panel to connect the boardsprecisely align. A unique two-part strut provides superior stiffness withoutperformance of the subwoofer. Both side walls feature folded extensions withCutouts to perfectly mount the first piece of the two-part, double-thick baffle. The end result is a resonance-free, closed subwoofer enclosure that has been specially developed togetting the best performance out of the 12" RSS315HFA-8 subwoofer from Dayton Audio. Everything that still needs toall that remains is to refine it to match your decor or paint it to stand out. Spezifikationen:- Panel thickness: 19mm, baffle 38mm - Panel material: Medium Density Fiberboard (MDF) -Finished net cabinet volume (minus the double thick baffle, bracing, and theTieftonvolumens): 60L - External dimensions: 430mm H x 430mm W x 430mm D - Weight: 17kg About the Subwoofer Die Subwoofers of the Dayton Audio Reference Series carry on the quality and performance of the highly praised RS-Linie in den Bereich der Subwoofers fort. Wie bei den anderen Modellen der Reference-Serie liegt auch beim12"-Driver RSS315HFA-8 focuses primarily on extremely low distortions. Secondary, tertiary, andIntermodulation distortions are reduced by the use of three magnetic short-circuit paths withinder Motorstruktur extrem niedrig gehalten. A long-lasting aramid fiber spider and extensiveVentilation openings ensure a smooth and even stroke. The black anodized diaphragm, whichRubber surround and the custom-made basket give this driver a unique high-end look.Choose this High Fidelity (HF) version for home speaker systems if you value aclean, deep bass and are not limited by the size of the enclosure. Whoever is not yet familiar with the YouTube channel should definitely get acquainted with it. There you will findContent about the topic of special Hi-Fi. Frank himself says about the channel: "Here you will find the collected knowledge about speaker developmentboth for beginners, up to in-depth know-how, from the professional. In his current video, it's about none other than our RSS315 subwoofer kit.and the full 30 minutes, you shouldn't miss that. Technical Specifications: Frequency range: f-3dB: SPL: B/H/T: 430x430x430mm Total impedance: 8 Ohms ((Nom.) 4 Ohms >2200Hz) Funktionsprinzip: closed Execution Variation Amplifier Variante mit PlateAmp: When executed with PlateAmp, the appropriate back panel with matching cutoutincluded. (For a case kit or similar) Variante with terminal: Milling suitable for terminal. Scope of delivery: Screws Chassis Terminal LS Cable Active module Enclosure kit in raw untreated MDF Housing drawing The delivery time refers to the kit without a case. In the selected quantity, it is a piece, not a pair.
Ultimax 12 Kit + Cabinet Bundle
Ultimax 12 CB Kit passiveDayton Audio 12" Ultimax subwoofer with cabinet bundle Equipment: Dayton Audio UM12 Features: Dayton Audio UM12-22 12" subwoofer for e.g. 76L flat pack enclosure. About the enclosure This enclosure is designed specifically for the Dayton Audio 12" Ultimax subwoofer.During the CNC manufacturing process, folds and joints are cut into the back panel to precisely align the panels. A unique two-piece brace provides superior rigidity without compromising the subwoofer's performance. Both side panels feature folded extensions with cutouts to perfectly fit the first piece of the two-piece, double-thickness baffle. The end result is a resonance-free, sealed subwoofer enclosure specifically designed to get the best performance out of Dayton Audio's 12" Ultimax subwoofer. All that's left to do is finish it to match your decor or paint it to stand out.Specifications:- Panel thickness: 19mm, baffle 38mm - Panel material: medium-density fiberboard (MDF) - Finished net cabinet volume (minus double-thick baffle, bracing and woofer volume): 76L - Overall dimensions: 490mm H x 410mm W x 510mm D - Weight: 17kg.About the subwooferthe UM12-22 Ultimax 12" driver from Dayton Audio offers over 19mm Xmax. The 12" Nomex honeycomb composite cone features a fiberglass cloth outer skin for ultimate rigidity and resistance, while the "tall-boy" rubber surround with integral gasket supports extreme excursion with linearity and durability. Dual center spiders are mirror-imaged to keep excursion completely linear and eliminate distortion due to compliance asymmetry, and for extremely low mechanical distortion even at the outer limits of movement. And the whole is perfectly aligned by a rigid die-cast aluminum basket, for stability in any mounting position.Let us convince you and feel free to visit us on site to dive into a world of sound in our listening room.Technical data: Frequency response: f-3dB:SPL:W/H/D: 410x490x510mm Total impedance: 4 Ohm ( Nom.) 4 Ohm >2200Hz)Operating principle: closed Scope of delivery:ScrewschassisTerminalLS cableConstruction planCabinet in MDF raw as kit The selected number is a piece, not a pair. Töne abzutauchen. Technische Daten: Frequenzumfang: f-3dB: SPL: B/H/T: 410x490x510mm Gesamtimpedanz: 4 Ohm ((Nom.) 4 Ohm >2200Hz) Funktionsprinzip: geschlossen Lieferumfang: Schrauben Chassis Terminal LS Kabel Bauplan Gehäuse in MDF fertig verleimt Bei der ausgwewählten Anzahl handelt es sich um Stück, nicht um Paar.

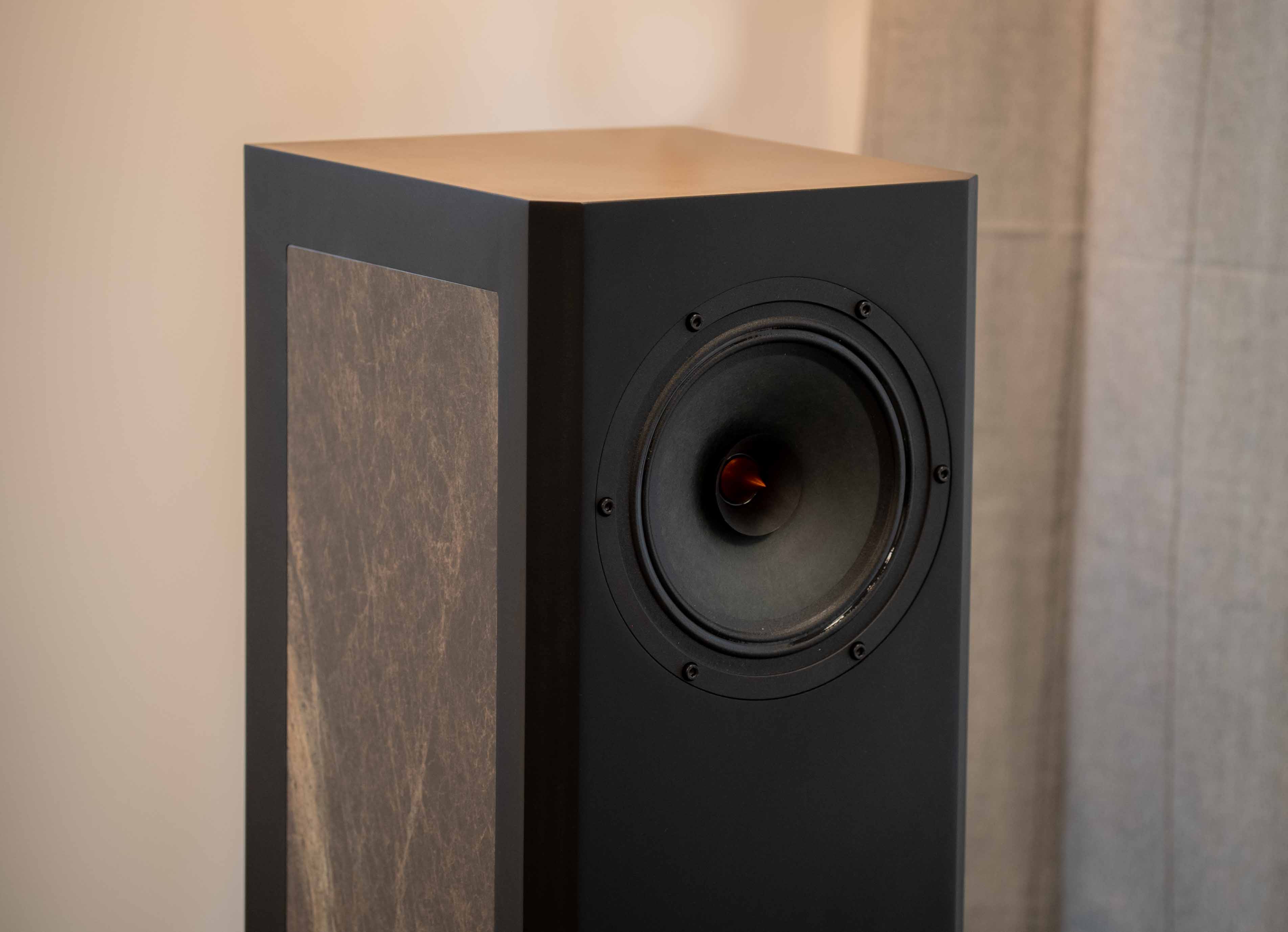

Ava23 Lautsprecher- und Gehäusebausatz Bundle
Ava23 Speaker and Enclosure Kit Bundle [...] the Ava23 impresses across the board: The expected balanced bass tuning in the room providesin the form of a calm and profound low-frequency reproduction, which provides a solid foundationprovides. Punch is there when required, wide areas from synthetic sound sources as well - and the wholejust nicely differentiated and defined. Der Grund- und Mitteltonbereich ist tatsächlich ganz leicht im Fokus der Wiedergabe und setzt Stimmen undSoloinstruments beautifully in front of the background - and of course with all the spatial precision andPlasticity, which a point sound source is indeed capable of. And at the very top, there is awell-dosed treble range, which can be precisely adjusted by experimenting a little with the angle of the boxeinstellen kann, wie man Ihn gerne hat. Overall, the Ava23 is an excellent broadband box.All-rounder that I can even recommend as the only speaker in the house. Thomas Schmidt / Sound & Tone 4/2023 1 Way Full-Range Speaker Kit (without enclosure, please order separately) 1-Way Main Floorstanding Speaker Assembly: 8“ 22cm Dayton Audio full-range drivers, frequency crossover components Mundorf Hi-Quality: Properties: Ava 23 (Persian, "voice" "sound" "the melodious") is a TQWT (Tapered Quarter Wave Tube)with 20 cm broadband speaker chassis configuration. The full-range speaker from Dayton Audio is no longer an insider tip or a newly discovered gem. Sein hoher Kennschalldruck und sein ausgewogener Frequenzumfang, haben schon das ein oder andere schöneLoudspeaker concept creation e.g. in the trade magazine Hobby HiFi 2-3/23. There, Bernd indulgedTimmermanns a Back Loaded Horn (Jericho) that suits the full-range driver wonderfully, and in thedynamischen Bereich seine Stärken hat. Die Ava 23 ist ein deutlich kleineres Gehäuse design, die auf einrundum optimized for a more homogeneous sound image. It is a speaker that reveals details even at low volumes.präzise räumlich darstellt, der aber auch bei größeren Pegeln nicht gleich die Segel streicht. Broadbandtypically she succeeds in creating a spatial representation of the music and its performers that is extraordinaryand depth and width are excellently combined. Its sleek case design appears well-proportioned andelegant, and the Finnish offers many degrees of freedom in design to the dream speakerrealize. About the case: This clever enclosure was specially developed by variant GmbH for the Dayton Audio PS220-8 high-end full-range driver.During the CNC manufacturing process, grooves and joints are cut into the housing plates to align the plates precisely. Cutouts for speaker chassis and connection terminal as well as bass reflex openings are precisely milled.All that remains to be done is to finish it to match your decor or paint it to stand out. Specifications:- Material thickness: 19mm, Panel material: Medium Density Fiberboard (MDF) -Exterior dimensions W/H/D: 280mm x 975mm x 325mm Scope of delivery: Loudspeaker kit with standard crossover Enclosure kit in raw MDF Variation: Standard Crossover Design Bei der ausgewählten Anzahl handelt es sich um pieces,notper pair.

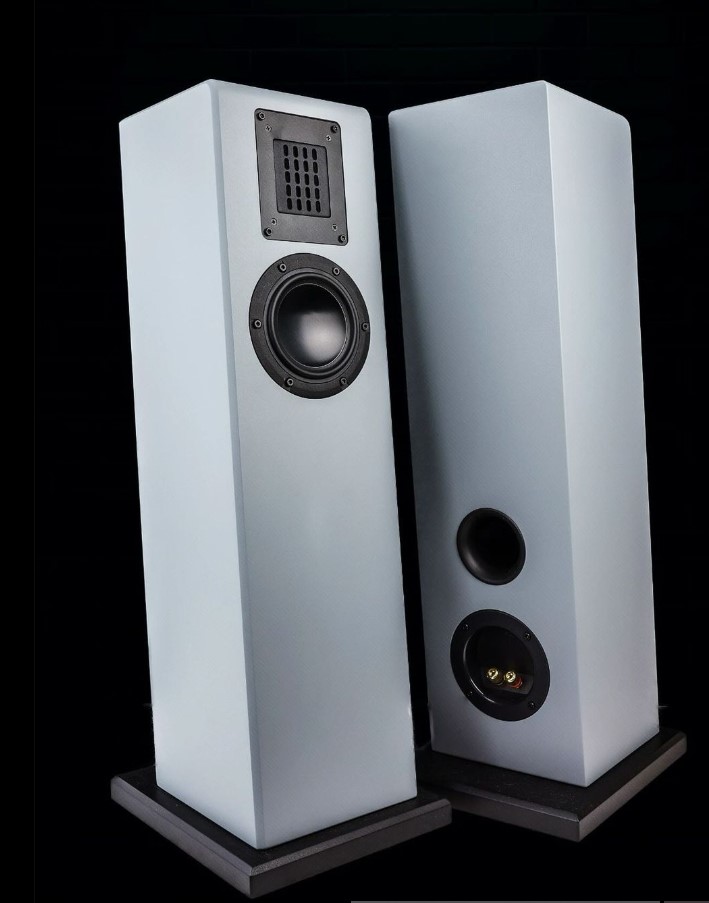

Apart 120 - Speaker & cabinet kit bundle
A small speaker with a big sound! The new Signature drivers from Dayton Audio are quite attractive and reasonably priced. A sturdy yet delicate cast basket with 6 mounting holes provides more than enough support. The inverse aluminium dome cone is extremely robust and black anodised.The Apart 120 has proven itself as a small floor-standing and sideboard speaker. With its slim design and slightly angled positioning, it was the most convincing speaker in our rooms. Initially, a longer and lower tuned line was planned, but for a little more level stability, a tuning at 45Hz was dispensed with. We found this to work absolutely satisfactorily. A -3dB point at 70Hz, which extends up to 60Hz depending on the room acoustics, provides tight bass without being overly boomy. The frequency response shows a gentle decrease over the entire range, with a slight increase above 12kHz, which is not noticeable in terms of sound. The crossover frequency is 2000Hz with an 18dB slope, an impedance linearisation and voltage divider in front of the tweeter, which can be wonderfully regulated with resistance values in a 12-step +1dB/-1dB range.The insulation is easy to install. At the beginning (in the tapered part), a mat of polyester wadding measuring 45-50cm x 45-50cm is used, which reaches up to the upper edge of the separating component. At the larger end of the line, below the BR tube, another mat of polyester wadding measuring approximately 45cm x 45cm is rolled up tightly so that the inner end of the tube remains free.The tweeter is already well known and has already been convincing several times under different names. The empty compartment behind the tweeter provides space for the crossover (note: when mounting the crossover later, it should be constructed in a more elongated shape, taking into account the cut-out dimensions of the tweeter). Care should be taken when attaching the mounting frame for the tweeter, as the frame is very delicate and can bend if too much pressure is applied. Soldering the tweeter should be avoided, as excessive heat can damage the foil. With the SIG120-4, however, soldering is harmless as it is the most secure connection. A base plate or other stabilising measures should definitely be considered.The kit also includes 2x1.5qmm speaker wire (by the metre) and flat connectors for crimping, a connection terminal with solid gold-plated screw terminals and high-quality hexagon socket wood screws for fastening the chassis and terminal. Of course, we also offer enclosure options, from a simple MDF enclosure with baffle and milled openings for the chassis (also back-milled) to a fully glued and/or painted enclosure. The baffle and kit are available in raw MDF or black through-coloured MDF as standard. Special requests such as MPX or real wood can of course also be fulfilled. Folienhochtöner dynamisch und fein auflösend wiedergibt. Und ja, die kleine Box kann auch durchaus Pegel und schiebt dann auch ordentlich Luft – den kleinen Dayton-Bass kann und soll man auch ruhig mal arbeiten lassen. Das erschöpft sich dann auch nicht in einem kurzen „Ach die Kleine kann ja richtig laut“-Effekt, sondern geht auch dauerhaft, denn der saubere und dynamische Klang ist durch und durch langzeittauglich. Gute Box! Thomas Schmidt / Klang & Ton 6/2023 Kleine Box ganz Groß! Die neuen Signature Chassis von Dayton Audio sind durchaus als hübsch anzusehen und preisgünstig. Ein stabiler und dennoch filigraner Gusskorb mit 6 Befestigungslöchern bietet mehr als genug Halt. Die inverse Aluminiumkalottenmembran ist extrem robust und schwarz eloxiert. Die Apart 120 hat sich als kleine Bodenstand- und Sideboard-Box bewährt. Mit ihrer schlanken Bauweise und leicht angewinkelten Positionierung überzeugte sie in unseren Räumen am meisten. Zunächst war eine längere und tiefer abgestimmte Line geplant, aber für etwas mehr Pegelfestigkeit wurde auf eine Abstimmung bei 45Hz verzichtet. Dies funktioniert absolut zufriedenstellend, wie wir finden. Ein -3dB- Punkt bei 70Hz, der je nach Raumakustik bis zu 60Hz reicht, sorgt für straffen Bass, ohne übermäßig wummernd zu wirken. Der Frequenzgang zeigt eine sanfte Abnahme über den gesamten Bereich, wobei oberhalb von 12kHz noch eine leichte Anhebung zu verzeichnen ist, die sich klanglich jedoch nicht bemerkbar macht. Die Trennfrequenz liegt bei 2000Hz mit einer 18dB-Flankensteilheit, einem Impedanzlinearisierungs- und Spannungsteiler vor dem Hochtöner, der sich wunderbar mit Widerstandswerten in einer 12er-Reihe +1dB/-1dB regulieren lässt. Die Dämmung ist einfach durchzuführen. Am Anfang (im verjüngten Teil) wird stark gestopft, wobei eine Matte Polyesterwatte im Format 45-50cm x 45-50cm verwendet wird, die bis zur Oberkante des Trennungsbauteils reicht. Am größeren Ende der Line, unterhalb des BR-Rohrs, wird eine weitere Matte mit etwa 45cm x 45cm Polyesterwatte fest zusammengerollt, sodass das innere Ende des Rohres frei bleibt. Der Hochtöner ist bereits bekannt und hat unter verschiedenen Namen bereits mehrfach überzeugt. Das leere Fach hinter dem Hochtöner bietet Platz für die Frequenzweiche (Hinweis: Bei der späteren Montage der Weiche sollte diese eher länglich aufgebaut werden, wobei die Ausschnittmaße des Hochtöners beachtet werden sollten). Beim Befestigen des Montagerahmens für den Hochtöner sollte man behutsam vorgehen, da der Rahmen sehr zierlich ist und sich bei zu starkem Anschraubdruck verbiegen kann. Das Löten des Hochtöners sollte vermieden werden, da zu hohe Hitze die Folie beschädigen kann. Beim SIG120-4 ist das Löten hingegen unbedenklich, da es die sicherste Verbindung ist. Eine Sockelplatte oder andere stabilisierende Maßnahmen sollten unbedingt in Betracht gezogen werden. Der Bausatz enthält außerdem 2x1,5qmm Lautsprecherlitze (Meterware) und Flachstecker zum Krimpen, ein Anschlussterminal mit soliden vergoldeten Schraubklemmen sowie edle Innensechskant-Holzschrauben zur Befestigung von Chassis und Terminal. Natürlich bieten wir auch Gehäuseoptionen an, vom einfachen MDF- Gehäuse mit Schallwand und eingefrästen Öffnungen für die Chassis (auch hinterfräst) bis hin zum fertig verleimten und/oder lackierten Gehäuse. Schallwand und Bausatz sind standardmäßig in rohem MDF oder schwarz durchgefärbtem MDF erhältlich. Sonderwünsche wie MPX oder Echtholz werden selbstverständlich ebenfalls erfüllt.

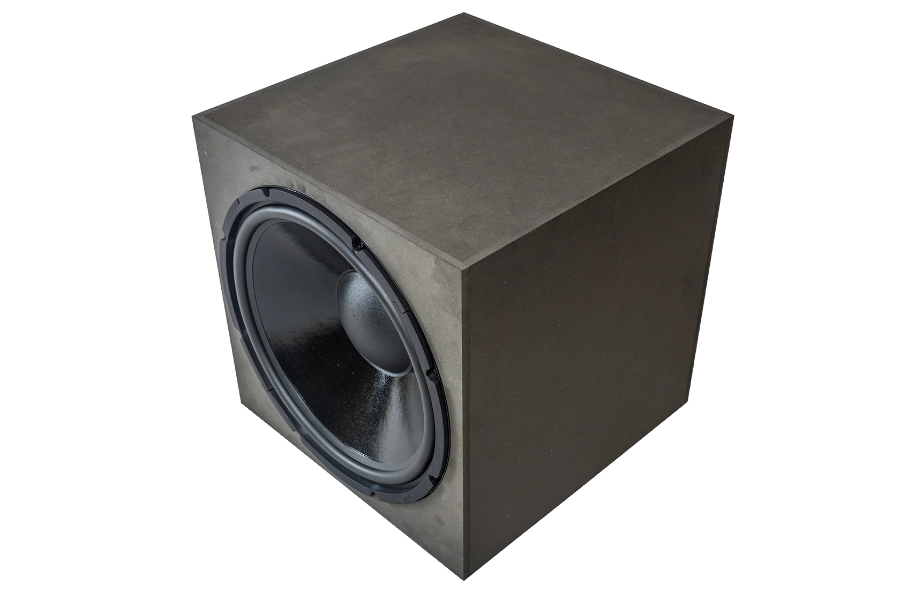

Home Cinema S2 Lautsprecher- & Gehäusebausatz Bundle
Home Cinema S2 Speaker & Enclosure Kit BundleHome Cinema S2 [...]And as always with good subwoofers, the Home-Cinema S2 elevates the playback of the speakers to a wholenew level: Suddenly it has a dynamism and force that you simply can't ignore the bonus in theBass wants to do without.[...] Klang & Ton 3/2024 Subwoofer kit for active operation, without enclosure, without active module Assembly: Dayton Audio DC380-8, (recommended active modules: Dayton Audio SPA250DSP, Dayton Audio SPA500DSP, DaytonAudio SPA250, Dayton Audio SPA100-D, Hypex FUSIONAMP FA251) Properties: High-performance subwoofer chassis in a closed enclosure, DSP controlled active electronics of your choiceon Board. To reproduce bass, low frequencies powerfully, precisely, and with contour, it requires, even if it alsowith levels beyond the neighborhood-friendly volume, membrane area. This fulfills theHome Cinema S2 with its 15" 380cm subwoofer chassis Dayton Audio DC380 in abundance. Theclosed enclosures and the reinforced internal structure are essential components of a high-quality construction. Scope of delivery: Screws Chassis Cable (Inside) Enclosure kit in raw MDF
