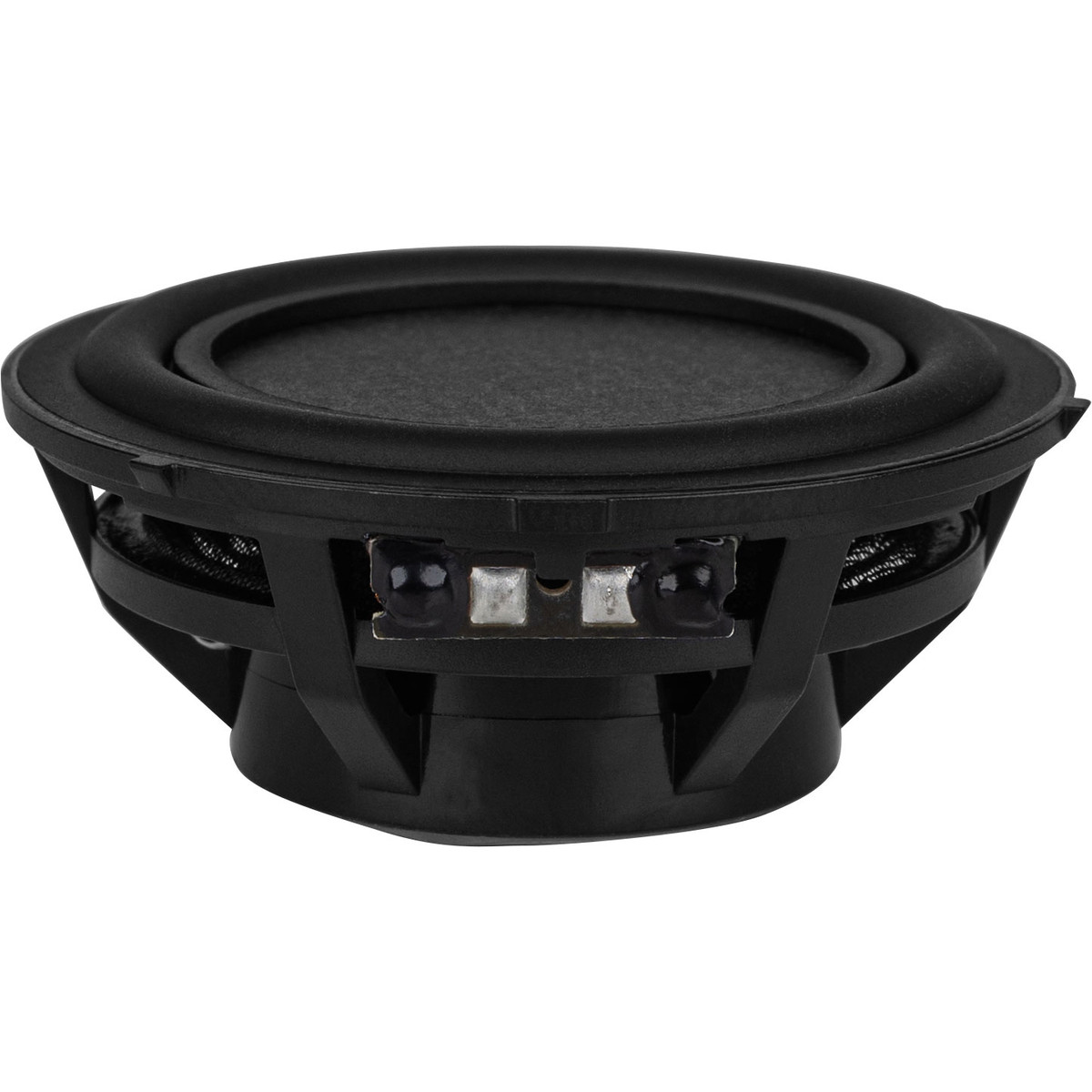

Tectonic TEBM35C10-4 BMR 2" Full-Range Speaker 4 Ohm
The TEBM35C10-4 BMR 2" full-range is an audio drive unit with an extended frequency response and extremely wide directivity. It combines the benefits of Tectonic Elements bending-wave technology and pistonic modes of operation. Key Features Blends pistonic and resonant mode output for wide frequency response The small form-factor is ideally suited for compact audio enabled products Nearly 180° dispersion all the way up to 20,000 Hz Only 2" diameter and 1" deep allows mounting almost anywhere By combining the benefits of bending-wave technology and pistonic modes of operation, Tectonic's TEBM35C10-4 BMR 2" full-range delivers extended frequency response and extremely wide directivity. The small form-factor is ideally suited for compact products that require a full-range drive unit, room filling sound and a high performance acoustic solution. The small size, extended response, and low cost also make the TEBM35C10-4 an excellent choice for use in higher output line array designs. This unique driver can be used for anything from small handheld speakers, toys and displays to larger TV speaker bars, Wi-Fi speaker systems, and even compact sound reinforcement systems.

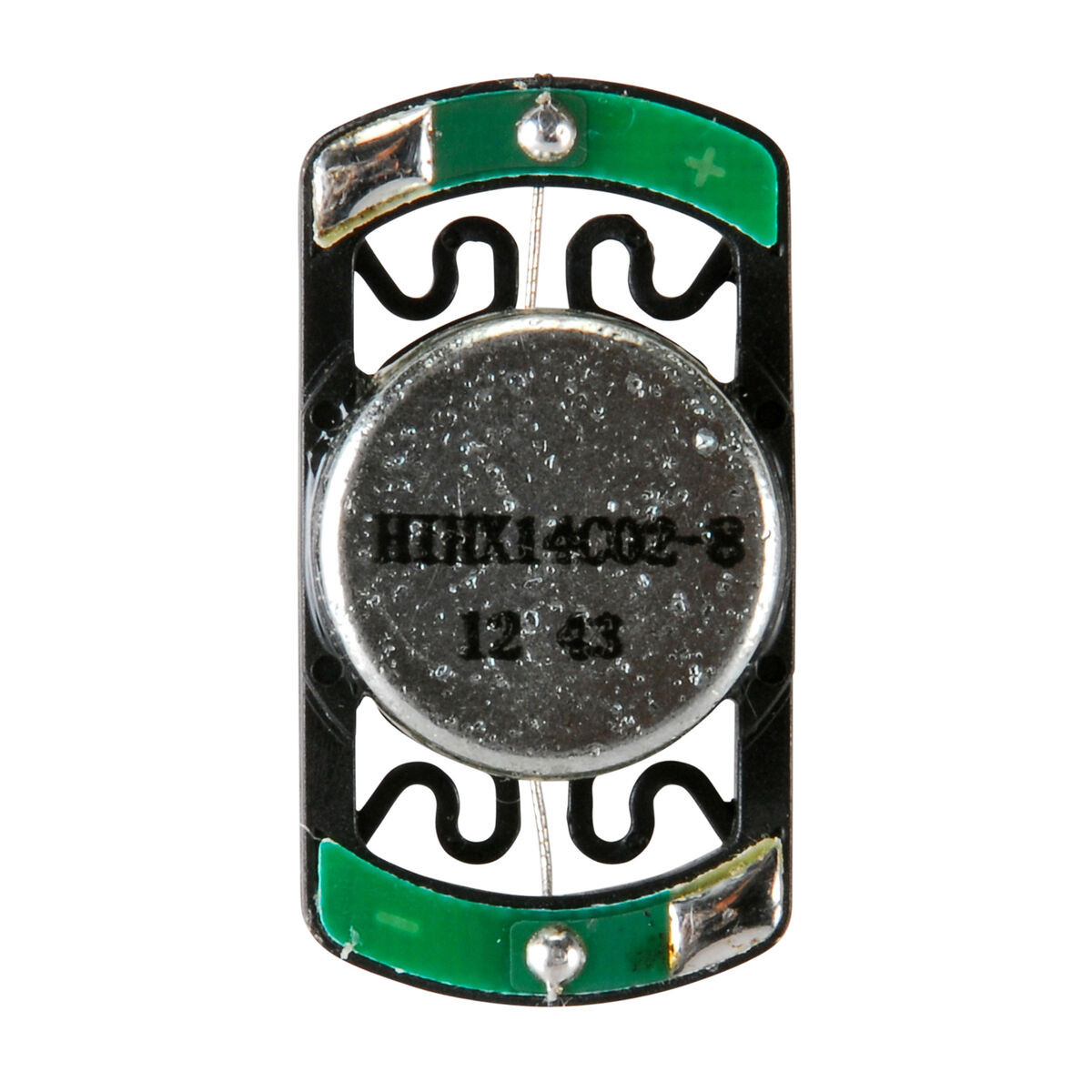

Tectonic TEAX14C02-8 Haptic Feedback Transducer 14mm 2W 8 Ohm
Tectonic's 14 mm, 8 ohm TEAX14C02-8 exciter is designed be used with tablet PCs, eBooks, and appliance control panels. Bending waves, and sound, generated by the TEAX14C02-8 brings life to devices. Key Features Larger size for larger surfaces and 2 watt RMS power handling Great for with tablet PCs and e-Book readers Designed to be used with tablet PCs, eBooks, and appliance control panels, the bending waves generated by the TEAX14C02-8 brings life to devices. Adhesive is pre-applied for permanent device attachment, and the 9.55 mm (3/8") thickness is enhanced by a neodymium motor to accommodate into existing designs. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 2W RMS, 4W max • Nominal impedance: 8 ohms • Dimensions (H x W x L): 9.55 x 19.5 x 40.2 mm.

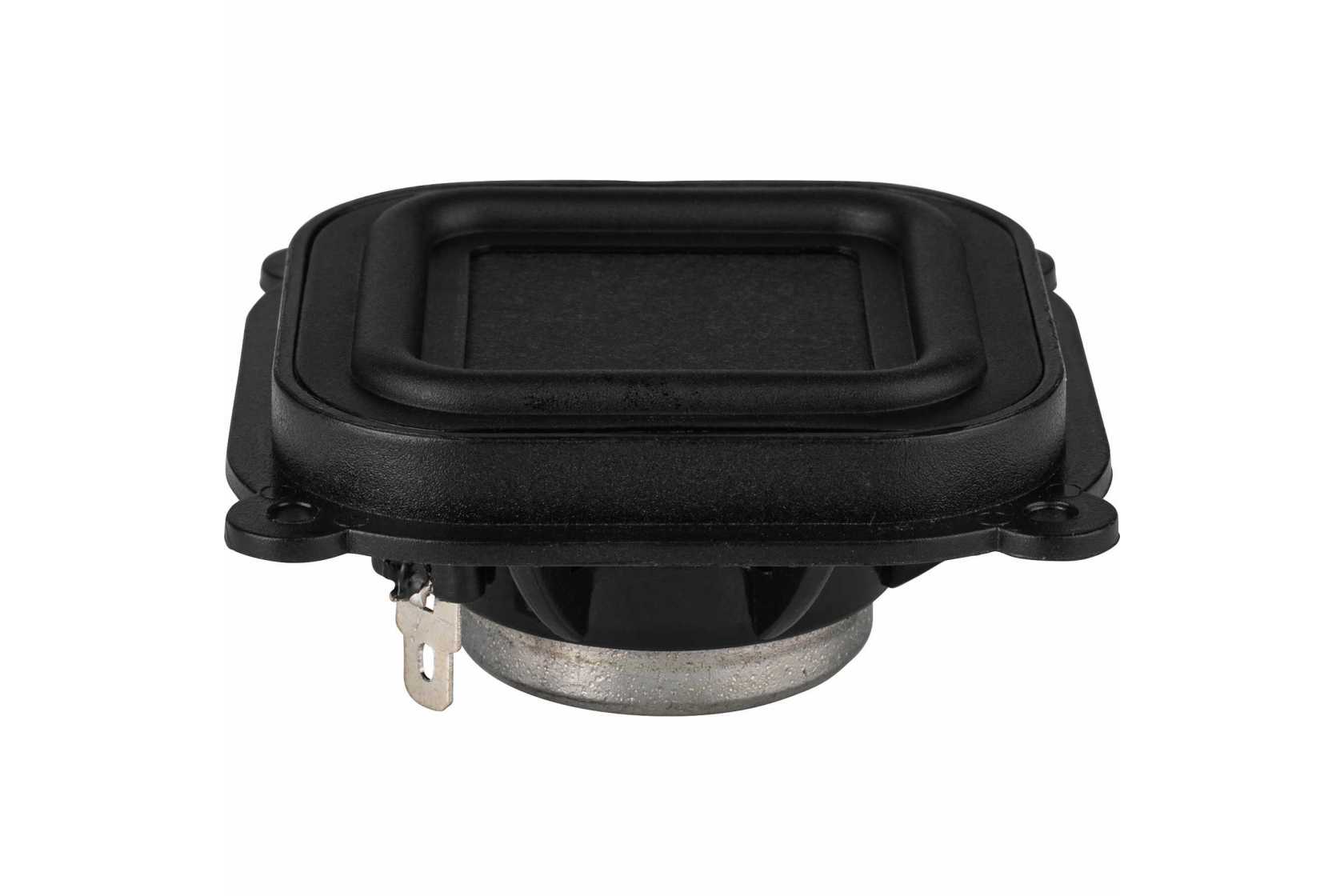

Tectonic TEBM36S12-8A
Tectonic TEBM36S12-8A 1-1/2" square BMR full range driver 8 Ohm The TEBM36S12-8/A Balanced-Mode Radiator (BMR) is a driver with an extended frequency response and wide directivity compared to a conventional driver. It combines the advantages of tectonic bending wave technology and pistonic mode. It is ideal for compact audio applications that require a comprehensive, high-performance, long-range acoustic solution. This second generation drive unit has the same audio characteristics as its predecessor, with improved response smoothness and linearity at high excursion.

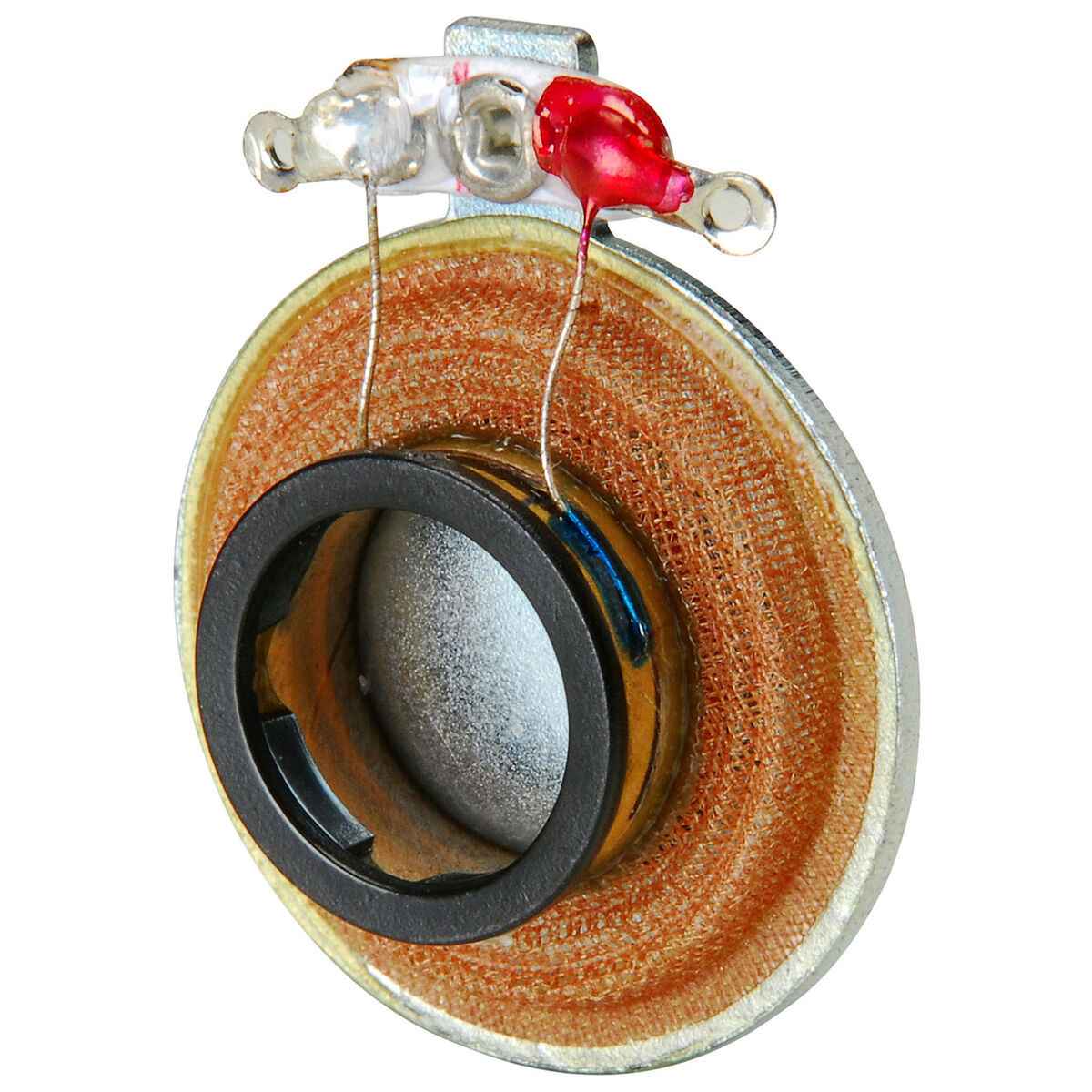

Tectonic TEAX09C005-8 Haptic Feedback Transducer 9mm 0.5W 8 Ohm
Tectonic 9 mm, 8 ohm TEAX09C005-8 miniature exciter is designed be used with tablet PCs, eBooks, and appliance control panels. Bending waves, and sound, generated by the TEAX09C005-8 brings life to devices. Key Features Popular for use with appliance controls Great for use on tablet PC and e-Book reader touchscreens Designed to be used with tablet PCs, eBooks, and appliance control panels, the bending waves generated by the TEAX09C005-8 brings life to devices. 3M adhesive is pre-applied for permanent device attachment, and the 6 mm (under 1/4") thickness is enhanced by a neodymium motor to accommodate into existing designs. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 0.5W RMS, 1W max • Nominal impedance: 8 ohms • Dimensions (H x W x L): 6 x 12 x 26 mm.

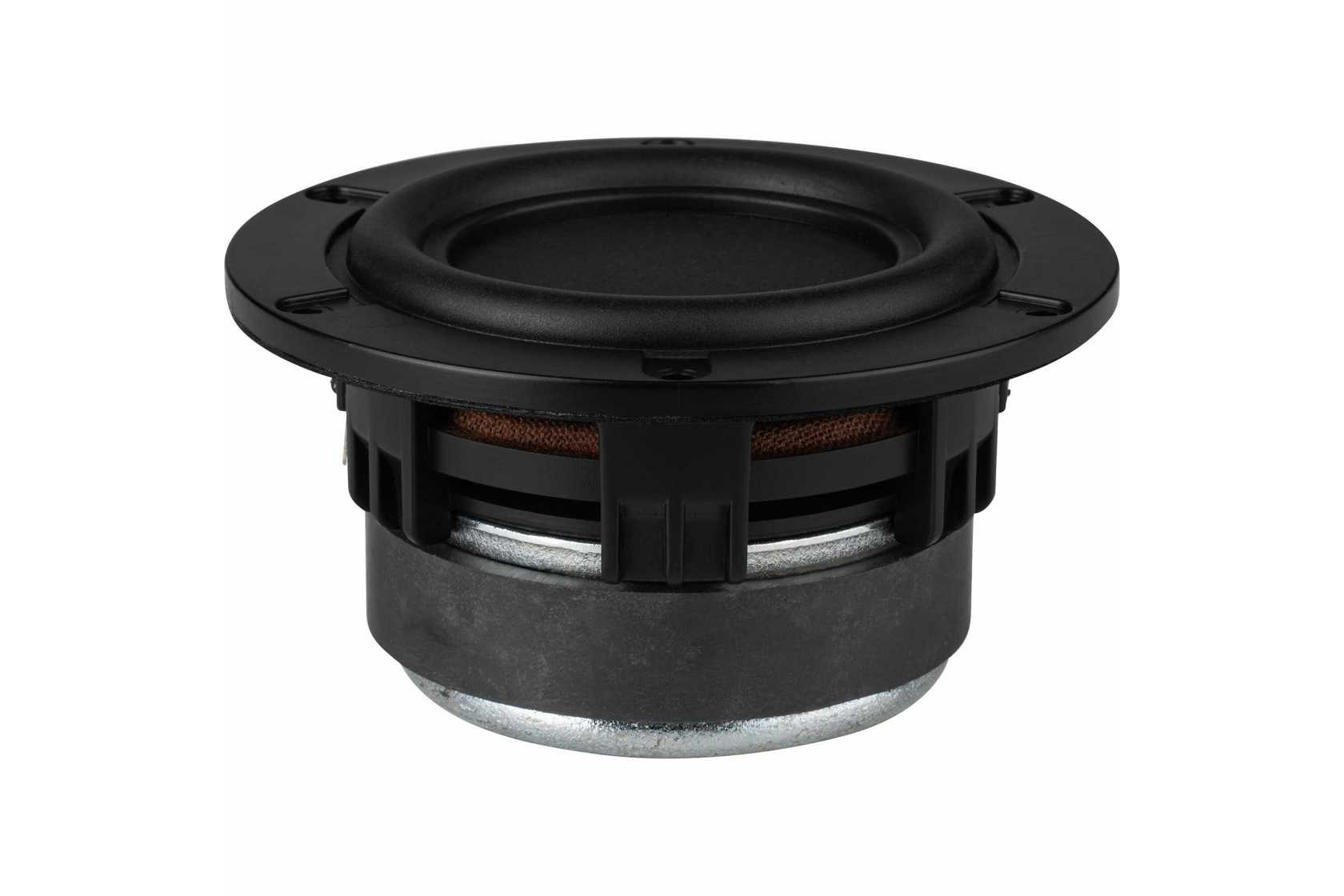

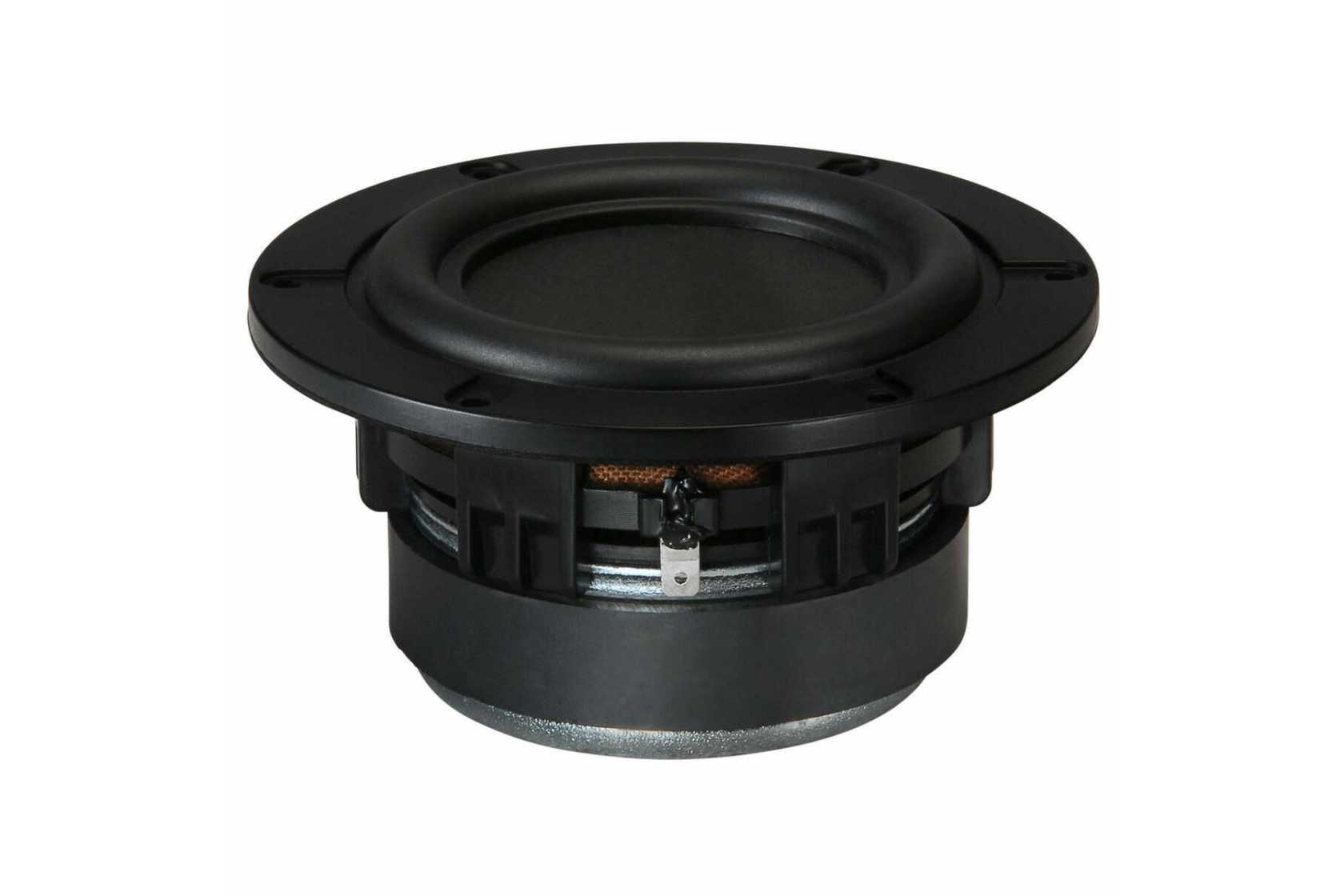

Tectonic TEBM65C20F-8
For audio applications that require extended frequency response, and superior off-axis response in a small form factor, choose the Tectonic TEBM65C20F-8 3-1/2" full-range transducer. Nearly all of the audio in the pass band of the driver is available up to 100° off-axis. Key Features Amazing off-axis frequency response Small form factor with decent Xmax Perfect for modern speaker applications such as soundbars Tectonic TEBM65C20F-8 3-1/2" BMR Full-Range Speaker 8 Ohm Tectonic TEBM65C20F-8 Balanced-Mode Radiator (BMR) features extended frequency response and wide dispersion compared to that of a conventional drive unit. It combines the benefits of Tectonic Elements bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a full-range, high performance acoustic solution such as a soundbar. An advanced ferrite-based motor is combined with special cone dampers to ensure a small size that outperforms conventional drivers, especially in off-axis performance. Product Specifications Nominal Diameter 3-1/2" Moving Mass Of Diaphragm (Mmd) 5.6 Power Handling (RMS) 30 Watts Power Handling (MAX) 60 Watts Impedance 8Ω Frequency Response 60 to 20,000Hz Sensitivity 81dB 2.83V/1m Voice Coil Diameter 1" Thiele-Small Parameters Resonant Frequency (Fs) 104Hz DC Resistance (Re) 7.1Ω Voice Coil Inductance (Le) 0.05mH Mechanical Q (Qms) 6.65 Electromagnetic Q (Qes) 1.11 Total Q (Qts) 0.95 Compliance Equivalent Volume (Vas) 0.04ft³ Mechanical Compliance of Suspension (Cms) 0.42mm/N BL Product (BL) 4.8T·m Maximum Linear Excursion (Xmax) 5mm Surface Area of Cone (Sd) 43.58cm²
Tectonic TEAX19C01-8 19mm Metal Cup Exciter 8 Ohm
The Tectonic TEAX19C01-8 exciter employs proprietary technologies and premium materials to produce a transducer that converts almost any surface into an audio loudspeaker. Key Features Small size for use where speakers wouldn't be possible Turn any surface into a HiFi speaker Tectonic 19 mm TEAX19C01-8 exciter continues their tradition of making magical devices (Distributed Mode Loudspeakers) that turn virtually any surface into a high fidelity loudspeaker. The exciter's small size enables audio reproduction in applications where installing conventional speakers just isn't possible, such as windows, monitors—even picture frames! The TEAX19C01-8 exciter uses a neodymium magnet to increase magnetic flux around the voice coil. This results in increased sensitivity, which reduces power requirements and allows low power amplifiers to be used without sacrificing total output. 3M™ VHB™ tape is pre-installed on each exciter and offers unsurpassed surface adhesion while spreading the stress load across the entire length of the joint. This ensures maximum acoustic energy transfer between the transducer and the surface to which it is attached. Two terminals extend from the exciter for wire soldering purposes. Note: an exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and facilitate mid/tweeter response. Thicker, larger materials will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 3 watts RMS • VCdia: 19 mm • Nominal impedance: 8 ohms • Mounting ring: 0.875" dia. • Dimensions: 1.56" dia. (including terminals), 1.31" dia. (without terminals) x 0.5" (12.8 mm) H • Weight: 29 grams.

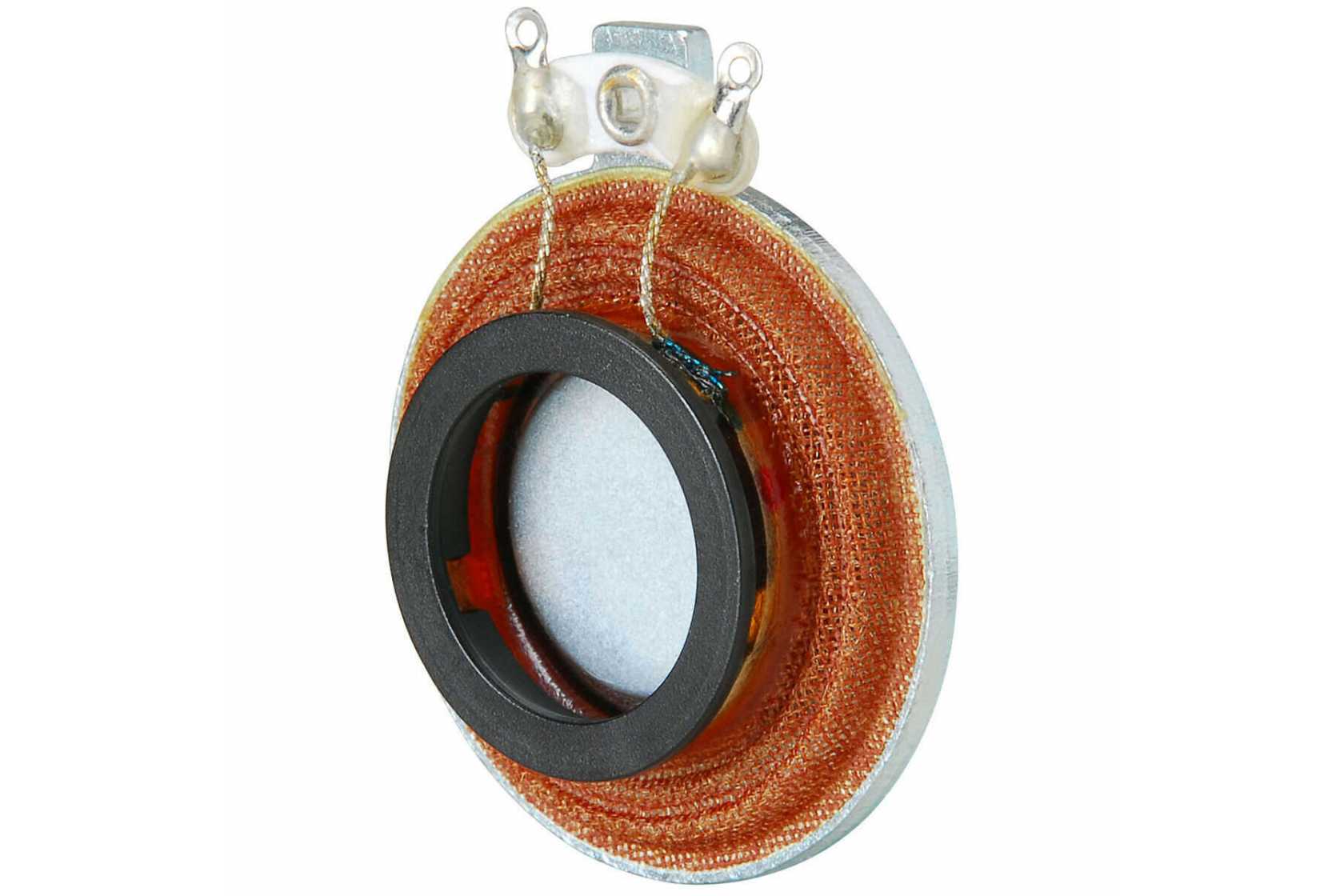

Tectonic TEAX13C02-8/RH 13mm Exciter 8 Ohms
The Tectonic TEAX13C02-8/RH 13 mm exciter provides a small, inexpensive means of turning flat panels of most compositions into an audio loudspeaker. Key Features Turn virtually any surface into a hi-fi speaker The exciter's high efficiency reduces power requirements Diminutive 1-1/4" diameter and 3/8" height for use in extremely tight spaces Tectonic 13 mm TEAX13C02-8/RH turns virtually any surface into a high fidelity loudspeaker. This exciter's extremely small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! The TEAX13C02-8/RH exciter employs a neodymium magnet for maximum magnetic flux around the voice coil and increased sensitivity. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, two-part epoxy is recommended. Two terminals extend from the exciter for wire soldering purposes. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 2 watts RMS • VCdia: 13 mm • Nominal impedance: 8 ohms • Dimensions: 1.25" (31.75 mm) dia. x 0.35" (9 mm) H • Weight: 10 grams.

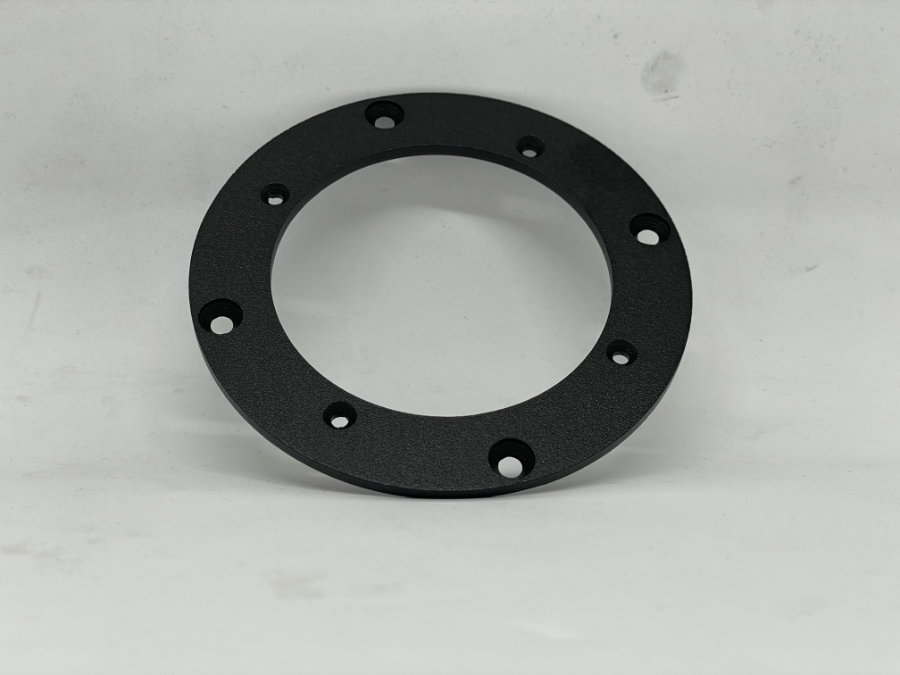

Edelstahlring schwarz für Tectonic TEBM46C20N
Ring black for Tectonic TEBM46C20NRing for Tectonic TEBM46C20N in black powder-coated Outer diameter: 95mm Material thickness: 3mm -------------------------------------------------------- Variation incl. accessories includes: Package contents: - 1pc. Steel ring black with holes - 4pcs. M3x 12 black - 4pcs. M3 stainless steel nut - 4pcs. M4 x 18 black - 4pcs. M4 Insert Nut THE CHASSIS SHOWN IN THE IMAGE IS NOT INCLUDED IN THE DELIVERY.

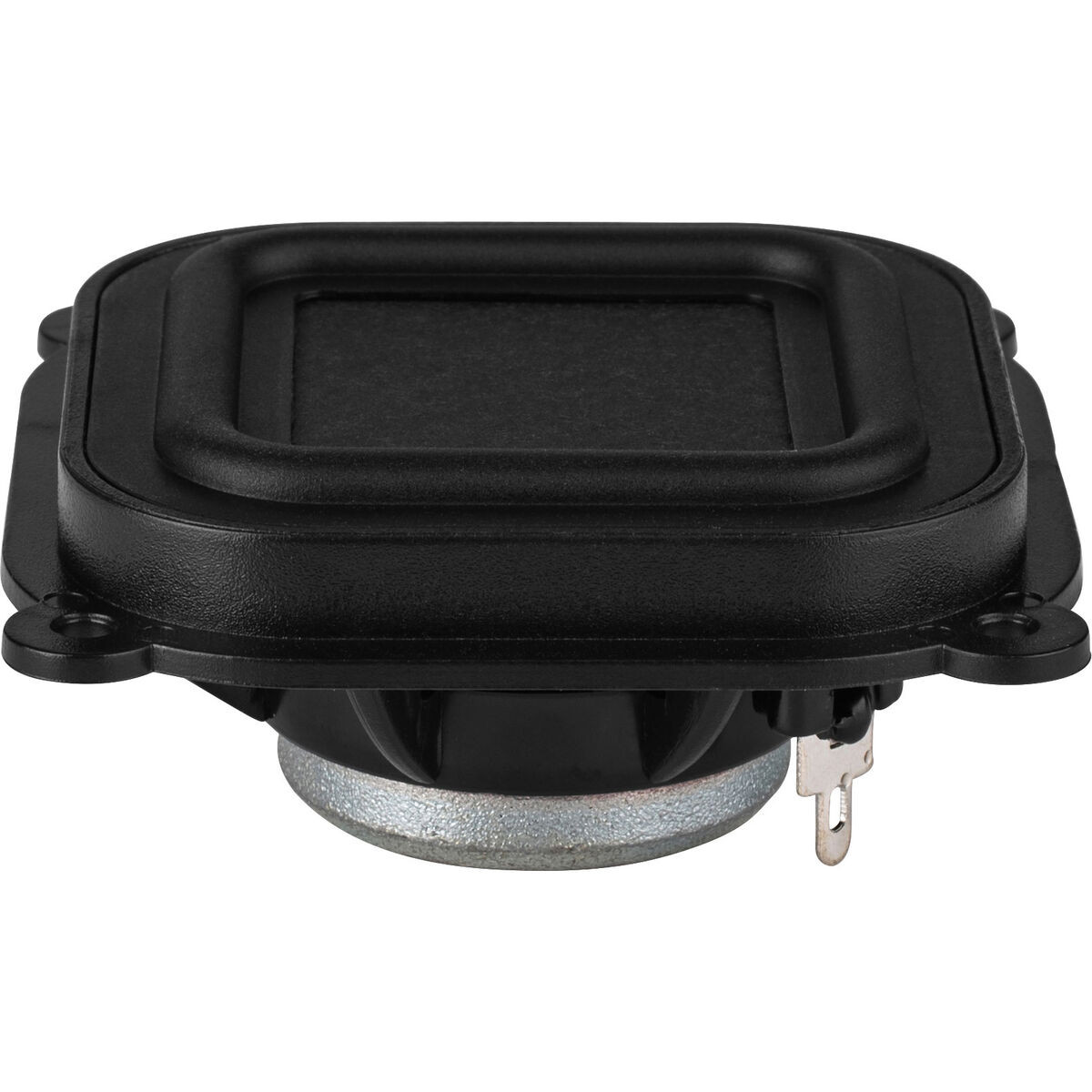

Tectonic TEBM36S12-4A
The The TEBM36S12-4/A Balanced-Mode Radiator (BMR) is a driver with an extended frequency response and wide directivity compared with a conventional driver. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a full-range, high performance acoustic solution including; boom boxes, smart speakers, computer speakers, and bookshelf speakers. Key Features Wide sound dispersion delivers room filling sound Ultra compact design minimizes visual impact -- only 2.56" square x 1.17" deep Drive unit design simplifies integration into a product Improved smooth frequency response and extended bandwidth The TEBM36S12-4/A Balanced-Mode Radiator (BMR) is a driver with an extended frequency response and wide directivity compared with a conventional driver. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a full-range, high performance acoustic solution. This second generation drive unit has the same audio characteristics as its predecessor, with improved response smoothness and linearity at high excursion.
Ring schwarz (Stücklistenartikel) für Tectonic TEBM46C20N
Ring black (bill of materials item) for Tectonic TEBM46C20NDieser Artikel ist nicht für den Verkauf
Tectonic TEBM65C20F-4
For audio applications that require extended frequency response, and superior off-axis response in a small form factor, choose the Tectonic TEBM65C20F-4 3-1/2" full-range transducer. Nearly all of the audio in the pass band of the driver is available up to 100 degrees off-axis Highlights Amazing off-axis frequency response Small form factor with impressive Xmax Perfect for modern speaker applications such as sound bars
Edelstahlring für Tectonic TEBM46C20N
Stainless steel ring for Tectonic TEBM46C20NEdelstahlring für Tectonic TEBM46C20N Outer diameter: 95mm Material thickness: 3mm -------------------------------------------------------- Variation incl. accessories includes: Package contents: - 1pc. Stainless steel ring with holes - 4pcs. M3x 12 stainless steel screw - 4pcs. M3 stainless steel nut - 4pcs. M4 x 16 stainless steel screw - 4pcs. M4 Insert Nut THE CHASSIS SHOWN IN THE IMAGE IS NOT INCLUDED IN THE DELIVERY.
Tectonic TEBM35C02-6B 1-3/4" BMR Full-Range Headphone Driver 6 Ohms
Tectonic's TEBM35C02-6/B 1-3/4" full-range BMR driver is an audio drive unit with an extended frequency response and extremely wide dispersion. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation for remarkably wide bandwidth with unmatched off-axis response. Key Features Ideal for use in off ear headphones for use in VR, gaming headsets, and helmets Balanced Mode Radiation delivers unmatched off axis dispersion Extended high frequency response to 35,000 Hz High excursion allows excellent low frequency capability in near field applications Shallow mounting depth for installation into almost any location The compact TEBM35C02-6/B 1-3/4" full-range BMR driver from Tectonic is perfect for nearfield applications that require flat and extended response with extremely wide dispersion capability. Its unique capabilities make this driver perfect for open air headphones when physical contact with the ear must be avoided, such as VR systems, gaming headsets, call center headphones, helmets, and hardhats. The combination of pistonic and bending wave operation gives the TEBM35C02-6/B low distortion, extended bandwidth, and incredibly wide dispersion. In addition, this driver is also a great choice for use in extremely compact systems like computer speakers and ultra-compact portable Bluetooth systems.

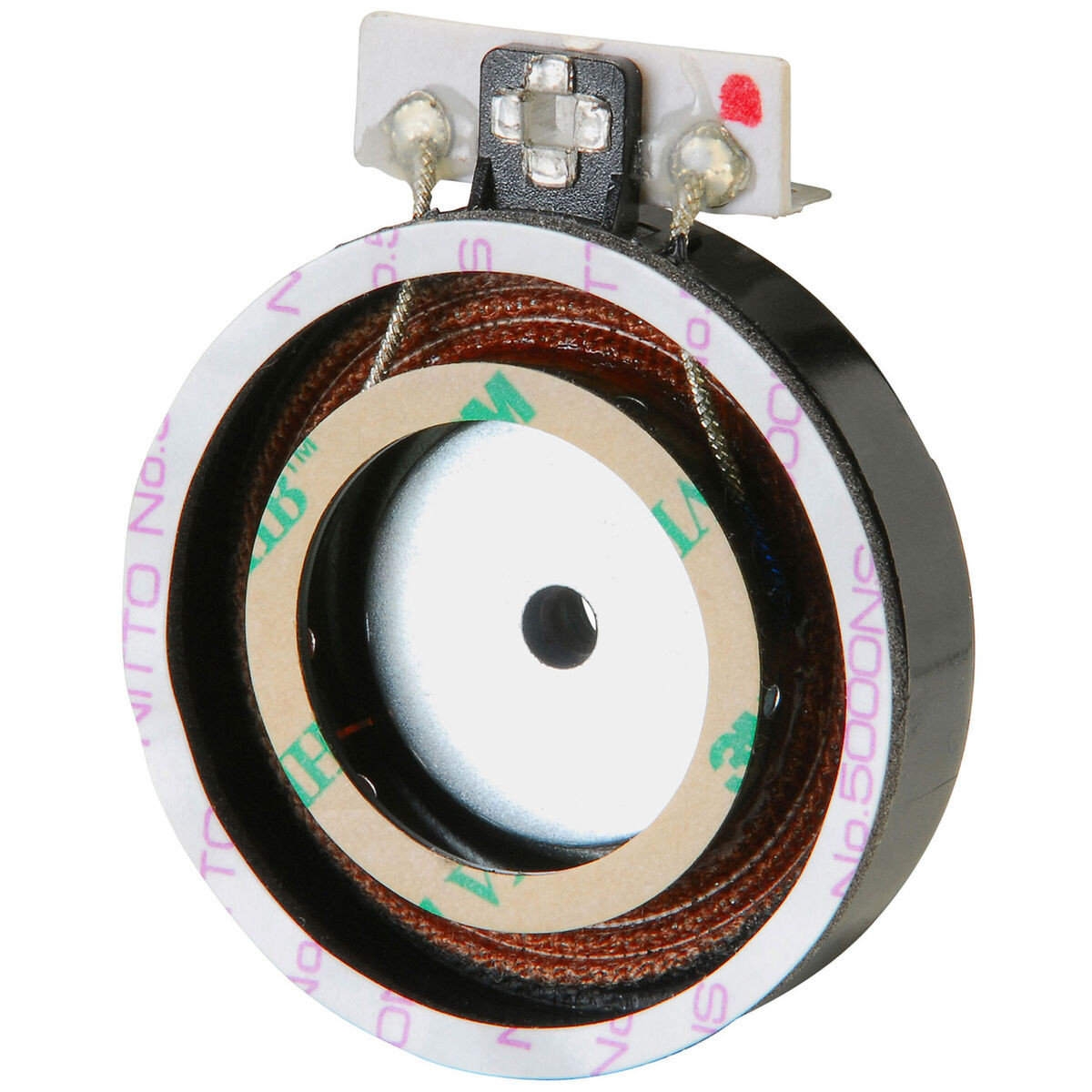

Tectonic TEAX32C20-8 32mm Self Supported Exciter 8 Ohm
Turn anything into a speaker with the Tectonic TEAX32C20-8 exciter. Compact size is great for adding sound to small surfaces and two 3M adhesive rings for surface attachment. Key Features High output design Two 3M mounting rings for superior support High power handling Tectonic 32 mm TEAX32C20-8 balanced exciter was originally designed for automotive applications where its rugged design would allow it to pass the requirements for automobiles. It is specially balanced so that when applied to vertical surfaces the exciter is perfectly balanced and will not fall off the surface. The exciter comes with a special mounting adapter which features two 3M adhesive discs to allow the exciter to be attached to a wide range of materials. The exciter comes with solder tabs for connection of amplifier wiring. Sold individually. Specifications: • Power handling: 20W RMS • Impedance: 8 ohms • VC dia: 1.25" • Dimensions: 2" dia. x 7/8" H.

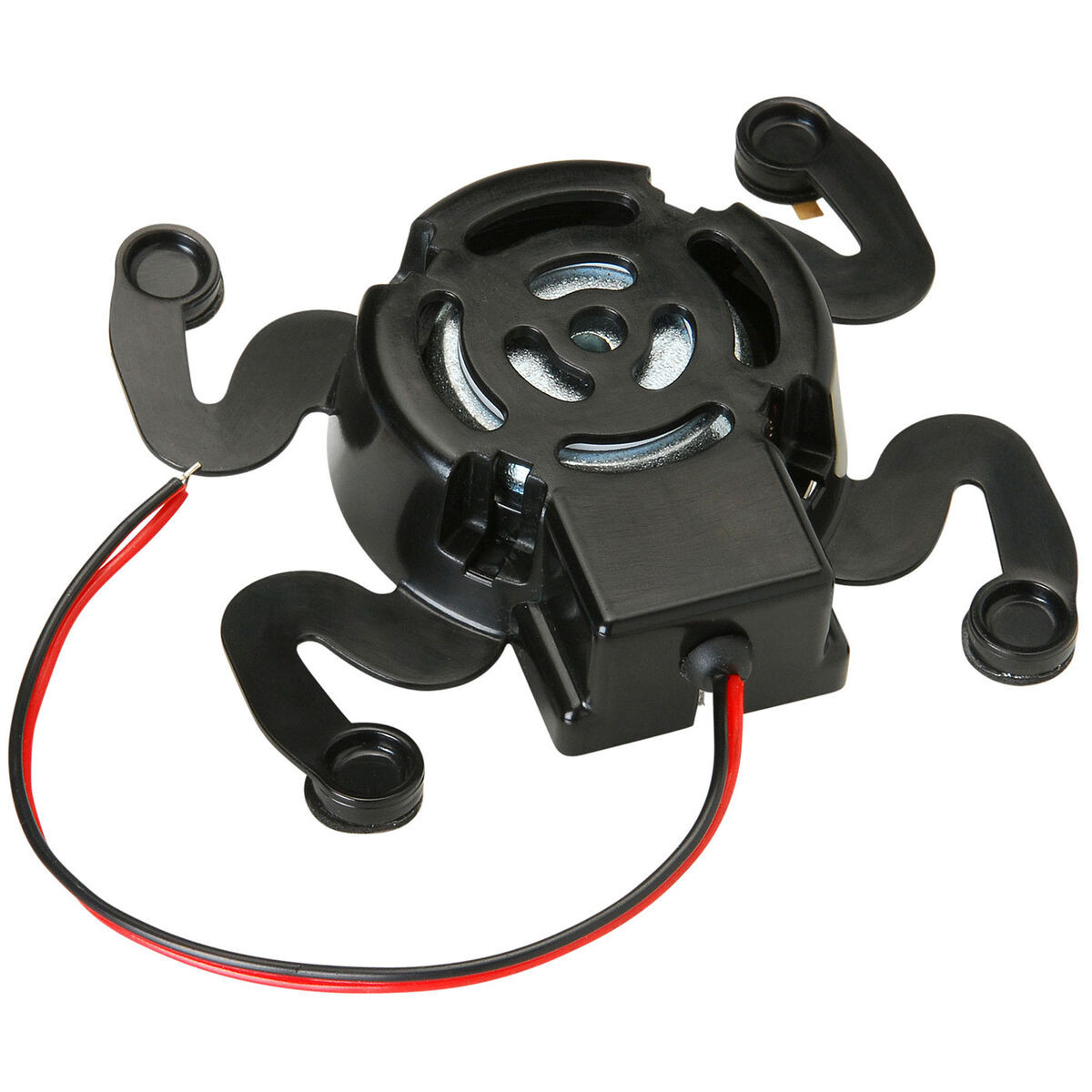

Tectonic TEAX25C10-8/SP 25mm High Power 8 Ohm Frog Exciter
Tectonic, the industry leader in miniature transducer and exciter design, introduces the TEAX25C10-8/SP 25 mm High Power "Frog" Exciter. Turn almost anything into a speaker! Key Features Turn any solid surface into a great sounding speaker Create a completely hidden surround sound system Wideband frequency response (dependent on attached material) 3M adhesive pads for secure and fast placement Tectonic's TEAX25C10-8/SP Frog Exciter turns virtually any solid object into a speaker, when attached, by vibrating it at speeds of up to 20,000 cycles per second. The vibrations modulate the air, which is then decoded by the brain as sound. Test the limits of your imagination. Place the Tectonic Frog Exciter on a window, under a desk, in an overhead cabinet, behind picture frames, inside cans, behind paper plates, inside binders, cardboard, scraps of wood and even the box they come in! The sound quality will surprise you no matter where you place them. Included 3M adhesive pads offer long-lasting attachment that sets up in seconds. 7 ft. long attached speaker wires for amplifier connection. Specifications: • Power handling: 10W RMS • Impedance: 8 ohms • VCdia: 1" • Dimensions: 4-1/2" dia. x 3/4" H.

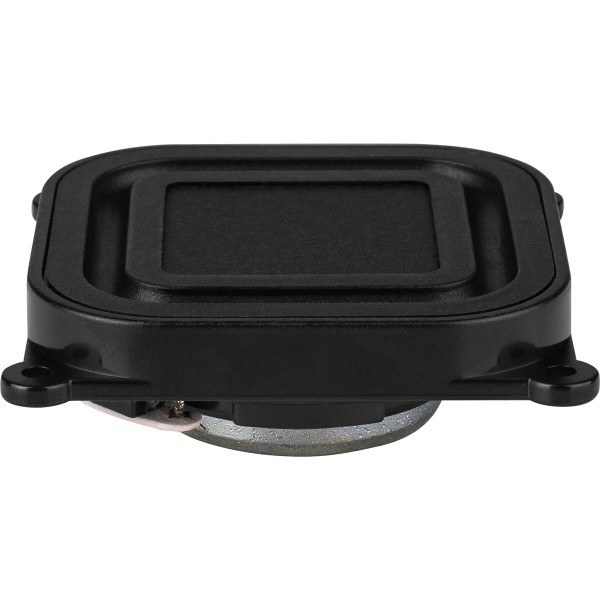

Tectonic TEBM36S05-4
Tectonic TEBM36S05-4 1-1/2" Square BMR Full-Range Speaker 4 Ohm The TEBM36S05-4 BMR from Tectonic provides a wide, expansive sound stage and wonderful off-axis performance in a compact package that can be used virtually anywhere. Key Features Wide sound dispersion delivers room filling sound Ultra compact design minimizes visual impact -- only 2.56" square x 0.81" deep Drive unit design simplifies integration into a product Smooth frequency response and extended bandwidth The TEBM36S05-4 Balanced Mode Radiator (BMR) from Tectonic is an audio drive unit with an extended frequency response and wide directivity compared with a conventional drive unit. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a full range, high performance acoustic solution.
Edelstahlring schwarz für Tectonic TEBM46C20N
Price on request
