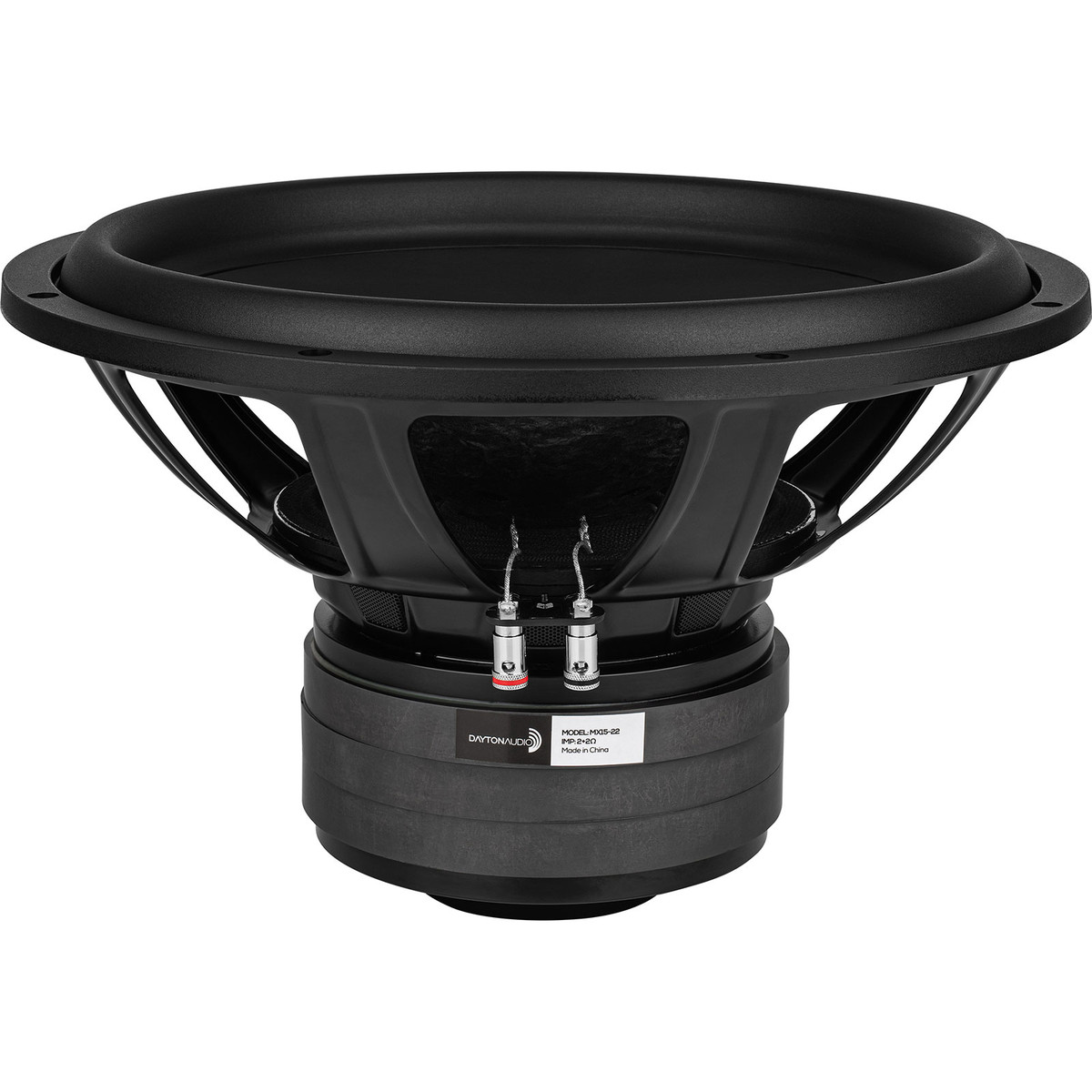

Dayton Audio MX15-22
Dayton Audio MX15-22 15" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil Massive subwoofer driver with double voice coil Dayton Audio's MX-15-22 delivers the ultimate in deep bass with tremendous punch, swallowing up to four figures of amplifier power in the process Hobby HiFi 6/2022 The Max-X MX15-22 15" dual voice coil high excursion subwoofer from Dayton Audio is built for incredible low frequency extension and high SPL. This affordable driver combines durability, efficiency, and maximum displacement into a great looking speaker that will deliver the deepest bass with power and authority. Optimized for use in compact enclosures this driver is ideal for home subwoofer designs and high impact car audio systems. Key Features ±24 mm Klippel verified excursion and maximized surface area for excellent displacement capability Seamless dish cone is extremely rigid and durable with a sleek and modern look Custom tooled surround allows long throw while maximizing cone surface area Extensive venting cools the voice coil enabling high power handling with low power compression Dual spiders maintain linear excursion for lower distortion even when pushed to the limit The dual 2 ohm voice coils give you the ability to get the most out of any amplifier Dayton Audio MX15-22 15" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil Designed to produce maximum output for an unbeatable value, Dayton Audio's MX15-22 Max-X 15" dual voice coil subwoofer driver has all of the features and performance you expect from premium subwoofers without the high price tag. Capable of high output low frequency response with remarkably low distortion, the MX15-22 is built for use in compact enclosures making it perfect for both home and car audio sounds systems. With 48 mm of peak to peak excursion capability (Klippel verified at 70% Bl) this driver is capable of moving serious amounts of air. It's about more than just looks Many budget subwoofer drivers look powerful, but just don't offer high performance. When designing the MX15-22, Dayton Audio did everything possible to keep the cost down without sacrificing performance or reliability. A large inverted dust cap completely covers the rigid pulp paper cone to create an extremely stiff layered diaphragm with a sleek and modern look. The narrow but tall custom tooled surround has been optimized to allow high excursion without reducing cone area to ensure maximum displacement with improved efficiency. In addition, the surround actually wraps around to the rear side of the mounting flange for maximum gluing surface area to handle the stress of high excursion without issue. To keep the cone linear, the MX15-22 uses dual spiders with ample spacing to make sure there is no rocking even when driven to its limit. Extensive venting to keep everything cool High output subwoofers can generate a lot of heat, excess heat build-up increases temperature which in turn causes resistance to climb. This will lead to lower output, power compression, and premature failure. The MX15-22 has everything it takes to move as much air as possible across the 2-1/2" voice coil to dissipate this excess heat. Six Large diameter vents in the cone combined with a flared pole piece vent creates a continuous flow of air directly through the center of the voice coil. The outside of the coil is cooled by eight under spider vents in the frame and six peripheral gap vents through the back plate. All of this airflow makes sure that power compression is kept to a minimum, but it also gives the MX15-22 extremely quiet operation even at high excursion, nearly eliminating the mechanical noise that is all to common with many of today's subwoofer drivers. A powerful motor for incredible flexibility Another common problem with many of today's budget subwoofer drivers is a lack of motor strength. This leads to drivers that are inefficient or are only capable of the "one note" bass that is the result of high Q drivers. The massive dual stacked high energy ferrite magnets have been optimized to drive the 2-1/2" voice coil efficiently with accuracy and precision. Also, the magnetic gap has been kept narrow to guarantee that there is as little loss of magnetic force as possible. This powerful motor assembly gives the MX15-22 an impressive Bl of 20.6 T/m with a Qts of 0.4, making it suitable for use in compact sealed or vented enclosures with excellent low frequency extension. Finally, with dual 2 ohm voice coils, the MX15-22 can be used in a number of configurations to make sure that you get maximum performance from your amplifier in almost any application. In most home audio designs the coils will be wired in series for a 4 ohm load. When used in car audio systems you have the option of running the coils separately for a dual 2 ohm load, or wired in parallel at 1 ohm to get the most power out of today's high current amplifiers. Maximum value to performance ratio Thanks to extensive optimization and advanced design, the Dayton Audio MX15-22 is a low-cost high-performance subwoofer that truly delivers incredible output capability and low distortion from compact designs. The Max-X drivers the perfect choice for building a powerful home stereo speaker, high SPL mobile audio system, or a sound quality based car audio system without breaking the bank. Note: All specifications measured with the voice coils wired in series for a 4 ohm load.

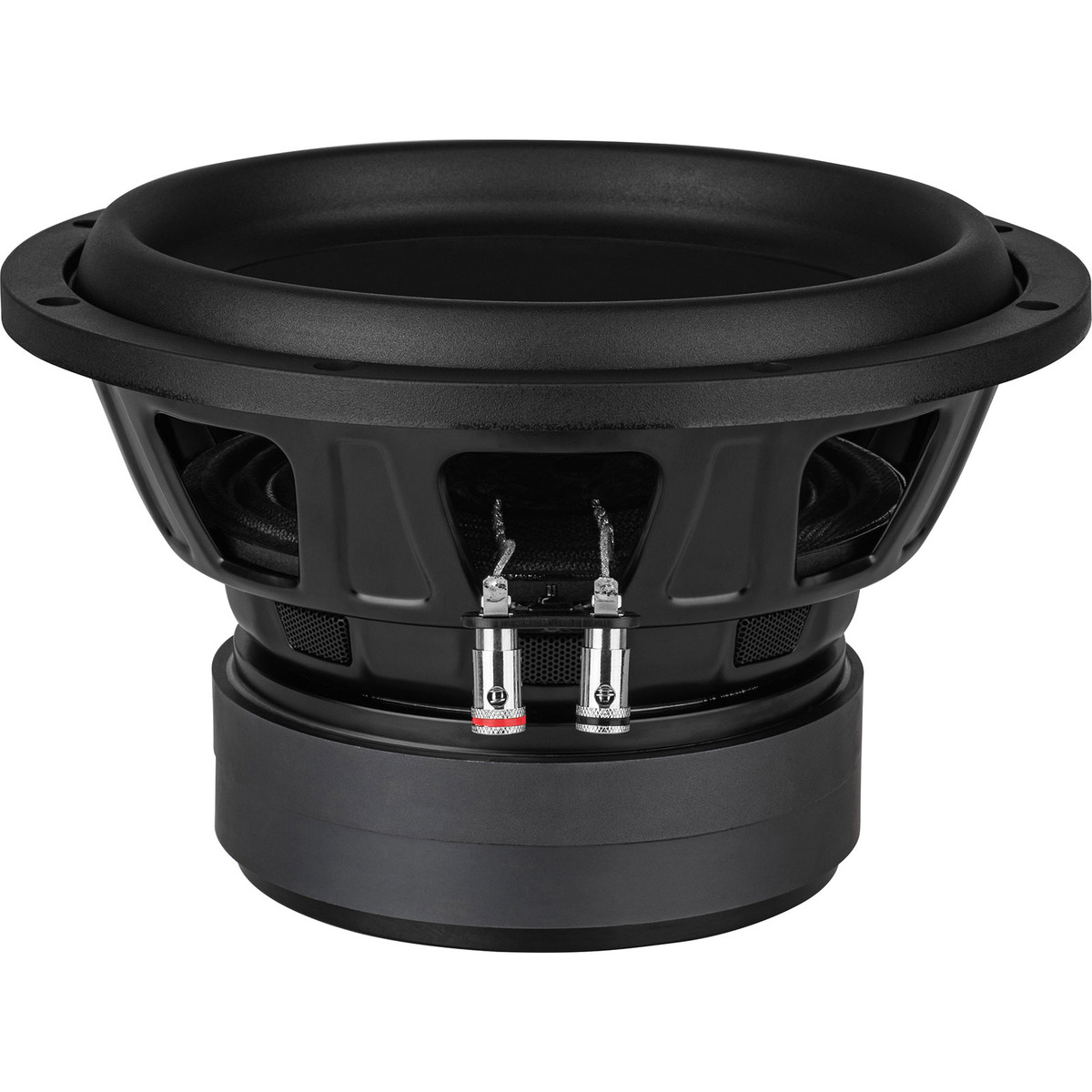

Dayton Audio MX12-22
Dayton Audio MX12-22 12" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil The Max-X MX12-22 12" dual voice coil high excursion subwoofer from Dayton Audio is built for incredible low frequency extension and high SPL. This affordable driver combines durability, efficiency, and maximum displacement into a great looking speaker that will deliver the deepest bass with power and authority. Optimized for use in compact enclosures this driver is ideal for home subwoofer designs and high impact car audio systems. Key Features ±18.8 mm Klippel verified excursion and maximized surface area for excellent displacement capability Seamless dish cone is extremely rigid and durable with a sleek and modern look Custom tooled surround allows long throw while maximizing cone surface area Extensive venting cools the voice coil enabling high power handling with low power compression Dual spiders maintain linear excursion for lower distortion even when pushed to the limit The dual 2 ohm voice coils give you the ability to get the most out of any amplifier Dayton Audio MX12-22 12" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil Designed to produce maximum output for an unbeatable value, Dayton Audio's MX12-22 Max-X 12" dual voice coil subwoofer driver has all of the features and performance you expect from premium subwoofers without the high price tag. Capable of high output low frequency response with remarkably low distortion, the MX12-22 is built for use in compact enclosures making it perfect for both home and car audio sounds systems. With 37.6 mm of peak to peak excursion capability (Klippel verified at 70% Bl) this driver is capable of moving serious amounts of air. It's about more than just looks Many budget subwoofer drivers look powerful, but just don't offer high performance. When designing the MX12-22, Dayton Audio did everything possible to keep the cost down without sacrificing performance or reliability. A large inverted dust cap completely covers the rigid pulp paper cone to create an extremely stiff layered diaphragm with a sleek and modern look. The narrow but tall custom tooled surround has been optimized to allow high excursion without reducing cone area to ensure maximum displacement with improved efficiency. In addition, the surround actually wraps around to the rear side of the mounting flange for maximum gluing surface area to handle the stress of high excursion without issue. To keep the cone linear, the MX12-22 uses dual spiders with ample spacing to make sure there is no rocking even when driven to its limit. Extensive venting to keep everything cool High output subwoofers can generate a lot of heat, excess heat build-up increases temperature which in turn causes resistance to climb. This will lead to lower output, power compression, and premature failure. The MX12-22 has everything it takes to move as much air as possible across the 2-1/2" voice coil to dissipate this excess heat. Six Large diameter vents in the cone combined with a flared pole piece vent creates a continuous flow of air directly through the center of the voice coil. The outside of the coil is cooled by eight under spider vents in the frame and six peripheral gap vents through the back plate. All of this airflow makes sure that power compression is kept to a minimum, but it also gives the MX12-22 extremely quiet operation even at high excursion, nearly eliminating the mechanical noise that is all to common with many of today's subwoofer drivers. A powerful motor for incredible flexibility Another common problem with many of today's budget subwoofer drivers is a lack of motor strength. This leads to drivers that are inefficient or are only capable of the "one note" bass that is the result of high Q drivers. The massive dual stacked high energy ferrite magnets have been optimized to drive the 2-1/2" voice coil efficiently with accuracy and precision. Also, the magnetic gap has been kept narrow to guarantee that there is as little loss of magnetic force as possible. This powerful motor assembly gives the MX12-22 an impressive Bl of 21.5 T/m with a Qts of 0.35, making it suitable for use in compact sealed or vented enclosures with excellent low frequency extension. Finally, with dual 2 ohm voice coils, the MX12-22 can be used in a number of configurations to make sure that you get maximum performance from your amplifier in almost any application. In most home audio designs the coils will be wired in series for a 4 ohm load. When used in car audio systems you have the option of running the coils separately for a dual 2 ohm load, or wired in parallel at 1 ohm to get the most power out of today's high current amplifiers. Maximum value to performance ratio Thanks to extensive optimization and advanced design, the Dayton Audio MX12-22 is a low-cost high-performance subwoofer that truly delivers incredible output capability and low distortion from compact designs. The Max-X drivers the perfect choice for building a powerful home stereo speaker, high SPL mobile audio system, or a sound quality based car audio system without breaking the bank. Note: All specifications measured with the voice coils wired in series for a 4 ohm load.
Dayton Audio MX10-22
Dayton Audio MX10-22 10" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil The Max-X MX10-22 10" dual voice coil high excursion subwoofer from Dayton Audio is built for incredible low frequency extension and high SPL. This affordable driver combines durability, efficiency, and maximum displacement into a great looking speaker that will deliver the deepest bass with power and authority. Optimized for use in compact enclosures this driver is ideal for home subwoofer designs and high impact car audio systems. Key Features ±13.7 mm Klippel verified excursion and maximized surface area for excellent displacement capability Seamless dish cone is extremely rigid and durable with a sleek and modern look Custom tooled surround allows long throw while maximizing cone surface area Extensive venting cools the voice coil enabling high power handling with low power compression Dual spiders maintain linear excursion for lower distortion even when pushed to the limit The dual 2 ohm voice coils give you the ability to get the most out of any amplifier Dayton Audio MX10-22 10" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil Designed to produce maximum output for an unbeatable value, Dayton Audio's MX10-22 Max-X 10" dual voice coil subwoofer driver has all of the features and performance you expect from premium subwoofers without the high price tag. Capable of high output low frequency response with remarkably low distortion, the MX10-22 is built for use in compact enclosures making it perfect for both home and car audio sounds systems. With 27.4 mm of peak to peak excursion capability (Klippel verified at 70% Bl) this driver is capable of moving serious amounts of air. It's about more than just looks Many budget subwoofer drivers look powerful, but just don't offer high performance. When designing the MX10-22, Dayton Audio did everything possible to keep the cost down without sacrificing performance or reliability. A large inverted dust cap completely covers the rigid pulp paper cone to create an extremely stiff layered diaphragm with a sleek and modern look. The narrow but tall custom tooled surround has been optimized to allow high excursion without reducing cone area to ensure maximum displacement with improved efficiency. In addition, the surround actually wraps around to the rear side of the mounting flange for maximum gluing surface area to handle the stress of high excursion without issue. To keep the cone linear, the MX10-22 uses dual spiders with ample spacing to make sure there is no rocking even when driven to its limit. Extensive venting to keep everything cool High output subwoofers can generate a lot of heat, excess heat build-up increases temperature which in turn causes resistance to climb. This will lead to lower output, power compression, and premature failure. The MX10-22 has everything it takes to move as much air as possible across the 2-1/2" voice coil to dissipate this excess heat. Six Large diameter vents in the cone combined with a flared pole piece vent creates a continuous flow of air directly through the center of the voice coil. The outside of the coil is cooled by eight under spider vents in the frame and six peripheral gap vents through the back plate. All of this airflow makes sure that power compression is kept to a minimum, but it also gives the MX10-22 extremely quiet operation even at high excursion, nearly eliminating the mechanical noise that is all to common with many of today's subwoofer drivers. A powerful motor for incredible flexibility Another common problem with many of today's budget subwoofer drivers is a lack of motor strength. This leads to drivers that are inefficient or are only capable of the "one note" bass that is the result of high Q drivers. The massive dual stacked high energy ferrite magnets have been optimized to drive the 2-1/2" voice coil efficiently with accuracy and precision. Also, the magnetic gap has been kept narrow to guarantee that there is as little loss of magnetic force as possible. This powerful motor assembly gives the MX10-22 an impressive Bl of 18.2 T/m with a Qts of 0.46, making it suitable for use in compact sealed or vented enclosures with excellent low frequency extension. Finally, with dual 2 ohm voice coils, the MX10-22 can be used in a number of configurations to make sure that you get maximum performance from your amplifier in almost any application. In most home audio designs the coils will be wired in series for a 4 ohm load. When used in car audio systems you have the option of running the coils separately for a dual 2 ohm load, or wired in parallel at 1 ohm to get the most power out of today's high current amplifiers. Maximum value to performance ratio Thanks to extensive optimization and advanced design, the Dayton Audio MX10-22 is a low-cost high-performance subwoofer that truly delivers incredible output capability and low distortion from compact designs. The Max-X drivers the perfect choice for building a powerful home stereo speaker, high SPL mobile audio system, or a sound quality based car audio system without breaking the bank. Note: All specifications measured with the voice coils wired in series for a 4 ohm load.
Dayton Audio MX6-22 Max-X Doppelschwingspule 2x2 Ohm
Der Subwoofer MX6-22 von Dayton Audio bietet beeindruckende Leistung in einem kompakten 6-1/2-Zoll-Chassis und sorgt für überraschend tiefe und kraftvolle Bässe an Orten, an denen größere Subwoofer einfach keinen Platz finden. Sein Long-Throw-Design, die belüftete Architektur und die verzerrungsmindernde Aluminium-Kurzschlusshülse sorgen für einen straffen, sauberen und kraftvollen Bass, egal ob Sie ihn in Ihrem Heimkino oder in Ihrem Car-Audio-Projekt einsetzen. Sein modernes, nahtloses Design passt zu jeder Einrichtung, und die robuste Konstruktion hält auch anspruchsvollen Tieftonimpulsen stand. Dank seiner doppelten 2-Ohm-Schwingspulen ist der MX6-22 mit den meisten Verstärkern kompatibel und liefert einen vollen, satten Bass für eine Vielzahl von Installationen. Hauptmerkmale Die Langhub-Konstruktion und die niedrige Resonanzfrequenz sorgen für eine kraftvolle Wiedergabe tiefer Frequenzen aus kompakten Gehäusen. Die konkave (Inverse) Staubkappe mit vollständiger Abdeckung verstärkt die Papiermembran und sorgt für ein klares, modernes Erscheinungsbild. Eine Aluminium-Kurzschlusshülse stabilisiert die Induktivität und sorgt für geringere Verzerrungen über den gesamten Betriebsbereich. Ein belüfteter Korb, ein belüfteter Polkern und Luftspaltbelüftungen verbessern den Luftstrom, um Wärmeentwicklung und Kompression zu reduzieren. Das Surround-Profil bedeckt den Rahmen und sorgt für ein nahtloses Erscheinungsbild und eine größere Klebefläche. Der präzisionsgefertigte Stahlrahmen bietet den für hohe Auslenkungsgrenzen erforderlichen strukturellen Freiraum. Zwei 2-Ohm-Schwingspulen ermöglichen flexible Verdrahtungsoptionen für eine optimale Verstärkerbelastung.
Dayton Audio MX5-22 Max-X Doppelschwingspule 2x2 Ohm
Der Subwoofer MX5-22 von Dayton Audio ermöglicht eine hochenergetische Basswiedergabe aus einem kompakten 5-1/4"-Format und liefert überraschende Tiefe und Wirkung in Installationen, in denen nur wenig Platz zur Verfügung steht. Sein Langhubmotor, die belüftete Architektur und die verzerrungsreduzierende Aluminium-Kurzschlusshülse sorgen gemeinsam für einen straffen, sauberen und kontrollierten Bass sowohl in Heim- als auch in Car-Audio-Anlagen. Eine den Konus ausfüllende, umgekehrte Staubkappe verleiht dem MX5-22 ein modernes, raffiniertes Aussehen, während seine robuste Konstruktion den Anforderungen eines kontinuierlichen Einsatzes mit hoher Auslenkung standhält. Dank seiner doppelten 2-Ohm-Schwingspulen lässt sich der MX5-22 problemlos in eine Vielzahl von Verstärkern integrieren und macht so eine leistungsstarke Tieftonwiedergabe fast überall möglich. Wichtigste Merkmale Der Langhubmotor und die niedrige Resonanzfrequenz unterstützen eine starke Basswiedergabe aus ultrakompakten Gehäusen. Die konkave Staubkappe mit vollständiger Abdeckung verstärkt die Membran und sorgt gleichzeitig für ein klares, modernes Aussehen. Eine Aluminium-Kurzschlusshülse stabilisiert die Induktivität und reduziert Verzerrungen über den gesamten Hub. Die robuste Aufhängung ist auf anhaltende hohe Auslenkung mit vorhersehbarer, linearer Bewegung abgestimmt. Das belüftete Motordesign verbessert den Luftstrom, um die Temperaturen niedrig und die Kompression gering zu halten. Zwei 2-Ohm-Schwingspulen bieten flexible Verdrahtungsmöglichkeiten für eine optimale Verstärkerkopplung. Der präzisionsgefertigte Stahlrahmen bietet den erforderlichen mechanischen Freiraum für einen tiefen Hub.
