Dayton Audio DAEX32EP-4
Dayton Audio DAEX32EP-4 Thruster 32mm Exciter 40W 4 Ohm Turn even large, rigid surfaces into speakers with the Dayton Audio DAEX32EP-4 Thruster exciter! Key Features Robust, heavy-duty design with a 32 mm voice coil attached to a steel spider Pre-applied 3M™ VHB™ adhesive for quick, secure installation Rare-earth neodymium motor and a proprietary two-layer voice coil 4-ohm impedance for use with small, Class D amplifiers 40 watt RMS power handling for high output Dayton Audio DAEX32EP-4 Thruster 32mm Exciter 40W 4 Ohm Dayton Audio's DAEX32EP-4 Thruster exciter is built to turn large, thick, rigid surfaces into speakers. The 32 mm voice coil is attached to a steel spider for maximum restoring force when large amounts of power are applied, making it perfect for large glass panes, furniture, and surfaces that would normally resist the effects of an exciter. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small Class D audio amplifiers, without sacrificing total output. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body ... just peel and stick! Two male spade quick-disconnect terminals are built onto the main body for quick electrical connection. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 40 watts RMS • VCdia: 32 mm • Nominal impedance: 4 ohms • Re: 3.3 ohms • Le: 0.21 mH • Fs (uncoupled): 395 Hz • Dimensions: 2.36" (60 mm) overall diameter x 0.98" (23 mm) total height • Adhesive dimensions: 1.64" (41.75) outside diameter, 0.86" (21.75 mm) inside diameter • Weight: 148 grams.
Dayton Audio DAEX25FHE-4
Dayton Audio DAEX25FHE-4 Framed High Efficiency 25mm Exciter 24W 4 Ohm Choose Dayton Audio's DAEX25FHE-4 sound exciter to add dynamic sound to almost any object or surface! Key Features Small size; just under 2" diameter, about 7/8" high Pre-applied 3M™ VHB™ adhesive for quick, durable installation Rare-earth neodymium motor and a proprietary voice coil 4-ohm impedance for use with small, Class D amplifiers 24 watt RMS power handling for high output Dayton Audio DAEX25FHE-4 Framed High Efficiency 25mm Exciter 24W 4 Ohm Dayton Audio's 25 mm DAEX25FHE-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! For permanent inverted mounting (or when mounting on moving surfaces), four screw tabs are also provided to support the weight of the exciter. Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 24 watts RMS • VCdia: 25 mm • Nominal impedance: 4 ohms • Re: 4.3 ohms • Le: 0.10 mH • Fs: 224 Hz • Dimensions: 1.99" (50.5 mm) dia. x 0.81" (20.5 mm) H • Adhesive dimensions: 1.09" (27.6 mm) outside diameter, 0.86" (21.8 mm) inside diameter • Weight: 110.9 grams.
Dayton Audio DAEX19CT-4
Dayton Audio DAEX19-4CT Coin Type 19mm Vented Exciter 5W 4 Ohm Take your product or project to the next level by turning it into a speaker! The DAEX19CT-4 sound exciter, by Dayton Audio, features voice coil vent holes for higher power handling Key Features Small size; just under 1-1/2" diameter, about 1/2" high Pre-applied 3M™ VHB™ adhesive for quick, durable installation Rare-earth neodymium motor with cooling vents for higher power handling 4-ohm impedance for use with small, Class D amplifiers Strategically-placed vent holes cool this exciter's voice coil for higher power handling Dayton Audio DAEX19CT-4 Coin Type 19mm Vented Exciter 5W 4 Ohm Dayton Audio's 19 mm DAEX19CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Cooling holes placed strategically on this exciter's housing allows for higher power handling, for applications where more output is desired, while maintaining a small form factor. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 5 watts RMS • VCdia: 19 mm • Nominal impedance: 4 ohms • Re: 3.8 ohms • Le: 0.04 mH • Fs: 637 Hz • Dimensions: 1.3" (33 mm) dia. x 0.51" (13 mm) H • Adhesive dimensions: 0.85" (21.5 mm) outside diameter, 0.63" (21.75 mm) inside diameter • Weight: 31.5 grams.
Dayton Audio DAEX25CT-4
Dayton Audio DAEX25CT-4 Coin Type 25mm Exciter 10W 4 Ohm Take your product or project to the next level by turning it into a speaker! The DAEX25CT-4 is designed by Dayton Audio with a 1" voice coil for 10 watt RMS power handling, for more output than most of the other coin-type exciters. Key Features Small size; just under 2" diameter, about 9/16" high Pre-applied 3M™ VHB™ adhesive for quick, durable installation Rare-earth neodymium motor and a proprietary voice coil 4-ohm impedance for use with small, Class D amplifiers 1" voice coil for 10 watt RMS power handling Dayton Audio DAEX25CT-4 Coin Type 25mm Exciter 10W 4 Ohm Dayton Audio's 25 mm DAEX25CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power for higher output applications while maintaining a slim-line form factor. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 10 watts RMS • VCdia: 25 mm • Nominal impedance: 4 ohms • Re: 3.6 ohms • Le: 0.07 mH • Fs (uncoupled): 306 Hz • Dimensions: 1.89" (48 mm) dia. x 0.59" (15 mm) H • Adhesive dimensions: 1.06" (27 mm) outside diameter • Weight: 74.6 grams.
Dayton Audio DAEX30HESF-4
Dayton Audio DAEX30HESF-4 High Efficiency Steered Flux Exciter with Shielding 30mm 40W 4 Ohm The DAEX30HESF-4 30 mm steered high flux exciter is one of the most powerful in Dayton Audio's line of exciters capable of handling up to 40 watts. A pre-attached 3M VHB adhesive ring combines with four screw-down mounting tabs for maximum energy transfer. Key Features High output exciter design handles up to 40 watts RMS Specially designed neodymium motor and proprietary voice coil 3M™ VHB™ adhesive ring with four mounting holes Low inductance (only 0.3 mH) motor for extended response Dayton Audio DAEX30HESF-4 High Efficiency Steered Flux Exciter with Shielding 30mm 40W 4 Ohm Dayton Audio's DAEX30HESF-4 steered high flux exciter is one of our most powerful. It has a specially designed neodymium motor system that imparts strong forces on even the most rigid surface for maximum output. For use with medium sized amplifiers, this steered high flux exciter incorporates a 4 ohm voice coil to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance of only 0.3 mH. Four threaded screw holes are integrated into the exciter's shell and combine with a 3M VHB (Very High Bond) adhesive, permitting this exciter to be securely coupled to a wide range of materials, even upside-down mounting and attaching to moving objects. Two solder tabs offer quick, permanent wire attachment. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 40 watts RMS • VCdia: 30 mm • Nominal impedance: 4 ohms • Re: 3.8 ohms • Le: 0.31 mH • Fs: 300 Hz • Dimensions: 2.25" dia.(2.75" across mounting tabs) x 1.125" H • Adhesive dimensions: 1.25" outside diameter • Weight: 158 grams.
Dayton Audio DAEX19SL-4
Dayton Audio DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm This tiny exciter packs one heck of a punch. Dayton Audio's DAEX19SL-4 4 ohm sound exciter can turn most light rigid surfaces into a speaker with a surprising amount of output. Perfect for adding audio to small toys, signs, and many other projects. Key Features Only 1.3" diameter by 0.26" high, can be installed almost anywhere Dual suspension for linear operation and lower distortion 4-ohm impedance for use with small, Class D amplifiers Pre-applied 3M™ VHB™ adhesive for quick, durable installation Dayton Audio DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm Dayton Audio's 19 mm DAEX19SL-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in an extremely compact package for working with smaller surfaces in the minimum amount of space. This exciter's small size and weight enables audio reproduction in places never imagined: toys, signs, cabinet doors, etc... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 4 watts RMS • VCdia: 19 mm • Nominal impedance: 4 ohms • Re: 2.94 ohms • Le: 0.01 mH • Fs: 630 Hz • Dimensions: 1.3" (33 mm) dia. x 0.26" (6.5 mm) H • Adhesive dimensions: 0.9" (23 mm) outside diameter, 0.63" (16 mm) inside diameter • Weight: 13.5 grams.
Dayton Audio DAEX32Q-4
Dayton Audio DAEX32Q-4 Dual Steel Spring Balanced 32mm Exciter 20W 4 Ohm When applied to vertical surfaces the Dayton Audio DAEX32Q-4 dual spring balanced exciter has more linear movement to deliver extremely accurate response while producing lower distortion. Key Features Dual steel spider design to better support the large neodymium motor 32 mm two layer voice coil for high, 20 watts RMS, power handling Pre-applied 3M VHB adhesive for quick, secure installation 4 ohm impedance to make the most out of small class D amplifiers Dayton Audio DAEX32Q-4 Dual Steel Spring Balanced 32mm Exciter 20W 4 Ohm The DAEX32Q-4 from Dayton Audio can turn most rigid, flat surfaces into a speaker. Designed specifically for mounting to vertical surfaces, this exciter uses a dual spring spider to better support the large neodymium motor providing improved linearity. With a 2-layer 32 mm voice coil, this exciter can handle up to 40 watts peak for high output even when attached to thicker surfaces. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M™ VHB™ (Very High Bond) adhesive is pre-applied... just peel and stick! This exciter is perfect for turning whatever you can imagine into a speaker such as cabinet doors, monitors, windows, garage doors, ect… Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 20 watts RMS, 40 watts peak • VCdia: 32 mm • Nominal impedance: 4 ohms • Re: 3.2 ohms • Le: 0.22 mH • Fs: 320 Hz • Dimensions: 2.38" (60.5 mm) dia. x 0.78" (19.9 mm) H • Adhesive dimensions: 1.26" (32 mm) outside diameter, 0.9" (23 mm) inside diameter • Weight: 132.6 grams.

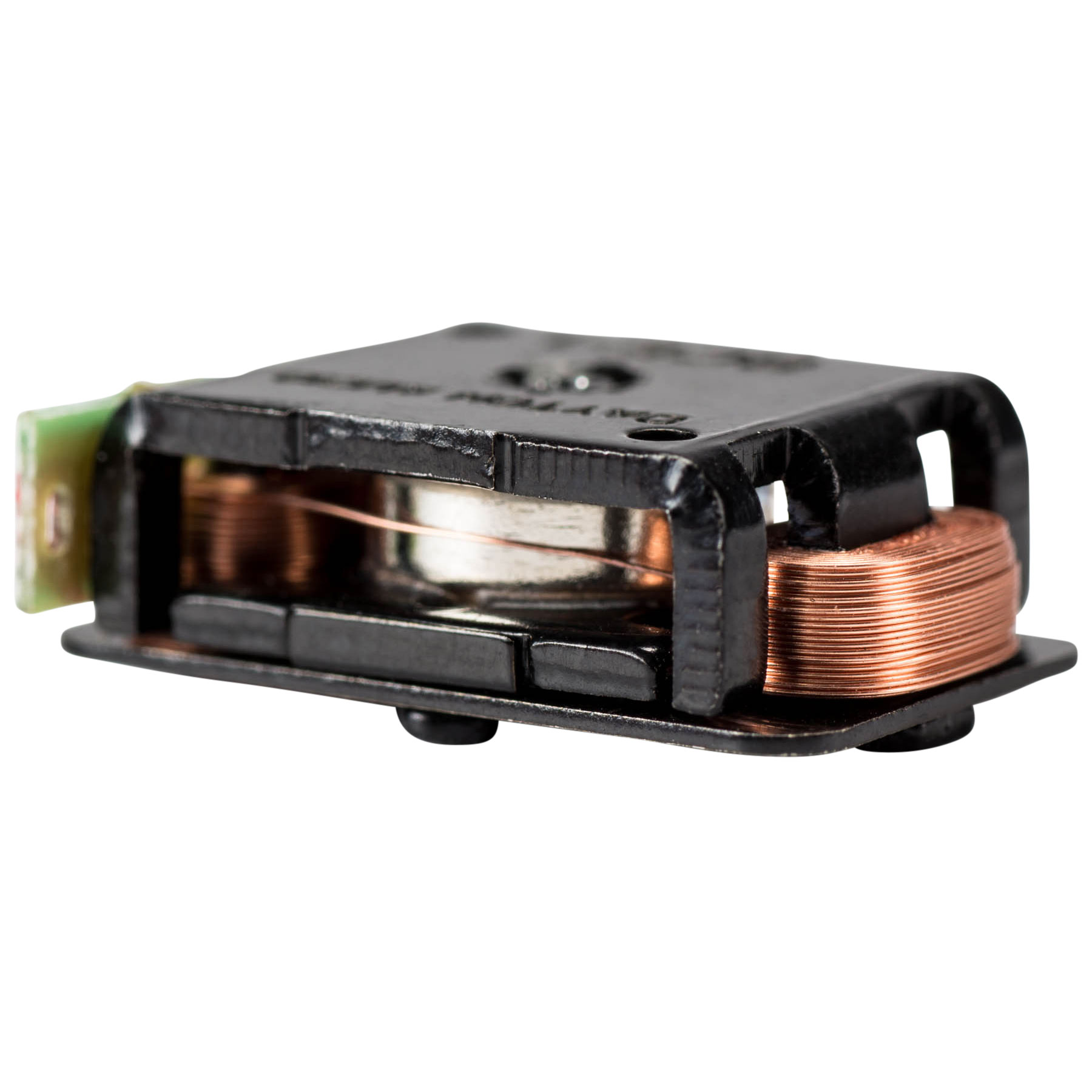

Dayton Audio DAEX-13-4SM
Dayton Audio DAEX-13-4SM Haptic Feedback Transducer 13mm 3W 4 Ohm Add audio to products and projects you never thought possible with the ultra-small Dayton Audio DAEX-13-4SM exciter. Measuring in at only 0.75" wide by 1.5" long and just 0.3" deep this exciter can fit almost anywhere. This exciter is also perfect for creating haptic feedback systems. Key Features Extremely small but powerful design can fit almost anywhere Perfect for creating haptic (touch) feedback systems Unique suspension allows high excursion for surprisingly powerful response Rare-earth neodymium motor and a proprietary 13 mm voice coil 4-ohm impedance for use with small, Class D amplifiers Pre-applied 3M™ VHB™ adhesive for quick, durable installation Dayton Audio DAEX-13-4SM Haptic Feedback Transducer 13mm 3W 4 Ohm Dayton Audio's DAEX-13-4SM exciter will allow you to add audio or haptic (tactile) feedback to even the smallest projects. This 13 mm exciter is an ideal option when designing pocket sized personal speakers or for adding audio to small art projects and models. At only 0.75" wide by 1.5" long, this exciter is even perfect for use in virtual reality haptic feedback systems such as gloves and headsets. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The unique suspension is capable of high physical excursion to allow this extremely small and lightweight exciter to deliver an impressive amount of force while remaining linear. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 3 watts RMS • VCdia: 13 mm • Nominal impedance: 4 ohms • Re: 3.7 ohms • Le: 0.022 mH • Fs: 950 Hz • Dimensions: 0.74" (18.5 mm) W x 1.51" (38.5 mm) L x 0.31" (8 mm) H • Adhesive dimensions: 0.65" (16.5 mm) outside diameter • Weight: 6.7 grams.
Dayton Audio DAEX32QMB-4
Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32QMB-4 4 ohm 40 watt sound exciter improves power handling with a vented voice coil. Key Features Large 32 mm voice coil improves power handling to 40 watts RMS Rare-earth neodymium motor and a proprietary vented voice coil Four arms provide extra support improving linearity Turns any flat, rigid surface into a speaker Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm Dayton Audio's DAEX32QMB-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1.25" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick! Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications:• Power handling: 40 watts RMS • VCdia: 1.25" (32 mm) • Nominal impedance: 4 ohms • Re: 3.7 ohms • Le: 0.23 mH • Fs: 480 Hz • Dimensions: 3.125" (80 mm) overall diameter x 0.875" (22 mm) total height • Weight: 130 grams.
Dayton Audio EX32EP2-4 IMS™ Thruster 32mm Interchangeable Hardware Mount Exciter 40W 4 Ohm
Dayton Audio EX32EP2-4 IMS™ Thruster 32mm Interchangeable Hardware Mount Exciter 40W 4 OhmTurn even large, rigid surfaces into speakers with the Dayton Audio EX32EP2-4 Thruster exciter now with the exclusive IMS™ interchangeable mount Key FeaturesRobust, heavy-duty design with a 32 mm voice coil attached to a steel spider Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters Rare-earth neodymium motor and a proprietary two-layer voice coil 40 watt RMS power handling for high output Easily swap non-functional units out in the field 4-ohm impedance for use with small, Class D amplifiers Pre-applied 3M VHB™ adhesive for quick, durable installation Test the limits of your imagination and turn any surface into a great sounding speaker system Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Dayton Audio IMS™ Interchangeable Mount exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system even allows you to try out the assortment of exciters offered by Dayton Audio! Aural Excitement Dayton Audio's 25 mm EX25VT2-4 IMS™ coin type exciter features the ability to turn nearly any surface into a speaker, this exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor. Exclusive IMS™ Interchangeable Mounting SystemWith Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M VHB™ Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters. Orten, die man sich nie vorstellen konnte: Spielzeug, Monitore, Schranktüren... sogar Fenster! Durch den Einsatz eines Neodym-Magneten wird ein maximaler magnetischer Fluss um die firmeneigene Schwingspule erzeugt, was zu einer höheren Empfindlichkeit im Vergleich zu Excitern ähnlicher Größe führt. Dies wiederum reduziert den Leistungsbedarf und ermöglicht die Verwendung sehr kleiner Audioverstärker, ohne dass die Gesamtleistung beeinträchtigt wird. Die 1-Zoll-Schwingspule und die Kühlluftöffnungen ermöglichen eine höhere Eingangsleistung für Anwendungen mit höherer Ausgangsleistung bei gleichzeitiger Beibehaltung eines schlanken Formfaktors. Exklusives IMS™ System zur austauschbaren Befestigung Mit dem exklusiven IMS™-Montagesystem von Dayton Audio können Sie viele verschiedene Konfigurationen, Platzierungen und Erreger ausprobieren, um die beste Kombination für Ihr Projekt zu finden. Jeder Erreger wird mit einem Montagepad mit Gewinde geliefert, das überall fest installiert werden kann. Die Installation ist einfach: Entfernen Sie das Pad von der Erregerbaugruppe, befestigen Sie das Pad mit 2 Schrauben oder mit dem 3M VHB™-Kleber an Ihrem Projekt und schrauben Sie die Erregerbaugruppe wieder auf das Pad! Die zerstörungsfreie Art der austauschbaren Halterung ermöglicht es Ihnen, verschiedene Erreger zu kombinieren oder nicht funktionierende Einheiten vor Ort auszutauschen, ohne eine Beschädigung Ihres Projekts oder der Erreger zu riskieren.
Dayton Audio EX2HMP-5 IMS™ Exciter Austausch Montageplatte 1 Stück
Dayton Audio EX2HMP-5 IMS™ Exciter Replacement Mounting Plate 1 PieceDer EX2HMP ist Teil eines exklusiven austauschbaren IMS™-Montagesystems von Dayton Audio, das mit allenIMS™-Exciters from Dayton Audio is compatible! Main features Exclusive interchangeable IMS™ mounting systemCompatible with all IMS™ exciters from Dayton Audio Screw-on 2-hole mount with pre-applied3M VHB™ adhesive for a quick, secure installation
Dayton Audio DAEX25VT-4
Dayton Audio DAEX25VT-4 Vented 25mm Exciter 20W 4 Ohm Take your product or project to the next level by turning it into a speaker! The DAEX25VT-4 is designed by Dayton Audio with voice coil cooling air vents, for high-power applications. Key Features Small size; just over 2" diameter, about 7/8" high Pre-applied 3M™ VHB™ adhesive for quick, secure installation Rare-earth neodymium motor and a proprietary voice coil 4-ohm impedance for use with small, Class D amplifiers 20 watt RMS power handling for high output Dayton Audio DAEX25VT-4 Vented 25mm Exciter 20W 4 Ohm Dayton Audio's 25 mm DAEX25VT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 20 watts RMS • VCdia: 25 mm • Nominal impedance: 4 ohms • Re: 4.2 ohms • Le: 0.24 mH • Fs: 230 Hz • Dimensions: 2.02" (51.4 mm) dia. x 0.81" (20.5 mm) H • Adhesive dimensions: 1.10" (28 mm) outside diameter, 0.85" (21. 5 mm) inside diameter • Weight: 77.5 grams.

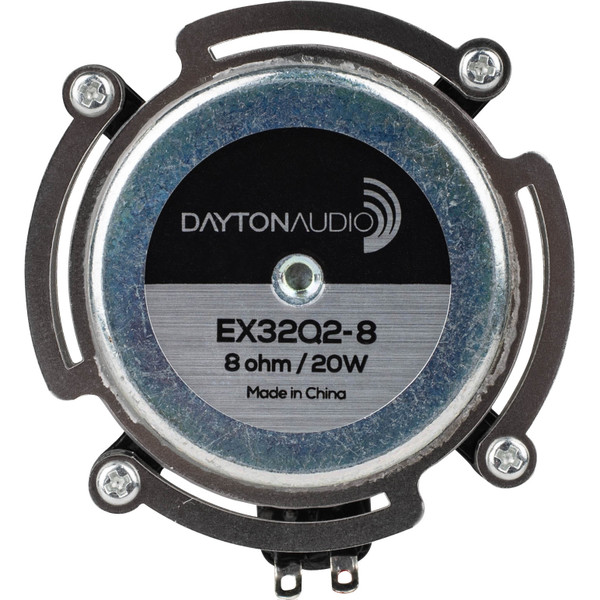

Dayton Audio EX32Q2-8 IMS™ Dual Steel Spring Balanced Interchangeable Hardware Mount 32mm Exciter 20
Dayton Audio EX32Q2-8 IMS™ Dual Steel Spring Balanced Interchangeable Hardware Mount 32mm Exciter 20W 8 OhmWhen applied to vertical surfaces the Dayton Audio EX32Q2-8 IMS™ dual spring balanced exciter has more linear movement to deliver extremely accurate response while producing lower distortion, now with the exclusive IMS™ Interchangeable mount Key FeaturesDual steel spider design to better support the large motorExclusive IMS™ Interchangeable mount allows you to A/B test different exciters Rare-earth neodymium motor and a proprietary voice coil 32 mm two layer voice coil for high, 20 watts RMS, power handling Easily swap non-functional units out in the field 8-ohm impedance for use with small, Class D amplifiers Pre-applied 3M VHB™ adhesive for quick, durable installation Test the limits of your imagination and turn any surface into a great sounding speaker system Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Dayton Audio IMS™ Interchangeable Mount exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system allows you to try out the assortment of exciters offered by Dayton Audio! Aural Excitement The EX32Q2-8 IMS™ from Dayton Audio can turn most rigid, flat surfaces into a speaker. Designed specifically for mounting to vertical surfaces, this exciter uses a dual spring spider to better support the large neodymium motor providing improved linearity. With a 2-layer 32 mm voice coil, this exciter can handle up to 40 watts peak for high output even when attached to thicker surfaces. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Exclusive IMS™ Interchangeable Mounting System With Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters. Der EX32Q2-8 IMS™ von Dayton Audio kann die meisten starren, flachen Oberflächen in einen Lautsprecher verwandeln. Dieser Exciter wurde speziell für die Montage an vertikalen Oberflächen entwickelt und verwendet eine doppelte Federspinne, um den großen Neodym-Motor besser zu unterstützen und eine bessere Linearität zu erreichen. Mit einer 2-lagigen 32-mm-Schwingspule kann dieser Exciter eine Spitzenleistung von bis zu 40 Watt erbringen, selbst wenn er an dickeren Oberflächen angebracht ist. Durch den Einsatz eines Neodym-Magneten wird ein maximaler magnetischer Fluss um die firmeneigene Schwingspule erzeugt, was zu einer höheren Empfindlichkeit im Vergleich zu Erregern ähnlicher Größe führt. Dies wiederum reduziert den Leistungsbedarf und ermöglicht die Verwendung sehr kleiner Audioverstärker, ohne dass die Gesamtleistung beeinträchtigt wird. Exklusives IMS™ System zur austauschbaren Befestigung Mit dem exklusiven, austauschbaren IMS™-Montagesystem von Dayton Audio können Sie viele verschiedene Konfigurationen, Platzierungen und Exciter ausprobieren, um die beste Kombination für Ihr Projekt zu finden. Jeder Exciter wird mit einem Montagepad mit Gewinde geliefert, das überall fest installiert werden kann. Die Installation ist einfach: Entfernen Sie das Pad von der Erregerbaugruppe, befestigen Sie das Pad mit 2 Schrauben oder mit dem 3M-Kleber an Ihrem Projekt und schrauben Sie die Erregerbaugruppe wieder auf das Pad! Die zerstörungsfreie Art der austauschbaren Halterung ermöglicht es Ihnen, verschiedene Erreger zu vergleichen oder nicht funktionierende Einheiten vor Ort auszutauschen, ohne eine Beschädigung Ihres Projekts oder der Erreger zu riskieren.

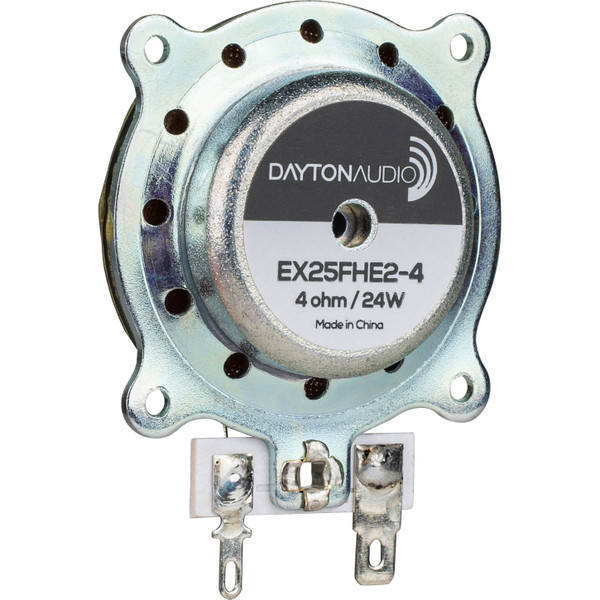

Dayton Audio EX25FHE2-4 IMS™ Framed High Efficiency 25mm Interchangeable Hardware Mount Exciter 24W
Dayton Audio EX25FHE2-4 IMS™ Framed High Efficiency 25mm Interchangeable Hardware Mount Exciter 24W 4 OhmChoose Dayton Audio's EX25FHE-4 IMS™ sound exciter to add dynamic sound to almost any object or surface! Key FeaturesSmall size; just under 2" diameter, about 7/8" high Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters Rare-earth neodymium motor and a proprietary voice coil 24 watt RMS power handling for high output Easily swap non-functional units out in the field 4-ohm impedance for use with small, Class D amplifiers Pre-applied 3M VHB™ adhesive for quick, durable installation Test the limits of your imagination and turn any surface into a great sounding speaker system Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Dayton Audio IMS™ Interchangeable Mount exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system allows you to try out the assortment of exciters offered by Dayton Audio! Aural Excitement Dayton Audio's 25 mm EX25FHE2-4 IMS™ coin type exciter features the ability to turn nearly any surface into a speaker, this exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor. Exclusive IMS™ Interchangeable Mounting SystemWith Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters. Orten, die man sich nie vorstellen konnte: Spielzeug, Monitore, Schranktüren... sogar Fenster! Durch den Einsatz eines Neodym-Magneten wird ein maximaler magnetischer Fluss um die firmeneigene Schwingspule erzeugt, was zu einer höheren Empfindlichkeit im Vergleich zu Excitern ähnlicher Größe führt. Dies wiederum reduziert den Leistungsbedarf und ermöglicht die Verwendung sehr kleiner Audioverstärker, ohne dass die Gesamtleistung beeinträchtigt wird. Die 1-Zoll-Schwingspule und die Kühlluftöffnungen ermöglichen eine höhere Eingangsleistung für Anwendungen mit höherer Ausgangsleistung bei gleichzeitiger Beibehaltung eines schlanken Formfaktors. Exklusives IMS™ System zur austauschbaren Befestigung Mit dem exklusiven, austauschbaren IMS™-Montagesystem von Dayton Audio können Sie viele verschiedene Konfigurationen, Platzierungen und Exciter ausprobieren, um die beste Kombination für Ihr Projekt zu finden. Jeder Exciter wird mit einem Montagepad mit Gewinde geliefert, das überall fest installiert werden kann. Die Installation ist einfach: Entfernen Sie das Pad von der Erregerbaugruppe, befestigen Sie das Pad mit 2 Schrauben oder mit dem 3M-Kleber an Ihrem Projekt und schrauben Sie die Erregerbaugruppe wieder auf das Pad! Die zerstörungsfreie Art der austauschbaren Halterung ermöglicht es Ihnen, verschiedene Erreger zu vergleichen oder nicht funktionierende Einheiten vor Ort auszutauschen, ohne eine Beschädigung Ihres Projekts oder der Erreger zu riskieren.

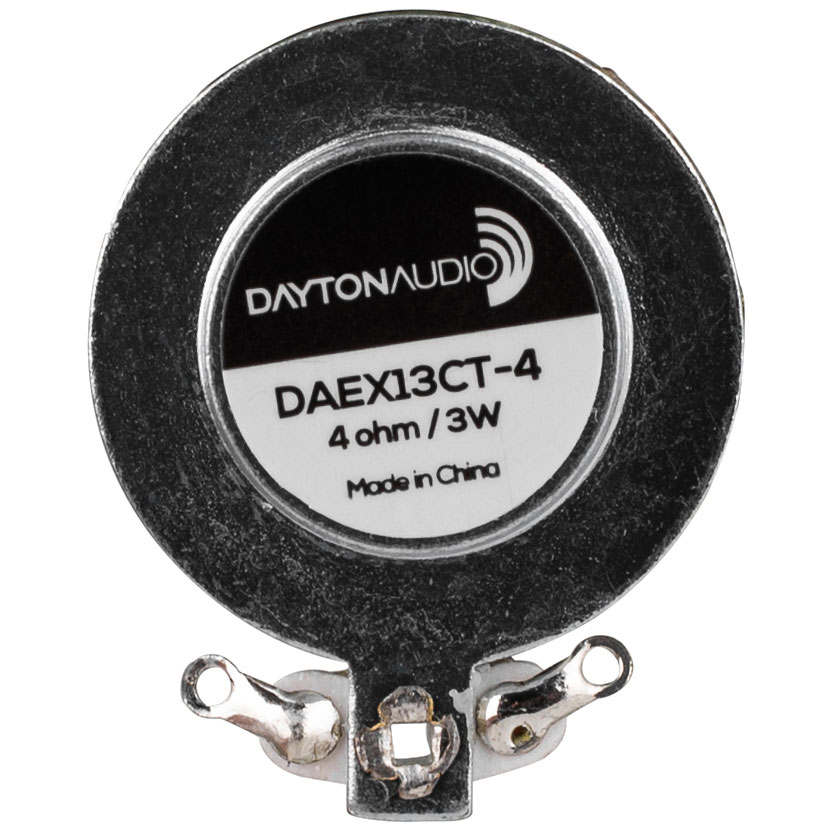

Dayton Audio DAEX13CT-4
Dayton Audio DAEX13-4CT Coin Type 13mm Exciter 3W 4 Ohm Take your product or project to the next level by turning it into a speaker! The DAEX13CT-4 sound exciter, by Dayton Audio, is designed to turn small surfaces into a hidden sound source. Key Features Super small size; just over an inch in diameter, about 3/8" high Pre-applied 3M™ VHB™ adhesive for a quick, secure installation Rare-earth neodymium motor 4-ohm impedance for use with small, Class D amplifiers Dayton Audio DAEX13CT-4 Coin Type 13mm Exciter 3W 4 Ohm Dayton Audio's 13 mm DAEX13CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Its 4-ohm nominal impedance facilitates the use of series and series-parallel wired arrays for a highly focused, minimum dispersion sound pattern. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 3 watts RMS • VCdia: 13 mm • Nominal impedance: 4 ohms • Re: 3.6 ohms • Le: 0.04 mH • Fs: 650 Hz • Dimensions: 1.04" (26.3 mm) dia. x 0.374" (9.5 mm) H • Adhesive dimensions: 0.62" (15.7 mm) outside diameter • Weight: 12.5 grams.

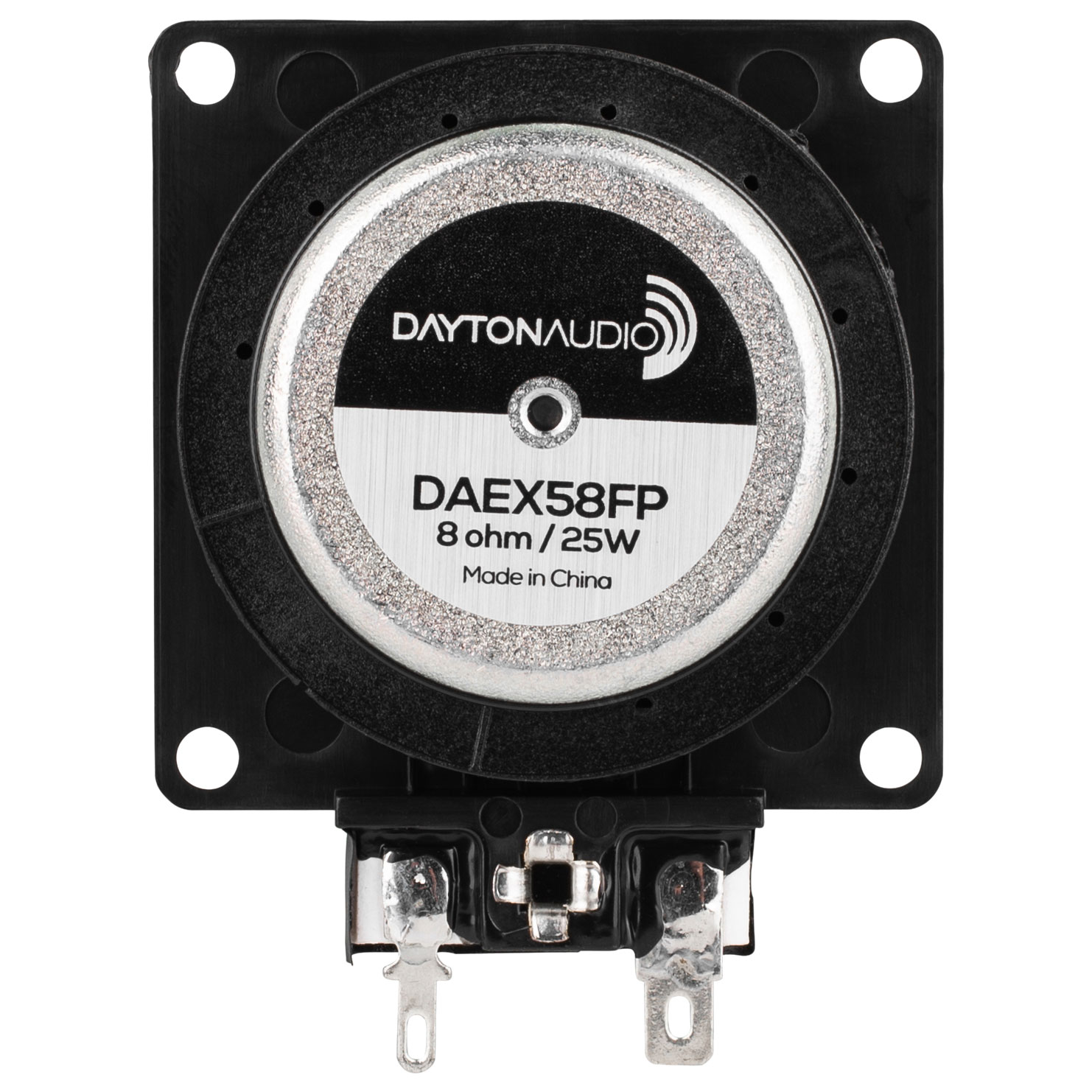

Dayton Audio DAEX58FP
Dayton Audio DAEX58FP Flat Pack 58mm Exciter 25W 8 Ohm Dayton Audio's DAEX58FP Flat Pack exciter is the perfect choice to turn virtually any solid object into a speaker by vibrating it at speeds of up to 20,000 cycles per second. The DAEX58FP allows for the placement of sound where depth and space is limited. Key Features Super small size with low profile height 8 ohm impedance for use in almost any amplifier Includes mounting plate Adds sound to any surface Dayton Audio DAEX58FP Flat Pack 58mm Exciter 25W 8 Ohm Ideal for commercial or residential sound applications, the Dayton Audio DAEX58FP Flat Pack exciter easily mounts to most any surface using adhesives (3M tape or gel glue recommended) or screw mounted. A 2-1/4" square plate can be attached to virtually any flat surface to produce amazing sound, creating a speaker from most any surface area. Surface materials include: cardboard, glass, wood, steel, sheet rock, and more. The 58 mm exciter is heavily used in the automotive, industrial, point-of-sale, retail display, marine, aeronautical industry, digital signage, and art field, along with many other applications where space and depth limitations are a concern. The flat surface of this transducer can be glued, screwed or double face taped to a wide variety of surfaces to suit almost endless needs. Surfaces include metal cabinets, glass panes, picture frames, wood tiles, under table surfaces, inside display cabinets, cardboard signs, sheet metal and much more. Typical Applications: • Retail display cases and store fronts • Public exhibits • Self service counters • Digital signage Specifications: • Power handling: 25 watts RMS/40 watts max • Impedance: 8 ohm • Le: 0.47 mH • Fs: 240 Hz • Voice coil diameter: 1.28" • Dimensions: Overall: 2.28" x 2.28" square, Depth: 0.79" • Mounting pattern: 2" x 2".

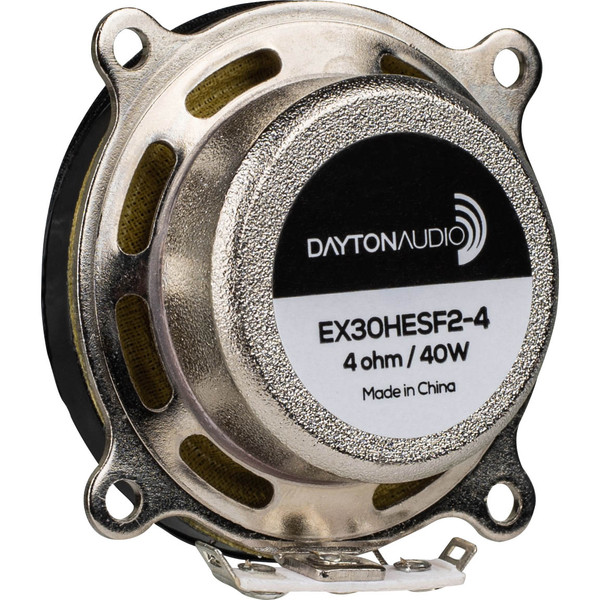

Dayton Audio EX30HESF2-4 IMS™ High Efficiency Steered Flux Interchangeable Hardware Mount Exciter 30
Dayton Audio EX30HESF2-4 IMS™ High Efficiency Steered Flux Interchangeable Hardware Mount Exciter 30mm 40W 4 OhmThe EX30HESF2-4 IMS™ 30 mm steered high flux exciter is one of the most powerful in Dayton Audio's line of exciters capable of handling up to 40 watts. A pre-attached 3M VHB™ adhesive ring and Interchangeable mounting system combines with four screw-down mounting tabs for maximum energy transfer. Key FeaturesSmall size; just under 2" diameter Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters Rare-earth neodymium motor and a proprietary voice coil High output exciter design handles up to 40 watts RMS Easily swap non-functional units out in the field 4-ohm impedance for use with small, Class D amplifiers Pre-applied 3M VHB™ adhesive for quick, durable installation Test the limits of your imagination and turn any surface into a great sounding speaker system Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Dayton Audio IMS™ Interchangeable Mount exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system allows you to try out the assortment of exciters offered by Dayton Audio! Aural ExcitementDayton Audio's EX30HESF-4 IMS™ steered high flux exciter is one of our most powerful. This steered high flux exciter incorporates a 4 ohm voice coil for use with medium sized amplifiers to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance of only 0.3 mH. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.Exclusive IMS™ Interchangeable Mounting SystemWith Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters. Ausführungen verwendet werden, um ein bestehendes, nicht-audio-spezifisches Projekt einfach zu beschallen oder ein tragbares Lautsprechersystem zu erstellen. Das einzigartige Montagesystem ermöglicht es Ihnen, das Sortiment der von Dayton Audio angebotenen Exciter auszuprobieren! Akustische Begeisterung Dayton Audios EX30HESF-4 IMS™ gesteuerter High-Flux Exciter ist einer unserer leistungsstärksten Exciter. Dieser gesteuerte High Flux Exciter verfügt über eine 4-Ohm-Schwingspule für den Einsatz mit mittelgroßen Verstärkern, um maximale Leistung zu erzielen. Die niedrige Induktivität von nur 0,3 mH ermöglicht einen weiten Frequenzgang des Erregers. Durch den Einsatz eines Neodym-Magneten wird ein maximaler magnetischer Fluss um die firmeneigene Schwingspule erzeugt, was zu einer höheren Empfindlichkeit im Vergleich zu Erregern ähnlicher Größe führt. Dies wiederum reduziert den Leistungsbedarf und ermöglicht die Verwendung sehr kleiner Audioverstärker, ohne dass die Gesamtleistung beeinträchtigt wird. Exklusives IMS™ System zur austauschbaren Befestigung Mit dem exklusiven, austauschbaren IMS™-Montagesystem von Dayton Audio können Sie viele verschiedene Konfigurationen, Platzierungen und Exciter ausprobieren, um die beste Kombination für Ihr Projekt zu finden. Jeder Exciter wird mit einem Montagepad mit Gewinde geliefert, das überall fest installiert werden kann. Die Installation ist einfach: Entfernen Sie das Pad von der Erregerbaugruppe, befestigen Sie das Pad mit 2 Schrauben oder mit dem 3M-Kleber an Ihrem Projekt und schrauben Sie die Erregerbaugruppe wieder auf das Pad! Die zerstörungsfreie Art der austauschbaren Halterung ermöglicht es Ihnen, verschiedene Erreger zu vergleichen oder nicht funktionierende Einheiten vor Ort auszutauschen, ohne eine Beschädigung Ihres Projekts oder der Erreger zu riskieren.

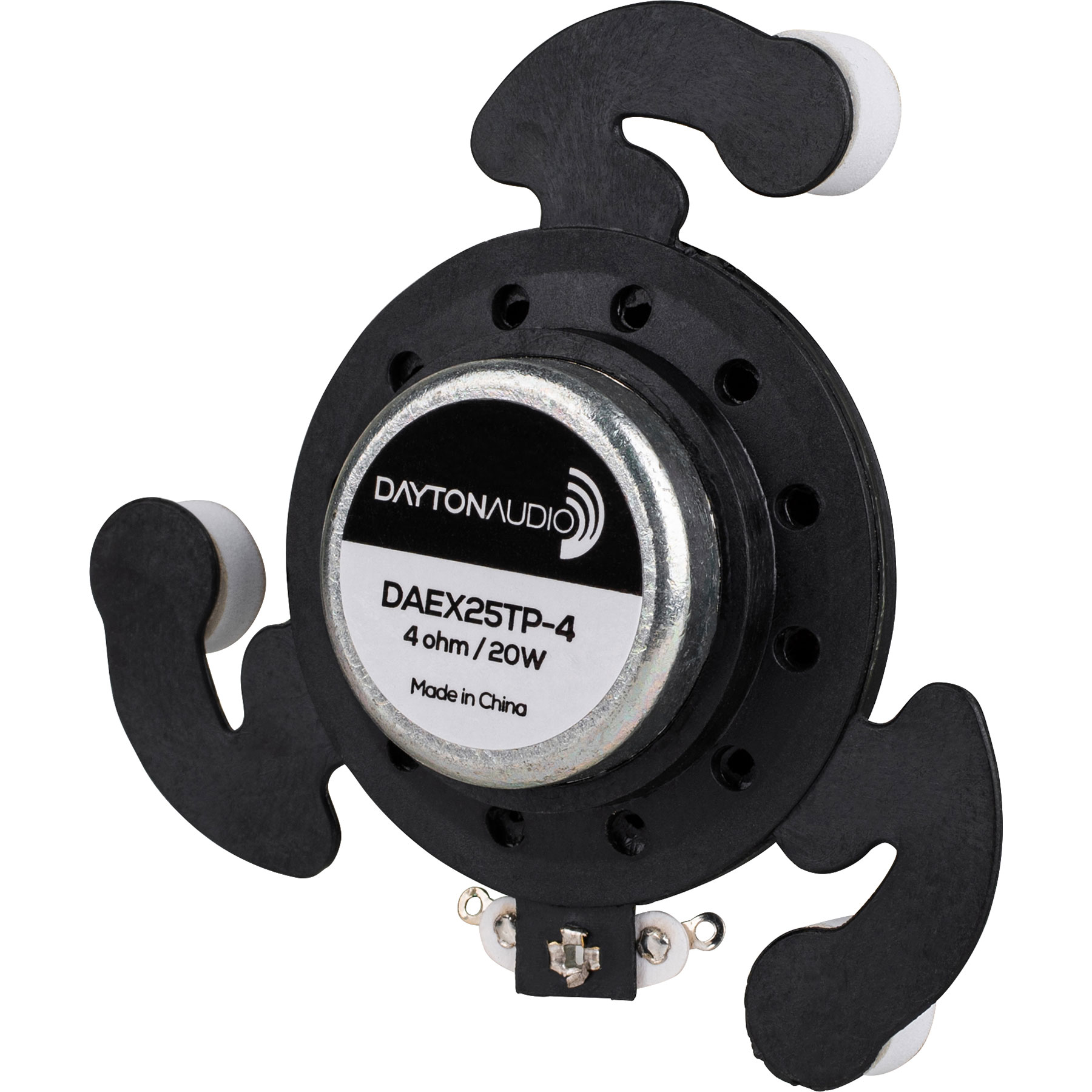

Dayton Audio DAEX25TP-4
Dayton Audio DAEX25TP-4 Tripod 25mm Exciter 20W 4 Ohm For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25TP-4 features three extended arms. Cooling vents draw air across the propietary voice coil for higher power handling. Key Features Unique, three arm design for exciting a large surface Pre-applied 3M™ VHB™ adhesive for quick, secure installation Rare-earth neodymium motor and a proprietary voice coil 4-ohm impedance for use with small, Class D amplifiers 20 watt RMS power handling for high output Dayton Audio DAEX25TP-4 Tripod 25mm Exciter 20W 4 Ohm Dayton Audio's DAEX25TP-4 tripod exciter is built with three arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the three arms ... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 20 watts RMS • VCdia: 25 mm • Nominal impedance: 4 ohms • Re: 4.2 ohms • Le: 0.10 mH • Fs: 233 Hz • Dimensions: 3.49" (88.71 mm) overall diameter x 0.83" (21 mm) total height • Weight: 82 grams

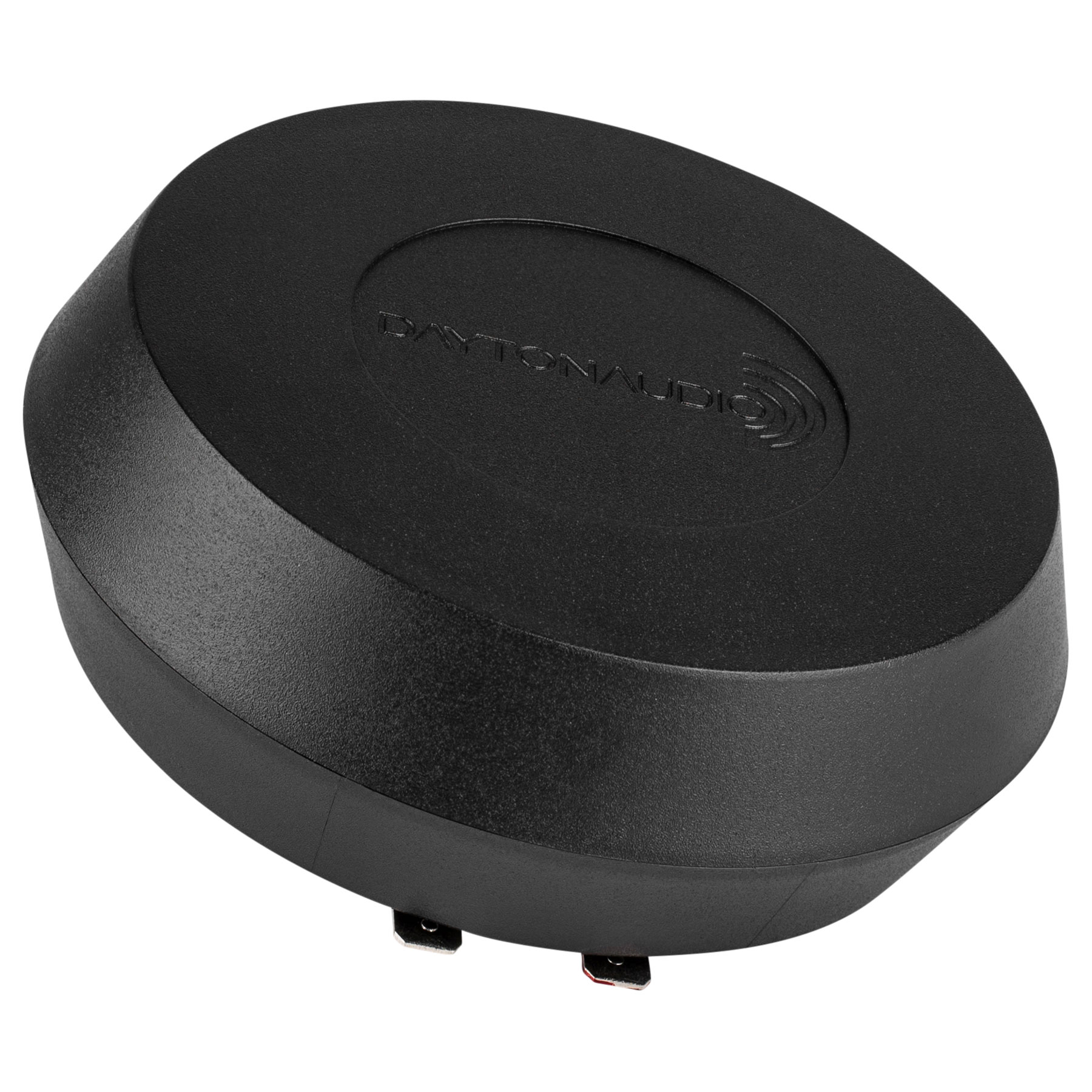

Dayton Audio HDN-8
Dayton Audio HDN-8 Weatherproof Sound Exciter Transducer Compact and extremely versatile, the HDN-8 Sound Exciter Transducer lets you create high-quality ‘hidden speakers’ in walls, ceilings, floors, furniture, seating, and virtually any other surface you can think of resulting in great invisible sound. Key Features Rugged plastic housing with flat black finish Coarse-threaded mounting stud for single-point mounting into almost any material Hermetically-sealed design for installation in wet or humid environments Dayton Audio HDN-8 Weatherproof Sound Exciter Transducer Unlike a tactile transducer that delivers 'shake' effects to your listening experience, the HDN-8 Sound Exciter Transducer is a full range, versatile, compact transducer that can excite a surface or structure over a wide bandwidth, enabling the creation of completely hidden audio systems in walls, ceilings, and floors. Its high power handling allows it to produce useful sound levels with a small number of transducers, and its hermetically-sealed design permits indoor or outdoor installation, even in wet or humid environments such as outside decking or an inside bath/shower installations. It features a single, coarse-threaded mounting stud that easily installs into wood, fiberglass, or plastic, and the 8-ohm impedance allows integration with conventional audio amplifiers. Specifications: • Frequency response: 40–15,000 (typical) • Sensitivity: varies by application • Dimensions: 4" W x 1.75" H • Impedance: 8 ohms • Power handling: 50 watts RMS / 100 watts maximum. Frequency response is dependent upon the resonant nature of the material the HDN-8 is mounted to, as well as the type of environment and mounting configuration selected. Additional information: The HDN-8 is a transducer that produces sound through resonating surface area. The surface area and material act as a carrier for the sound energy. Because the sound is through resonation rather than vibration, the surface material will move no more than .01 inch. This is less than most surfaces contracting naturally from humidity and changes in the weather. If mounted behind drywall there will be no damage to the drywall joints or drywall screws. Because the HDN-8 is not designed using a cone or surround, there are no parts that are susceptible to damage. Every HDN-8 is fully tested at the factory to perform to manufactured specifications.

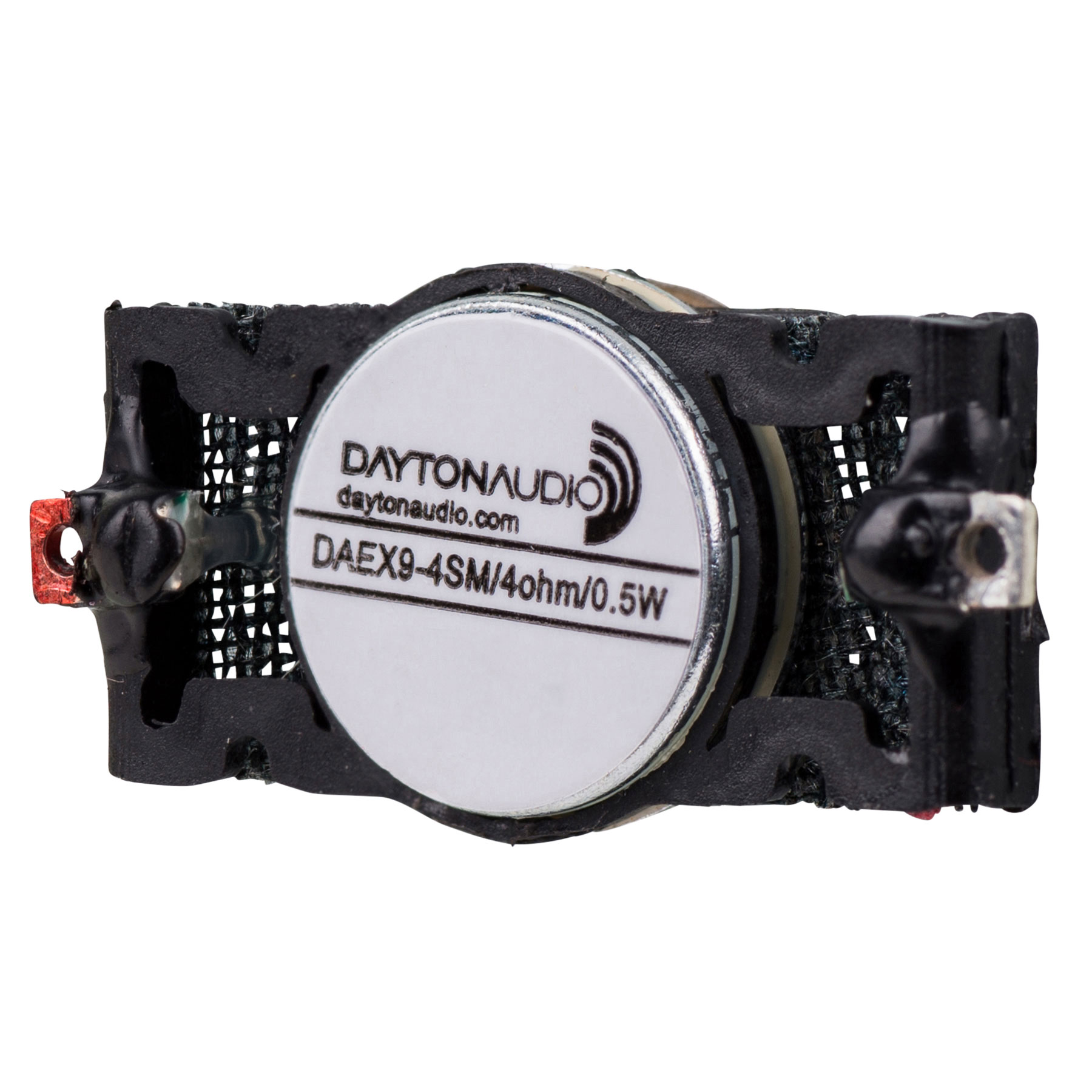

Dayton Audio DAEX-9-4SM
Dayton Audio DAEX-9-4SM Haptic Feedback Transducer 9mm 1W 4 Ohm Add audio to products and projects you never thought possible with the ultra-small Dayton Audio DAEX-9-4SM exciter. Measuring in at only 0.5" wide by 1" long and just 0.25" deep this exciter can fit almost anywhere. This exciter is also perfect for creating haptic feedback systems. Key Features Extremely small design can fit almost anywhere Perfect for creating haptic (touch) feedback systems Unique suspension allows high excursion for surprisingly powerful response Rare-earth neodymium motor and a proprietary 9 mm voice coil 4-ohm impedance for use with small, Class D amplifiers Pre-applied 3M™ VHB™ adhesive for quick, durable installation Dayton Audio DAEX-9-4SM Haptic Feedback Transducer 9mm 1W 4 Ohm Dayton Audio's DAEX-9-4SM exciter will allow you to add audio or haptic (tactile) feedback to even the smallest projects. This 9 mm exciter is an ideal option when designing pocket sized personal speakers or for adding audio to small art projects and models. At only 0.5" wide by 1" long, this exciter is even perfect for use in virtual reality haptic feedback systems such as gloves and headsets. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The unique suspension is capable of high physical excursion to allow this extremely small and lightweight exciter to deliver an impressive amount of force while remaining linear. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 1 watt RMS • VCdia: 9 mm • Nominal impedance: 4 ohms • Re: 3.6 ohms • Le: 0.013 mH • Fs: 1,200 Hz • Dimensions: 0.51" (13 mm) W x 1.05" (26.5 mm) L x 0.22" (5.75 mm) H • Adhesive dimensions: 0.46" (11.75 mm) outside diameter • Weight: 2.3 grams.
Dayton Audio BCE-1 22 x 14mm Bone Conducting Exciter
Dayton Audio BCE-1 22 x 14mm Bone Conducting Exciter Dayton Audio BCE exciters produce sound through direct vibration of the bones in the head or are capable of converting surfaces into speakers via vibration when placed on materials such as desks, walls, doors, and many other materials. Key Features Creates sound using bone conduction Leaves ears free for increased listener safety Can be used as a mini tactile transducer when attached to substrates Wide 300 to 19,000 Hz frequency response 4 ohm impedance with 1W power handling Dayton Audio BCE-1 22 x 14mm Bone Conducting Exciter Unlike conventional transducers that use moving air to produce sound around you, Dayton Audio BCEs (bone conducting exciters) convert the electrical signal into mechanical vibrations so clean, that the brain interprets the vibrating stimulus as excellent sound. Listener's ears are left free to remain aware of their surroundings, increasing personal safety. When used against materials such as cardboard, wood, steel, and plastics, the BCE operates much like a surface exciter, capable of moving mass to produce robust sound output; much like an invisible speaker! BCEs are excellent for unique OEM sound applications and for the experimenter, where conventional speakers and exciters cannot be used due to size constraints. Note: The frequency response is given when used as a bone conducting transducer. This will change when attached to a substrate, and different substrate materials will have different frequency responses. Polarity is indicated by a small half-moon above the positive solder point. Specifications: • Power handling: 1 watt RMS/2 watt max • Le: 0.56 mH • Impedance: 4 ohm • Re: 3.99 ohms • Frequency response: 300-19,000 Hz • Magnet weight: 0.49 oz. • Fs: 2,100 Hz • Dimensions (L x W x H): 0.85" x 0.57" x 0.31".

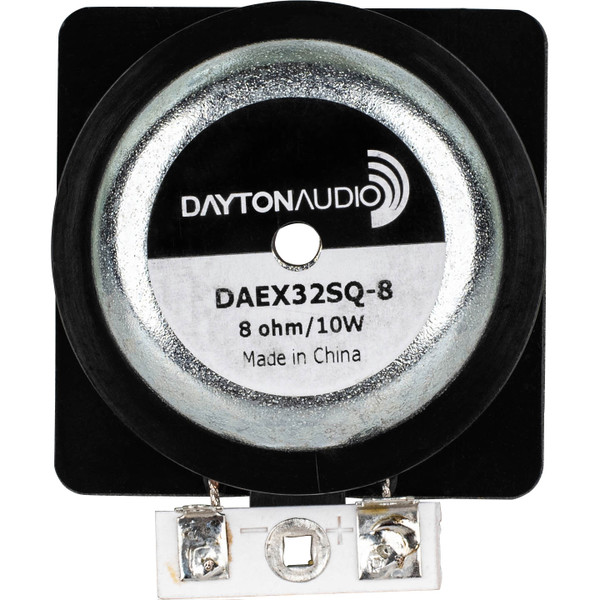

Dayton Audio DAEX32SQ-8
Dayton Audio DAEX32SQ-8 Square Frame 32mm Self SupportingExciter 10W 8 OhmTurn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32SQ-8 square frame exciter uses a 2-layer 1-1/4" voice coil for high power handling. The square frame design provides additional support for the motor assembly to produce lower distortion when driven to its limits. Key FeaturesExtended range and wide dispersion 32 mm 2 layer voice coil for high, 10 watts RMS, power handling Pre-applied 3M VHB adhesive for quick, secure installation 8 ohms impedance for easy connection to most amplifiers Dayton Audio's DAEX32SQ-8 square frame 32 mm exciter gives you the ability to turn almost any solid surface into a truly invisible high-fidelity speaker. With a 1-1/4" 2-layer voice coil this exciter is capable of great power handling and impressive overall output capability. The square frame design gives this exciter additional mounting area to help support the powerful motor assembly and provide improved linearity when mounted to vertical surfaces. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1.25" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.Specifications:• Power handling: 10 watts RMS • VCdia: 1.25" (32 mm) • Nominal impedance: 8 ohms • Re: 8 ohms • Le: 0.51 mH • Fs: 481 Hz • Dimensions: 2" (51 mm) W x 2.43" (61.8 mm) H x 0.89" (22.5 mm) D • Weight: 130 grams.:- Belastbarkeit: 10 Watt RMS - VCdia: 1,25" (32 mm) - Nennimpedanz: 8 Ohm - Re: 8 Ohm - Le: 0,51 mH - Fs: 481 Hz - Abmessungen: 51 mm (2") B x 61,8 mm (2,43") H x 22,5 mm (0,89") T - Gewicht: 130 Gramm.

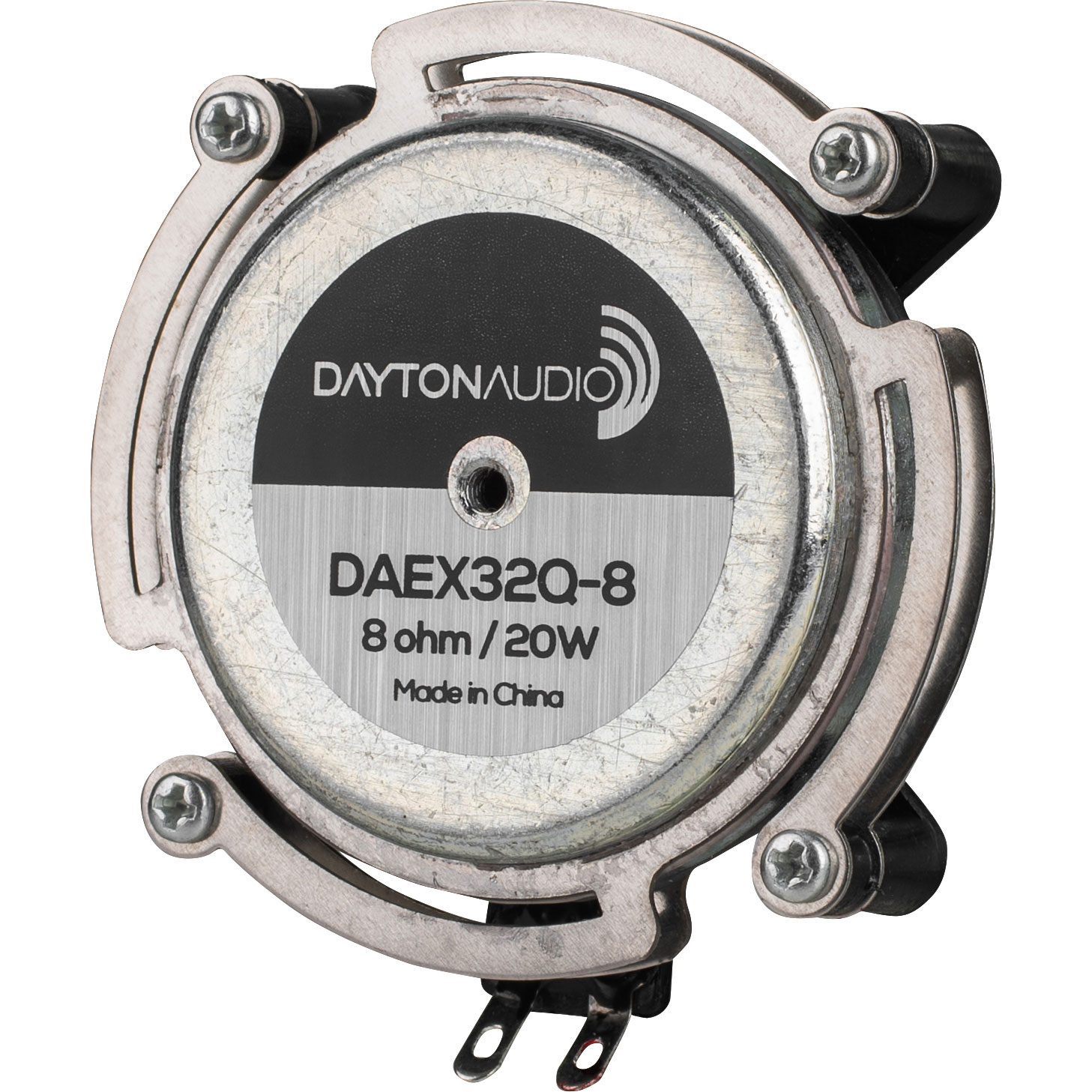

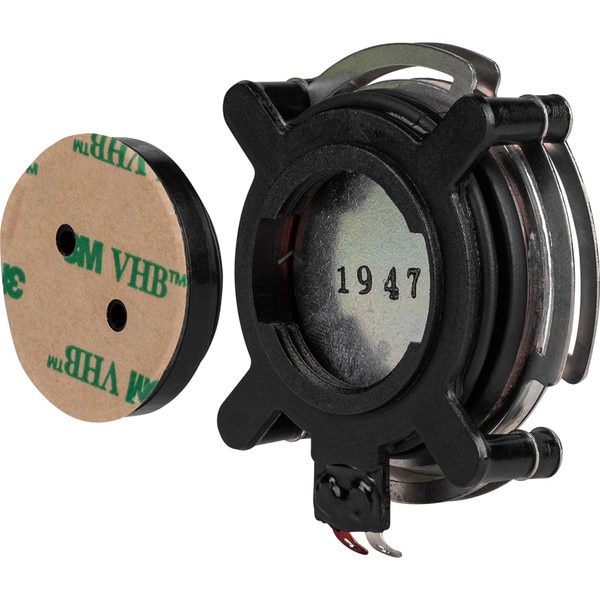

Dayton Audio DAEX32Q-8
Dayton Audio DAEX32Q-8 Dual Steel Spring Balanced 32mm Exciter 20W 8 Ohm When applied to vertical surfaces the Dayton Audio DAEX32Q-8 dual spring balanced exciter has more linear movement to deliver extremely accurate response while producing lower distortion. Key Features Dual steel spider design to better support the large neodymium motor 32 mm two layer voice coil for high, 20 watts RMS, power handling Pre-applied 3M™ VHB™ adhesive for quick, secure installation 8 ohm impedance for easy connection to most amplifiers Dayton Audio DAEX32Q-4 Dual Steel Spring Balanced 32mm Exciter 20W 4 Ohm The DAEX32Q-4 from Dayton Audio can turn most rigid, flat surfaces into a speaker. Designed specifically for mounting to vertical surfaces, this exciter uses a dual spring spider to better support the large neodymium motor providing improved linearity. With a 2-layer 32 mm voice coil, this exciter can handle up to 40 watts peak for high output even when attached to thicker surfaces. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M™ VHB™ (Very High Bond) adhesive is pre-applied... just peel and stick! This exciter is perfect for turning whatever you can imagine into a speaker such as cabinet doors, monitors, windows, garage doors, ect… Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 20 watts RMS, 40 watts peak • VCdia: 32 mm • Nominal impedance: 4 ohms • Re: 3.2 ohms • Le: 0.22 mH • Fs: 320 Hz • Dimensions: 2.38" (60.5 mm) dia. x 0.78" (19.9 mm) H • Adhesive dimensions: 1.26" (32 mm) outside diameter, 0.9" (23 mm) inside diameter • Weight: 132.6 grams.

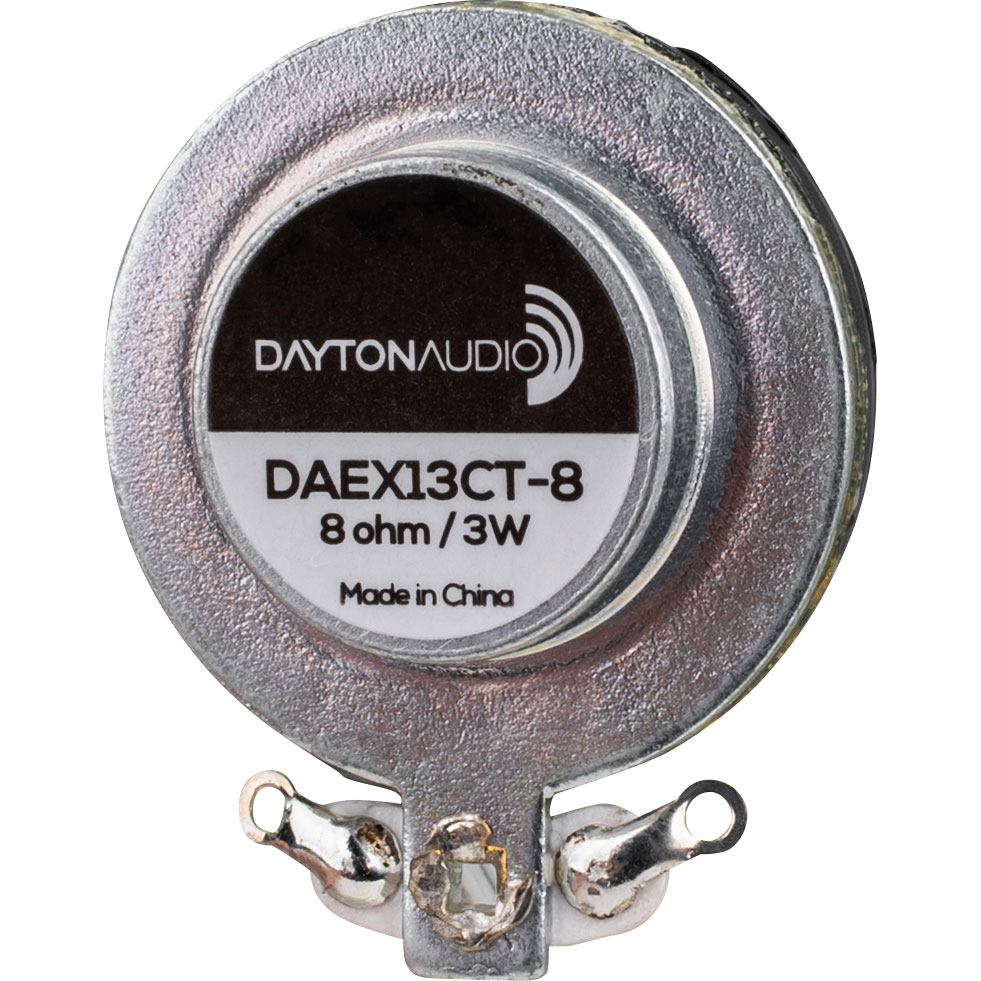

Dayton Audio DAEX13CT-8
Dayton Audio DAEX13-8CT Coin Type 13mm Exciter 3W 8 Ohm Take your product or project to the next level by turning it into a speaker! The DAEX13CT-8 sound exciter, by Dayton Audio, is designed to turn small surfaces into a hidden sound source. Key Features Super small size; just over an inch in diameter, about 3/8" high Pre-applied 3M™ VHB™ adhesive for a quick, secure installation Rare-earth neodymium motor 8-ohm impedance for use with small, Class D amplifiers Dayton Audio DAEX13CT-8 Coin Type 13mm Exciter 3W 8 Ohm Dayton Audio's 13 mm DAEX13CT-8 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Its 8-ohm nominal impedance facilitates the use of series and series-parallel wired arrays for a highly focused, minimum dispersion sound pattern. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 3 watts RMS • VCdia: 13 mm • Nominal impedance: 8 ohms • Re: 7.3 ohms • Le: 0.08 mH • Fs: 775 Hz • Dimensions: 1.04" (26.3 mm) dia. x 0.374" (9.5 mm) H • Adhesive dimensions: 0.62" (15.7 mm) outside diameter • Weight: 12.5 grams.

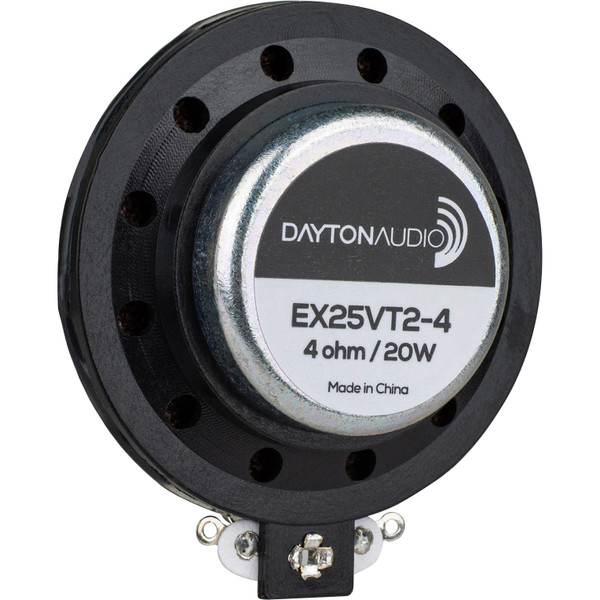

Dayton Audio EX25VT2-4 IMS™ Vented 25mm Interchangeable Hardware Mount Exciter 20W 4 Ohm
Dayton Audio EX25VT2-4 IMS™ Vented 25mm Interchangeable Hardware Mount Exciter 20W 4 OhmTake your product or project to the next level by turning it into a speaker! The EX25VT2-4 is designed by Dayton Audio with the exclusive IMS™ Interchangeable mounting system as well as voice coil cooling air vents, for high-power applications. Key FeaturesSmall size; just over 2" diameter, about 7/8" high Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters Rare-earth neodymium motor and a proprietary voice coil 20 watt RMS power handling for high output Easily swap non-functional units out in the field 4-ohm impedance for use with small, Class D amplifiers Pre-applied 3M VHB™ adhesive for quick, durable installation Test the limits of your imagination and turn any surface into a great sounding speaker system Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Dayton Audio IMS™ Interchangeable Mount exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system even allows you to try out the assortment of exciters offered by Dayton Audio! Aural ExcitementDayton Audio's 25 mm EX25VT2-4 IMS™ coin type exciter features the ability to turn nearly any surface into a speaker, this exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.Exclusive IMS™ Interchangeable Mounting SystemWith Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M VHB™ Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters. Ausführungen verwendet werden, um ein bestehendes, nicht-audio-spezifisches Projekt zu beschallen oder ein tragbares Lautsprechersystem zu erstellen. Das einzigartige Montagesystem ermöglicht es Ihnen sogar, das Sortiment der von Dayton Audio angebotenen Exciter auszuprobieren! Akustische Begeisterung Dayton Audio's 25 mm EX25VT2-4 IMS™ Coin Type Exciter bietet die Möglichkeit, nahezu jede Oberfläche in einen Lautsprecher zu verwandeln. Die geringe Größe dieses Exciters ermöglicht die Audiowiedergabe an Orten, die man sich nie vorstellen konnte: Spielzeug, Monitore, Schranktüren... sogar Fenster! Durch den Einsatz eines Neodym-Magneten wird ein maximaler magnetischer Fluss um die firmeneigene Schwingspule erzeugt, was zu einer höheren Empfindlichkeit im Vergleich zu Excitern ähnlicher Größe führt. Dies wiederum reduziert den Leistungsbedarf und ermöglicht die Verwendung sehr kleiner Audioverstärker, ohne dass die Gesamtleistung beeinträchtigt wird. Die 1-Zoll-Schwingspule und die Kühlluftöffnungen ermöglichen eine höhere Eingangsleistung für Anwendungen mit höherer Ausgangsleistung bei gleichzeitiger Beibehaltung eines schlanken Formfaktors. Exklusives IMS™ System zur austauschbaren Befestigung Mit dem exklusiven IMS™-Montagesystem von Dayton Audio können Sie viele verschiedene Konfigurationen, Platzierungen und Erreger ausprobieren, um die beste Kombination für Ihr Projekt zu finden. Jeder Erreger wird mit einem Montagepad mit Gewinde geliefert, das überall fest installiert werden kann. Die Installation ist einfach: Entfernen Sie das Pad von der Erregerbaugruppe, befestigen Sie das Pad mit 2 Schrauben oder mit dem 3M VHB™-Kleber an Ihrem Projekt und schrauben Sie die Erregerbaugruppe wieder auf das Pad! Die zerstörungsfreie Art der austauschbaren Halterung ermöglicht es Ihnen, verschiedene Erreger zu kombinieren oder nicht funktionierende Einheiten vor Ort auszutauschen, ohne eine Beschädigung Ihres Projekts oder der Erreger zu riskieren.

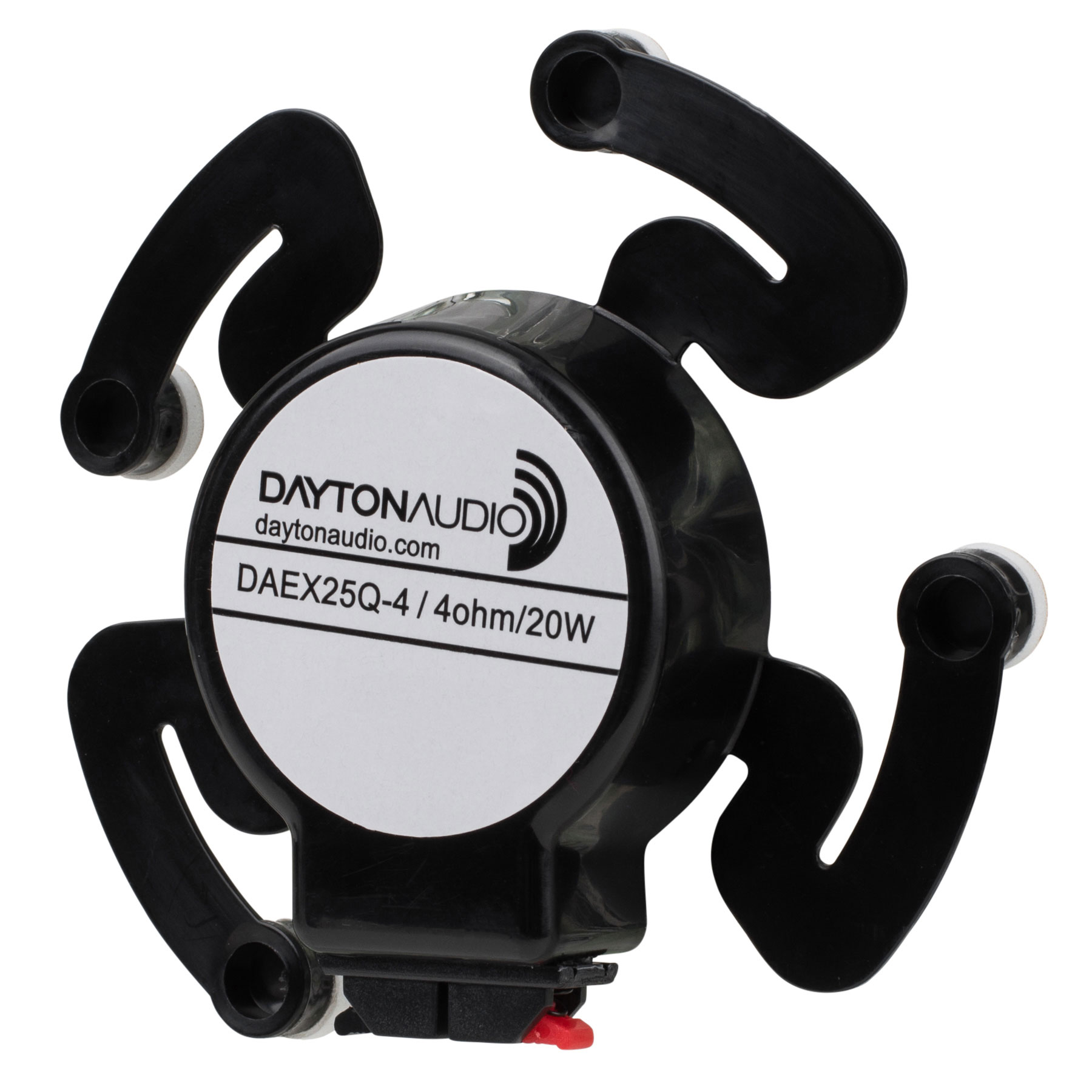

Dayton Audio DAEX25Q-4
Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm Dayton Audio's DAEX25Q-4 features four extended arms for turning larger surfaces into speakers, while providing more bass output . Spring-loaded speaker terminals facilitate quick electrical connection. Key Features Unique, four arm design for exciting a large surface Pre-applied 3M™ VHB™ adhesive for quick, secure installation Rare-earth neodymium motor and a proprietary voice coil 4-ohm impedance for use with small, Class D amplifiers 20 watt RMS power handling for high output Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm Dayton Audio's DAEX25Q-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick! Two spring-loaded terminals are built onto the main body for quick electrical connection. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 20 watts RMS • VCdia: 25 mm • Nominal impedance: 4 ohms • Re: 4.3 ohms • Le: 0.25 mH • Fs (uncoupled): 224 Hz • Dimensions: 3.99" (101.44 mm) overall diameter x 0.97" (24.7 mm) total height • Weight: 90.5 grams.

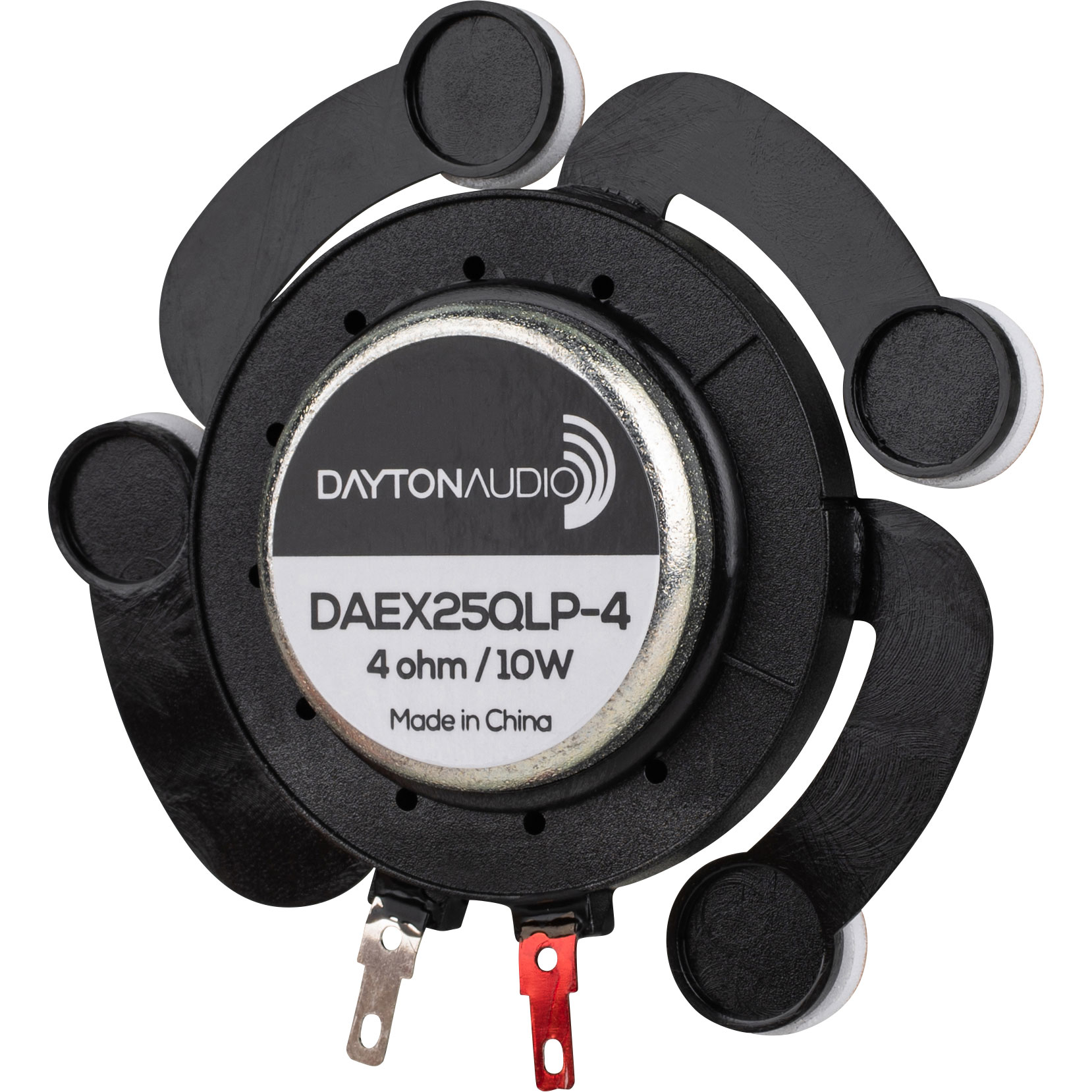

Dayton Audio DAEX25QLP-4
Dayton Audio DAEX25QLP-4 Quad Feet Low Profile 25mm Exciter 10W 4 Ohm Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX25QLP-4 4 ohm sound exciter improves power handling with a vented voice coil. Key Features Four arms provide extra support improving linearity 4 ohm impedance for use with small, Class D amplifiers Rare-earth neodymium motor and a proprietary vented voice coil Turns any flat, rigid surface into a speaker Dayton Audio DAEX25QLP-4 Quad Feet Low Profile 25mm Exciter 10W 4 Ohm Dayton Audio's DAEX25QLP-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick! Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications:• Power handling: 10 watts RMS • VCdia: 1" (25 mm) • Nominal impedance: 4 ohms • Re: 3.8 ohms • Le: 0.28 mH • Fs: 300 Hz • Dimensions: 2.75" (70 mm) overall diameter x 0.75" (19 mm) total height • Weight: 50 grams.

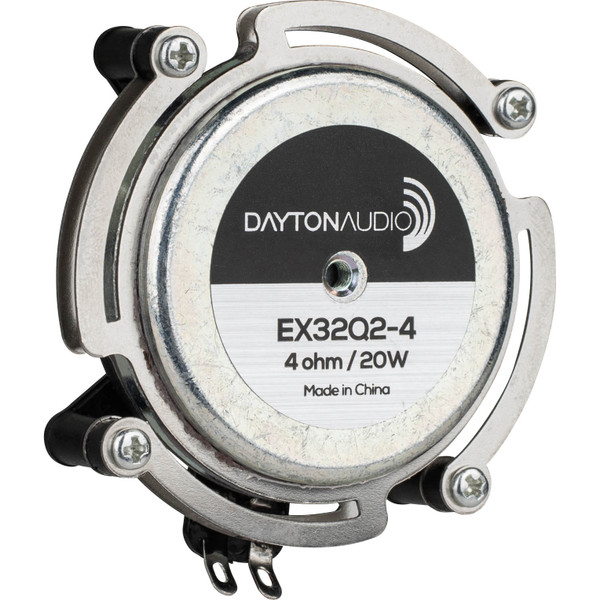

Dayton Audio EX32Q2-4 IMS™ Dual Steel Spring Balanced Interchangeable Hardware Mount 32mm Exciter 20W 4 Ohm
Dayton Audio EX32Q2-4 IMS™ Dual Steel Spring Balanced Interchangeable Hardware Mount 32mm Exciter 20W 4 OhmWhen applied to vertical surfaces the Dayton Audio EX32Q2-4 IMS™ dual spring balanced exciter has more linear movement to deliver extremely accurate response while producing lower distortion, now with the exclusive IMS™ Interchangeable mount Key FeaturesDual steel spider design to better support the large neodymium motor Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters Rare-earth neodymium motor and a proprietary voice coil 32 mm two layer voice coil for high, 20 watts RMS, power handling Easily swap non-functional units out in the field 4-ohm impedance for use with small, Class D amplifiers Pre-applied 3M VHB™ adhesive for quick, durable installation Test the limits of your imagination and turn any surface into a great sounding speaker system Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Dayton Audio IMS™ Interchangeable Mount exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system allows you to try out the assortment of exciters offered by Dayton Audio! Testen Sie die Grenzen Ihrer Fantasie und verwandeln Sie jede Oberfläche in ein großartig klingendes Lautsprechersystem Die Surface Exciter-Technologie bietet eine universelle, kostengünstige Alternative zu Lautsprechern und ermöglicht eine Klangwiedergabe praktisch überall, wo sie gewünscht wird. Probleme wie Wetter, Platzmangel, Vandalismus oder Sichtbarkeit können durch den Einsatz eines Sound Exciters vermieden oder minimiert werden. Dayton Audio IMS™ Interchangeable Mount Exciter können in einer Vielzahl von DIY-Ausführungen verwendet werden, um ein bestehendes, nicht-audio-spezifisches Projekt einfach zu beschallen oder ein tragbares Lautsprechersystem zu erstellen. Das einzigartige Montagesystem ermöglicht es Ihnen, das Sortiment der von Dayton Audio angebotenen Exciter auszuprobieren! Akustische Begeisterung Der EX32Q2-4 IMS™ von Dayton Audio kann die meisten starren, flachen Oberflächen in einen Lautsprecher verwandeln. Dieser Exciter wurde speziell für die Montage an vertikalen Oberflächen entwickelt und verwendet eine doppelte Federspinne, um den großen Neodym-Motor besser zu unterstützen und eine bessere Linearität zu erreichen. Mit einer 2-lagigen 32-mm-Schwingspule kann dieser Exciter eine Spitzenleistung von bis zu 40 Watt erbringen, selbst wenn er an dickeren Oberflächen angebracht ist. Durch den Einsatz eines Neodym-Magneten wird ein maximaler magnetischer Fluss um die firmeneigene Schwingspule erzeugt, was zu einer höheren Empfindlichkeit im Vergleich zu Erregern ähnlicher Größe führt. Dies wiederum reduziert den Leistungsbedarf und ermöglicht die Verwendung sehr kleiner Audioverstärker, ohne dass die Gesamtleistung beeinträchtigt wird. Exklusives IMS™ System zur austauschbaren Befestigung Mit dem exklusiven, austauschbaren IMS™-Montagesystem von Dayton Audio können Sie viele verschiedene Konfigurationen, Platzierungen und Exciter ausprobieren, um die beste Kombination für Ihr Projekt zu finden. Jeder Exciter wird mit einem Montagepad mit Gewinde geliefert, das überall fest installiert werden kann. Die Installation ist einfach: Entfernen Sie das Pad von der Erregerbaugruppe, befestigen Sie das Pad mit 2 Schrauben oder mit dem 3M-Kleber an Ihrem Projekt und schrauben Sie die Erregerbaugruppe wieder auf das Pad! Die zerstörungsfreie Art der austauschbaren Halterung ermöglicht es Ihnen, verschiedene Erreger zu vergleichen oder nicht funktionierende Einheiten vor Ort auszutauschen, ohne eine Beschädigung Ihres Projekts oder der Erreger zu riskieren.

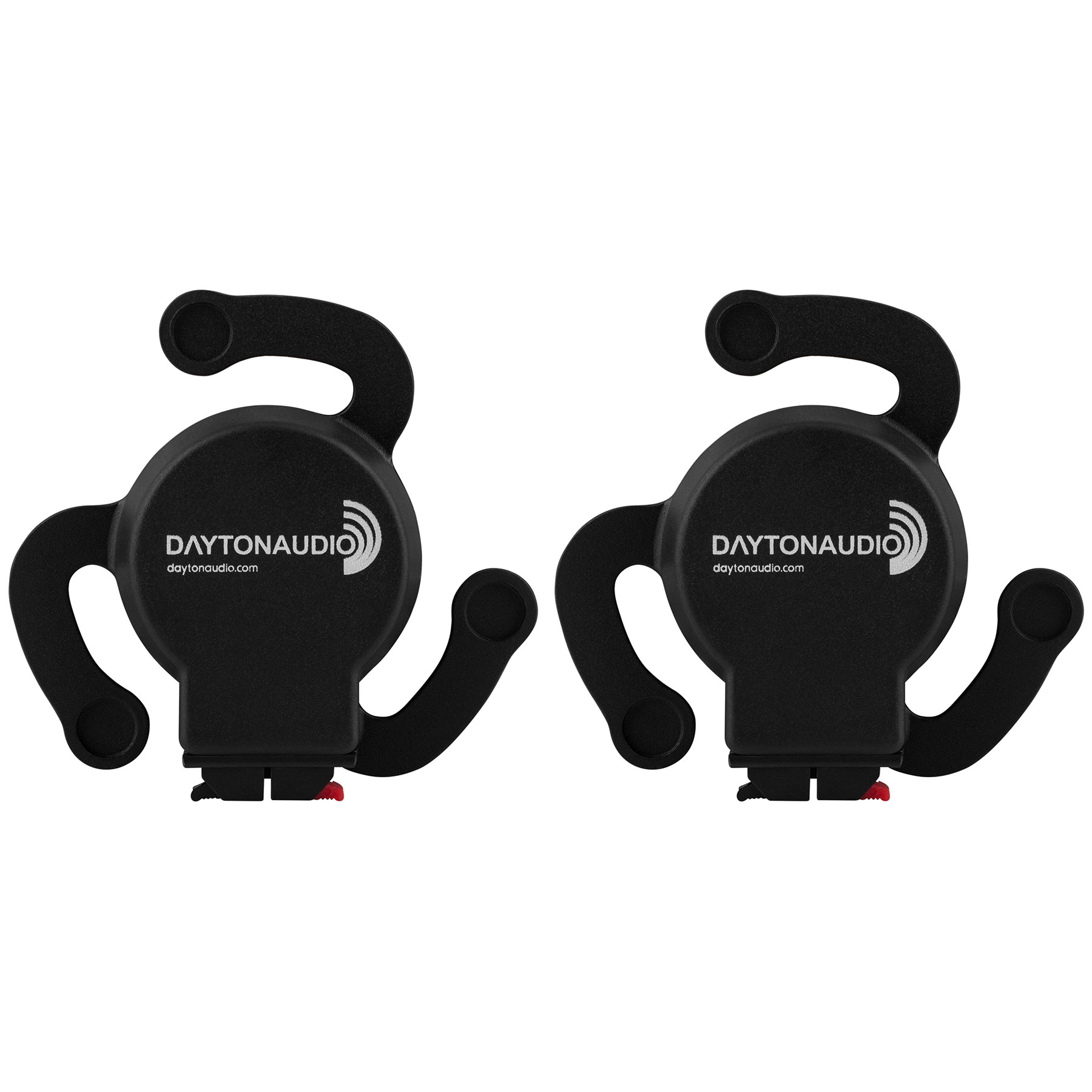

Dayton Audio DAEX25 Sound Exciter Pair
Dayton Audio DAEX25 Sound Exciter Pair Dayton Audio DAEX25 Sound Exciters turn virtually any solid object into a speaker by vibrating it at speeds of up to 20,000 cycles per second. Test the limits of your imagination. Key Features Turn any solid surface into a great sounding speaker system Create a completely hidden surround sound system 3M adhesive pads for secure and fast placement Wideband frequency response (dependent on attached material) Dayton Audio DAEX25 Sound Exciter Pair Dayton Audio DAEX25 Sound Exciters turn virtually any solid object into a speaker by vibrating it at speeds of up to 20,000 cycles per second. The vibrations modulate the air, which is then decoded by the brain as sound. We've tested and placed Sound Exciters on nearly everything you can imagine; under a desk, in an overhead cabinet, behind picture frames, inside cans, behind paper plates, inside binders, cardboard, scraps of wood and even the box they came in! Test the limits of your imagination. Each stick on Sound Exciter is designed for a wide frequency response and great sensitivity. Built-in push terminals enable quick connection to speaker wire (sold separately). Strong 3M adhesive pads affix to nearly any solid surface for secure, long-lasting playback. Sold in pairs. Specifications: • Power handling: 5 watts RMS/10 watts max • Impedance: 8 ohms • VCdia: 1" • Re: 7.15 • Le: 0.28 mH • Fs: 298 Hz • Dimensions: 3-1/2" dia. x 3/4".

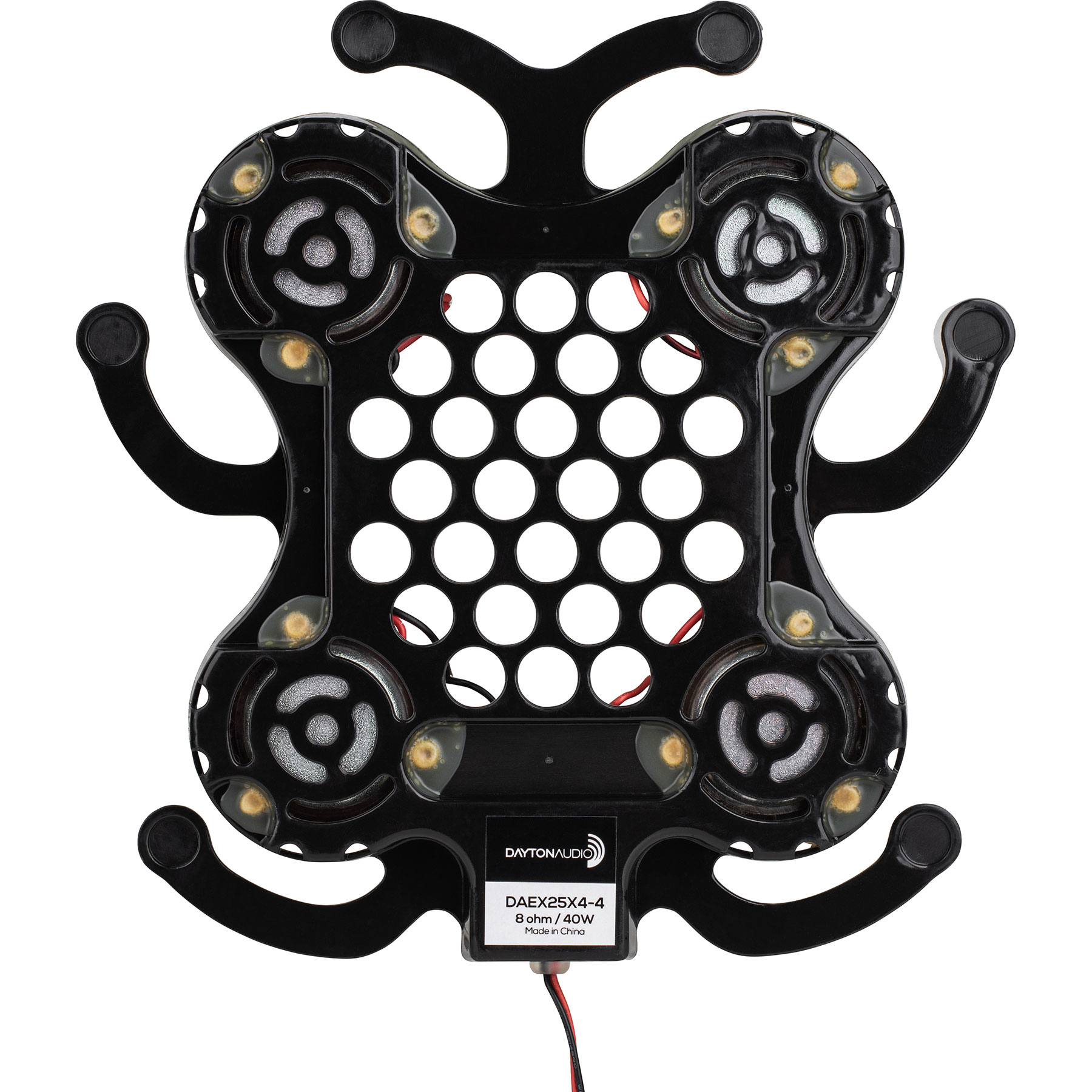

Dayton Audio DAEX25X4-4
Dayton Audio DAEX25X4-4 Bullfrog Vented Disc Spider 25mm x 4 Exciter with 320mm Cable 40W 8 Ohm Dayton Audio's unique DAEX25X4-4 exciter assembly employs an array of four separate exciters coupled together with a frame. This combined motor strength actuates an area larger than what conventional exciters can drive, resulting in higher power handling and more output. Key Features Pre-applied 3M™ VHB™ adhesive for quick, secure installation Four 24 mm voice coils improves power handling to 40 watts RMS Rare-earth neodymium motor and proprietary voice coils Easy 8 ohm load, can be powered by most amplifiers Dayton Audio DAEX25X4-4 Bullfrog Vented Disc Spider 25mm x 4 Exciter with 320mm Cable 40W 8 Ohm The Dayton Audio exciter assembly's unique design uses four 25 mm exciters coupled to a plastic frame to actuate a larger area with more force than conventional designs. This array of exciters is wired in a series-parallel configuration for an overall impedance of 8 ohms and power handling of up to 40 watts RMS. The DAEX25X4-4 exciter features the same ability to turn nearly any surface into a speaker as other exciters and tactile transducers do, only with a larger contact area and moving mass that increases energy transfer. Perfect for use in walls, drop ceilings, or even cabinet doors. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Connection is made with 10" wire leads to keep installation and wiring as simple as possible. Specifications: • Power handling: 40 watts RMS • VCdia: 4 x 25 mm • Nominal impedance: 8 ohms • Re: 7.3 ohms • Le: 0.29 mH • Fs: 285 Hz • Dimensions: 7.5" W x 7.5" H x 0.75" D • Weight: 240 grams.

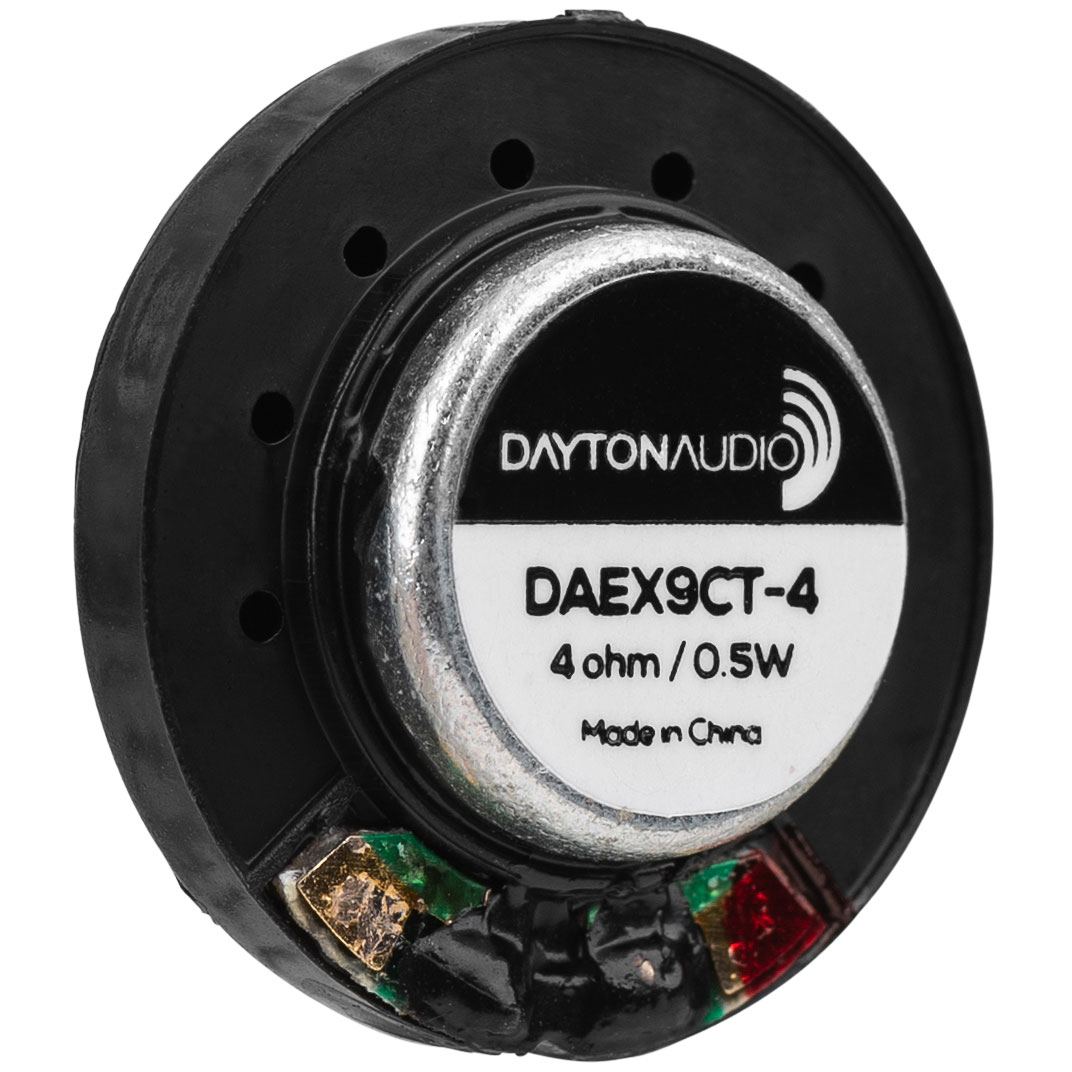

Dayton Audio DAEX9CT-4
Dayton Audio DAEX9CT-4 Coin Type 9mm Exciter 0.5W 4 Ohm Take your product or project to the next level by turning it into a speaker! The DAEX9CT-4 is the smallest of the Dayton Audio Exciters and is designed to turn small surfaces into a hidden sound source. Key Features Super small size; less than an inch in diameter, less than 3/8" high 4-ohm impedance for use with small, Class D amplifiers Turns almost any surface into a speaker Pre-applied 3M™ VHB™ adhesive for quick, secure installation Rare-earth neodymium motor Dayton Audio DAEX9CT-4 Coin Type 9mm Exciter 0.5W 4 Ohm Dayton Audio's 9 mm DAEX9CT-4 coin-type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's extremely small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Its 4-ohm nominal impedance facilitates the use of series and series-parallel wired arrays for a highly focused, minimum dispersion sound pattern. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 0.5 watts RMS • VCdia: 9 mm • Nominal impedance: 4 ohms • Re: 3.6 ohms • Le: 0.02 mH @ 10 kHz • Fs: 1,200 Hz • Dimensions: 0.83" (20.9 mm) dia. x 0.33" (8.5 mm) H • Adhesive dimensions: 0.43" (10.8 mm) outside diameter, 0.030" (7.7 mm) inside diameter • Weight: 3.9 grams.

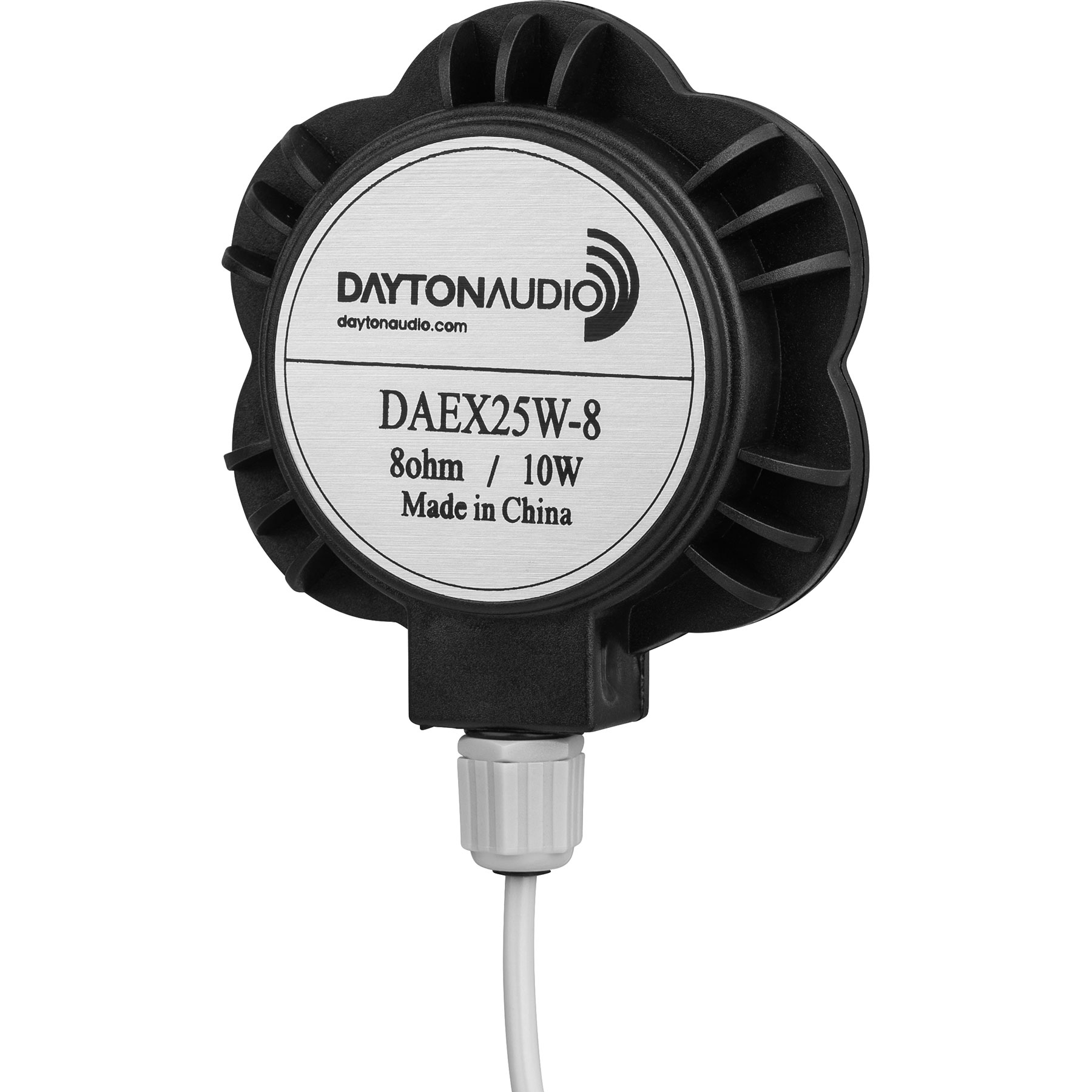

Dayton Audio DAEX25W-8
Dayton Audio DAEX25W-8 Waterproof 25mm Exciter 10W 8 Ohm Inclement conditions are no problem for this hermetically sealed exciter, which can be attached to surfaces outdoors to create speakers out of everyday items. Key Features Designed for extreme outdoor environments where normal speakers cannot go 3M™ VHB™ adhesive disc for secure, fast placement IP67 rated watertight enclosure Includes a 68" wiring harness Dayton Audio DAEX25W-8 Waterproof 25mm Exciter 10W 8 Ohm The Dayton Audio's DAEX25W-8 exciter is designed to work in extreme environments where normal loudspeakers cannot operate. Outdoor applications are no problem for this hermetically sealed (watertight) exciter which can be attached to surfaces outdoors to create speakers out of everyday items. Garage door, boat cabin structures, garden furniture, etc. can all be made to vibrate using this exciter and thus generate sound. A high performance 3M VHB (Very High Bond) adhesive disc allows the DAEX25W-8 to be attached to a wide range of materials without any mechanical support required, and an IP67 rating means it is 100% dust-tight and has been immersed in water to a depth of 1 meter for 1 hour without any liquid entering the exciter chamber. A 68" long integrated cable is included for connection to an amplifier. Specifications: • Power handling: 10 watts RMS • VCdia: 25 mm • Nominal impedance: 8 ohms • Re: 7.6 ohms • Le: 0.58 mH • Fs: 1,276 Hz • Dimensions: 2.76" (70.2 mm) overall diameter x 0.83" (21 mm) total height • Adhesive dimensions: 1.81" (46 mm) diameter • Weight: 83.9 grams.

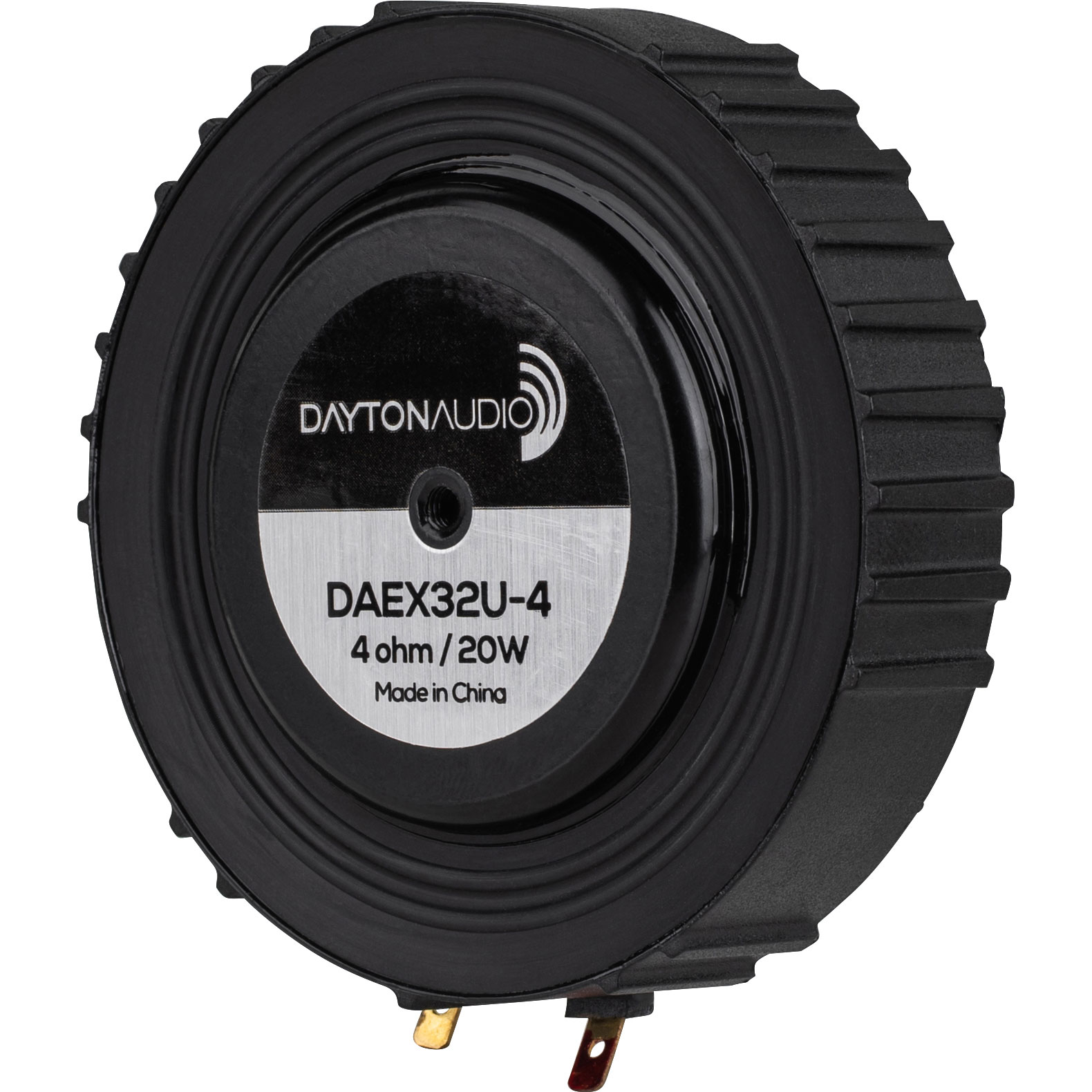

Dayton Audio DAEX32U-4
Dayton Audio DAEX32U-4 Ultra 32mm Exciter 20W 4 Ohm Turn large, rigid surfaces into speakers with the Dayton Audio DAEX32U-4 audio exciter. Includes pre-attached 3M VHB adhesive for maximum energy transfer, even on moving objects! Key Features Heavy-duty design with a 32 mm voice coil for a high 20 watt RMS power handling Pre-applied 3M™ VHB™ adhesive for quick, secure installation Rare-earth neodymium motor and a proprietary two-layer voice coil 4 ohm impedance for use with small, Class D amplifiers Dayton Audio DAEX32U-4 Ultra 32mm Exciter 20W 4 Ohm Dayton Audio's DAEX32U-4 Ultra exciter is built to turn large, thick, rigid surfaces into speakers. The 32 mm voice coil makes it perfect for large glass panes, furniture, and surfaces that would normally resist the effects of an exciter. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small Class D audio amplifiers, without sacrificing total output. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body... just peel and stick! Two male spade quick-disconnect terminals are built onto the main body for quick electrical connection. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications: • Power handling: 20 watts RMS • VCdia: 32 mm • Nominal impedance: 4 ohms • Re: 3.5 ohms • Le: 0.23 mH • Fs: 160 Hz • Dimensions: 2.625" (66 mm) overall diameter x 0.75" (19 mm) total height • Adhesive dimensions: 1.64" (41.7 mm) outside diameter, 0.86" (21.7 mm) inside diameter • Weight: 140 grams.

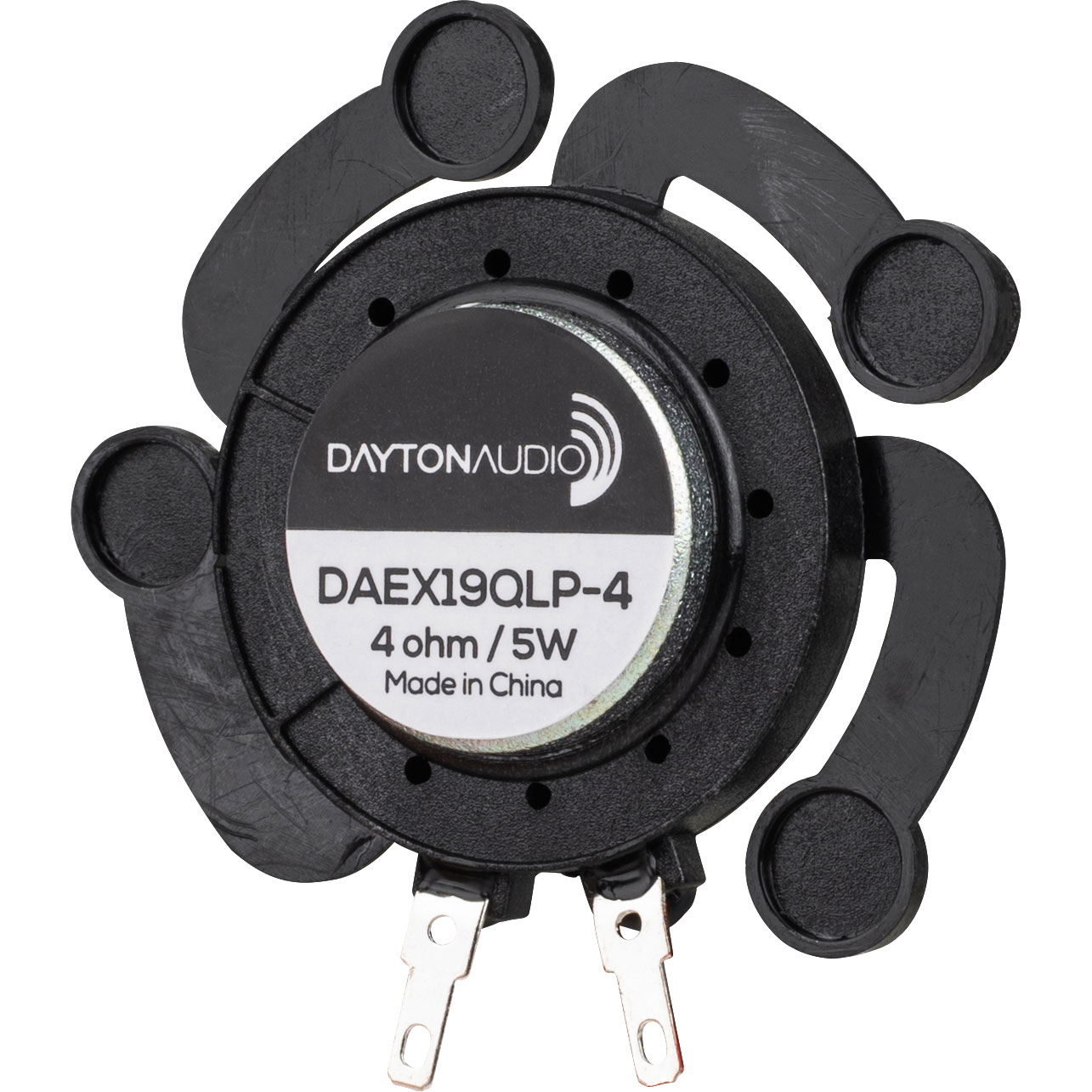

Dayton Audio DAEX19QLP-4
Dayton Audio DAEX19QLP-4 Quad Feet Low Profile 19mm Exciter 5W 4 Ohm Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX19QLP-4 4 ohm sound exciter improves power handling with a vented voice coil. Key Features Rare-earth neodymium motor and a proprietary vented voice coil 4 ohm impedance for use with small, Class D amplifiers Four arms provide extra support improving linearity Turns any flat, rigid surface into a speaker Dayton Audio DAEX19QLP-4 Quad Feet Low Profile 19mm Exciter 5W 4 Ohm Dayton Audio's DAEX19QLP-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 0.75" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick! Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Specifications:• Power handling: 5 watts RMS • VCdia: 19 mm • Nominal impedance: 4 ohms • Re: 3.5 ohms • Le: 0.13 mH • Fs: 450 Hz • Dimensions: 2.25" (57 mm) overall diameter x 0.5" (12 mm) total height • Weight: 24.2 grams.
Montagesatz für BST-1
Montage Kit for BST-1Mounting Kit for BST-1 The mounting kit is specifically designed for the secure attachment of your BST-1 Bass Shaker. The bracket has 8-mm holes and requires 6-mm or 8-mm countersunk screws. Additionally, you will need four M4 screws and nuts with a length of 14-16 mm to attach the shakers to the bracket. With this mounting kit, you can securely and reliably install your shakers exactly where you need them. Check the hole spacing diagram to ensure it meets your requirements, and enjoy a clean and reliable installation of your bass shaker. The package includes four M4 screws and nuts (14-16 mm long) to attach the BST-1 to the bracket.

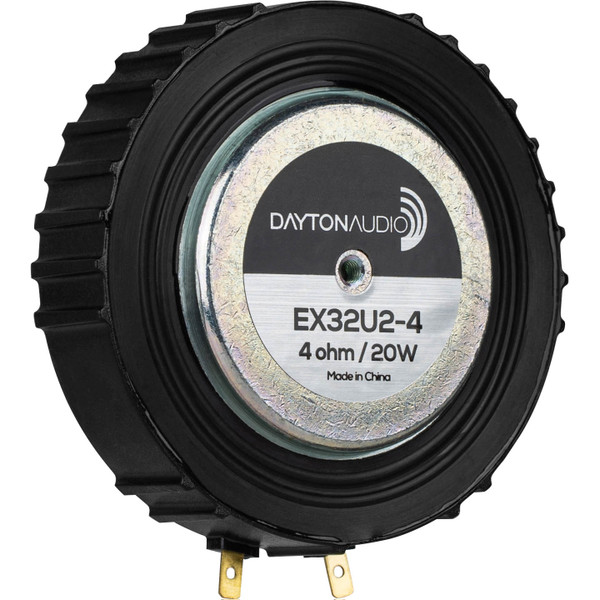

Dayton Audio EX32U2-4 IMS™ Ultra 32mm Interchangeable Hardware Mount Exciter 20W 4 Ohm
Dayton Audio EX32U2-4 IMS™ Ultra 32mm Interchangeable Hardware Mount Exciter 20W 4 OhmTurn large, rigid surfaces into speakers with the Dayton Audio EX32U2-4 IMS™ audio exciter. Includes pre-attached 3M VHB™ adhesive for maximum energy transfer, even on moving objects! Key FeaturesSmall size; just under 2" diameter Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters Rare-earth neodymium motor and a proprietary two-layer voice coil Heavy-duty design with a 32 mm voice coil for a high 20 watt RMS power handling Easily swap non-functional units out in the field 4-ohm impedance for use with small, Class D amplifiers Pre-applied 3M VHB™ adhesive for quick, durable installation Test the limits of your imagination and turn any surface into a great sounding speaker system Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Dayton Audio IMS™ Interchangeable Mount exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system allows you to try out the assortment of exciters offered by Dayton Audio! Aural Excitement Dayton Audio's EX32U2-4 IMS™ Ultra exciter is built to turn large, thick, rigid surfaces into speakers. The 32 mm voice coil is attached to a high-strength spider for maximum restoring force when large amounts of power are applied, making it perfect for large glass panes, furniture, and surfaces that would normally resist the effects of an exciter! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Exclusive IMS™ Interchangeable Mounting SystemWith Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters. maximale Rückstellkraft sorgt, wenn große Mengen an Energie zugeführt werden. Das macht ihn perfekt für große Glasscheiben, Möbel und Oberflächen, die normalerweise der Wirkung eines Exciters widerstehen würden! Durch den Einsatz eines Neodym-Magneten wird ein maximaler magnetischer Fluss um die firmeneigene Schwingspule erzeugt, was zu einer höheren Empfindlichkeit im Vergleich zu Erregern ähnlicher Größe führt. Dies wiederum reduziert den Leistungsbedarf und ermöglicht die Verwendung sehr kleiner Audioverstärker, ohne dass die Gesamtleistung beeinträchtigt wird. Exklusives IMS™ System zur austauschbaren Befestigung Mit dem exklusiven, austauschbaren IMS™-Montagesystem von Dayton Audio können Sie viele verschiedene Konfigurationen, Platzierungen und Exciter ausprobieren, um die beste Kombination für Ihr Projekt zu finden. Jeder Exciter wird mit einem Montagepad mit Gewinde geliefert, das überall fest installiert werden kann. Die Installation ist einfach: Entfernen Sie das Pad von der Erregerbaugruppe, befestigen Sie das Pad mit 2 Schrauben oder mit dem 3M-Kleber an Ihrem Projekt und schrauben Sie die Erregerbaugruppe wieder auf das Pad! Die zerstörungsfreie Art der austauschbaren Halterung ermöglicht es Ihnen, verschiedene Erreger zu vergleichen oder nicht funktionierende Einheiten vor Ort auszutauschen, ohne eine Beschädigung Ihres Projekts oder der Erreger zu riskieren.
